Product Type	Digital Home Cinema System (DVD Receiver)
Model	HC-4250 (part of HC-4200 series)
Dimensions (W x D x H)	430 x 380 x 55 mm
Weight	6.7 kg
Power Supply	AC 230V / 50Hz
Power Consumption (Operating)	90 W
Power Consumption (Standby)	2.8 W
Front/Center/Rear Speaker Output (RMS)	50 W per channel at 6 ohms, 10% THD
Subwoofer Output (RMS)	80 W at 4 ohms, 10% THD
Audio Decoders	Dolby Digital, DTS, Pro Logic II
FM Tuner Range	87.5 - 108.0 MHz (Europe/Australia version)
Video Outputs	Composite, S-Video (DVD only), Component (Y/Pb/Pr), SCART
Digital Audio Inputs	Coaxial, Optical
Digital Audio Output	Optical
Disc Playback	DVD, VCD, Audio CD, MP3
Firmware Upgrade	Via CD-R with update file; automatic detection and flash
Speaker Impedance (Front/Center/Surround)	6 ohms minimum
Speaker Impedance (Subwoofer)	4 ohms minimum
Cleaning	Wipe with dry cloth; do not use liquid cleaners
Safety Certifications	CE, UL (depending on region)

Frequently Asked Questions - HC-4250 DAEWOO

What is the power output of the Daewoo HC-4250?

The HC-4250 delivers 50W per channel (front, center, rear) at 6 ohms and 80W for the subwoofer at 4 ohms, all at 10% THD.

Which disc formats can the HC-4250 play?

It supports DVD, VCD, Audio CD, and MP3 discs. It also plays CD-R/RW with compatible files.

How do I connect the HC-4250 to my TV?

Use a SCART cable or composite/S-Video/component cables to the corresponding inputs on your TV. For best quality, connect via SCART or component.

Can I use the HC-4250 with external speakers?

Yes, but only with speakers of 6 ohms (front, center, surround) and 4 ohms (subwoofer). Do not short-circuit or connect multiple speakers to the same terminal.

How do I upgrade the firmware?

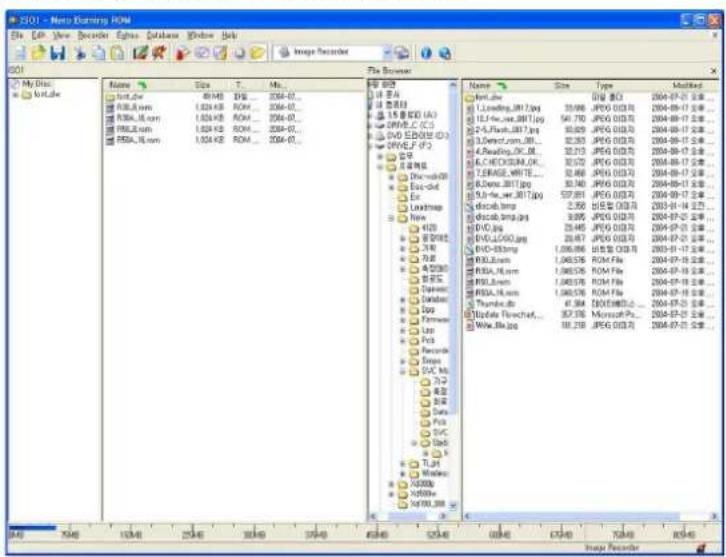

Download the firmware file (e.g., A50_8.ROM), burn it onto a CD-R with a dummy folder (>10MB), insert the disc, and the system will automatically update. Do not interrupt power during update.

What should I do if there is no sound?

Check if the unit is muted, volume is turned up, and input source is correct. Also verify speaker connections and that the correct audio output format is selected (e.g., PCM vs bitstream).

Does the HC-4250 have a radio tuner?

Yes, it includes an FM tuner with RDS support (depending on region). Connect the supplied FM antenna to the rear panel.

How do I clean the HC-4250?

Use a soft, dry cloth to wipe the exterior. Do not use any liquid or aerosol cleaners, as they may damage the electronics.

What is the standby power consumption?

In standby mode, the unit consumes 2.8W. To save energy, unplug the power cord if not used for extended periods.

Can I control the HC-4250 with a universal remote?

Yes, the unit uses standard IR codes. Look for codes for Daewoo DVD receivers or try code search with your universal remote.

USER MANUAL HC-4250 DAEWOO

Digital Home Cinema System

Model: HC-4100B/4200B Series

HC-4130( ) / HC-4230( ) ×

HC-4150( ) / HC-4250( ) ×

HC-4160( ) / HC-4260( ) ×

HC-4180( ) / HC-4280( ) ×

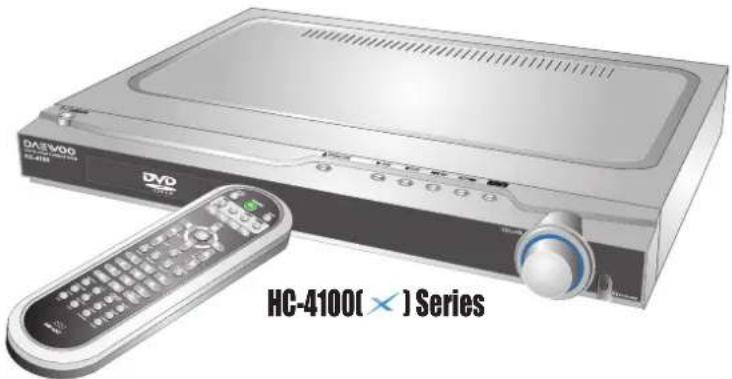

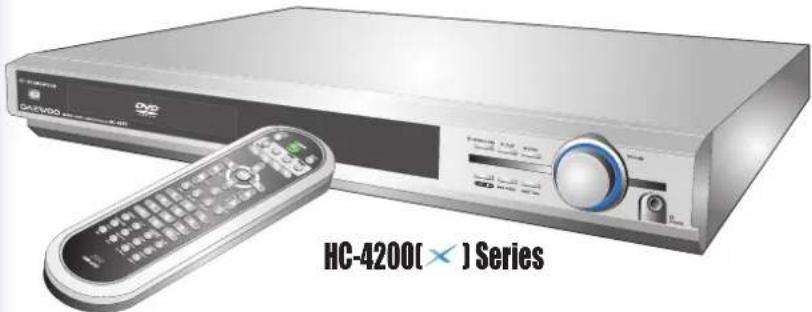

Illustration of a DAEWOD DVD series device with a remote control and antenna (no text or symbols on the device itself)

DIGITAL HOME CINEMA SYSTEM

HC4100[/4200[ ] Series

HC-4130( ) / 4150( ) / 4160( ) / 4180( )

HC-4230[] / 4250[] / 4260[] / 4280[]

Contents

1. SAFETY PRECAUTIONS....1/2

2. SPECIFICATIONS....3

3. LOCATION OF USERS CONTROLS....4/6

FRONT PANEL
- REAR PANEL
•DISPLAY
• REMOTE CONTROLLER

1. CONNECTING TO EQUIPMENT....7/8

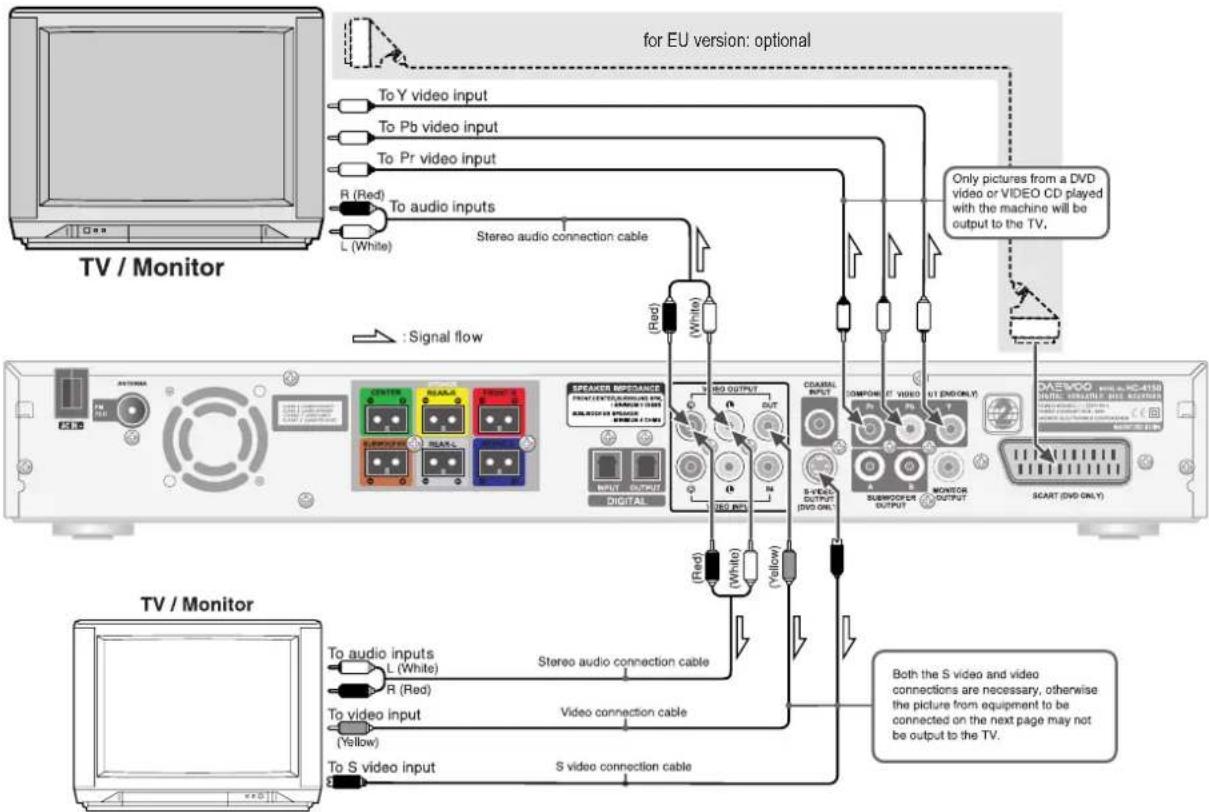

2. CONNECTING TO TV
   • CONNECTING TO AUDIO & VIDEO

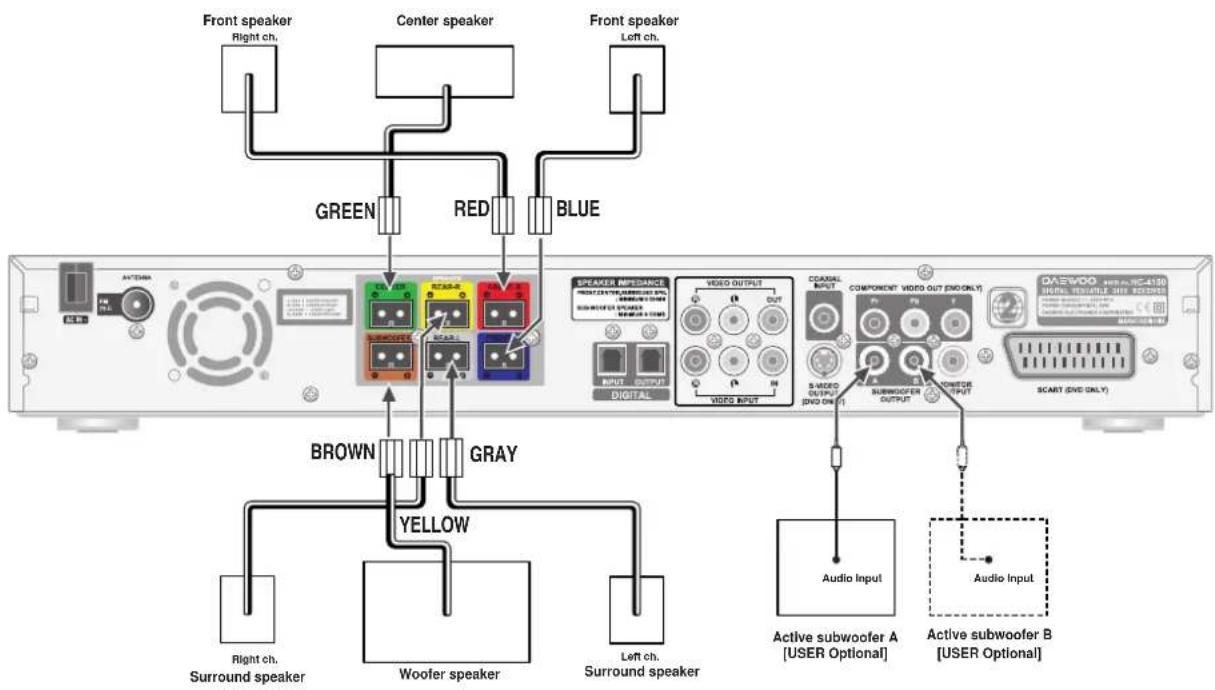

3. CONNECTING TO SPEAKER

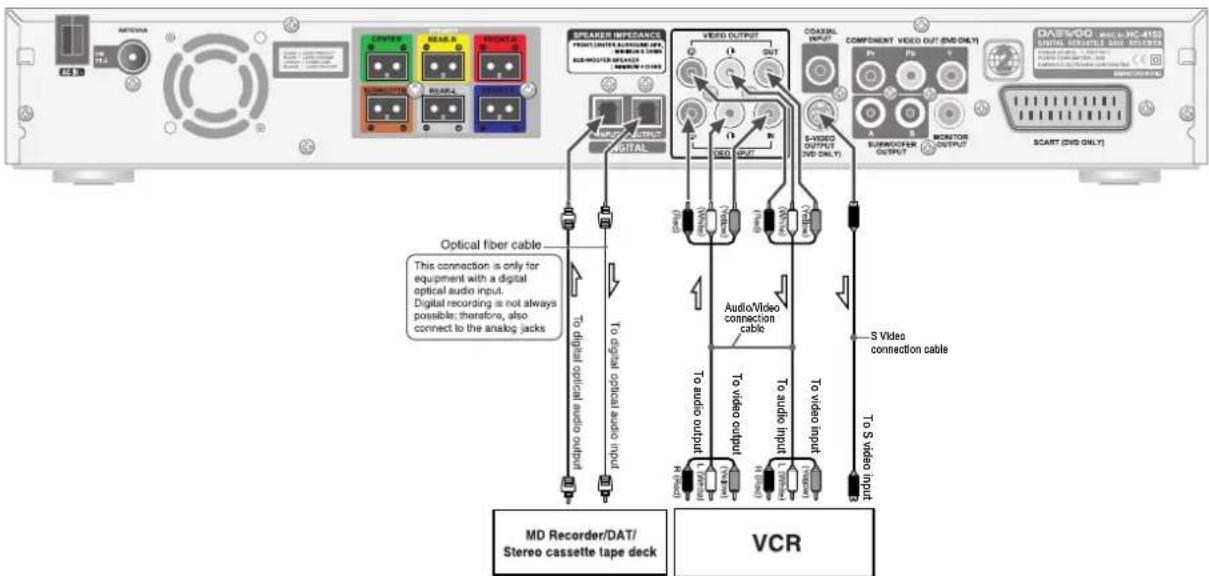

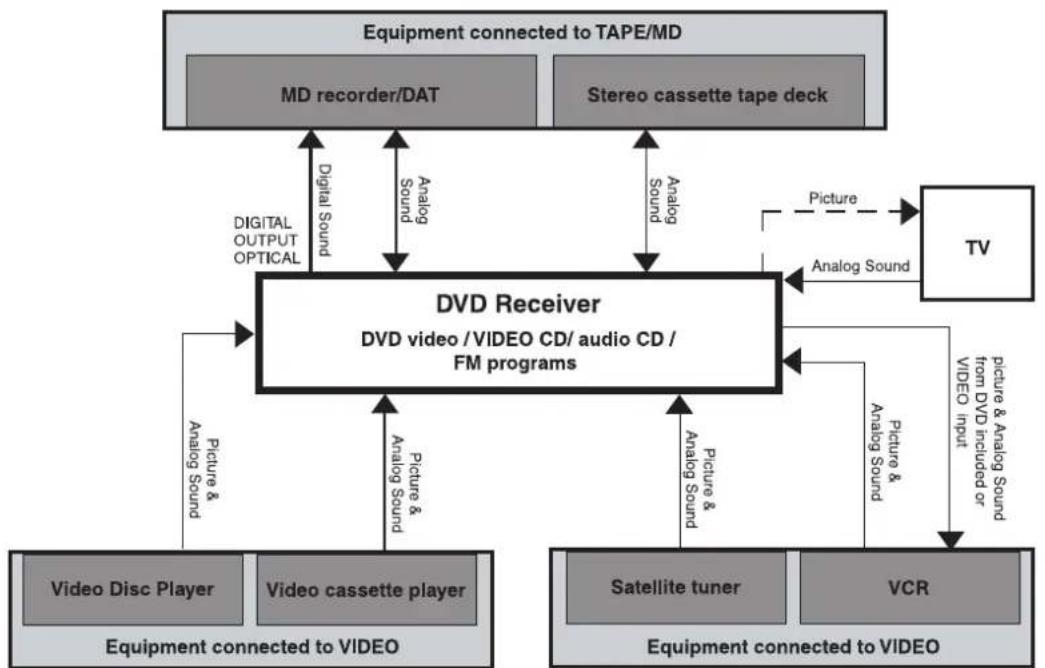

4. CONNECTING TO RECORDING EQUIPMENT

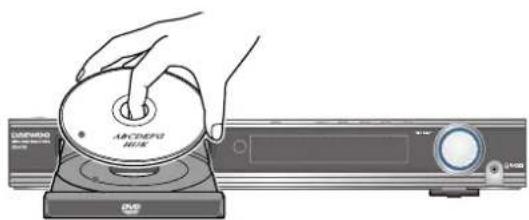

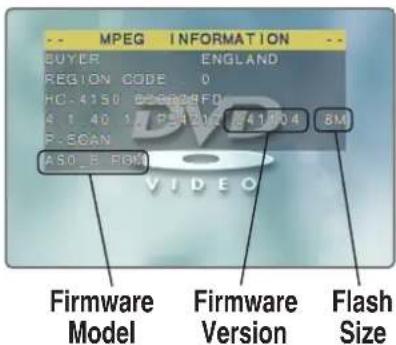

5. FIRMWARE UPGRADE 9/10

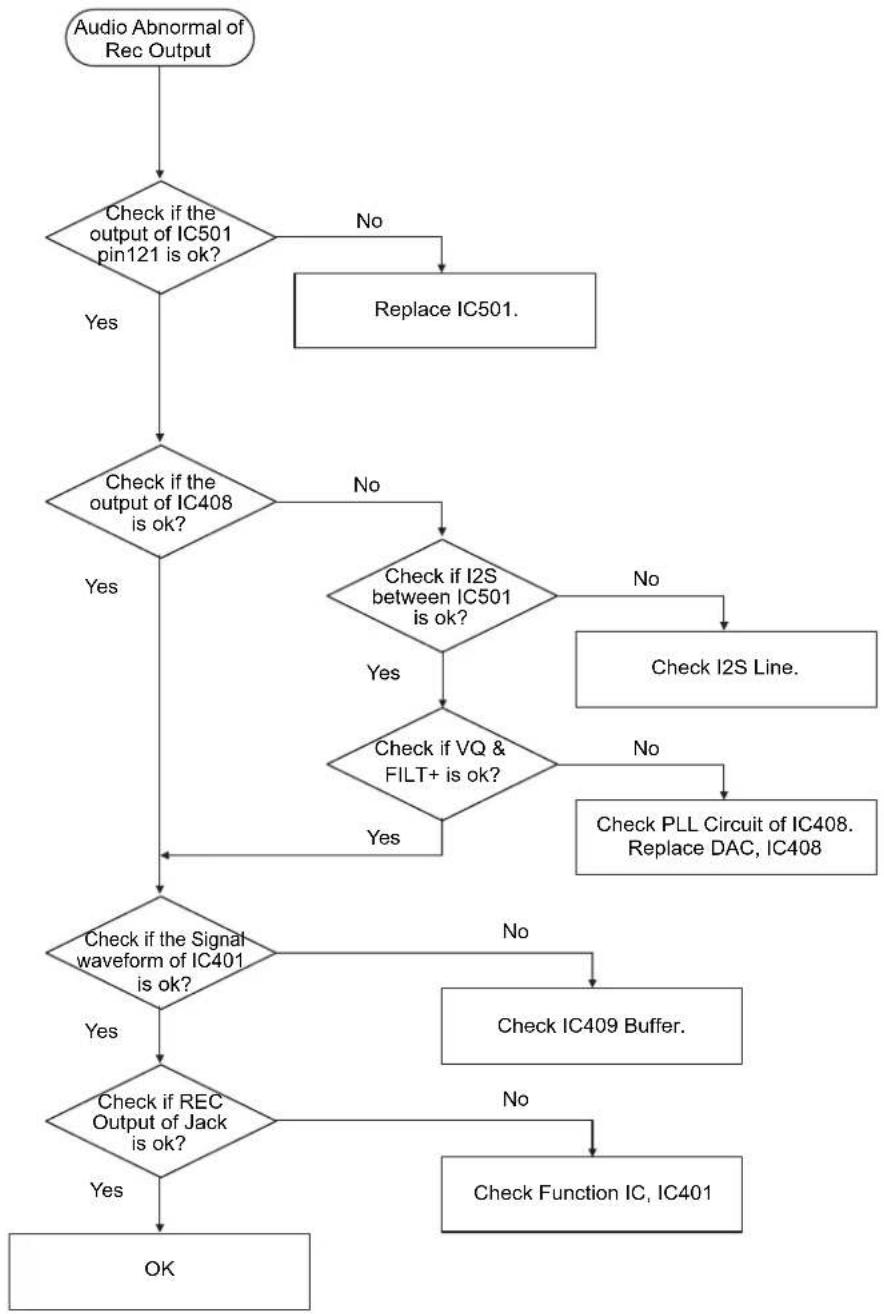

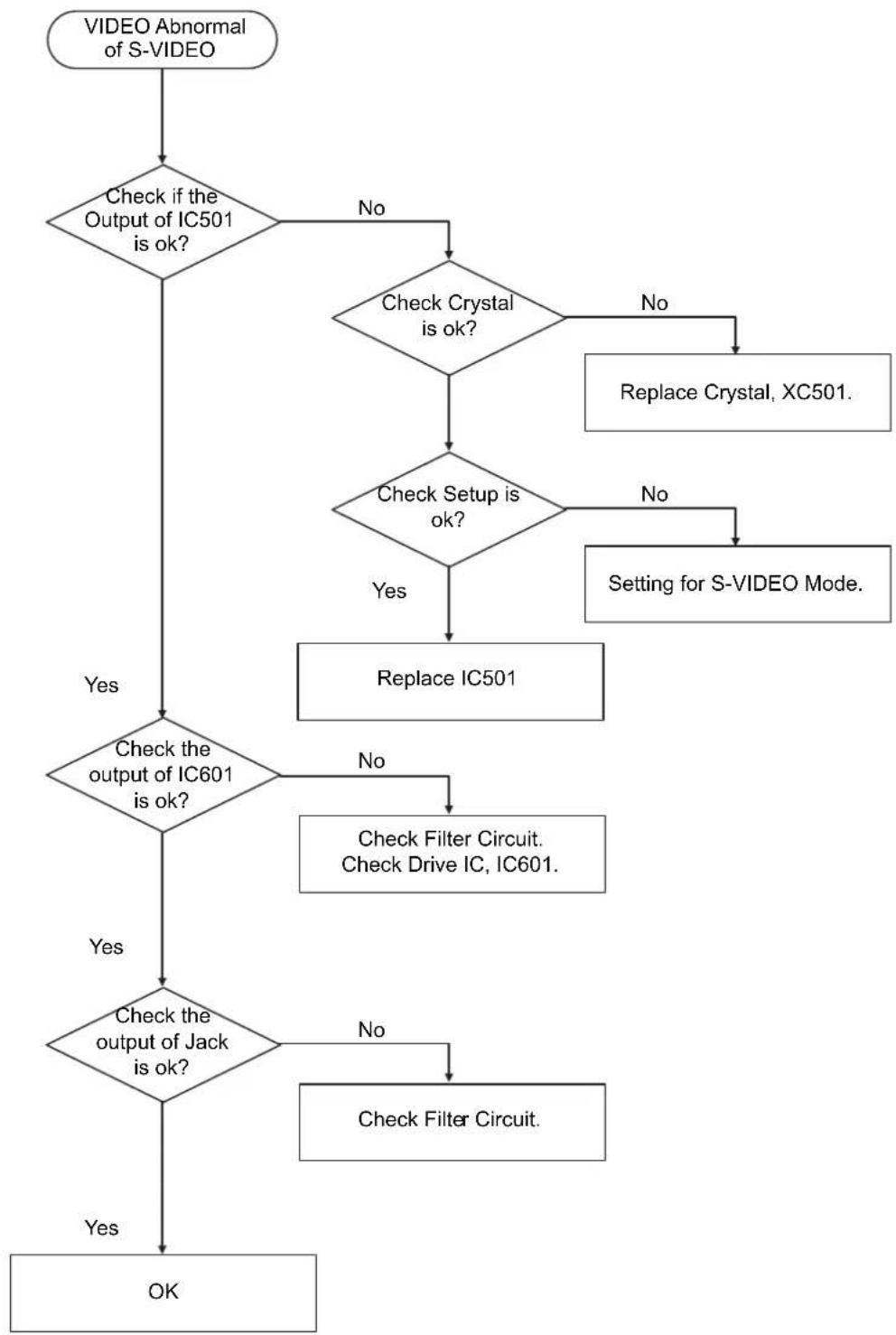

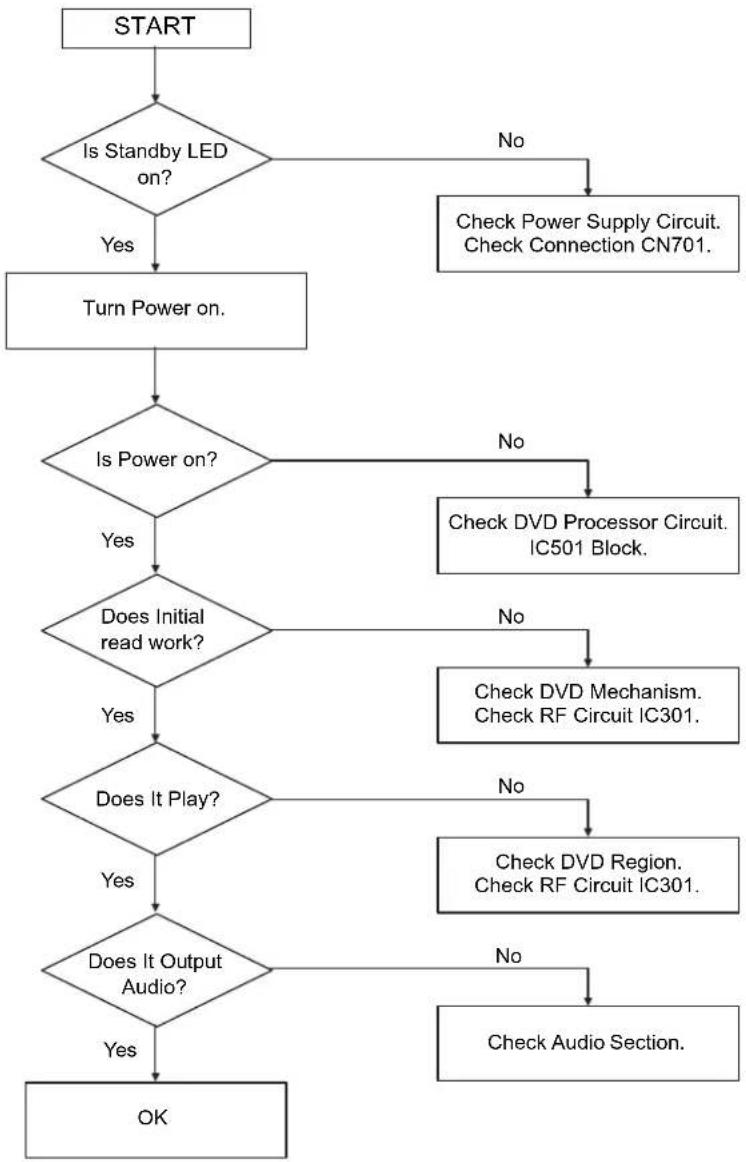

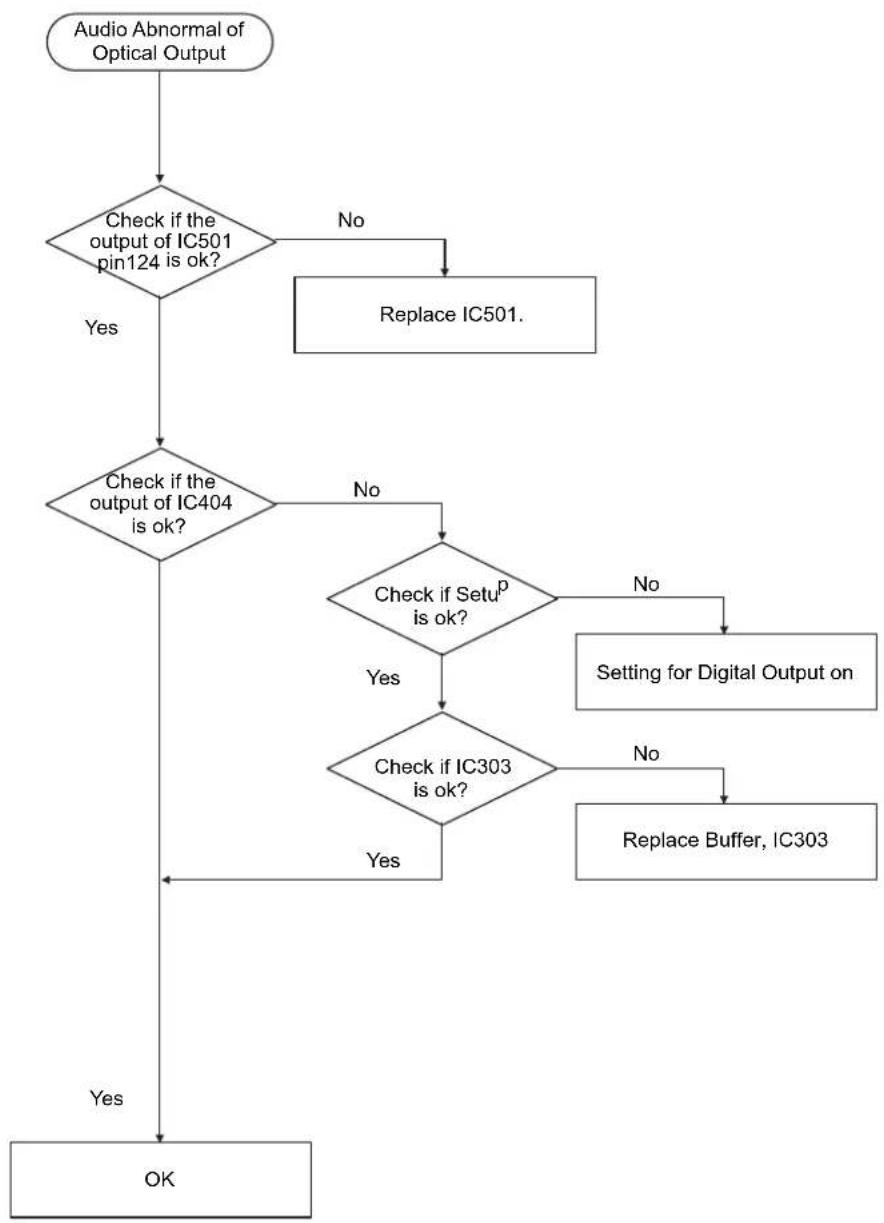

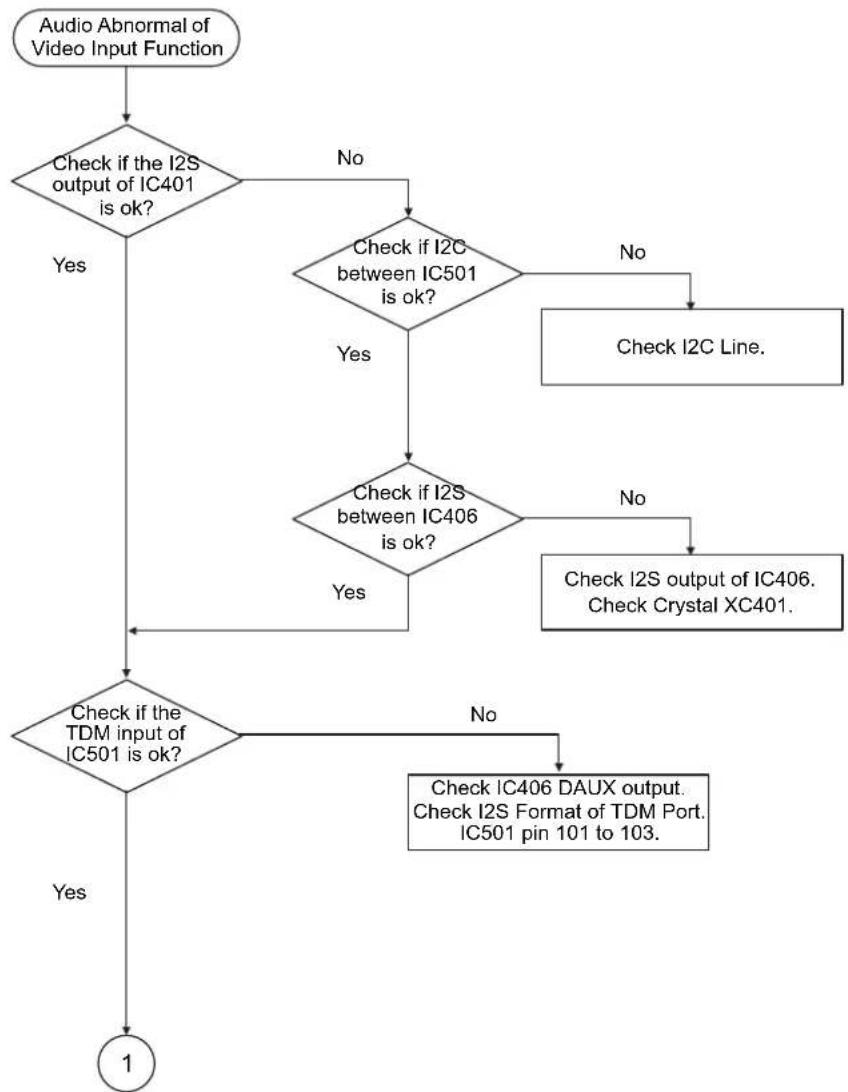

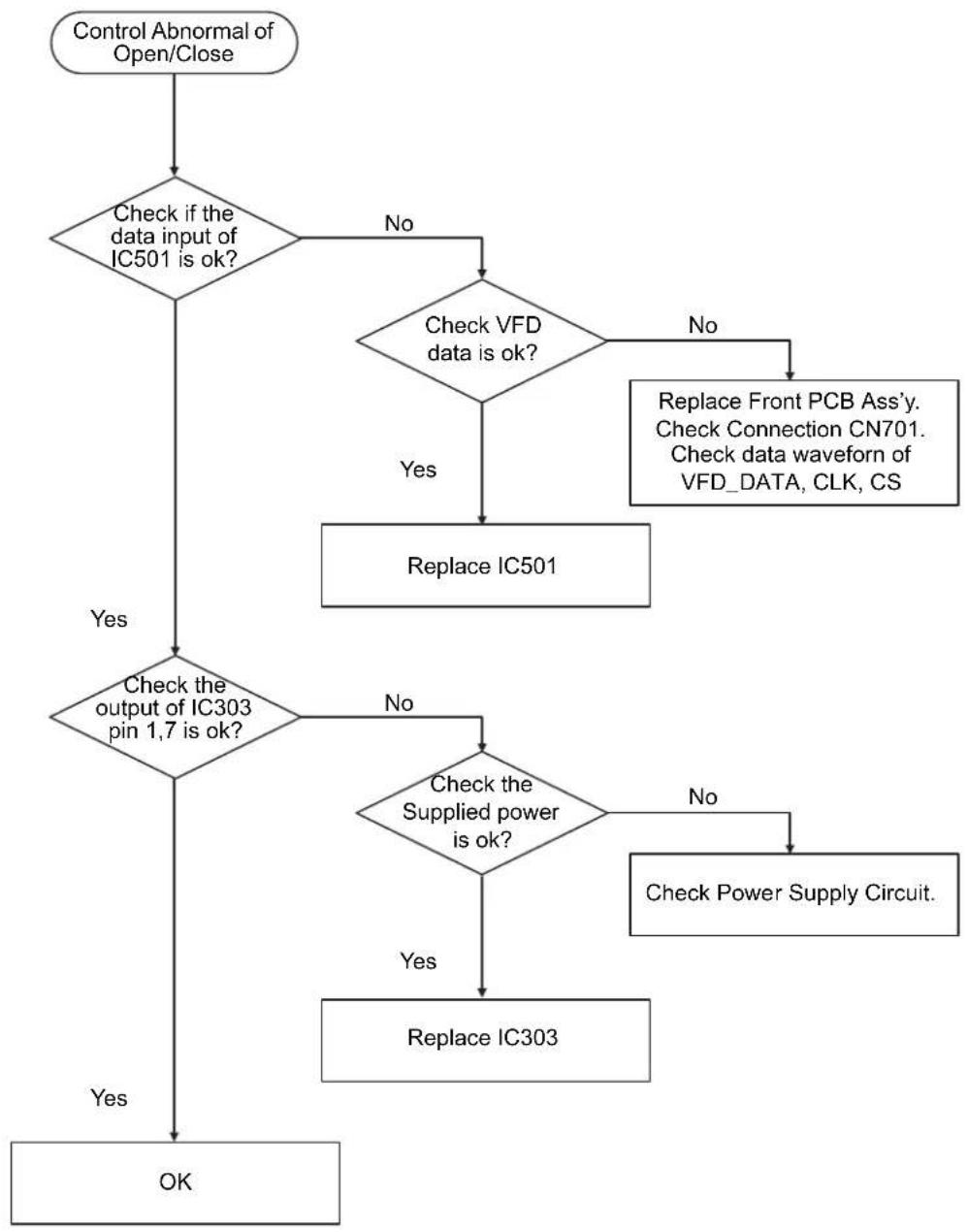

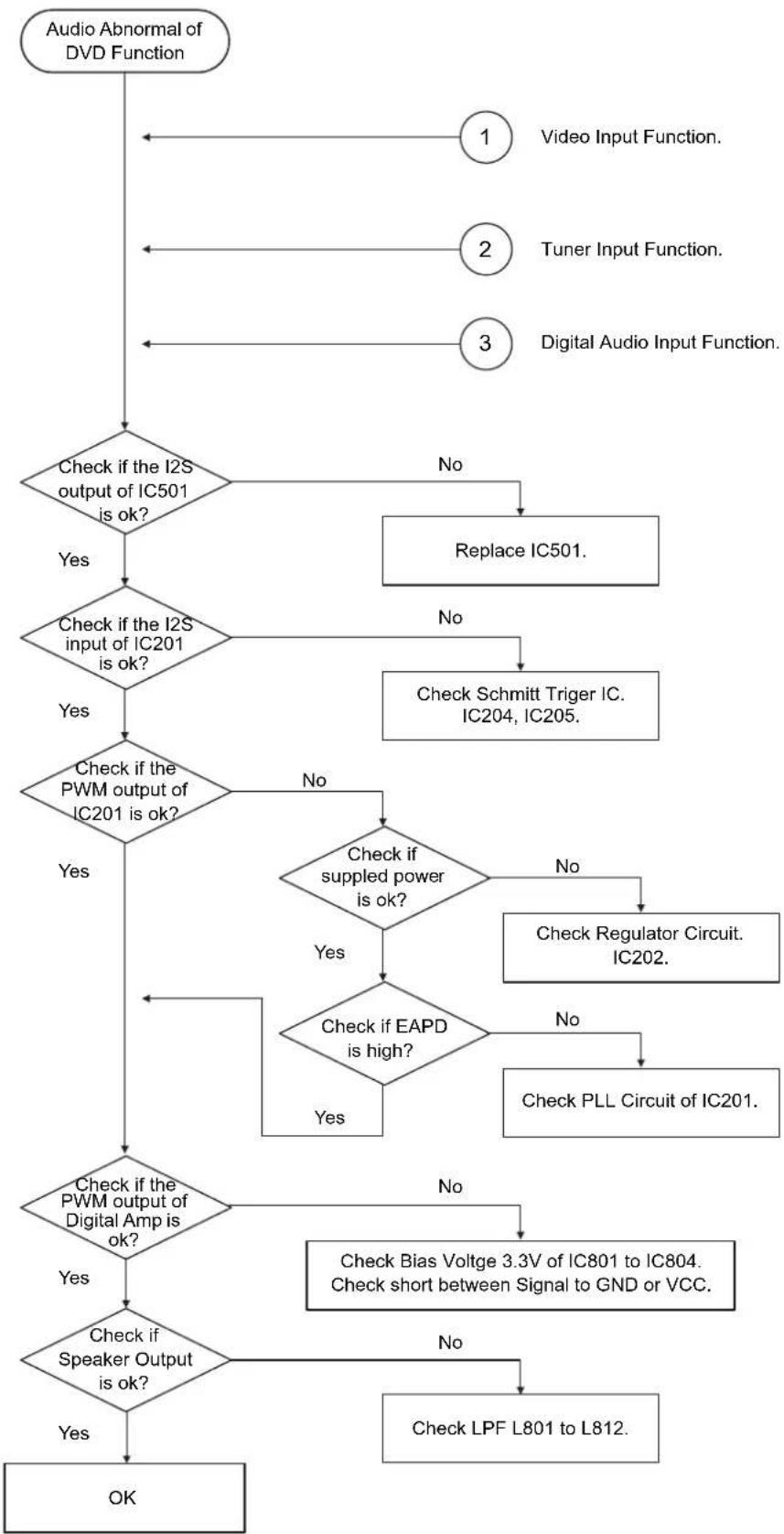

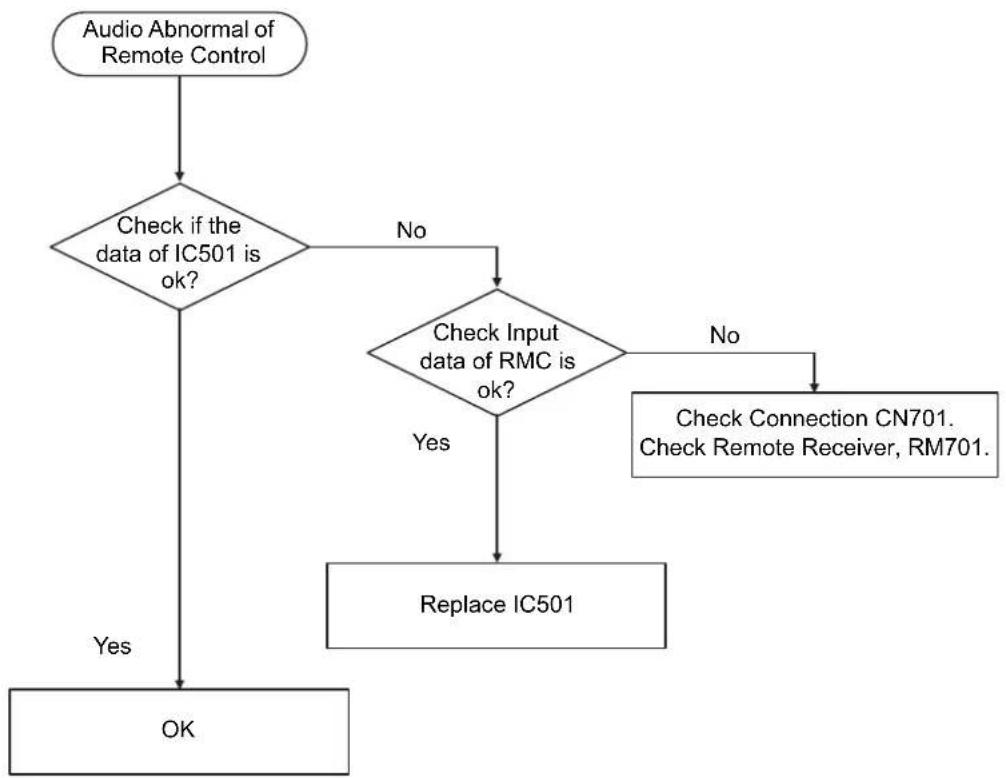

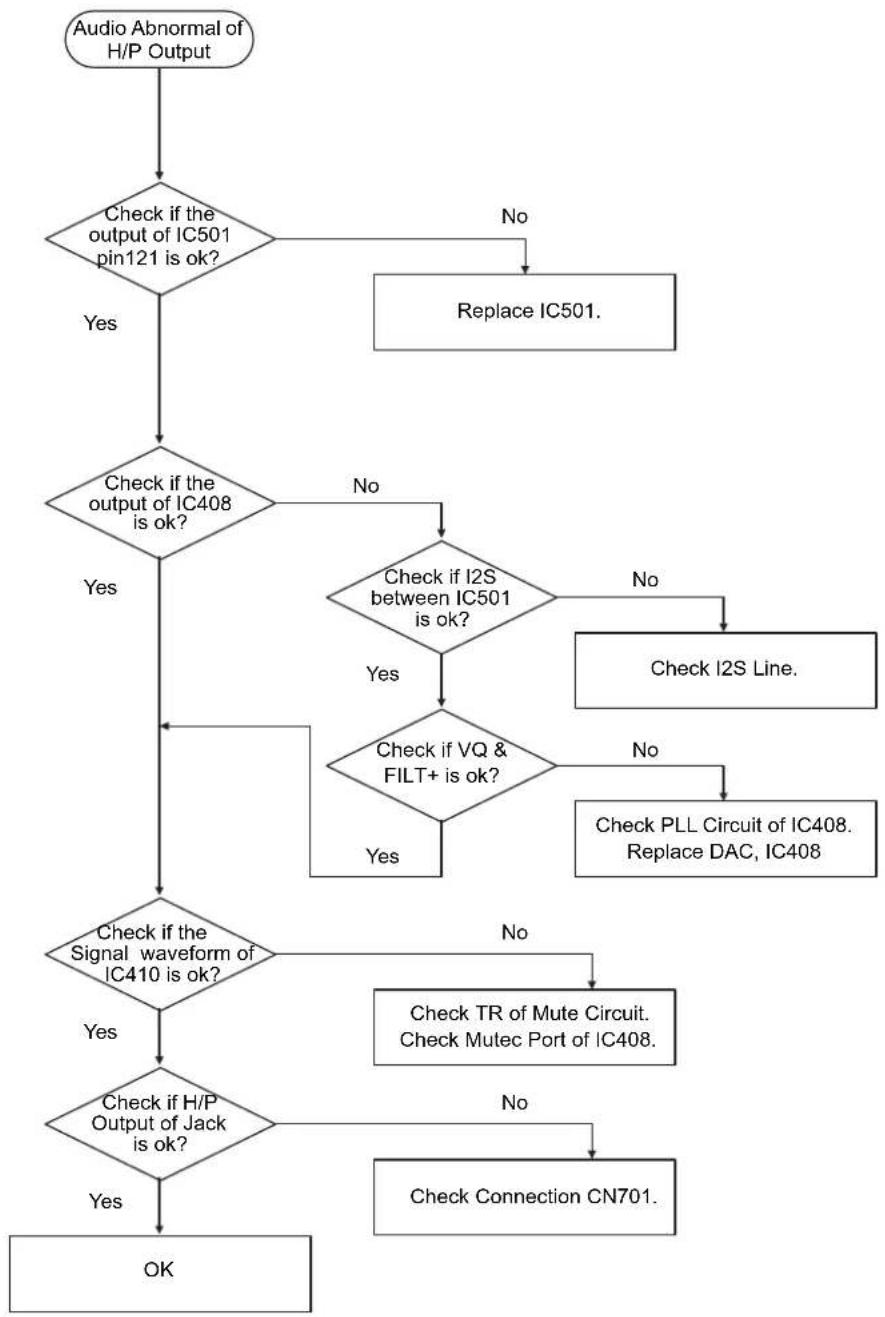

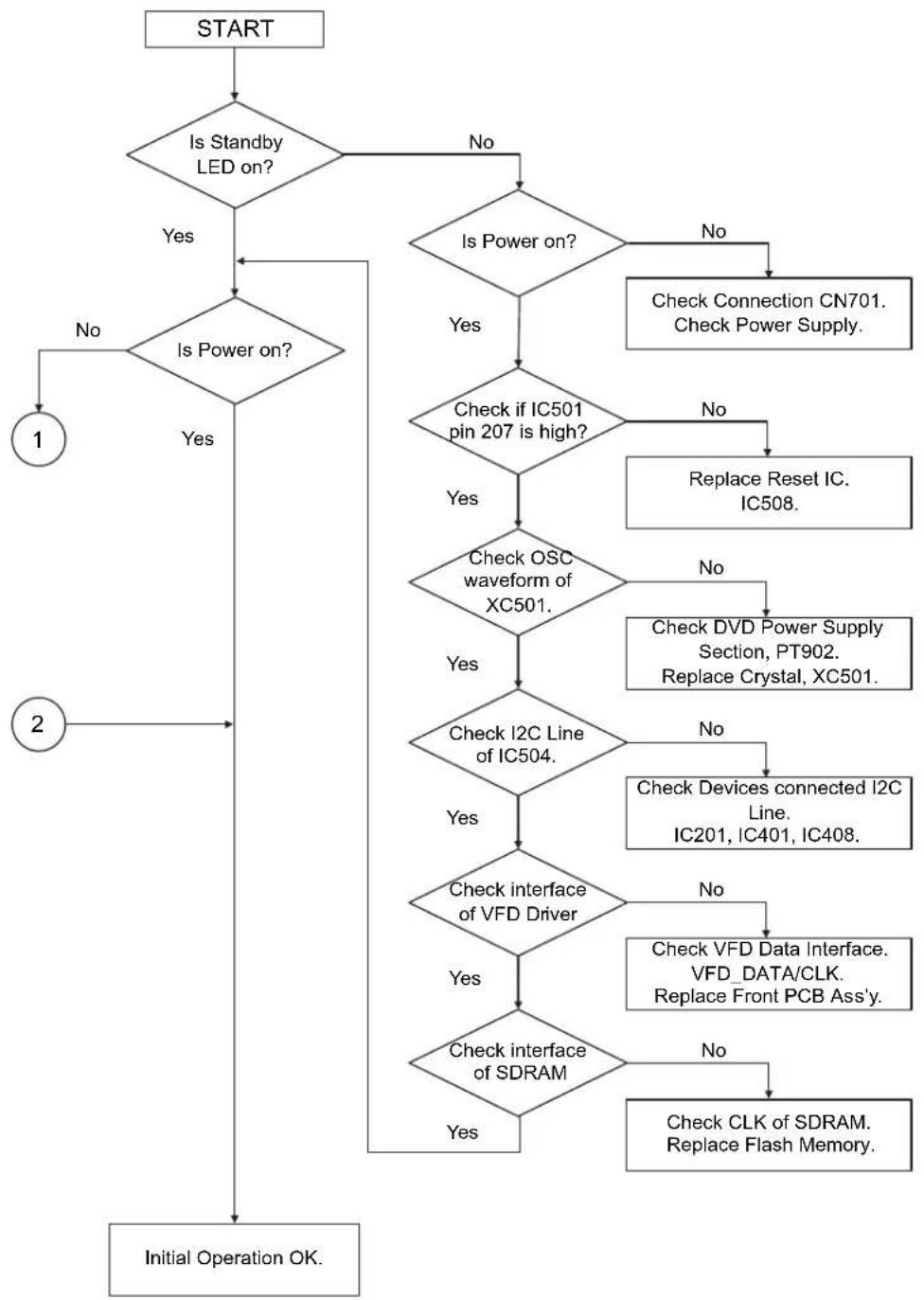

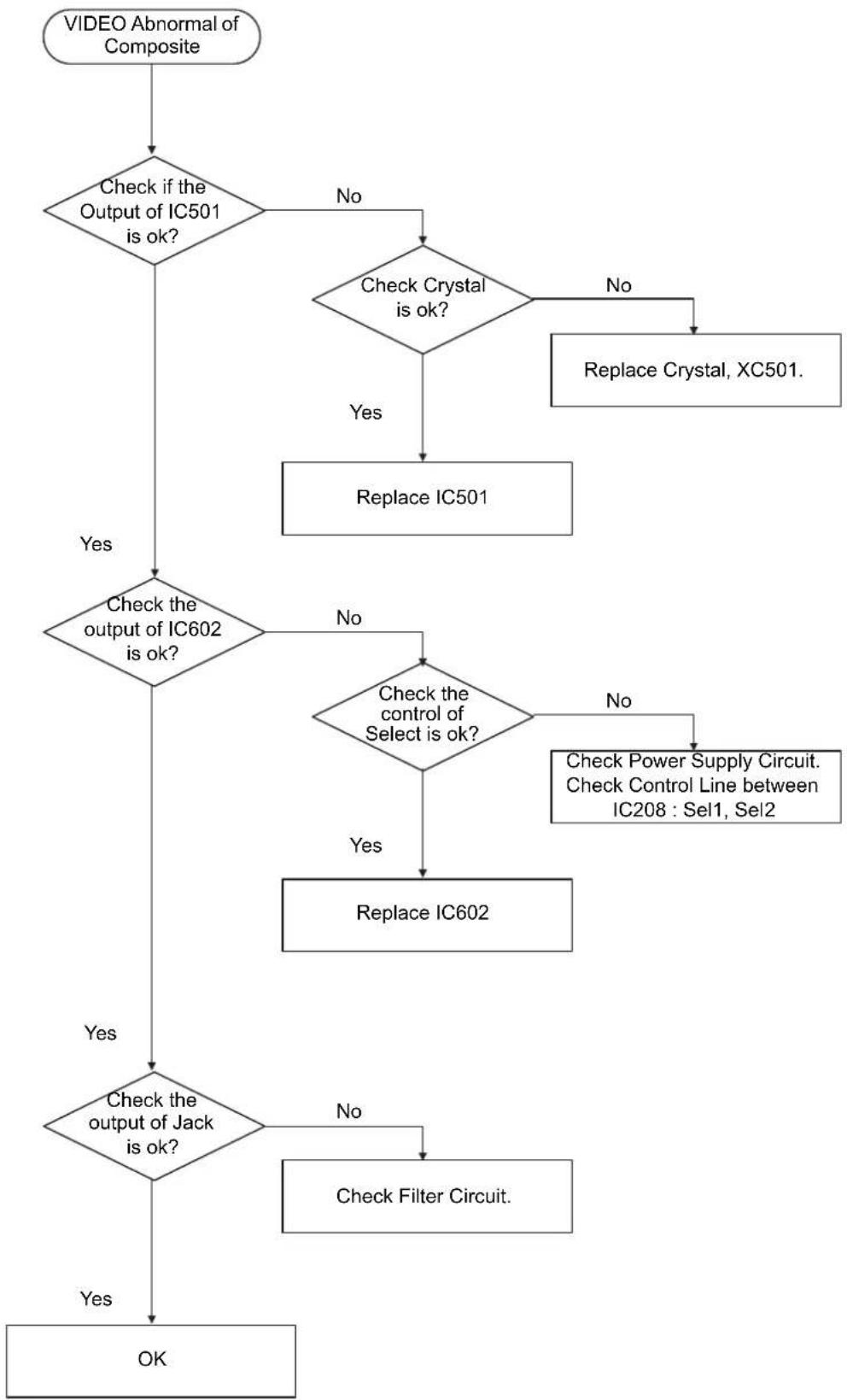

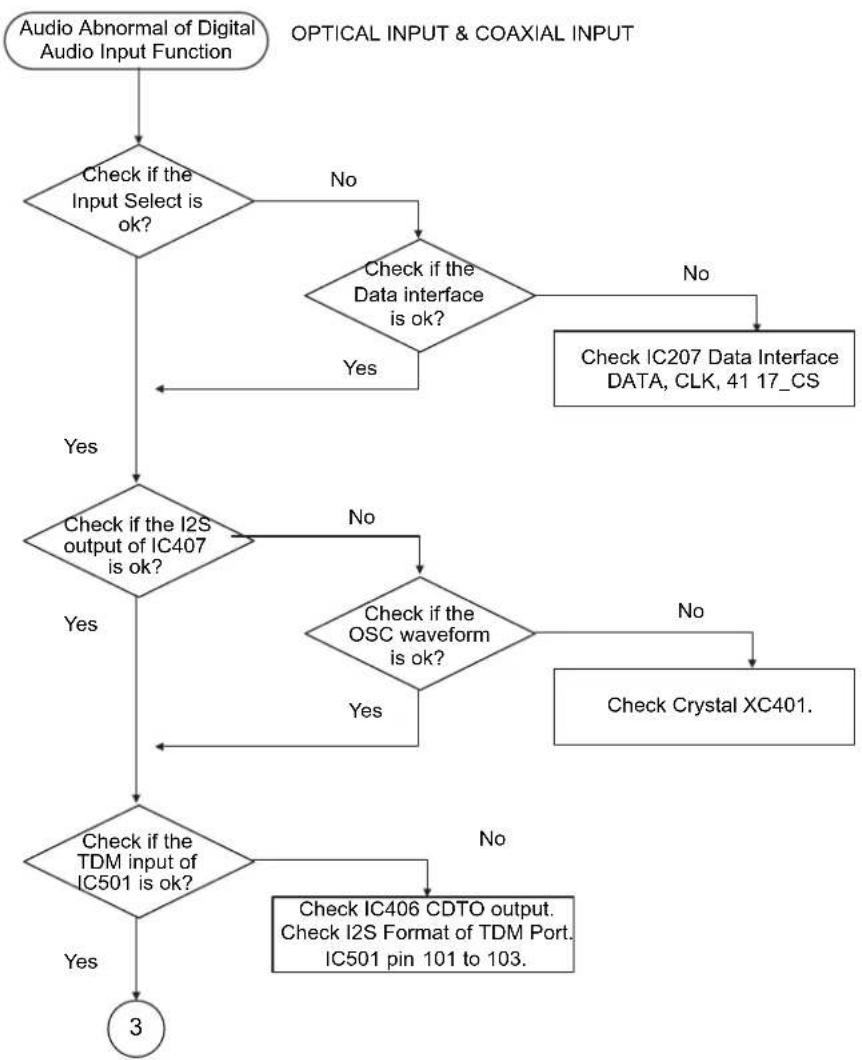

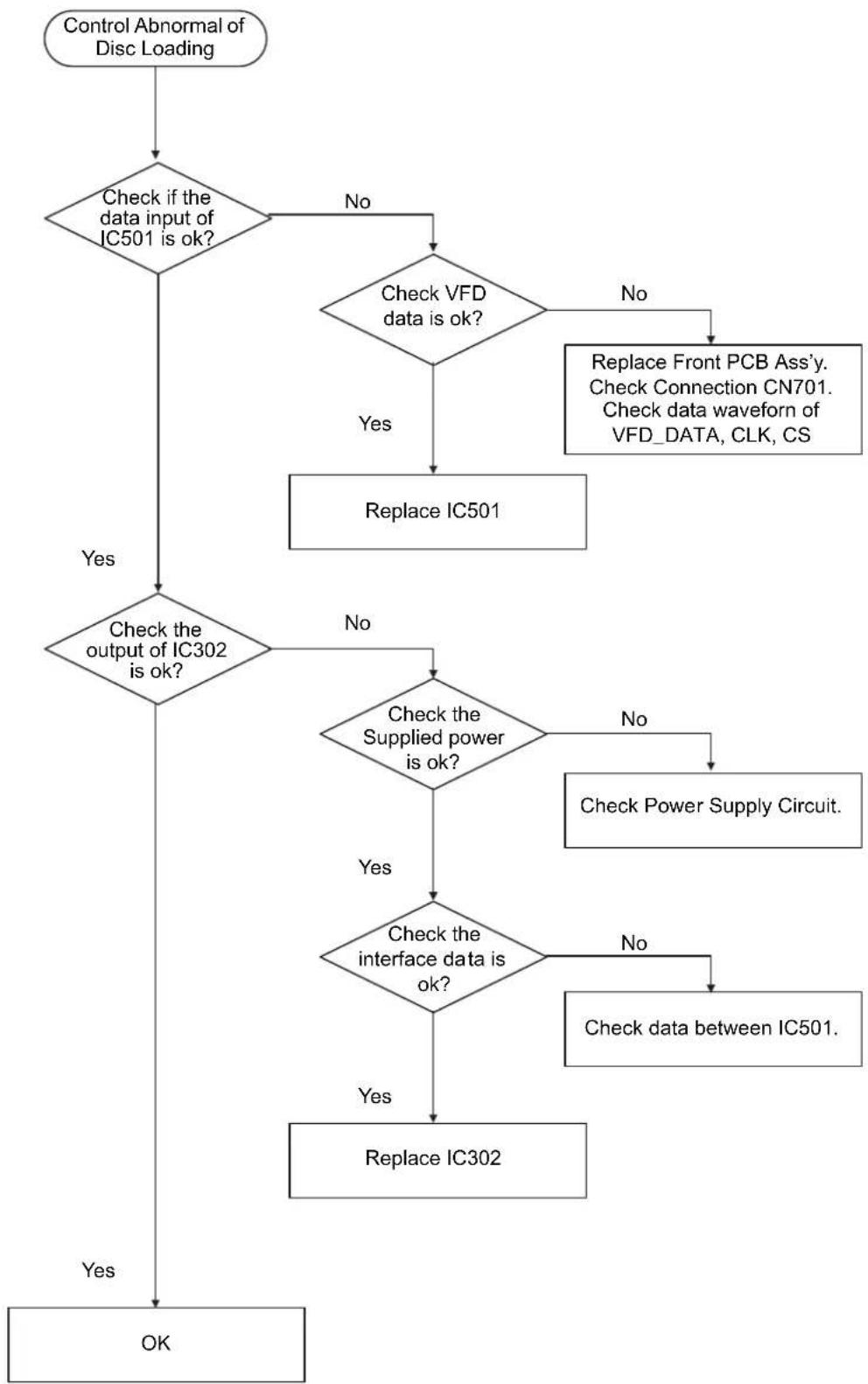

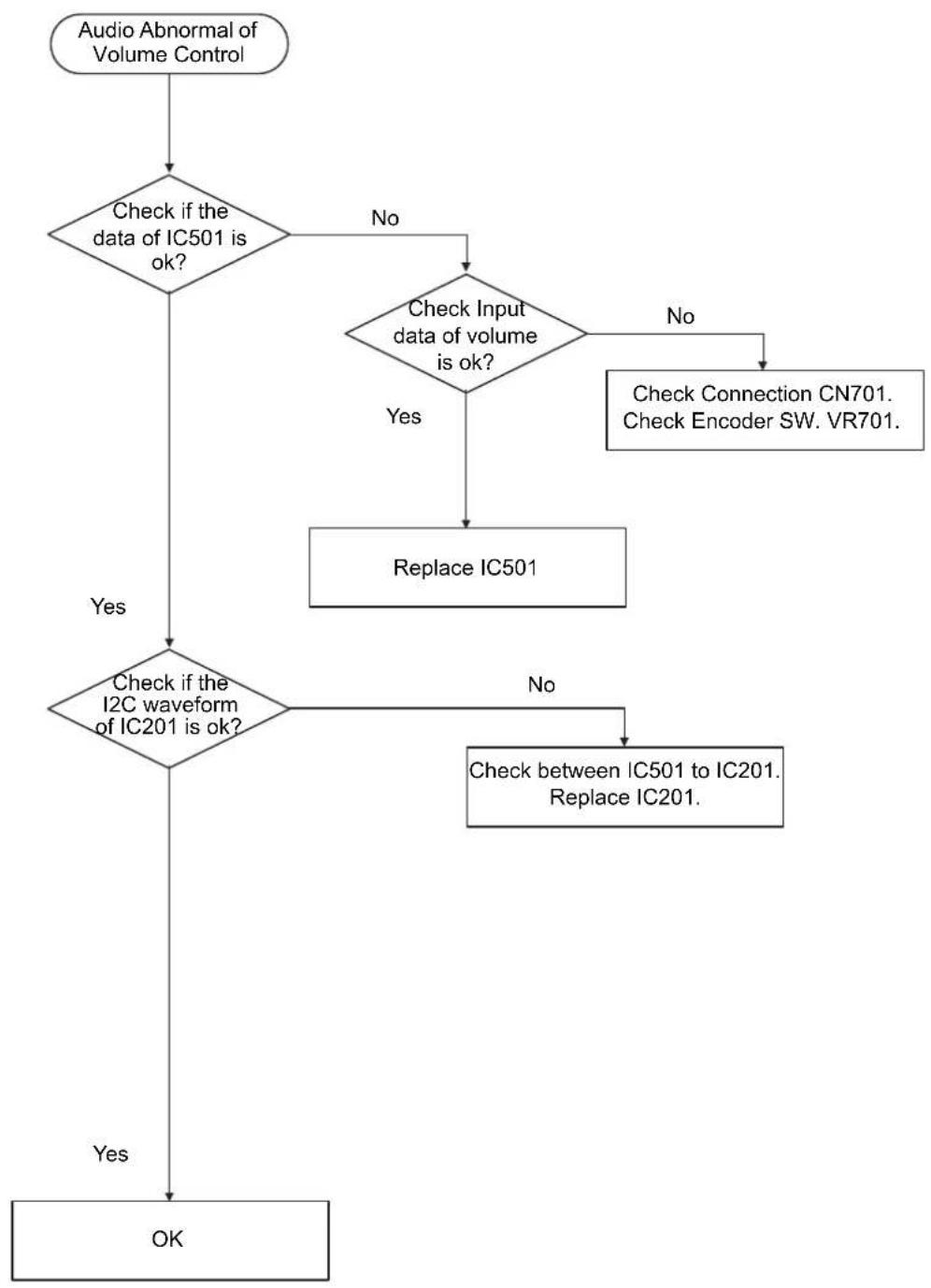

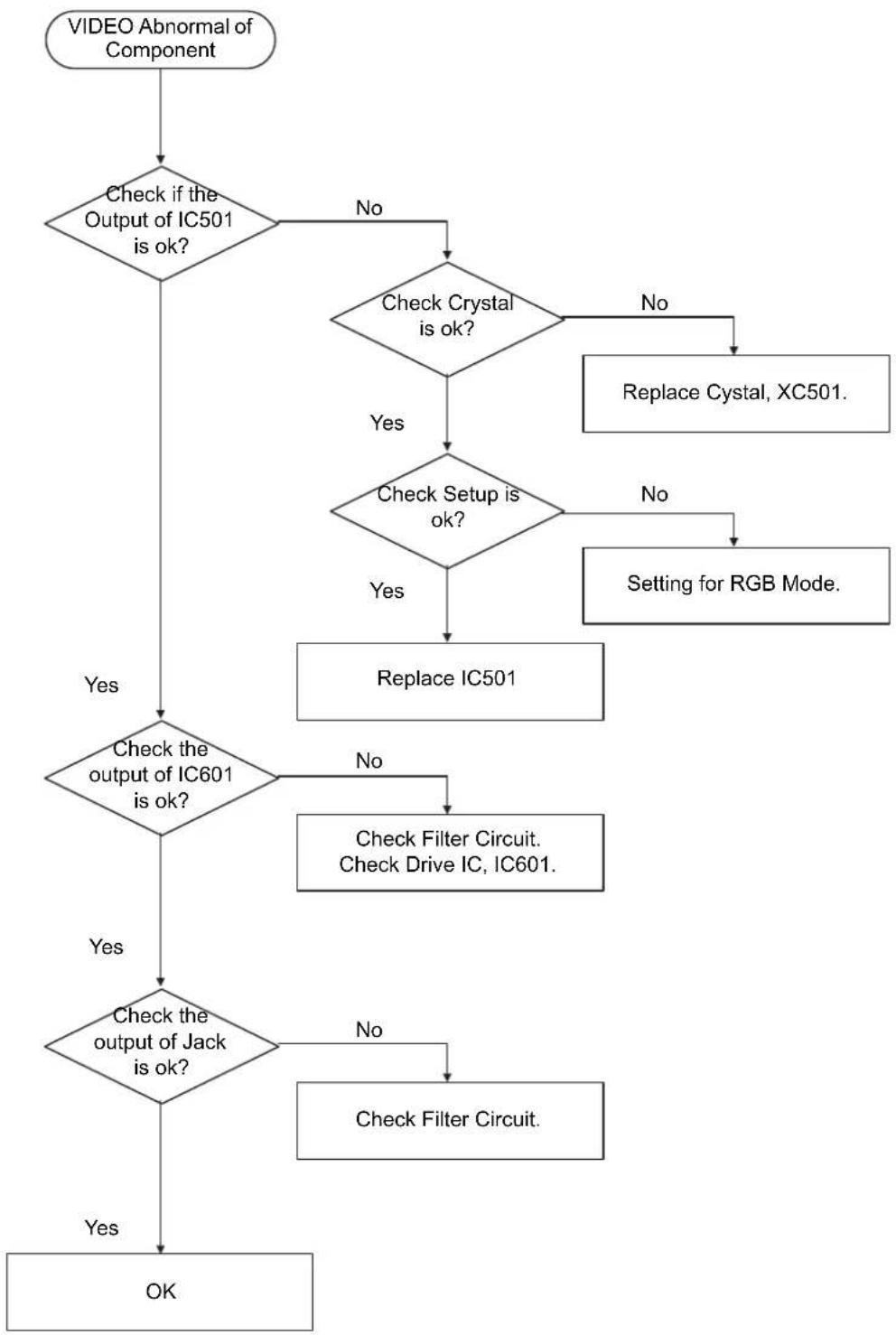

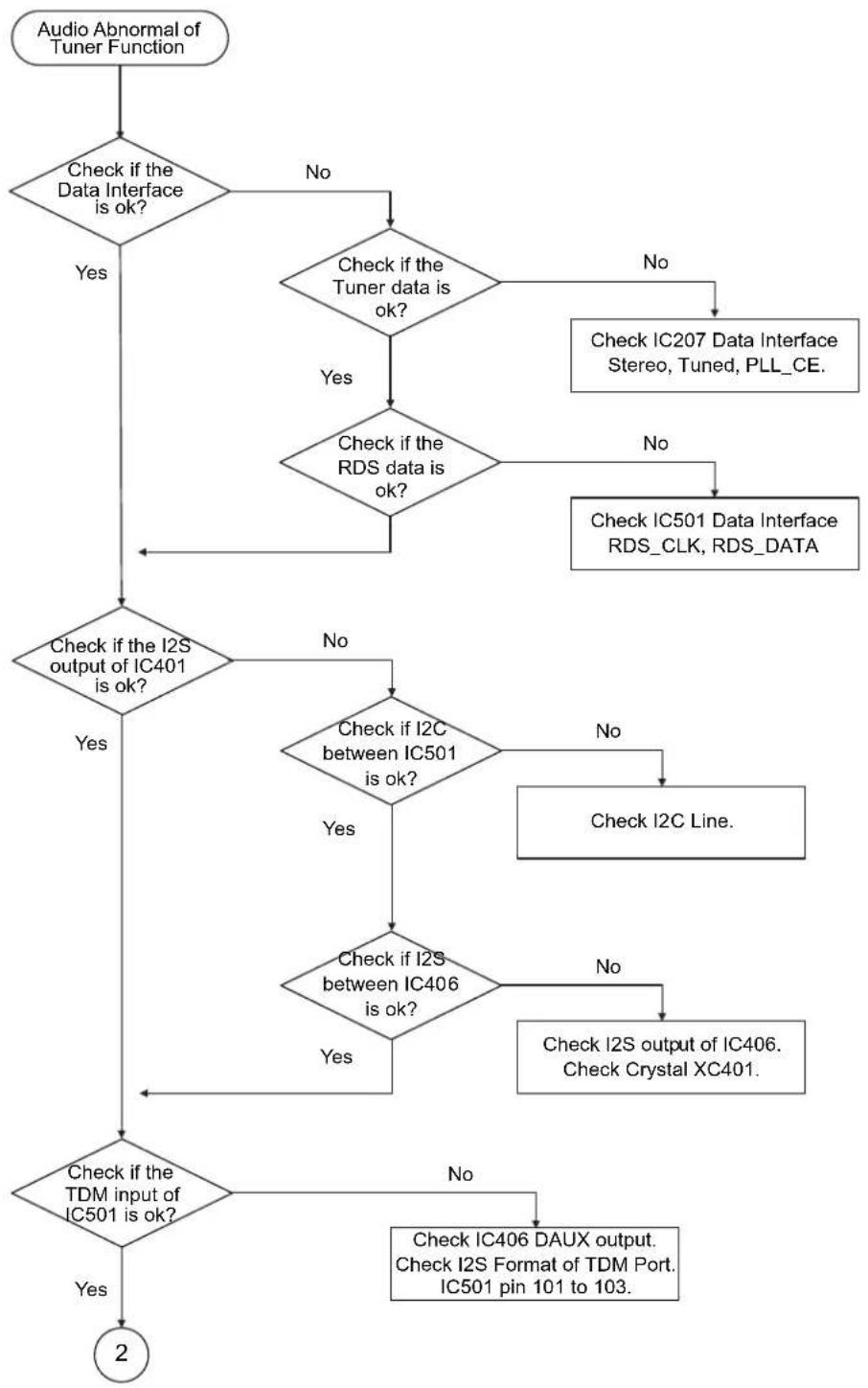

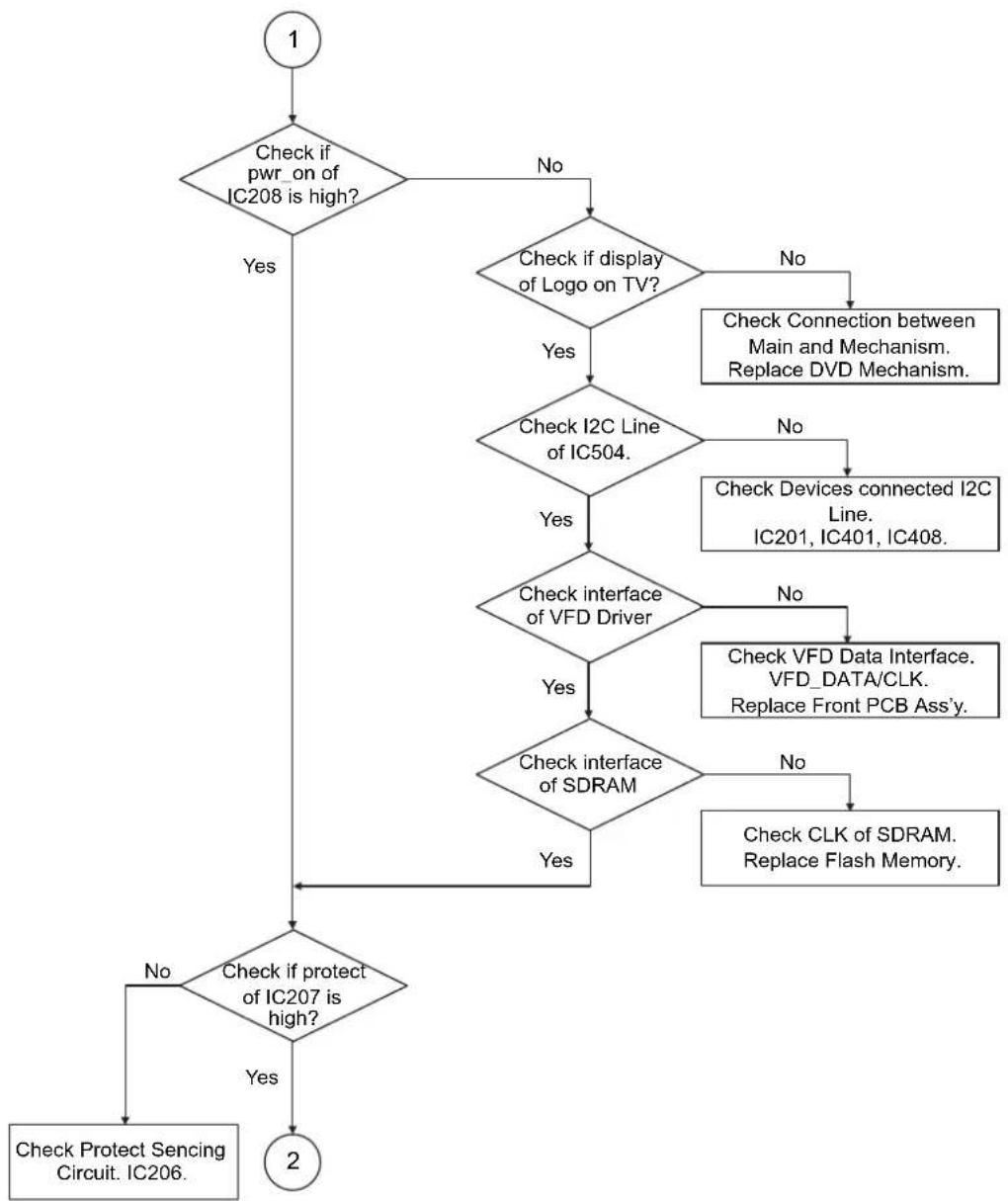

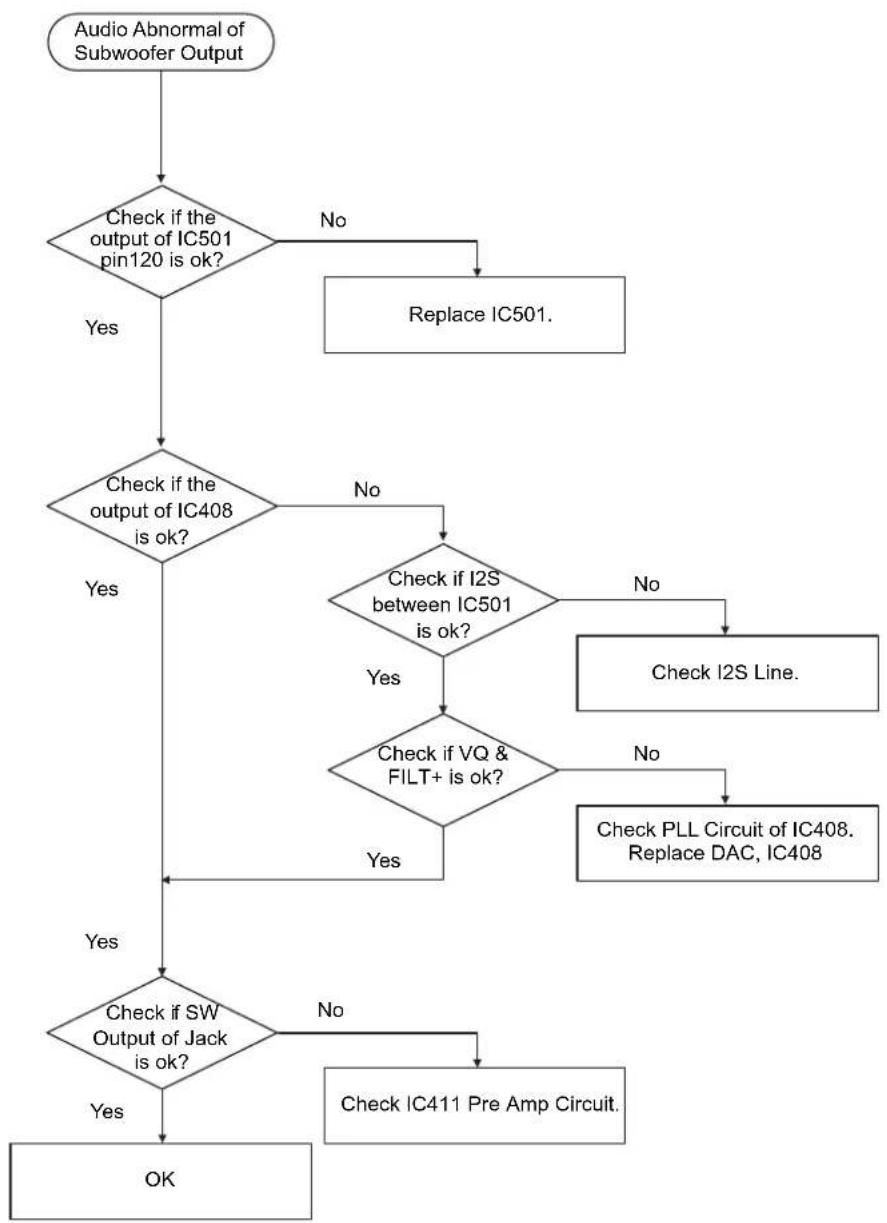

6. TROUBLE SHOOTING GUIDE....11/26

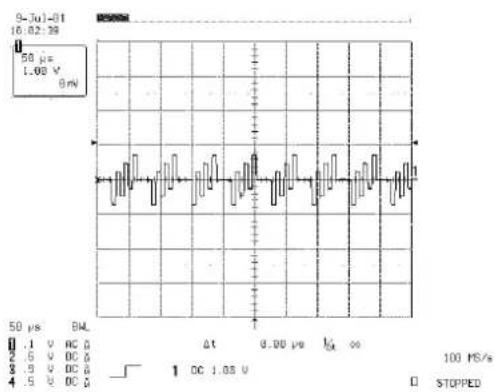

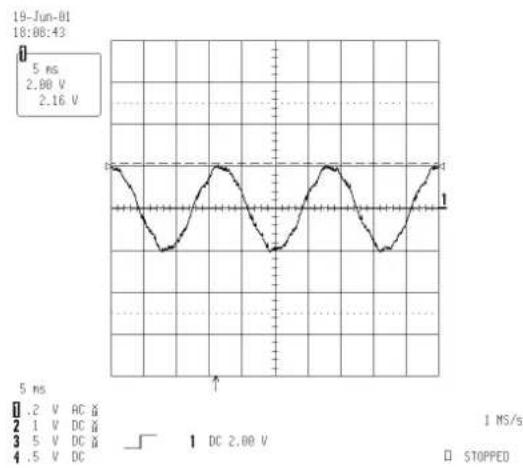

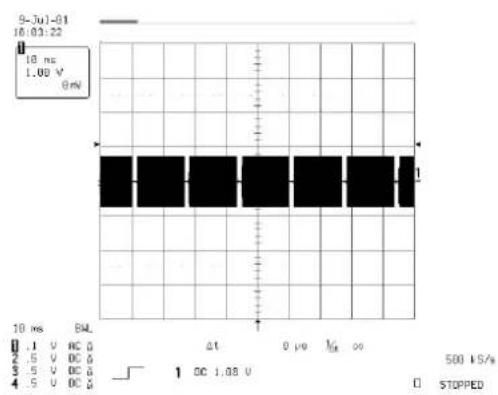

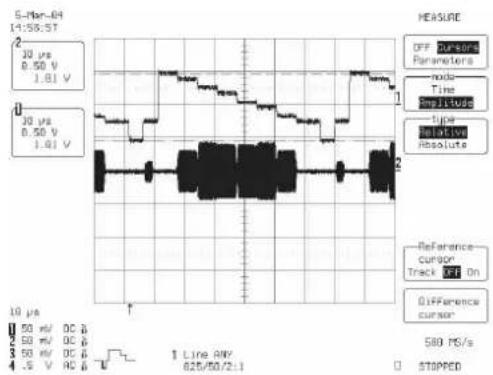

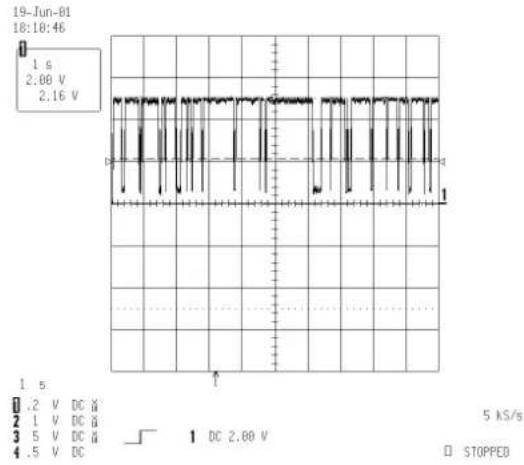

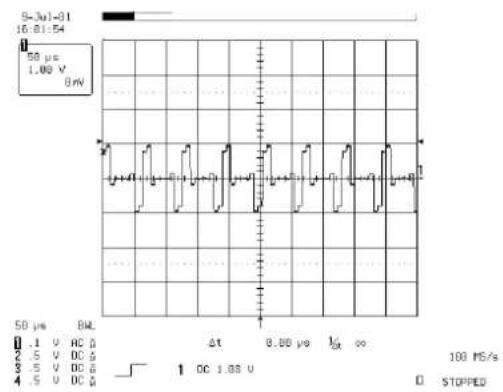

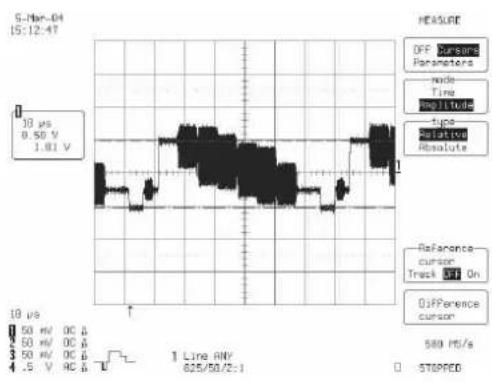

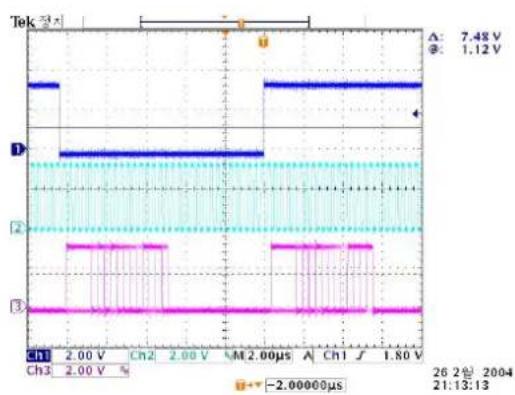

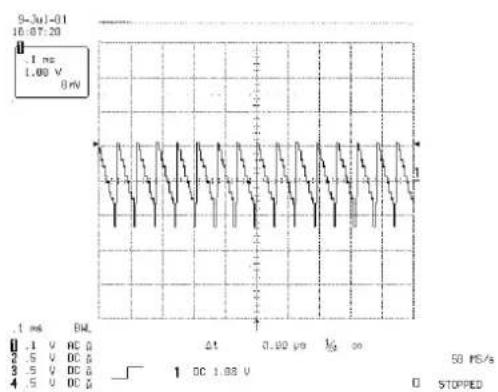

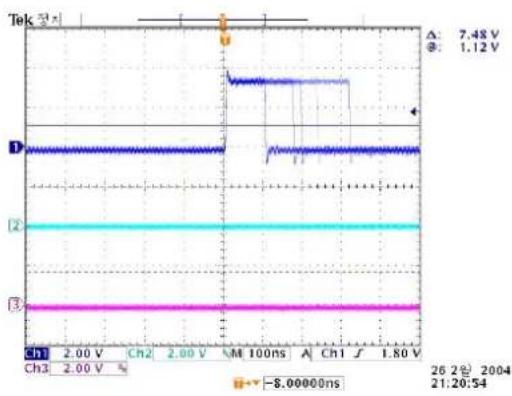

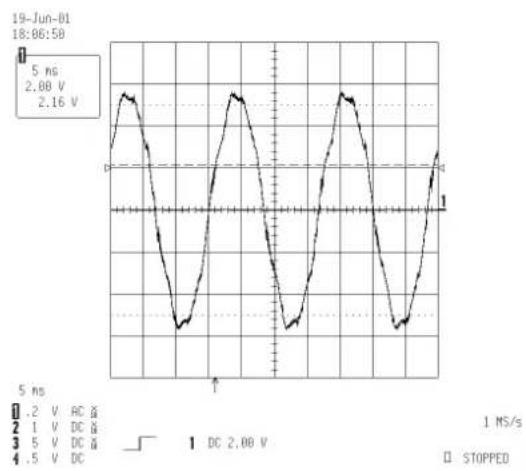

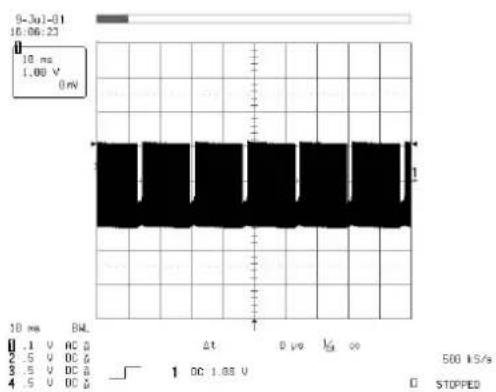

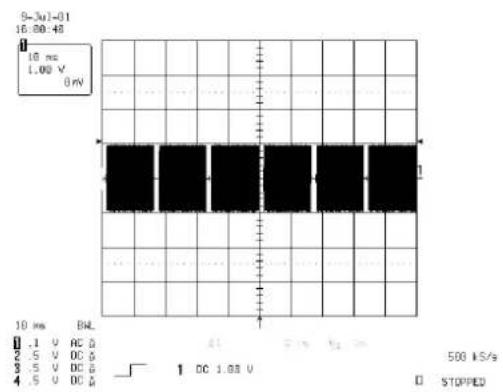

7. WAVEFORMS OF MAJOR CHECK POINT.....27/31

• AUDIO OUT SIGNAL WAVEFORM
• DAC OUTPUT SIGNAL WAVEFORM
•OPTICAL OUTPUT AUDIO DATA SIGNALFORM
L/R CLOCK DATA WAVEFORM DURING NORMAL PLAY
- SERIAL DATA OUTPUT WAVEFORM DURING NORMAL PLAY
- Pr OUTPUT DATA WAVEFORM IN COMPONENT OUTPUT
•Pb OUTPUT DATA WAVEFORM IN COMPONENT OUTPUT
• Y OUTPUT DATA WAVEFORM IN COMPONENT OUTPUT
- COMPOSITEOUTPUT DATA WAVEFORM IN MONITOR OUTPUT
• S-VIDEO OUTPUT DATA WAVEFORM

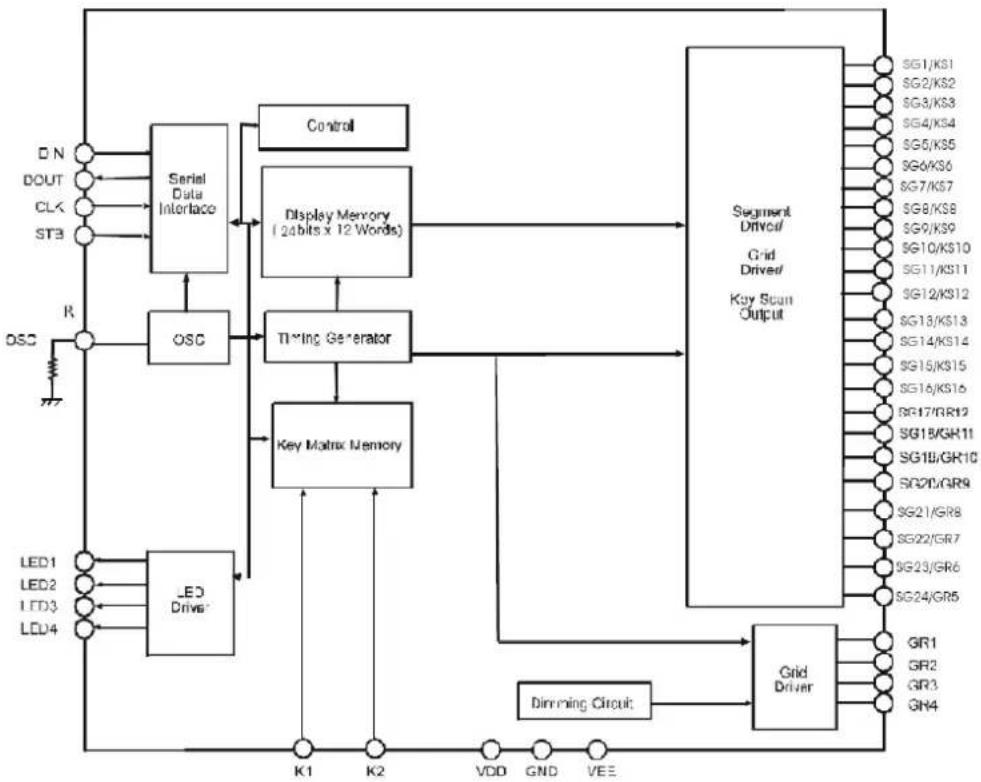

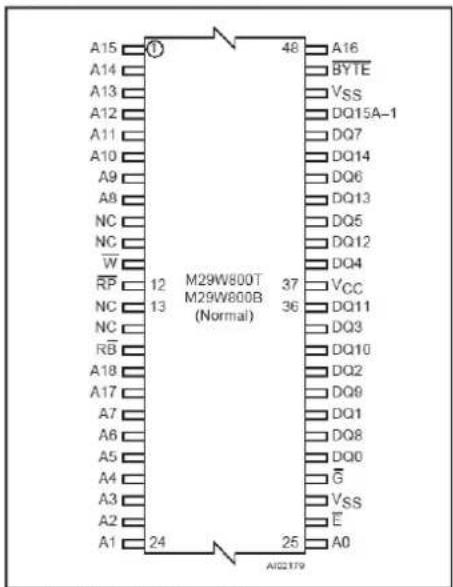

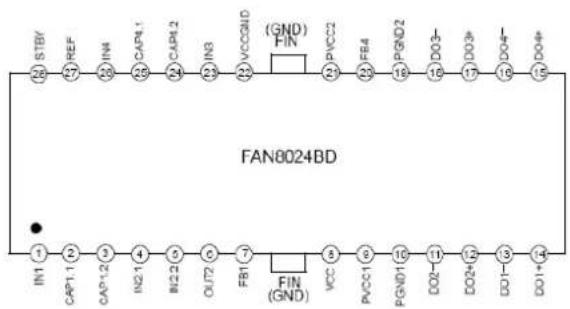

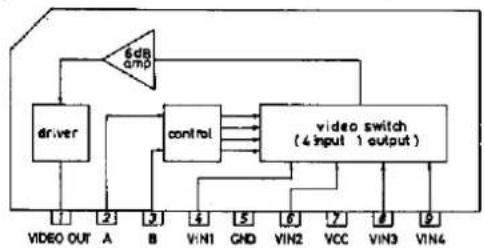

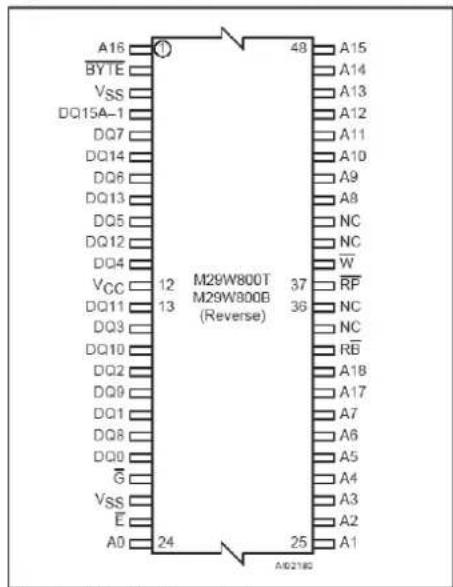

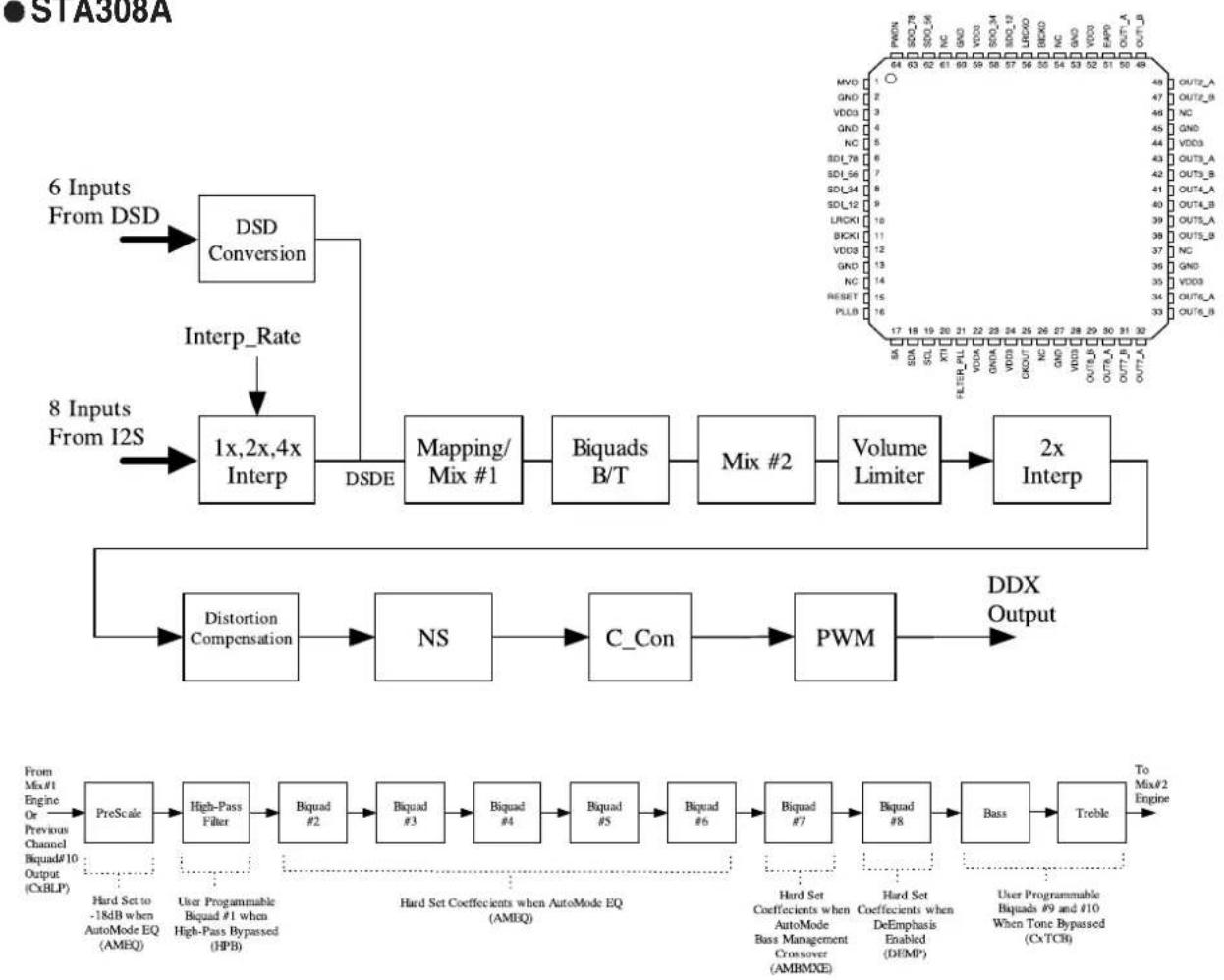

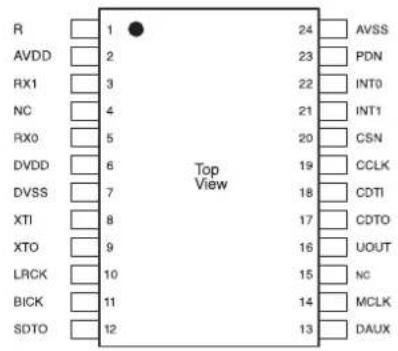

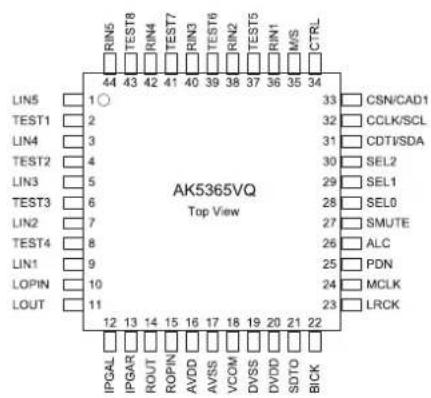

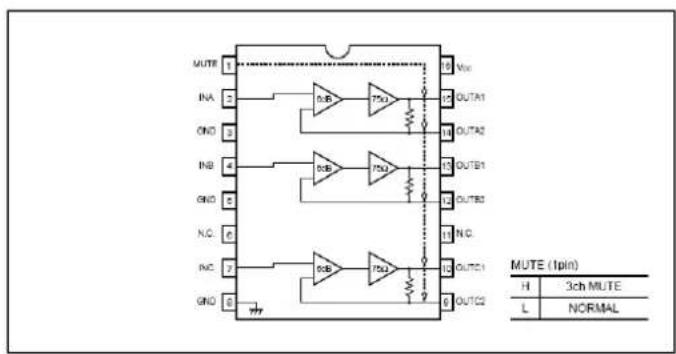

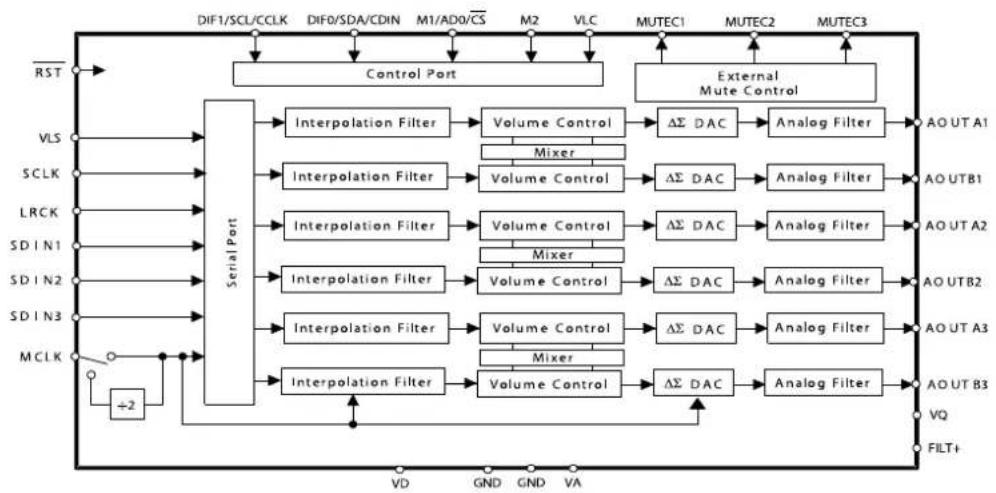

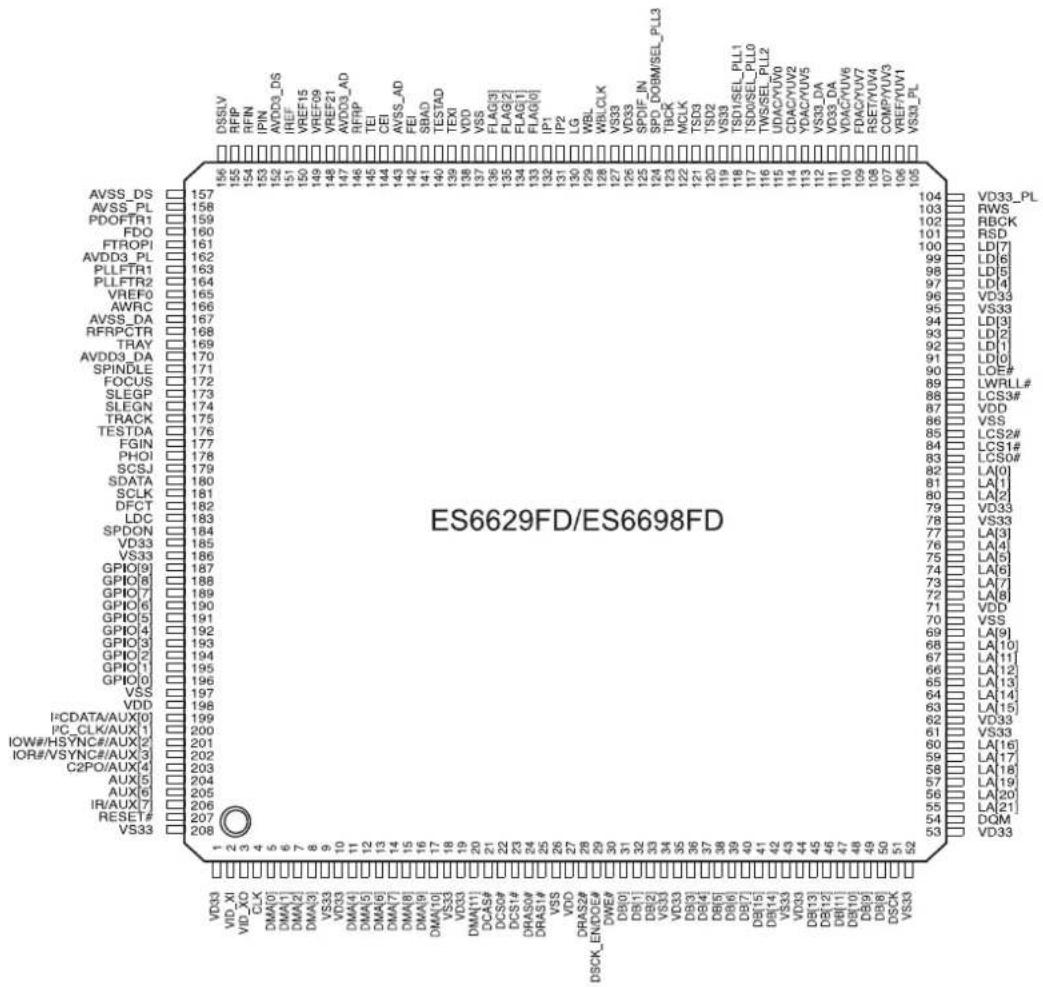

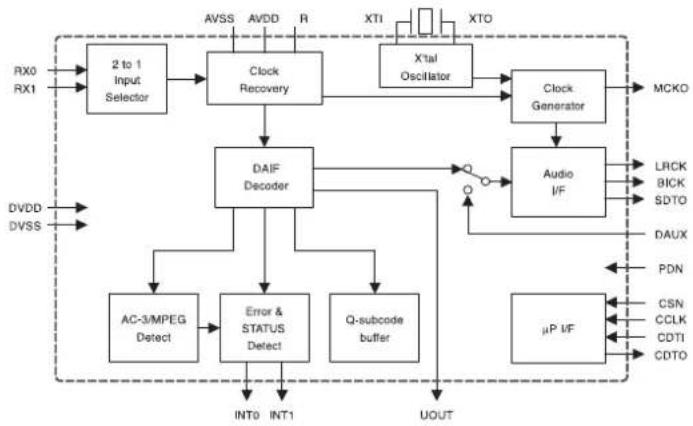

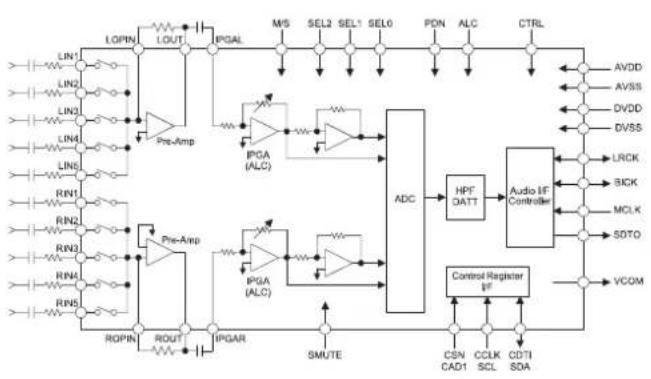

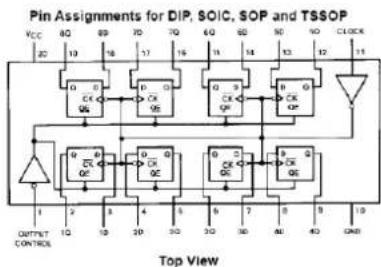

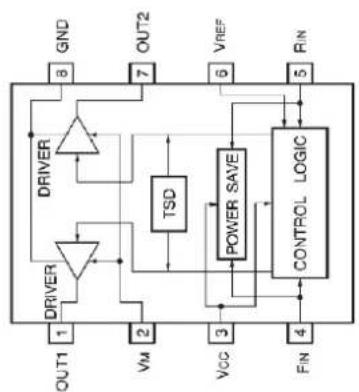

1. INTERNAL BLOCK DIAGRAM OF ICs....32/37

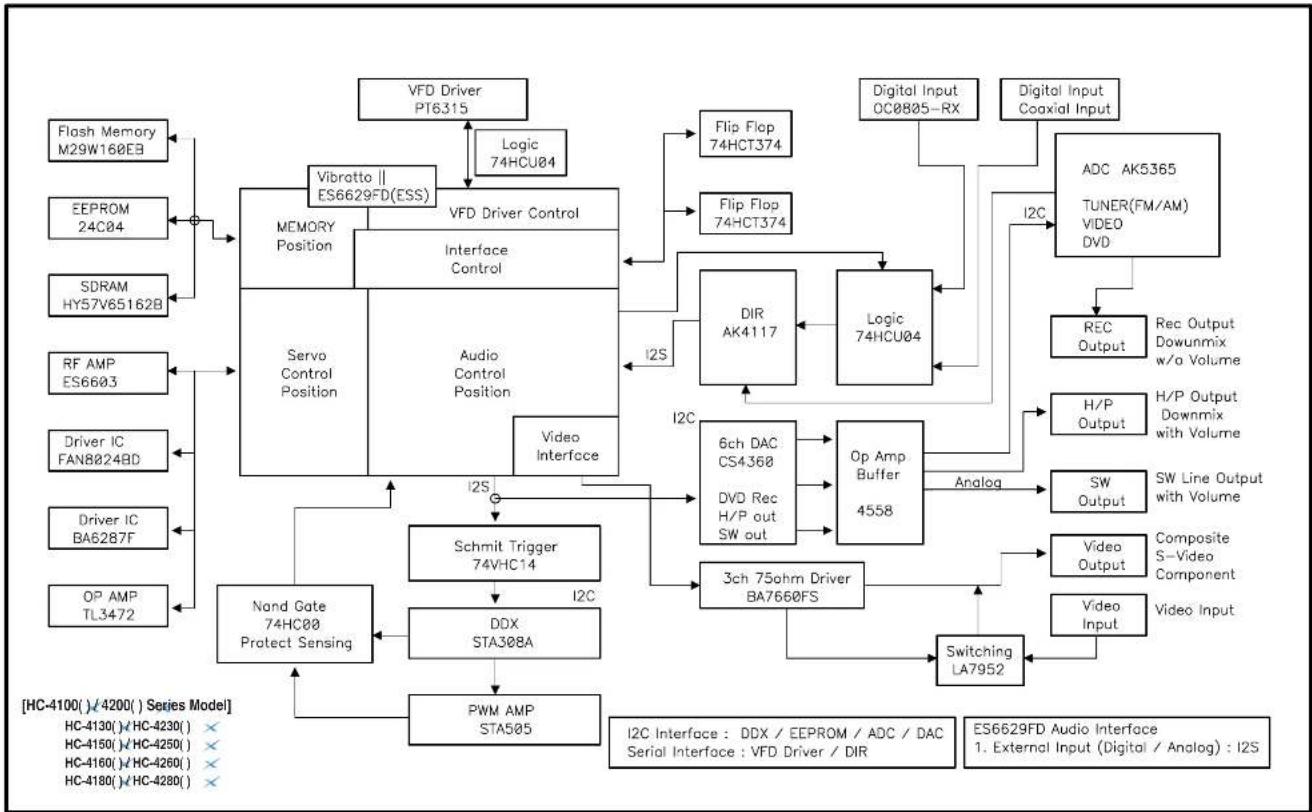

2. BLOCK DIAGRAM....38/39

• MAIN BLOCK

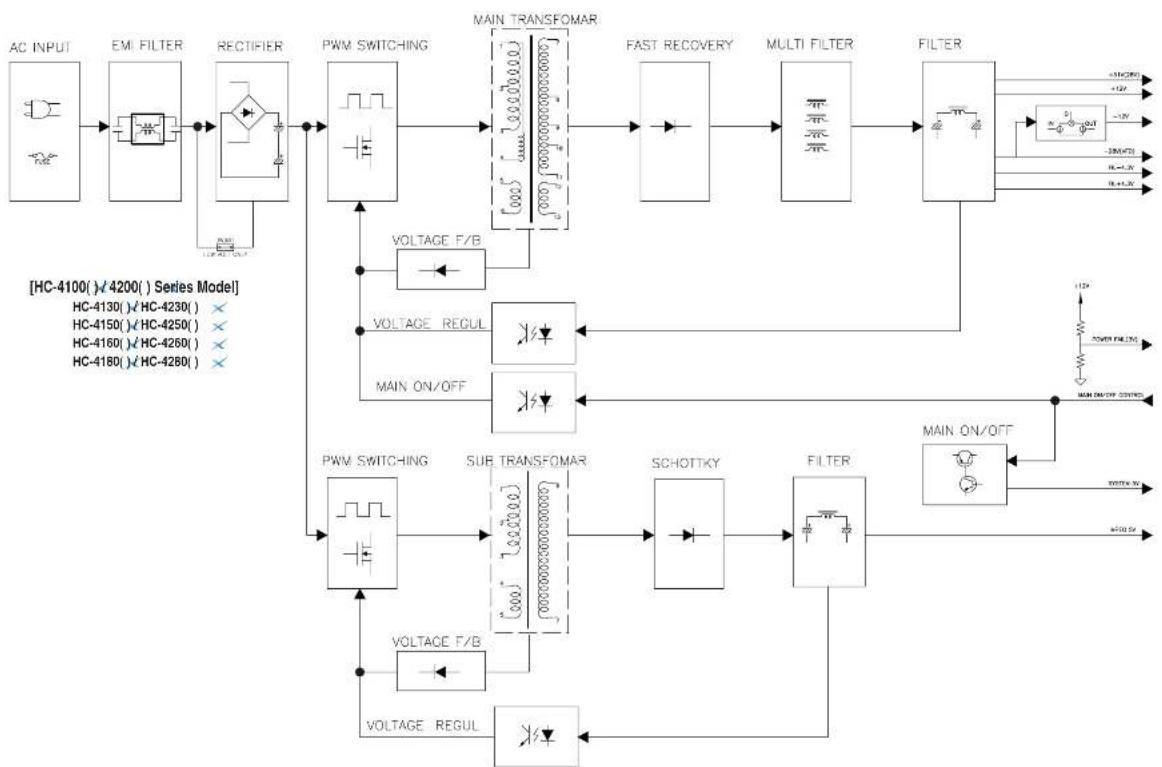

SMPS

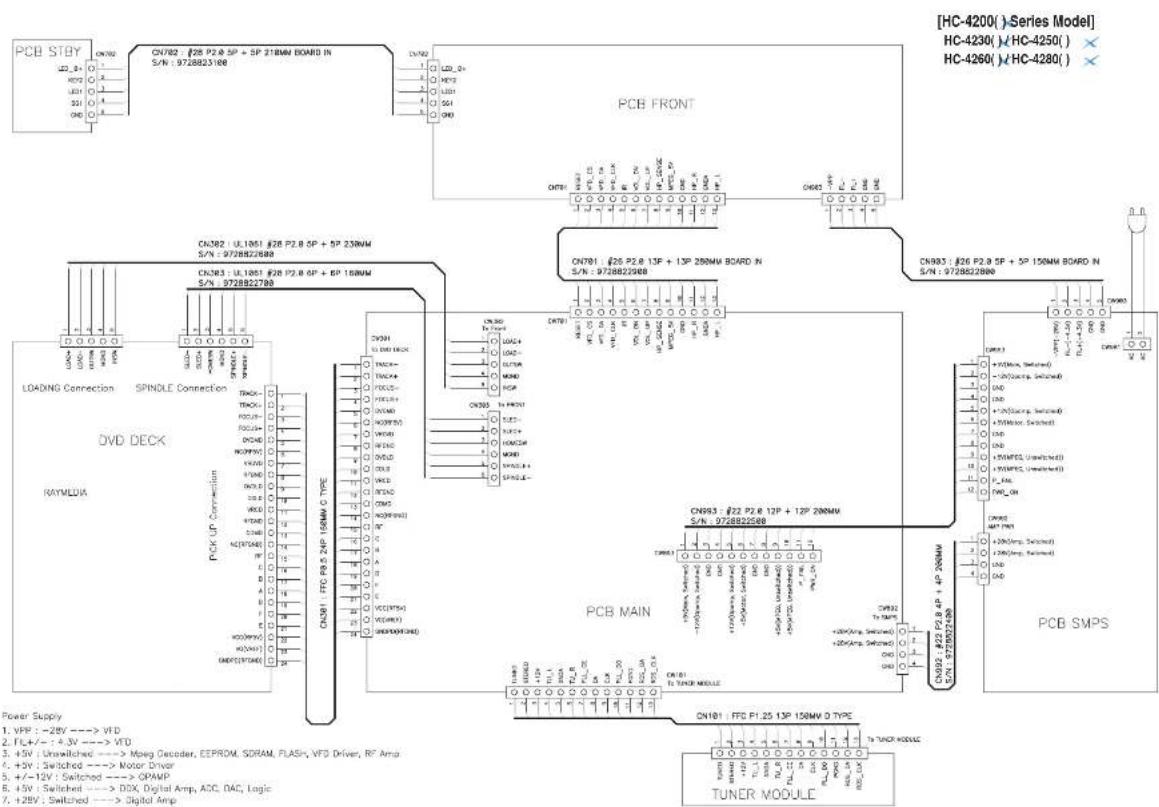

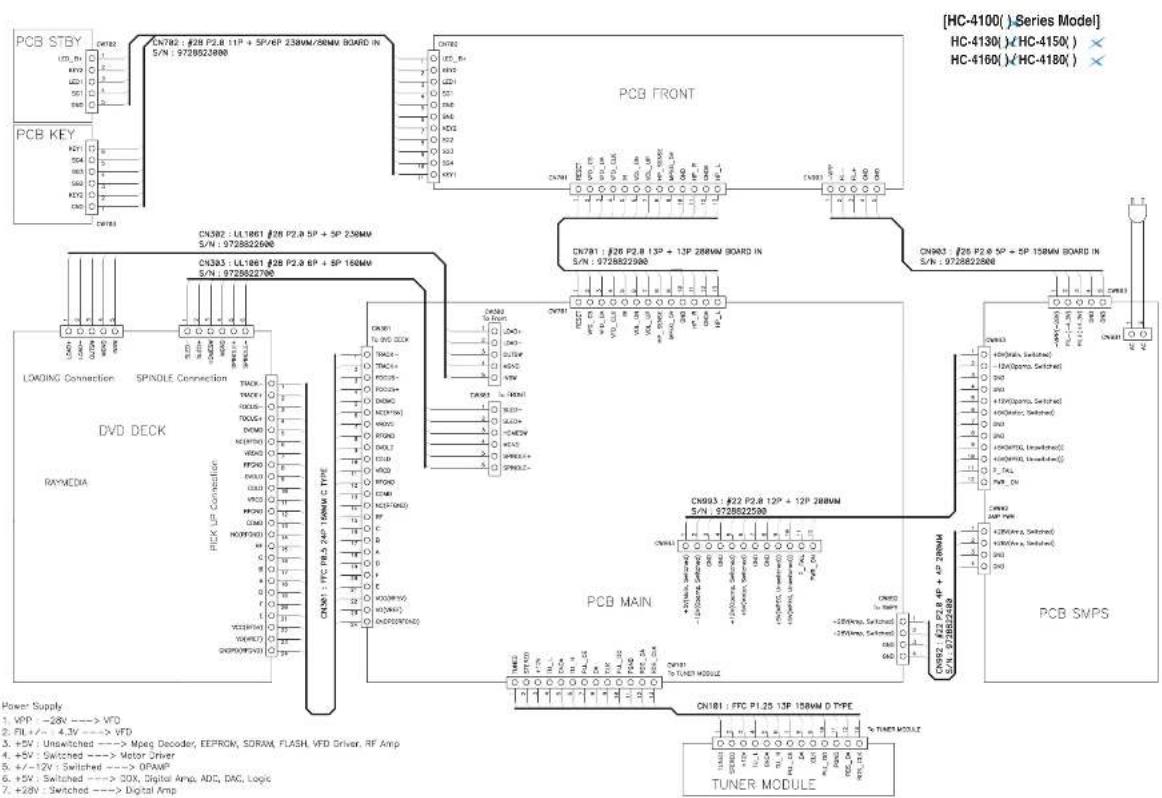

1. WIRING DIAGRAM....40/41

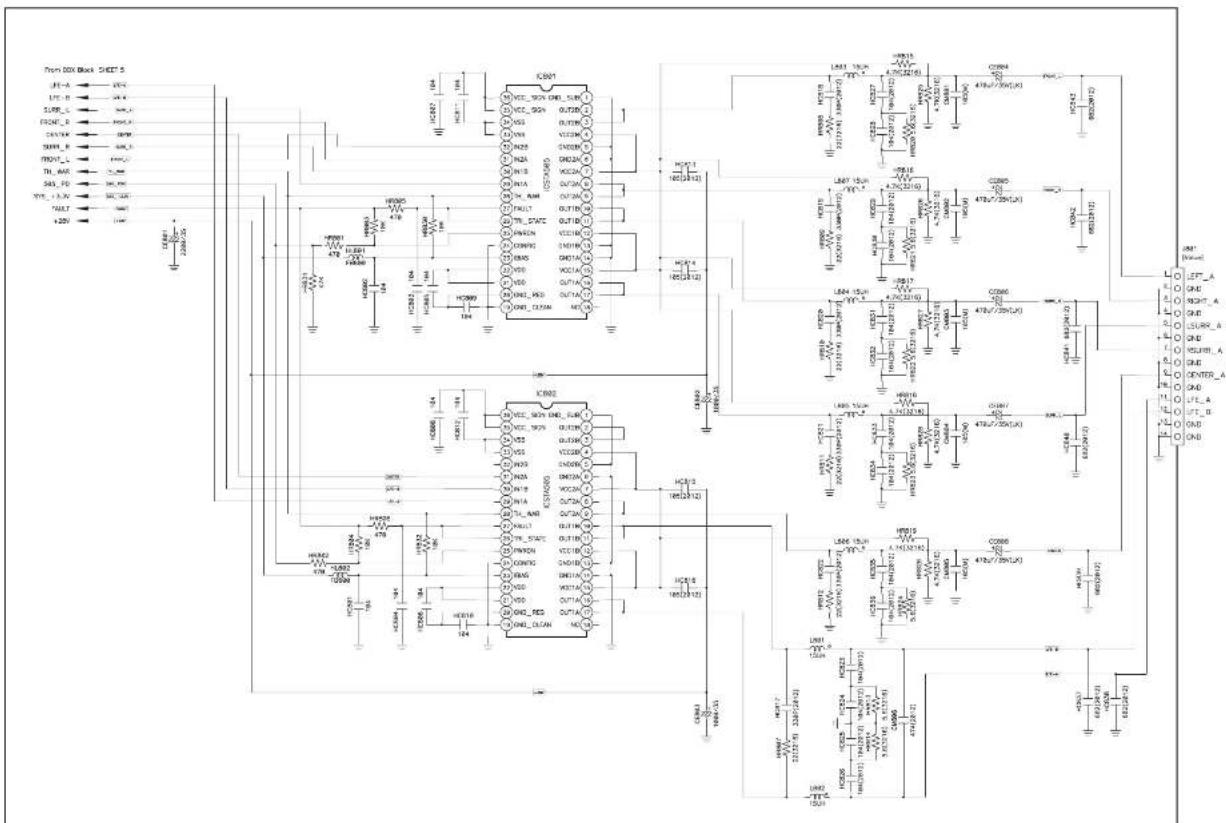

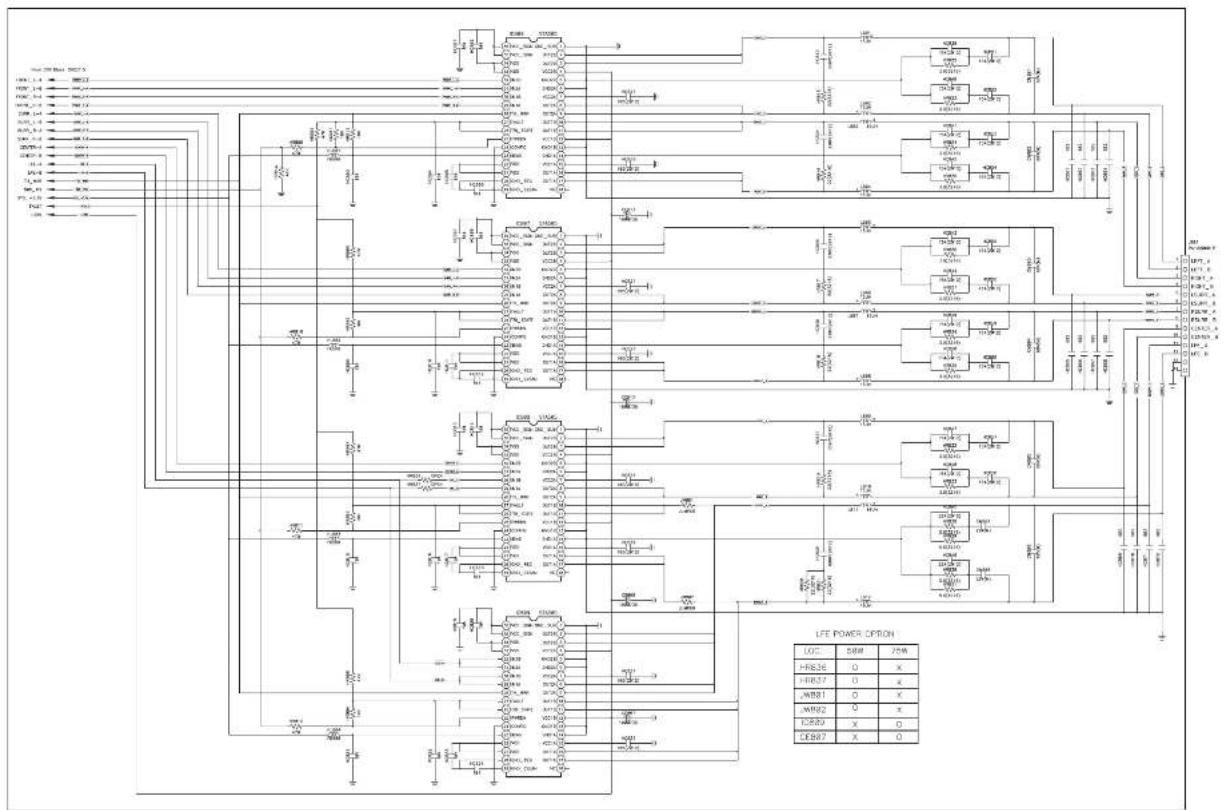

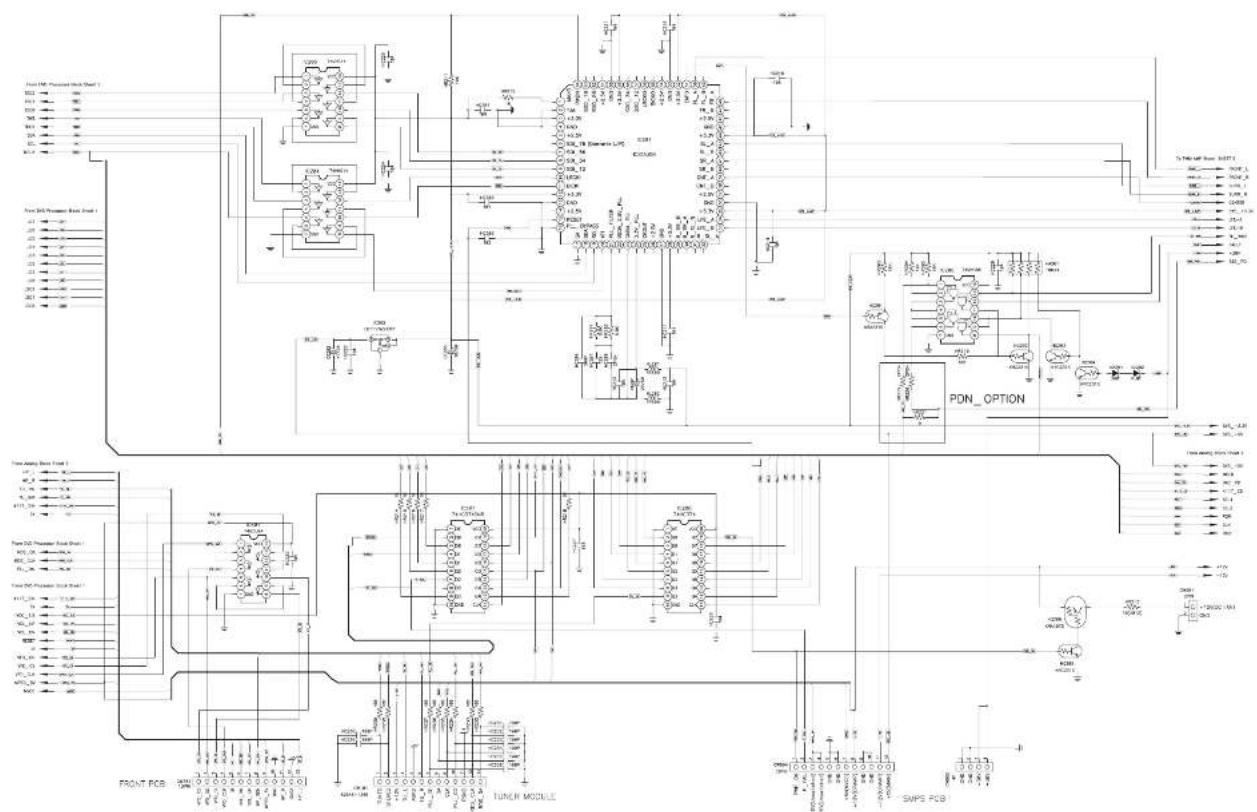

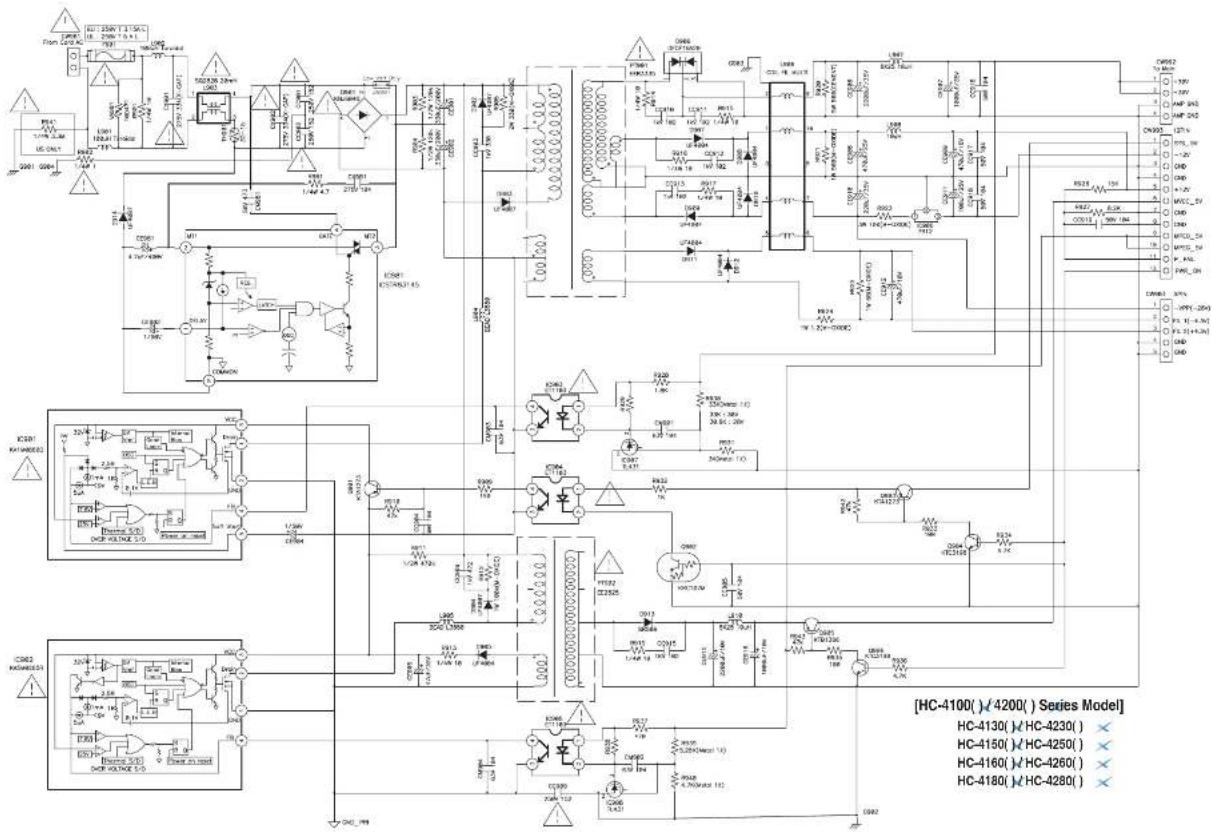

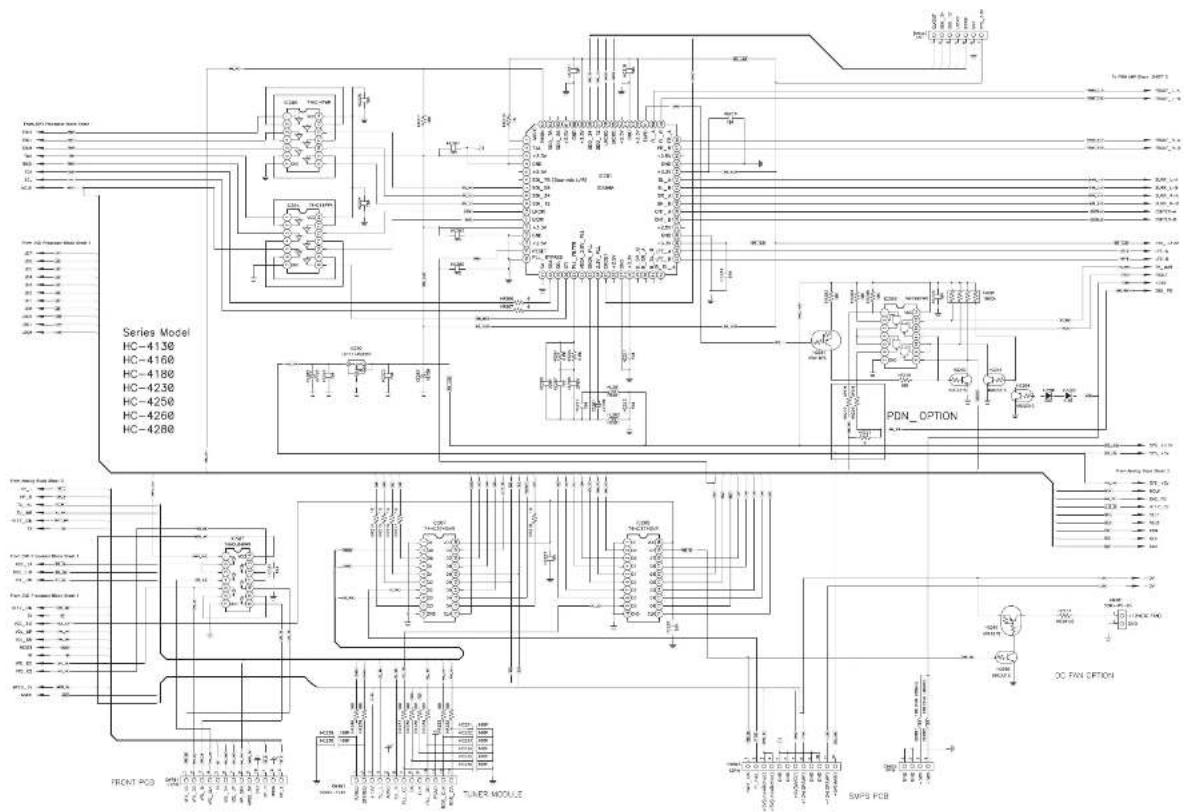

2. SCHEMATIC DIAGRAM....42/51

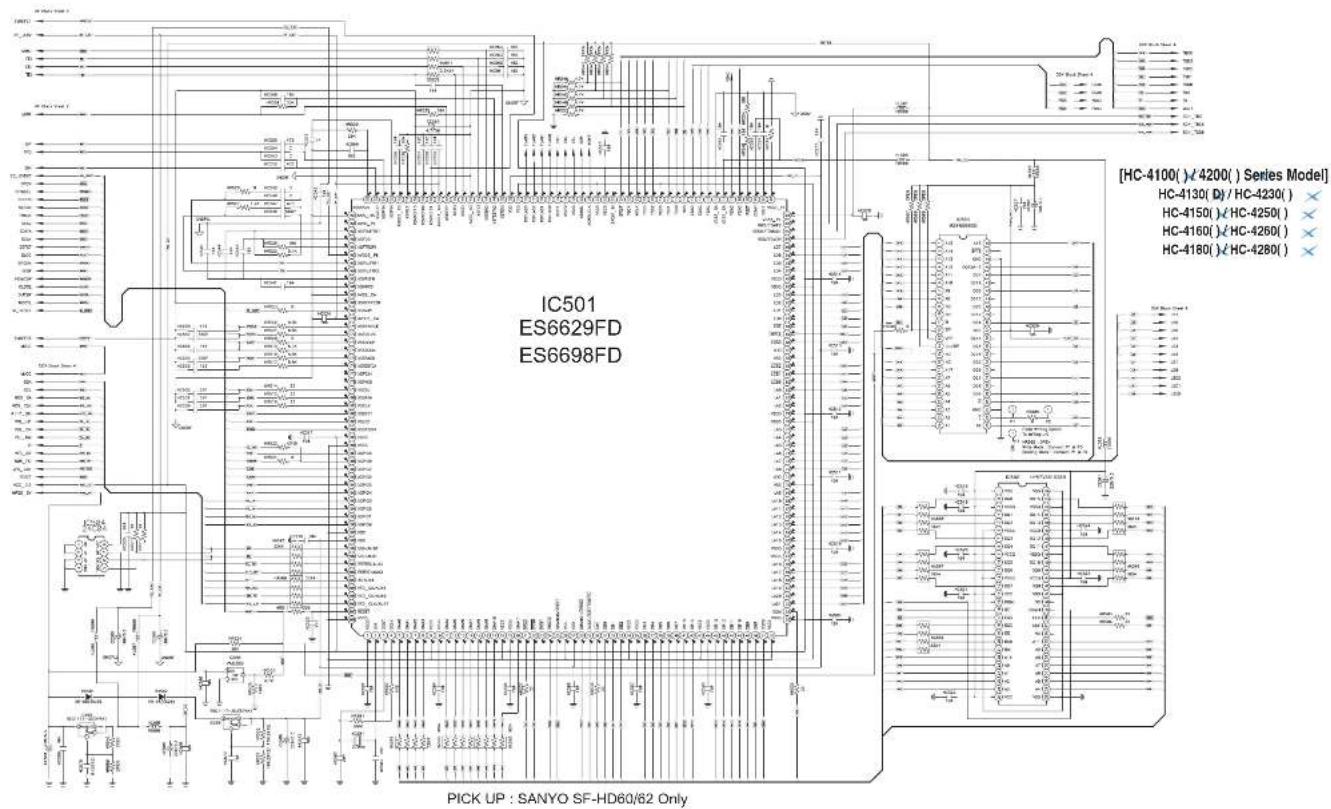

• DVD Processor Section

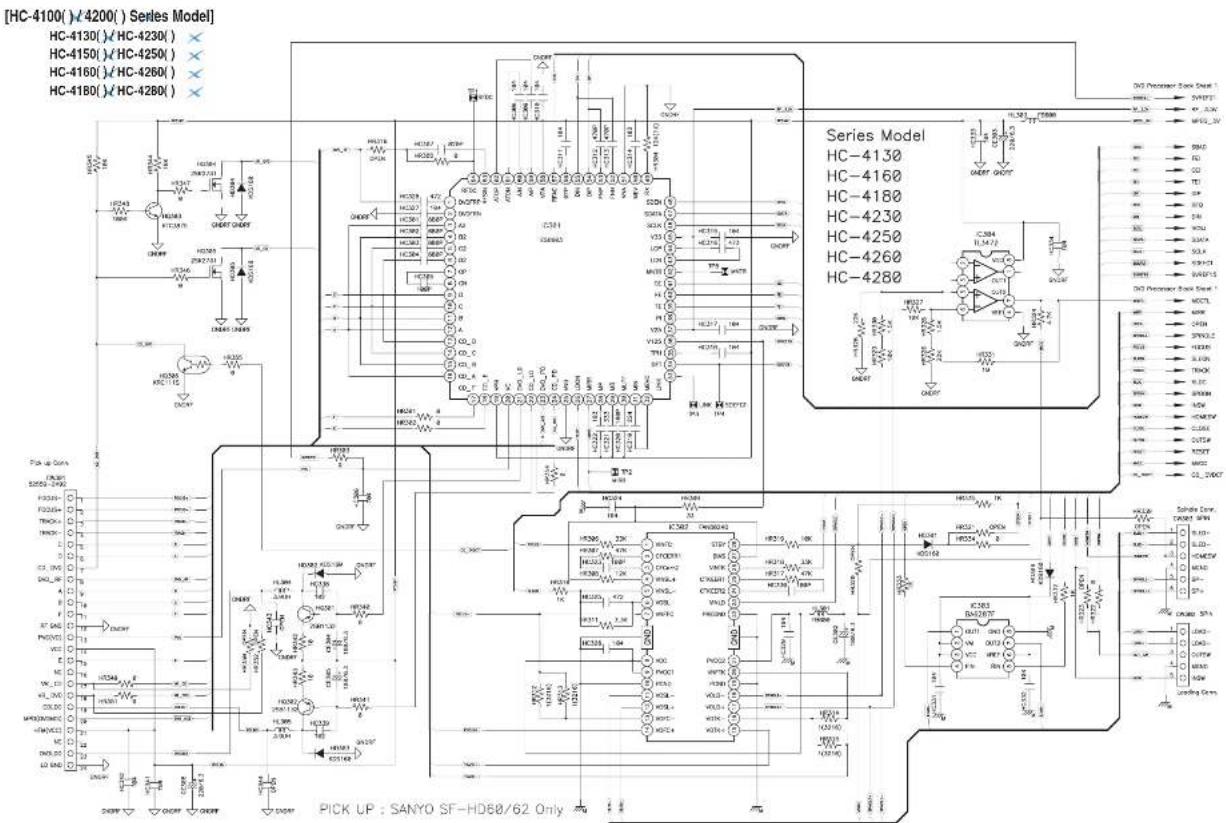

• DVD RF Section

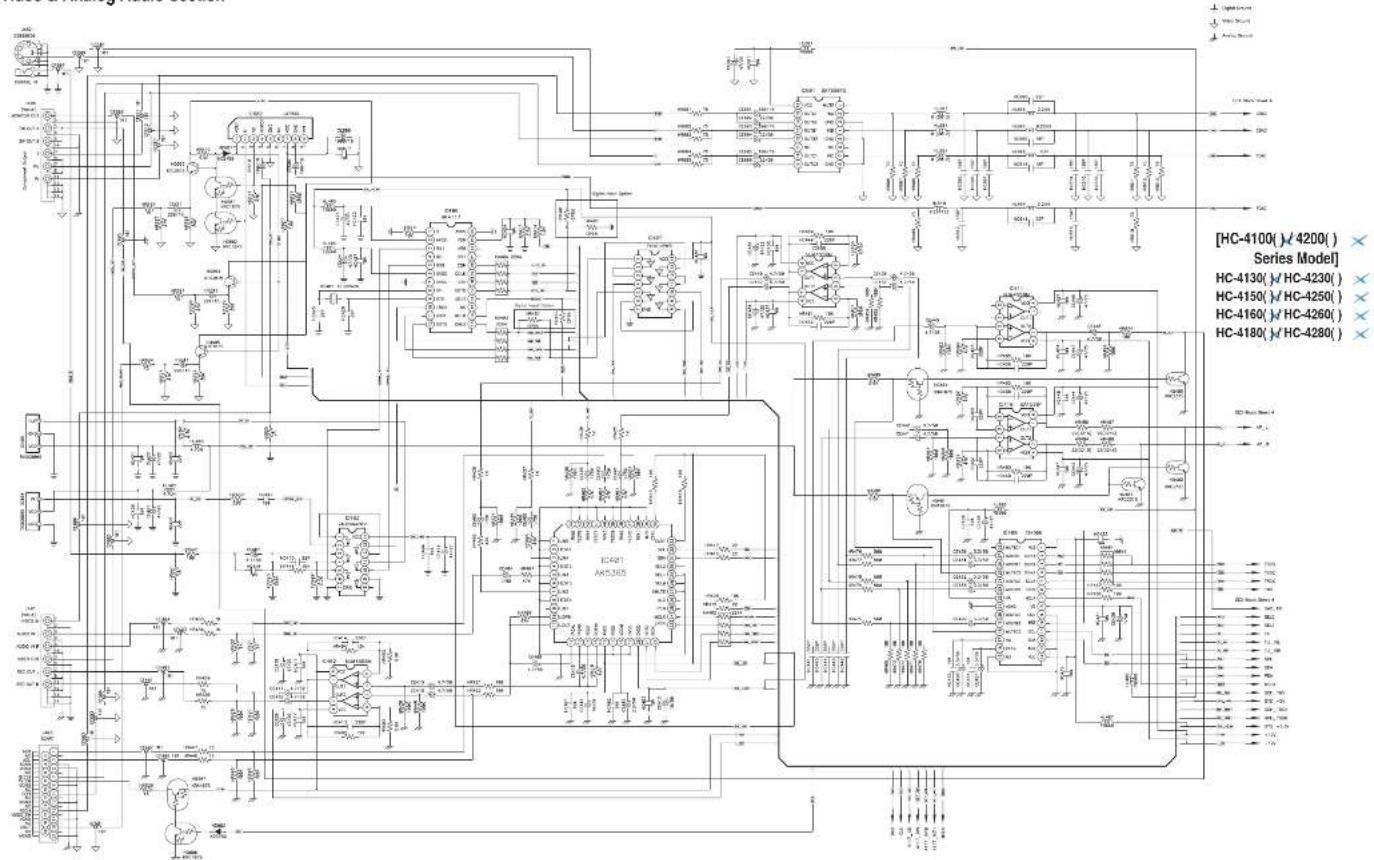

• Video & Analog Audio Section
- DDX Section

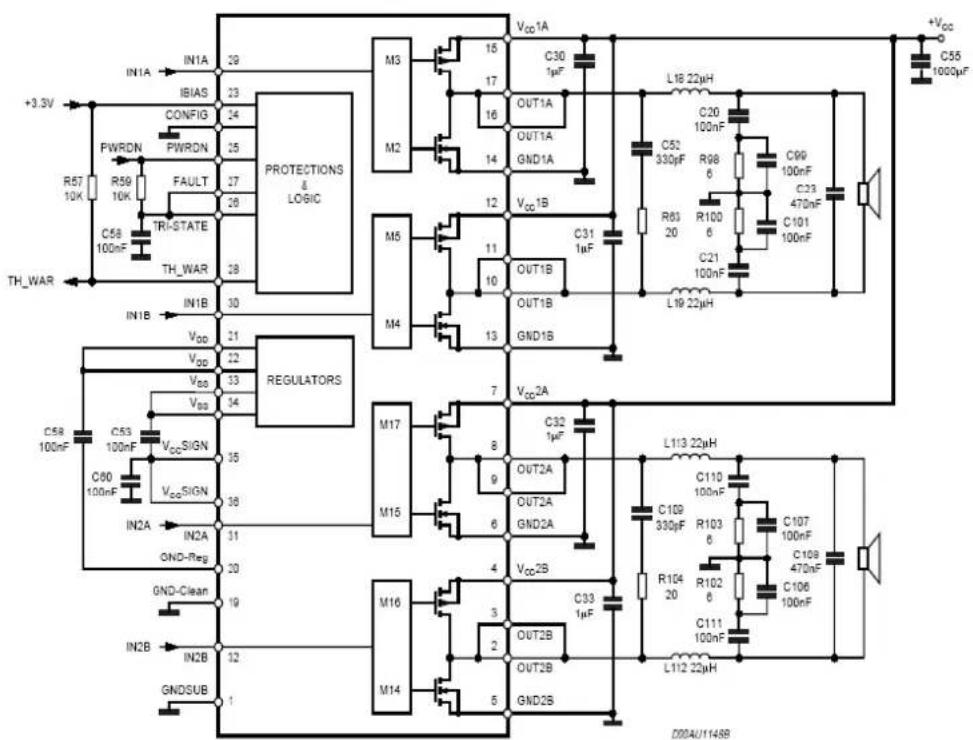

● PWM Amp. Section

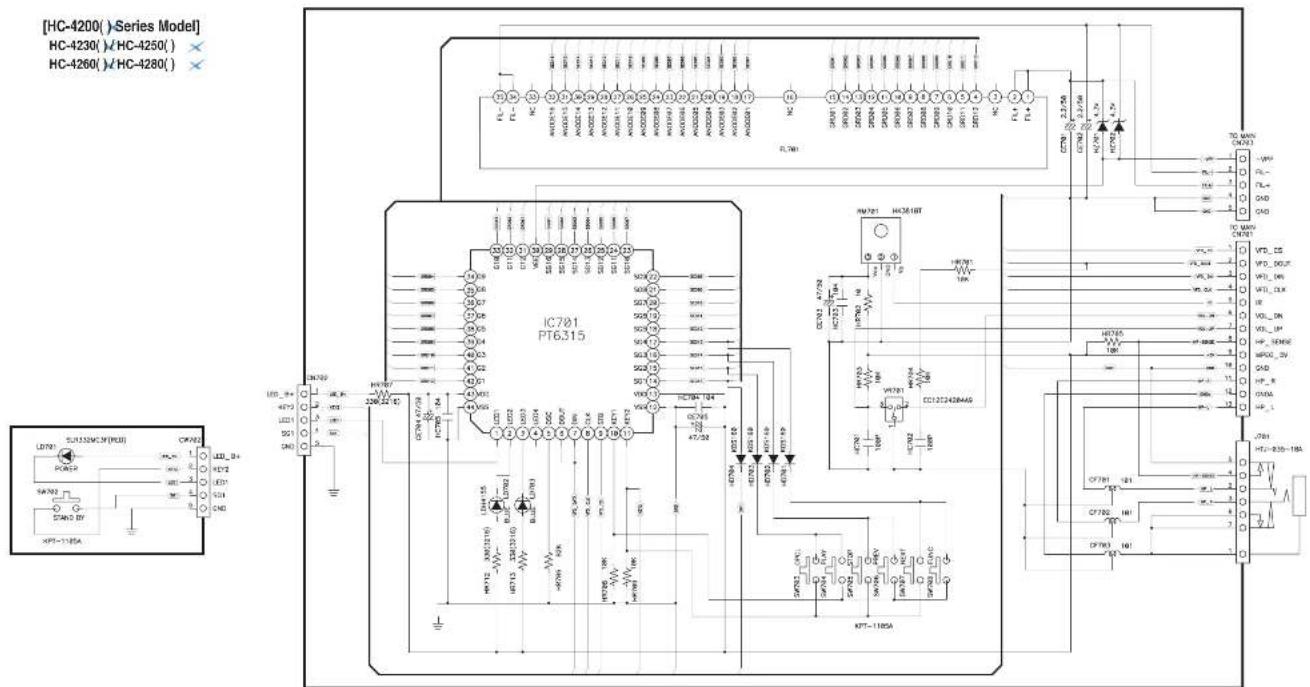

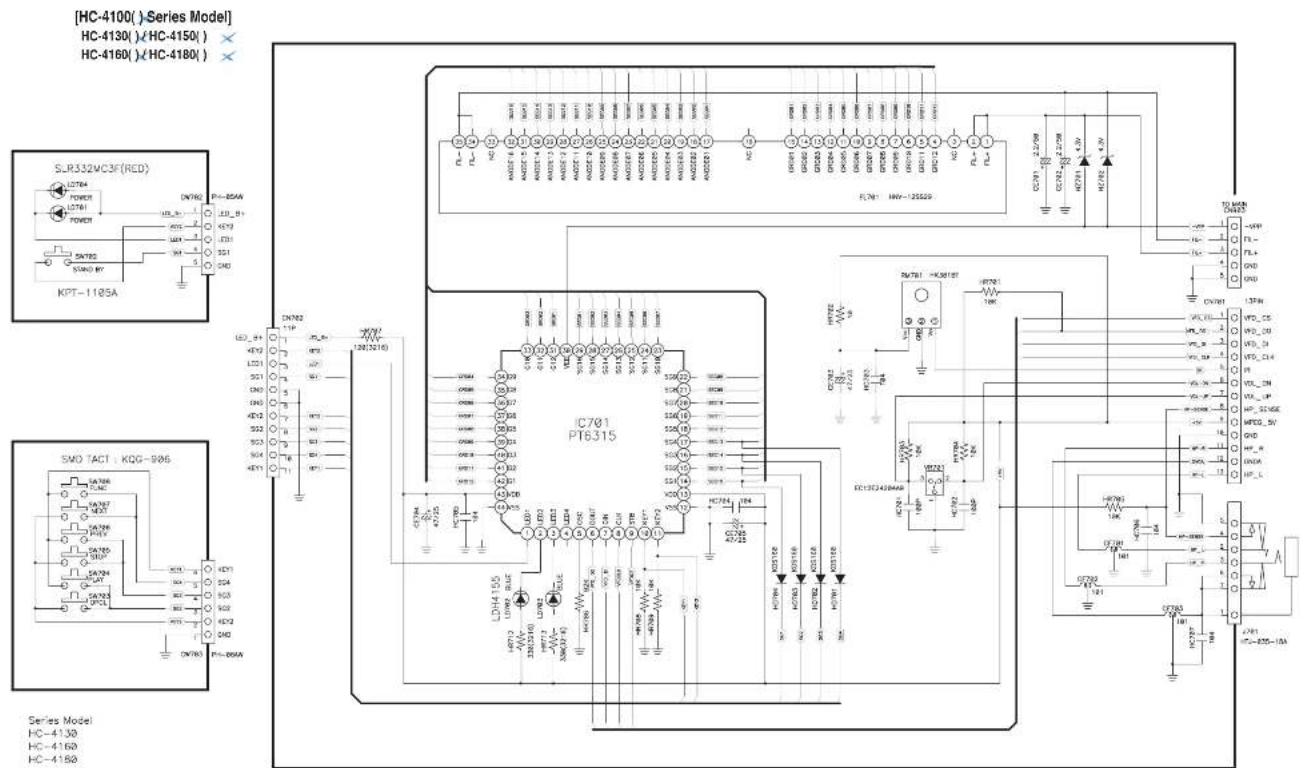

- Front Section
SMPS

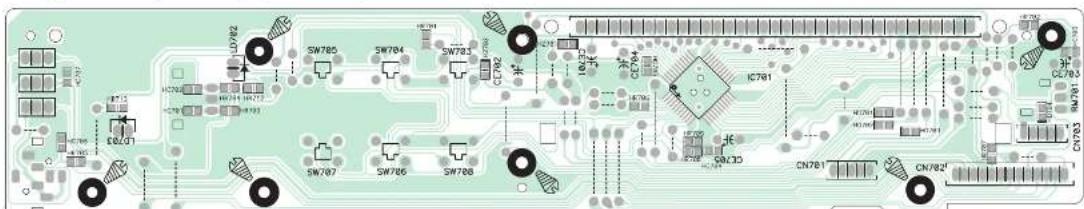

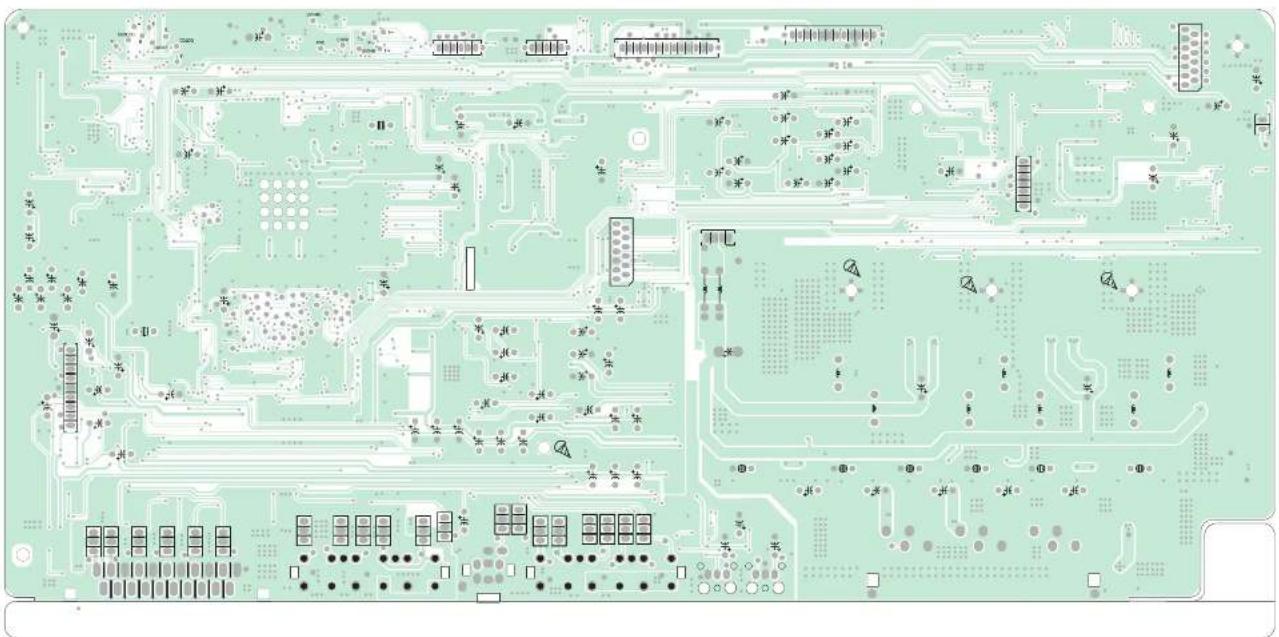

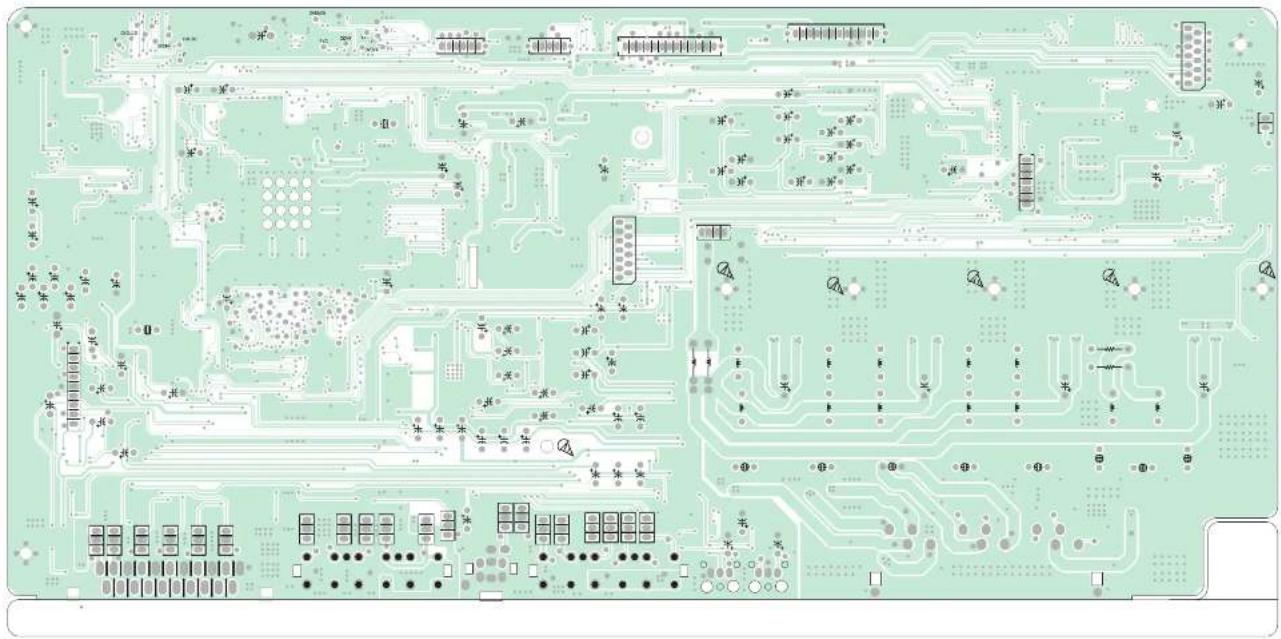

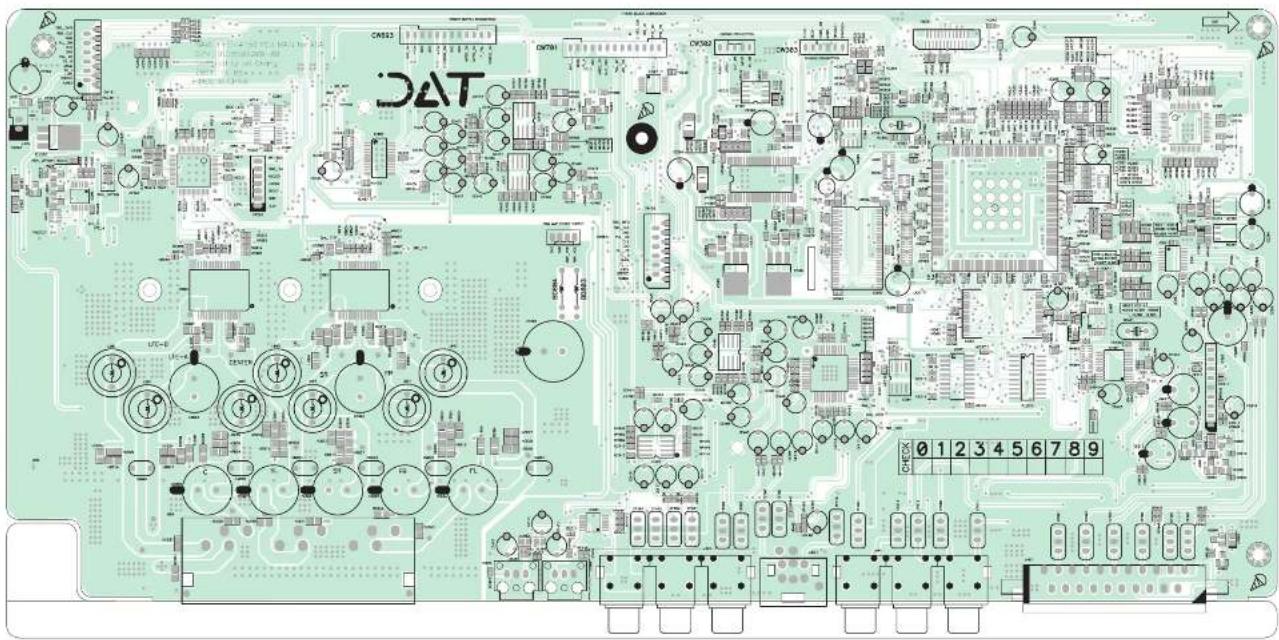

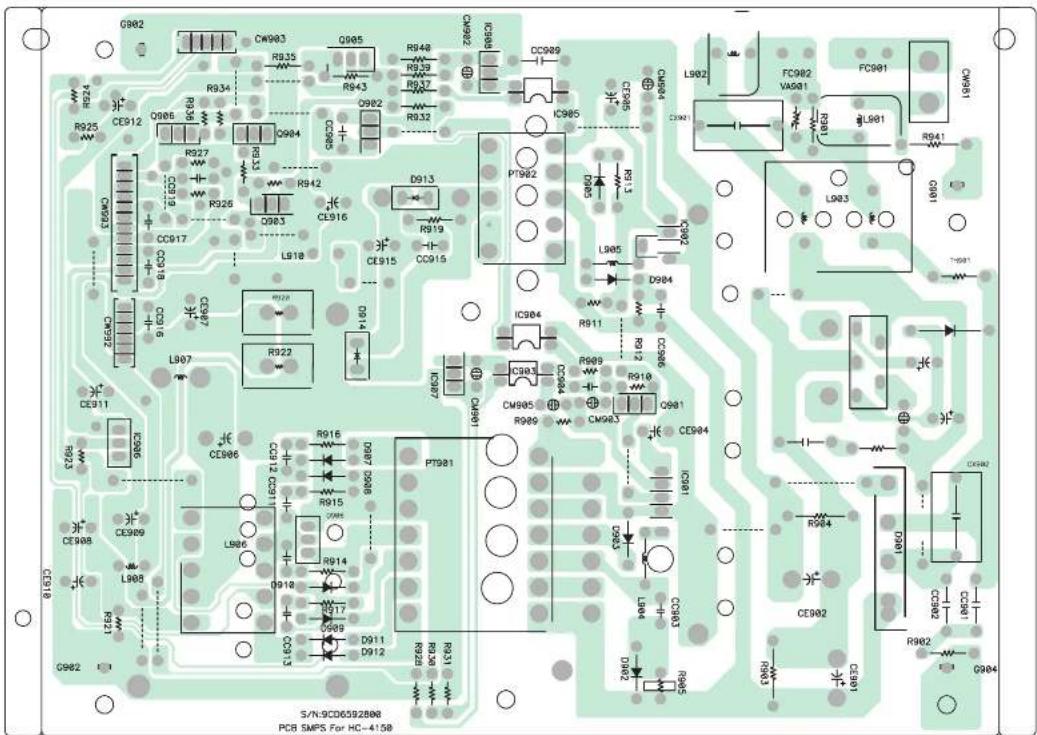

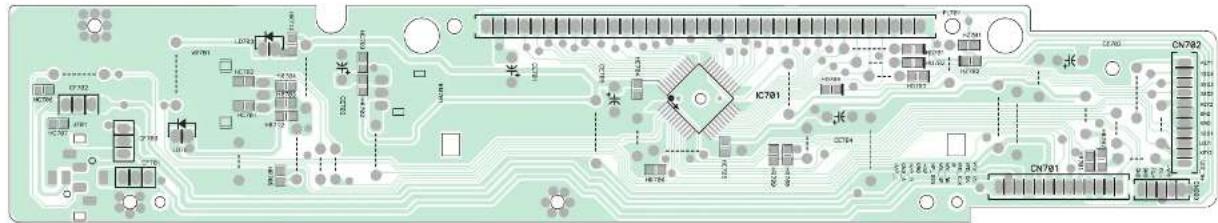

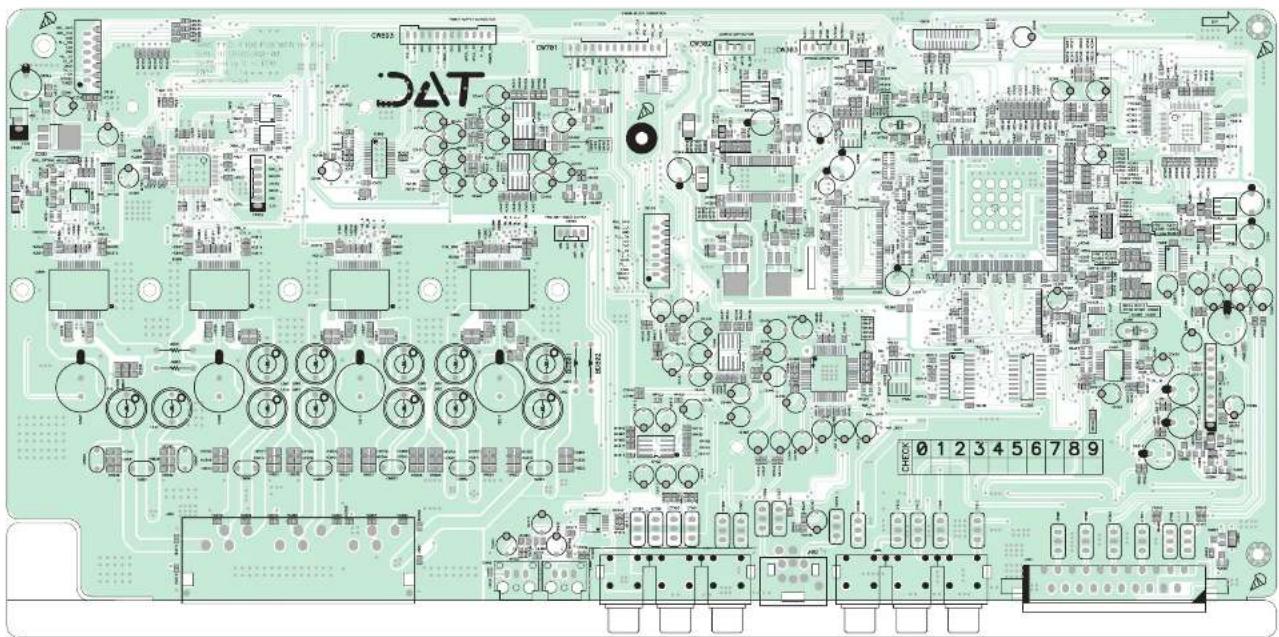

1. PRINTED CIRCUIT DIAGRAM....52/57

2. Front
   • Main
   SMPS

3. EXPLODED VIEW AND MECHANICAL PARTS LIST ..58/61

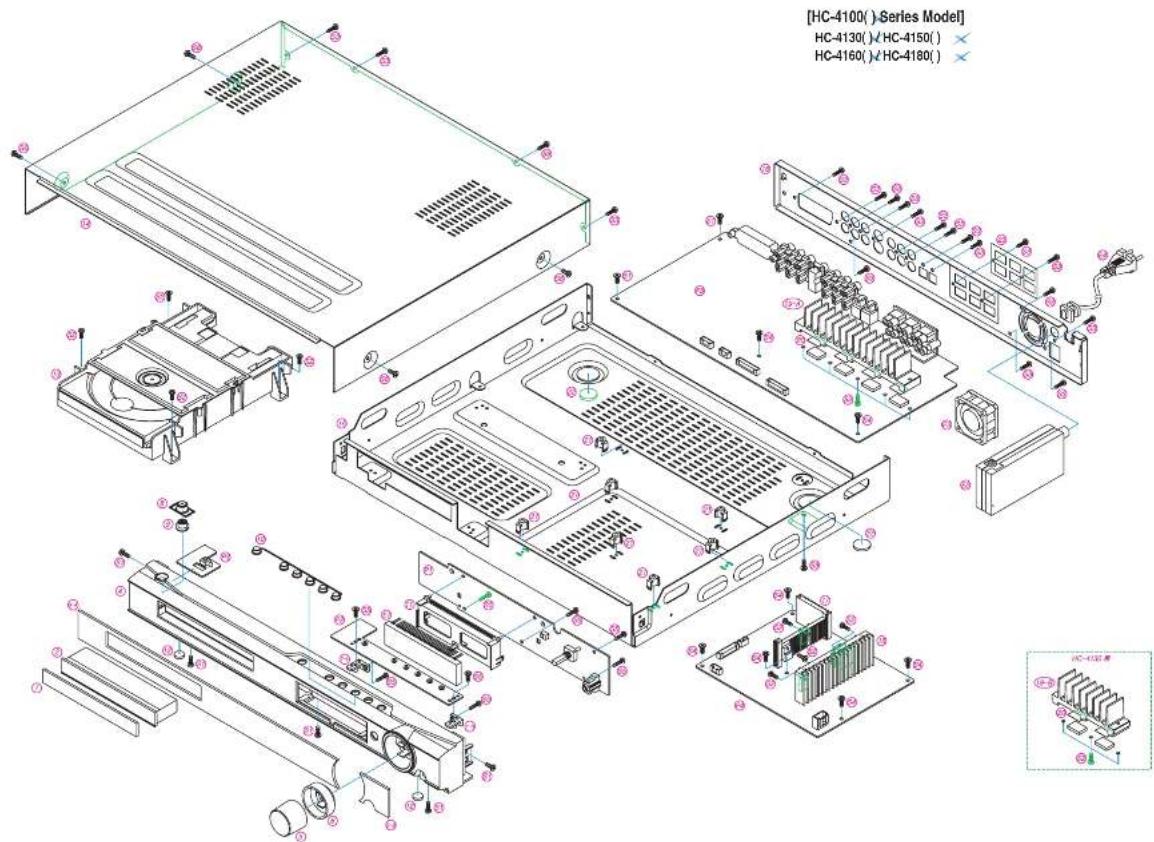

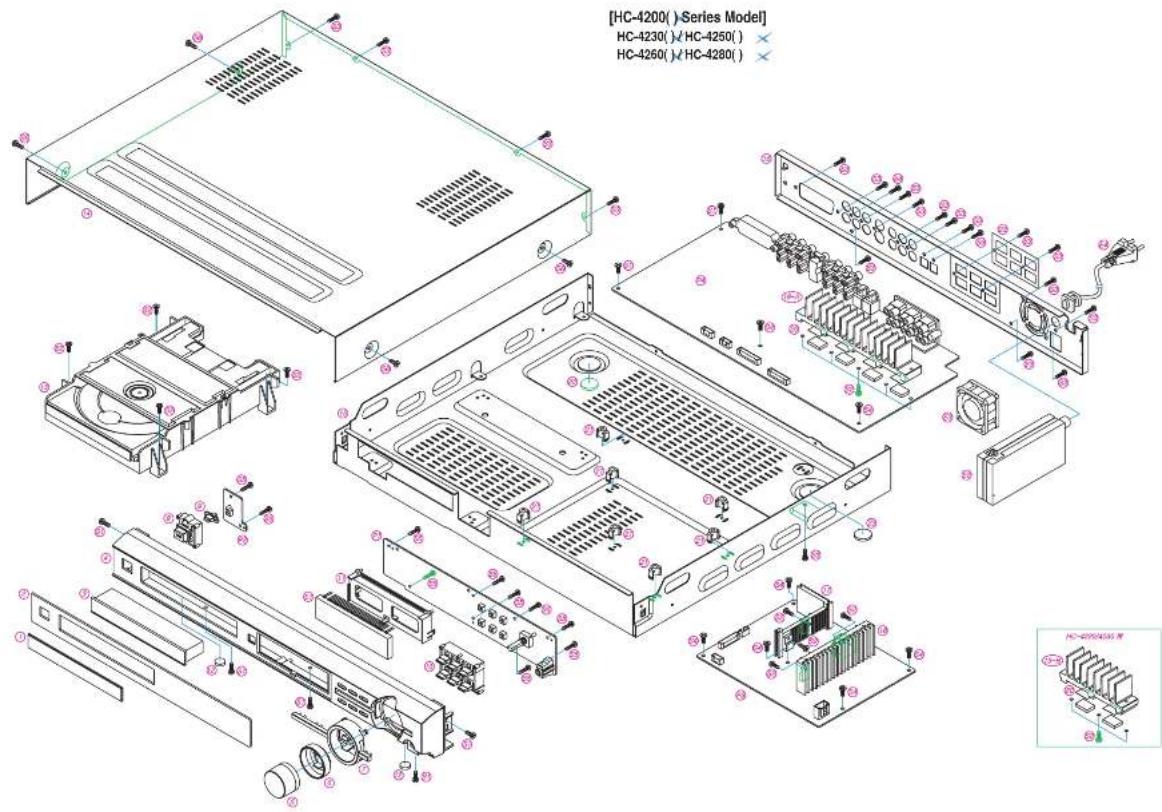

•MECHANICAL EXPLODED VIEW
• MECHANICAL PARTS LIST

1. ELECTRICAL PARTS LIST......Appendix

• ELECTRICAL PARTS LIST
● ELECTRICAL PARTS LIST [OPTION LIST]

1. Safety Precautions

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION
RISK OF ELECTRIC SHOCKS DO NOT OPEN

CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE" IN THE PRODUCT'S ENCLOSURE THAT MAY BE SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

CAUTION

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

LASER SAFETY

THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE DUE TO POSSIBLE EYE INJURY.

CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

Important Safety Instructions

• All the safety and operating instructions should be read before the appliance is operated.
• The safety and operating instructions should be retained for future reference.
• All warnings on the appliance and in the operating instructions should be adhered to.
• All operating and use instructions should be followed.
• Water and Moisture - The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink,

laundry tub, in a wet basement, or near a swimming pool, and the like.

PORTABLE CART

Figure 2

1. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.
2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
3. Wall or Ceiling Mounting - The appliance should be mounted to a wall or

ceiling only as recommended by the manufacturer.

1. Ventilation - The appliance should be situated so that its
   location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
2. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
3. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
4. Grounding or Polarization - The precautions that should be taken so that the grounding or polarization means of an appliance is not defeated.
5. Power - Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
6. Protective Attachment Plug - If the appliance is equipped with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.
7. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
8. Power Lines - An outdoor antenna should be located away from power lines.

1. Safety Precautions

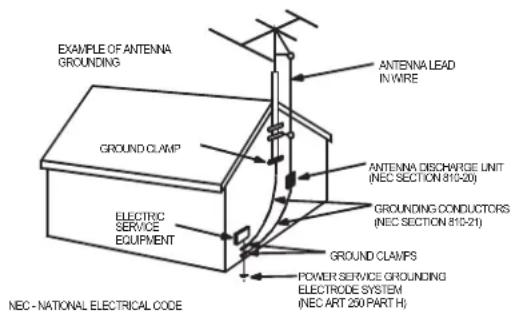

1. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure 1.

1. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

2. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

3. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

2. Specifications

General specifications

Power supplyOperation Voltage	AC 230V / 50Hz	Power consumption	Standby 2.8Watt
			Operating 90Watt
		Dimensions (W x D x H) / Weight	430 x 380 x 55 mm / 6.7 kg

Front Amp. Section

POWER OUTPUT at 10% THD(RMS)	At 1KHz, 6 ohms	50W
THD(Total Harmonic Distortion)	At 1KHz, 10W	0.1%
Input Sen./Impedance @ 1KHz, 47K ohms	VIDEO	200mV ±30mV/47K
Output Level/Impedance @ 1KHz	Tape Rec	200mV ±30mV/2.2K
Frequency Response(Analogue)	at 1W:VIDEO -3dB	20Hz~20KHz
S/N Ratio IHF-A Weighted	VIDEO	70dB
Subwoofer Turnover Frequency		≤120Hz
Channel Separation	1KHz	55dB

Center Amp Section

POWER OUTPUT at 10% THD(RMS)	At 1KHz, 6 ohms	50W
TOTAL HARMONIC DISTORTION	At 1KHz, 10W	0.1%
S/N RATIO, IHF-A FILTER	Rated Output	70dB
FRE. RESPONSE	1W	135Hz~18KHz

Rear Amp Section

POWER OUTPUT 10% THD(RMS)	At 1KHz, 6 ohms	50W
TOTAL HARMONIC DISTORTION	At 1KHz, 10W	0.1%
S/N RATIO DOLBY	Rated Output	65dB
FREQUENCY RESPONSE	1W	135Hz~18KHz

Woofer Section

POWER OUTPUT at 10% THDFREQUENCY RESPONSES/N RATIO, IHF-A Weight

At 100Hz, 4 ohms1W

80W20Hz~150Hz60dB

Video Section

Input Sen./Impedance	Composite Video(Video)	1Vp-p/75 ohm	±0.5 dB
Output Level/Impedance	Composite 75 ohm	1Vp-p/75 ohm	±0.5 dB
	S-Video(Y/C) 75 ohm(DVD only)	1Vp-p/ 0.286Vp-p	±0.5 dB
	Component Out(Y/ Cb/ Cr):Option	1Vp-p/0.7Vp-p/0.7Vp-p	±0.5 dB
Frequency Response	Ref 500KHz		5Hz~5.7MHz
Crosstalk	@1MHz	45dB	40dB
S/N Ratio	DVD	60dB

FM Tuner Section (FM ANT Impedance : 75 ohms)

Tuning Range	USA Version	87.5~108.0MHz
	Australia/Europe Version	87.5~108.0MHz
Scanning Frequency Interval	USA Version	100KHz
	Australia/Europe Version	50KHz
Usable Sensitivity, 75 ohms	S/N=30dB,USA Version	2uV(17.2dBf)
	S/N=26dB,Australia/Europe Version	3uV(20.8dBf)
S/N Ratio @1mV IHF-A FILTER	Mono USA Version	70dB
	Mono Australia/Europe Version	70dB
	Stereo USA Version	65dB
	Stereo Australia/Europe Version	63dB

Power output Table

Model	Power output at 10%THD(RMS)		Remark
	Front/Center /Rear	Woofer
HC-4130 HC-4230	30 W, 6 ohm	50 W, 6 ohm	Same to “ Series
HC-4150 HC-4250	50 W, 6 ohm	80 W, 4 ohm
HC-4160 HC-4260	60 W, 6 ohm	100 W, 4 ohm
HC-4180 HC-4280	80 W, 6 ohm	120 W, 4 ohm

3. Location of Users Controls

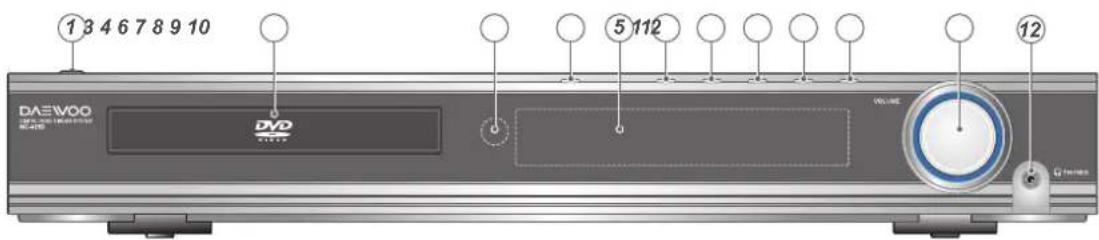

• Front Panel : HC-4100( ) Series Only

1. STANDBY/ON button with LED lamp
2. DISC TRAY
3. Remote Control Sensor
4. OPEN/CLOSE ( ▲) button
5. Display

6. PLAY ( ▶ ) button

7. STOP ( ■ ) button

8. PREV (◀◀) button
9. NEXT (▶▶I) button
10. FUNCTION button
11. MASTER VOLUME Control
12. PHONES jack

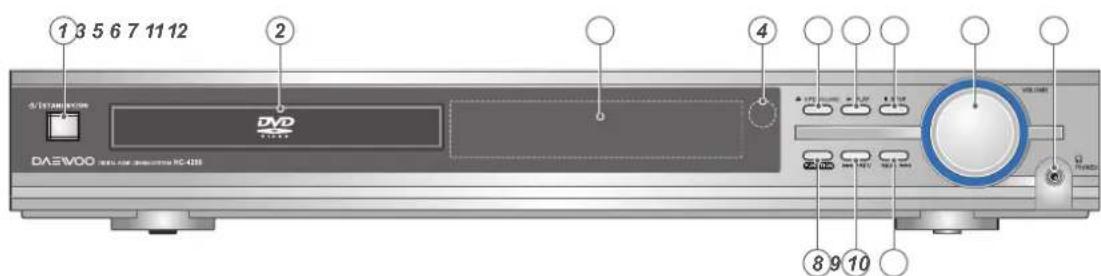

• Front Panel : HC-4200( ) Series Only

1. STANDBY/ON button with LED lamp
2. DISC TRAY
3. Display
4. Remote Control Sensor
5. OPEN/CLOSE ( ▲) button

6. PLAY ( ▶ ) button

7. STOP ( ■ ) button

8. FUNCTION button
9. PREV ( ◀◀◀ ) button
10. NEXT (▶▶) button
11. MASTER VOLUME Control
12. PHONES jack

3. Location of Users Controls

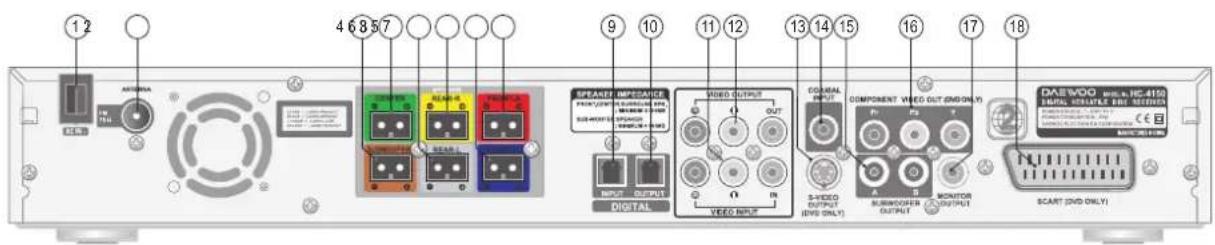

• Rear Panel


1. Power cord
2. FM ANTENNA connector
3. SUBWOOFER SPEAKER connectors
4. CENTER SPEAKER connectors
5. REAR-L SPEAKER connectors
6. REAR-R SPEAKER connectors
7. FRONT-L SPEAKER connectors
8. FRONT-R SPEAKER connectors

9. DIGITAL INPUT jack

10. DIGITAL OUTPUT jackj

11. VIDEO IN jacks
12. VIDEO OUT jacks
13. S VIDEO MONITOR OUT jack
14. COAXIAL INPUT jack
15. SUBWOOFER OUTPUT A/B connectors
16. COMPONENT VIDEO OUTPUT Y/Pb/Pr jacks (Optional)
17. MONITOR OUT jack

18. SCART jack

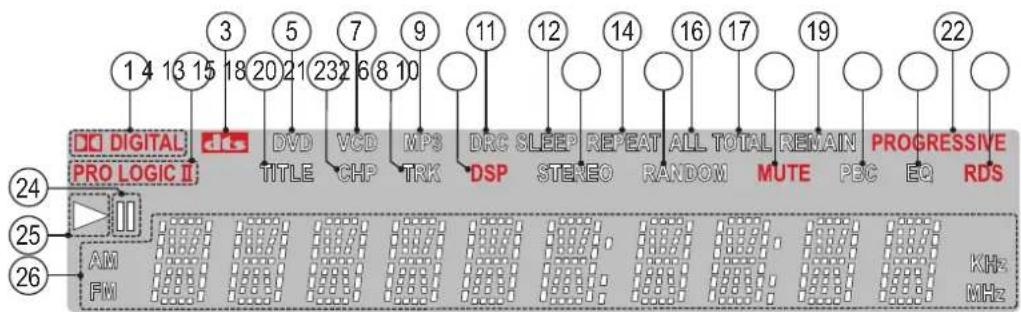

19. Display


1. DOLBY DIGITAL indicator
2. Pro Logic II indicator
3. DTS indicator
4. TITLE indicator
5. DVD indicator
6. CHAPTER indicator
7. VCD indicator
8. TRACK indicator
9. MP3 indicator
10. DSP indicator
11. DRC indicator
12. SLEEP indicator

13. STEREO indicator

14. REPEAT indicator

15. RANDOM indicator
16. ALL indicator
17. TOTAL indicator
18. MUTE indicator
19. REMAIN indicator
20. PBC(Playback Control) indicator
21. EQ indicator
22. PBC(Playback Control) indicator
23. RDS indicator
24. PAUSE indicator
25. PLAY indicator
26. Multi-Function Information Displaying Area

3. Location of Users Controls

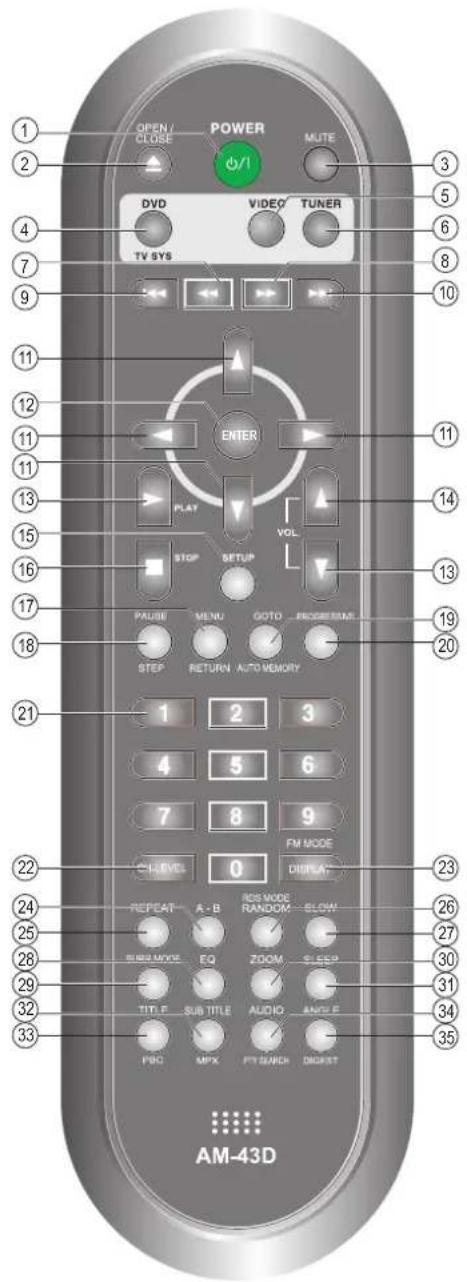

• Remote Controller


1. STANDBY/ON button
2. OPEN/CLOSE button
3. MUTE button
4. INPUT SELECTOR: DVD button/ TV SYSTEM(PAL/NTSC: DVD only) button
5. INPUT SELECTOR: VIDEO, TV/AUX button
6. INPUT SELECTOR: TUNER button
7. FAST REVERSE(FR) ( ◀◀) button
8. FAST FORWARD(FF) ( ▶▶) button
9. SKIP PREV ( ◀◀◀ ) button
10. SKIP NEXT (▶▶) button
11. Direction ( ▲/▼/◄/► ) buttons
12. Enter button
13. PLAY (▶) button
14. VOLUME( ▲/▼) buttons
15. SETUP button
16. STOP( ■ ) button
17. MENU/RETURN button
18. PAUSE/STEP button
19. GO TO/AUTO MEMORY button
20. PROGRESSIVE button
21. Number buttons(0\~9)
22. CH-LEVEL button
23. DISPLAY/FM MODE button
24. A-B REPEAT button
25. REPEAT button
26. RANDOM/RDS button
27. SLOW button
28. EQ button
29. SURROUND MODE button
30. ZOOM button
31. SLEEP button
32. SUBTITLE/MPX button
33. TITLE/PBC button
34. AUDIO/PTY SEARCH button
35. ANGLE/DIGEST button

4. Connecting to Equipment

- Connecting to TV

•21-Pin SCART Cable(not included) to 21-pin SCART input terminal on TV
• SCART Specification : Composite and Component Video output(DVD, Video)Audio L/R Output(DVD only)

- If the TV or monitor is equipped with an S video input, make the S video connection in addition to the normal video connection. The S video connection will provide higher quality picture playback.

- Connecting to Audio & Video

4. Connecting to Equipment

- Connecting to Speaker

Before connecting

- This machine is designed to reproduce optimum sound quality when speakers with the specified impedance below are connected. Please check the following information and choose speakers with appropriate impedance for the connections.

Front speakers / Center speaker / Surround Speakers : 6 ohms min. per speaker Woofer speaker : 4 ohm min. per speaker

• To prevent damage to circuits, never short-circuit the positive (+) and negative (-) speaker wires.
• Do not connect the speaker cable to the L and R connectors at the same time and do not connect more than one speaker to the same speaker connectors.

- Connecting to Recoring Equipment

5. Firmware Upgrade

• Preparing the Firmware Upgrade

1. Write a disc to Update file by PC Writing Program.

2. A size of dummy folder is more than 10M bite. (ex : font_dw, attached picture)

3. Put Firmware file in a disc.

· HC-XX50( )/60( ) / 80( )
- Basic : A50_8.ROM
- DivX : A50A_16.ROM
- HC-4130( ) / 4230( )
- Basic : A30_8.ROM
- DivX : A30A_16.ROM

- Activating the Firmware Upgrade

1. Open the Door of DVD Receiver.
2. Insert the Update Disc into the Disc Tray.
3. Close the Door, then DVD Receiver reads the disc, and Update the Firmware itself.

Illustration of a hand inserting a CD into an ABC/FOX HUK device on a stand (no text or symbols visible)

- Starting Update.

1. Detect the Update Disc.

2. Display for Update Version.

3. Basic Version : HC-4150 / 60 / 80, HC-4250 / 60 / 80 (A50_8.ROM)

4. Basic Version : HC-4130, HC-4230 (A30_8.ROM)
   • DivX Version : HC-4150 / 60 / 80 , HC-4250 / 60 / 80 (A50A_16.ROM)
   • DivX Version : HC-4130, HC-4230 (A30A_16.ROM)

5. Firmware Upgrade

- Read the Disc, Checksum Check and Update New Firmware.

Caution

- While updating, if the door opened or closed by touch, or power button is pressed, the Flash Memory will be damaged.

• Completed Update.

1. Automatically Power off (about 15 sec), than enter standby mode.
2. Press Power Button, the System is working.
3. Open the Door of DVD Receiver then remove the Firmware update disc.

- Check the Update Version.

1. Open the Door of DVD Receiver.
2. Press Audio Button or Subtitle Button.

• Audio Button : Check for MPEG Firmware Version.
- Subtitle Button : Check for Loader Firmware Version.

6. Trouble Shooting Guide

- Audio Part

1. BASIC OPERATING

6. Trouble Shooting Guide

- Front Circuit

1. INITIAL OPERATING

6. Trouble Shooting Guide

• Front Circuit

6. Trouble Shooting Guide

- Audio Part

1. AUDIO Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO LINE OUTPUT Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO LINE OUTPUT Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO LINE OUTPUT Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO LINE OUTPUT Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO CONTROL Abnormal

6. Trouble Shooting Guide

- Audio Part

1. AUDIO CONTROL Abnormal

6. Trouble Shooting Guide

- Audio Part

1. VIDEO OUTPUT Abnormal

6. Trouble Shooting Guide

- Audio Part

1. VIDEO OUTPUT Abnormal

6. Trouble Shooting Guide

- Audio Part

1. VIDEO OUTPUT Abnormal

6. Trouble Shooting Guide

- Audio Part

1. MECHA CONTROL Abnormal

6. Trouble Shooting Guide

- Audio Part

1. MECHA CONTROL Abnormal

7. Waveforms of Major Check Method

※ Test Point : DVD Test Disc "MDVD-W111 TRACK2 Color Bar"

● Audio Out Signal Waveform

● DAC Output Signal Waveform

● Optical Output Audio Data Signal waveform

● PWM Output Waveform During Normal Play

● Serial Data Output Waveform During Normal Play

7. Waveforms of Major Check Method

※ Test Point : DVD Test Disc "MDVD-W111 TRACK2 Color Bar"

● Pr Output Data Waveform in Component Output

● Pb Output Data Waveform in Component Output

● Y Output Data Waveform in Component Output

7. Waveforms of Major Check Method

※ Test Point : DVD Test Disc "MDVD-W111 TRACK2 Color Bar"

● Composite Output Data Waveform in Monitor Output

● S-Video Output Data Waveform

8. Internal Block Diagram of ICs

74HC00

74HC14

74HC374
Connection Diagram

Truth Table

Output Control	Clock	Data	Output
L	↑	H	H
L	↑	L	L
L	L	X	Q_0
H	X	X	Z

H = HIGH Level

L=LOW Level

X = Don't Care

- Transition from LOW-to-HIGH

Z = High Impedance State

Q_0 = The level of the output before steady state input conditions were

established

74HCU04
SN54HCU04 . . . J OR W PACKAGE SN74HCU04 . . . D, DB, N, NS, OR PW PACKAGE (TOP VIEW)

SN54HCU04 ... FK PACKAGE (TOP VIEW)

8. Internal Block Diagram of ICs

● AK4117

• AK5365

BA6287F

BA7660FS

8. Internal Block Diagram of ICs

CS4360

ES6629FD/ES6698FD

8. Internal Block Diagram of ICs

● FAN8024DB

LA7952

● M29W800DB

Figure 2A. TSOP Pin Connections

Warning: NC = Not Connected.

Figure 2B. TSOP Reverse Pin Connections

Warning: NC = Not Connected.

● LD1117A

SOT-223

DPAK

8. Internal Block Diagram of ICs

PT6315

STA505

AUDIO APPLICATION CIRCUIT (Dual BTL)

8. Internal Block Diagram of ICs

STA308A

    P["From Mix#1 Engine Or Previous Channel Biquad#10 Output (CxBLP)"] --> Q["PreScale"]
    Q --> R["High-Pass Filter"]
    R --> S["Biquad #2"]
    S --> T["Biquad #3"]
    T --> U["Biquad #4"]
    U --> V["Biquad #5"]
    V --> W["Biquad #6"]
    W --> X["Biquad #7"]
    X --> Y["Biquad #8"]
    Y --> Z["Bass"]
    Z --> AA["Treble"]

    AB["Interp_Rate"] --> D
    AC["6 Inputs From DSD"] --> B

9. Block Diagram

- Main Block

9. Block Diagram

• SMPS Block

10. Wiring Diagram

• [HC-4100( ) Series Only]

10. Wiring Diagram

• [HC-4200( ) Series Only]

11. Schematic Diagram

• DVD Processor Section

11. Schematic Diagram

• DVD RF Section

11. Schematic Diagram

• Video & Analog Audio Section

11. Schematic Diagram

- DDX Section [HC-4150( )/ 4160( ) / 4180( ) / 4250( ) / 4260( ) / 4280( ) Only]

11. Schematic Diagram

- DDX Section [HC-4130( )√ 4230( ) Only]

11. Schematic Diagram

• PWM Amp. Section [HC-4150( )/ 4160( ) / 4180( ) / 4250( ) / 4260( ) / 4280( ) Only]

11. Schematic Diagram

• PWM Amp. Section [HC-4130( ) 4230( ) Only]

11. Schematic Diagram

• Front Section [HC-4100( ) Series Only]

11. Schematic Diagram

• Front Section [HC-4200( ) Series Only]

11. Schematic Diagram

• SMPS Section

12. Printed Circuit Diagram

- Front [Bottom View] : HC-4100( × ) Series Only

• Key & Power [Bottom View] : HC-4100(×) Series Only

[HC-4100( ) Series Model]

HC-4130( ) ( HC-4150( )

HC-4160( ) / HC-4180( )

- Front [Bottom View] : HC-4200( × ) Series Only

[HC-4200( ) Series Model]

HC-4230() / HC-4250()

HC-4260( ) / HC-4280( )

12. Printed Circuit Diagram

• Main [Top View] : HC-4130( ) / 4230( ) Only

12. Printed Circuit Diagram

• Main [Bottom View] : HC-4130( ) 4230( ) Only

Green printed circuit board with various electronic components and traces (no readable text or symbols)

12. Printed Circuit Diagram

- Main [Top View]: HC-4150(×) / 4160(×) / 4180(×) / 4250(×) / 4260(×) / 4280(×) Only

12. Printed Circuit Diagram

- Main [Bottom View]: HC-4150(×) / 4160(×) / 4180(×) / 4250(×) / 4260(×) / 4280(×) Only

Green printed circuit board with various traces, pads, and connectors (no readable text or symbols)

12. Printed Circuit Diagram

• SMPS [Bottom View]

[HC-4100( ) 4200( ) Series Model]

HC-4130/ HC-4230/

HC-4150( ) HC-4250( )

HC-4160( )/HC-4260( )

HC-4180( ) HC-4280( )

14. Exploded View and Mechanical Parts List

HC-4100( ) Series Only

14. Exploded View and Mechanical Parts List

• HC-4100( ) Series Only

NO	PARTS NAME	CODE NO.	DESCRIPTIONS	Q'TY	REMARKS
1	WINDOW DOOR	9CD1621100	HALF-MIRROR T2.0	1
2	DOOR DVD	9CD1814300	HIPS, SPRAY	1
3	WINDOW FRONT A/B	9CD16210A0/B0	HALF-MIRROR T2.0	各1
4	PANEL FRONT	9CD0312400	HIPS,SPRAY	1
5	KNOB VOLUME	9CD1351200	ABS.CR COATING	1	ELECTRO FORMING
6	DECO VOLUME	9CD1005600	ACRYL,MILKY	1
7	BRKT PCB L/R	9CD24162L0/R0	M PS	各1
8	KNOB POWER	9CD1351300	ABS.CR COATING	1
9	LENS POWER	9CD1621300	ACRYL,MILKY	1
10	KNOB FUNCTION	9CD1351100	ABS.CR COATING	1
11	GUIDE FLT	9CD2507600	M PS	1	DHC-X100 共用
12	CUSH ON FOOT	9CD4209000	URETHAN RUBBER D10*4.0T	2	DHC-X100 共用
13	DECK MECHA DVD	9CD6012600	ASA (XWD 8110)	1	(W/O PCB SUPPORT)
14	CHASSIS TOP	9CD0610100	SECC T0.7	1
15	CHASSIS BOTTOM	9CD0610200	SECC T1.0	1
16	CHASSIS BACK	9CD0610300	SECC T0.8	1
17	HEATSINK DIODE	9CD4407300	AL-EXTRUS ON	1	DHC-XD500 共用
18	HEATSINK FET	9CD4407400	AL-EXTRUS ON	1	DHC-XD500 共用
19-A	HEATSINK IC	9CD4408400	AL-EXTRUS ON	1	HC-4150/60/80
19-B	HEATSINK IC	9CD4408900	AL-EXTRUS ON	1	HC-4120/30
20	RUBBER SIL CON	9CD4209100	RUBBER	4	DHC-XD500 共用
21	SUPPORT PCB 08	9CD2507400	HIPS H=8	7	DHC-XD500 共用
22	CUSH ON FOOT	9CD4207700	URETHAN RUBBER D12*4.0T	2	DHC-X100 共用
23	PLATE SPEAKER	9CD0913500	PC SHEET T0.3	1

NO	PARTS NAME	CODE NO.	DESCRIPTIONS	Q'TY	REMARKS
S1	SCREW TAPTITE	7173300812	TT2 BIN 3*8 MFZN	7
S2	SCREW TAPTITE	7173301011	TT2 BIN 3*10 MFZN	13
S3	SCREW TAPTITE	7173301012	TT2 BIN 3*10 MFZN BK	21
S4	SCREW TAPTITE	7173301412	TT2 BIN 3*14 BK	7
S5	SCREW TAPTITE	7173261011	TT2BIN 2.6*10 MFZN	8
S6	SCREW TAPTITE	7173300813	TT2 BIN 3*8 MFZN CR	4
P1	PCB FRONT	9CD6592300		1
P2	PCB TOP	9CD6592400		1
P3	PCB POWER	9CD6592401		1
P4	PCB SMPS	9CD6592800		1
P5	PCB MAIN	9CD6592700		1
E1	FLT			1
E2	TUNER MODULE			1
E3	DC FAN			1	HC-4180
E4	CORD AC			1

14. Exploded View and Mechanical Parts List

HC-4200( ) Series Only

14. Exploded View and Mechanical Parts List

• HC-4200( ) Series Only

NO	PARTS NAME	CODE NO.	DESCRIPTIONS	Q'TY	REMARKS
1	WINDOW DOOR	9CD1621100	HALF-MIRROR T2.0	1	HC-4150 共用
2	WINDOW FRONT	9CD1621200	HALF-MIRROR T2.0	1
3	DOOR DVD	9CD1814400	HIPS, SPRAY	1
4	PANEL FRONT	9CD0312500	HIPS, SPRAY	1
5	KNOB VOLUME	9CD1351500	ABS.CR COAT NG	1	ELECTRO FORM NG
6	DECO VOLUME	9CD1005700	ACRYL MILKY	1
7	DECO FRONT	9CD1005800	ABS.CR COAT NG	1
8	KNOB POWER	9CD1351600	ABS.CR COAT NG	1
9	LENS POWER	9CD1621400	ACRYL MILKY	1
10	KNOB FUNCTION	9CD1351400	ABS.CR COAT NG	1
11	GUIDE FLT	9CD2507700	MIPS	1	DHC-X150 共用
12	CUSHION FOOT	9CD4209000	URETHAN RUBBER D10*4.0T	2	DHC-X150 共用
13	DECK MECHA DVD	9CD6012600	ASA ( XWD 8110 )	1	(W/O SUPPORT PCB)
14	COVER TOP	9CD0610100	SECC T0.7	1	HC-4150 共用
15	CHASSIS BOTTOM	9CD0610200	SECC T1.0	1	HC-4150 共用
16	COVER BACK	9CD0610300	SECC T0.8	1	HC-4150 共用
17	HEATSINK DIODE	9CD4407300	AL-EXTRUSION	1	DHC-XD500 共用
18	HEATSINK FET	9CD4407400	AL-EXTRUSION	1	DHC-XD500 共用
19-A	HEATSINK IC	9CD4408400	AL-EXTRUSION	1	HC-4250/60/80
19-B	HEATSINK IC	9CD4408900	AL-EXTRUSION	1	HC-4220/30
20	RUBBER SILICON	9CD4209100	RUBBER	4	DHC-XD500 共用
21	SUPPORT PCB 08	9CD2507400	HIPS H=8	7	DHC-XD500 共用
22	CUSHION FOOT	9CD4207700	URETHAN RUBBER D12*4.0T	2	DHC-X150 共用
23	PLATE SPEAKER	9CD0913500	PC SHEET T0.3	1	HC-4150 共用

NO	PARTS NAME	CODE NO.	DESCRIPTIONS	Q'TY	REMARKS
S1	SCREW TAPTITE	7173300812	TT2 BIN 3*8 MFZN	7
S2	SCREW TAPTITE	7173301011	TT2 BIN 3*10 MFZN	13
S3	SCREW TAPTITE	7173301012	TT2 BIN 3*10 MFZN BK	17
S4	SCREW TAPTITE	7173301412	TT2 BIN 3*14 BK	7
S5	SCREW TAPTITE	7173261011	TT2BIN 2.6*10 MFZN	10
S6	SCREW TAPTITE	7173300813	TT2 BIN 3*8 CR	4
P1	PCB FRONT	9CD6592600		1
P2	PCB POWER	9CD6592601		1
P3	PCB SMPS	9CD6592800		1
P4	PCB MAIN	9CD6592700		1
E1	FLT			1
E2	TUNER MODULE			1
E3	DC FAN			1
E4	CORD AC			1

Electrical Part List

PCB MAIN ASS'y_ASA Mech [9CDC072100 : HC-4150 / 9CDC072200 : HC-4130]

Loc. Part Code Part Name Description Remark
B001 9CD6592700 PCB MAIN 344 X 160 1.6T FR-4
BD801 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz
BD802 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz
CE201 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11)
CE202 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE203 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE302 CEXFOJ101V C ELECTRO 6.3V RSS 100MF (5X11) TP
CE303 CEXFOJ221V C ELECTRO 6.3V RSS 220MF (5X11) TP
CE304 CEXFOJ101V C ELECTRO 6.3V RSS 100MF (5X11) TP
CE305 CEXFOJ101V C ELECTRO 6.3V RSS 100MF (5X11) TP
CE306 CEXFOJ221V C ELECTRO 6.3V RSS 220MF (5X11) TP
CE401 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE402 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE403 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE404 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE405 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE406 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE407 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP
CE409 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE410 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE411 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE412 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE413 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE414 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE415 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE416 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE417 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE418 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE419 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE420 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE421 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE422 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE423 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE424 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE426 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE427 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE428 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE429 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE430 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE431 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE432 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE433 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE434 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE435 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE436 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE437 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE438 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE439 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE440 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE441 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE442 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE443 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE444 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE445 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE446 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE447 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE448 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE501 CEXFOJ221V C ELECTRO 6.3V RSS 220MF (5X11) TP
CE502 CEXFOJ101V C ELECTRO 6.3V RSS 100MF (5X11) TP
CE503 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE504 CEXFOJ221V C ELECTRO 6.3V RSS 220MF (5X11) TP
CE505 CEXFOJ221V C ELECTRO 6.3V RSS 220MF (5X11) TP
CE506 CEXFOJ221V C ELECTRO 6.3V RSS 220MF (5X11) TP
CE508 CEXFOJ101V C ELECTRO 6.3V RSS 100MF (5X11) TP
CE509 CEXFOJ101V C ELECTRO 6.3V RSS 100MF (5X11) TP
CE601 CEXF1C101V C ELECTRO 16V RSS 100MF (5X11) TP
CE602 CEXF1H220V C ELECTRO 50V RSS 22MF
CE603 CEXF1C101V C ELECTRO 16V RSS 100MF (5X11) TP
CE604 CEXF1H220V C ELECTRO 50V RSS 22MF
CE605 CEXF1C101V C ELECTRO 16V RSS 100MF (5X11) TP

Electrical Part List

Loc. Part Code Part Name Description Remark
CE606 CEXF1H220V C ELECTRO 50V RSS 22MF
CE607 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE608 CEXF1C102V C ELECTRO 16V RSS 1000MF (5X11) TP
CE609 CEXF1C101V C ELECTRO 16V RSS 100MF (5X11) TP
CE610 CEXF1C101V C ELECTRO 16V RSS 100MF (5X11) TP
CE611 CEXF1C221V C ELECTRO 16V RSS 220MF
CE612 CEXF1C221V C ELECTRO 16V RSS 220MF
CE613 CEXF1C221V C ELECTRO 16V RSS 220MF
CE807 CEXF1V102V C ELECTRO 35V RSS 1000MF (13X25)
CE808 CEXF1V102V C ELECTRO 35V RSS 1000MF (13X25)
CE812 CEXF1V102V C ELECTRO 35V RSS 1000MF (13X25)
CE813 CEXF1V102V C ELECTRO 35V RSS 1000MF (13X25)
CF401 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF402 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF403 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF404 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF405 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF406 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF407 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF601 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF602 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF603 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF604 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF605 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF606 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF607 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF608 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF609 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF610 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF611 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF612 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CF613 5P1H101MF- LC FILTER CFI 06B 1H 101MF
CM801 CMXK1J684J C MYLAR MC 63V 0.68MF J
CM802 CMXK1J684J C MYLAR MC 63V 0.68MF J
CM803 CMXK1J684J C MYLAR MC 63V 0.68MF J
CM804 CMXK1J684J C MYLAR MC 63V 0.68MF J
CM805 CMXK1J684J C MYLAR MC 63V 0.68MF J
CM806 CMXK1J105J C MYLAR MC 63V 1MF J
CM807 CMXK1J224J C MYLAR MC 63V 0.22MF J
CM808 CMXK1J224J C MYLAR MC 63V 0.22MF J
CN101 9728823200 CONN FFC FFC Pitch1.25mm 13P 150mm D type
CW101 9CD6264500 CONN WAFER 52045-1345
CW201 2503-WS-02 CONN WAFER 2P 2.5MM With DC Fan
CW301 9CD6273500 CONN WAFER 52559-2492
CW302 2001-WS-05 CONN WAFER 5P 2.0MM
CW303 2001-WS-06 CONN WAFER 6P 2.0MM
CW701 2001-WS-13 CONN WAFER 13P 2.0MM
CW892 2001-WS-04 CONN WAFER 4P 2.0MM
CW893 2001-WS-12 CONN WAFER 12P 2.0MM
FN201 9738101600 DC FAN SP402012L With DC Fan
HA201 HRTT8103J R ARRAY CHIP 1/10 10KX4 OHM 1608
HA401 HRTT8101J R ARRAY CHIP 1/10 100X4 OHM 1608
HA402 HRTT8220J R ARRAY CHIP 1/10 22X4 OHM 1608
HA403 HRTT8220J R ARRAY CHIP 1/10 22X4 OHM 1608 With Digital Audio Input
HA404 HRTT8220J R ARRAY CHIP 1/10 22X4 OHM 1608 With Digital Audio Input
HA501 HRTT8100J R ARRAY CHIP 1/10 10X4 OHM 1608
HA502 HRTT8100J R ARRAY CHIP 1/10 10X4 OHM 1608
HA503 HRTT8100J R ARRAY CHIP 1/10 10X4 OHM 1608
HA504 HRTT8330J R ARRAY CHIP 1/10 33X4 OHM 1608
HA505 HRTT8330J R ARRAY CHIP 1/10 33X4 OHM 1608
HA506 HRTT8330J R ARRAY CHIP 1/10 33X4 OHM 1608
HA507 HRTT8100J R ARRAY CHIP 1/10 10X4 OHM 1608
HA508 HRTT8100J R ARRAY CHIP 1/10 10X4 OHM 1608
HA509 HRTT8100J R ARRAY CHIP 1/10 10X4 OHM 1608
HA510 HRTT8100J R ARRAY CHIP 1/10 10X4 OHM 1608
HA511 HRTT8332J R ARRAY CHIP 1/10 3.3KX4 OHM 1608
HC201 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC203 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC205 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC206 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC207 HCBK122KBA C CHIP CERA 50V X7R 1200PF K 1608

Electrical Part List

Loc. Part Code Part Name Description Remark
HC211 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC212 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC213 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC214 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC216 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC219 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC221 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC222 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC223 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC224 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC225 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC226 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC227 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC228 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC231 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC232 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC233 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC234 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC235 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC236 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC238 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC239 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC301 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC302 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC303 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC304 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC305 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC307 HCQK821JBA C CHIP CERA 50V CH 820PF J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC308 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC309 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC310 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC311 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC312 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
HC313 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
HC314 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC315 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC316 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC317 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC318 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC319 HCBK224KBA C CHIP CERA 50V X7R 0.22MF Z 1608
HC320 HCQK161JBA C CHIP CERA 50C CH 160PF J 1608
HC321 HCBK333KBA C CHIP CERA 50V X7R 0.033MF M 1608
HC322 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC323 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC324 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC325 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
HC326 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC327 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC328 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HC329 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC330 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC331 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC332 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC333 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC334 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC338 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC339 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC341 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC342 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC401 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC402 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC403 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC404 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC410 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC411 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC412 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC413 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC414 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC415 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC416 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC417 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608

Electrical Part List

Loc. Part Code Part Name Description Remark
HC420 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC421 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC422 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC423 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC424 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC425 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608
HC426 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608
HC427 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC430 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC431 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC432 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC433 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC434 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC435 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC436 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC437 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC438 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC439 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC440 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC441 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
HC442 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
HC443 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
HC444 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
HC445 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
HC447 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC448 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC449 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC450 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC451 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC452 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC453 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC454 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC456 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC457 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC501 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC502 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608
HC503 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608
HC504 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC505 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC506 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC507 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC508 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC509 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC510 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC511 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC512 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC513 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC514 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC515 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC516 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC517 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC518 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC519 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC520 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC521 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC522 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC523 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC524 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC525 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC526 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC527 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC528 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608
HC529 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC530 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC531 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC532 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC533 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
HC534 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC535 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
HC536 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
HC537 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608

Electrical Part List

Loc. Part Code Part Name Description Remark
HC538 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
HC540 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC541 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC542 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC543 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC544 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608
HC545 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC546 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
HC547 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC550 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
HC552 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
HC555 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
HC556 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC557 HCBK105KBA C CHIP CERA 50V X7R 1MF K 1608
HC558 HCBK105KBA C CHIP CERA 50V X7R 1MF K 1608
HC559 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC560 HCBK105KBA C CHIP CERA 50V X7R 1MF K 1608
HC561 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC562 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC563 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC564 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC565 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC566 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC567 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC568 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC569 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC570 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC571 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC572 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC573 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC575 HRF8000-CA R CHIP 1/8 0 OHM J 2012
HC577 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC601 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC605 HCQK151JBA C CHIP CERA 50V CH 150PF J 1608
HC606 HCQK151JBA C CHIP CERA 50V CH 150PF J 1608
HC607 HCQK151JBA C CHIP CERA 50V CH 150PF J 1608
HC608 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC609 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
HC610 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
HC611 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC612 HCQK151JBA C CHIP CERA 50V CH 150PF J 1608
HC614 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608
HC615 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608
HC616 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608
HC617 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC618 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608
HC801 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC802 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC803 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC804 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC805 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC806 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC807 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC808 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC809 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC810 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC811 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC812 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC813 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC814 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC815 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC816 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC817 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC818 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC819 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC820 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC821 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC822 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC823 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC824 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC825 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012

Electrical Part List

Loc. Part Code Part Name Description Remark

HC826 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012

HC827 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012

HC828 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012

HC829 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012

HC830 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012

HC831 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012

HC832 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012

HC833 HCQK331JCA C CHIP CERA 50V CH 330PF J 2012

HC834 HCQK331JCA C CHIP CERA 50V CH 330PF J 2012

HC835 HCQK331JCA C CHIP CERA 50V CH 330PF J 2012

HC836 HCQK331JCA C CHIP CERA 50V CH 330PF J 2012

HC837 HCQK331JCA C CHIP CERA 50V CH 330PF J 2012

HC838 HCQK681JCA C CHIP CERA 50V CH 680PF J 2012

HC839 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC840 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC841 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC842 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC843 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC844 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC845 HCBK224KCA C CHIP CERA 50V X7R 0.22MF K 2012

HC846 HCBK224KCA C CHIP CERA 50V X7R 0.22MF K 2012

HC847 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC848 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC849 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC850 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC851 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC852 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC853 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC854 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC855 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC856 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC857 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC858 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC859 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC860 HCBK154KCA C CHIP CERA 50V X7R 0.15MF K 2012

HC861 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC862 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC863 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC864 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC865 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC866 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC867 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC868 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC869 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC870 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC871 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HC872 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608

HD301 DZDS160--- DIODE SW CHIP KDS160

HD302 DZDS160--- DIODE SW CHIP KDS160

HD303 DZDS160--- DIODE SW CHIP KDS160

HD304 DZDS160--- DIODE SW CHIP KDS160

HD305 DZDS160--- DIODE SW CHIP KDS160

HD306 DZDS160--- DIODE SW CHIP KDS 160 ASA Mecha/Sanyo Pickup(SF-HD62)

HD501 D1SR156--- DIODE SW CHIP 1SR156-400 TE25

HD502 D1SR156--- DIODE SW CHIP 1SR156-400 TE25

HD601 DZDS160--- DIODE SW CHIP KDS160

HD602 DZDS160--- DIODE SW CHIP KDS160

HL201 5LX601K843 CHIP BEAD FB 600 OHM 100MHZ 2012

HL202 5LX601K843 CHIP BEAD FB 600 OHM 100MHZ 2012

HL301 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012

HL303 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012

HL304 HLC399J03A CHIP COIL 3.9UH

HL305 HLC399J03A CHIP COIL 3.9UH

HL402 HLC479J03A CHIP COIL 4.7UH CHIP 2012

HL403 HLC479J03A CHIP COIL 4.7UH CHIP 2012

HL404 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012

HL405 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012

HL407 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012

HL408 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012

HL409 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012

HL501 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012

Electrical Part List

Loc. Part Code Part Name Description Remark
HL502 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL503 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL505 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL506 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL507 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL508 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL601 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL603 HRF8000-CA R CHIP 1/8 0 OHM J 2012
HL604 HRF8000-CA R CHIP 1/8 0 OHM J 2012
HL605 HRF8000-CA R CHIP 1/8 0 OHM J 2012
HL606 5LF229K840 CHIP COIL 2.2UH
HL607 5LF228K844 CHIP COIL 0.22UH
HL608 5LF109K847 CHIP COIL 1UH
HL609 5LF229K840 CHIP COIL 2.2UH
HL610 HRF8000-CA R CHIP 1/8 0 OHM J 2012
HL801 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL802 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL803 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HL804 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012
HQ201 TZRA111S-- TR CHIP KRA111S
HQ202 TZRC231S-- TR CHIP KRC231S
HQ203 TZRC231S-- TR CHIP KRC231S
HQ204 TZRC231S-- TR CHIP KRC231S
HQ205 TZRC231S-- TR CHIP KRC231S With DC Fan
HQ206 TZRA107S-- TR CHIP KRA107S With DC Fan
HQ301 T2SB1132T1 TR CHIP TR, 2SB1132,SOT89EBC
HQ302 T2SB1132T1 TR CHIP TR, 2SB1132,SOT89EBC
HQ303 TZRC3875-- TR CHIP KTC3875 ASA Mecha/Sanyo Pickup(SF-HD62)
HQ304 T2SK2731T1 FET TR, 2SK2731(30V,0.1A),FET
HQ305 T2SK2731T1 FET TR, 2SK2731(30V,0.1A),FET
HQ306 TZRC111S-- TR CHIP KRC111S ASA Mecha/Sanyo Pickup(SF-HD62)
HQ401 TZRA107S-- TR CHIP KRA107S
HQ402 TZRC231S-- TR CHIP KRC231S
HQ403 TZRC231S-- TR CHIP KRC231S
HQ404 TZRA107S-- TR CHIP KRA107S
HQ405 TZRC231S-- TR CHIP KRC231S
HQ601 TZRC107S-- TR CHIP KRC107S
HQ602 TZRC107S-- TR CHIP KRC107S
HQ603 TZTC3875S- TR CHIP KTC3875S
HQ604 TZTC3875S- TR CHIP KTC3875S
HQ605 TZTC3875S- TR CHIP KTC3875S
HQ606 TZRC107S-- TR CHIP KRC107S
HQ607 TZRA107S-- TR CHIP KRA107S
HR201 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR202 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR203 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR204 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR205 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR206 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR207 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR210 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR211 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR212 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR213 HRF8100JCA R CHIP 1/8 10 OHM J 2012 With DC Fan
HR219 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR232 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR233 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR234 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR235 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR236 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR237 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR239 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR240 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR301 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR302 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR304 HRFT123FBA R CHIP 1/10 12K OHM F 1608
HR305 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR306 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR307 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR308 HRFT123JBA R CHIP 1/10 12K OHM J 1608
HR309 HRFT330JBA R CHIP 1/10 33 OHM J 1608

Electrical Part List

Loc. Part Code Part Name Description Remark
HR310 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR311 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR312 HRF4109JEA R CHIP 1/4 1OHM J 3216
HR313 HRF4109JEA R CHIP 1/4 1OHM J 3216
HR314 HRF4109JEA R CHIP 1/4 1OHM J 3216
HR315 HRF4109JEA R CHIP 1/4 1OHM J 3216
HR317 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR318 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR319 HRFT103JBA R CHIP 1/10 10K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR322 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR324 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR325 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR326 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR327 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR328 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR329 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR330 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR331 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR332 HRFT102JBA R CHIP 1/10 1K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR333 HRFT102JBA R CHIP 1/10 1K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR334 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR335 HRFT102JBA R CHIP 1/10 1K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR340 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR341 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR342 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR343 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR344 HRFT183JBA R CHIP 1/10 18K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR345 HRFT103JBA R CHIP 1/10 10K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR346 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR347 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR348 HRFT104JBA R CHIP 1/10 100K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR349 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR351 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR354 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR355 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR401 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR402 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR403 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR404 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR405 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR406 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR409 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR410 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR412 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR413 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR414 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
HR415 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR416 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR417 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR418 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR419 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR420 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR421 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR422 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR423 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR424 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR425 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR426 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR427 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR428 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR429 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR430 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR431 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR432 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR433 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR434 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR435 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR436 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR437 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR438 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR439 HRFT104JBA R CHIP 1/10 100K OHM J 1608

Electrical Part List

Loc. Part Code Part Name Description Remark
HR440 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR441 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR442 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR443 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR444 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR445 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR446 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR447 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR448 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR449 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR450 HRFT221JBA R CHIP 1/10 220 OHM J 1608
HR451 HRFT000-BA R CHIP 1/10 0 OHM J 1608 W/O Digital Audio Input
HR452 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR453 HRFT000-BA R CHIP 1/10 0 OHM J 1608 W/O Digital Audio Input
HR454 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR455 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR459 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR460 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR461 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR462 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR463 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR464 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR465 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR466 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR467 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR468 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR469 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR470 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR471 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR472 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR473 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR474 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR475 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR476 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR477 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR478 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR479 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR480 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR481 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR482 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR483 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR484 HRF4220JEA R CHIP 1/4 22 OHM J 3216
HR485 HRF4220JEA R CHIP 1/4 22 OHM J 3216
HR486 HRF4220JEA R CHIP 1/4 22 OHM J 3216
HR487 HRF4220JEA R CHIP 1/4 22 OHM J 3216
HR488 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR489 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR492 HRFT123JBA R CHIP 1/10 12K OHM J 1608
HR493 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR494 HRFT123JBA R CHIP 1/10 12K OHM J 1608
HR495 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR501 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR502 HRFT471JBA R CHIP 1/10 470 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR503 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR504 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR505 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR506 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR510 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR511 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR512 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR513 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR514 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR515 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR516 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR517 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR518 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR519 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR521 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR522 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR523 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR524 HRFT203JBA R CHIP 1/10 20K OHM J 1608

Electrical Part List

Loc. Part Code Part Name Description Remark
HR525 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608
HR526 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR527 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
HR529 HRFT203JBA R CHIP 1/10 20K OHM J 1608
HR530 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR531 HRFT000-BA R CHIP 1/10 0 OHM J 1608 ASA Mecha/Sanyo Pickup(SF-HD62)
HR532 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR533 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR534 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR535 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR536 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR537 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR538 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR539 HRFT330JBA R CHIP 1/10 33 OHM J 1608
HR540 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 Basic
HR541 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 DVD-Audio, DivX
HR542 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 Basic
HR543 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 DVD-Audio, DivX
HR544 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR546 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR548 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR551 HRF8101JCA R CHIP 1/8 100 OHM J 2012
HR552 HRF8131JCA R CHIP 1/8 130 OHM J 2012
HR553 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR554 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR601 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR602 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR603 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR604 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR605 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR606 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR607 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR608 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR609 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR610 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR611 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR612 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR613 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR614 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR615 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR616 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR617 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR618 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR619 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR620 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR621 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR622 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR623 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR624 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR625 HRFT750JBA R CHIP 1/10 75 OHM J 1608
HR627 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR628 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR801 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR802 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR803 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR804 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR805 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR806 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR807 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR808 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR809 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR810 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR811 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR812 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR813 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR814 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR815 HRF4220JEA R CHIP 1/4 22 OHM J 3216
HR816 HRF4220JEA R CHIP 1/4 22 OHM J 3216
HR817 HRF4220JEA R CHIP 1/4 22 OHM J 3216
HR818 HRF4220JEA R CHIP 1/4 22 OHM J 3216
HR819 HRF4220JEA R CHIP 1/4 22 OHM J 3216

Electrical Part List

Loc. Part Code Part Name Description Remark

HR820 HRF4220JEA R CHIP 1/4 22 OHM J 3216

HR821 HRF4220JEA R CHIP 1/4 22 OHM J 3216

HR822 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR823 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR824 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR825 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR826 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR827 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR828 HRF4569JEA R CHIP 1/4W 5.6 OHM J 3216

HR829 HRF4569JEA R CHIP 1/4W 5.6 OHM J 3216

HR830 HRF4569JEA R CHIP 1/4W 5.6 OHM J 3216

HR831 HRF4569JEA R CHIP 1/4W 5.6 OHM J 3216

HR832 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR833 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR834 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HR835 HRF4399JEA R CHIP 1/4W 3.9 OHM J 3216

HZ201 DMTZ30B--- DIODE ZENER CHIP UDZS30B 17x12

HZ202 DMTZ4R3B- DIODE ZENER CHIP UDZS4.3B 17x12

IC201 1STA308A-- IC STA308A DDX

IC202 1LD1117S33 IC LD1117AS33TR SOT-223

IC204 174HC14PWR IC SN74HC14PWR TSSOP

IC205 174HC14PWR IC SN74HC14PWR TSSOP

IC206 174HC00PWR IC SN74HC00PWR TSSOP

IC207 174HC244NS IC SN74HC244NSR SOP

IC208 174HC374NS IC SN74HC374NSR SOP

IC301 1ES6603S-- IC RFAMP IC, ES6603S

IC302 1FAN8024CD IC IC, MOTOR DRIVE

IC303 1BA6287F-- IC BA6287F DRIVER

IC304 1TL3472CD- IC OPAMP, TL3472

IC401 1AK5365VQ- IC AK5365 ADC

IC402 1NJM4558M- IC NJM4558M

IC403 174HCU04PW IC SN74HCU04PWR TSSOP

IC404 1TXOC0805- IC OC0805-TX

IC405 1RXOC0805- IC RX OC0805-RX With Digital Audio Input

IC406 1AK4117-- IC DIR AK4117 DIR With Digital Audio Input

IC407 174HC14PWR IC SN74HC14PWR TSSOP

IC408 1CS4360--- IC CS4360 6CH DAC

IC409 1NJM4558M- IC NJM4558M

IC410 1BA4560F-- IC BA4560F

IC411 1NJM4558M- IC NJM4558M

IC501 1ES6629FD- IC MPEG DECODER ES6629FD Basic Default

IC502 1L128168A- IC M12L128168A SDRM(128M) DVD-Audio, DivX

IC503 1M29W160EB IC M29W160DB FLASH(16M) DVD-Audio, DivX

IC504 1M24C04MN- IC M24C04MN SOP

IC505 1LD1117A33 IC LD1117ADT33 DPAK

IC506 1LD1117A-R IC LD1117ADT-R DPAK

IC507 174HCU04PW IC SN74HCU04PWR TSSOP

IC508 1V6309MSP3 IC RESET IC, V6309 MSP3B

IC601 1BA7660FS- IC BA7660FS 75 OHM DRIVER

IC602 1LA7952--- IC LA7952

IC806 1STA505--- IC PWM AMP STA505 PWM AMP HC-4150/60: 120V(90~135V)HC-4150/60: 230V(180~265V)

IC808 1STA506--- IC PWM AMP STA506 PWM AMP HC-4180 All

IC809 1STA505--- IC PWM AMP STA505 PWM AMP HC-4150/60: 120V(90~135V)HC-4150/60: 230V(180~265V)

J401 9736327800 JACK RCA RCA-603EA-06(BBY 6P, Shield plate)

J402 9736328100 JACK S-VIDEO R102-D04KA-07(S-VIDEO+RCA, Shield plate) With Digital Audio Input

J403 9736324800 JACK SCART SCART RGB-14 Europe OnlyHC-4130/50/60: 180~265V(CE)

J404 9736327600 JACK RCA RCA-603EA-32 (RGB 6P, Shield plate) With Progressive Europe/AmericaHC-4130/50/60: 90V~135V(UL)

Electrical Part List

Loc. Part Code Part Name Description Remark
	9736328500 JACK RCA RCA-303A-21 (RGB 3P, Shield plate)		Without Progressive Europe/America HC-4130/50/60 : 180~265V(CE)
J801 9736325000 JACK SPK PA1220601P
L801 5LC150K846 COIL 15UH LPF(SPK)
L802 5LC150K846 COIL 15UH LPF(SPK)
L803 5LC150K846 COIL 15UH LPF(SPK)
L804 5LC150K846 COIL 15UH LPF(SPK)
L805 5LC150K846 COIL 15UH LPF(SPK)
L806 5LC150K846 COIL 15UH LPF(SPK)
L807 5LC150K846 COIL 15UH LPF(SPK)
L808 5LC150K846 COIL 15UH LPF(SPK)
L809 5LC150K846 COIL 15UH LPF(SPK)
L810 5LC150K846 COIL 15UH LPF(SPK)
L811 5LC100K845 COIL 10MH LPF(SPK)
L812 5LC100K845 COIL 10MH LPF(SPK)
XC401 5XJ12R288E X-TAL		12.288MHZ HC-49/US (RADIAL/SMD)	With Digital Audio Input
XC501 5XJ27M000E X-TAL 27MHZ HC-49/US (RADIAL/SMD)

PCB FRONT ASS'y [9CDC071300] : HC-4150

Loc. Part Code Part Name Description Remark
B700	9CD6592300 PCB FRONT
CE701	CEXP1H229V	C ELECTRO	50V REM 2.2MF (4X5) TP
CE702	CEXP1H229V	C ELECTRO	50V REM 2.2MF (4X5) TP
CE703	CEXP1E470V	C ELECTRO	25V REM 47MF (6.4X6) TP
CE704	CEXP1E470V	C ELECTRO	25V REM 47MF (6.4X6) TP
CE705	CEXP1E470V	C ELECTRO	25V REM 47MF (6.4X6) TP
CF701 5P1H101MF- LC FILTER			CFI 06B 1H 101MF
CF702 5P1H101MF- LC FILTER			CFI 06B 1H 101MF
CF703 5P1H101MF- LC FILTER			CFI 06B 1H 101MF
CN701	9728822900 CONN AS		UL1007 #26 Pitch2.013P+13P 280mm Board in
CN702	9728823000 CONN AS		UL1007 #28 Pitch 2.011P+5P/6P 220mm(5P)+90mm(6P)
CN903	9728822800 CONN AS		UL1007 #26 Pitch2.05P+5P 160mm Board in
FL701	DHNV12SS29	FL DISPLAY	HNV-12SS29
HC701	HCQK101JBA	C CHIP CERA	50V CH 100PF J 1608
HC702	HCQK101JBA	C CHIP CERA	50V CH 100PF J 1608
HC703	HCBK104KBA	C CHIP CERA	50V X7R 0.1MF Z 1608
HC704	HCBK104KBA	C CHIP CERA	50V X7R 0.1MF Z 1608
HC705	HCBK104KBA	C CHIP CERA	50V X7R 0.1MF Z 1608
HC706	HCBK104KBA	C CHIP CERA	50V X7R 0.1MF Z 1608
HC707	HCBK104KBA	C CHIP CERA	50V X7R 0.1MF Z 1608
HD701	DZDS160---	DIODE SW CHIP	KDS 160
HD702	DZDS160---	DIODE SW CHIP	KDS 160
HD703	DZDS160---	DIODE SW CHIP	KDS 160
HD704	DZDS160---	DIODE SW CHIP	KDS 160
HR701	HRFT103JBA	R CHIP	1/10 10K OHM J 1608
HR702	HRFT100JBA	R CHIP	1/10 10 OHM J 1608
HR703	HRFT103JBA	R CHIP	1/10 10K OHM J 1608
HR704	HRFT103JBA	R CHIP	1/10 10K OHM J 1608
HR705	HRFT103JBA	R CHIP	1/10 10K OHM J 1608
HR706	HRFT823JBA	R CHIP	1/10 82K OHM J 1608
HR707	HRF4331JEA	R CHIP	1/4 330 OHM J 3216
HR708	HRFT103JBA	R CHIP	1/10 10K OHM J 1608
HR709	HRFT103JBA	R CHIP	1/10 10K OHM J 1608
HR712	HRF4331JEA	R CHIP	1/4 330 OHM J 3216
HR713	HRF4331JEA	R CHIP	1/4 330 OHM J 3216
HZ701	DMTZ4R3B-	DIODE ZENER CHIP	UDZS4.3B 17x12
HZ702	DMTZ4R3B-	DIODE ZENER CHIP	UDZS4.3B 17x12
IC701 1PT6315--- IC		PT6315
J701 9736325300 JACK H/P HTJ-035-18A (H/P)
JW701	W581GY7595	WIRE JUMPER	AWG22 1/0.65 SN 7.5 AUTO
JW702	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW703	W581GY7595	WIRE JUMPER	AWG22 1/0.65 SN 7.5 AUTO
JW704	W581GY6095	WIRE JUMPER	AWG22 1/0.65 SN 6 AUTO
JW705	W581GY7595	WIRE JUMPER	AWG22 1/0.65 SN 7.5 AUTO
JW706	W581GY7595	WIRE JUMPER	AWG22 1/0.65 SN 7.5 AUTO
JW707	W581GY12J5	WIRE JUMPER	AWG22 1/0.65 SN 12.5 AUTO
JW708	W581GY12J5	WIRE JUMPER	AWG22 1/0.65 SN 12.5 AUTO

Electrical Part List

Loc. Part Code Part Name Description Remark
JW709 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW710 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW711 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW712 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW713 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW714 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW715 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW716 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW717 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW718 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW719 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW720 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW721 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW722 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW723 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW724 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW725 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW726 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
LD702 DLBH4155-- LED LBH4155 (BL) OVAL PI4.3
LD703 DLBH4155-- LED LBH4155 (BL) OVAL PI4.3
RM701 1HK381BT19 IC RMC HK381B T-19DP
VR701 5SH122403- SW ENCODER EC12E24204A9

PCB KEY ASS'y [9CDC071400] : HC-4150

Loc. Part Code Part Name Description Remark
B701	9CD6592400	PCB KEY	HC-4150
CW703	9728808600	CONN WAFER	PH-06AW
SW703	5S51616C--	SW TACT	KQG906
SW704	5S51616C--	SW TACT	KQG906
SW705	5S51616C--	SW TACT	KQG906
SW706	5S51616C--	SW TACT	KQG906
SW707	5S51616C--	SW TACT	KQG906
SW708	5S51616C--	SW TACT	KQG906

PCB POWER ASS'y [9CDC071500] : HC-4150

Loc. Part Code Part Name Description Remark
B702	9CD6592401	PCB POWER	HC-4150
CW702	9728810901	CONN WAFER	PH-05AW
LD701	DSLR332VC3F	LED SLR332VC3F(RED)PI3
SW702	5S50101002	SW TACT	KPT-1105A 1C-2P

PCB SMPS ASS'y [9CDC071200] : HC-4150

Loc. Part Code Part Name Description Remark
B901	9CD6592800	PCB SMPS	CEM-1 106X156(XD500N)
CC901	CL1GB1152K C CERA(Y-CAP)		250V 152 Y-1
CC902	CL1GB1152K C CERA(Y-CAP)		250V 152 Y-1
CC903	CCXB3A331K C CERA		1KV B 330PF K (FORMING)
CC904	CCFF1H104Z C CERA		HIKF 50V 0.1MF Z (FORMING)
CC905	CCFF1H104Z C CERA		HIKF 50V 0.1MF Z (FORMING)
CC906	CCXB3A472K C CERA		1KV B 4700PF K (FORMING)
CC909	CL1GB1152K C CERA(Y-CAP)		250V 152 Y-1
CC910	CCXB3A102K C CERA		1KV B 1000PF K (FORMING)
CC911	CCXB3A102K C CERA		1KV B 1000PF K (FORMING)
CC912	CCXB3A102K C CERA		1KV B 1000PF K (FORMING)
CC913	CCXB3A102K C CERA		1KV B 1000PF K (FORMING)
CC915	CCXB3A102K C CERA		1KV B 1000PF K (FORMING)
CC916	CCFF1H104Z C CERA		HIKF 50V 0.1MF Z (FORMING)
CC917	CCFF1H104Z C CERA		HIKF 50V 0.1MF Z (FORMING)
CC918	CCFF1H104Z C CERA		HIKF 50V 0.1MF Z (FORMING)
CC919	CCFF1H104Z C CERA		HIKF 50V 0.1MF Z (FORMING)
CE901	CEXN2D221P	C ELECTRO	220uF 200V LHS	HC-4130 All ModelHC-4150/60 : 90V~135V(UL)
	CEXN2D331P	C ELECTRO	330uF 200V LHS	HC-4130/50/60 : 180~265V(CE)HC-4180 All Model
CE902	CEXN2D221P	C ELECTRO	220uF 200V LHS	HC-4130 All ModelHC-4150/60 : 90V~135V(UL)
	CEXN2D331P	C ELECTRO	330uF 200V LHS	HC-4130/50/50 : 180~265V(CE)HC-4180 : All Model
CE904	CEXF1H109V C ELECTRO		50V RSS 1MF (5X11) TP
CE905	CEXF1V470C C ELECTRO		47uF/35V RUS 105°C
	CEXF1H222C	C ELECTRO	2200uF 50V RUS 105°C	HC-4180 All Model

Electrical Part List

Loc. Part Code Part Name Description Remark
CE906	CEXF1V222C C ELECTRO		2200uF 35V RUS 105°C	HC-4130 All ModelHC-4150/60:90V~135VHC-4150/60:180~265V
CE907	CEXF1H102V C ELECTRO 1000uF 50V HC-4180 All Model
	CEXF1V102V C ELECTRO 1000uF 35V			HC-4130 All ModelHC-4150/60:90V~135VHC-4150/60:180~265V
CE908	CEXF1E471C C ELECTRO		470uF/25V RUS 105°C
CE909	CEXF1C471V C ELECTRO 470uF/16V RSS
CE910	CEXF1H221C C ELECTRO		220uF 50V RUS 105°C	HC-4180 All Model
	CEXF1V221C C ELECTRO		220uF 35V RUS 105°C	HC-4130 All ModelHC-4150/60:90V~135VHC-4150/60:180~265V
CE911	CEXF1E101V C ELECTRO 100uF/25V RSS
CE912	CEXF1A471C C ELECTRO		470uF/10V RUS 105°C
CE915	CEXF1A222C C ELECTRO		2200uF/10V RUS 105°C
CE916	CEXF1A102V C ELECTRO 1000uF/10V RSS
CE981	--- --- Open 90V~135V, 180~265V
	CEXF2G479C C ELECTRO		400V 4.7uF RUS 105°C	Free Volt
CE982	--- --- Open 90V~135V, 180~265V
	CEXF1H109C C ELECTRO		50V 1uF RUS 105°C	Free Volt
CM901	CMXK1J104J C MYLAR MC 63V 104 J
CM902	CMXK1J104J C MYLAR MC 63V 104 J
CM903	CMXK1J104J C MYLAR MC 63V 104 J
CM904	CMXK1J104J C MYLAR MC 63V 104 J
CM981	--- --- Open 90V~135V, 180~265V
	CMXM1H104J C MYLAR 50V 0.1uF J		Free Volt
CN992	9728822400	CONN AS	#22 P=2.0 4P+4P 200MM MAIN
CN993	9728822500	CONN AS	#22 P=2.0 12P+12P 150MM MAIN
CW903	2001-WS-05	CONN WAFER	5P 2.0MM
CW981	9728808100	CONN WAFER	GP390-03P-TS-M(W/O CENTER)
CW992	2001-WS-04	CONN WAFER	4P 2.0MM
CW993	2001-WS-12	CONN WAFER	12P 2.0MM
CX901	CL1BB3334K C CERA(X-CAP)		275V 334(X-CAP) 436D
CX902	CL1BB3334K C CERA(X-CAP)		275V 334(X-CAP) 436D
CX981	--- --- Open 90V~135V, 180~265V
	CL1BB3104J C X-CAP		275V 0.1uF	Free Volt
D901	DGBJ1006--	DIODE RECTI	GBJ1006	HC-4180 All Model
	DKBJ604G--	DIODE RECTI	KBJ604G	HC-4130 All ModelHC-4150/60:90V~135VHC-4150/60:180~265V
D902	DUF4007--- DIODE		UF4007
D903	DUF4007--- DIODE		UF4007
D904	DUF4007--- DIODE		UF4007
D905	DUF4004--- DIODE		UF4004
D906	DFCF16A20-	DIODE UF	DFCF16A20(UFF160-02CT)	HC-4130 All ModelHC-4150/60:90V~135VHC-4150/60:180~265V
	DUFF20002C DIODE UF		UFF200-02CT	HC-4180 All Model
D907	DUF4004--- DIODE		UF4004
D908	DUF4004--- DIODE		UF4004
D909	DUF4004--- DIODE		UF4004
D910	DUF4004--- DIODE		UF4004
D911	DUF4004--- DIODE		UF4004
D912	DUF4004--- DIODE		UF4004
D913	DFSF05A60	DIODE Shottkey FSF05A60
D981	--- --- Open 90V~135V, 180~265V
	DUF4007--- DIODE UF		UF4007	Free Volt
F901	5FSGB3122L FUSE GLASS TUBE		VDE TL 3.15A 250V MF51
FC901	9734600800	FUSE CLIP	PI5.2 - REEL
FC902	9734600800	FUSE CLIP	PI5.2 - REEL
G901	9CD6450600	Terminal GND	STS 0.5T
G902	9CD6450600	Terminal GND	STS 0.5T
G903	9CD6450600	Terminal GND	STS 0.5T
G904	9CD6450600	Terminal GND	STS 0.5T
HS981	9CD4406601		HEAT SINK TRIAC	Free Volt
	--- --- Open 180~265V Only
IC901	1KA1M0880D	IC POWER SW	KA1M0880D
IC902	1KA5M0265R	IC POWER SW	KA5M0265R
IC903	1ET1103--- IC PHOTO COUPLER		ET1103
IC904	1ET1103--- IC PHOTO COUPLER		ET1103

Electrical Part List

Loc. Part Code Part Name Description Remark
IC905 1ET1103--- IC PHOTO COUPLER ET1103
IC906 1KIA7912AP IC KIA7912AP (MOLD)
IC907 1TL431A--- IC SHUNT REG TL431
IC908 1TL431A--- IC SHUNT REG TL431
IC981	--- --- Open 90~135V, 180~265V
	1STR83145- IC TRIAC STR83145 Free Volt
JW901	W581GY12J5	WIRE JUMPER	AWG22 1/0.65 SN 12.5 AUTO	HC-4130/50/60 : 90V~135V(UL)
	--- --- Open 90~135V, 180~265V Only
JW903	W581GY1505	WIRE JUMPER	AWG22 1/0.65 SN 17.5 AUTO
JW906	W581GY12J5	WIRE JUMPER	AWG22 1/0.65 SN 12.5 AUTO
JW907	W581GY1505	WIRE JUMPER	AWG22 1/0.65 SN 17.5 AUTO
JW908	W581GY12J5	WIRE JUMPER	AWG22 1/0.65 SN 12.5 AUTO
JW909	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW910	W581GY1505	WIRE JUMPER	AWG22 1/0.65 SN 17.5 AUTO
JW911	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW914	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW915	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW917	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW918	W581GY12J5	WIRE JUMPER	AWG22 1/0.65 SN 12.5 AUTO
JW924	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW925	W581GY7595	WIRE JUMPER	AWG22 1/0.65 SN 7.5 AUTO
JW927	W581GY12J5	WIRE JUMPER	AWG22 1/0.65 SN 12.5 AUTO
JW930	W581GY1505	WIRE JUMPER	AWG22 1/0.65 SN 17.5 AUTO
JW931	W581GY7595	WIRE JUMPER	AWG22 1/0.65 SN 7.5 AUTO
JW932	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW933	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW934	W581GY12J5	WIRE JUMPER	AWG22 1/0.65 SN 12.5 AUTO
JW935	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
JW936	W581GY1005	WIRE JUMPER	AWG22 1/0.65 SN 10 AUTO
L901	5LF101K002	COIL TOROIDAL	100uH Toroidal
L902	5LF101K002	COIL TOROIDAL	100uH Toroidal
L903	5LF204K001	LINE FILTER	SQ2424 20MH	HC-4130 All ModelHC-4150/60 : 90V~135V
	5LF204K008	LINE FILTER	SQ2828 20MH	HC-4150/60 : 180~265VHC-4180 All Model
L904 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz
L905 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz
L906 5LFMULT007 COIL TOROIDAL MULTI
L907	5LF030K007	COIL BAR CORE	6X25 10uH
L908	5LC100K005 COIL CHOKE(DRUM) 10uH
L910	5LF100K003	COIL BAR CORE	5X25 10uH
PT901	5TM1035920 TRANS MAIN EC4045 HC-4180 HC-4180 All Model
	5TMWER3335	TRANS MAIN EER3335 XD500		HC-4130 All ModelHC-4150/60 : 90V~135VHC-4150/60 : 180~265V
PT902	5TMW252501	TRANS POWER EE2525(XD500N)
Q901	TZTA1273Y-TR	KTA1273Y (A966Y) (KSA928A-Y)
Q902 TZRC107M--TR	KRC107M (DTC114YS) (KSR1006)
Q903	TZTA1273Y-TR	KTA1273Y (A966Y) (KSA928A-Y)
Q904 TZTC3198Y-TR	KTC3198Y (2SC5343) AUTO
Q905	TZTA1046Y-TR	KTA1046Y (KTA1366Y) AUTO
Q906 TZTC3198Y-TR	KTC3198Y (2SC5343) AUTO
R901	RD-4Z105J- R CARBON FILM 1/4 1M OHM J
R902	RD-4Z109J- R CARBON FILM 1/4 1 OHM J
R903	RD-2Y124J- R CARBON FILM 1/2 120K OHM J
R904	RD-2Y124J- R CARBON FILM 1/2 120K OHM J
R905	RS03Y331J- R METAL OXIDE FILM 3W 330 OHM J
R909	RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R910	RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R911	RD-2Y474J- R CARBON FILM 1/2 470K OHM J
R912	RS01Y104J- R METAL OXIDE FILM 1W 100K OHM J
R913	RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R914	RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R915	RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R916	RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R917	RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R919	RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R920	RX05Y102J- R CEMENT 5W 1K OHM J
R921	RS01Y561J- R METAL OXIDE FILM 1W 560 OHM J
R922	RX05Y102J- R CEMENT 5W 1K OHM J
R923	RS02Y331J- R METAL OXIDE FILM 2W 330 OHM J

Electrical Part List

Loc. Part Code Part Name Description Remark
R924 RS01Y129J- R METAL OXIDE FILM 1W 1.2 OHM J
R925 RS01Y680J- R METAL OXIDE FILM 1W 68 OHM J
R926 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R927 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J
R928 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R930	RN-AZ3302F R METAL FILM 1/6 33K OHM F(Metal 1%)			HC-4130 All ModelHC-4150/60 : 90V~135VHC-4150/60 : 180~265V
	RN-AZ3632F R METAL FILM 1/6 36.3K OHM F(Metal 1%) HC-4180 All Model
R931 RN-AZ3001F R METAL FILM 1/6 3.0K OHM F(Metal 1%)
R932 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R933 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R934 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R935 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R936 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R937 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R939 RN-AZ5281F R METAL FILM 1/6 5.28K OHM F(Metal 1%)
R940 RN-AZ4701F R METAL FILM 1/6 4.7K OHM F(Metal 1%)
R941 RD-4Z335J- R CARBON FILM 1/4 3.3M OHM J
R942 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R943 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R981	--- --- Open 90V~135V / 180~265V
	RD-4Z479J- R CARBON 1/4W 4.7 Ohm J Free Volt
TH901	DNTC-3D15F THERMISTOR NTC-3D15F
VA901	D1NR10D471 VARISTOR 1NR10D471
AC901	9728824600 CORD AC KE-16 HVCTFK2*0.75 1,900MM Japan
	9728824700 CORD AC KE-39 H03VVH2-F2*0.75 1,900MM Italy
	9728824800 CORD AC KE-88 BS6500H03VVH2-F2*0.75 1,940MM UK
	9728824900 CORD AC KE-01P NISPT-2 18AWG/2C10A 125V BLACK 1,900M America : 90V~135V(UL)
	9728825000 CORD AC KE-21 H03VVH2-F2*0.75 2.5A 250V 1,900MM Europe : 180~265V(CE)
	9728825100 CORD AC KE-12 H03VVH2-F2*0.75 1,900MM Australia

BACK ASS'y [9CDM053900] : HC-4150

Loc. Part Code Part Name Description Remark
TU001	9737651601 TUNER MODULE	KST-ML114MA1-A0	FM/AM Europe 4 Gang RDS
	9737651701 TUNER MODULE	KST-ML114FA1-A0	FM Europe 4 Gang RDS
	9737651801 TUNER MODULE	KST-ML001MA1-A0	FM/AM Europe 3 Gang
	9737651901 TUNER MODULE	KST-ML001FA1-A0	FM America 3 Gang

DECK MECHA ASS'y [9CDM053500] : HC-4150

Loc. Part Code Part Name Description Remark
CN301	9728823300	CONN FFC	FFC Pitch0.5mm 24P 160mm C type
CN302	9728827900	CONN AS	UL 1061 #28 P2.0 5P+5P 250MM	ASA Mecha/Sanyo Pickup(SF-HD62)
CN303	9278828000	CONN AS	UL 1061 #28 P2.0 6P+6P 220MM	ASA Mecha/Sanyo Pickup(SF-HD62)

REMOCON ASS'y [9CDM053400] : AM-43D

Loc. Part Code Part Name Description Remark
10	9CDM053400	REMOCON	AM-43D	1

SPEAKER ASS'y [9CDM054100] : DS-37VF

Loc. Part Code Part Name Description Remark
10 97C8526000 SPEAKER SATELLITE DS-37VF-F (FRONT)		2
20 97C8526100 SPEAKER SUBWOOFER DS-37VF-C (CENTER)
30 97C8526200 SPEAKER SUBWOOFER DS-37VF-R (REAR)		2
40 97C8526300 SPEAKER SUBWOOFER DS-37VF-SW (WOOFER)
50	9728820800 WIRE SPEAKER ASSY	DHC-X100

PACKING ASS'y [9CDG016900] : HC-4150

Loc. Part Code Part Name Description Remark
20	9736806000 ANTENNA FM 1.2M PIG TAIL BLK
