USER MANUAL PD-715SC-NS Middle Atlantic

high density power strips feature a slim, low-profile design and staggered outlets to accommodate plug-in power supplies

features:

  • UL Listed and CSA certified (PD-2420SC-NS UL Listed only)
    • (1) 15 or 20 amp circuit depending on model
  • Includes SignalSAFETM power cord terminated with NEMA 5-15P or NEMA 5-20P plug depending on model
  • Up to 24 outlets depending on model
  • Outlets spaced to accommodate plug-in power supplies
  • Circuit breaker or MOV surge & EMI filter & breaker protected, depending on model
  • Mounting hardware included
  • Slim low-profile design requires less space
  • Gray outlets easy to see in rear of enclosures
    • Lightweight anodized aluminum chassis

* For additional Vertical Power Strips, please see A&E Spec # 96-938

Middle Atlantic PD-715SC-NS - features: - 1

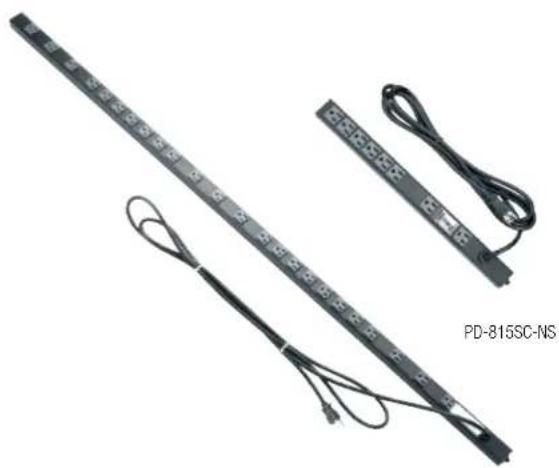

natural_image Product photo of a PD-815SC-NS power supply with two parallel leads and coiled cables (no text or symbols visible)

PD-2415SC-NS

specifications:

High density slim power strip shall be Middle Atlantic Products model # PD-____ with ____ outlets and ____ amps (refer to chart). Slim power strip shall be ____ "long x 1.25" deep x 1.6" wide and shall have gray ____ NEMA ____ outlets (refer to chart) in unique spacing pattern that allows up to ____ plug-in power supplies (refer to chart). Slim power strip includes ____ amp circuit breaker protection and mounting hardware (refer to chart). Terminated with ____ (refer to chart) SignalSAFETM power cord with NEMA ____ plug (refer to chart). Grounding and bonding stud shall be 1/4 - 20 threaded. Slim power strip shall be ETL listed to UL standards 1149 and 1363 in US and to CAN/CSA standard C22.2 #8 and C22.2 #21 in Canada. Slim power strip shall be manufactured by an ISO 9001 registered company. Slim power strip shall be warranted to be free from defects in material or workmanship under normal use and conditions for a period of 3 years.

Customizable specification clips available at middleatlantic.com

Middle Atlantic PD-715SC-NS - specifications: - 1

what great systems are built on.

options:

  • Model # PB-XS, rackmounting bracket shall mount any 8 outlet power strip (PD-815SC, PD-815SC-NS) between rackrail of any EIA compliant 19" rack. Includes cable management tie points
  • Model # PB-5A mounting brackets shall accommodate the mounting of vertical power strips to rackrail of any rack
  • Model # PB-DWR mounting bracket shall accommodate the mounting of vertical power strips to rear rackrail of Middle Atlantic Products DWR & SR series wall racks

PD Series Slim

basic dimensions

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

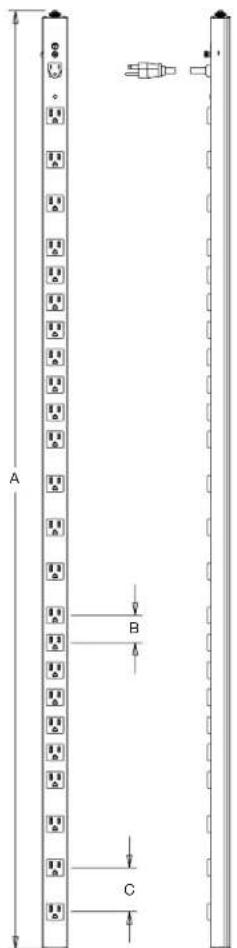

PD-24XXSC-XX
A B C

PD-815SC-XX

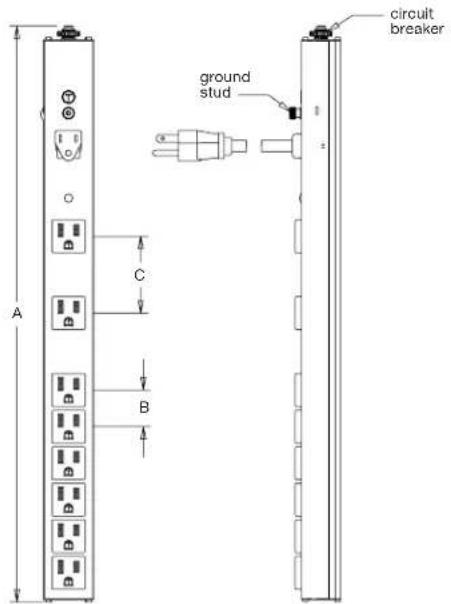

ground stud circuit breaker A B C

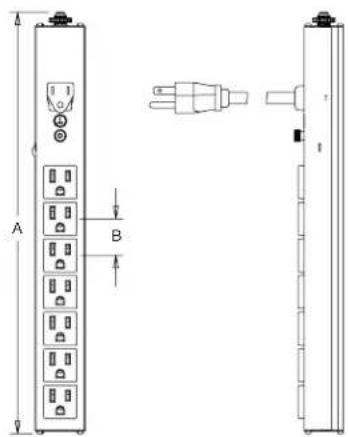

PD-715SC-NS
Technical diagram showing a vertical panel with labeled ports and connection points, including a connector pin and terminal connectors.

Middle Atlantic PD-715SC-NS - basic dimensions - 4
Note:
PD Slim Series Includes Signalsafe™ Power Cord Technology

Part NAOverall LengthBOutletSpacingCOutletSpacing# of Plug InPower SuppliesAccomodated# OfOutletsOutletTypeCord Length/Termation CircuitSurgeProtectionOvercurrentProtection

PD-715SC-NS 13.60 [345] 1.18 [30] N/A 1 7 5-15R 10° cord w/NEMA 5-15 plug 15 AMP (1) none circuit breaker
PD-815SC 18.60 [472] 1.18 [30] 2.48 [63] 3.85-15R 10' cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker

PD-815SC-20 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 20° cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker

PD-815SC-NS18.60 [472]1.18 [30]2.48 [63]385-15R10' cord w/NEMA 5-15 plug 15 AMP (1)nonecircuit breaker
PD-815SC-PBSH*18.60 [472]1.18 [30]2.48 [63]385-15R10' cord w/NEMA 5-15 plug15 AMP (1)single stagecircuit breaker
PD-2415SC60.60 [1539]1.77 [45]2.84 [72]11245-15R10' cord w/NEMA 5-15 plug15 AMP (1)single stagecircuit breaker
PD-2415SC-NS60.60 [1539]1.77 [45]2.84 [72]11245-15R10' cord w/NEMA 5-15 plug15 AMP (1)nonecircuit breaker
PD-2420SC-NS60.60 [1539]1.77 [45]2.84 [72]11245-15R (22), 5-20R (2)10' cord w/NEMA 5-20 plug20 AMP (1)nonecircuit breaker

*PD-815SC-PBSH mounts on UXV Series fully vented utility shelves, RC and CAP Series clamping rackshelves, VRS - Vertical Rackmount Shelves, KD Series ready-to-assemble rackshelves, RSH Series custom face rackmounts
