Landbeach - Radio Majority - Free user manual and instructions

Product Type	DAB+/FM Digital Radio with Bluetooth
Model Number	Landbeach by Majority
Dimensions (W x H x D)	200 x 120 x 80 mm
Weight	0.8 kg
Power Source	DC 5V 1A adapter or 3x AA batteries
Radio Bands	DAB+ (Band III) and FM (87.5–108 MHz)
Bluetooth	Yes, version 4.2 for wireless audio streaming
Preset Stations	10 DAB+ and 10 FM presets
Display	2.4-inch LCD with backlight
Alarm Clock	Dual alarms with snooze, wake to radio or buzzer
Sleep Timer	Yes, adjustable from 15 to 120 minutes
Audio Output	Built-in stereo speaker, 3.5mm headphone jack
Additional Features	Clock auto-sync via DAB+, EQ modes, dimmer control
Maintenance & Cleaning	Wipe with a soft, dry cloth; do not use liquid cleaners
Safety Information	Not waterproof; keep away from moisture and heat sources
Spare Parts & Repairability	No user-serviceable parts; contact support for repairs
General Information	Includes user manual; suitable for indoor use only

Frequently Asked Questions - Landbeach Majority

How do I set up the radio for the first time?

Plug in the power adapter or insert 3x AA batteries. Press the Power button to turn on. The radio will automatically scan for DAB+ stations. Follow on-screen prompts to set the time and language.

How can I switch between DAB+ and FM radio?

Press the Mode button repeatedly to toggle between DAB+ and FM. The current band is displayed on the screen.

How do I pair my phone via Bluetooth?

On the radio, select Bluetooth mode by pressing Mode. Then go to your phone's Bluetooth settings, look for Majority Landbeach, and tap to pair. No PIN is required.

How many preset stations can I save?

You can save up to 10 DAB+ and 10 FM presets. Tune to the desired station, then press and hold one of the preset buttons (1-5, then use page for 6-10).

How do I set an alarm?

Press the Alarm button. Use the +/- buttons to set the hour and minute. Choose to wake to radio or buzzer. Press Alarm again to confirm and activate.

What is the sleep timer and how do I use it?

The sleep timer turns off the radio after a set time. Press Sleep repeatedly to choose 15, 30, 45, 60, 90, or 120 minutes. The radio will shut off automatically.

How do I adjust the display brightness?

Press the Menu button, navigate to Brightness, and select from High, Medium, or Low. In standby, the display dims automatically.

Can I use headphones?

Yes, plug wired headphones into the 3.5mm headphone jack on the side. The built-in speaker will mute automatically.

How do I clean the radio?

Use a soft, dry cloth to gently wipe the exterior. Do not use water, solvents, or abrasive cleaners. Keep the speaker grille free of dust.

What should I do if the radio does not turn on?

Check the power connections: ensure the adapter is plugged into a working outlet or the batteries are fresh. Remove and reinsert batteries. If the issue persists, contact Majority support.

USER MANUAL Landbeach Majority

What's In the Box? 3

Controls And Functions.... 4

Instructions Guide....6

Basic Information....6

DAB/DAB+ Radio....7

DAB/DAB+ Radio Presets....8

FM Radio....9

FM Radio Presets.... 10

Bluetooth Mode.... 11

AUX IN Mode.... 12

Radio 'System' Menu.... 13

Troubleshooting.... 15

Specification and Warranty.... 15

Safety Information.... 16

What's in the Box?

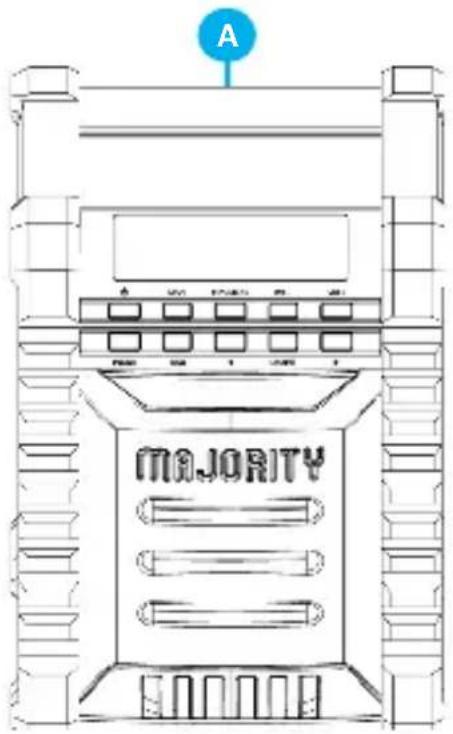

A. Landbeach Radio

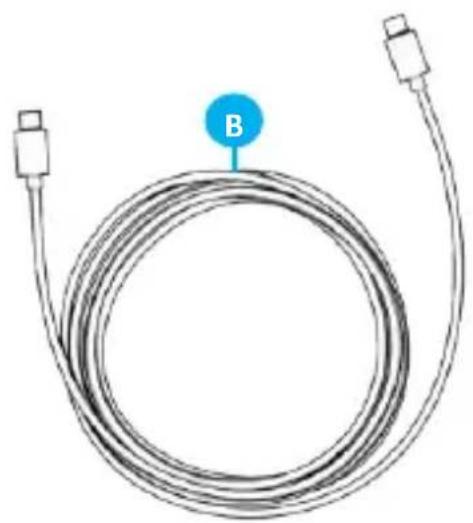

B. USB Type-C Cable to USB Type-C
C. User Manual

Coiled cable with two connectors and a labeled point B (no text or symbols on the cable itself)

Simple line drawing of a blank book with a blue circular label labeled 'C' on top (no text or symbols on the book itself)

Front View

1. Radio display screen
2. Power ON/OFF
3. Mode
4. Info/Menu
5. Volume -

6. Volume +

7. Preset

8. Scan
9. PREV
10. OK/Play/Pause
11. NEXT

Back View

1. Telescopic radio antenna
2. USB Type C charging port (DC 12V)
3. Reset (insert a pin to process a forced reset of the radio)
4. Audio (AUX) Input port
5. USB out put charging port 5V/1A (to be used for phone charging only)

Basic Information

PLEASE NOTE: The instructions within this user manual will refer to the button number on the radio e.g. (Ref. 'numb er') in accordance with the diagrams from pages 4 -5.

Remove p packaging and prepare the radio for use. Position the radio where you have good radio signal for best reception.

Unwind the USB Type-C cable included in the box and insert it into a suitable USB Type -C plug rated at 12V 2A (not included). Connect the radio to a mains socket for charging.

PLEASE NOTE: We stro ngly advise using the recommended USB Typ e-C plug. Us in g an alterna tive plug may result in improp er cha rging and could sh orten the b attery's lifespan.

The radio requires a full charging cycle of approximately five to six hours. It can be charged while in use or when powered off. During charging, a red LED indicator light will flash on the right side of the e radio display. Once the battery is fully charged, the red LED light will remain steady.

When the battery level is low, a "Battery Low" message will appear on the radio screen. Thirty seconds after this message is displayed, the radio will automatically power off and require recharging.

Please note that the red LED indicator light is only visible when the radio is plugged into the main s.

Once fully charged, you can enjoy your portable radio.

Power ON/OFF

Press the 'Power ON/OFF' button (Ref.2) to switch the radio on or off.

Mode Switch

Press the 'Mode' button (Ref.3) repeatedly to change the radio mode into DAB,FM, Bluetooth or AUX IN.

USB Charging Port

The USB charging port is a DC 5V1.0A (Ref.16) and can be used to charge a phone.

DAB Radio Mode

Place the Majority Landbeach in a location with good radio reception. Fully extend the radio antenna before use to get the best possible radio signal.

Press the 'MODE' button (Ref.3) repeatedly to change the radio mode into 'DAB'.

Scanning for DAB Stations

• While in DAB mode, press the 'SCAN' button (Ref.8) to initiate a full automatic scan for DAB radio stations available in your area.
• The radio will search for and save all stations found with a good signal automatically.
• Once the scan is complete, the radio will begin playing the first station found with a strong signal.
  • Use the 'PREV' and 'NEXT' buttons (Ref.9, 11) to scroll through the station list.
• Press the 'OK/Play/Pause' button (Ref.10) to play a selected station.

Saving and Recalling Favourite DAB Stations (Presets)

In DAB mode, the Majority Landbeach has 40 preset slots for saving your favourite radio stations.

Follow these steps to store and recall presets:

Storing a Station

• Whilst listening to a DAB radio station, press and hold the 'Preset' button (R ef.7) for 3 seconds to access the 'Preset Store' list.
  • Use the 'PREV' and 'NEXT' buttons(Ref.9, 11) to select an empty slot where you want to save the station.
• Press the 'OK' button (Ref.10) to confirm. The display will show 'Preset X Stored' (X indicates the chosen s lo t).

Recalling a Station

• To recall a saved station, press the 'Preset' button (Ref.7) briefly to access the 'Preset Recall' list.
• Use the PREV and NEXT buttons (Ref.9, 11) to navigate the list of saved stations.
- Press the 'OK' button to start playing the selected station.

DAB Radio Station Information

Whilst playing, short press the 'INFO/MEN U' button (Ref.4) repeatedly to view in formation about the radio s tation, including: Signal strength, DAB band and frequency, Type of conten t being played, Signal error rate, Time and date.

DAB Radio Settings Menu

While in DAB Mode, press and hold the 'INFO/MENU' button (Ref.4) for 3 seconds to access the DAB Settings Menu. Use the 'PREV' and 'NEXT' buttons (Ref.9, 11) to navigate through the menu. Press the 'OK' button to select and enter any of the following options:

Full Scan

Perform a full scan to search for available DAB stations at any time.

Manual Tune

Manually search for radio station ns based on the DAB band.

DRC (Dynamic Range C ompression)

Dynamic Range Compression is an audio signal processing feature that reduces the volume of loud sounds or amplifies quiet sounds, effectively compressing the audio signal's dynamic range.

Choose between the following levels: Low, High, or Off.

Prune

The Prune feature removes stations that are no longer transmitting or have changed frequency. Select 'Yes' to activate and press 'OK' to confirm. Select 'No' to leave this feature deactivated.

System

Enter this section to access the radio's main 'System Menu' and adjust settings according to your preferences, such as Equaliser, Time, Backlight, Language, or to process a Factory Reset. (For detailed descriptions, refer to pages 12 & 13).

FM Radio Mode

Place the Majority Land beach in a location with good radio reception. Fully extend the radio antenna before use to get the best possible radio signal.

Press the 'MODE' button (Ref.3) repeatedly to change the radio mode into FM.

Scanning for FM Stations

• Whilst in FM mode, press the 'SCAN' button (Ref.8) to initiate a full automatic scan for FM radio stations available in your area.
• The radio will search for and save all stations found with a good signal automatically as presets.
• Once the scan is complete, the radio will begin playing the first station found with a strong signal.
• Press the 'Preset' button (Ref.7) to access the saved FM radio stations. Use the 'PREV' and 'NEXT' buttons (Ref.9, 11) to scroll through the station list.
• Press the 'OK/Play/Pause' button (Ref.10) to play a selected station.

Saving and Recalling Favourite FM Stations (Presets)

In FM Mode, the Majority Landbeach has 40 preset slots to save your favourite stations. Follow these steps to store and recall presets:

Storing a Station

• While listening to a FM station, press and hold the 'Preset' button(Ref.7) for 3 seconds to access the 'Preset Store' list.
• Use the 'PREV' and 'NEXT 'buttons(Ref.9, 11) to select an empty slot where you want to save the station.
- Press the 'OK' button (Ref.10) to confirm. The display will show 'Preset X Stored' (X indicates the chosen s lo t).

Recalling a Station

• To recall a saved station, press the 'Preset' button (Ref.7) briefly to access the 'Preset Recall' list.
• Use the PREV and NEXT buttons (Ref.9, 11) to navigate the list of saved stations.
- Press the 'OK' button to start playing the selected station.

FM Radio Station Information

Whilst playing, press the 'INFO/MENU' button (Ref.4) repeatedly to view information available about the radio station from the FM radio station provider.

In FM mode, not all stations have this feature.

FM Radio Settings Menu

Whilst in FM Mode, press and hold the 'INFO/MENU' button (Ref.4) for 3 seconds to access the FM Settings Menu. Use the 'PREV' and 'NEXT' buttons (Ref.9, 11) to navigate through the menu. Press the 'OK' button to select and enter any of the following options:

• Scan Settings – There are two options available in this section: 'Strong Stations' and 'All Stations'. Select 'Strong Stations' to save only radio stations with a strong signal or select 'All Stations' to save all found s tations regardless of signal quality.
  • Audio Settings – Most FM stations are broadcast in Mono audio rather than Stereo. By selecting 'Forced Mo no', you can improve the radio signal for some stations. If the station is broadcasting in Stereo, you can choose 'Stereo' for better audio quality.
• System – Enter this section to access the radio's main 'System Menu' and adjust settings according to your preferences, such as the Equaliser, Time, Backlight, Language, or to process a Factory Reset. (For detailed descriptions, refer to pages 12 & 13).

The Majority Landbeach can be paired with a phone, tablet, MP3 player, CD p layer, or any other Bluetooth-enabled device to play audio via the radio's speaker.

• Switch the radio on by pressing the 'Power ON/OFF' button (Ref.2).
• Switch to Bluetooth mode: Press the 'Mode' button (Ref.3) to change the mode into Bluetooth. The radio screen will display 'Pairing' whilst searching for a device to connect.
• Activate Bluetooth on your device and search for available devices. Select 'Majority Landbeach' from the list to connect.
• Once paired successfully, the radio screen will display 'BT Connected'. You can now play audio from your device through the Majority Landbeach speaker.

Whilst in Bluetooth Mo de, you can use the following contro ls/butto ns:

• Play/Pause: Press the 'OK/PLAY/PAUSE' button (Ref.10) to pause or resume audio playback.
• Next/Previous Track: Use the 'PREV' or 'NEXT' buttons (Ref.9, 11) to skip tracks.
• Volume Control: Use the 'VOLUME -' or 'VOLUME +' buttons to adjust the volume.

Please Note: The volume is synchronised with your device, so you can control it either from your device or directly from the radio.

To Disconnect or Pair with a New Device

• To unpair/disconnect the radio, remove 'Majority Land beach' from the Bluetooth device list on your connected device.
  • To pair with a new device, first remove 'Majority Landbeach' from the previously connected device list, then follow the steps above to pair the new device.

PLEASE NOTE: The Majority Landbeach Radio cannot be paired with Bluetooth earbuds.

AUX Input mode

The Majority Landbeach can be connected with a device such as a tablet a CD player, MP3 player or similar device using an AUX 3.5 mm audio cable (not included) to play audio via the radio speaker:

• Insert one end of the AUX cable into radio AUX input port (Ref.15) and the other end into your device.
• Press the 'Mode' button (Ref.3) to change the mode into AUX IN. Start playing from your device.
• Use the buttons on your device to play audio and increase the volume on both your device and speaker.

To enter the main menu, press and hold the 'In fo/Menu' button (Ref.4) for 3 seconds. Use the 'PREV' or 'NEXT' buttons (Ref.9, 11) to scroll through the options until you find 'System'. Press the 'OK' button (Ref.10) to enter and access the following features:

Equalisers:

Choose from six equaliser presets : Normal, Classic, Jazz, Pop, Rock, Speech, and 'My EQ'. To activate a preset, select it and press 'OK' (Ref.10). A star icon will appear next to the selected preset.

'My EQ' is a customisable preset where you can adjust Treble and Bass:

• Press the 'OK' button (Ref.10) to enter.
- Adjust 'Treble' by pressing 'OK' again, then use the 'PREV'/'NEXT' buttons to set it the value then press 'OK' to confirm.
- Adjust 'Bass' in the same way as the treble, and press 'OK' to confirm.

Time/Date

Within the System Menu, find the 'Time's sub-menu, and then press 'OK' to enter the 'Time' section. Use PREV/NEXT buttons (Ref.9, 11) to select any of the following sections, press OK to enter:

Set the Time/Date

• Set the time: Once entered you will see the clock format showing the hour flashing. Adjust the hour using the 'PREV'/'NEXT' buttons, and then press 'OK' to move to the minutes, which will now start flashing. Adjust the minutes then press 'OK' to confirm and move to the next step to change the date.
• Set the date (day, month, year) in the same way as you set the time, confirming each step with 'OK'. The radio will display "Time saved" when successfully set.

Auto Update:

Select whether you want the time to be automatically updated from 'Any', 'DAB', 'FM', or choose 'No update'.

Set the time format '12/24 Hour Format':

Choose whether the time display format should be 12-hour or 24-hour.

Set the date format

Choose whether the date display format as DD-MM-YYYY or MM-DD-YYYY.

Backlight: Adjust the display brightness as per your preferences.

• Timeout: Select the time frame for when the screen should dim. Options are: ON, 10 sec, 20 sec, 30 sec, 45 sec, 60 sec, 90 sec, 120 sec, 180 sec. Pres s 'OK' to confirm.
  • On Level: Set the display brightness to High, Medium, or Low by pressing 'OK' (Ref.10).
• Dim Level: Choose the dimmed display brightness for when the timeout occurs: High, Medium, or Low.

PLEASE NOTE: If you want the display to remain at the dim level at all times, set the Timeout to 'ON', then set the 'on level' and 'dim level, at the same level.

Language: Select one of the 10 languages available and press the 'OK' button (Ref.10) to confirm. The radio main menu language will change as per your preferences.

Factory reset: Select this option to process a reset to default factory settings of the radio. Select 'YES' and then press 'OK' to confirm or select 'NO' to cancel.

PLEASE NOTE: A factory reset is recommended to be processed to fix any functionality issues.

Software version : This section is to view the information of the radio software version.

Observation Potential Cause/Solution
No power/function	The radio might not have battery. Plug the radio to mains power and switch the device o n.Check if the USB plug is suitable for radio.Process a reset by inserting a pin in to RESET port on the radio (Ref.14).
No sound	Increase the volume on the radio. If yo u have no sound while connecting to a device, increase volume on both.
Function disturbance	Process a factory reset, the option can be found within the System Menu.
Bluetooth not connecting	Check if the radio is paired with another device. If the radio display shows " BT connected", remove the radio from other devices list and try p airing again .

Support

If you require further assistance with your Majority product, please contact our support team on the Majority website: www.majority.co.uk/support

Specification

Power Supply	12.0V 2.0A
Power cable	USB type C to type C USB which can only be used with a plug of 12.0V 2.0A (not included)
Bluetooth version	5.0
Bluetooth range	Up to 10 metres
Dimensions	167x230x144mm
Weight	1528 g

Warranty

All products come with a standard 12-month warranty. To validate your warranty and extend it to a total of three years, you must register your item within 30 days of purchase at www.majority.co.uk. Simply use the menu to find 'Register Your Product'. This service is free of charge.

Warning & Safety Information

EN Safety and Usage Guidelines (All whe re ap plicab le)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling in to areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-pro areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of nonuse. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; in correct types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Blue tool Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent over heating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, Izilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT declare under our sole responsibility that the product:

Product Name: Landbeach DAB Radio Model: 1000003000 Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

Point of C contact: Eddie Latham | Founder

Signed:

Date of issue: January 2024 Place of Issue: Cambridge, UK

E.Latham

Importer's Addresses:

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Der inger Inc, 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Email: [e-mail]

ATTENTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

RIS OU ED 'ELECTROCU TION NE PAS OU VRI R

IMPORTANT: Please read all instructions carefully before use and keep for future reference

MAJORITY

www.majority.co.uk
