Product Type	Soundbar
Brand	BUSH
Model	SR190DG
Speaker Configuration	2.0 Channels
Total Power Output	40W RMS
Connectivity	Bluetooth 5.0
Audio Inputs	Optical, 3.5mm AUX
Remote Control	Included (batteries not included)
Subwoofer	Not included (built-in drivers)
Dimensions (W x D x H)	80 x 8 x 6 cm
Weight	1.5 kg
Power Source	DC 12V / 2A adapter (included)
Standby Power	<0.5W
Wall Mountable	Yes, with keyhole slots
Bluetooth Version	5.0
Supported Audio Formats	MP3, WMA, WAV
Material	Plastic (main body), metal grille
Color	Black
Warranty	1 year
Box Contents	Soundbar, remote control, optical cable, AUX cable, power adapter, user manual
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use any solvents.
Safety Precautions	Do not expose to moisture. Unplug during storms or if unused for long periods.

Frequently Asked Questions - SR190DG BUSH

How do I connect my TV to the soundbar?

Use the provided optical cable or AUX cable. Connect one end to the soundbar and the other to the TV's audio output. Then select the corresponding input on the soundbar using the remote.

Can I pair my smartphone via Bluetooth?

Yes, press the Bluetooth button on the remote or soundbar to enter pairing mode. Enable Bluetooth on your phone and select 'BUSH SR190DG' from the list.

The soundbar does not turn on. What should I check?

Ensure the power adapter is securely connected to both the soundbar and a working electrical outlet. Press the power button on the remote or unit. If still off, try a different outlet.

How do I adjust the volume?

Use the volume control buttons on the remote or the soundbar itself. You can also adjust the volume from your connected device.

Is the soundbar wall-mountable?

Yes, it has keyhole slots on the back. Use appropriate wall anchors and screws (not included). Ensure the wall can support the weight.

What should I do if there is no sound?

Check that the correct input source is selected (e.g., optical, AUX, Bluetooth). Ensure the volume is turned up and not muted. Verify connections are secure.

Can I use the soundbar with a subwoofer?

No, the SR190DG does not have a subwoofer output. It uses built-in drivers for bass.

How do I clean the soundbar?

Disconnect power. Wipe the exterior gently with a soft, dry cloth. Do not use chemicals or water.

How do I reset the soundbar to factory settings?

With the unit on, press and hold the source button for 5 seconds until the LED flashes. The soundbar will restart with default settings.

What is the warranty period?

The Bush SR190DG comes with a 1-year warranty. For claims, contact the retailer or Bush support with proof of purchase.

USER MANUAL SR190DG BUSH

Top-down view of a circular dark object on a dark background (no text or symbols visible)

Black rectangular object with rounded edges and small protrusions at both ends (no visible text or symbols)

You'll soon be enjoying your new Soundbar with Wireless Subwoofer.

It all begins here, with your instructions. Don't worry, there's nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let's get started.

Help and Guidance

We're here to help you get the most from your Soundbar with Wireless Subwoofer. Should you require any guidance, a simple solution can often be found online at:

www.bush-support.com

If you still require further assistance, call one of our experts on 0345 600 3021.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Contents

1. Safety information

Power source 8

Moisture and water 8

Heat sources and flames 9

Ventilation 9

Care and cleaning 9

2. Getting to know your Soundbar

Accessories 12

Soundbar and Wireless Subwoofer 13

Remote control 14

Inserting batteries 15

Positioning the Soundbar and Wireless Subwoofer 15

Making the connections 16

3. Using your Soundbar

Power on 20

Standby mode 20

Change the mode (Audio source) 20

Adjusting the volume 21

Bass or Treble enhancement 21

Pairing with a Bluetooth device 21

Controlling a paired device 22

USB mode 22

Line in mode 23

Aux in mode 24

Optical mode 24

section of these instructions, or online at www.bush-support.com. If you still require further assistance, call one of our experts on 0345 600 3021

Contents

HDMI ARC Mode 24

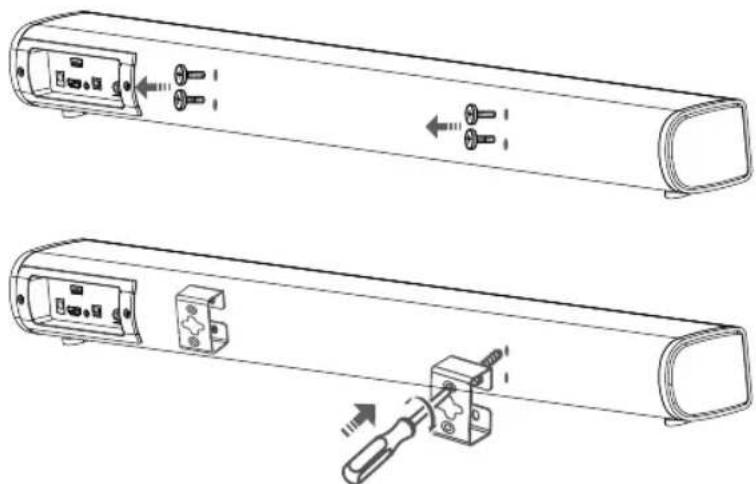

Wall mounting your Soundbar 25

4. Other information

Technical specification 30

5. Product support

Troubleshooting 34

Help and assistance 35

Disposal 36

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

This page is left intentionally blank

This page is left intentionally blank

Safety information

1

Abstract geometric pattern composed of gray triangles and squares on a white background, with no text or symbols present.

Safety information

Important - Please read these instructions fully before installing or operating

Power source

• Only use the power supply that came with the product. Using an unauthorised power supply will invalidate your guarantee and may irrecoverably damage the product.
• Disconnect your soundbar and subwoofer from the mains power supply during thunderstorms.
• Always check that you have completely switched off your soundbar and subwoofer, before you change or disconnect the power supply.
• When installed, the power socket must be within easy reach.
• Do not bend, stretch or pull the supply cables in order to avoid electric shock.
• Do not attempt to open the product. This product does not contain any user serviceable parts. Unauthorised handling of the product may damage it and will void your warranty.
• Switch the soundbar and subwoofer off at the mains power socket and unplug it if you are leaving it unattended for a long period of time (holidays etc).
• Remove the batteries from the remote control if it will not be used for an extended period of time.
• Only use recommended batteries or those of the same or equivalent type in the remote control.
• Batteries are to be inserted with the correct polarity.
• The supply terminals are not to be short-circuited.
• Never throw batteries in a fire or attempt to open the outer casing.
• Batteries are harmful if swallowed, so keep away from young children.

Moisture and water

- Do not use this product near water or moisture.

- Do not use this product near a bath or sink, near a swimming pool or anywhere else that water or moisture is present.

- Keep it dry. Avoid exposure to precipitation, humidity and liquids which could all affect the product circuitry.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Safety information

Important - Please read these instructions fully before installing or operating

Heat sources and flames

• Do not leave this product in high temperatures as electronic devices and plastic parts may warp in heat.
• Keep it away from bright sunlight or heat sources, such as a radiator.

Ventilation

• Do not install this product in a confined space.
• Allow adequate ventilation to prevent heat build-up.
• Do not block or cover slots, holes or openings on the product by placing on soft furnishings such as carpets, rugs or beds as these are provided for functionality and/or ventilation to ensure safe operation of the product.
• For indoor use only.

Care and cleaning

• All care and cleaning operations should be carried out with the Soundbar and Subwoofer unplugged from the mains power.
• Occasionally wipe the cabinets with a lint free cloth.
• Never clean the units with liquids or solvents.

This page is left intentionally blank

Getting to know your Soundbar

2

Abstract geometric pattern composed of gray triangles and squares on a white background, with no text or symbols present.

Getting to know your Soundbar

You'll be up and running in no time

Ready? Let's begin...

Please read these instructions carefully. They contain important information which will help you get the best from your product and ensure safe and correct installation and operation.

If you require any further assistance, our technical experts are happy to help. For full details, refer to the product support section at the end of these instructions.

Accessories

Remote control (requires 2 x AAA batteries included)

Line drawing of a remote control with four buttons and a 'OK' button (no text or symbols on the device itself)

3.5mm to RCA cable

Illustration of a coiled cable with two connectors (no text or symbols)

Mains power adapter X 2

Pure electrical circuit lines without any symbols

Rawl plugs and screws

Illustration of multiple screws and connectors (no text or symbols)

Wall mounting brackets

Two identical metal bracket components with mounting holes and star-shaped cutouts (no text or symbols)

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Getting to know your Soundbar

You'll be up and running in no time

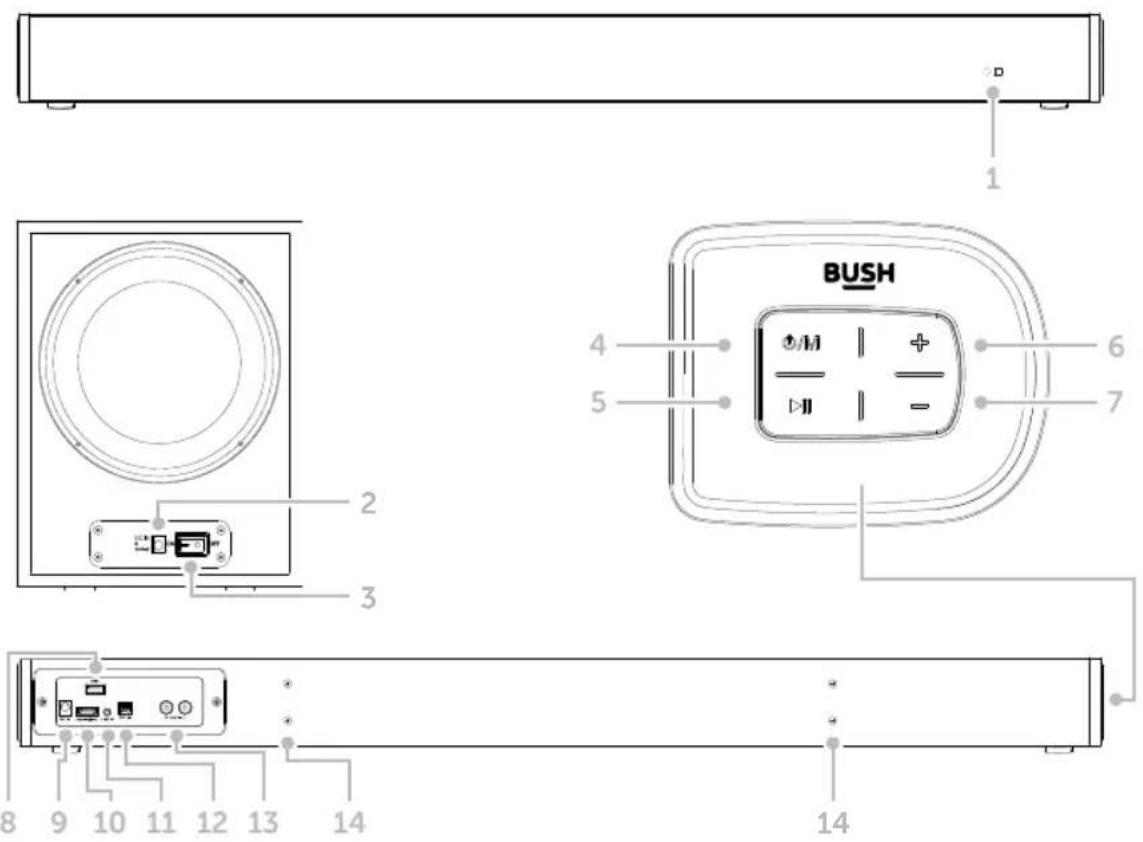

Soundbar and Wireless Subwoofer

1. Power on and Source Mode indication LED's
2. Subwoofer Power input socket (DC in)
3. Subwoofer On/Off switch
4. Power on/Audio source (Bluetooth/USB/Line in/Aux-in/Optical/HDMI ARC))
5. Bluetooth Pair/Disconnect & Play/Pause in BT and USB modes

6. Volume +

7. Volume -

8. USB socket
9. Power input socket (DC in)
10. HDMI ARC connection
11. LINE IN socket
12. Optical input
13. RCA inputs
14. Wall mounting bracket fixing points

section of these instructions, or online at www.bush-support.com. If you still require further assistance, call one of our experts on 0345 600 3021.

Getting to know your Soundbar

You'll be up and running in no time

Remote control

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Getting to know your Soundbar

You'll be up and running in no time

Inserting batteries

1. On the back of the remote control, press in the tab on the battery compartment cover to remove it.
2. Insert the 2 x AAA batteries supplied, making sure to note the '+' and '-' markings and position the batteries the correct way around.
3. Replace the battery cover, making sure that it 'clicks' shut.

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Positioning the Soundbar and Wireless Subwoofer

Your Wireless Subwoofer is already paired to your Soundbar but it's important that you consider carefully in advance where your Soundbar and Wireless Subwoofer will be situated and make sure that they are:

• on a flat and stable surface or that the Soundbar is securely wall mounted
• within 1.4 metres of a power socket. Please ensure that the mains power leads are not trip hazards.
• where the Soundbar will be in range of the connected or 'paired' bluetooth device (e.g. TV/iPhone/iPad/Android/other phone/computer, which is about 10 metres or less (33 feet or less)) in line of sight.
• never place your Soundbar or Subwoofer directly onto antique or polished surfaces.

section of these instructions, or online at www.bush-support.com. If you still require further assistance, call one of our experts on 0345 600 3021.

Getting to know your Soundbar

You'll be up and running in no time

Making the connections

Note: Please do not switch on the mains power until ALL the required connections have been made.

1. Decide which connections and cables you will use with your Soundbar.
2. After the required connections have been made, plug the mains power lead into the socket on the back of the Soundbar and then plug the power adaptor into the mains power wall socket and switch on.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

This page is left intentionally blank

This page is left intentionally blank

Using your Soundbar

3

Abstract geometric pattern composed of gray triangles and squares on a white background, with no text or symbols present.

Using your Soundbar

Let's get started

Power on

Press and release the Power button on the end of the Soundbar or on the remote control. Your Soundbar will switch on in Bluetooth mode and will search for Bluetooth devices.

Note: This Soundbar has a 'last function used' memory. It will turn on in the last mode used before it was turned off if the product has not been unplugged.

Standby mode

Press and hold the Power button on the end of the product or press and release the Power button on the remote control. Your Soundbar will go to Standby mode.

Note: This product is designed to go to STANDBY mode automatically after 15 MINUTES (approximately), if it does not receive an audio signal. Press and release the Power button on the Soundbar or on the remote control to switch your product back on again.

Change the mode (Audio source)

Press and release the O/M on the end of the Soundbar or the button on the remote control to change between Bluetooth/USB/Line in/Aux-in/Optical and HDMI ARC modes. Connect a USB stick in to the USB socket on the back of the Soundbar to switch directly to USB mode.

Check the LED indicator on the front of your Soundbar which will confirm the current mode

Standby:....Red

Searching for BT devices:.....Blue flashing

BT connected: Blue

USB:....Pink

Line In: Green

Aux in: Light blue

Optical:....Orange

HDMI:......White

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Using your Soundbar

Let's get started

Adjusting the volume

• on the soundbar and Vol - on the remote
• Press and release to decrease the volume in steps.
• Press and hold to progressively decrease the volume.
• on the soundbar and Vol + on the remote
• Press and release to increase the volume in steps.
• Press and hold to progressively increase the volume.

Bass or Treble enhancement

The Bass and Treble settings each range from -6 to +6.

1. Press and release the Bass or Treble + or - button on the remote control to adjust the Bass or Treble as appropriate.

Pairing with a Bluetooth device

Before you can use your Soundbar in Bluetooth mode with your TV or other Bluetooth capable device, you need to 'pair' it.

1. When you first power on your Soundbar or when you change the mode to Bluetooth, the product will search for Bluetooth devices and you will see a blue flashing LED on the front of the Soundbar.
2. On the device that you would like to connect to your Soundbar via Bluetooth (e.g. TV/iPhone/iPad/Android/other phone/Tablet/Computer), turn on Bluetooth connectivity and ensure that it is 'discoverable'.

section of these instructions, or online at www.bush-support.com. If you still require further assistance, call one of our experts on 0345 600 3021

Using your Soundbar

Let's get started

Note: If necessary, refer to the instructions for your device to add or set up Bluetooth.

1. When found, your Soundbar will be displayed as 'BUSH SR190DG'. Select the device name to begin pairing.

Note: If your device requests a password, please enter '0000' to complete the device pairing.

1. Check the Soundbar, the blue LED will stop flashing and will remain on when pairing has been successful.

2. Now that you have paired your device with the Soundbar, it will connect to it when it is within range, which is about 10 metres or less (33 feet or less), line of sight.

3. Your device will remain paired with the Soundbar unless you decide to disconnect or 'unpair' it.

Note: You can press and hold the ▶ button on end of the Soundbar to unpair your current device and search for new devices.

Controlling a paired device

Once paired you can either use the controls on the connected audio device to play/pause, skip tracks etc., or you can use the control buttons on the Soundbar remote control.

▶/II Play/Pause

▶▶ Press and release to skip forward

Press and release to skip back

USB mode

Insert the USB stick which has the music files you wish to play, into the USB socket on the back of the Soundbar. Check that you line up the USB stick with the USB socket and that it is the right way around. When connected correctly, the LED indicator on the front of the Soundbar will change to Pink.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Using your Soundbar

Let's get started

Note: Your Soundbar will support mp3, wma and wav audio formats.

You can use the remote control to play/pause and skip tracks on the USB.

▶/II Play/Pause

▶▶ Press and release to skip forward

Press and release to skip back

Note: Remember to unplug the USB stick after use to access the other modes on your Soundbar.

Line in mode

Check that your Soundbar is in Line in mode. If you are not already in Line in mode, press and release the ON on the Soundbar or the button on the remote control to go to Line in mode. The LED indicator on the front of your Soundbar will change to green when you are in Line in mode.

1. Connect one end of a 3.5mm audio cable (not supplied) to the headphone (or auxiliary out) socket of your secondary device.
2. Connect the other end to the Line in socket on the back of your Soundbar.
3. Press the Play button on your external device to start playback through the Soundbar.
   To gain optimal volume levels, adjust the volume level on both the secondary device and on the Soundbar.

Note: It is recommended that you unplug the audio cable from the Line in socket on the back of the Soundbar, after you have finished listening to your external device.

section of these instructions, or online at www.bush-support.com. If you still require further assistance, call one of our experts on 0345 600 3021.

Using your Soundbar

Let's get started

Aux in mode

Check that your Soundbar is in Aux in mode. If you are not already in Aux in mode, press and release the ON on the Soundbar or the button on the remote control to go to Aux in mode. The LED indicator on the front of your Soundbar will change to light blue when you are in Aux in mode.

1. Connect the Left (white) and Right (red) plugs supplied to the Left (white) and Red (right) sockets on the back of the Soundbar.
2. Connect the other end of the cable to the Audio out socket on your TV.

The sound output from your TV, will now be via your Soundbar.

To gain optimal volume levels, adjust the volume level on both the TV and on the Soundbar.

Optical mode

Check that your Soundbar is connected to the TV or other audio device using an Optical cable (not supplied) and is in Optical mode.

If you are not already in Optical mode, press and release the O/M ton on the Soundbar or the M/ON on the remote control to go to Optical mode. The LED indicator on the front of your Soundbar will change to orange when you are in Optical mode.

HDMI ARC Mode

Check that your Soundbar is connected to the TV using an HDMI cable (not supplied) and that this is plugged into the HDMI ARC socket on the back of the Soundbar.

If you are not already in HDMI mode, press and release the 📄/Mton on the Soundbar or the M/OK on the remote control to go to HDMI mode. The LED indicator on the front of your Soundbar will change to white when you are in HDMI mode.

Note: Ensure that the HDMI ARC function is selected on your TV and the digital output is set to PCM.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Using your Soundbar

Let's get started

Wall mounting your Soundbar

You can wall mount your Soundbar. You will need:

• the 2 wall mount brackets included with your soundbar
• 2 x rawl plugs of a type and size that are suitable for the wall that you will hang the Soundbar on. 2 rawl plugs have been supplied but please check that these are suitable for the wall surface that you will use.
• 2 x screws that are the correct size for the rawl plugs. 2 screws have been supplied which are the correct size for the rawl plugs provided, but you will need to check that they will be sufficient for the wall surface that you will use.

Technical line drawings of mechanical components including bracket, screw, and pin (no text or symbols)

You will also need to check that the screw heads fit and hold well into the wall mount points on the back of the Soundbar.

Notes:

• Make sure that the screws and rawl plugs you use are suitable for supporting the Soundbar.
• To avoid damage to the Soundbar and personal injury, you should get a qualified person to drill the fixing surface and fit the appropriate wall fixings.
• When drilling into walls, always check that there are no hidden wires or pipes etc.
• Before wall mounting your product, check the wall strength. If this is not clear, then consult relevant qualified personnel.
  • Take care not to allow the Soundbar to fall whilst attempting to hook it onto the screws you have fitted to hang the product onto.

section of these instructions, or online at www.bush-support.com. If you still require further assistance, call one of our experts on 0345 600 3021.

Using your Soundbar

Let's get started

1. Unscrew the 4 screws that are in the back of the Soundbar for the wall mount brackets. Use these screws to attach the wall mount brackets supplied.

Technical line drawing of a two-side electronic device with ports and connectors, showing internal components and assembly (no text or symbols)

1. Align the Soundbar in your chosen location and use a pencil to mark the drilling positions of 406 mm (16 inches) apart.
2. Drill the holes as marked in point 2 above.
3. Push 2 rawl plugs into the holes. Insert 2 screws into the holes and tighten. Take care to leave enough space between the screw heads and the wall.

Note: You will need to ensure that the screws heads can fit into the wall mount points on the back of your Soundbar and that they are long enough to sufficiently grip into the rawl plugs and wall. You must also leave enough space between the screw head and the wall for the screw head to fit into the mounts.

1. Hang the Soundbar onto the screws. For secure mounting ensure the screw heads slide firmly into the narrow part of the wall mount fixings on the back of the Soundbar.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

This page is left intentionally blank

This page is left intentionally blank

Other information

4

Abstract geometric pattern composed of gray squares and triangles, no text or symbols present

Other information

Helpful technical information

Technical specification

Power output 2 x 30W + 60W
Frequency response 20Hz - 20kHz +/- 4dB
Input sensitivity Line in: 800mV, Aux in 1000mV
Main unit
Power supply	Input: 100-240V ~ 50-60HzOutput: 24V 2A
Power adapter make and model Jiedong	Electron Factory JDA2400200WZ
Power consumption 69.2W
Standby power consumption ≤ 0.5W
Dimensions	Soundbar: 810 x 84 x 72Subwoofer: 195 x 300 x 254mm
Mains cable length 1.5M
Remote control
Battery 2 x AAA
Bluetooth
Bluetooth compatibility	A2DP, AVCTP, AVDTP, AVRCP, HFP, SPP, SMP, ATT, GAP, GATT, RFCOMM, SDP, L2CAP PROFILE
Bluetooth version V5.1
Pairing name BUSH SR190DG

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Other information

Helpful technical information

This product is intended for use within the UK.

Declaration of Conformance

Hereby, Argos Ltd, declares that this SR190DG Soundbar with Wireless Subwoofer is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU and UK Radio Equipment Regulations 2017. The complete declaration of conformity can be obtained by contacting http://www.bush-support.com/

This page is left intentionally blank

Product support

5

Abstract geometric pattern composed of gray triangles and squares on a white background, with no text or symbols present.

Product support

Help is always at hand

Troubleshooting

No power:

• Check the power plug connection at the back of the Soundbar and at the wall socket.
• Check that you are not in Standby mode. Press and release the Power button on the Soundbar or on the remote control.

Unable to pair with a Bluetooth device:

• Check that you are in Bluetooth mode.
• Ensure that you are within range of the Soundbar for Bluetooth functionality, 10 metres or less (33 feet or less).
• Check that the device you are attempting to pair with supports A2DP stereo audio transmission.
• Move any other unnecessary Bluetooth devices/electrical equipment away from the Soundbar and if possible, turn them off or disable their Bluetooth functionality.

No sound / sound distortion:

• Adjust the volume
• Increase the volume on the secondary device and on your Soundbar.
• Check that you are in the correct mode for the music that you wish to listen to.

Remote control does not work:

• Reduce the distance between the remote control and the Soundbar.
• The remote control batteries may be exhausted. Replace the remote control batteries.
• The remote control needs clear line of sight, without obstacles, to function correctly. Direct sunlight or other bright light sources shining on the remote sensor may affect the performance.

Soundbar powers off:

- Your Soundbar has been designed to automatically go to Standby mode after approximately 15 minutes without an audio signal, to save power. Press the Power button on the Soundbar or on the Remote control to turn your Soundbar back on again.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Product support

Help is always at hand

Help and assistance

If you require any technical guidance or find that your Soundbar is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.bush-support.com

If you still require further assistance, call one of our experts on 0345 600 3021*. To help give us give you a fast and efficient service please have the following information ready:

Model Ref.

Serial number

You can find these on the rating plate - a small information panel (usually a sticker or metal plate) on the rear or base of your product.

Date of purchase

This will be shown on your receipt

Local call rates applies*

Lines open 8am-7pm Monday to Saturday and 10am-4pm Sunday.

*Calls to Bush enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details.

For security and training purposes, telephone calls to and from customer service centres may be recorded and monitored. Calls from Republic of Ireland will attract international call charges.

section of these instructions, or online at www.bush-support.com if you still require further assistance, call one of our experts on 0345 600 3021.

Product support

Help is always at hand

Disposal

• This product should not be treated as normal household waste and it should be recycled. Please take it to your nearest collection facility or for further details contact your local council or visit www.recycle-more.co.uk
• Batteries contain substances that may be harmful to the environment and human health. Keep out of the reach of children and seek immediate medical help if swallowed.
• Batteries should not be disposed of in the normal household waste but taken to appropriate local recycling facilities, where and when these are available.
• Never throw batteries in a fire or attempt to open the outer casing

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting

Product support

Help is always at hand

BUSH

Call us now and activate your 12 month guarantee

Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months. Don't forget to register it with us today so we can provide you with our best possible after-sales service and useful updates.

www.bushregistration.co.uk

FREEPHONE*

0800 597 8548

Lines are open 8am - 8pm, 365 days a year. *Calls may be recorded and monitored.

Your Bush Guarantee

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will be repaired free of charge (or if applicable the product will be replaced or the purchase price refunded) where possible during this period by the dealer from who your purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.
• The product must be correctly installed and operated in accordance with the instructions contained in the manual.
• It must be used solely for domestic purposes. The guarantee will be rendered invalid if the product is

re-sold or has been damaged by inexpert repair.

• Specifications are subject to change without notice.
• Bush disclaim any liability for loss or damage arising from the breakdown of the product.
• This guarantee is in addition to and does not diminish your statutory or legal rights.

Important Data Protection Information

To find out how we and Domestic & General Insurance Plc use your data please refer to the guarantee registration material or visit www.bushregistrations.co.uk.

Guarantor: Argos Limited - 489 - 499 Avebury Blvd. - Milton Keynes - MK9 2NW

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting.

section of these instructions, or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 600 3021.

Product support

This page is left intentionally blank

This page is left intentionally blank

BUSH

Contact:

www.bush-support.com

Helpline: 0345 600 3021
