AGQ80 - Range hood ILVE - Free user manual and instructions

Product type	Range hood
Brand	ILVE
Model	AGQ80
Width	80 cm (31.5 inches)
Depth	50 cm (19.7 inches)
Height (min-max)	65 - 110 cm (25.6 - 43.3 inches)
Weight	18 kg (39.7 lbs)
Power supply	220-240 V, 50/60 Hz
Maximum extraction rate (m³/h)	650 m³/h
Noise level (max speed)	65 dB(A)
Number of speeds	3 + intensive
Control type	Electronic push buttons
Lighting	2 x 1.5 W LED
Grease filter	Aluminium mesh (dishwasher safe)
Charcoal filter (optional)	Yes, for recirculation mode
Duct diameter	150 mm (6 inches)
Mounting type	Wall-mounted or under cabinet
Energy class	A+
Annual energy consumption	35 kWh/year
Fluid dynamic efficiency class	A
Grease filtering efficiency class	B
Noise level (lowest speed)	45 dB(A)
Safety features	Automatic shut-off, motor thermal protection

Frequently Asked Questions - AGQ80 ILVE

How do I install the AGQ80 range hood?

Installation must be performed by a qualified technician. Ensure the hood is mounted at least 65 cm above electric cooktops and 75 cm above gas cooktops. Follow the manual for wall anchoring and duct connection.

How often should I clean the grease filters?

Clean the aluminium mesh filters every 2-3 months or more frequently if used heavily. They are dishwasher safe. Dry thoroughly before reinstalling.

Can the AGQ80 be used in recirculation mode?

Yes, you can use it in recirculation mode by installing an optional charcoal filter (model: ILVE CF150). The filter should be replaced every 6-12 months.

What is the maximum extraction rate?

The maximum extraction rate is 650 m³/h in intensive mode. Normal speeds range from 250 to 400 m³/h.

How do I replace the LED lights?

The LED lights are integrated and should be replaced by a qualified technician. Do not attempt to replace them yourself as it may void the warranty.

Why is my range hood noisy?

Check if the duct is blocked or if the filter is dirty. Also ensure the hood is properly installed and not vibrating against the wall. If noise persists, contact support.

What should I do if the hood does not turn on?

First, check the power cord and circuit breaker. If the hood still doesn't work, the control board may be faulty. Contact ILVE service for assistance.

How do I adjust the speed?

Press the speed buttons on the control panel. The hood has 3 speeds plus an intensive mode (usually marked for 10 minutes).

Is the AGQ80 compatible with a remote control?

No, the AGQ80 does not come with remote control functionality. All controls are on the front panel.

Where can I find the user manual?

You can download the user manual for free from notice-facile.com or the ILVE website. The manual covers installation, operation, and maintenance.

USER MANUAL AGQ80 ILVE

04 Useful information
06 Important safety warning
08 Instructions for use
11 Cleaning
13 Periods of inactivity
13 Ordinary maintenance - replacement of the spotlight

INSTALLER

14 Important safety warnings
17 Installation

DEAR CUSTOMER

Thank you for choosing our equipment!

Our hoods are capable of efficiently extracting fumes and steam generated by cooking food from domestic environments.

This booklet contains all the necessary information for using and maintaining the equipment. It will guide you through starting using the hood quickly and without difficulty. We therefore recommend that you read it carefully before use, and that you store it carefully for future reference. We remain at your full disposal for any further information that you may require, or if you have any problems in understanding any contents of this booklet.

ILVE S.p.a.

Via Antoniana, 100

35011 Campodarsego (PD) Italy

tel. [phone] - fax [phone]

SEND MAIL: [e-mail]

ICON

Read this manual carefully before installing or using the equipment.

The manual contains some warning or danger symbols:

Danger! Situation of immediate danger or dangerous situation that might cause injuries or death.

Read the instruction manual

Useful advice and information

Reference to another chapter

ATTENTION:

The Manufacturer reserves the right to make improving modifications to the equipment or accessories at any time. Partial reproduction without the Manufacturer's authorization is forbidden. The measurements given are indicative and not binding.

- This booklet contains important information about the use and maintenance of your equipment and is an integral and essential part of the product. Please read this booklet carefully before proceeding with any operations, in order to protect your safety and avoid damaging the product.

- Store the booklet safely for further consultation, and give it to the new owner if you sell the equipment, since the information therein is addressed to the purchaser and all the people that, one way or another, use and maintain the product.

- ILVE S.p.a. (hereinafter referred to as "the Manufacturer") denies any and all liability due to the failure to comply with the instructions below, including any damage caused from misuse and unauthorized changes in the product, as well as the use of non-genuine spare parts supplied by ILVE S.p.a.

- The equipment may be used by children 8 years of age or older, and by individuals with reduced physical, sensory or mental capabilities, or without the necessary level of experience or knowledge, provided that they are supervised, or only after they have been fully instructed on the safe use of the equipment and made fully aware of any danger.

- The equipment is only intended for the extraction of cooking fumes from a domestic, non professional, environment. Any other use is considered improper use, can cause damage to people, property and animals, and shall relieve the Manufacturer from all responsibility.

- If the equipment does not work, or functional or structural alterations are noted, disconnect it from the power mains and contact a service centre authorised by the manufacturer. Do not attempt any repairs yourself. Always request that original spare parts are used.

- Do not touch the hood with wet or dirty hands, or while barefoot.

- When not in use, check that all electric components (lights, suction fan) are switched off.

- Check fryers during use: overheated oil may catch fire.

- Do not ignite open flames or cook flambé foods under the hood.

- Never use the hood without the anti-grease filters supplied: this could lead to an accumulation of fat and dirt, which could severely harm the operational parts of the product, primarily the blower.

Guidelines for the routine maintenance of the range hood

• Disconnect the electric power supply.
• Always wear appropriate personal protective equipment (e.g. gloves, safety footwear, etc.).
  • After the surfaces of the hood have COOLED DOWN;
• Always wear appropriate personal protective equipment (i.e., gloves, safety footwear, etc.).
• Failure to follow the instructions or the use of unsuitable cleaning devices may pose a risk of fire and/or damage to the hood or the surrounding objects, so the Manufacturer couldn't be held responsible.
• Regular daily cleaning and maintenance activities should not be performed by children.
• The maximum weight of any objects placed on top of the hood or attached to the same should not exceed 2 kg.
• Do not pull, push or hang on the equipment, neither use the hood as a support for heavy objects or cabinet and other appliances.

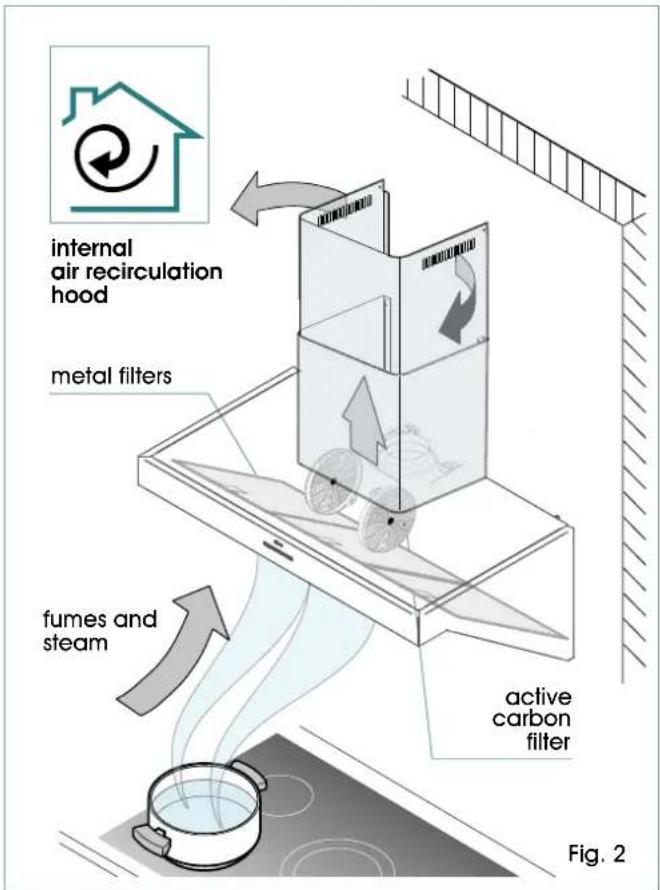

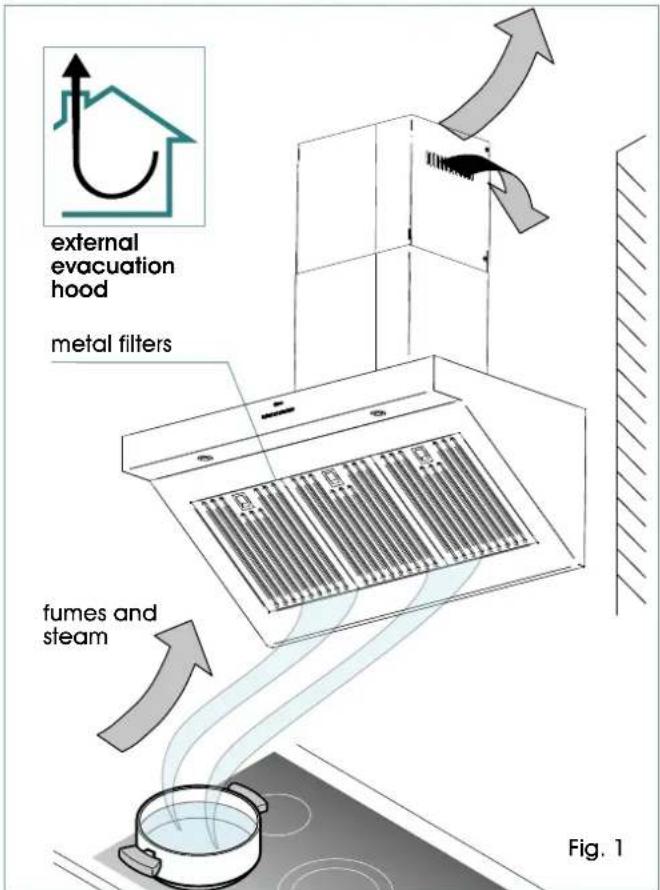

Product's operation

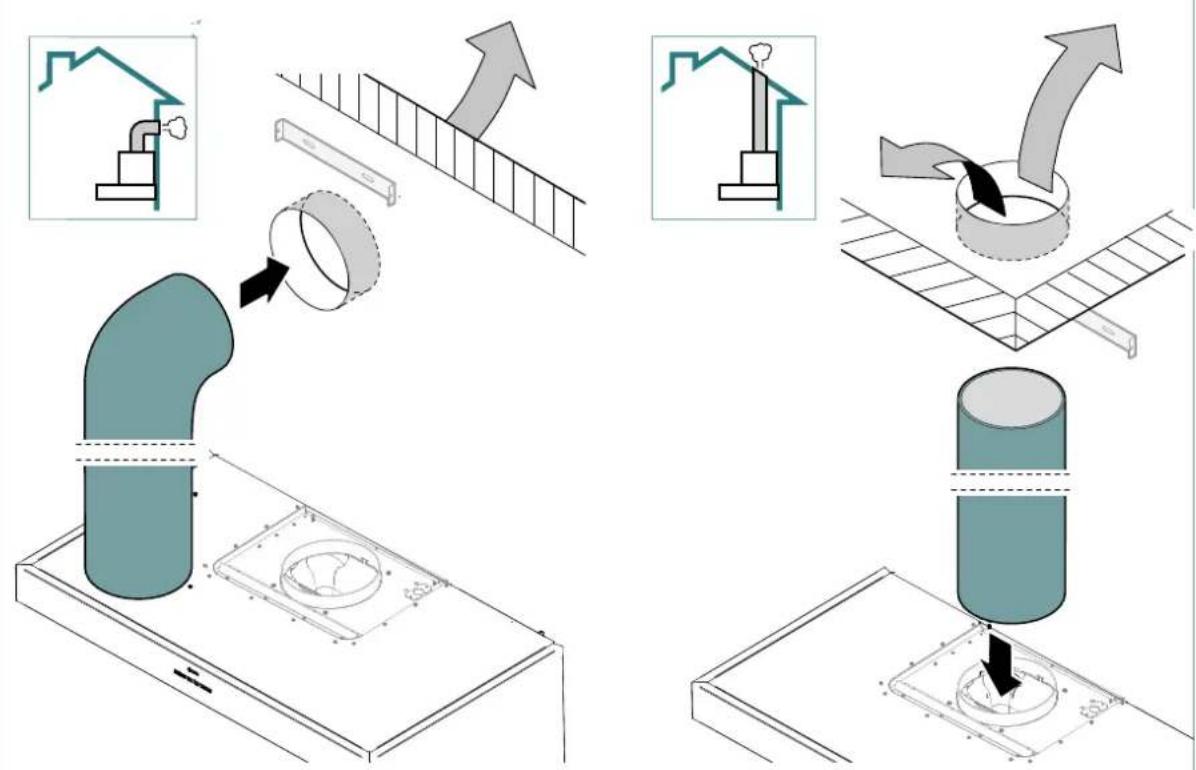

The hood extract fumes and steam generated during cooking from the environment, channelling them through metal filters that must be regularly removed and washed. And then, depending on the type of installation, fumes and steam:

are driven outside from the building through a drain pipe: this model does not require the use of carbon filters (ducting or external drain cooker hood - Fig. 1);

are funneled through one or more carbon filters (usually one or two) to be purified: the clean air is then blown into the room thanks to the grid holes placed on the top of the hood's chimney (filtering or internal recirculation cooker hood - Fig. 2).

Operating instructions

The hood must be switched on at least a couple of minutes before starting to cook, to promote the suction of fumes and steam. After finishing cooking, leave the hood in operation for an extra few minutes: in this case, it may be appropriate to activate the "Timer" function, which automatically switches the hood off after 10 minutes (see 'Control panel' page 9).

The page that follows shows how to use the control panel.

What speed should I use?

The unit operates at three different speeds:

speed 1: purifies the air whilst limiting electricity consumption;

speed 2: normal conditions of use (e.g. steam suction)

speed 3: for the elimination of particularly intense fumes and smells (e.g: when frying or grilling).

When should the filters be washed or replaced?

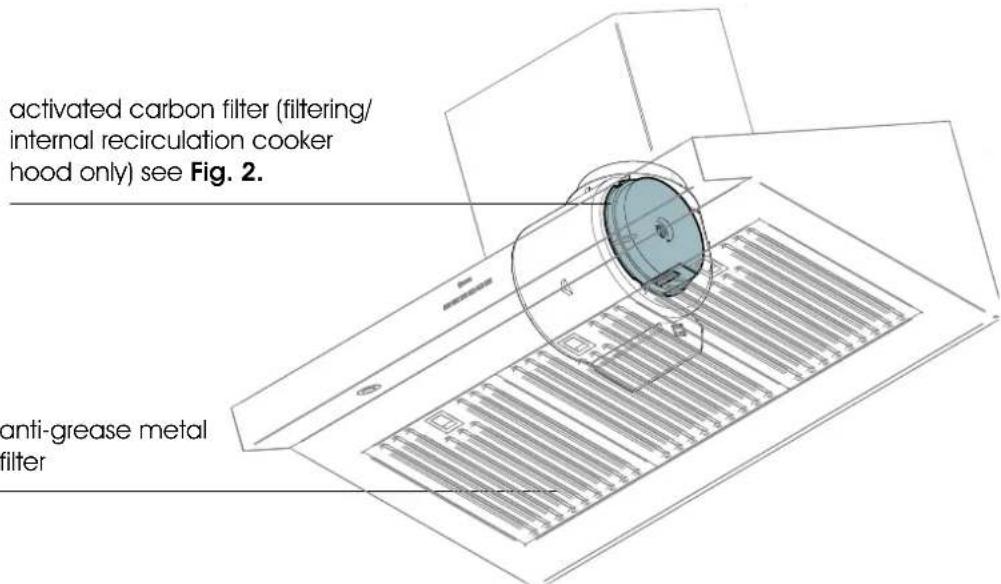

The hood has two types of filters:

- metal filters: these must be removed and washed at least once a month. For the cleaning procedure refer to chapter "CLEANING" on page 11.

- active carbon filter: this is only found in internal air recirculation models (Fig. 2), and must be removed and replaced approximately every 3-4 months, depending on use.

CONTROL PANEL

Fig. 3

ON-OFF

Turns on and off the engine at speed 1.

Speed 1

Purifies the air whilst limiting electricity consumption.

24-hour air recirculation

Hold down the "0/1" button for 7 seconds to turn the air recirculation program on or off (alternating operations for 24 hours: off 20 minutes and 5 minutes in first speed).

Speed 2

Normal conditions of use.

Speed 3

For the elimination of particularly intense fumes and smells (e.g: when frying or grilling).

Dynamic speed

Starts the motor at maximum speed for 5 minutes and then automatically returns to speed 3.

Light button

Turns the light on and off.

Timer

Once activated, the timer will cause the cooker hood to work for additional 10 minutes before turning off automatically. After pushing the TIMER button, the light of the clock button will start flashing, indicating that the timer function is now enabled. It is possible to turn the timer off anytime by pressing the button again. This will bring the hood back to the preceding behaviour.

FILTER ALARM

When the hood keyboard is off and starts to flash this means that the carbon filters in the hood must be replaced for correct hood operations. Reset the keyboard by holding down the "TIMER" key until the keys turn off.

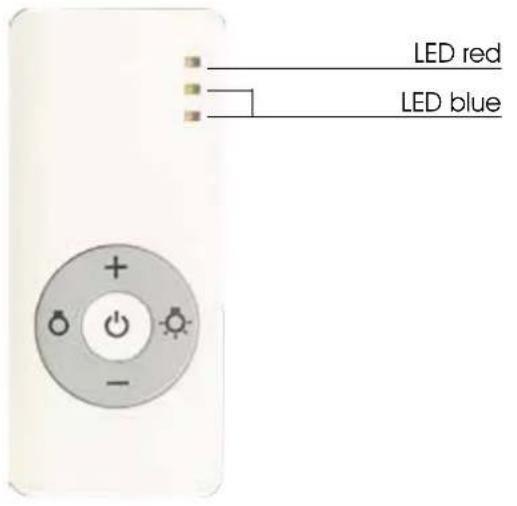

REMOTE CONTROL

ON - OFF motor

[Non-Text]

ON - OFF lightning

Increases motor speed

Reduces motor speed

Every signal connected to the motor control enables the BLUE LED lights at the same time for half a second. Every control connected to the light enables the red led light for half a second.

Coupling with the remote control of the hood

When enabling the hood (in the first 7 seconds). Push the ⏻ON-OFF button on the remote control for two seconds. In this way, the remote control will be completed and activated. After the first 7 seconds, the programming of the hood will be finished and the coupling will be protected from external signals which are not coupled.

All ordinary maintenance operations must be carried out:

• after disconnecting the electric power supply;
• always wearing appropriate personal protective equipment (e.g.: gloves, etc...).

Failure to follow the instructions, or use of unsuitable products, may pose a risk of fire and/or damage to the equipment or other objects, for which the Manufacturer cannot be held responsible.

When cleaning any of the components or accessories, NEVER use:

• abrasive or powder detergents;
- aggressive or corrosive detergents (e.g. hydrochloric/muriatic or sulphuric acid).
- abrasive or sharp tools (e.g. abrasive sponges, scrapers, steel brushes, etc.);
- water sprays.

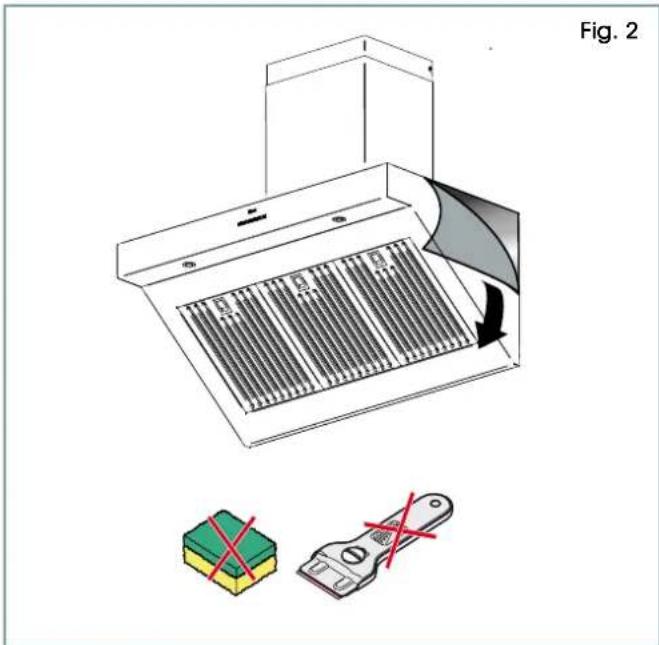

STAINLESS STEEL AND OTHER METAL SURFACES

The INSIDE and the OUTSIDE of the hood should be cleaned solely by using a damp cloth with little neutral soap. It is also possible to use a steel specific cleanser, paying attention to the instructions written on the canister or bottle.

To conclude the cleaning operation, rinse using a clean wet sponge or cloth and then use a rag to dry the surface (in case of satin steel, please rub according to the finish pattern).

CONTROL PANEL

Please follow the instructions stated above for metal surfaces.

Fig. 4

GREASE METAL FILTERS

These filters are usually made in aluminium or stainless steel, and their main purpose is to block the particles of oil and fat suspended in the cooking fumes. An excessive accumulation of grease inside the filters could cause unpleasant smells and decrease the suction power of the hood. Please note that accumulated fat is highly flammable: any fire could lead to severe damage to both users and the product.

For these reasons, the anti-grease filters should be washed at least once a month, immersing them into hot water and dish soap for at least one hour. Rinse with plenty of water and wait for the filters to be fully dry before putting them back in place. Please note that the maximum temperature is 70^ C/158°F: higher temperature can cause darkening in the metal (please note that this DOES NOT impair the operation of the filter).

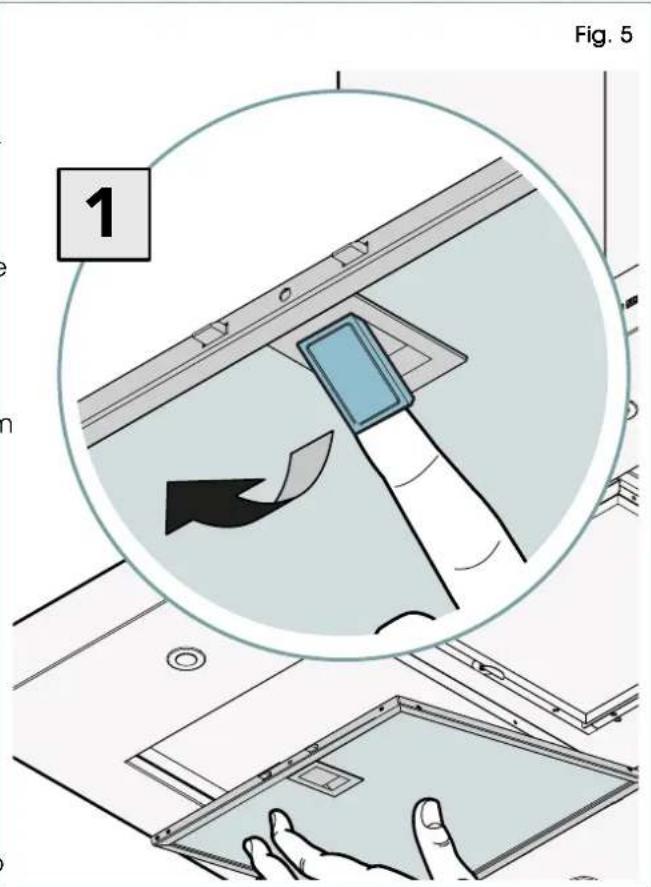

For their removal see Fig. 5

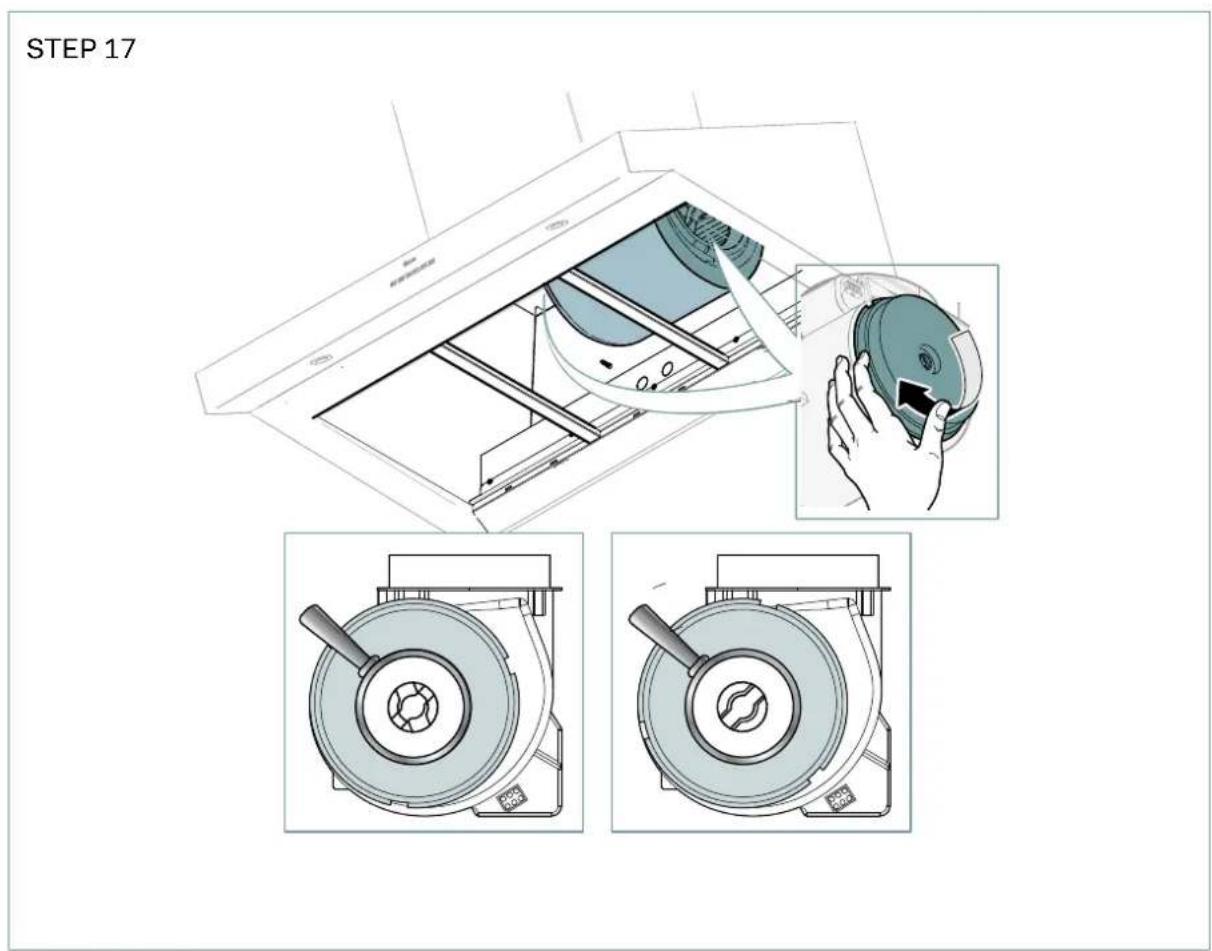

ACTIVE CARBON FILTERS

These filters cannot be washed or regenerated, and should therefore be replaced every 3 to 4 months, depending on the hood usage. Damp environments, high temperature, soiled anti-grease filters and the use of an induction hob could result into an accelerated decay of the filters. Rounded filters can be removed by counter-clockwise twisting.

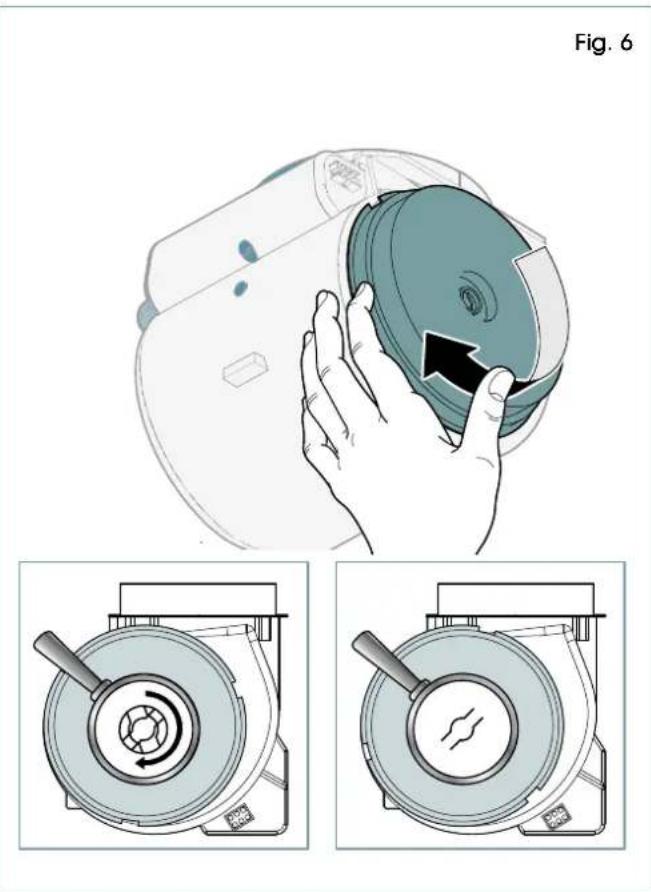

For the instructions on carbon and anti-grease filters removal, see Fig.6

Internal recirculation hoods have to be used only with active carbon filters installed.

When not using the equipment for extended periods of times:

• disconnect the equipment from the power supply.
• if possible, use a soft cloth to apply a thin layer of Vaseline oil to all stainless steel surfaces.

At first use:

• accurately clean the equipment;
• reconnect the power supply.

ORDINARY MAINTENANCE

Replacement of the spotlight / LED bar

Always make sure that the appliance is disconnected from the power supply

Procedure to follow

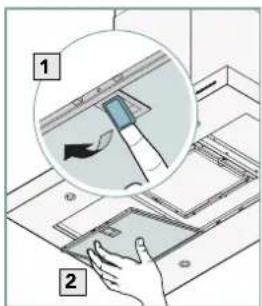

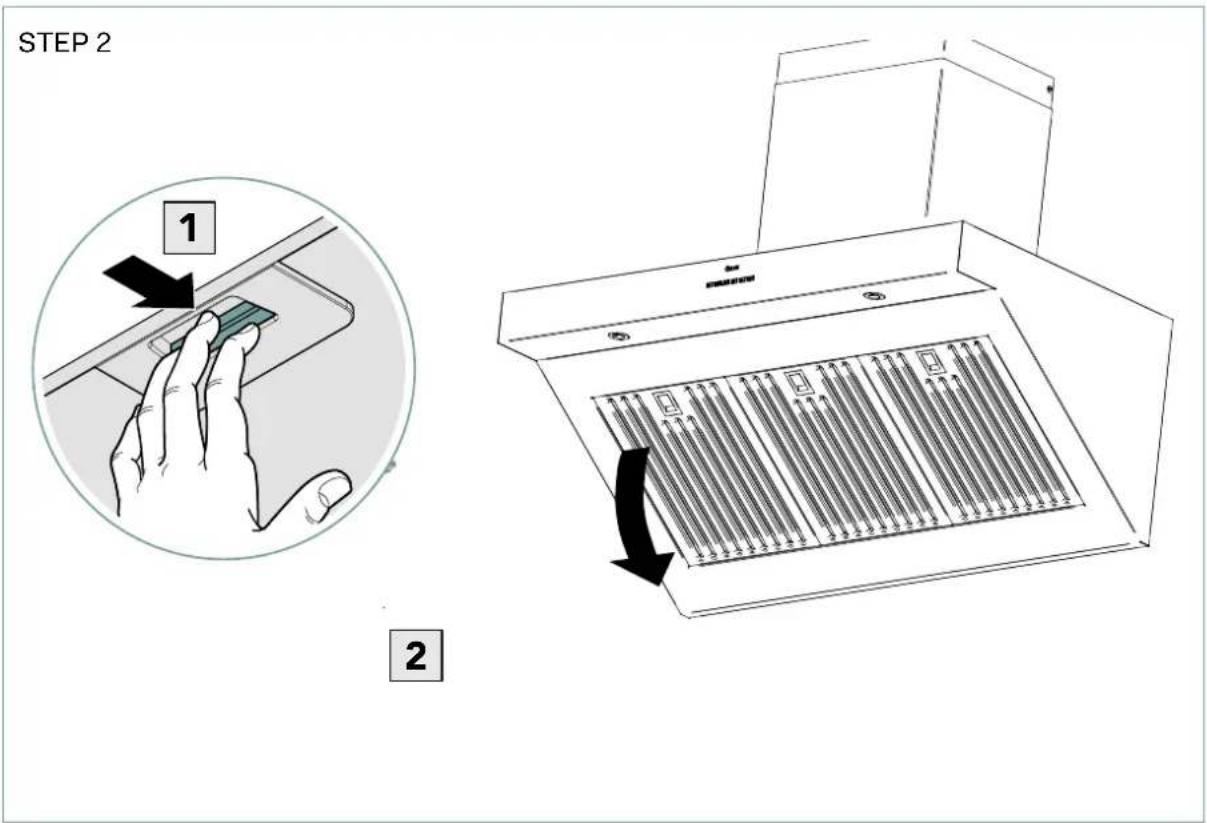

1-2. Remove metal filters

3/a. Push the spotlight from the inside to the outside

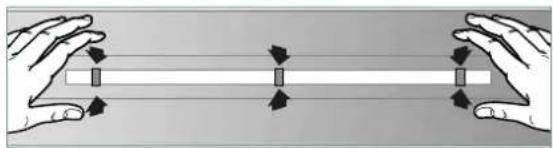

3/b. Press the tabs and push the LED bar outward.

1. Disconnect and replace the entire spotlight

Illustration of a hand holding a small electronic component with a red cable, enclosed in a circular frame (no text or symbols)

Diagram showing two hands holding a rectangular object with directional arrows indicating movement or force (no text or symbols)

Close-up of a white plastic electrical connector with blue wires and red connectors, no visible text or symbols

WARNING: This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.

WARNING: Improper grounding can result in a risk of electric shock.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO PROVIDE PROTECTION AGAINST ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY

WARNING: there shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);

There is a fire risk if cleaning is not carried out in accordance with the instructions;

CAUTION: Accessible parts may become hot when used with cooking appliances.

WARNING: Improper bonding to ground can result in a risk of electric shock.

If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Before installing the equipment, carefully read the safety instructions on page 6 and the indications provided on page 14.

The installation and extraordinary maintenance operations must be carried out by qualified personnel, authorized by the Manufacturer, having the necessary product knowledge, and in compliance with the regulations in force in the Country of use regarding the types of systems involved and safety in the workplace.

ATTENTION

• Before connecting the device to the mains, please check that all connection data on the product label (voltage and frequency) match those of the mains (Refer to chapter "How to read product label" on page 27 for further information on the data plate). Please note that any incompatibility could lead to serious damage to the device, so always contact a qualified electrician before installing your hood; check that the systems comply with the regulations in force in the Country of use.

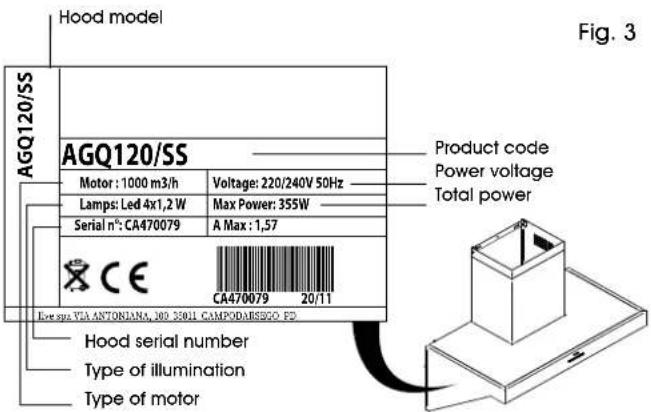

  • Always compare the system data with that printed on the data plate.
• Check all the components for integrity and functionality: in case of fault, stop the installation and contact the distributor.
• Do no connect the product to the power main before any other step of the installation is completed.
• Any interventions, tampering or modifications not expressly authorised, not complying with the content of this manual, will void the warranty, and may also cause immediate danger or dangerous situations that may result in injury or even death.
• During the installation of the equipment, anyone not responsible for carrying out installation activities must refrain from transiting or stationing in or nearby the installation area.
• Being potentially hazardous, packaging materials must be kept out of reach of children or animals, and must be correctly disposed of, in accordance with local regulations.
• During the installation activities, always use the required personal protective equipment (e.g. safety shoes) and act with the due level of care and attention.
• The fastening kit (screws and plugs) supplied with the hood can only be used on masonry wall. For installation on other types of walls consider alternative fastening systems,
• Taking into account the strength of the wall itself and the weight of the hood.

- To perform the installation and ensure the best solidity of the whole framework, always use the the securing devices and the components (e.g. screws, bolts, brackets, etc.) provided with the packaging.

- In order to prevent any loss in the product efficiency and safety of use, the hood should be installed indoor only, sheltered from weathering (i.e., rain, wind) and harsh environmental conditions (dried salt, extreme thermal excursion).

- Do not change the electrical, mechanical and functional structure of the equipment.

- The electric connection socket must be easy to reach even after installation of the equipment.

- Should this not be the case, a general switch must be installed, in order to disconnect the hood from the power supply in case of need.

- The maximum weight of any objects placed on top of the hood or attached to the same should not exceed 2 kg (4,4 lb).

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- Do not hang on the equipment, and do not use it as a support for other objects or cabinets.

- Any variation or operation in the electrical system should be performed exclusively by a qualified electrician;

- Do not repair the hood by yourself nor replace any of its components, except for the antigrease and the carbon filters. Repairs and other work performed by unqualified personnel will nullify any warranty right on the product, and could lead to product failure and damage to people or property.

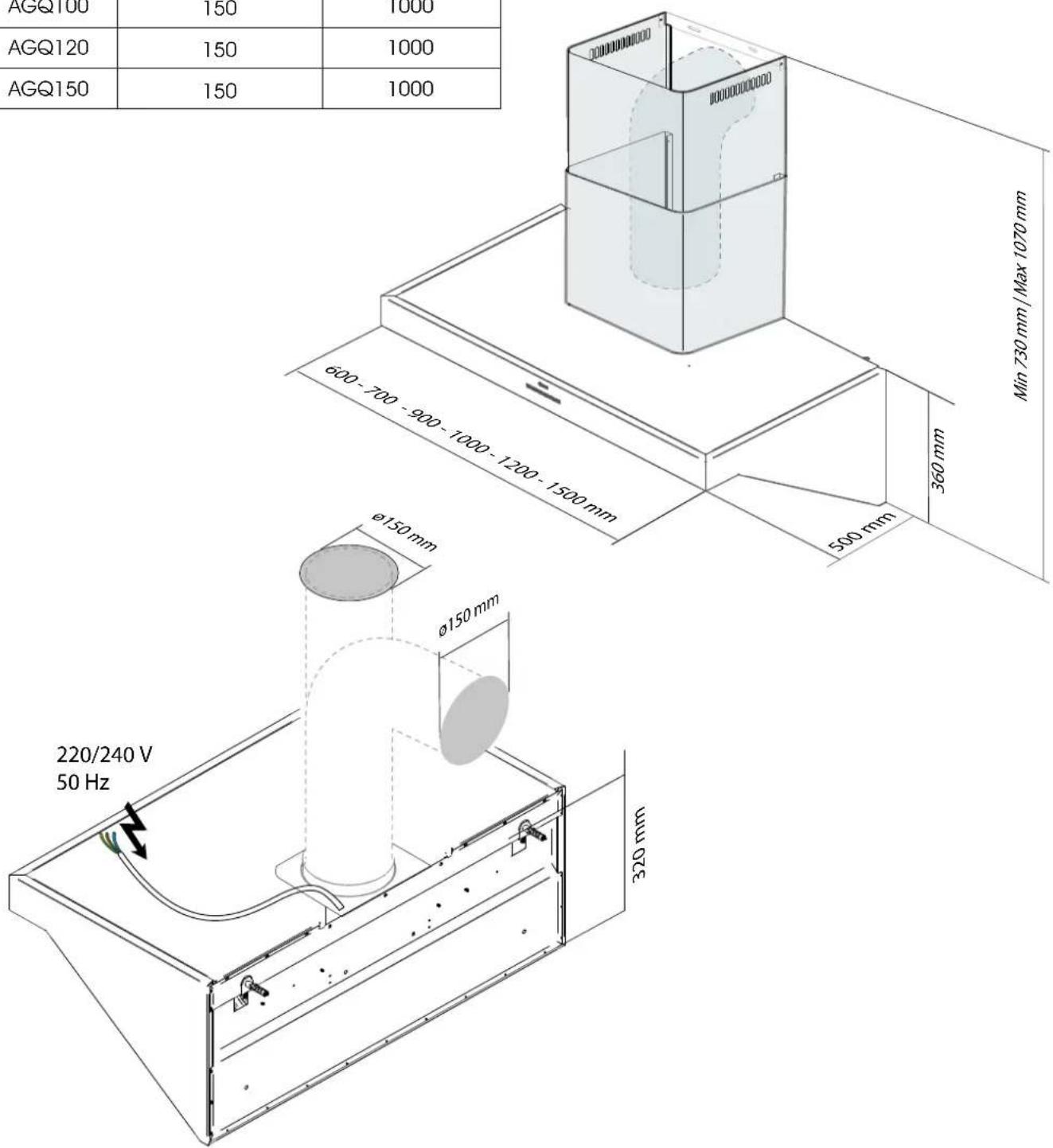

MOD.	∅ EXIT HOLE(mm)	SUCTION(m3/h)
AGQ60	150 1000
AGQ70	150	1000
AGQ90	150	1000
AGQ100	150	1000
AGQ120	150	1000
AGQ150	150	1000

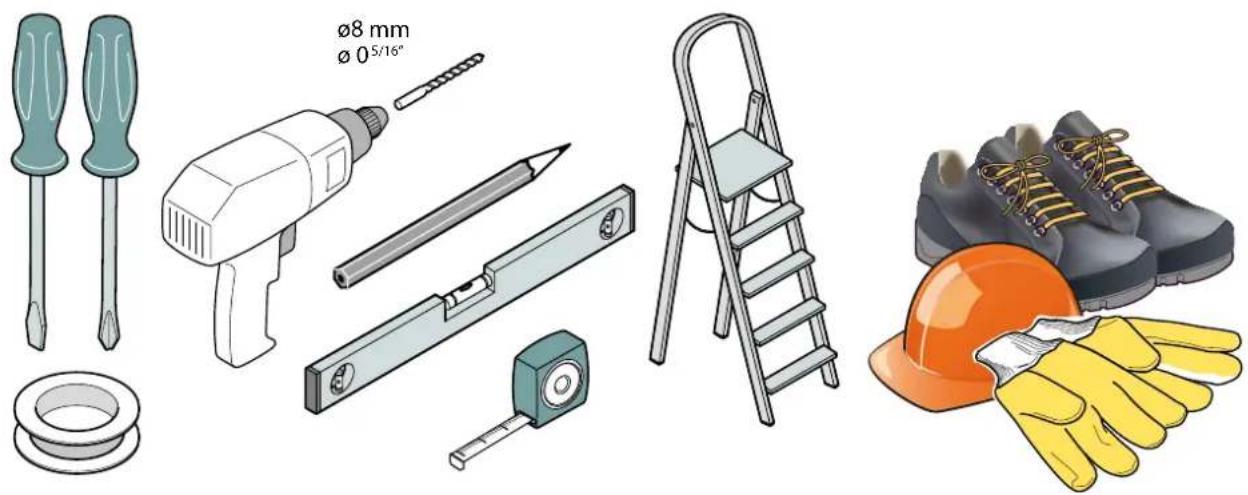

NECESSARY TOOLS

Illustration of various construction tools including screwdrivers, a drill, ladder, and safety gloves (no text or symbols)

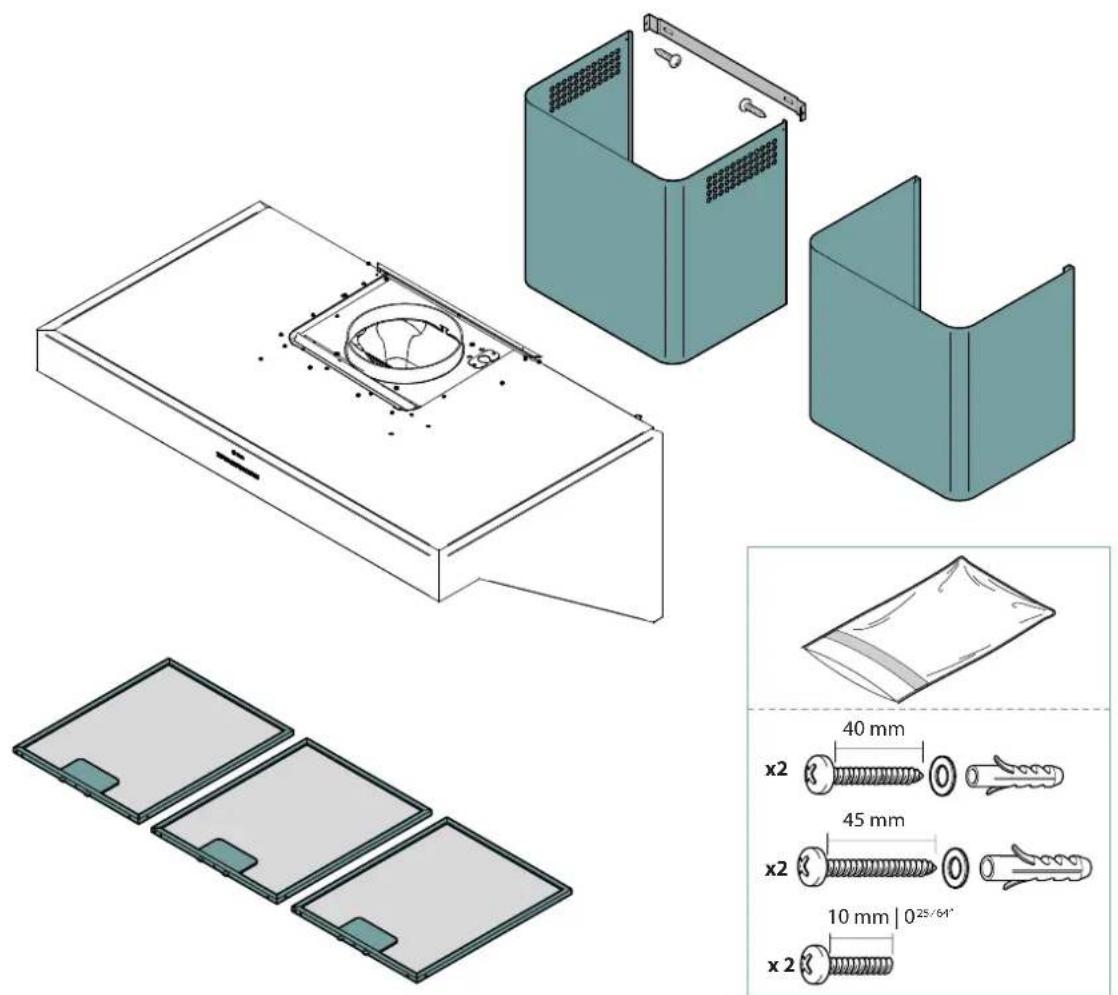

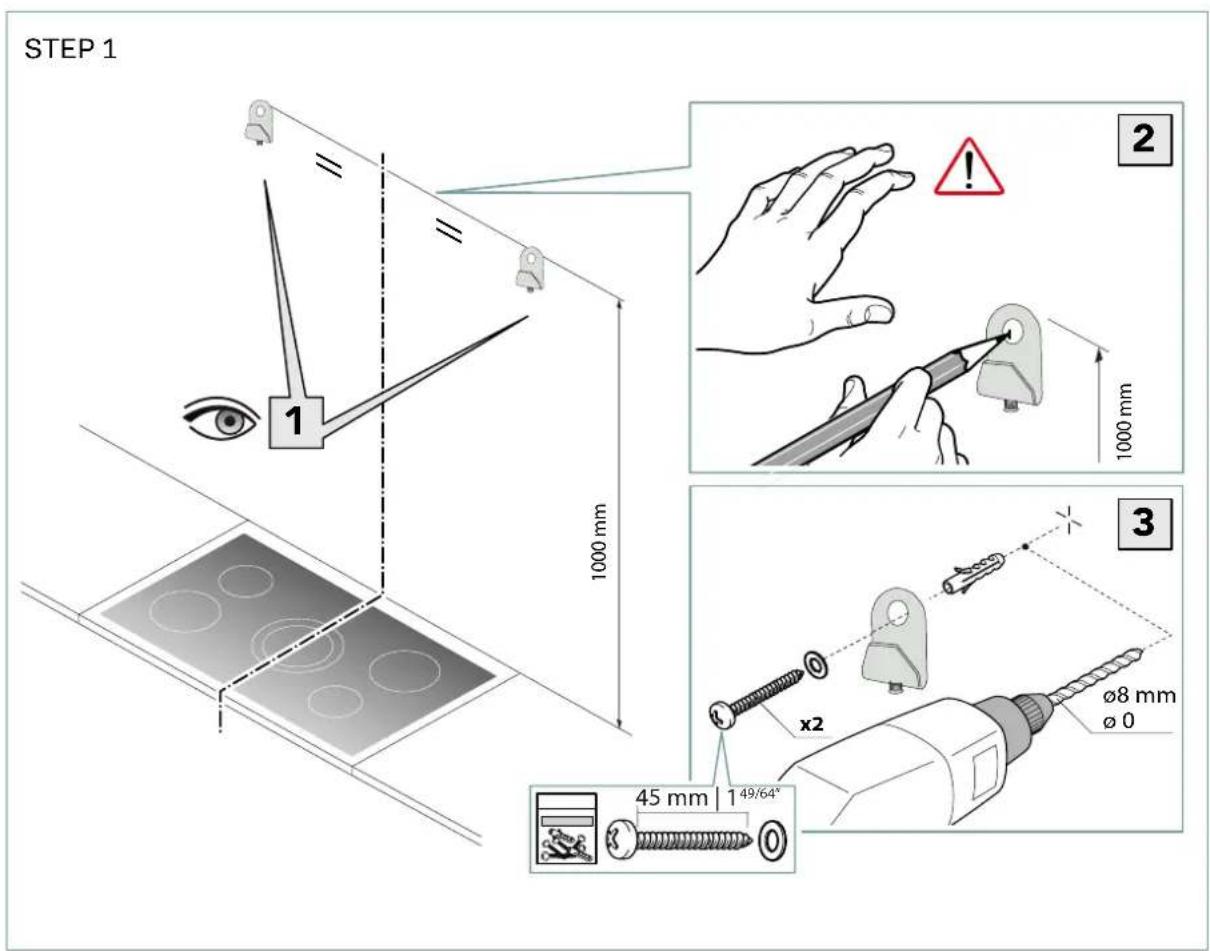

PACKAGE CONTENT

The fastening kit (screws and plugs) supplied with the hood can only be used on masonry wall. For installation on other types of walls consider alternative fastening systems, taking into a count the strength of the wall itself and the weight of the hood.

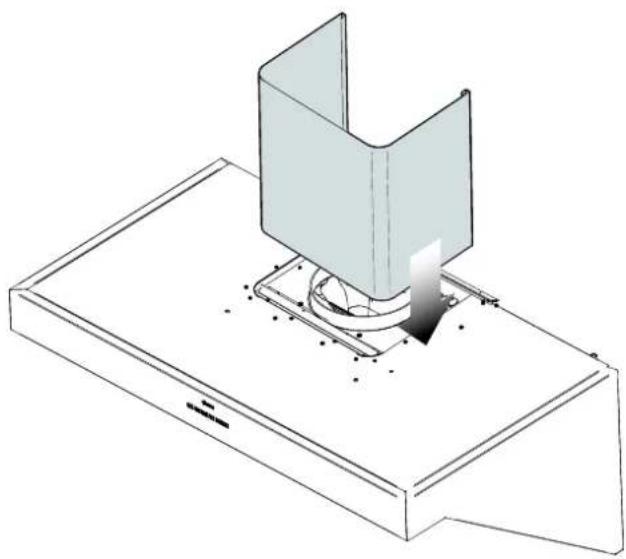

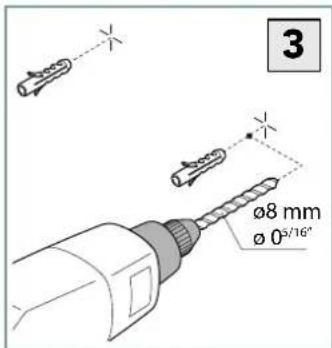

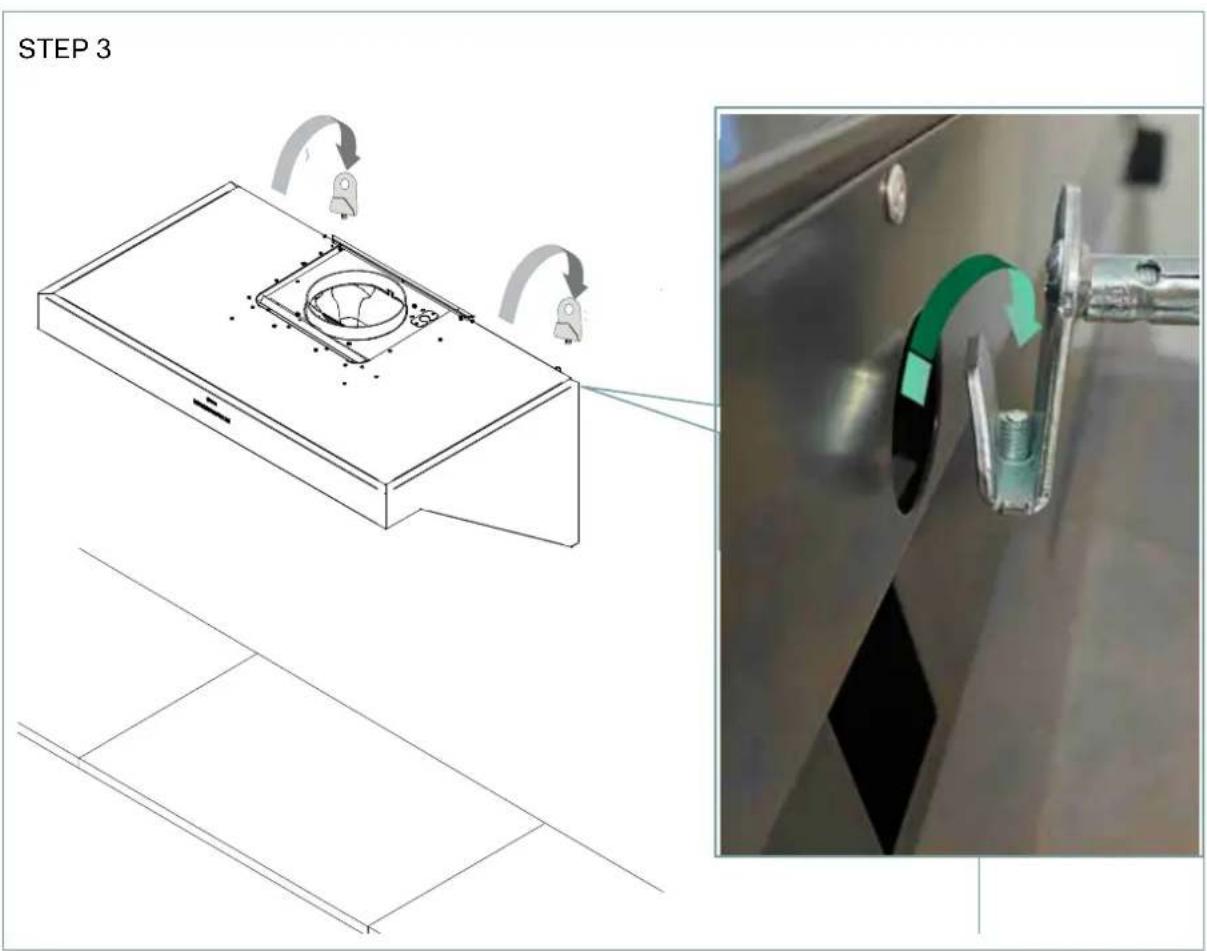

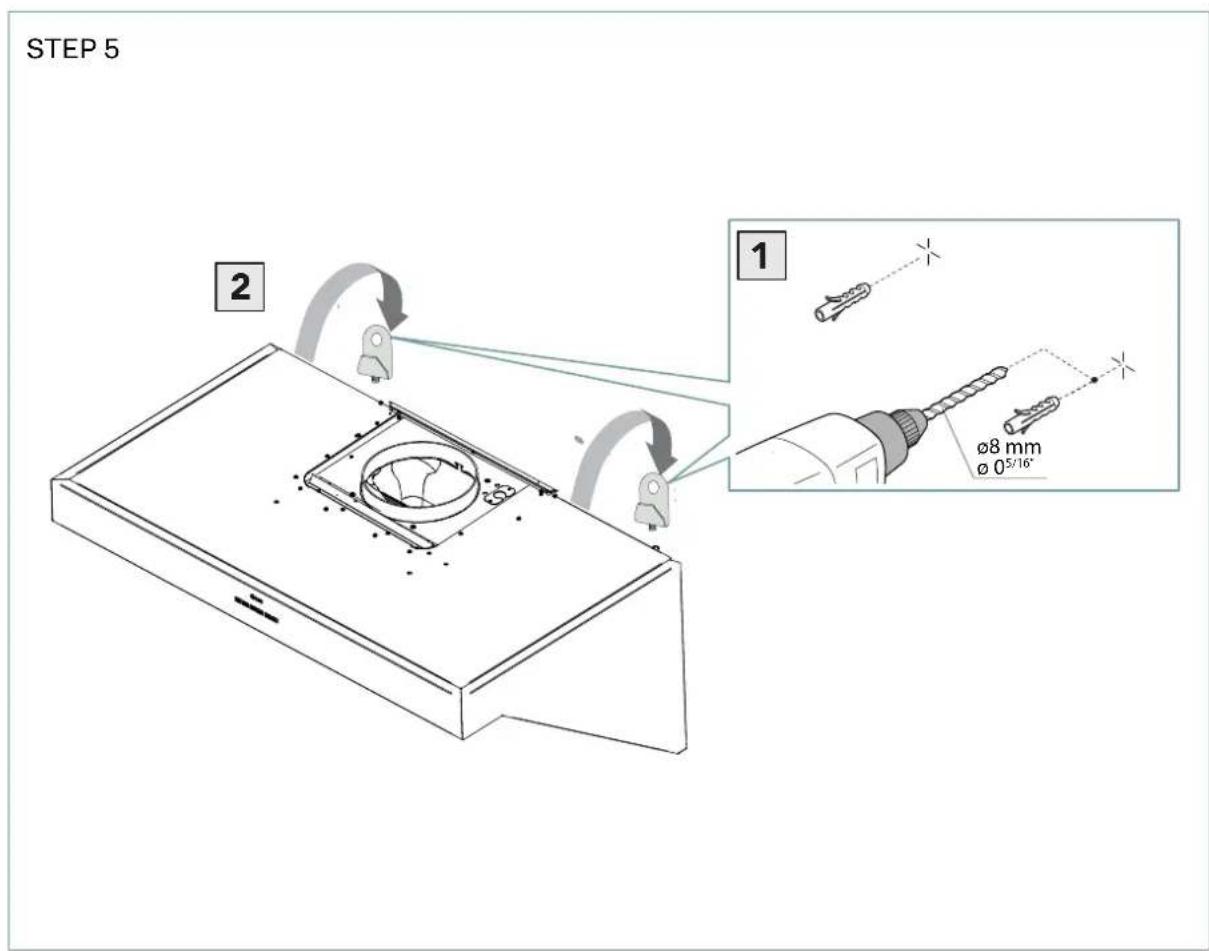

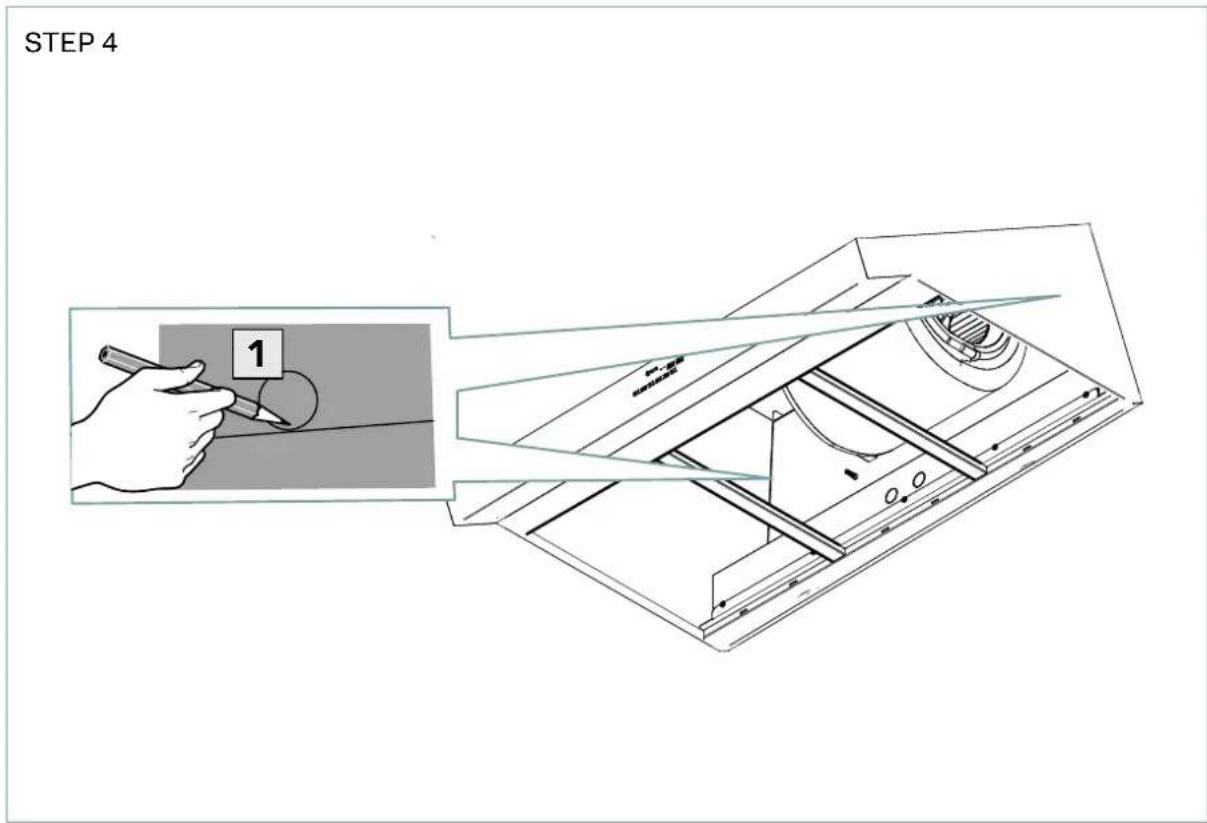

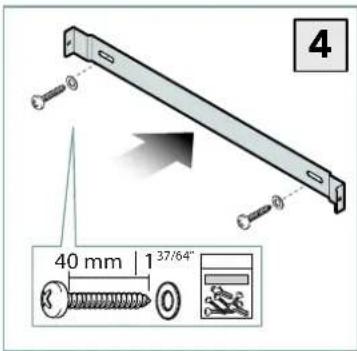

STEP 6

Technical line drawing of a mechanical assembly with a U-shaped component and mounting base (no text or symbols)

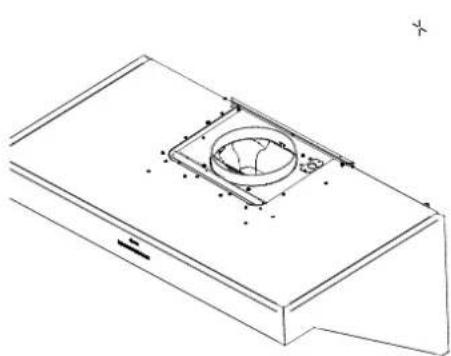

STEP 7

Technical line drawing of a mechanical component with a circular recess and mounting base (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

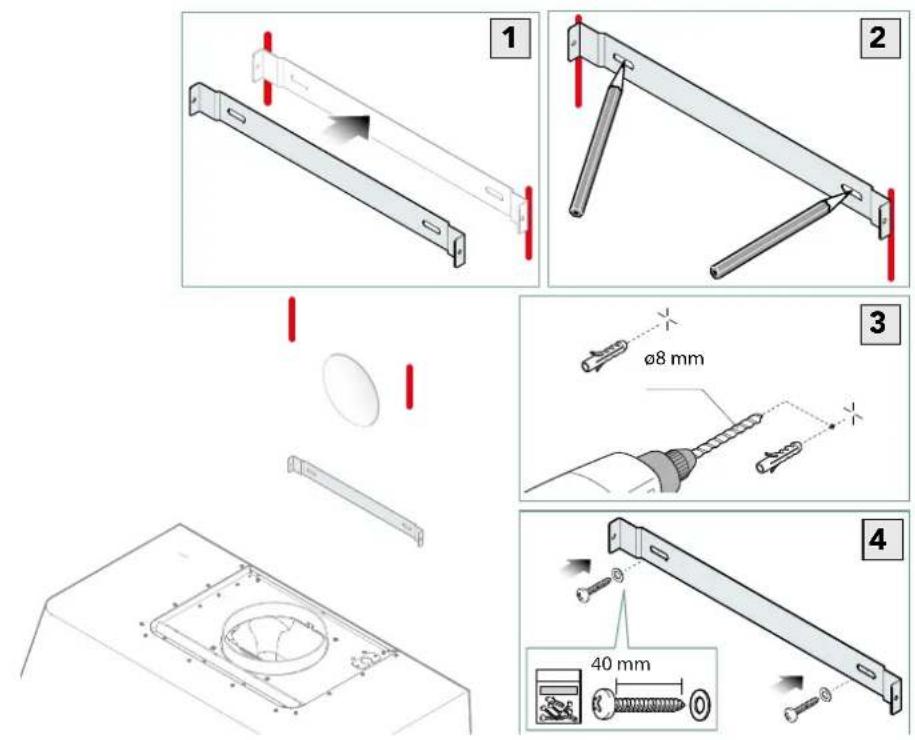

Illustration of a hand holding a cylindrical object with a ruler, against a vertical line and angle marker (no text or symbols)

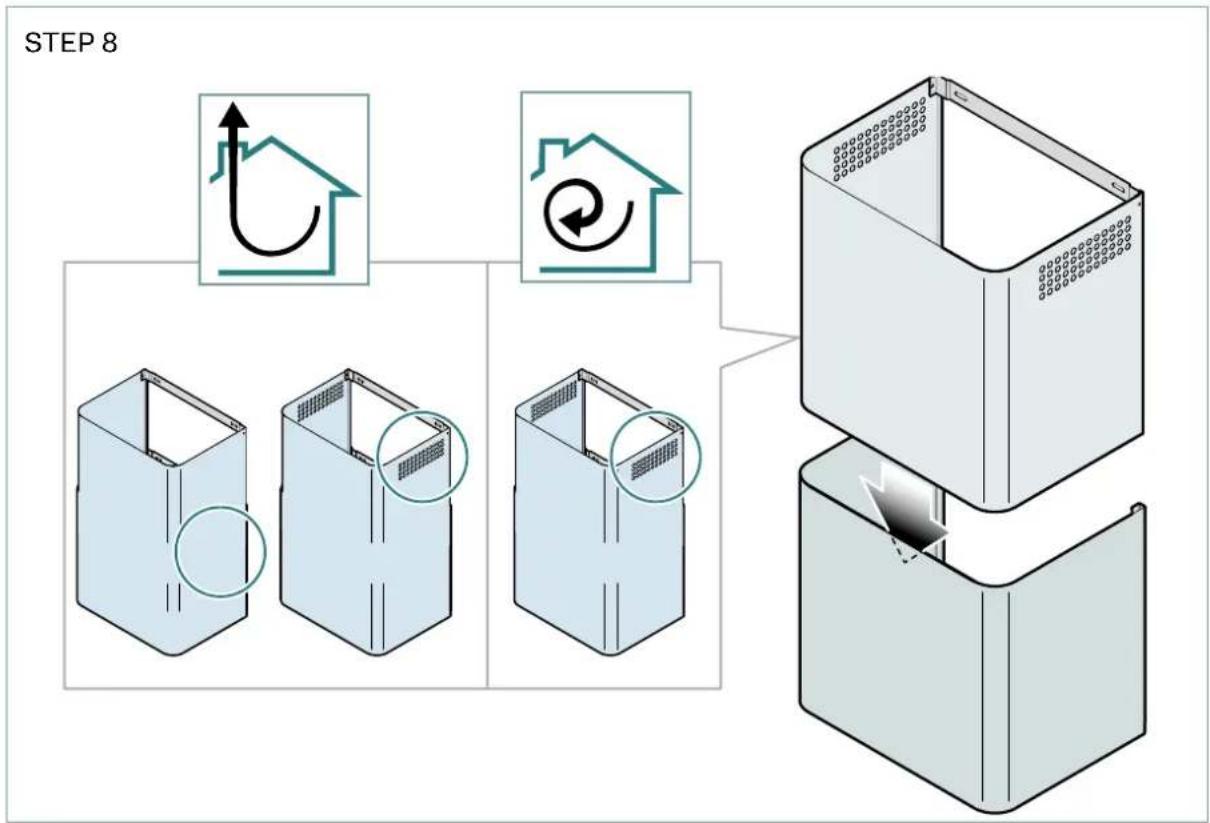


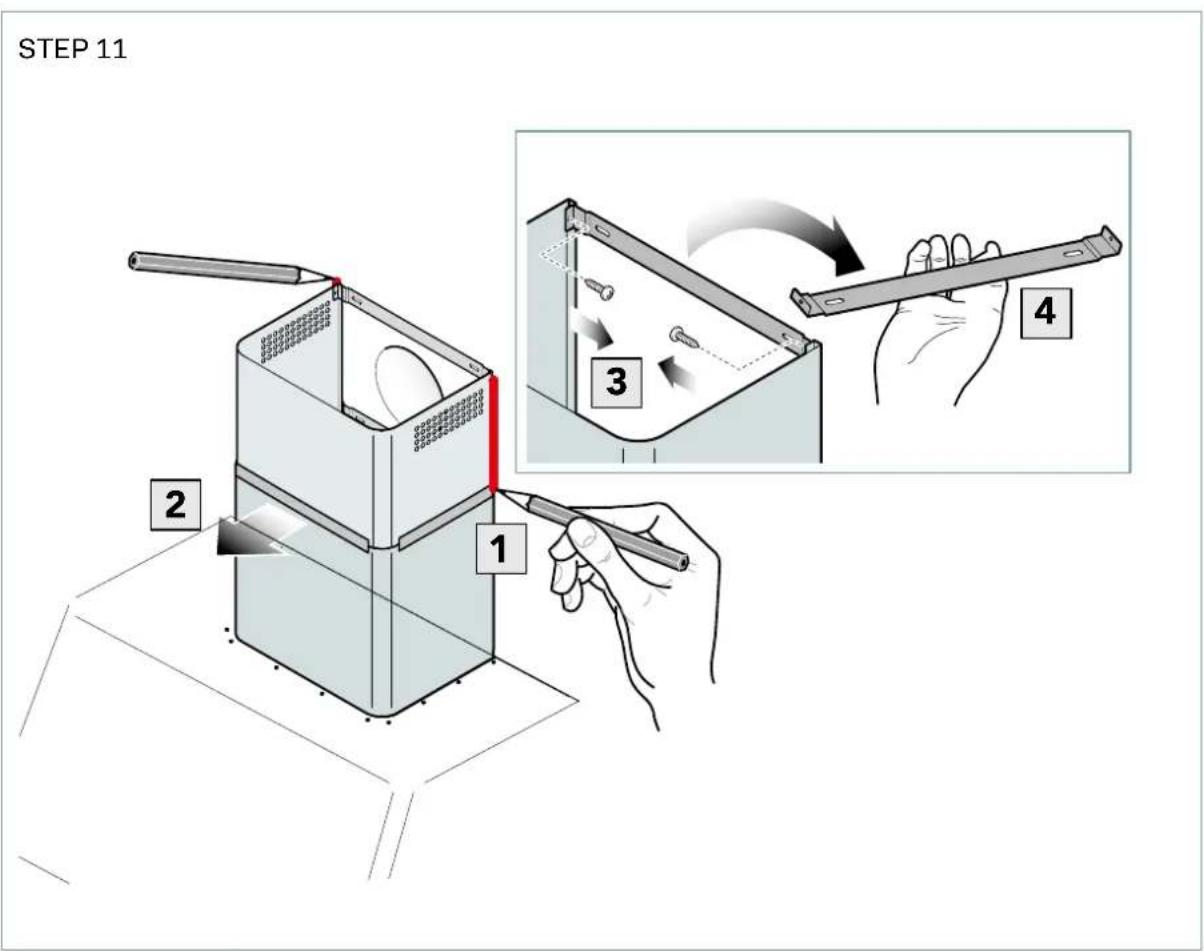

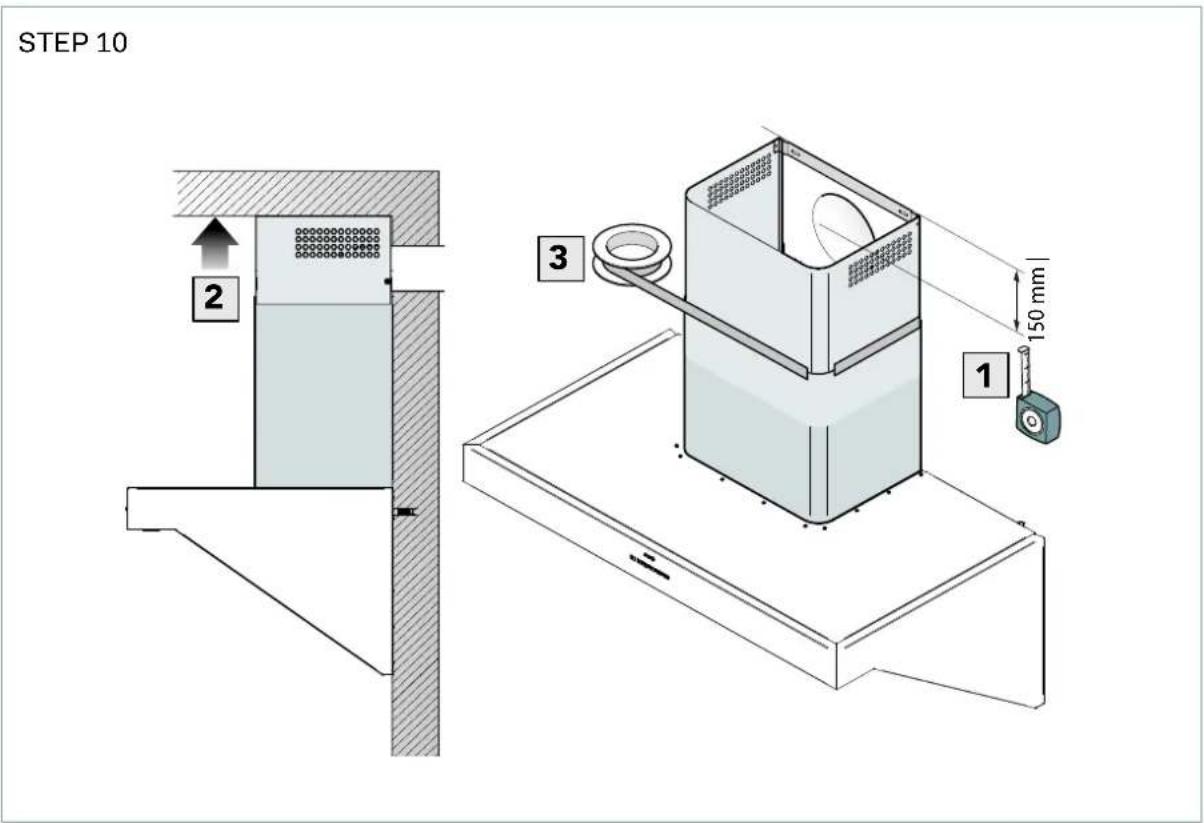

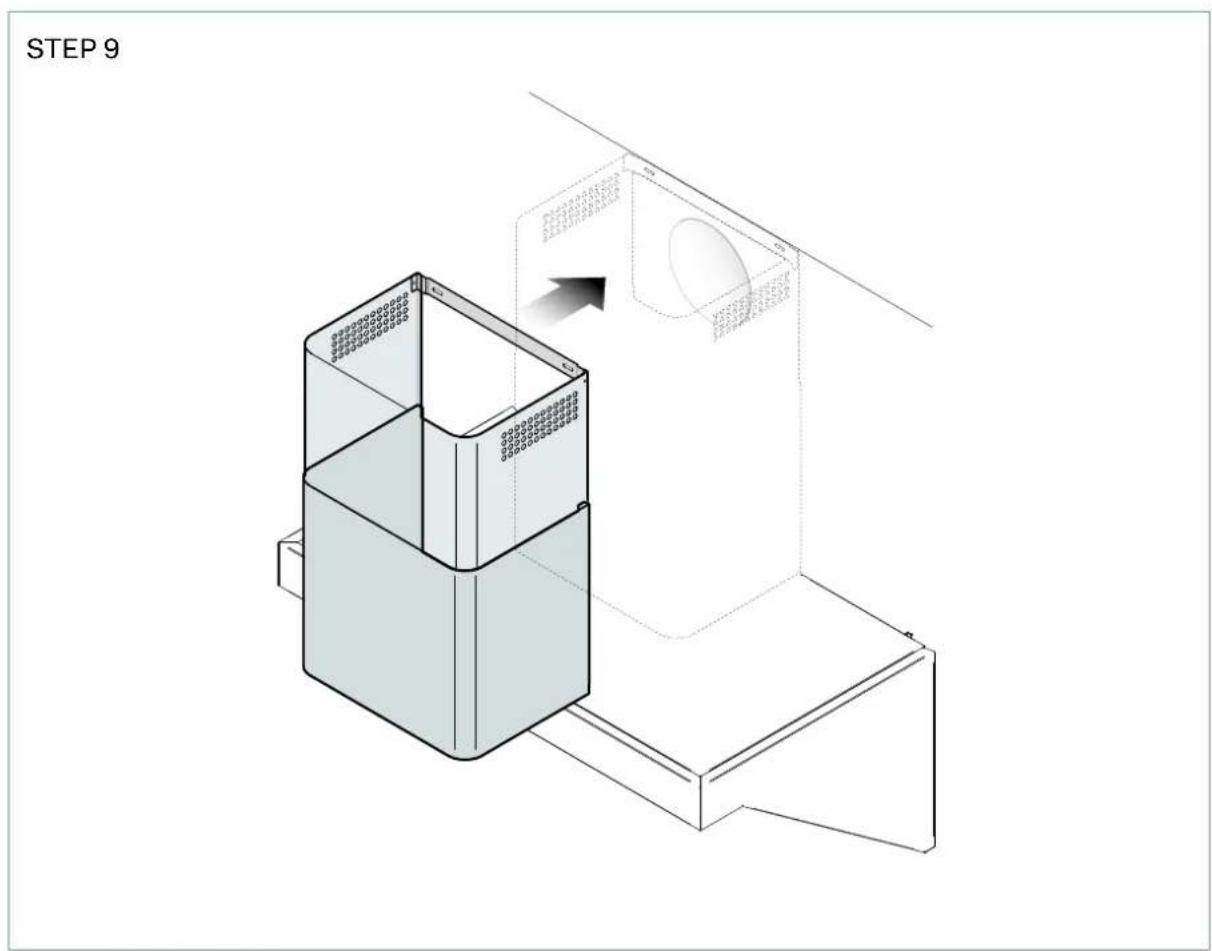

STEP 12

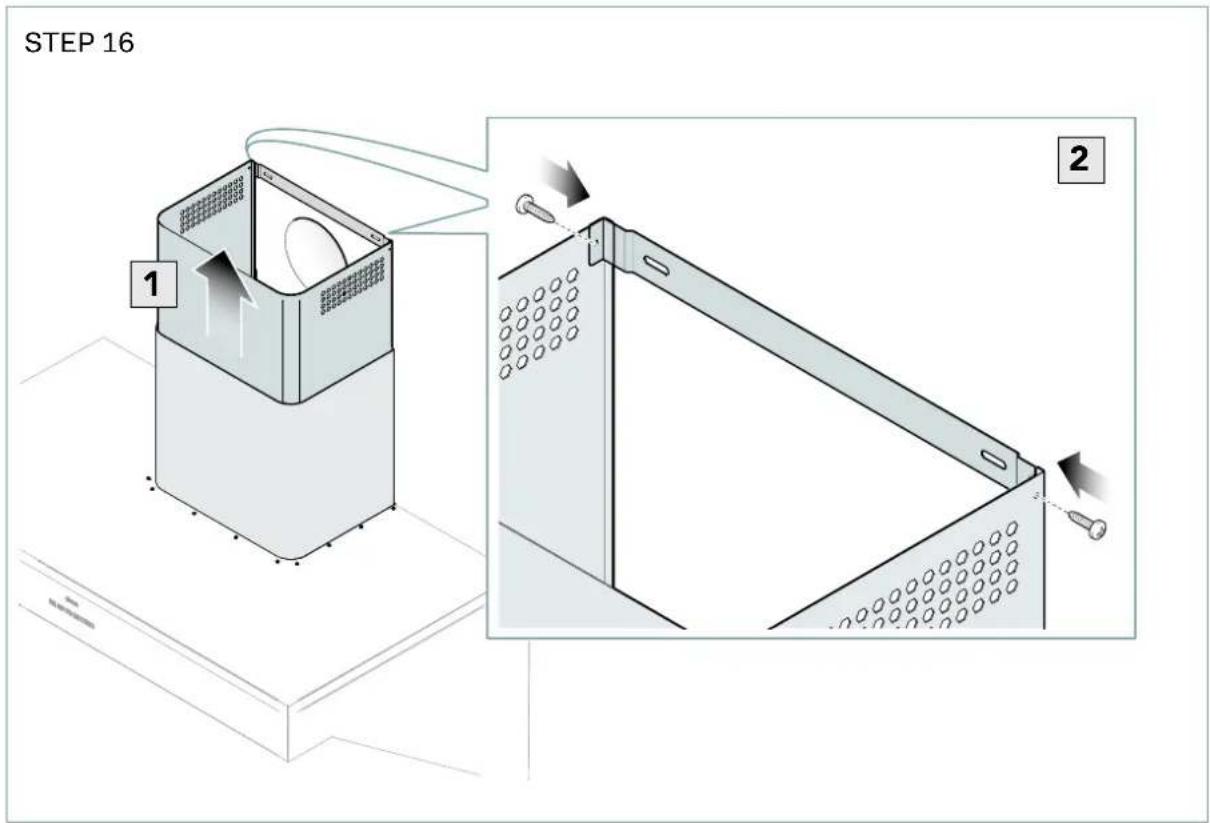

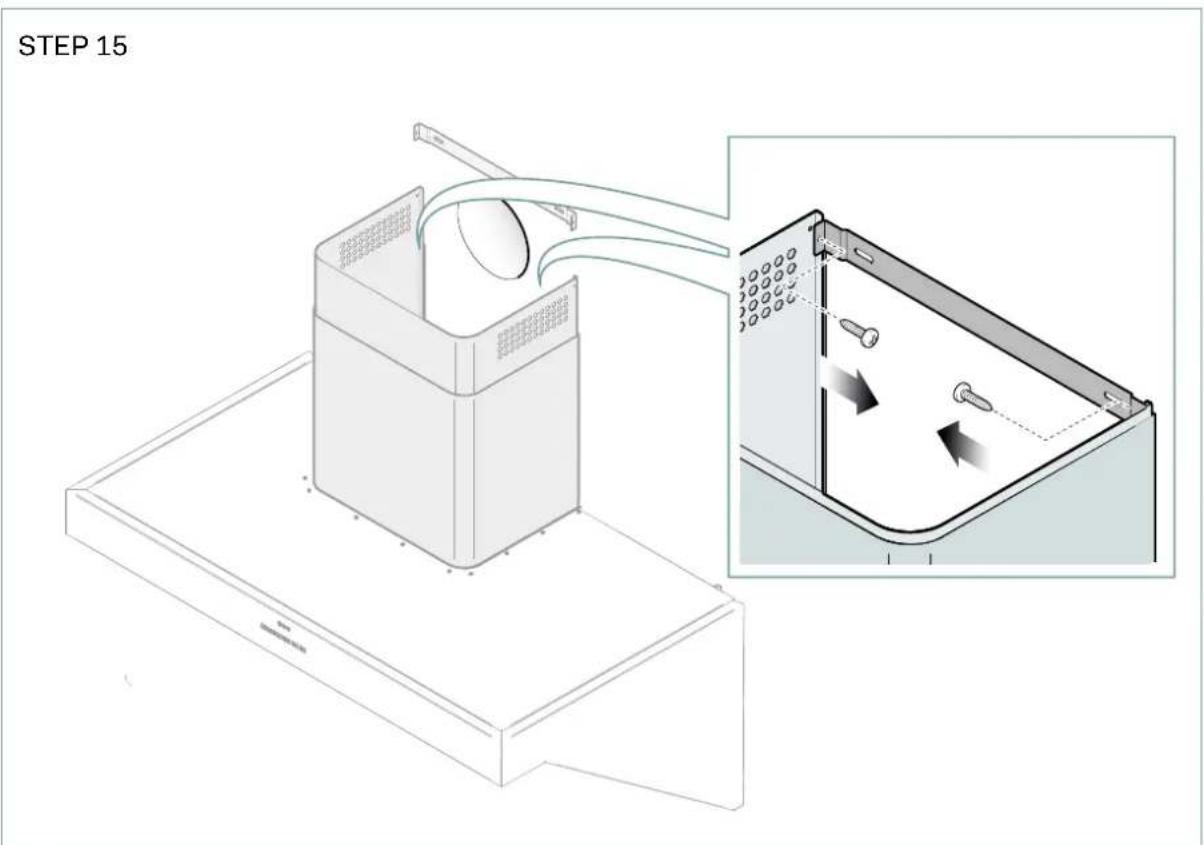

STEP 13

PRELIMINARY INSPECTION

After opening the package, please inspect the equipment for any possible damage that could have occurred during transport. If the product is damaged, please take note of the data printed on the product label (Fig. 3) and promptly notify the data to your Supplier.

TRANSPORT

The transportation, loading and unloading of the product should be performed by personnel wearing all the necessary protections (Fig. 1). When handling the equipment, implement all the necessary precautions to avoid damage to the same or to people and property, complying with the instructions found on the packaging.

When handling the equipment, always use clean cotton gloves to avoid fingerprints.

FIRST-USE PREPARATION

After the hood installation, please remove the protective film and carefully clean the external surface (Fig. 2.). Please note that the use of acid-based cleansers could damage the hood surface, so use a neutral or a steel-specific cleanser only.

All packaging and the protective film must be disposed of in accordance with the regulations of the country of use. Always make sure that nothing is disposed of in the environment.

Packaging materials may be potentially dangerous for children and animals.

HOW TO READ PRODUCT LABEL

The product label is located inside the hood, usually attached on its bottom, being visible after the removal of the anti-grease filters. The label shows essential data and information about the product regarding installation, customer service and warranty-related repair, as well as instructions to determine the correct spare parts for the specific model. Please do not remove, damage or alter in any way the product label, since this could impede the Manufacturer from identifying the product in case of need.

Illustration of two workers in orange hard hats handling a large industrial machine (no text or symbols visible)

CORRECT POSITIONING

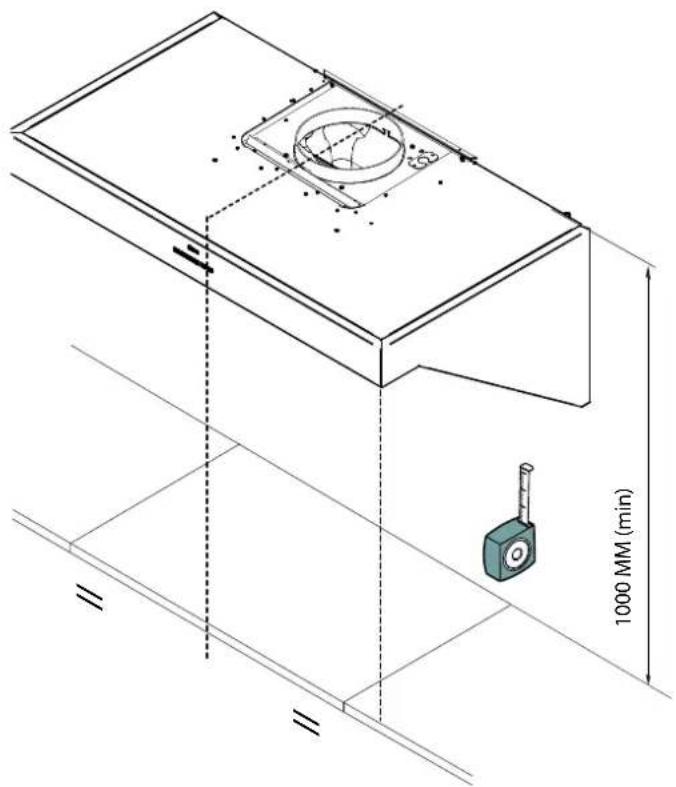

The hood should be placed at a minimum distance of 65 cm for the wall-mounted models and 75 cm for the island/roof models. It could be that Your specific hob requires the range hood to be placed at a greater distance: always refer to the manufacturer's instructions handbook for further information.

The installation site must:

- be well ventilated and not exposed to weather conditions;

- have a temperature between +16 e i +32 °C

(90°F) and an humidity below 60% (any variation from the aforementioned values could accelerate the usual decay time of the carbon filters decay or limit the overall performance of the hood);

-comply with all the applicable regulation from the User's country in terms of indoor air quality, electrical system security and work safety;

- be suitable for the preparation of food.

For correct installation, refer to the drawings on page 18 to 27.

The equipment must be installed in a way that ensures easy access to electric connections. Do not use any electric wire or other electric devices to extend the original power cord. Please inspect the existing wall sockets or power cords of your kitchen and place the hood accordingly;

The fastening kit (screws and plugs) supplied with the hood can only be used on masonry wall. For installation on other types of walls consider alternative fastening systems, taking into account the strength of the wall and the weight of the hood.

Do not place the equipment near flammable materials or flammable substance containers (e.g. partition walls, gas cylinders, etc.), to hire hazards.

All the installation operations, assembly, connection to the electric power supply and extraordinary maintenance must only be carried out by qualified personnel, authorised by the Distributor or Manufacturer, in accordance with the legal requirements of the country of installation and in compliance with equipment and workplace safety regulations.

The equipment must only be installed by responsible and experienced adults, without physical impairment and in perfect psychological and physical condition.

During installation, anyone and any objects not involved in the assembly operations must be kept away from the area.

Before starting the assembly operations, make sure that all the necessary tools are available and in good working order.

ELECTRIC CONNECTION

The electric connection can only be carried out by qualified personnel (electrician).

The cable and the internal hood cables must not be replaced or modified. Before connecting the equipment to the power mains:

• read the safety instructions provided at the beginning of this manual;
• make sure that the electric system installed complies with the local regulations of the country of installation;
• make sure that the electric system installed is suitable for the characteristics of the equipment being installed (see the details on the data plate).

Refer to chapter "How to read product label" on page 28 for further information on the data plate.

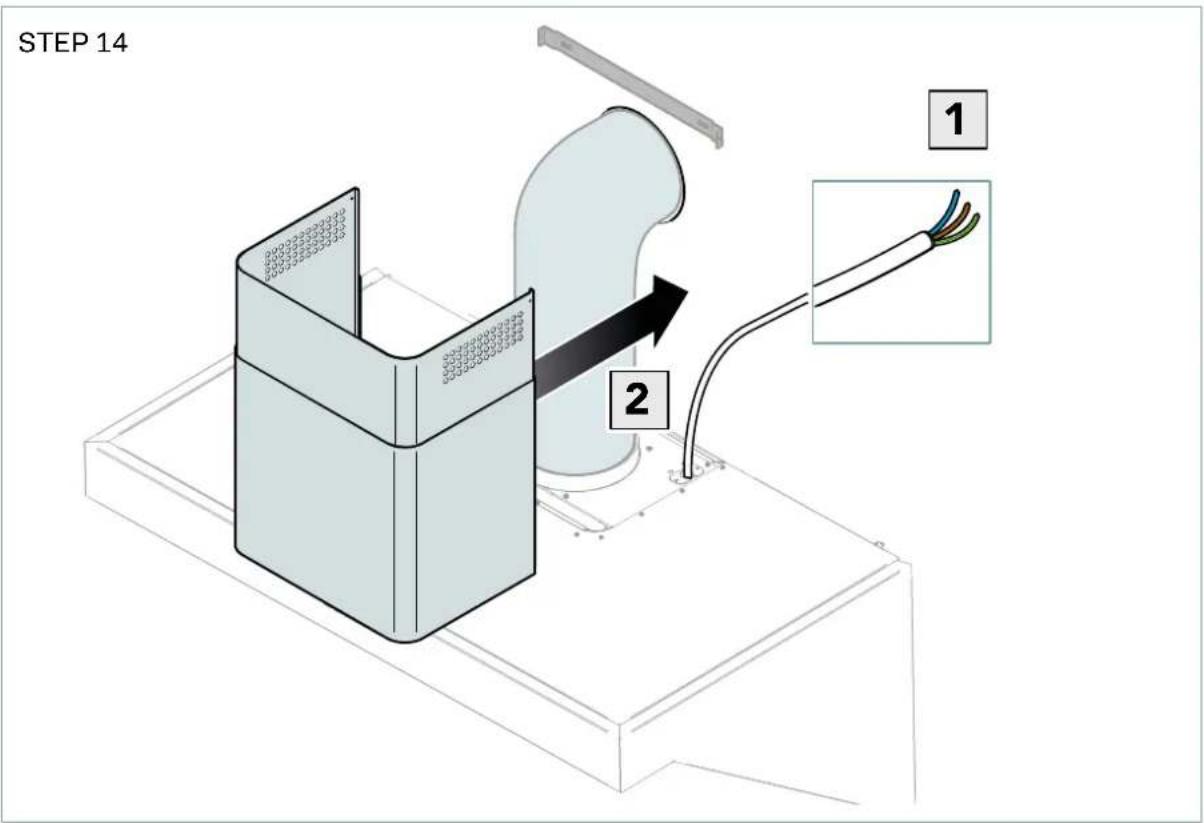

The equipment is supplied with the power supply cable already attached: connect a suitable plug for the load to the cable (the plug must comply with current standards).

Remember the following:

• yellow- green cable: earth;
• blue cable: neutral;
• brown cable: phase

Always install a circuit breaker for quick disconnection. The earth cable must be not interrupted by the circuit breaker.

If the power cord is faulty, it should be replaced with another one with identical features. To prevent all kinds of risks, such replacement must be carried out by the Manufacturer, its technical support service, or in any case by a similarly qualified individual. The Manufacturer is not liable for any damage resulting from the use of unauthorized or aftermarket spares. Before any interventions inside the hood, disconnect the electric power supply.

Avoid winding the cable on itself if too long. Make sure that the cable is not in contact with liquids, sharp or hot objects (temperatures exceeding

>70^ ), or corrosive substances.

FUME EXHAUST CONNECTION

DUCTING/SUCTION VERSION

This type of hood is equipped with a top air outlet for discharge of fumes outside the house, which has to be connected with the inlet of the building chimney, commonly through a hose (not provided).

Horizontal tube sections must be slightly tilted upwards, to help channelling of the air to the outside. Fume discharge tubes crossing particularly cold environments (e.g. attics) should be insulated, to prevent condensation caused by temperature differences.

Suction type hoods DO NOT require carbon filters, which, on the contrary, can limit their performance.

Any changes to the tube, sudden diameter reductions, and bends, may prevent the hood from reaching optimum suction capabilities, and may jeopardise the operation of the motor, relieving the Manufacturer from all responsibility.

Make sure that the flue is in perfect working order, and that a square (concrete) or round (metal) static wind break ventilation tower with useful output section not less than double the diameter of the flue (UNI 7129) is installed at the top of the flue itself.

Comply with all air discharge regulations.

The drain chimney of the building should be dedicated to the hood only, so under no circumstances it should be shared with other devices,

such as bathroom extractors, air-conditioning units, fireplaces, wood or gas stoves.

FILTERING/AIR RECYCLE VERSION

In order to prevent both the flow of unclean air in the room and any damage to the fan blower, once saturated, the carbon filters should be promptly replaced. Once the carbon filters are saturated, they should be replaced as soon as possible, to prevent both the flow of unclean air and damages to the blower fan.
