INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR RANGE HOODS DESIGNED FOR WALL FITTING 230 Vac • 50 Hz

Exhausting cooker hood

The equipment is constructed in accordance with European Standards and with the requirements included in the following Directives: 2006/95EC (Low Voltage Directive), 2004/108 (Electromagnetic Compatibility).

1. INSTALLATION

Read the instruction manual before installing and/or using the hood.

Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to the back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas should be tested by a competent person to ensure that back flow of combustion gases does not occur.

In order that the minimum distance between the supporting surface for the cooking pots on gas hob and low-voltage components present in the hood is at least 65cm as required by the regulations in force, it is necessary that the lower part of the hood is at least 65-70cm away from the work top.

If the mounting instructions of the gas cooker indicate a wider distance, respect it. The unit must not be mounted above cookers fitted with top radiant plate.

Respect all the air discharge regulations.

The air must not be discharged in a pipe used to discharge exhaust fumes produced by gas-fed equipment or fuel-fed equipment (this does not apply to filtering hoods).

The room must be adequately ventilated when the hoods is used together with other gas-fed or fuel-fed equipment.

The hood is equipped with all the necessary fastenings for its installation, which are suitable for most surfaces. Anyway, ask to a professional to verify that the installation surface is strong enough. Installation must be carried out by qualified installers according to present regulations.

For an easy access, it is advisable to move possible furniture under the installation area. For mounting the hood follow the illustrations in Fig. 1.

Install in the cabinet the two metal brackets provided with the cooker hood (Fig. 2) at a distance of 40 mm from the front edge and not less than 37 mm from the bottom edge of the cabinet itself.

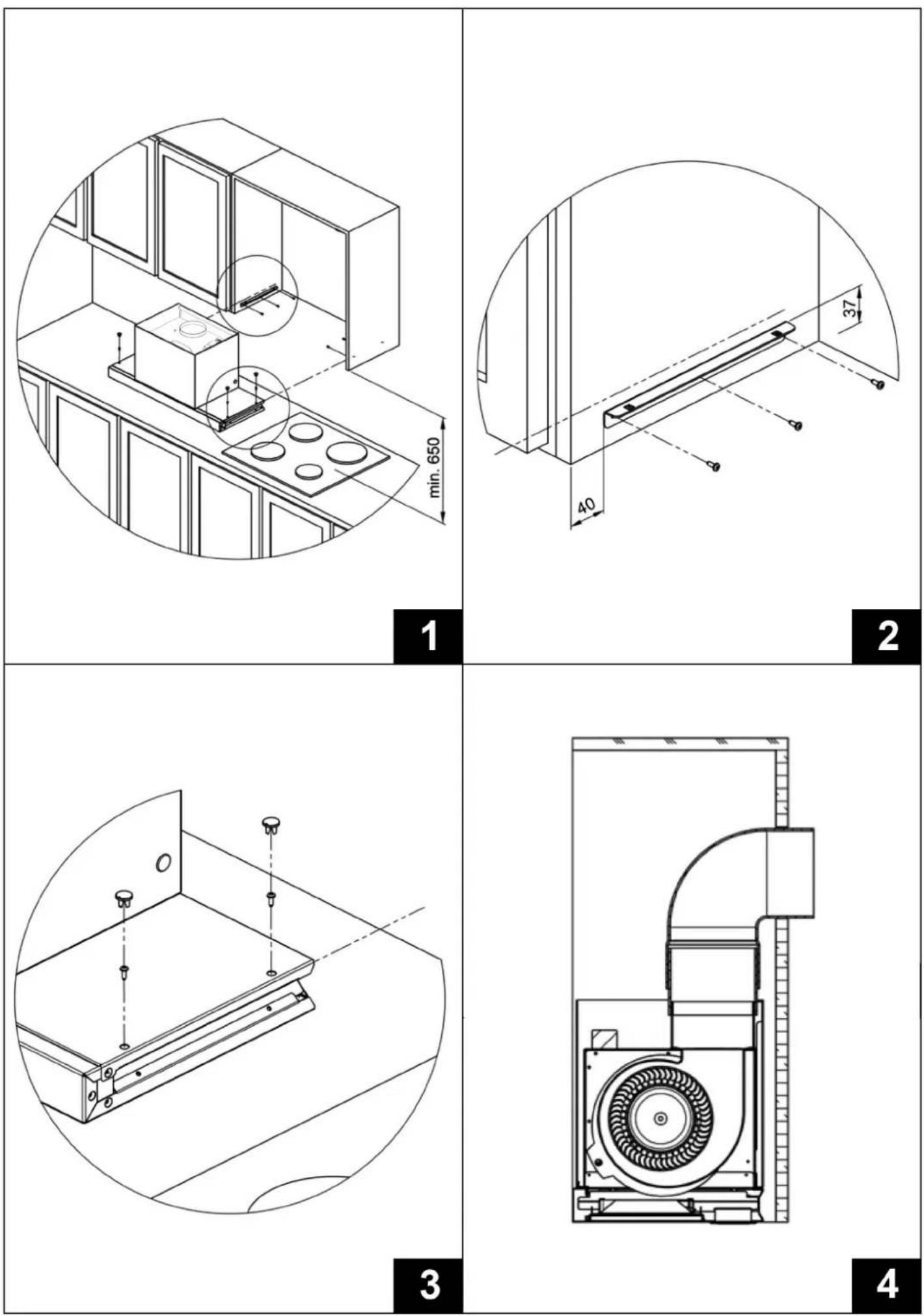

Install the hood inside the cabinet (Fig. 1) and fasten it with four screws to the brackets, then close the holes with the caps provided (Fig. 3).

2. ELECTRICAL CONNECTIONS

This appliance must be connected to an earthed power supply. Two types of electrical connection can be used:

1. Using a standard plug to be connected to the power cable and inserted in a mains socket which must be accessible (so that the plug can be disconnected when servicing is carried out). Make sure that the plug is accessible also after the complete installation of the equipment.

2. By means of a fixed mains connection, fitting a bipolar switch, which ensures the disconnection, with an opening distance of the contacts allowing a complete disconnection on the conditions of the over voltage III category, according to installation regulations. The ground connection (yellow-green wire) must not be interrupted. For stationary appliances permanently connected to the fixed wiring, compliance with this requirement is considered to be met if the instruction concerning disconnection incorporated in the fixed wiring is in accordance with AS/NZS 3000

Refer to the plate inside the hood for the mains voltage and frequency ratings.

3. USE

This cooker hood can be employed as exhausting or filtering. Exhausting. The carbon filters should not be installed on the hood in exhausting version.

Kitchen smokes are driven outside through a flue joined to the exhaust pipe flue connector.

Pipes must be communicating with the exterior of the house. This pipe must not under any circumstances be connected to cooker, boiler or burner exhaust pipes, etc.

Filtering. The fumes pass through the carbon filters to be purified and recycled into the kitchen through a pipe connected to the outlet of the hood up to the hole in the top of the cabinet. This hole must be free and communicating with the kitchen.

In the filtering version you must install the carbon filters. To carry out this operation, you must first remove the metal grease filters, mount the frame with the screws provided and then snap the charcoal filters in the same. (fig.5).

4. OPERATION

The hood is supplied with a multi speed motor.

The hood should be run at low speed under normal conditions and at higher speeds only when there is a heavy build-up of fumes or odour.

Ideally, the hood should be switched on as soon as cooking is started and then kept on until all odour have been eliminated. The controls consist of commands to turn on the light (A), to switch on-off the hood and select functioning speeds (B).

5. MAINTENANCE AND REMINDERS

Always disconnect the hood from the mains before carrying out any maintenance or cleaning operation In order to remove the remaining glue or any impurity, the cooker hood must be cleaned immediately after installation and after having removed the protective film.

The cooker hood must be cleaned frequently both internally and externally (at least once a month).

Do not let dirt gather on the inner and outer surfaces of the hood. To clean the exterior of the hood do not use either acid or basic products, or abrasive sponges.

Clean the hood with a sponge dampen in warm water and a little quantity of neutral detergent (for example dishwasher detergent), in order to remove possible particles of grease. Rinse with a damp cloth, removing all the detergent carefully, following the satin finish direction on the steel surface.

Drying is very important, especially in areas where water is particularly hard and leaves limestone.

Particular attention should be paid to the metallic anti-grease filters that are designed to trap particles of fat contained in the fumes. The metallic anti-grease filters must be washed at least once a month with detergent in hot water (or in the dish-washer).

ATTENTION:

• the grease collected in the filter can easily catch fire and it is therefore extremely important to clean the metallic filter on a regular basis as per instructions. Grease filters are removed as illustrated (Fig. 5).
• Do not flambé under the range hood
• Caution; accessible parts may become hot when used with cooking appliances.
• Never leave the hob unattended when frying, as oil or fat can catch fire.

The function of the activated carbon filters is to prevent the

INSTALLATION

spread of odour present in the cooking fumes. Clean air is returned to the kitchen. Carbon filters cannot be washed and must be replaced 2 or 3 times a year according to the amount of use.

The hood features a LED light that, in addition to offer a good lighting and a significant energy savings, is guaranteed to last about 10 times more than traditional lights. For replacement, contact us at

[e-mail]

Spare filters can be purchased from dealers or direct from the manufacturer.

Removal: detach the metal covers and rotate the carbon filters clockwise (Fig. 6) until release from of the motor.

Re-fit: position the new carbon filters and reverse the procedure. The hood should be cleaned with a soft damp cloth using neutral liquid detergents. Do not use solvents, petroleum products or abrasives.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

THE MANUFACTURER DOES NOT ACCEPT LIABILITY FOR ANY DAMAGE OR INJURY CAUSED IF THE USER FAILS TO FOLLOW THE ABOVE INSTRUCTIONS REGARDING INSTALLATION, MAINTENANCE AND THE PROPER USE OF THE COOKER HOOD.

For service or a copy of this manual contact us at [e-mail]

6. WARNINGS

The present instruction manual is an integral part of the appliance itself, therefore it must be carefully kept and ALWAYS accompany it, even in case of its assignment to another owner or user or in case the cooker hood is moved to another installation plant. Any eventual adjustment to the electrical system, which may be necessary to install the cooker hood, must be carried out only by competent people. Any repair carried out by no competent people may cause damages. For any repair or needed technical action make reference to a Technical Assistance Center, which is authorized to carry out the replacement of the spare parts. Always make sure that all the electrical parts (lights, exhaustion unit) are disconnected when the appliance is not in use.

By storms take off the main switch of the house electrical system. The using of the cooker hood must not be other than the use of exhausting units for cooking damps on domestic kitchens. The manufacturer does not accept any liability for damages caused by people, animals or things, by installation and maintenance mistakes or by any illegitimate use.

Make sure that the voltage (V) and the frequency (Hz) ratings indicated on the plate inside the cooker hood correspond to the ones available in the installation place.

We remind that the use of products functioning with electrical energy implies the observance of some essential security rules, as follows:

• This equipment is not intended for people (children included) with reduced mental or motor capacities, with lack of experience or knowledge, unless they are supervised or unless a person responsible for their security, gives them instructions regarding the use of the equipment. Children must be supervised in order to be sure that they do not play with the equipment.
• Any cleaning action is forbidden if the appliance hasn't been disconnected from the main power supply and if the main switch of the house electrical system is not off. If cleaning is not carried out according to these instructions, a fire may break out.
• Do not pull, take off or twist the cable coming out from the appliance, even though this has been disconnected from the main power supply.
• Do not sprinkle or throw any water directly on the appliance.
• Do not stick any sharp tool inside the exhausting holes and into the air discharge.
• Do not take out the filters in order to reach the internal sides of the appliance in case the main switch of the house electrical system is not off.
• Do not singe or flambé directly underneath the cooker hood. Take particular care when frying to ensure that the oil does not catch fire.

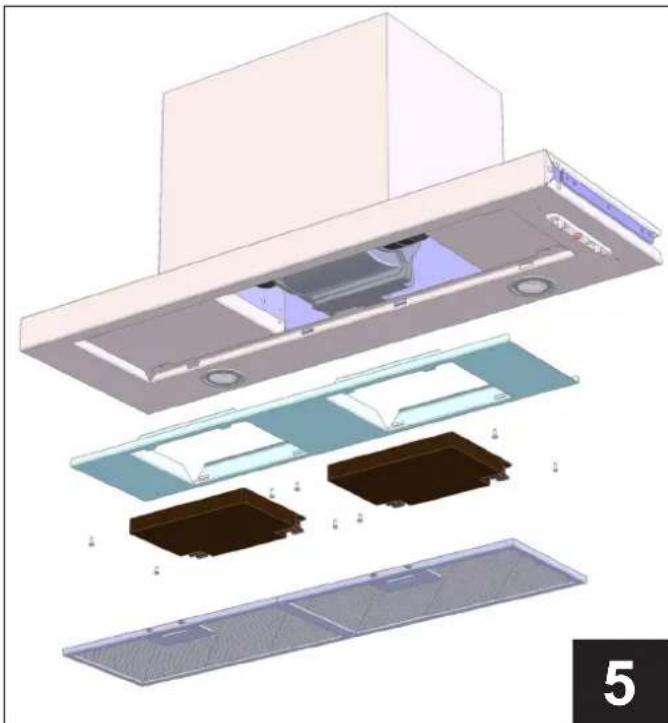

Exploded view diagram of a kitchen appliance showing internal components and housing (no text or symbols)

5
