USER MANUAL 52T01 MIDEA

Read this manual carefully before operation

Pictures in this manual are for reference only, the product in kind prevail.

52T01

70T01

90T01

Technical line drawing of a rectangular industrial housing or enclosure with a circular top and mounting base (no text or symbols)

01 Contents....1
02 Warnings....2
03 Safety Warning....3

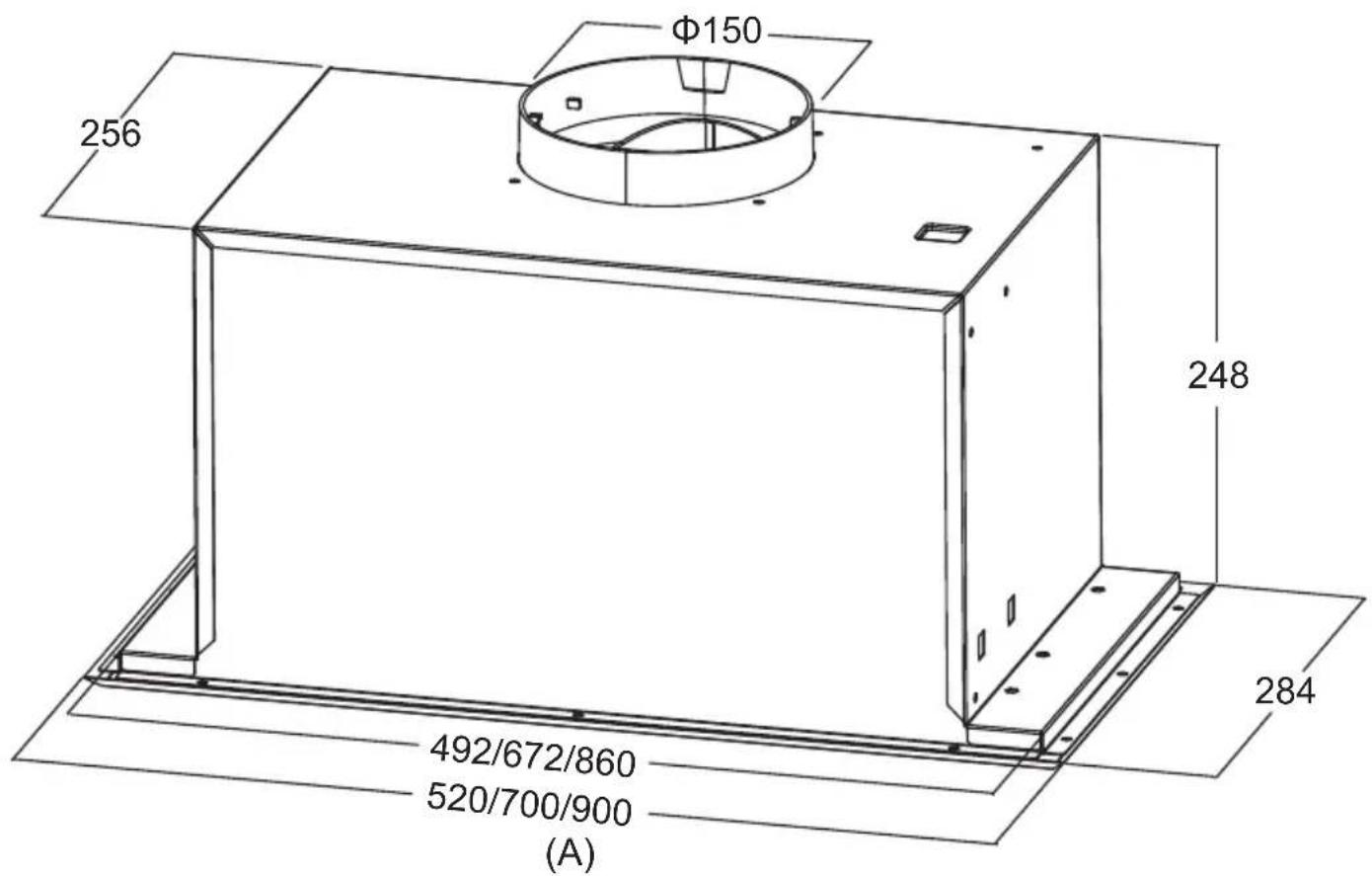

04 Measurement....4
05 Installation....6
06 Use....9
07 Maintenance....9
08 Trouble Shooting.... 12
09 Main Parameters....13
10 Disposal.... 13

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
  ● The filter is made of high density aluminum.
• Please do not use corrosive detergent for cleaning. The proper function of the unit is conditioned by the regularity of the maintenance.
• To protect the main body from corrosive of the long time accumulation of dirt, the cooker hood should be cleaned with hot water with non-corrosive detergent every two months.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Do not flame under the range hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

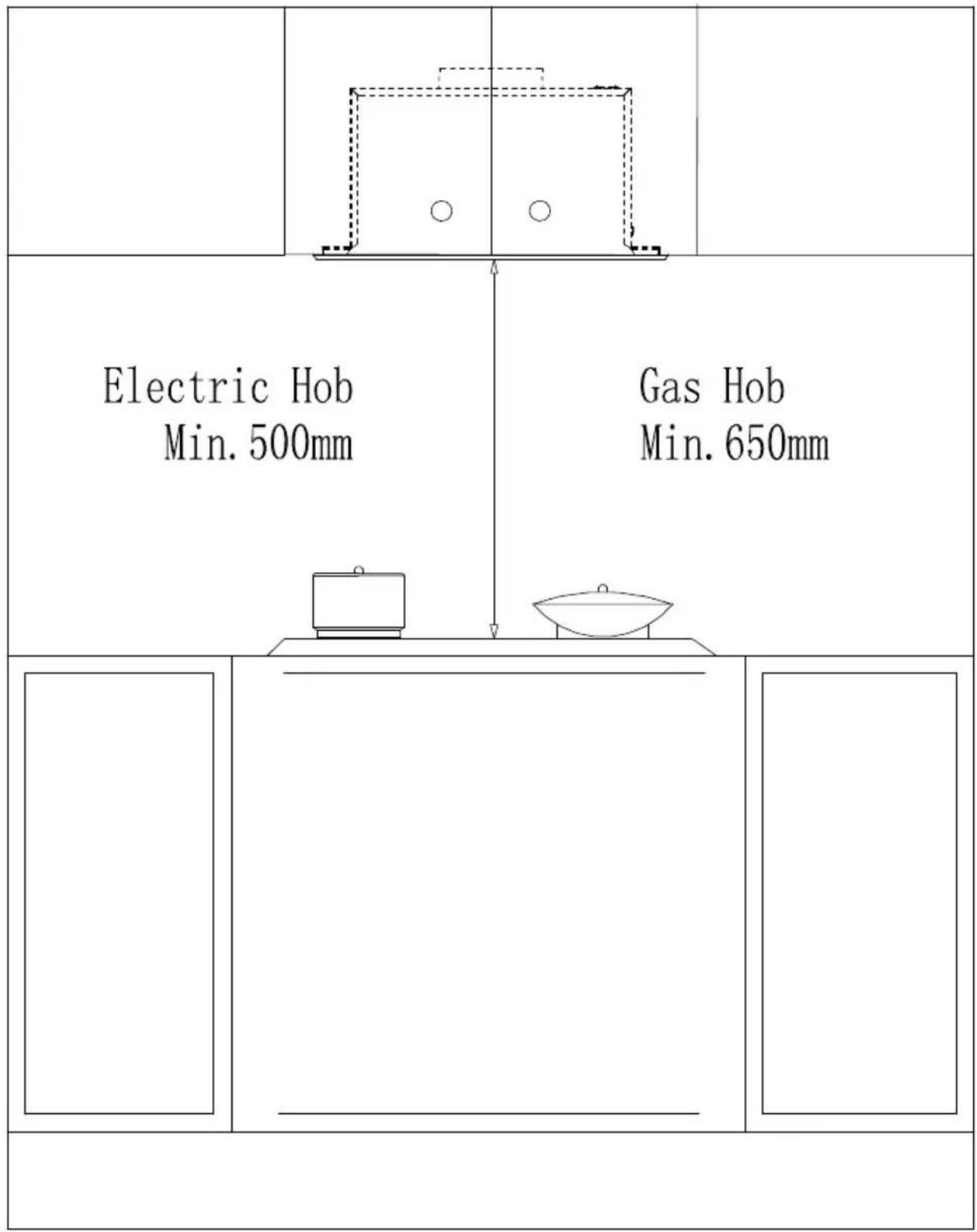

• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood is 65 mm.
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● The appliance uses 4 hob elements at most.

• CAUTION :Accessible parts may become hot when used with cooking appliances.

• The appliance is not intended for use by young children or infirm persons without supervisions.

• Young children should be supervised to ensure they do not play with the appliance.
• Plug the power cord to socket outlet with earthing continuity terminal.
• The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes.
• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Do not use open flame, or allow oil to go beneath the appliance.
• If there is any fault occurred with the appliance, please call after-sale service department.
• Please keep the kitchen room ventilated.
• Prior to any maintenance, cleaning operation, ensure the power is cut off.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller.
• If the plug or cord is damaged, please call after-sale service center.
• There is a fire risk if cleaning is not carried out in accordance with the instruction.
• In case of damaged connecting wire, please refer to the manufacturer, after-sale service personnel or other qualified technicians.
• Use the unit according to the instructions to avoid any fire hazard.
• The exhaust air must not be introduced into a smoke flue or chimney that is used for exhausting fumes from appliances burning gas.
• Follow the local laws applicable for external air evacuation.

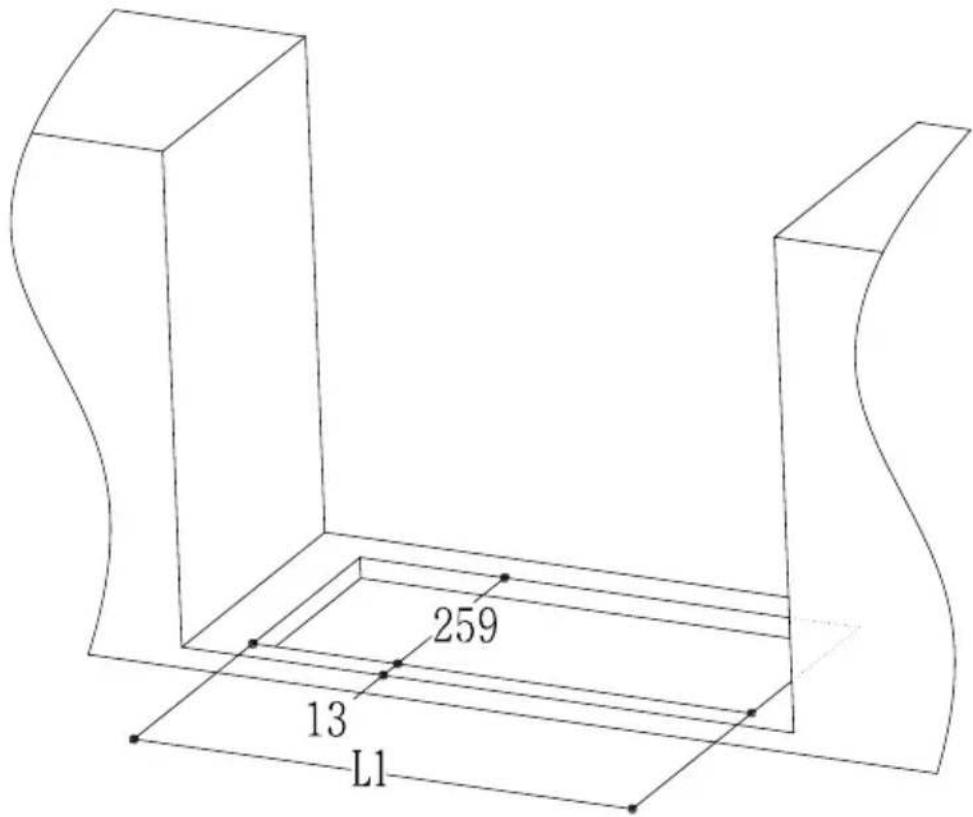

A	520700900
L1	497677865

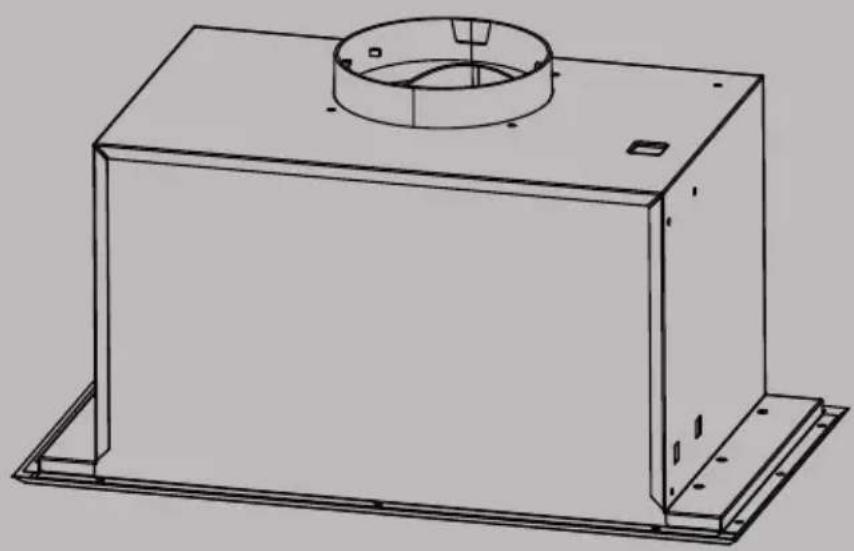

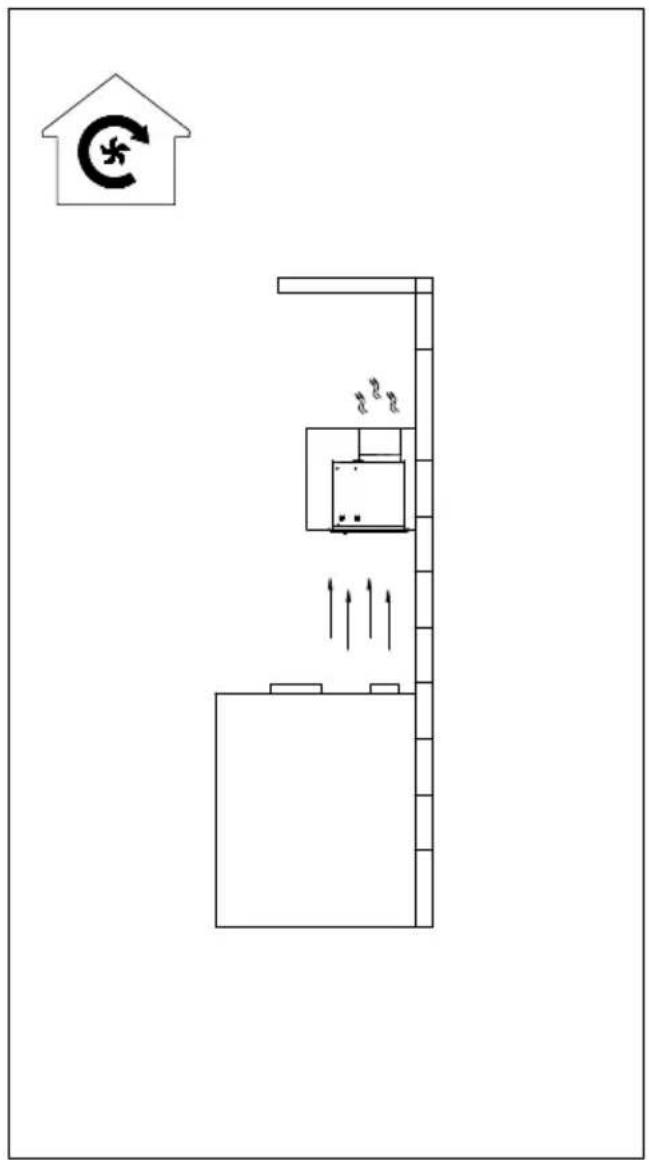

Here two venting modes, extraction-air mode and recirculation mode, before installing, select one mode.

Diagram of a vertical structure with internal components and airflow indicators, no text or symbols present.

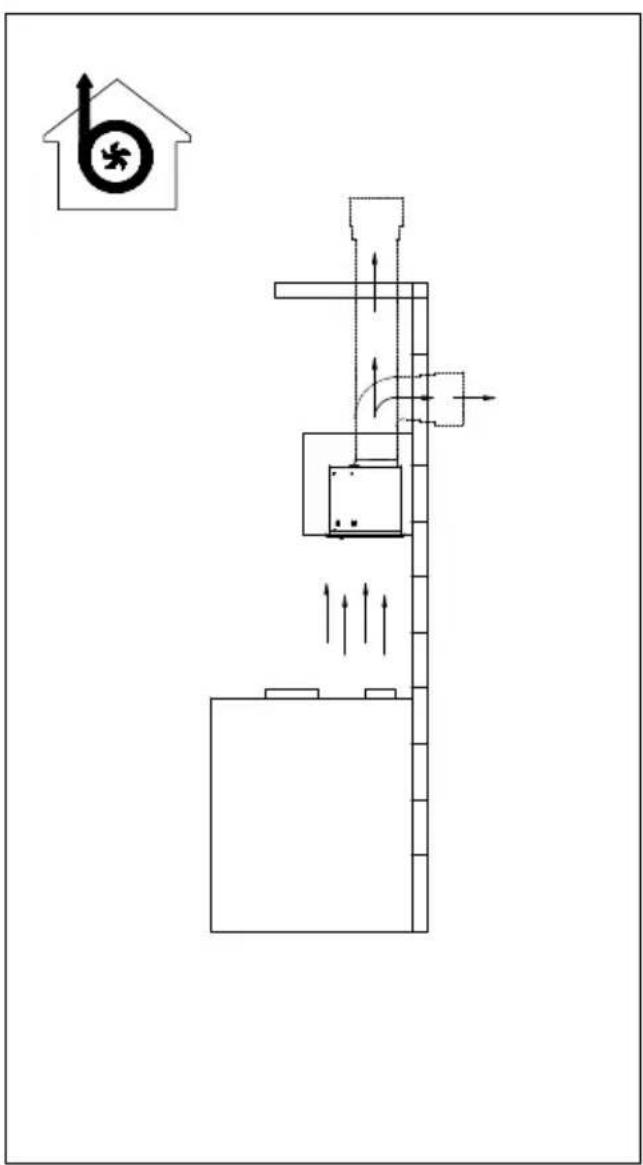

Extraction-air mode

Recirculation mode

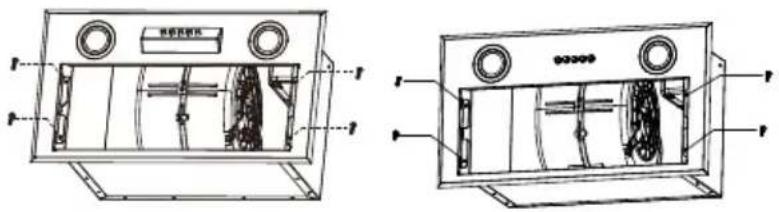

- Press the lock catch of metal Filter, remove the Filter.

Technical line drawings of two front-framed electronic devices with control knobs and doors (no text or symbols)

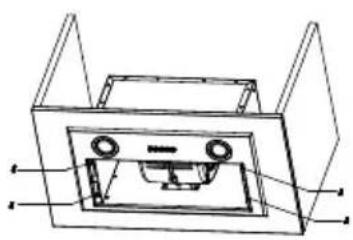

- Remove the stainless steel frame by unfastening the 4 screw (M4*10).

- Unfastening the screws (ST4*10), remove the lid of terminal box, disconnect the wires to the Commands at the connectors.

Technical line drawings of electrical connectors and connectors (no text or symbols)

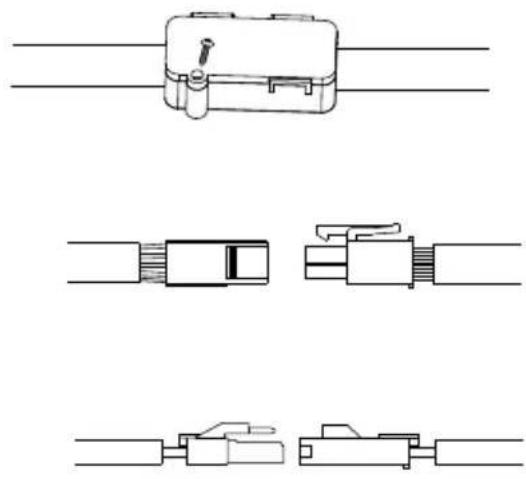

- Disconnect the wires to the Light at the connectors.

Technical line drawing of a 3D rectangular frame with internal components and dimension lines (no text or symbols)

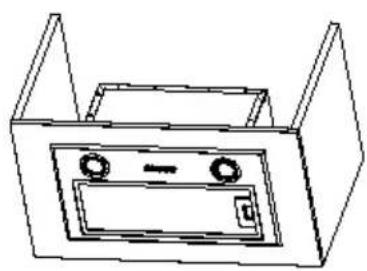

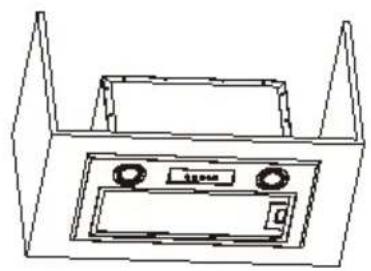

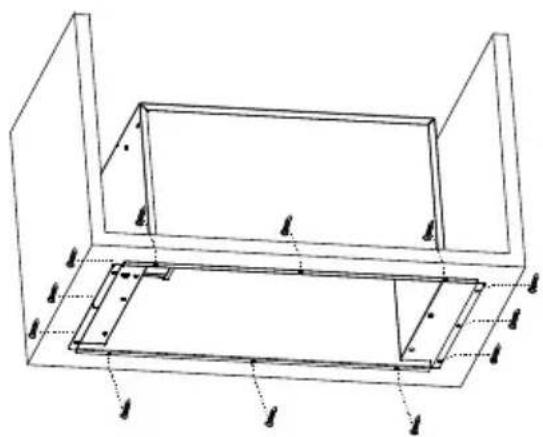

- Fasten the Hood in the cabinet by using the 12 screws (ST4*18).

- Screw the stainless steel frame back into place using the 4 screws removed as described above.

Technical line drawing of a cabinet or enclosure with two doors and a front panel, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

- Reconnect the wires to the Commands and Light.

Simple line drawing of a mechanical component with no text or symbols

- Replace the metal Filter.

Line drawing of a cassette tape device with two buttons and a label (no text or symbols on the device itself)

Line drawing of a cabinet or enclosure with two doors and a door handle (no text or symbols)

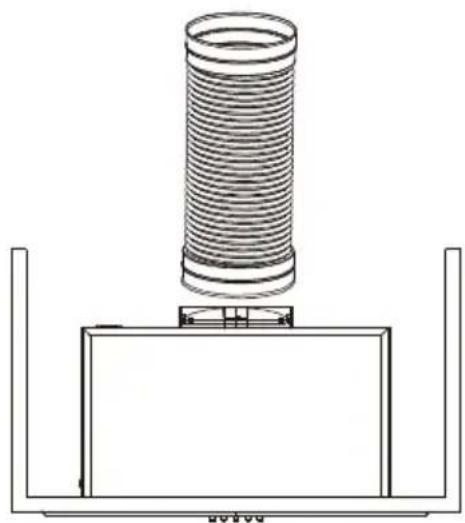

• Install the air outlet pipe (optional).

Technical line drawing of a mechanical assembly with a coiled spring mounted on a base (no text or symbols)

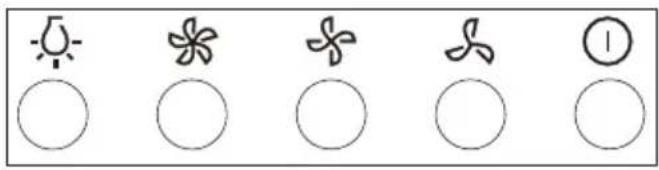

Speed adjustment. See below Fig.

• Press the Light button, the two lighting lamps will come on. Press it again and the lamps will be turned off.
• Press the High (speed) button, the motor runs at high speed.
• Press theMid (speed) button, the motor runs at mid speed.
• Press the Low (speed) button, the motor runs at low speed.
• Press Stop button, the motor will stop running.

Light
High

Mid

Low

Stop

Maintenance

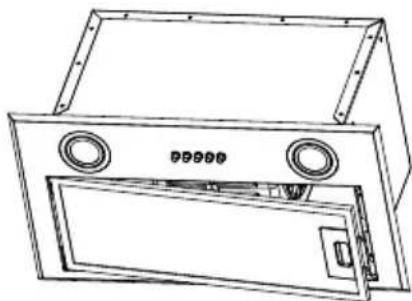

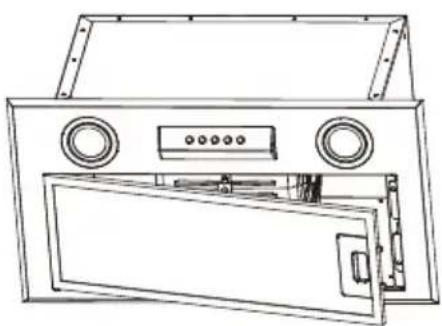

Cleaning of the filter

• Removing the metal filter according to Installation (page 7).
• Put it into a dishwasher with detergent, set the temperature below 60 degrees.
• Please do not use abrasive detergent for it will damage the hood.
  ● Make sure that the hood is shut off before cleaning.

Technical line drawing of a cabinet or enclosure with front panel, doors, and control knobs (no text or symbols)

Technical line drawing of a cabinet or enclosure with two circular components and a door (no text or symbols)

Changing the filter

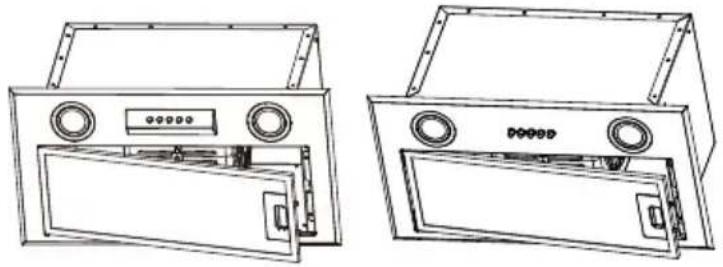

• Remove the metal filter according to Installation (page 7).

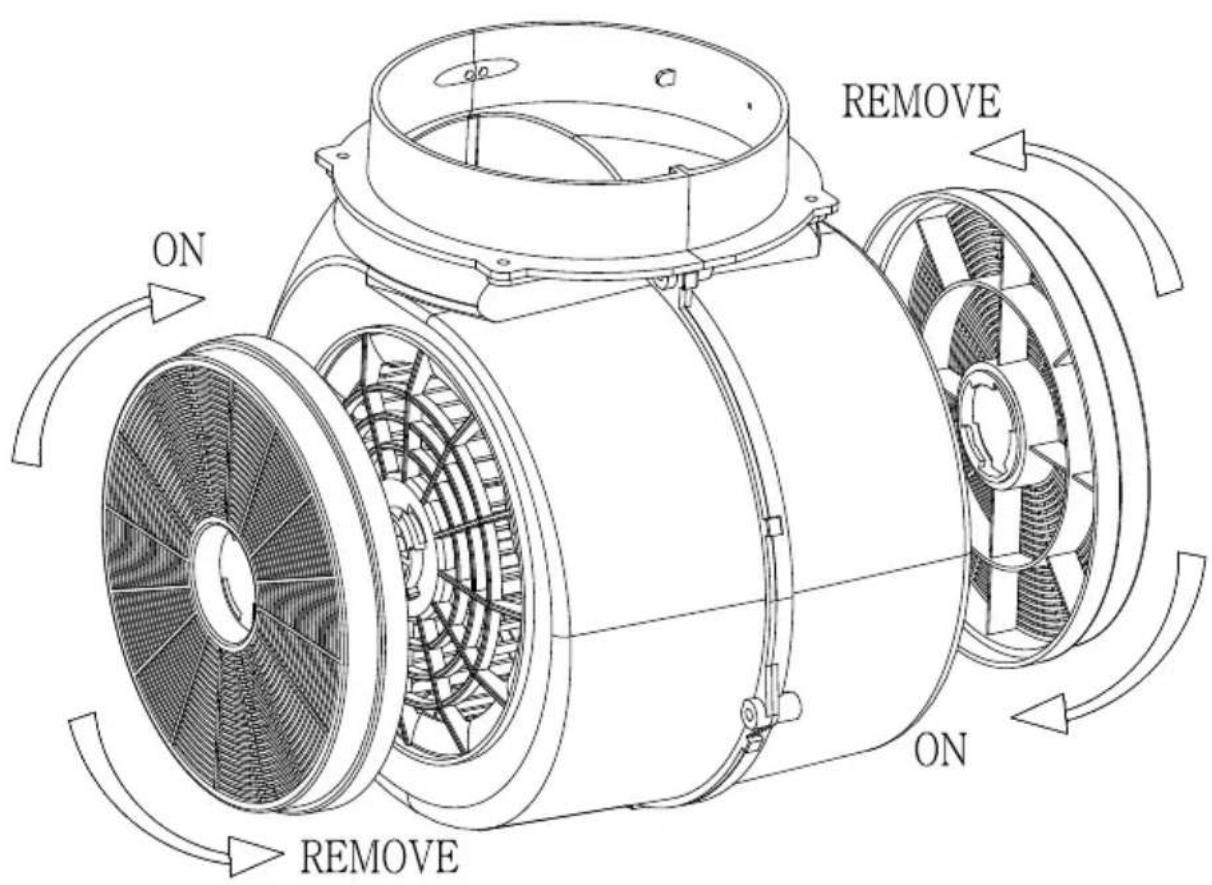

• Remove the saturated Activated Charcoal Filters (optional), as indicated.
  ● Fit the new Charcoal Filters, as indicated.
• Replace the Metal grease Filter according to Installation (page 8).

Replacing the lamp

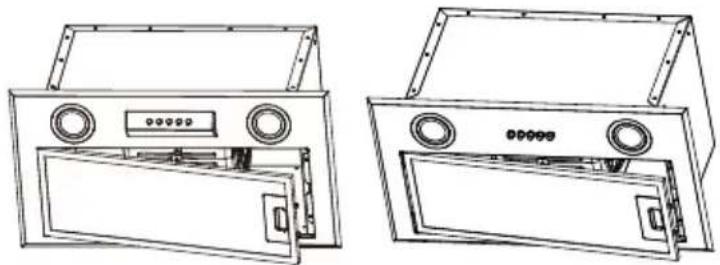

- Press the lock catch of metal Filter, remove the Filter.

Technical line drawings of two open refrigerator compartments with doors and control knobs (no text or symbols)

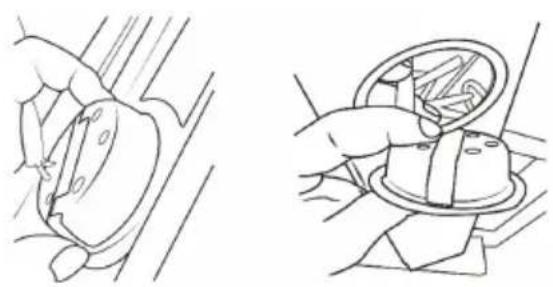

- Push the lamp from inside, to remove the Lamp.

Technical line drawing showing two mechanical assembly steps: one with a curved component and the other with a circular component inserted into a housing (no text or symbols)

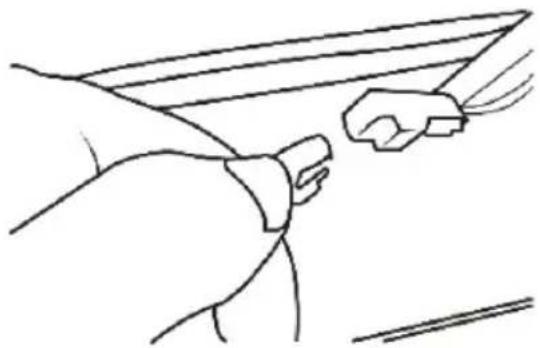

- Disconnect the wires to the Lamp.

Line drawing of a hand holding a small object near a surface (no text or symbols)

- Connect the wires of the new Lamp.

- Push the new Lamp from outside and fix it to the hole.

	Max Power	Voltage	Picture Lamp Cap ILCOS D code
Round/ Diameter : 70mm	1.5W DC	12 V		——	DSR-1.5-S-70

Fault	Cause Solution
Light on, but does not work.	The blades are blocked.
	The capacitor is damaged.	Replace capacitor.
	motorThe motor is damaged. Replace motor.
	The internal wiring of motor is cut off / disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and do not work.	Apart from the above mentioned, check the following:
	light damaged. Replace lights.
	Power cord loose.	Connect the wires as per the electric diagram.
Oil leakage.	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
	Leakage from the connection of U-shaped section and cover.	Take U-shaped section down and seal with soap or paint.
Vibration.	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction.	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines.	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough.	Tighten the hanging screw and make it horizontal.

Electrical Diagram

● Electrical diagram see label on main body of the actual product.

Model	52T01	70T01	90T01
Voltage	220-240V~ 50Hz	220-240V~ 50Hz	220-240V~ 50Hz
Rated Power	218W 293W		213W
Lighting Power	1.5W x 2 1.5W x 2		1.5W x 2
Motor Power	215W	290W	210W
Diameter of air tube	150mm	150mm	150mm
Air flow	630m3/h	800m3/h	600m3/h
	900m3/h(by Anemometer)	1150m3/h(by Anemometer)	900m3/h(by Anemometer)
Noise	68 dB(A)	72 dB(A)	66 dB(A)

The air flow parameter is tested under conditions of 230V\~50Hz when the voltage is 220-240V\~50Hz and without carbon filters.

Disposal

Please dispose of it at your local community waste collection / recycling center and ensure it presents no danger to children while being stored for disposal. The plug must be rendered useless and the cable cut off to prevent misuse.
