Product Type	IP-based Network Security Camera
Image Sensor	1/2.8" CMOS, Progressive Scan
Maximum Resolution	2592 x 1944 (4:3) / 2592 x 1456 (16:9)
Lens	Motorized Vari-focal, F1.6 ~ 3.3, f=3.2mm ~ 10.5mm, P-IRIS
Angular Field of View	H: 98.9° (Wide) ~ 28.2° (Tele); V: 71.1° ~ 21.2°; D: 133.8° ~ 35.3°
Minimum Illumination	Color: 0.08 lux (F1.6); B/W: 0 lux (IR LED On)
Dynamic Range	120 dB, True WDR
Day & Night	IR Cut Filter with Auto Switch, IR Distance 30m (4 LEDs)
Video Compression	H.265, H.264(MP), M-JPEG
Maximum Frame Rate	30 ips at 2592 x 1944 (WDR enabled)
Audio	Two-way audio (Built-in Mic, Line-in/out), G.726/ADPCM/G.711
Network	RJ45 10/100BASE-T, ONVIF Profile S/T, DirectIP, IPv4/IPv6, QoS
Edge Storage	MicroSD/SDHC/SDXC up to 512GB (Class 6 or higher)
Alarm I/O	1 Alarm In (TTL, NC/NO), 1 Alarm Out (Open Collector, 30mA/5VDC)
Power Supply	12 VDC or PoE IEEE 802.3af Class 3, 13.2W (DC) / 11.5W (PoE)
Environmental Rating	IP67 (Water/Dust), IK10 (Impact)
Operating Temperature	-40°C to +55°C (-40°F to +131°F)

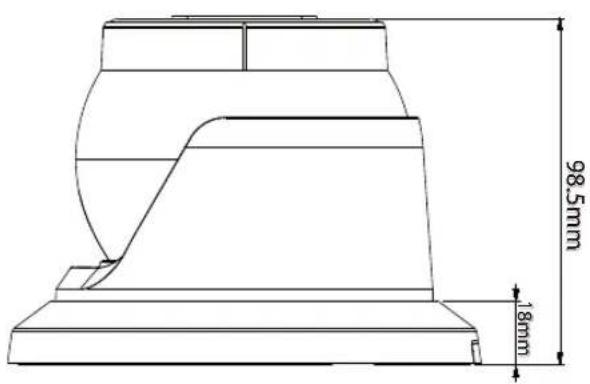

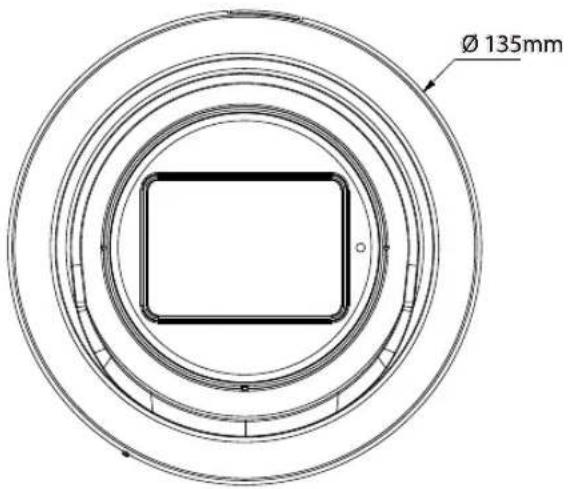

Dimensions (Ø x H)	135 mm x 98.5 mm (5.31" x 3.87")
Weight	0.83 kg (1.82 lb)
Mounting	Wall/Ceiling, Pan/Tilt adjustment (-180°~180° pan, -5°~70° tilt)
Remote Monitoring	Up to 10 simultaneous connections via IDIS Web or IDIS Solution Suite
Security	IP filtering, HTTPS, SSL, IEEE 802.1X, User authority levels
Certifications	FCC Class A, CE, IP67, IK10
Included Accessories	RJ45 waterproof kit, Guide pattern, Allen wrench, Screws & anchors, Quick guide

Frequently Asked Questions - DC-D4532WERA IDIS

How do I perform a factory reset on the IDIS DC-D4532WERA?

To factory reset, shut off power, remove the SD card cover, press and hold the reset button, reconnect power, wait 5 seconds, then release. All settings will be restored to defaults. Alternatively, you can reset via IDIS Discovery software while the camera is powered on.

What type of SD card is recommended for edge storage?

The camera supports microSD, microSDHC, and microSDXC cards up to 512GB (Class 6 or higher). For reliable recording, use SLC or MLC cards from SanDisk or Transcend. Note that SD cards have a finite lifespan and should be tested and replaced regularly.

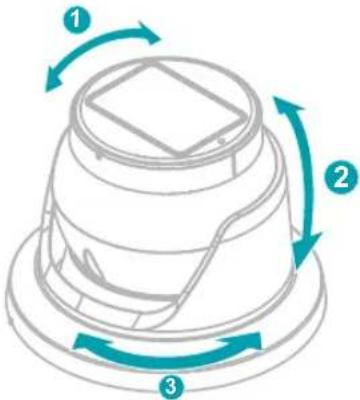

How do I adjust the camera’s viewing angle?

The lens can be rotated along three axes: Lens rotation (turning the lens rotator), Vertical rotation (tilt -5° to 70°), and Horizontal rotation (pan -180° to 180°). Use the appropriate rotators to achieve the desired field of view, then tighten the front screw to secure.

Can this camera be used with DirectIP NVR?

Yes, the DC-D4532WERA supports DirectIP mode. When connected to a DirectIP NVR, network configuration is automatic, and the camera can be controlled via the NVR’s setup menu without a PC.

What power options are available?

The camera can be powered via 12 VDC (red cable) or PoE (IEEE 802.3af Class 3). Power consumption is 13.2W (DC) and 11.5W (PoE). When switching from DC to PoE, the system will reboot.

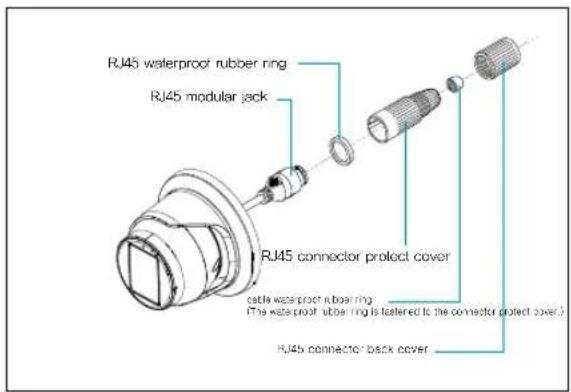

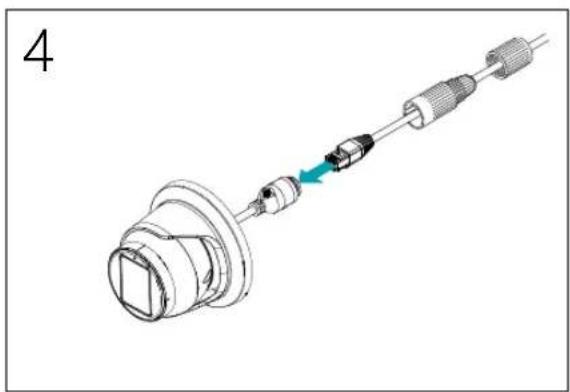

How do I connect the camera to the network via waterproof cable?

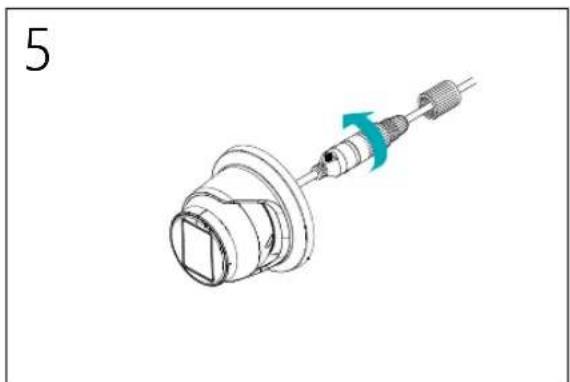

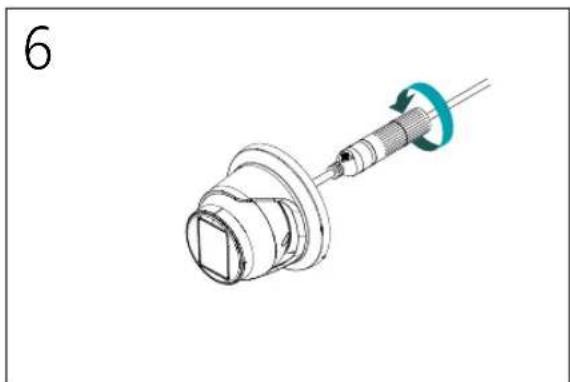

First, insert the round rubber ring into the RJ45 jack. Then, thread the network cable through the waterproof cap, rubber bushing, and cap body in order. Plug the cable into the RJ45 jack, push the cap body and cap into the jack, rotate to lock, and ensure the cable is not pulled back to prevent water ingress.

What is the IP and impact rating?

The camera has an IP67 rating, meaning it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. It also meets IK10 impact resistance, protecting against 20 joules of impact.

How do I clean the camera safely?

Unplug the camera from power before cleaning. Use a damp soft cloth (no liquid or aerosol cleaners) to wipe the exterior. For the lens, use a soft cloth or brush to gently remove dust. Avoid cleaning while powered to prevent electric shock.

Why is there no live video feed?

Check that the camera is powered (check cable connections) and that the network cable is properly connected. Verify the network connection status on both the camera and computer. Ensure the lens cap is removed and the lens is clean. Adjust focus during daytime if images are blurry.

Can I use the camera with third-party software?

Yes, the camera supports ONVIF Profile S/T (V20.12), allowing integration with many third-party VMS systems. It also works with IDIS Solution Suite Compact and IDIS Web for remote monitoring and recording.

USER MANUAL DC-D4532WERA IDIS

Before reading this manual

This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product. Safety warnings and precautions contained in this operation manual are intended to promote proper use of the product and thereby prevent accidents and property damage and must be followed at all times. Once you have read this operation manual, keep it at an easily accessible location for future reference.

• The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and accessories or from the user's failure to comply with the instructions contained in this manual.
• The information in this document is believed to be accurate as of the date of publication even though explanation about some functions may not be incorporated. The manufacturer is not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
• It is recommended that first-time users of this network camera and individuals who are not familiar with its use seek technical assistance from their retailer regarding product installation and use.
• If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and seek professional assistance.
• Both retailers and users should be aware that this product has been certified as being electromagnetically compatible for commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.

Safety Symbols

Symbol	Publication Description
---	IEC60417, No.5031 Direct current

In-Text

Symbol Type Description
	Caution Important information concerning a specific function.
	Note Useful information concerning a specific function.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safeguards

1. Read Instructions

All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Cleaning

Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

4. Attachments

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and/or Moisture

Do not use this equipment near water or in contact with water.

6. Placing and Accessories

Do not place this equipment on an wall or ceiling that is not strong enough to sustain the camera. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.

This equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.

Do not place this equipment in an enclosed space. Sufficient ventilation is required to prevent an increase in ambient temperature which can cause malfunction or the risk of fire.

7. Power Sources

This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company. You may want to install a UPS (Uninterruptible Power Supply) system for safe operation in order to prevent damage caused by an unexpected power stoppage. Any questions concerning UPS, consult your UPS retailer.

This equipment should be remain readily operable.

8. Power Cord

Operator or installer must remove power and TNT connections before handling the equipment.

9. Lightning

For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges. If thunder or lightning is common where the equipment is installed, use a surge protection device.

10. Overloading

Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

11. Objects and Liquids

Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment.

12. Servicing

Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.

13. Damage requiring Service

Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or the plug has been damaged.

B. If liquid is spilled, or objects have hit the equipment.

C. If the equipment has been exposed to rain or water.

D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation.

E. If the equipment has been dropped, or the cabinet damaged.

F. When the equipment exhibits a distinct change in performance — this indicates a need for service.

14. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

15. Safety Check

Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.

16. Field Installation

This installation should be made by a qualified service person and should conform to all local codes.

17. Correct Batteries

Warning: Risk of explosion if battery is replaced by an incorrect type. Replace only with the same or equivalent type.

Dispose of used batteries according to the instructions.

The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

18. Tmra

A manufacturer's maximum recommended ambient temperature (Tmra) for the equipment must be specified so that the customer and installer may determine a suitable maximum operating environment for the equipment.

Warning: This product emits infrared light. Do not look into the IR LED.

FCC Compliance Statement

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.

WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT REGULATIONS.

WEEE (Waste Electrical & Electronic Equipment)

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Copyright

© 2023 IDIS Co., Ltd.

IDIS Co., Ltd. reserves all rights concerning this operation manual.

Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited.

Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.

Registered Trademarks

IDIS is a registered trademark of IDIS Co., Ltd.

Other company and product names are registered trademarks of their respective owners.

The software included in this product contains some Open Sources. You may obtain the corresponding source code which we have to distribute according to the license policy. For more information, refer to System > General page. This product includes software developed by the University of California, Berkeley and its contributors, and software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.oepnssl.org/). Also, this product includes cryptographic software written by Eric Young ([e-mail]).

1

Part 1 – Introduction......6

Product Features 6

Accessories....7

Overview 8

Cable 9

Factory Reset 10

Installation....10

Inserting a SD Memory Card....11

Installation....12

Angle Adjustment....13

Dimension....14

2

Part 2 - Camera Connection ....15

With DirectIP® NVR-based Layout 15

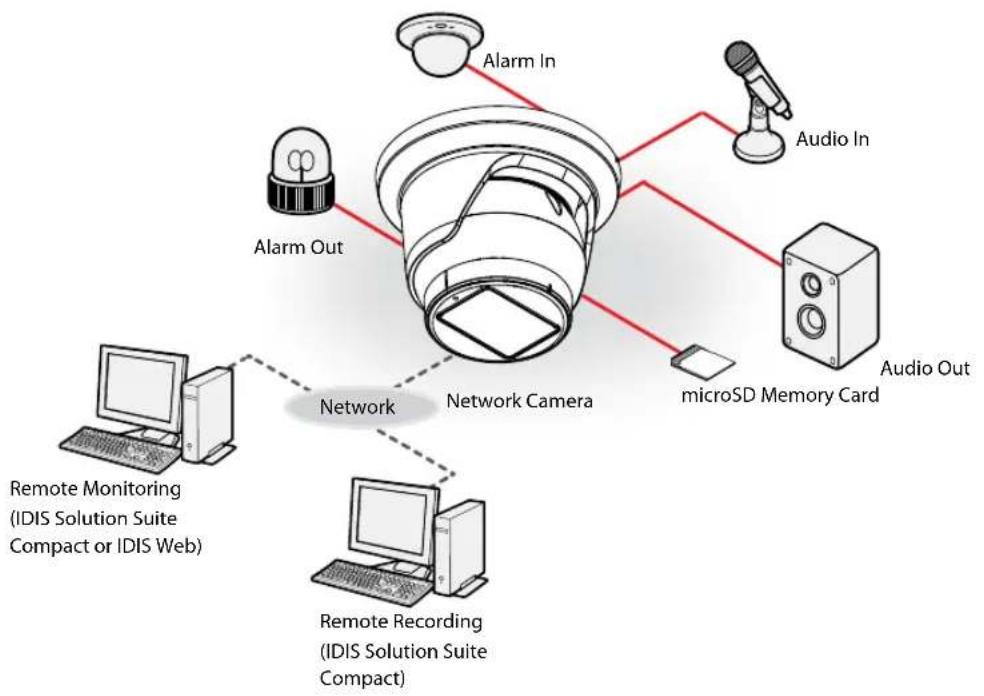

With non DirectIP® NVR-based Layout....16

3

Part 3 - Appendix....17

Troubleshooting ....17

Specifications 18

Product Features

DC-D4532WERA is an IP-based network camera that compresses and transmits video over Ethernet. You can use the IDIS Discovery program to change network camera settings or the IDIS Solution Suite Compact program to manage multiple network cameras. In addition, the embedded web server (IDIS Web) lets you remotely view live video or scan recorded video using a web browser. In addition, you can use the IDIS Solution Suite Compact to manage network cameras and view/record video.

In this operation manual, the term Remote System refers to the computer on which the remote program (IDIS Solution Suite Compact or IDIS Web) is running.

• Supports DirectIP mode working with a DirectIP® NVR that allows users to simply set up all required configurations without a PC
  • Supports ONVIF protocol (V20.12, Profile S/T)
• Multi-streaming for high-resolution and high-quality video monitoring and simultaneous recording in real-time as well as flexible configurations for those
  • Supports H.265 and H.264 video compression and M-JPEG still image compression algorithms
  • Supports 4-stage video compression rate and multiple compression resolutions
• Two-way audio communication support for remote audio dialog
• Video stream buffering to counter pre-/post-event buffering and network delays for improved network recording reliability
• Remote monitoring via web browser or remote software
• Up to 10 simultaneous remote monitoring connections

• IP filtering, HTTPS, SSL, IEEE 802.1X, and configurable user authority levels for greater security
  • Network bandwidth limitation and MAT features for more efficient use of network bandwidth

• Easy network access via UPnP (Universal Plug and Play) function and embedded mDNS (Multicast DNS) protocol

• Wide dynamic range compensation (True WDR) for improved video quality in high-contrast situations
• Slow shutter support for improved low-lighting video capture performance
• Day & Night feature (built-in IR cut filter changer)
• Quick and easy firmware upgrade over the network
• Redundant firmware and auto recovery features for improved system stability
  • Network-based integrated management of multiple network cameras
• Multiple event detection modes
• Backup storage on a micro SD memory card as a safeguard against data loss during network interruptions
  • Supports 12 VDC and PoE (Power over Ethernet)
• Includes a motorized focus and zoom auto IRIS lens
• IK10 and IP67-level for water resistant protection and dust proof against rain and dust
• Features a built-in microphone

Remote monitoring and recording via multi streaming are available using the IDIS Solution Suite Compact program. For more information on using IDIS Solution Suite Compact, refer to its operation manual.

There is a limit to the number of users allowed to connect remotely via the Internet at the same time.

Accessories

Upon purchasing the product, check inside the box to make sure all the following accessories are included.

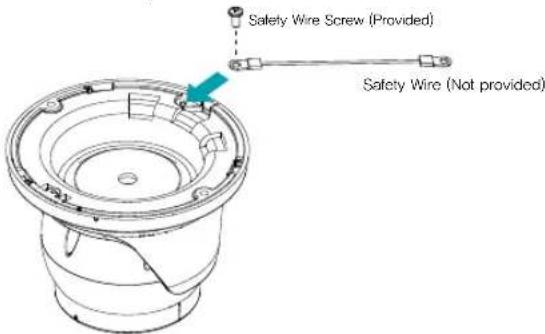

	[TG6]
Network Camera	RJ45 moduler jack, RJ45 waterproof rubber ring, RJ45 connector protect cover, cable waterproof rubber ring, RJ45 connector back cover
Guide Pattern Allen Wrench
Quick Guide Screws and Anchors (each 2ea., M4 x 25)
Safety Wire Screw

Overview

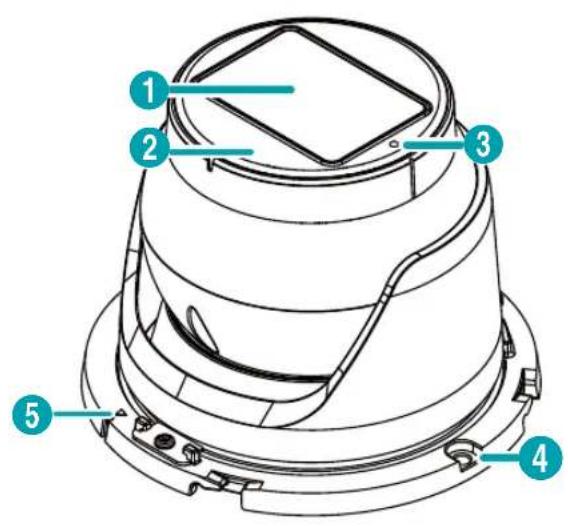

1	Lens
2	IR LED
3	Built-in Microphone
4	Wall/Ceiling Installation Hole
5	Top Cover Assembly Guide

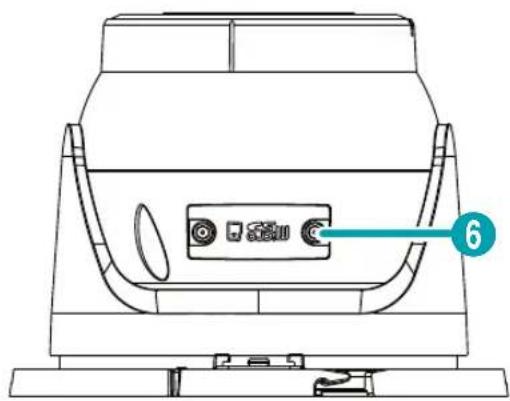

6	SD Memory Card Slot, Factory Reset Button

- Lens

Motorized focus and zoom lens is installed.

• IR LED

A sensor in the middle monitors lighting levels and activates the IR LED during low-lighting conditions.

• Built-in Microphone

Receives audio.

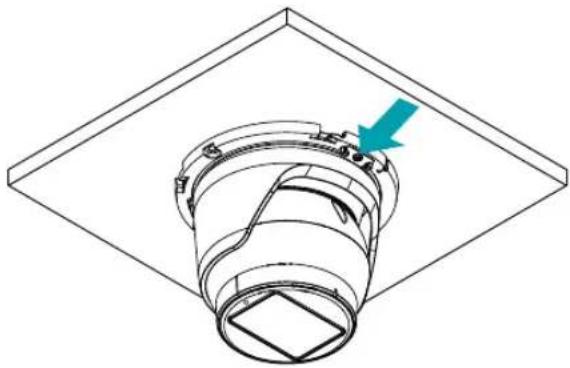

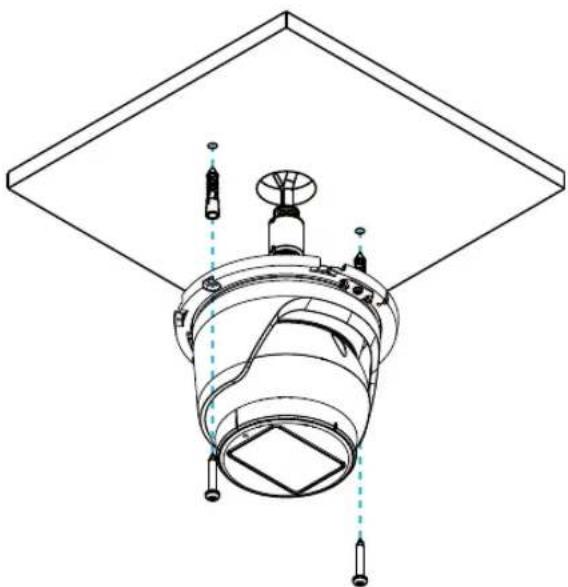

• Wall/Ceiling Installation Hole

Used to screw the camera in place on a wall or a ceiling.

• Top Cover Assembly Guide

The top cover rotates on the bottom cover and is tightened.

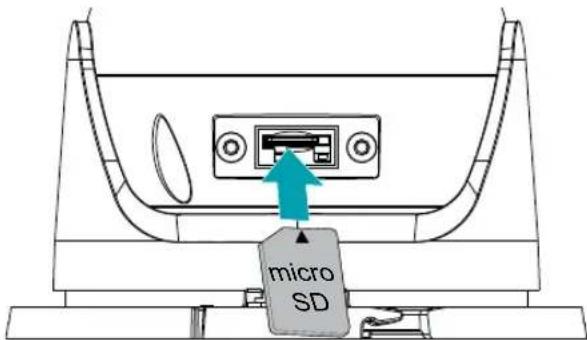

- SD Memory Card Slot

Used to insert a micro SD memory card into the camera. (An SLC (Single Level Cell) or MLC (Multi Level Cell) card by San Disk or Transcend is recommended) Remove the cover in order to remove or insert the SD memory card. Make sure that the cover is joined properly when screwing it; otherwise, the IP67 level is not guaranteed.

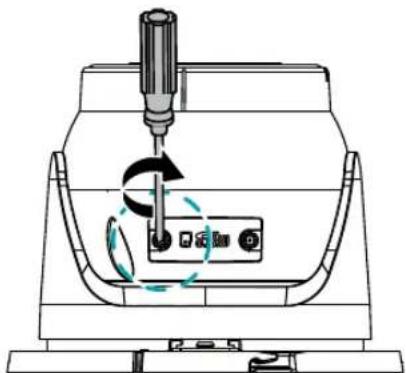

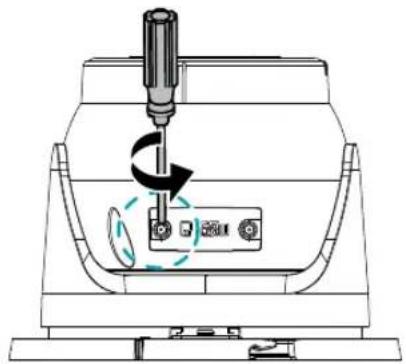

• To remove/insert the SD memory card or perform the factory reset, make sure that the cover is joined properly when screwing it. Otherwise, the IP67 level is not guaranteed. For more information, contact your product retailer.

- Do not remove the SD memory card while the system is in operation. Removing the card while the system is in operation can cause the system to malfunction and/or corrupt data stored on the SD memory card.

- An SD memory card is a consumable product with a finite service life. Prolonged use will damage the card's memory sectors and result in data loss or memory card failure. Test the SD memory card regularly and replace it whenever necessary.

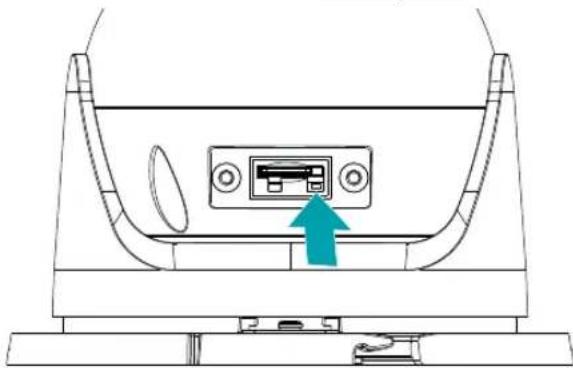

- Factory Reset Button

Factory reset button is under the SD memory card slot. Restores the camera's default factory settings. For more information, refer to the Factory Reset.

Diagram of a device rear panel with an internal component and a blue arrow indicating direction (no text or symbols)

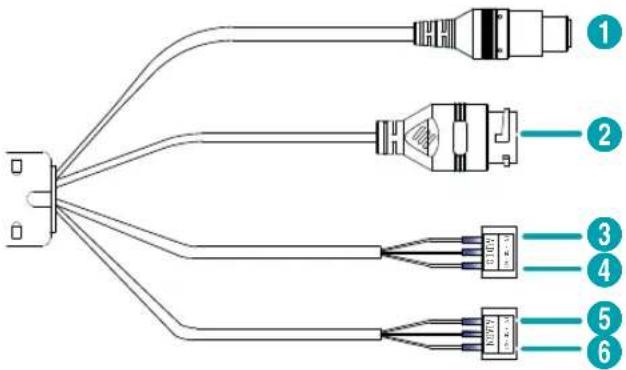

Cable

1	Power In (Red Cable)
2	Network Port
3	Audio In
4	Audio Out
5	Alarm In
6	Alarm Out

• Power In

Connect to the power adapter (12 VDC).

• Network Port

Connect a network cable with an RJ-45 connector to this port. If using a PoE switch, you can supply power to the camera using an Ethernet cable. For more information on PoE switch use, refer to the switch manufacturer's operation manual. You can configure, manage, and upgrade this camera and monitor its images from a remote computer over the network. For more information on network connection setup, refer to the IDIS Discovery operation manual.

The table below shows the network cable specifications.

(The network cable specifications>

Item Content Note
Connector RJ-45
Ethernet 10/100 Base		10/100 Mbps
Cable	UTP Category 5e or higher
Maximum length	100m
PoE	IEEE 802.3af, Class 3

• Audio

- O (Out): Connect an amplifier to this port (line out). This device does not feature a built-in audio amplifier unit and therefore requires the user to purchase a separate speaker system with a built-in amplifier.

- I (In): Connect an audio source to this port. (Line in) A built-in microphone is featured on the top.

• Alarm

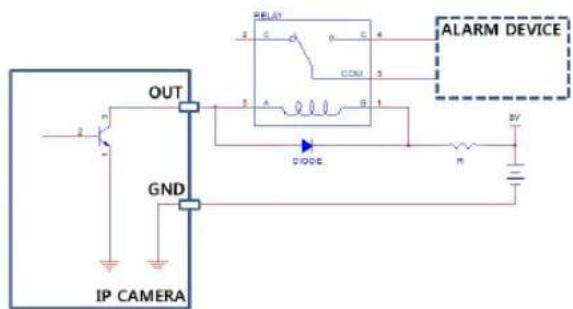

- O (Out): It is the BJT (Bipolar Junction Transistor) - open collector output. If the voltage and current exceed the specification limit (Max. Load: 30mA, Max. Voltage: 5VDC), the product could be damaged. When connecting the device which exceeds the specification limit, refer to the picture (circuit) below.

If used with an external inductive load(e.g. relay), a diode must be connected in parallel with the load for protection. Otherwise, the product could be damaged.

- I (In): Connect an alarm-in device to this port. (Mechanism: Choose between an NC (Normally Closed) type or an NO (Normally Open) type) → Connect a mechanical or electrical switch to the alarm in port and the GND (ground) connector. Alarm in range is 0V to 5V. In order to detect alarm input from an electrical switch, the signal must be higher than 4.3V from an NC switch or less than 0.3V from an NO switch and must last for longer than 0.5 seconds.

• Check your local laws and regulations on making video or audio recordings. The user will be held liable for any violation of the law.
• When switching over from 12 VDC to PoE as the power source, the system will be rebooted once the power adapter is disconnected.
• Organize the power cable so that it will not cause people to trip over or become damaged from chairs, cabinets, desks, and other objects in the vicinity. Do not run the power cable underneath carpet or a rug or plug the cable into a power outlet shared by a number of other devices.

Factory Reset

Only use the factory reset button to restore the camera to its factory default settings.

A factory reset will clear all camera settings configured by the user.

1 Shut off the power supply.
2 Remove the SD memory card cover and then press the reset button down.
3 Hold the button down and reconnect the power adapter.
4 Once the device turns back on, wait 5 seconds, and then release the reset button.
5 The device will go through the resetting process and reboot. All camera settings will be restored to their factory defaults after the reboot.

It's also possible to do a factory reset by pressing and releasing the reset button while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery operation manual.

Installation

Installation of this product does not require the use of special tools.

For more information on other devices comprising the overall system, refer to their respective installation manuals.

Product color and design may vary depending on the model.

Inserting a SD Memory Card

1 Loosen the screws counterclockwise and remove the cover.

Technical line drawing of a mechanical assembly with a screwdriver and rotating component (no text or symbols)

2 Insert a SD memory card into the SD memory card slot with the 'micro SD' print facing upward.

Push the SD memory card until it disengages from the slot, and then pull it out.

3 Closethe cover and tighten the screws clockwise.

Technical line drawing of a mechanical device with a screwdriver and control panel (no text or symbols)

Make sure that the cover is joined properly when screwing it; otherwise, the IP67 level is not guaranteed.

Waterproof Cable Installation

1

Technical illustration of a mechanical component with a magnified inset showing internal detail (no text or symbols)

1 Insert a round rubber ring (silicone rubber) into the RJ45 jack.

2

Two types of electrical connectors shown in different orientations: one with a blue arrow pointing left, the other with a circular inset showing a single conductor (no text or symbols present)

2 Insert the network cable into the waterproof cap, rubber bushing, and waterproof cap body in order.

3

Diagram of a connector with a magnified inset showing a small component (no text or symbols)

3 Plug in the network cable.

Part 1 - Introduction

Technical diagram of a mechanical assembly with a central connector and multiple shafts (no text or symbols)

4 Connect the plug terminal to the RJ45 jack.

Technical line drawing of a mechanical component with a blue arrow indicating a joint or assembly (no text or symbols present)

5 Push the waterproof cap body and cap into the RJ45 jack and rotate it.

Technical line drawing of a mechanical component with a circular component and a green ring, no text or symbols present

6 Lock the waterproof cap into the waterproof cap body.

Not pulling the cable back may cause water to seep in and damage the product.

Installation

• Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight.
  • Install the camera in a shaded area. If the camera is installed in direct sunlight, it may be affected adversely.
• (If necessary) Attach one end of the safety wire (not provided) to the wall or ceiling, and the other end of the safety wire to the installation location on the camera body.

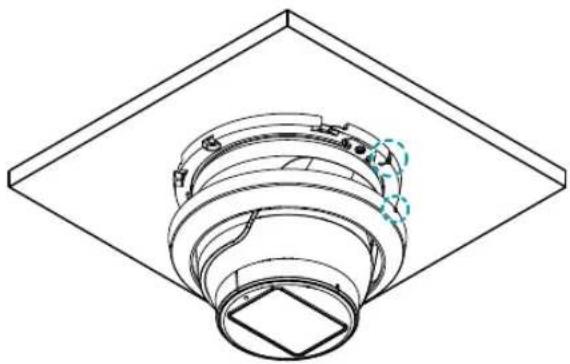

1 Use the screws, anchor provided with the camera to secure the install bracket on a wall or a ceiling.

Use the provided guide pattern to check the distance between the screws.

Technical line drawing of a ceiling-mounted air duct assembly with mounting feet and control knobs (no text or symbols)

2 Connect external devices, the network cable, and the power adapter.
3 Adjust the angle. For more information, refer to the Angle Adjustment.

4 After the angle adjustment is finished, tighten the front screw to completely attach the main body.

Technical line drawing of a mechanical component with a blue arrow indicating a specific feature (no text or symbols present)

5 The top cover rotates on the bottom cover and is tightened. As shown in the picture, align the markings on the bottom cover and the top cover of the main body and join them.

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Remove the cable cover before using if cable side finishing is necessary.

Simple line drawing of a rectangular block with an arrow pointing upward (no text or symbols)

Angle Adjustment

The lens can be rotated along three axes.

1	Lens Rotation	3	Horizontal Rotation
2	Vertical Rotation

- Lens Rotation

Used to adjust the lens' rotation angle. Turn the lens rotator clockwise or counterclockwise direction.

- Vertical Rotation

Used to adjust the lens' vertical angle.

• Horizontal Rotation

Used to adjust the lens' horizontal angle. Turn the horizontal rotator in the clockwise or counterclockwise direction.

Dimension

Part 2 - Camera Connection

Use the camera by connecting to DirectIP® NVR or non DirectIP® NVR, VMS such as IDIS Solution Suite Compact.

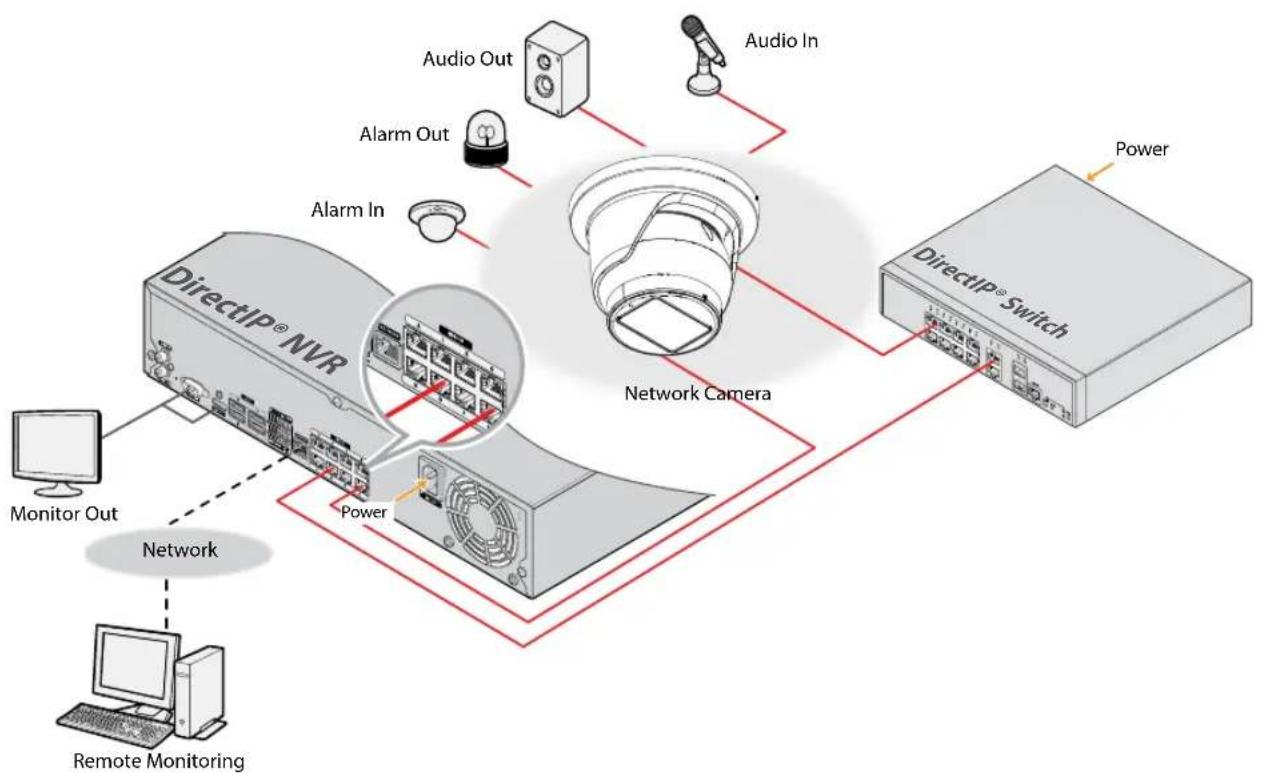

With DirectIP® NVR-based Layout

DirectIP® NVR makes it easy to use cameras without extra network configurations.

Each camera can be controlled via the DirectIP® NVR setup menu, without any PC.

For detailed camera settings, please see the camera setting pages of DirectIP® NVR manual.

For users using the camera with DirectIP® NVR connection, do not need to consider contents in the camera operation manual.

With non DirectIP® NVR-based Layout

Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location.

The contents in the camera operation manual are only for users using the camera with non DirectIP® NVR connection or VMS connection such as IDIS Solution Suite Compact.

Part 3 - Appendix

Troubleshooting

Problem Check
The main unit won't turn on.	·Check the power cable connection. If using a PoE switch to supply power to the camera using an Ethernet cable, check the Ethernet cable connection.·Check the power outlet. If using a PoE switch to supply power to the camera using an Ethernet cable, check the PSE device's power supply.
PoE switch isn't being recognized.	Check the grounding status of the I/O device connected to the camera and the PoE switch. If they are not grounded, ground them and try again.
I can't see Live videos. ·Check the camera's power status.·Ensure that cables are properly connected to the camera and the lens.·Check the network connection status of the computer and the network camera.
Images are blurry.	·Make sure the lens is clean. If not, clean it using a soft piece of cloth or a brush.·Make sure the lens is in focus. Adjust the focus during daytime.·If there is too much light coming into the camera or the camera is picking up an overly bright light source, adjust the camera's position/angle accordingly.
Video color appears incorrect.	Check the white balance settings. If using theAutooption, it may take some time for the white balance to be adjusted.
Images are blinking.	If the camera is pointed at the sun or a fluorescent lamp, adjust the camera's angle away.
Lost the admin ID and password and unable to connect to a network camera.	You must perform a factory reset. A factory reset will revert all settings, including network settings, to their factory defaults. After performing a factory reset, make a memo of the admin ID and password as a safety precaution.
Unable to launch IDIS Web.	If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 10 or below.

Specifications

These product specifications may change without prior notice.

Video

Image Sensor		1/2.8" CMOS
Max. Resolution		2592 x 1944 (4:3)2592 x 1456 (16:9)
Scanning Mode		Progressive Scan
Lens type		Motorized Vari-focal
Focal Length		F1.6 ~ 3.3, f=3.2mm ~ 10.5mm
Iris Control		P-IRIS
Angular Field of View	5M (2592 x 1944)	H: 98.9° (Wide) ~ 28.2° (Tele)V: 71.1° (Wide) ~ 21.2° (Tele)D: 133.8° (Wide) ~ 35.3° (Tele)
	4M (2592 x 1456)	H: 98.9° (Wide) ~ 28.2° (Tele)V: 52.2° (Wide) ~ 15.9° (Tele)D: 117.9° (Wide) ~ 32.4° (Tele)
Min. Illumination		COLOR : 0.08lux F1.6B/W : 0 lux (IR LED ON)
Dynamic Range		120dB, True WDR
Electronic Shutter Speed		Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (25 ips: 1/12.5, 1/6.25 30ips: 1/15, 1/7.5)
Day & Night		IR cut filter with auto switch
IR Distance (LEDs)		30m (4ea)
Pan/Tilt/Lens Range		Pan: -180° ~ 180°, Tilt: -5° ~ 70°, Lens: -180° ~ 180°

Network

Video Compression	H.265, H.264(MP), M-JPEG
Bit rate Control	CBR / VBR
Max. Frame Rate	4:3 mode : 30ips : 2592 x 1944(WDR)
	16:9 mode : 30ips : 2592 x 1456(WDR)
Audio Compression	G.726, ADPCM-16K, G.711u-Law, G.711a-Law
Supported Resolution	4:3 : 2592x1944, 1920x1440, 1280x960, 640x480
	16:9 : 2592x1456, 1920x1080, 1280x720, 640x360
Multi-Video Streaming	Quadruple
Ethernet	RJ45(10/100BASE-T)
Edge Storage* (Optional)	MicroSD(Micro SD/SDHC/SDXC memory card (class 6 or higher, max. 512GB))

* An SLC (Single Level Cell) or MLC (Multi Level Cell) card by SanDisk or Transcend is recommended to ensure stable recording performance.
* An SD memory card is a consumable product with a finite service life. Prolonged use will damage the card's memory sectors and result in data loss or memory card failure. Test the SD memory card regularly and replace it whenever necessary.
* microSD Logo is a trademark of SD-3C, LLC.

I/O

Audio In/Out	Line-in 1ea / Line-out 1ea / Internal Mic 1ea
Alarm In	1 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC
Alarm Out	1 TTL open collector, Max. load: 30mA, Max. voltage: 5VDC

General

Operating Temperature	-40°C ~ +55°C (-40°F ~ +131°F)
Boot Up Temperature	-20°C ~ +55°C (-4°F ~ +131°F)
Operating Humidity	0% ~ 90%
Power Source	12 V—PoE(IEEE 802.3af, Class 3)
Power Consumption	12 V—LA, 13.2W PoE, IEEE 802.3af(Class 3), 11.5W
Approval	FCC, CE, IP67, IK10
External Dimensions (∅ x H)	135mm x 98.5mm (5.31" x 3.87")
Weight (Main Unit)	0.83kg (1.82lb)

IDIS®

IDIS Co., Ltd.

For more information, please visit at

www.idisglobal.com
