Product Type	Receiver
Brand	Alto
Model	D3
Dimensions (W x H x D)	430 mm x 60 mm x 250 mm
Weight	3.2 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	30 W (max)
Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	≥90 dB
Total Harmonic Distortion	<0.1%
Inputs	2x RCA, 1x Optical, 1x Coaxial
Outputs	2x Speaker terminals, 1x Subwoofer pre-out
Supported Audio Formats	MP3, WMA, AAC, FLAC
Radio Tuner	FM/AM with RDS
Remote Control	Included (CR2025 battery)
Display	LED front panel
Housing Material	Aluminum front panel, steel chassis
Operating Temperature	0°C - 40°C
Storage Temperature	-20°C - 60°C
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use solvents.
Safety Precautions	Do not expose to moisture or extreme temperatures. Unplug during storms.
Spare Parts	Contact Alto customer service for replacement remote or power adapter.
Warranty	2 years limited
Package Contents	Receiver, remote control, batteries, power cord, user manual

Frequently Asked Questions - D3 ALTO

How do I connect my ALTO D3 receiver to speakers?

Use the speaker terminals on the back panel. Connect the positive (+) terminal of the receiver to the positive terminal of the speaker, and the negative (-) to negative. Ensure the impedance of your speakers matches the receiver's rating (typically 4-8 ohms).

Can I use the receiver with a subwoofer?

Yes, the D3 has a dedicated subwoofer pre-out (RCA). Connect it to the input of a powered subwoofer.

How do I set up the FM/AM radio?

Connect the included antenna to the FM/AM terminals. Press the Source button to select Tuner. Use the Scan function to automatically find stations, or manually tune using the Tuning knob.

The remote control is not working. What should I do?

First, check the batteries (CR2025). Replace if needed. Ensure there are no obstacles between the remote and the receiver's IR sensor. If still not working, try resetting the receiver by unplugging it for 30 seconds.

How can I connect my smartphone to the receiver?

You can use a 3.5mm to RCA cable (not included) to connect your phone's headphone jack to the AUX input on the receiver. Alternatively, if your phone supports Bluetooth, the D3 does not have built-in Bluetooth, so you would need an external Bluetooth adapter.

What is the maximum power output of the D3?

The ALTO D3 delivers a maximum power of 100W per channel (at 4 ohms, 1 kHz, 10% THD). For continuous power, please refer to the specifications.

Why is there no sound from the speakers?

Check that the receiver is powered on and the correct source is selected. Verify speaker connections are secure and the volume is turned up. Also ensure the speakers are not muted.

Can I use the receiver with a TV?

Yes, connect your TV's audio output (optical, coaxial, or RCA) to the corresponding input on the D3. Select the matching source. If your TV only has HDMI ARC, you may need an audio extractor.

How do I clean the receiver?

Turn off the unit and unplug it. Use a soft, dry cloth to wipe the exterior. Do not use any liquids, sprays, or abrasive cleaners. Avoid getting dust into ventilation slots.

Where can I find the user manual for the ALTO D3?

You can download the manual in PDF format from notice-facile.com or the Alto official website. It is also included in the package.

USER MANUAL D3 ALTO

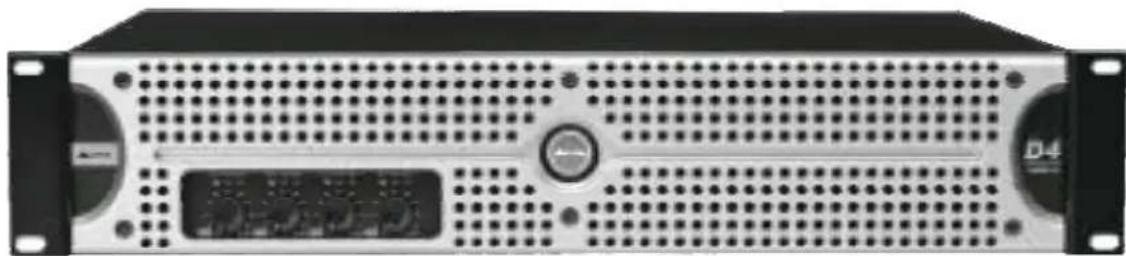

D1/D2/D3/D4 PROFESSIONAL POWER AMPLIFIERS

Front view of a server rack with indicator lights and a central control panel (no visible text or symbols)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR THE BACK PANEL OF THIS EQUIPMENT. THERE ARE NO PARTS NEEDED BY USER INSIDE THE EQUIPMENT. FOR SERVICE, PLEASE CONTACT QUALIFIED SERVICE CENTERS.

This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death.

This symbol, wherever used, alerts you to important operating and maintenance instructions.

Please read.

Protective Ground Terminal

\~ AC mains (Alternating Current)

Hazardous Live Terminal

ON: Denotes the product is turned on.

OFF: Denotes the product is turned off.

CAUTION

Describes precautions that should be observed to prevent damage to the product.

1. Read this Manual carefully before operation.

2. Keep this Manual in a safe place.

3. Be aware of all warnings reported with this symbol.

4. Keep this Equipment away from water and moisture.

5. Clean it only with dry cloth. Do not use solvent or other chemicals.

6. Do not damp or cover any cooling opening. Install the equipment only in accordance with the Manufacturer's instructions.

7. Power Cords are designed for your safety. Do not remove Ground connections! If the plug does not fit your AC outlet, seek advice from a qualified electrician. Protect the power cord and plug from any physical stress to avoid risk of electric shock. Do not place heavy objects on the power cord. This could cause electric shock or fire.

8. Unplug this equipment when unused for long periods of time or during a storm.

9. Refer all service to qualified service personnel only. Do not perform any servicing other than those instructions contained within the User's Manual.

10. To prevent fire and damage to the product, use only the recommended fuse type as indicated in this manual. Do not short-circuit the fuse holder. Before replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet.

WARNING

To reduce the risk of electric shock and fire, do not expose this equipment to moisture or rain.

Dispose of this product should not be placed in municipal and should be separate collection.

1. Movethis Equipment only with a ca stand, tripod, or bracket,

specified by the manufacturer, or sold with the Equipment. When a cart is used, use caution when moving the cart / equipment combination to avoid possible injury from tip-over

Abstract black-and-white icon of a person pushing a large rectangular block, enclosed in a circular frame (no text or symbols)

1. Permanent hearing loss may be caused by exposure to \ extremely high noise levels. The US. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible exposure to noise level.

These are shown in the following chart:

HOURS X DAY	SPL	EXAMPLE
8	90	Small gig
6	92	train
4	95	Subway train
3	97	High level desktop monitors
2	100	Classic music concert
1,5	102
1	105
0,5	110

0,25 or less 115 Rock concert

According to OSHA, an exposure to high SPL in excess of these limits may result in the loss of heat. To avoid the potential damage of heat, it is recommended that Personnel exposed to equipment capable of generating high SPL use hearing protection while such equipment is under operation.

The apparatus shall be connected to a mains socket outlet with a protective earthing connection.

The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

IN THIS MANUAL:

1. INTRODUCTION....1
2. FEATURES....1
3. CONTROL ELEMENTS....5
4. OPERATION....8
5. BLOCK DIAGRAM....11
6. TECHNICAL SPECIFICATION 12
7. WARRANTY....13

1. INTRODUCTION

Thank you for expressing your confidence in LTO products by purchasing one or more of our D series power amplifiers. The D range includes D1, D2, D3 and D4. There are 2 channels for the D1/D3, and 4 channels for D2/D4. All models are rugged, 2 rack-unit amplifiers fan-cooled. They provide a lot of power and a high value performance. They are all designed for heavy-duty application and they all can drive 4 ohm loads for long periods without overheating. Therefore they are suited to drive subwoofers with a minimum load of 8 ohm when working in Bridge Mode.

Enjoy your D amplifier and make sure to read this manual carefully before operation!

2. FEATURES

▲ Illuminated Power Switch
▲ Automatic Clip-limiter circuit
▲ Switchable low-frequency filter at 30 Hz
▲ Operating Mode is: Stereo, Parallel or Bridge
▲ Balanced Combo input connectors
▲ Output connectors are speak-on jacks and binding post terminals
▲ Low-noise, variable speed fan
▲ Front panel LED indicating Signal and Clipping and Protection Status
▲ Class D technology, switch power, light weight and high power
▲ Manufactured under TS16949, ISO14001 certified management system

Front panel of a breadboard with two circular buttons and a central 'ALTO' knob, no visible text or symbols on the board itself.

D1

Front panel of a breadboard with multiple rotary switches and a central logo (no readable text or symbols beyond basic markings)

D2

Front panel of a breadboard with two circular buttons and a central logo (no readable text or symbols)

D3

Front panel of a breadboard with two LTO switches and a 750W power indicator, no readable text or symbols beyond component labels.

D4

In this mode 2 independent channels are sent to 2 separate speakers.

PARALLEL MODE

One mono signal is input to CH A or CH B of the D series amplifier and then output to 2 separate speakers. Each speaker volume can be set separately.

BRIDGE MODE

Diagram showing connection between a server rack and a speaker unit (no text or symbols present)

The stereo or mono signal input to CH A and CH B is combined on the BRIDGE MONO connector. Only CH A Gain control is active. The power at the output will be combined power of the two channels.

STEREO BIAMP

This application is only for D1 or D3. For the D2 or D4, it has used one amplifier. The Main Mix signal is routed into an electronic crossover. CH A drives the woofer and CH B drives the high frequency driver in a 2-way enclosure.

Front Panel:

1 POWER SWITCH & INDICATOR LED

It powers the D amplifier ON and OFF. When the D amplifier is turned on the power switch illuminates blue.

2 SIGNAL LED

This LED will light up green when the signal at the output is at least -20 dB.

3CLIPLED

This LED will flash when distortion reaches a level of 0.5%, Turn the relative GAIN control down so that the CLIP LEDs only flash occasionally.

4 PROTECTION LED

It will light up when the unit is in Protection Mode due to short circuit, low impedance load or other causes.

5GAINCONTROLS

These controls are used to adjust the output signal level.

6 COOLING VENTS

Allow air circulation from front to back of the amplifier.

Rear Panel:

7 CIRCUIT BREAKER

This is an electronic fuse for protecting the unit from possible damage. When the unit is overloaded or the temperature inside the unit is too high, this push-type button will spring out and disconnect the power supply. Push the Breaker to restore normal working conditions.

8 IEC socket for AC power cable

Connect the supplied main cord. Do not insert the power cord into the D amplifier and into the AC Outlet until voltage has been correctly set.

9 COMBO BALANCED INPUT CONNECTORS

Each Channel features balanced combo connector that used to input the signal to the amplifier.

10 SPEAKON OUTPUTS

These connectors are specifically designed to connect high power speakers. The correct polarity is secured automatically, they prevent shock hazard and they lock-in securely.

11 BINDING POST OUTPUTS

Please make sure to respect the speaker polarity when using binding post.

Caution: Turn off the unit before connecting an audio signal to the binding post to avoid any electric shock!

12 LOW FREQUENCY FILTER

This Filter rolls off audio signals below 30Hz. In this way bass performance will be improved, because the subsonic motion of the cone will be cut out and more power is made available to the woofer in the audible range of frequencies. If you want our view: Keep the Filter ON most of the time unless you are filtering the signal before the input of the amplifier. Especially vented speakers (bass-reflex) are very sensitive to subsonic frequencies (below 30Hz).

13 OUTPUT MODE SELECTOR

The D series power amplifier presents three operating modes:

- Stereo Mode

In this mode, CH A and CH B operate independently (as a normal stereo amplifier). The CH A input signal will be output from the CH A output connector, and CH B input signal will be output from the CH B output connector.

- Parallel Mono Mode

In this mode, CH A input signal will be output from the output connectors of both channels. Detail wiring diagram you can refer to chapter 4.

- Bridged Mode

In this mode, CH A input signal will be output from the bridge-mono output connector. Detail wiring diagram you can refer to chapter 4.

14 COOLING FAN

This fan secures enough cooling for your amplifier. The airflow is front-to-rear. The fan speed is electronically regulated depending on the temperature of the power devices.

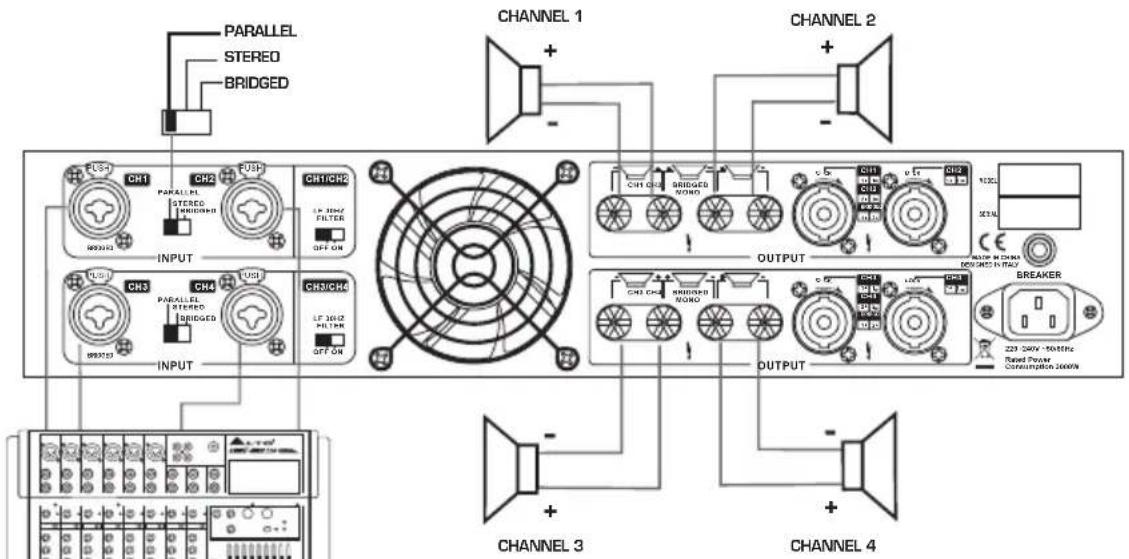

The D series power amplifiers provide three operating modes: stereo mode, parallel (mono) mode and bridged mode, you can decide each specific operating mode according to your actual application circumstance.

In this mode, channel A and channel B operate independently (as a conventional stereo amplifier). The channel A input signal will be output from the channel A output connectors, and the channel B input signal will be output from the channel B output connectors.

For D2/D4(4-CHANNEL)

Use either the binding post or the speak-on

In this mode, the channel A input signal will be output from the output connectors of both channels. The channel B input jack is not used; the channel A and B volumes can be adjusted independently. Use the Parallel Mode when you want to drive two speakers with only one input signal keeping separate control of the volume of the two channels.

NOTE: since you are not using the channel B input you can use this socket to "daisy-chain" the signal to another amplifier.

For D2/D4(4-CHANNEL)

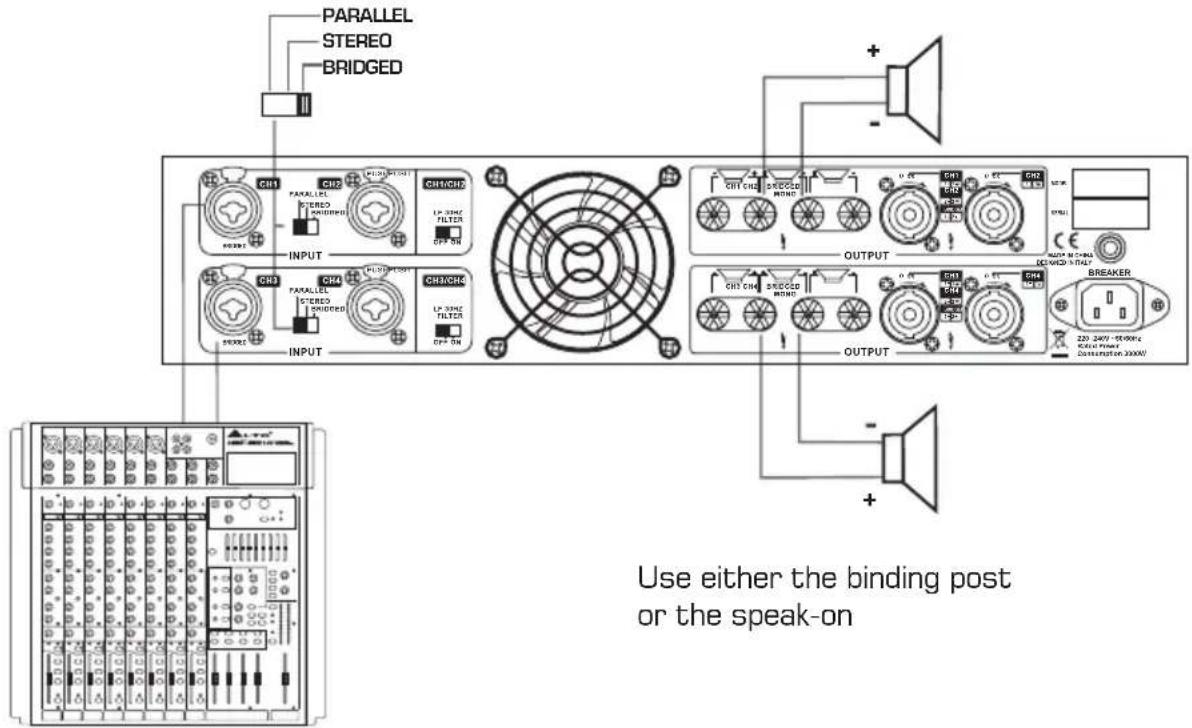

4. OPERATION-In Bridged Mode

In this mode, the channel A input signal will be output from the bridge output connectors. (The 2 RED binding post) In this case, use the channel A volume control to adjust the volume, keep the volume control of channel B turned completely down (counter clockwise). Bridged mode is intended for driving loads with a total impedance of 8 ohms or greater. In Bridge Mode the power of both channels into one speaker. You will have available massive amount of power so check carefully the power handling of your speaker before operation.

For D2/D4(4-CHANNEL)

Use either the binding post or the speak-on

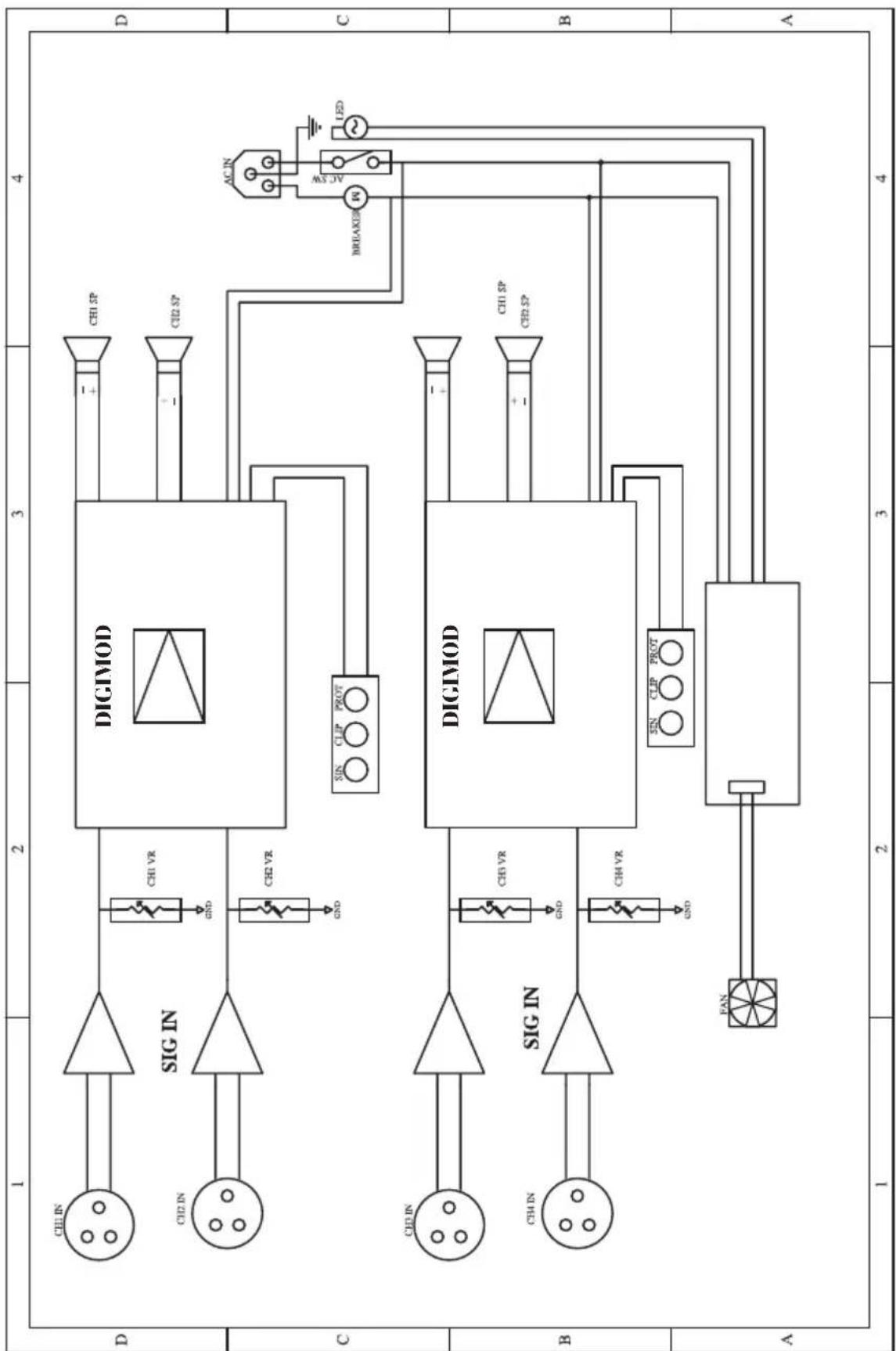


    C1 --> D1["CH1 SP"]
    C1 --> D2["CH2 SP"]
    C2 --> D3["SIN CLIP PROT"]
    C3 --> D4["BREAKER IN"]
    C3 --> D5["AC SW"]
    C3 --> D6["LED"]

    D1 --> E1["A"]
    D2 --> E2["B"]
    D3 --> E3["A"]
    D4 --> E4["B"]
    D5 --> E5["A"]

    E1 --> F1["EAN"]
    E2 --> F2["FAN"]
    E3 --> F3["FAN"]
    E4 --> F4["FAN"]
    E5 --> F5["FAN"]

    style Inputs fill:#f9f,stroke:#333
    style Outputs fill:#ccf,stroke:#333

6. TECHNICAL SPECIFICATIONS

POWER SPECIFICATIONS D1 D2 D3 D4
Power Continuous @0.5% THD.Both channels driven, 230V		2 CH Amplifier	4 CH Amplifier	2 CH Amplifier	4 CH Amplifier
	4 Ohms	2 X 390 W	4 X 390 W	2 X 540 W	4 X 540 W
	8 Ohms	2 X 240 W	4 X 240 W	2 X 340 W	4 X 340 W
Power EIAJ@1% THD.Both channels driven, 230V	4 Ohms	2 X 500 W	4 X 500 W	2 X 750 W	4 X 750 W
	8 Ohms	2 X 270 W	4 X 270 W	2 X 370 W	4 X 370 W
Bridged Mode	8ohms	1 X 1000 W	2 X 1000 W	1 X 1500 W	2 X 1500 W
	16ohms	1 X 520 W	2 X 520 W	1 X 740 W	2 X 740 W
ELECTRICAL SPECIFICATIONS
INPUT SENSITIVITY	1Vrms
INPUT IMPEDANCE	10 kohms unbalanced, 20 kohms balanced
FREQUENCY RESPONSE	20 Hz-20 kHz+/-0.1dB, -3 dB points: 10 Hz - 60kHz
INPUT CLIPPING	10 Vrms (+22 dB)
VOLTAGE GAIN	32dB
DISTORTION(SMPTE-1M)	<0.5%
S/N RATIO	>105dB
GENERAL SPECIFICATIONS
PROTECTIONS	On/off muting, DC-fault load grounding relay. Internal fault fuses
CONTROLS	Front: AC switch, gain knobsRear: low pass filter, mode selector
INDICATORS	SIGNAL: green LED CLIP: red LEDPOWER: blue LED PROTECTION: red LED
CONNECTORS	INPUT : balanced comboOUTPUT: "Touch-proof" binding posts and speak-on jacks.
POWER SUPPLY	Available for AC230V,AC115V, 50-60Hz
DIMENSIONS(WxDxH)		483x285x88.8 mm	483x376x88.8 mm	483x285x8 88 mm	483x376x888 mm
WEIGHT		5.5 Kg	7.9 Kg	5.5 Kg	7.9 Kg

6. WARRANTY

1. WARRANTY REGISTRATION CARD

To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date.

All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to provide a more effective and efficient after-sales warranty service. Please fill out all the information carefully and genuinely, miswriting or absence of this card will void your warranty service.

2. RETURN NOTICE

2.1 In case of return for any warranty service, please make sure that the product is well packed in its original shipping carton, and it can protect your unit from any other extra damage.
2.2 Please provide a copy of your sales receipt or other proof of purchase with the returned machine, and give detail information about your return address and contact telephone number.
2.3 A brief description of the defect will be appreciated.
2.4 Please prepay all the costs involved in the return shipping, handling and insurance.

3. TERMS AND CONDITIONS

3.1 warrants that this product will be free from any defects in materials and/or workmanship for a period of 1 year from the purchase date if you have completed the Warranty Registration Card in time.

3.2 The warranty service is only available to the original consumer, who purchased this product directly from the retail dealer, and it can not be transferred.
3.3 During the warranty service, may repair or replace this product at its own option at no charge to you for parts or for labor in accordance with the right side of this limited warranty.
3.4 This warranty does not apply to the damages to this product that occurred as the following conditions:

• Instead of operating in accordance with the user's manual thoroughly, any abuse or misuse of this product.
  • Normal tear and wear.
• The product has been altered or modified in any way.
• Damage which may have been caused either directly or indirectly by another product / force / etc.
• Abnormal service or repairing by anyone other than the qualified personnel or technician.

And in such cases, all the expenses will be charged to the buyer.

3.5 In no event shall be liable for any incidental or consequential damages.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

3.6 This warranty gives you the specific rights, and these rights are compatible with the state laws, you may also have other statutory rights that may vary from state to state.

SEIKAKU TECHNICAL GROUP LIMITED

NO. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan

http://www.altoproaudio.com Tel: [phone]

email: [e-mail] Fax: [phone]

All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2007 Seikaku Group
