N/D767a User Manual

The new N/D767a presents optimal performance in a live sound environment. The 767a vocal microphone utilizes EV's new VOB™ (vocally optimized bass) technology to provide the performer with reduced low-end distortion and eliminates the muddiness found in other microphones. Combined with EV's industry first neodymium based magnet structure, the new N/D767a offers the power and clarity to "cut through the mix."

• VOB™ technology provides tailored bass response for controlled “proximity effect” and exceptional vocal clarity
• Supercardioid pattern for superior feedback rejection and acoustic isolation.
• Multistage shock mount for unmatched low-handling noise.
• Neodymium based magnet structure provides greater sensitivity and signal-to-noise ratio.
• Warm Grip™ handle for more comfortable feel.

Operation

The low frequency response of the N/D767a microphone varies with the distance from the sound source. Known as “proximity effect,” maximum bass response is produced in “close-up” use with the microphone 14 inch from the sound source. Normal bass response is experienced with working distances greater than 24 inches. Working close to the microphone will produce a more robust sound. Close up positioning of the microphone will also reduce the potential for feedback from the sound reinforcement system. When close-talked, the bass-boost provides an increase in overall microphone output level. The mixer gain may be proportionately reduced, resulting in a reduction of the system’s sensitivity to feedback caused by sound entering the microphone from the loudspeakers.

Microphone Use and Placement

Please note that micing techniques are a matter of personal preference. These are merely guidelines to assist in the placement of the microphone to gain optimal performance.

Usage	Optimal Placement
Vocals	Zero to six inches from the windscreen, and on axis with the microphone.
Spoken Word	Five to ten inches from the windscreen, and on axis with microphone.

Standard Placement & Use Guidelines

1. Always point the microphone at the desired source of sound, and away from any unwanted sources.
2. The microphone should be located close to the sound source to minimize interference from other potential sound sources.
3. Use the 3-to-1 rule when using multiple microphones. Place each microphone three times farther from other microphones as from the desired sound source.
4. Minimize over-handling of the microphone to reduce unwanted mechanical noise
5. Working close to the microphone will increase the bass tone and also provide increased gain-before-feedback.

Warranty

This product is guaranteed against malfunction from any cause for two (2) years from the date of original purchase. In addition, the Limited Warranty for the acoustic system contained in the microphone shall apply for the life of this product, defines as a period of ten (10) years from the date that the manufacture of this microphone model has been discontinued. Any and all active electronics incorporated in this microphone are guaranteed against malfunction due to material workmanship for a period of three (3) years from the date of original purchase. This Limited Warranty does not extend to cables, connectors, or switches.

For warranty service please call us at:
616-695-6831 or 1-800-234-6831

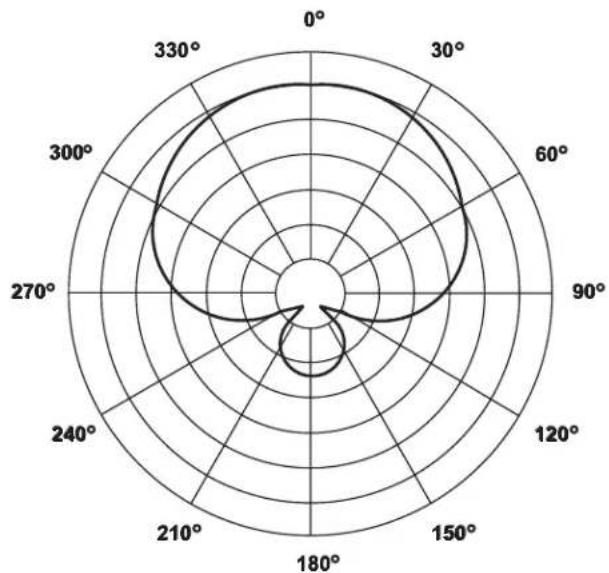

N/D767a Supercardioid Polar 12-8-999

N/D767a Specifications

Element: Dynamic, N/DYM® magnet structure

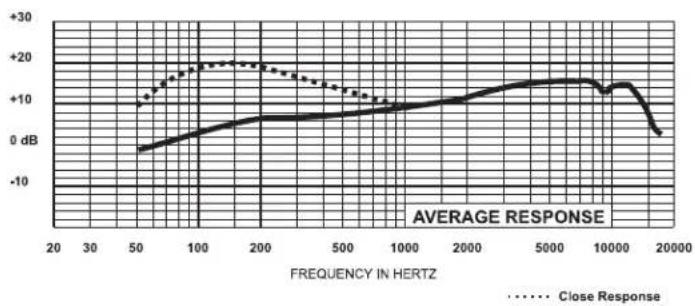

Frequency Response:

Close Response: 35Hz to 22kHz

Far Response: 70Hz to 22kHz

Polar Pattern: Supercardioid

Impedance: Low-Z balanced (300 Ohms)

Sensitivity:

Open Circuit Voltage: . . . 3.1 mV/Pascal @ 1.0kHz

Power Level: (0 dB=1mW/pascal) -51 dB

Microphone Connector: 3-pin, XLR-type

Polarity: Pin 2 positive, referenced to pin 3 with positive pressure on diaphragm

Finish: Non-reflecting black

Materials:

Memraflex™ grille screen

Warm-Grip™ handle

Dimensions:

Length @ 7.1 in. (181 mm)

Diameter @21. In (52mm)

Shank @ 0.8 in. (20mm)

Weight:

Net @9.2 oz (260 grams)

Shipping @ 18.9 oz (535 grams)

Accessories included:

Stand adapter (black)

Soft zippered 'gig' bag

EVERYWHERE™

USA 9600AldrichAve.S., Minneapolis, MN55420, Phone: [phone]FAX: [phone]

Canada 705Progress Avenue, Unit 10, Scarborough, Ontario, Canada, M1H2X1Phone: [phone]FAX: [phone]

Switzerland Keitenstrasse1, CH-2563PSACH, SwitzerlandPhone:011-41/32-331-6833FAX:[phone]

Germany HirschbergerRing 45, D94302, Straubing, Germany. Phone: [phone]FAX: [phone]

France Parc de Courcerin, Allee Lech Walesa, Lognes, 1-77185Mame La Vallee, France, Phone: [phone]FAX: [phone]

Australia Unit 23, Slough Business Estate, Silverward N.S.W. 2128 Australia Phone: [phone]/AX: 011-61/2-9648-5585

HongKong UnitE &F, 21/F, Luk Hop IndustriaBldg., 8Luk Hop St., SanPoKong, Kowloon, HongKong, Phone: [phone]AX: 011-852-2351-3329

Japan 2-5-60 Izumi, Suginami-ku, Tokyo, Japan 168, Phone: [phone] FAX: [phone]

Singapore Telex Comm Pre Ltd,3015/Ubi Rd 1,#0510,Kampong Ubi Industrialstate,Singapore 408705Phone:[phone]FAX:[phone]

Mexico Tecnología Especializada EDD S.A. de C.V., Av Parque Chapultepec 466-201, El Parque, Naucalpan, Mexico, DF 53390 Phone: [phone] FAX: [phone]

N/D767a

Part Number 535676
