Product Type	All-in-One Liquid CPU Cooler
Model	MAG CORELIQUID B120
Brand	MSI
Radiator Dimensions	120 x 120 x 27 mm (approx.)
Radiator Material	Aluminum
Fan Size	120 x 120 x 25 mm
Fan Speed	500 - 2000 RPM (PWM controlled)
Fan Airflow	Up to 78 CFM
Fan Noise Level	Up to 36 dBA
Pump Speed	3200 RPM (approx.)
Pump Noise Level	< 20 dBA
Socket Compatibility	Intel LGA 2066, 2011, 1700; AMD AM5, AM4, AM3
Power Consumption (Fan)	3.36W (max)
Power Consumption (Pump)	6W (max)
Weight (Net)	Approx. 1.1 kg
Materials	Copper base plate, aluminum radiator, rubber tubes
Warranty	3 years limited (varies by region)
Installation	Easy to install with included mounting brackets for Intel and AMD
Maintenance	Sealed design, no refill needed; clean radiator and fan periodically with compressed air
Safety	Complies with CE, FCC-B, and RoHS; pump operates at safe voltage (12V DC)
Spare Parts Availability	Replacement fans and mounting kits available from MSI support

Frequently Asked Questions - MAG CORELIQUID B120 MSI

What sockets are compatible with the MSI MAG CORELIQUID B120?

The cooler supports Intel LGA 2066, 2011, and 1700, as well as AMD AM5, AM4, and AM3 sockets. Check the included mounting hardware for your specific socket.

How do I install the MAG CORELIQUID B120?

Installation involves attaching the backplate, mounting brackets, and then the pump/radiator assembly. Refer to the manual for step-by-step instructions. Ensure thermal paste is applied properly.

Can I use this cooler with an Intel LGA 1700 CPU?

Yes, the MAG CORELIQUID B120 includes mounting brackets for LGA 1700. Ensure you use the correct standoffs and screws provided in the package.

What is the fan speed range and noise level?

The 120mm fan operates at 500-2000 RPM via PWM, delivering up to 78 CFM airflow with a maximum noise level of 36 dBA. The pump is quieter at under 20 dBA.

How do I connect the pump and fan to the motherboard?

Connect the pump 3-pin connector to the CPU_OPT or AIO_PUMP header, and the fan 4-pin PWM connector to the CPU_FAN header. Ensure proper orientation.

Does the MAG CORELIQUID B120 require maintenance?

The cooler is sealed and maintenance-free. Periodically clean the radiator and fan from dust using compressed air. Do not attempt to open the pump or refill coolant.

What is the radiator size and thickness?

The radiator is 120mm x 120mm with a thickness of 27mm. Ensure your case has a 120mm fan mount for optimal installation.

Can I replace the fan with a different one?

Yes, you can replace the fan with any standard 120mm x 25mm fan. Ensure it uses a 4-pin PWM connector for speed control.

What is the warranty period for this cooler?

MSI offers a limited 3-year warranty, but terms may vary by region. Contact local MSI support for exact warranty details.

Where can I download the software user guide?

The software user guide can be accessed at https://msii.gm/DC-manual. It provides details on RGB control and fan profiles.

USER MANUAL MAG CORELIQUID B120 MSI

The warranty term differs from one region to another. If you would like to verify the warranty term of the product bought, please kindly contact our local offices.

Black-and-white illustration of a spiral fan with internal blades, enclosed in a square frame (no text or symbols)

B x1 (120) x2 (240)

Simple line drawing of a four-pronged metal bracket with mounting holes (no text or symbols)

Technical line drawing of a mechanical bracket or bracket (no text or symbols)

1x2

Jx4

Kx4

L×4

Mx4

A

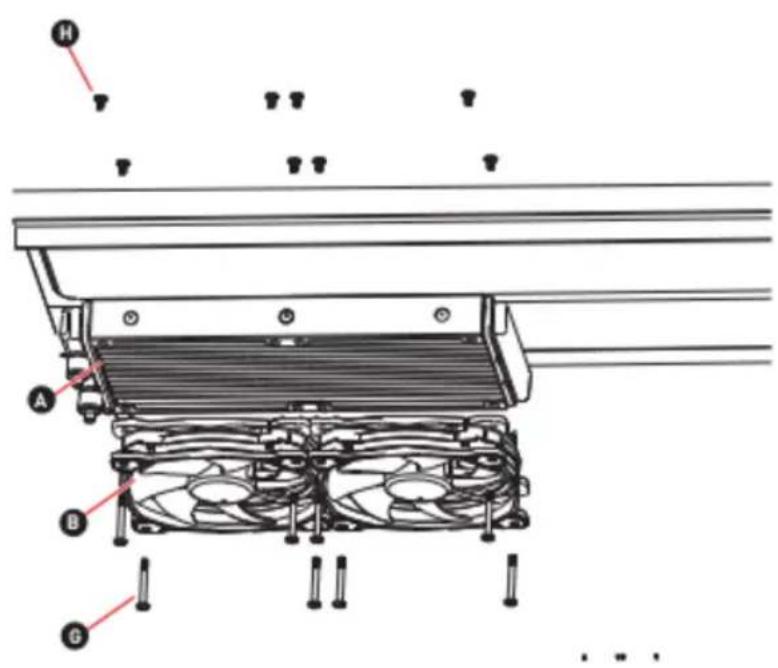

Installation

Installieren \ Installation \ Установка \ Instalacja \ Instalação \ Instalação \ Instalación \ Kurulumu \ Installation \ Installeren \ Installasjon \ Instalace \ Eykará otoon \ Installation \ Asennus \ Üzembe helyezés \ Installazione \ Ophary \ 安装 \ 安装 \ 設置 \ 尘치 \ Láp dát \ ภาษาอัลบั้ง \ Penginstalan \ Установка \ Instalare \ Instalácie \ Instalacija \ Инсталация \ Instalēšana \ Instalacija \ Namestitev \ Montavimas \ Instalacija \ Installimine \ ईनगोंल करा \ इस्टौलेशन \

Intel 2066 \ 2011 CPU

Intel 1700 CPU

AMD AM5 \AM4 \AM3 CPU

Connection

Verbindung \ Connexion \ Подключение \ Potączenie \ Ligação \ Conexiao \ Conexión \ Bağlanti \ Forbindelse \ Verbinding \ Tilkobling \ Pripojeni \ Šüvðezan \ Anslutning \ Liitántá \ Csatlakozás \ Connessione \ Kocyslym \ 連接 \ 连接 \ コネクター \ 연결 \ Kēt nōi \ nāsākēlānka \ Sambungan \ Pīdkлючения \ Conexiune \ Pripojenie \ Povezivanje \ Bṛṣṭka \ Savienojums \ Veza \ Povezava \ Prijungimas \ Veza \ Ühenda mine \ sārāyāgān \ kānāvekān\

Anpsal \ (pslanpa)

Download

Her unter laden \ Télécharger \ Ckaçanb \ Pobierz \ Transferir \ Descarregamento \ Descargar \ Indir \ Download \ Downloaden \ Lastned \ Stähnout \ Aniyn \ Ladda ned \ Lataa \ Letöltés \ Download \ Жукrey \ 下載 \ 下載 \ ダウンロード \ 大운로드 \ Tái vě \ 1759 yinlás \ Unduh \ Заванажиги \ Descárcare \ Stiahnutie \ Preuzimanje \ Изтеляне \ Lejupieládět \ Preuzmi \ Prenos \ Atsisiústi \ Preuzimanje \ Alla laadimine \ भांतिनलाड़ करन \ ट्रामलोट \

https://msii.gm/DC-manual

Software user guide

Software-Benutzerhandbuch \ Guide d'utilisation du logiciel \ Руководство пользователя программного обеспечения \ Podręcznik użytkownika oprogramowani a \ Manual do software para o utilizador \ Guia do usuário do software \ Guia del usuario de software \ Yazium kullanım kitavuzu \ Brugsvejledning til software \ Softwarehandleiding \ Brukerveiledning for programware \ Uživatelská uliculba \ Software\ Obudie vandeu kluwazu\ \ Brukerveiledning for programware

Regulatory Notices

CE Conformity

CE Products bearing the CE marking comply with one or more of the following EU Directives as may be applicable: RED 2014\53\EU; Low Voltage Directive 2014\35\EU; EMC Directive 2014\30\EU; RoHS Directive 2011\65\EU.

Compliance with these directives is assessed using applicable European Harmonized Standards.

The point of contact for regulatory matters is MSI, MSI-NL Eindhoven 5706 5692 ER Son.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.

KC인증서

R-R-MSI-MS-7ZW3

상호:(주)엠에스아이코리아

제품명:Water Cooler

모델명:MS-7ZW3

제조년월:2022년

제조자 및 제조국가:MSI\중국

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907;2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

https://car.msi.com/global/index

WEEE (Waste Electrical and Electronic Equipment) Statement

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that... Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

https://car.msi.com/bw/japan-JIS-C-0950-Material-Declarations

India RoHS

This product complies with the "India E-waste (Management and Handling) Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Green Product Features

• Reduced energy consumption during use and stand-by
• Limited use of substances harmful to the environment and health
• Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

• The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
• Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.
• Visit the MSI website and locate a nearby distributor for further recycling information.
• Users may also reach us at gpcontdevidmsi.com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products.
