Product Type	Professional Tripod
Model	Master 30
Brand	Cartoni
Maximum Load Capacity	30 kg (66 lbs)
Material	Aluminum alloy legs, steel spreader
Leg Sections	3
Leg Lock Type	Flip lever
Minimum Height	50 cm (19.7 in)
Maximum Height	175 cm (68.9 in)
Weight	8.5 kg (18.7 lbs)
Spreader	Adjustable mid-level spreader
Leveling	Bubble level on base
Feet	Rubber with retractable spikes
Head Mount	100 mm bowl or flat base
Temperature Range	-40°C to 60°C (-40°F to 140°F)
Cleaning	Wipe with damp cloth, dry thoroughly
Warranty	Limited 5 years

Frequently Asked Questions - Master 30 Cartoni

What is the maximum payload of the Cartoni Master 30 tripod?

The Master 30 supports up to 30 kg (66 lbs), suitable for professional cameras and lenses.

Does the Master 30 tripod come with a fluid head?

No, the Master 30 is a tripod only. It has a 100 mm bowl for mounting a fluid head separately.

How do I adjust the leg height?

Each leg has flip lever locks. Unlock, slide to desired height, and lock securely.

Can I use the tripod on uneven ground?

Yes, the legs feature retractable spikes for soft ground and rubber feet for hard surfaces, plus an adjustable spreader.

What is the weight of the Master 30 tripod?

It weighs approximately 8.5 kg (18.7 lbs), robust yet manageable for field use.

How do I clean and maintain the tripod?

Use a damp cloth to wipe legs and spreader. Avoid solvents. Dry completely before storage.

Is the spreader included?

Yes, an adjustable mid-level spreader is included for stability.

What is the collapsed length?

When folded, the tripod measures approximately 85 cm (33.5 in).

Can I replace damaged leg parts?

Yes, Cartoni offers spare parts for legs, locks, and feet. Contact authorized service.

Is the tripod compatible with all fluid heads?

It fits heads with a 100 mm bowl or flat base adapter. Verify your head's connection.

USER MANUAL Master 30 Cartoni

USER'S MANUAL & Maintenance

CERTIFICATO N. CERTIFICATE No.

19714/09/S

SI CERTIFICA CHE IL SISTEMA DI GESTIONE PER LA QUALITÀ DI IT IS HEREBY CERTIFIED THAT THE QUALITY MANAGEMENT SYSTEM OF

CARTONI S.P.A.

VIA DI PORTONACCIO, 33/B 00159 ROMA (RM) ITALIA

NELLE SEGUENTI UNITÀ OPERATIVE / IN THE FOLLOWING OPERATIONAL UNITS

VIA DI PORTONACCIO, 33/B 00159 ROMA (RM) ITALIA

€ CONFORME ALLA NORMA / IS IN COMPLIANCE WITH THE STANDARD

ISO 9001:2015

PER I SEGUENTI CAMPI DI ATTIVITÀ / FOR THE FOLLOWING FIELD(S) OF ACTIVITIES

IAF:17 IAF:29

PROGETTAZIONE, FABBRICAZIONE ED ASSISTENZA POST-VENDITA DI PRODOTTI PER LA CINEMATOGRAFIA E LA TELEVISIONE PROFESSIONALE. COMMERCIALIZZAZIONE DI PRODOTTI ED ACCESSORI IN CONCESSIONE PER LA CINEMATOGRAFIA E LA TELEVISIONE PROFESSIONALE

DESIGN, MANUFACTURE AND POST-SALE ASSISTANCE OF PROFESSIONAL BROADCAST AND FILM EQUIPMENT. MARKETING OF PROFESSIONAL BROADCAST AND FILM ACCESSORIES AND PRODUCTS AS LOCAL AGENCY/REPRESENTATIVE

Prima emissione First Issue

Data scadenza Expiry Date

12.06.2009

02.06.2021

Rome Management System Certification, Head

SGQ N° 002 A

Mantre degli Accordi di Mutual Recomposamento YA, IAF a DAC Signatory of IA, IAF and DAC Mutual Recognition Agreements

All rights reserved ©

Manual Version: 1.0

Issue date: June 2019

1. INTRODUCTION

In Broadcast and Studio configuration the new CARTONI MASTER 30 Fluid Head covers the needs of sophisticated video shooters from 3 kg (6.6 lbs) to 30 kg (66 lbs).

With a low center of gravity (CG) configuration such as with Teleprompter, MASTER 30 holds 40 kg (88 lbs).

An exceptional new fluid module in both Pan and Tilt modes ensures smooth movements, with perfect starts and stops, the drag system allows a wide variety from almost freewheeling in fast action movements to maximum resistance for perfect long focal shoots.

The counterbalance performs perfect balance at any angle from 0 to +/- 90 degrees.

All operating knobs and levers are conveniently located and easy to reach with a special care for ergonomics.

The Head comes equipped with dual telescopic pan bars, illuminated spirit level and digital readouts for drag control and counterbalance settings.

Before using the MASTER 30 Fluid Head, please make sure to read this user's manual & maintenance;
Before installing the Fluid Head on the Tripod check the Tripod stability;

√ Check that the Camera payload (including lenses and accessories) is lower than the maximum capacity of the MAS-TER 30 Fluid Head;

Before installing the Camera make sure the MASTER 30 is in good conditions and bares no evident damages.

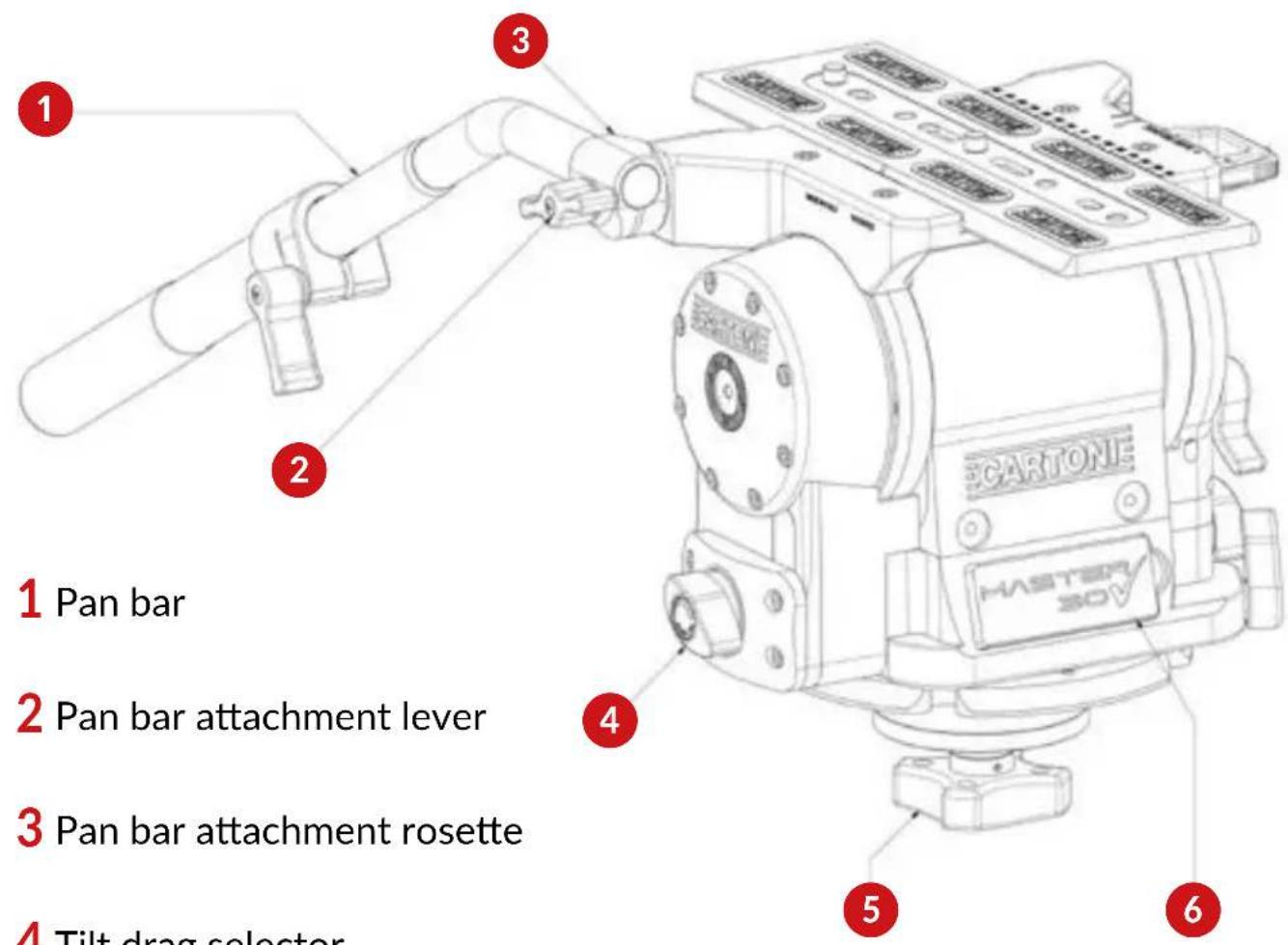

2. OPERATING ELEMENTS

4 Tilt drag selector

5 Tie-down knob

6 Battery housing

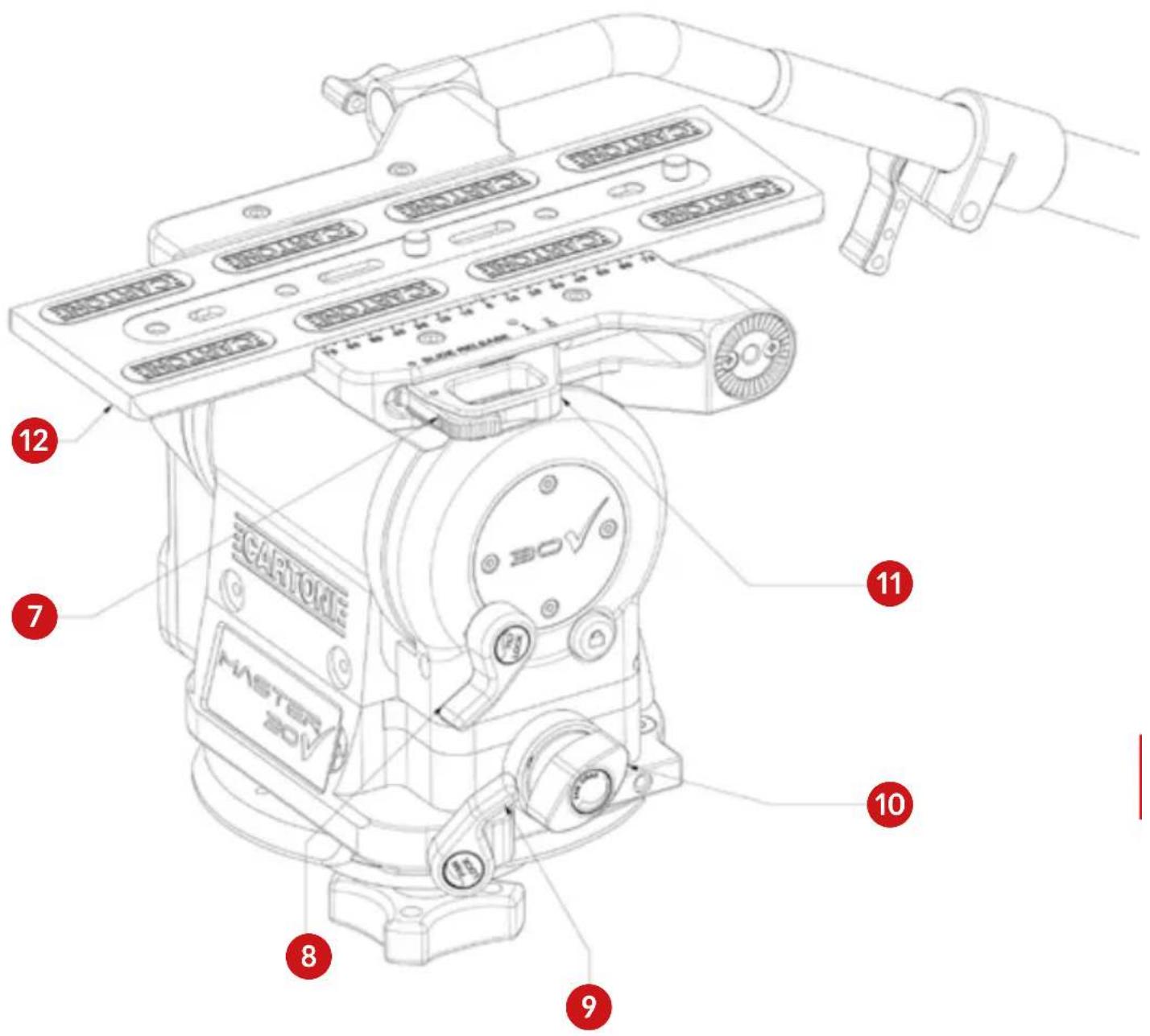

7 Safety button slide lock lever
8 Tilt lock lever
9 Pan lock lever
10 Pan drag selector
11 Slide lock lever
12 Camera plate

Simple line drawing of a cylindrical object with a curved cutout (no text or symbols)

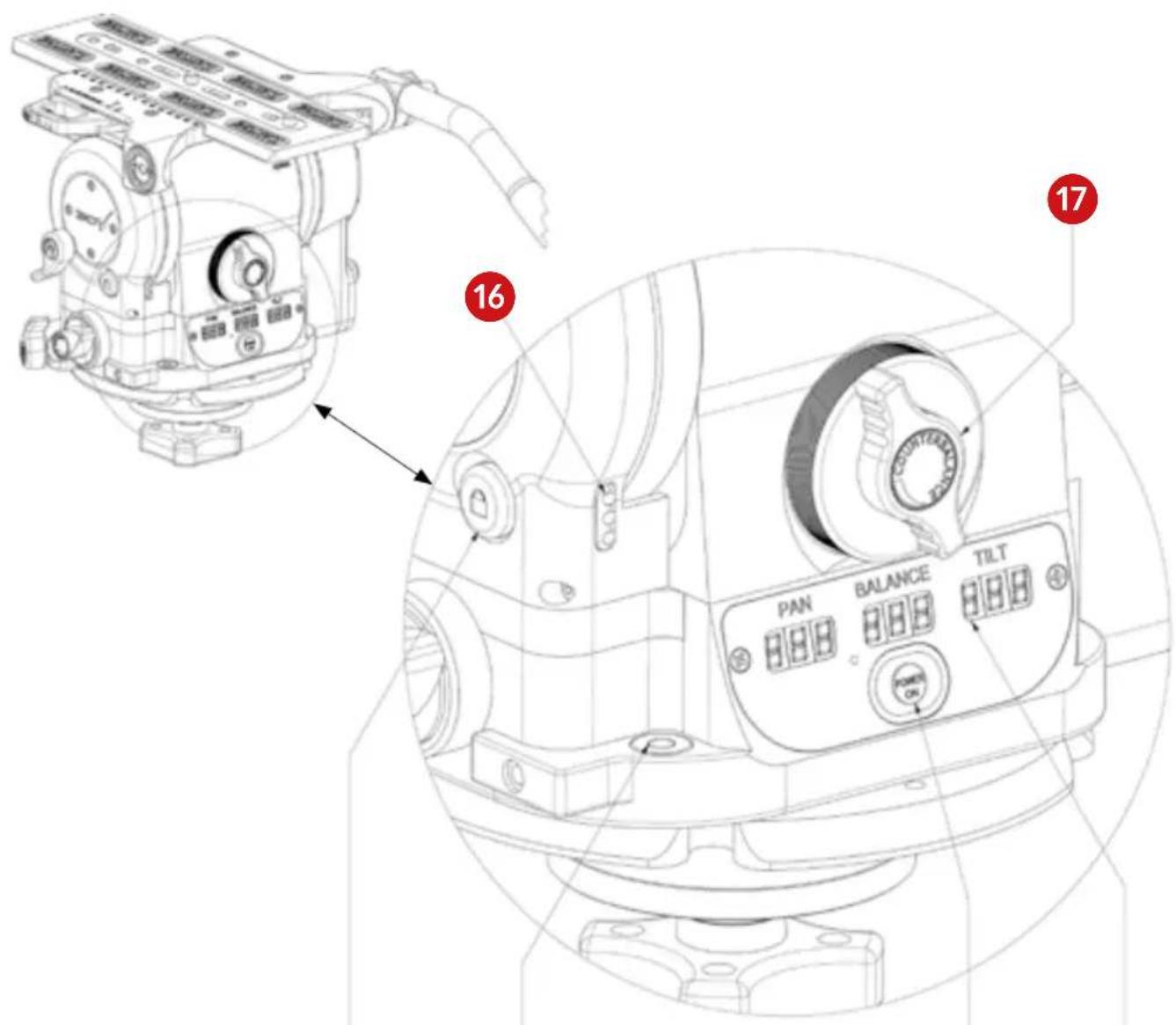

13 Illuminated bubble level
14 Illuminated bubble level and display light button
15 Digital display
16 Horizontal lock button (Off)
17 Counterbalance selector
18 Horizontal lock button (On)

18 13 15 14

3. PROCEDURES

√ Open the Tripod to the desired height and lock all safety knobs.
Place the MASTER 30 Fluid Head on the Tripod base and rotate until it matches the steel notch; tighten the Head firmly by screwing in the knob (5) underneath the flat base. Check the illuminated bubble level (13) and modify the legs angle if needed. In case of low visibility, press button (14) for illuminated bubble level and to activate the digital displays. Lights will turn off automatically after approximately 30 seconds.
√ Lock the horizontal position with button (18), insert pan lock (9) and turn both tilt drag selector (4) and counterbalance selector (17) to position "0".
√ To release the Camera plate (12) push the red safety button (7) and open the slide lock lever (11) completely till to position 2, then remove the Camera plate.
√ Attach the Camera plate under the Camera assembly and firmly secure it with both screws. Try to place the Camera plate centered under the Camera system, keeping in mind the position of the center of gravity (CG).
Place the Camera on the top of the MASTER 30, leaning sidewards against the left side of the Head (slide lock side), then push the assembly into horizontal position until you feel the click of the slide lock lever (11), which will be in position 1 (at this point the Camera plate is clamped but still moving fore-and-aft).

√ Holding the pan bar (1) firmly, disengage horizontal lock with button (16) and find the correct center of gravity (CG) sliding the Camera assembly fore-and-aft. Lock the slide lock lever (11) in position “0”.

√ Set the counterbalance system by turning the counterbalance selector (17) to the appropriate tension. The Camera has to stay still at any tilt angle. If needed, fine tune the balance by adjusting the sliding plate.

√ Push button (14) to activate illuminated digital displays, unlock Pan lock (9) and select the desired Fluid drag intensity on both Pan and Tilt by turning Pan selector (10) and Tilt selector (4).

4. SPECIFICATIONS

Minimum payload 3 Kg 6.6 lbs

Maximum payload 30 Kg 66 lbs

Weight 10,5 Kg 23.1 lbs

Bowl diameter Flat base

Fluid control Continuous

Counterbalance Continuous

Pan range 360^

Tilt range +/- 90°

Temperature range -40/+60 °C -40°/+140°F

5. MAINTENANCE

When needed, with indoor use just clean the Head and Tripod with a soft cloth. Dirt accumulated during storage may be removed using a brush or Air spray.

CARTONI products main mechanisms are sealed as they are also built for professional outdoor use.

However, use under rough conditions they will require special care. Salt water is very corrosive and can cause extreme damages. In attempt to avoid further damage the Fluid Head should be washed off with fresh water at the earliest opportunity and perfectly dried before storage.

Sand and dirt are abrasive and should be removed using a semi-stiff brush or Air spray.

Disconnect the illuminated display & bubble level battery during long term storage; for battery replacement access the battery compartment (6).

6. WARRANTY

All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your product at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty.

Tripods, spreaders, dollies and all accessories are guaranteed one (1) year from the date of first purchase/invoice.

CARTONI warrant that the product supplied will - under proper use -

be free from defects in workmanship and materials and agrees that it will, at its option, either repair or replace any defective part within duration of warranty from date of first purchase with no labour charge.

This warranty does not apply to any CARTONI product that has been damaged in shipping or handling, abused, misused, operated contrary to instructions for use, neglected, normal wear or tear, modified or changed in design or construction or serviced by unauthorized parties.

Repairs or misuse by any unauthorized parties will void this warranty.

Warranty claims must be submitted – in writing - to the factory for verification or to an authorized distributor/dealer designated by CARTONI.

It is the end user's responsibility when ordering to ensure that the products ordered conform to his requirements.

All freight of product to CARTONI must be prepaid. All implied warranties are limited to the time period set forth herein & subject to change without notice.

No liability can be accepted for any variation.

7. ACCESSORIES & PRODUCT LINE

For the complete Accessories list & Product line please visit CARTONI's official website www.cartoni.com.

Every product has an updated list of compatible items sorted by groups, with descriptions and technical data.
