MX-CP3121 - Blender PANASONIC - Free user manual and instructions

Product Type	Blender
Brand	Panasonic
Model	MX-CP3121
Jar Capacity	1.5 L
Jar Material	Glass
Blade Material	Stainless steel
Motor Power	700 W
Voltage	220-240 V
Frequency	50/60 Hz
Speed Settings	2 speeds + pulse
Functions	Blending, grinding, ice crushing
Safety Features	Lid lock, non-slip feet, overload protection
Dimensions (H x W x D)	380 x 200 x 180 mm
Weight	2.5 kg
Cleaning	Removable parts dishwasher safe
Warranty	2 years
Accessories	Measuring cup, recipe book

Frequently Asked Questions - MX-CP3121 PANASONIC

How do I clean the blender jar?

Remove the jar from the base. Wash the jar, lid, and blade assembly with warm soapy water or place them on the top rack of the dishwasher. Dry thoroughly before reassembly.

Can I crush ice with this blender?

Yes, the Panasonic MX-CP3121 is designed for ice crushing. Use the pulse function or high speed setting. Add ice cubes gradually.

What is the maximum capacity for hot liquids?

Do not blend hot liquids above 60°C to avoid pressure build-up. Allow liquids to cool before blending.

How do I replace the blade assembly?

Blade assembly is not user-replaceable. Contact Panasonic service center for replacement.

Why is the blender not starting?

Check that the jar is securely locked onto the base and the lid is closed. Ensure the power cord is plugged in and the outlet works. If still not starting, overload protection may be triggered: unplug and wait 15 minutes.

Can I use the blender for grinding coffee beans?

Yes, the blender can grind dry ingredients like coffee beans, nuts, and spices. Use short pulses to avoid overheating.

Is the jar microwave safe?

No, the glass jar is not microwave safe. Do not microwave the jar or any part of the blender.

What does the pulse function do?

Pulse function provides short bursts of power for chopping or mixing without continuous operation. Press and release the pulse button for controlled blending.

How do I prevent leaks?

Ensure the sealing ring is properly placed on the blade assembly. Tighten the jar onto the base firmly. Do not overfill beyond the max line.

Where can I find spare parts?

Spare parts such as jars, lids, and seals are available from Panasonic authorized dealers or online store. Use only genuine Panasonic parts.

USER MANUAL MX-CP3121 PANASONIC

Operating Instructions Blender

(Household Use)

Model No.

MX-CP3111

MX-CP3121

MX-CP3111 MX-CP3121

Thank you for purchasing this Panasonic product.

• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to "Safety Precautions" and "Important Information" (P. EN2 - EN4).
• Please keep this Operating Instructions for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, failure to comply with these instructions.

Contents

Safety Precautions....EN2 Important Information......EN4 Parts Names and Instructions....EN5 Before Use...... EN5 How to Use......EN6 Cleaning and Care......EN7 Safety Lock....EN7 Overload and Overheating Protection...... EN7 Troubleshooting ...... EN8 Specifications ...... EN8 Explanatory Data for Saudi Arabia ...... EN9

Safety Precautions

Please make sure to follow these instructions.

To reduce the risk of personal injury, electric shock or fire, please observe the following: ■ The following signals indicate the degree of harm and damage when the product is misused.

WARNING: Indicates potential hazard that could result in serious injury or death.

CAUTION: Indicates potential hazard that could result in minor injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, scalding or injury.

- Do not allow infants and children to play with packaging material. (It may cause suffocation.)

- Do not disassemble, repair or modify this appliance. → Contact Panasonic Service Centre for inspection or repair.

- Do not damage the power cord or power plug. Following actions are strictly prohibited: Modifying, touching on or placing near heating elements or hot surfaces, bending, twisting, pulling, hanging / pulling over sharp edges, putting heavy objects on top, bundling the power cord or carrying the appliance by the power cord.

- Do not allow infants and children to play with packaging material. (It may cause suffocation.) - Do not disassemble, repair or modify this appliance. → Contact Panasonic Service Centre for inspection or repair. - Do not damage the power cord or power plug. Following actions are strictly prohibited: Modifying, touching on or placing near heating elements or hot surfaces, bending, twisting, pulling, hanging / pulling over sharp edges, putting heavy objects on top, bundling the power cord or carrying the appliance by the power cord.

WARNING

• Do not plug or unplug the power plug with wet hands.
• Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

Insert the power plug firmly.

Do not immerse the motor housing, power cord or power plug in water, or splash it with water and/or any liquid.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep the appliance and its power cord out of reach of children. Dust off the power plug regularly.

Unplug the power plug, and wipe with a dry cloth.

Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal occurrences or breaking down

• The power plug or the power cord become abnormally hot. The appliance power fails.

The motor housing is deformed, has visible damage or is abnormally hot.

• There is crack on the blender jug or other parts. There is an unpleasant smell.
• There is abnormal turning noise while in use. There is another abnormality or failure.

Contact Panasonic Service Centre for inspection or repair.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply. Also avoid plugging other devices into the same outlet to prevent electric overheating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet. - Be careful if hot liquid is poured into the blender jug as it can be ejected out of the appliance due to a sudden steaming.

CAUTION

To avoid risk of electric leakage, electric shock, fire due to short circuit, scalding, injury or property damage.

- Do not use the appliance on the following places.

●On uneven surfaces, on carpets or tablecloths etc.

- Place where it may be splashed with water or near a heat source.

- Near any open water such as bathtubs, sinks, or other containers.

- Near a wall or furniture.

→ Place the appliance on a firm, dry, clean flat worktop.

Safety Precautions

Please make sure to follow these instructions.

CAUTION

• Do not blend or place over 60°C ingredients into the blender jug or mill container..
• Do not put any liquids or wet ingredients into the mill container.
• Do not open the lid and put your fingers or utensils such as spoon or fork into the blender jug while the appliance is operating.
• Do not stretch the gasket to avoid deforming.
• Do not replace any parts of the appliance with non-genuine spare parts.
• Do not carry the appliance by holding the power cord, blender jug or mill container.
• Do not insert any object in the gaps of the appliance.
• Do not allow children to use the appliance without supervision.
• Do not blend more than the working capacity marked on the blender jug. For the mill container, do not place more than the maximum quantity. (P. EN8 "Specifications")
• Do not use prohibited ingredients as stated in this instructions. (P. EN5)
• Do not push the safety lock pin with any implement, such as thin stick etc. (P. EN7)

● Unplug the plug when the appliance is not in use. ● Make sure to hold the power plug when unplugging it. Never pull on the power cord. ● Beware not to trip over or get caught in the power cord while in use. - In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. ● Care shall be taken when handling the sharp blades, emptying the blender jug, mill container and during cleaning. Do not clean the blender blade or mill blade by bare hand. ● Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, moving or cleaning. - Switch off the appliance and disconnect from supply before changing attachments or approaching parts that move in use. - Ensure to operate and rest the appliance as stated on specification table. (P. EN8 "Specifications") - Ensure to clean the appliance especially surfaces in contact with food after use. (P. EN7 "Cleaning and Care") ● This product is intended for household use only.

Important Information

• Do not use the appliance outdoors.
• Do not use the appliance for commercial purpose.
• Do not drop the appliance or attachments to avoid damaging it.
• Do not wrap the power cord around the motor housing.
• Make sure the parts or attachments are set firmly before use.
• Do not operate the appliance without ingredients.

- Be sure the blender gasket and mill gasket are attached properly to prevent leakage.

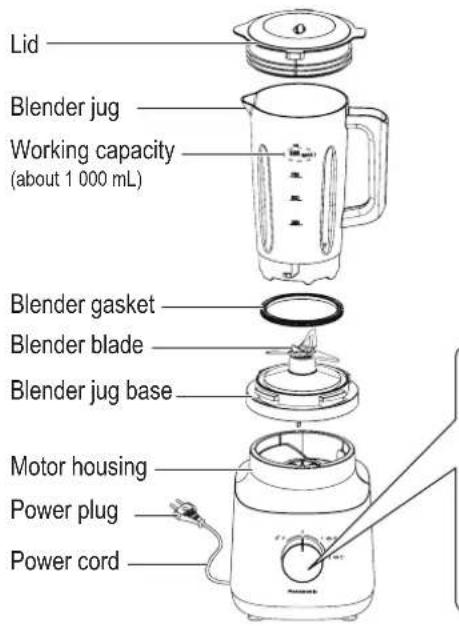

Parts Names and Instructions

Blender

Dry mill

Rotary switch

② High speed (continuous operation)

① Low speed (continuous operation)

0 OFF

P Pulse (the blade rotates only while the switch is being turned to "P" position)

- Repeatedly turn and release for intermittent rotation.

- Illustrations of product in this instructions are exemplified by MX-CP3111.

Before Use

Clean all detachable parts before using the appliance for the first time or when you have not used it for a while, and then assemble them securely. (P. EN6 "How to Use" and P. EN7 "Cleaning and Care")

Blender

The blender is intended for

• Blending fluids (e.g. fruit / vegetable juices, smoothie, soups, sauce) • Pureeing cooked ingredients (e.g. for baby foods)

Prohibited Ingredients

• Meat, Fish • Commercial ice cubes • Hard ingredients (e.g. dried beans, turmeric, frozen food) • Sticky ingredients (e.g. peanut butter)
• Ingredients with low water content (e.g. boiled potatoes)

Handling Precautions

• Dice food first (1 - 2 cm), remove the thick skin, core or seed from fruits and vegetables, then blend with liquid.
• Do not place ingredients with a maximum total volume exceeding 1 000 mL in the blender jug.
• Do not operate more than 3 minutes at one time, rest about 1 minute before use again.
• When blending milk or other easily foaming ingredients, if the ingredients overflow from the lid, please reduce the amount or total amount of milk.

Dry mill

The dry mill is intended for

- Grinding dry ingredients e.g. pepper, dried chilies, coffee beans, dried soy beans, dried peas, sesame seeds, rice, wheat, nuts (shelled), breadcrumbs.

Note: Do not put any liquids or wet ingredients into the mill container.

Guidelines of Maximum Quantity to be Placed in Mill Container

Foods	Maximum Quantity	Functions	Time
Pepper	50 g	Speed 2	60 seconds
Dried chilies	50 g	Speed 2	60 seconds
Coffee beans	50 g	Speed 2	60 seconds

Handling Precautions

• Do not place any ingredients more than 50 g in the mill container.
• Do not operate for more than 1 minute; rest about 2 minutes before using again.

How to Use

Blender

To disassemble

Turn clockwise

To assemble

Turn anticlockwise

1. Place the ingredients into the blender jug, and then close the lid.

- Pour liquid first, followed by soft ingredients and then others. (i) Liquid (ii) Soft ingredients (iii) Hard ingredients (iv) Ice cubes

2. Attach the blender jug to the motor housing.

① Align the ▲ on the motor housing with the ▽ on the blender jug base. ② Twist the blender jug clockwise until you hear a click sound. - The blender jug can only be attached by following the above steps.

3. Plug in. Hold the blender jug, and then turn the rotary switch to "1" or "2" position to start.

- If the appliance stops during operation. (P. EN8)

4 When blending is completed, turn the

rotary switch to "0" position to switch off. Unplug.

Turn the blender jug anticlockwise to remove it, open the lid and take out the ingredients.

Dry mill

To disassemble

Turn anticlockwise

To assemble

Turn clockwise

1 Turn the mill container upside down and place the ingredients in it. Twist the mill container base clockwise until you hear a click sound.

2 Attach the mill container to the motor housing.

① Align the ▲ on the motor housing with the ▽ on the mill container. ② Twist mill container clockwise until you hear a click sound. - Mill container only can be attached by above steps.

3 Plug in. Hold the mill container, and then turn the rotary switch to "1" or "2" position to start.

- If the appliance stops during operation. (P. EN8)

4 When grinding is completed, turn the rotary switch to "0" position to

switch off. Unplug.

Turn the mill container anticlockwise to remove it, open the mill container, and take out the ingredients.

Cleaning and Care

• Unplug before cleaning. - Clean the parts thoroughly after every use. Keep all parts clean and dry always. - Do not wash any part of the appliance in the dishwasher. - Do not use benzine, thinner, bleach, alcohol, nylon face of sponge, metal brushes or polish powder etc. - Some discoloration of the plastic parts may occur upon usage but it does not affect usage.

Blender jug prewash

Add 400 mL clean water into the blender jug, plug in and blend for about 1 minute.

Containers and other parts

Wash each part in cold or lukewarm water with a soft sponge.

Carefully clean blades with a brush.

Rinse and dry thoroughly.

(Brush is not provided.)

Storing

• Assemble the mill container base with the mill container. • Dry the lid thoroughly, then keep it separately.

Mill Blade

Carefully clean blades with a brush. Do not use water. (Brush is not provided.)

Motor housing

Wipe motor housing with a damp cloth.

Safety Lock

The safety lock has been designed to prevent the blender from switching on when blender jug or mill container is not properly in place.

Safety lock pin

Overload and Overheating Protection

In case of overload and overheating, the protection device is triggered to stop operation and it is not abnormal. After rotation stops, follow the below steps:

- Do not use the appliance repeatedly without any countermeasure.

1 Turn the rotary switch to "0" position, unplug the appliance. 2 Remove blender jug or mill container from motor housing. Reduce the ingredients to less than half. (For blender jug, it also can add liquid.)

- Remove the prohibited ingredient if used.

3 Reset the blender jug or mill container, start blending again. (P. EN6)

If the appliance still does not operate after performing the above, overheating protection has been activated.

Turn the rotary switch to "0" position, unplug and rest the appliance for about 15 minutes or more (until motor housing returns to a normal temperature) to release overheating protection before using again.

(If appliance still does not operate, contact Panasonic Service Centre for inspection or repair.)

EN7

Troubleshooting

Before calling for service, please check through this section.

	Problem Cause	d Action
Blender & Dry mill	Even turn to "1" or "2" position, the appliance does not start blending.	The blender jug / mill container is not set properly.→ Make sure to align the marks on blender jug base / mill container and motor housing, then twist it firmly until you hear a "click" sound.The blender jug base / mill container base is not assembled tightly.→Assemble it tightly. (P. EN6)The protection device of overload or overheating is activated.Refer to "Overload and Overheating Protection" for inspection. (P. EN7)The power plug is disconnected.→Insert the power plug into outlet firmly.
	Rotation stops abruptly.	The protection device of overload or overheating is activated.Refer to "Overload and Overheating Protection" for inspection. (P. EN7)
	There is abnormal noise or vibration increases.	Too much ingredients.Reduce ingredient amount.The blender jug base / mill container base is not assembled tightly.→Assemble it tightly. (P. EN6)
	The ingredient is leaking.	The blender jug base / mill container base is not assembled tightly.→Assemble it tightly. (P. EN6)The blender gasket / mill gasket is not attached or attached loosely.→Attach it properly.Foreign matters are attached to the blender gasket / mill gasket.→Remove them.The blender gasket / mill gasket is damaged.Contact Panasonic Service Centre to replace it.
Blender	The blade is idling.	The liquid amount is not enough.Add more liquid.Too much ice cubes. (e.g. juice with a lot of ice)Remove blender jug after rotation stops completely.Shake the blender jug gently.

Specifications

		When the blender is used When	the dry mill is used
Power supply 220 - 240 V		~ 50 - 60 Hz
Power consumption 290 - 330 W
Rated time		Continuous operation (Repeat the cycle of 3 minutes ON and then 1 minute OFF)	Continuous operation (Repeat the cycle of 1 minute ON and then 2 minutes OFF)
Working capacity (approximately)		1 000 mL	50 g
Dimensions (approximately)	W 15.8 cm 15.8 cm
	D 17.5 cm 17.5 cm
	H 36.7 cm 25.5 cm
Mass (approximately)		1.6 kg	1.4 kg

Explanatory Data for Saudi Arabia

Safety Warnings for Use:

Read the operating instructions carefully for safe use.

Disposal of the Product:

If you wish to discard the product, please contact your local authorities or dealer and ask for the correct method of disposal.

Country of Origin: China

Distributed by:

●Lulu Saudi Hypermarkets LLC 30th Cross King Fahad Abdul Aziz Street, P.O. Box 248, Al Khobar 31952, Saudi Arabia

●AFAQ QTECH General Trading Co LLC

Building No 3627, Shopping Front Project, 8166 King Khaled International Airport Road, Postal Code 13413, Riyadh, Saudi Arabia

●United Electronics Company

P.O. Box 76688 KSA-1, Khobar 31952, Saudi Arabia

● Ahmed Abdulwahed Abdullah Anam & Partners Co.

Al Amal Plaza, P.O. Box 3611 Hail Street, Jeddah 21481, Saudi Arabia

By pulsing. Keep the mixing bowl

Turn to off

.

Disconnecting from the outlet

Turn the grinding bowl

counterclockwise

until it detaches, then open the

grinding bowl,

and remove the contents from the

bowl.

Remove the contents.

40

Position "0" to stop

operation.

Chapter.

Manufacturer: Panasonic Manufacturing (Xiamen) Co., Ltd.

NO.17 Chuangxin Road, Torch Hi-tech Industrial Development Zone, Xiamen, Fujian, China

Jebel Ali Dubai United Arab Emirates

* For GSO Member Countries

© Panasonic Manufacturing (Xiamen) Co., Ltd. 2024

Printed in China
