USER MANUAL PL80 PURPLE SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG / FRE / T.CHI / IND / ARA / THA / PER

Contents

Health and safety

information...... 2

Camera layout 4

Setting up your camera ..... 5

Unpacking 5

Inserting the battery and

memory card 6

Charging the battery 7

Selecting options 7

Capturing photos or videos ... 8

Playing files 9

Transferring files to a PC

(Windows) 10

Specifications 11

1

8

7

15

12

37

20

62

93

90

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

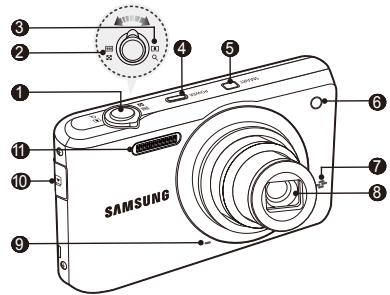

Camera layout

3 2 4 5 1 11 10 9 SAMSUNG 6 7 8

① Shutter button
② Zoom W Lever (Thumbnail)
③ Zoom T Lever (Digital zoom)
4 POWER button
5 Smart button
⑥ AF-assist light/timer lamp
⑦ Speaker
⑧ Lens / Lens cover
9 Microphone
10 USB / AV / DC terminal
11: Flash

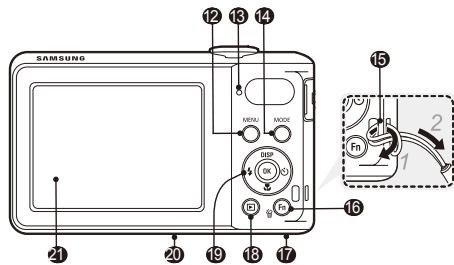

SAMSUNG 21 20 19 18 17 16 15 14 13 12 11 10 SAMSUNG MOSI MOSI SEP OK C Ft Ft Ft 2 1 2

12 MENU button

13 Status lamp

14 MODE button

15 Strap eyelet

16 Fn/Delete button

17 Battery chamber cover

18 | Playback button

19 Navigation button/OK button

20 Tripod mount

21 LCD monitor

Setting up your camera

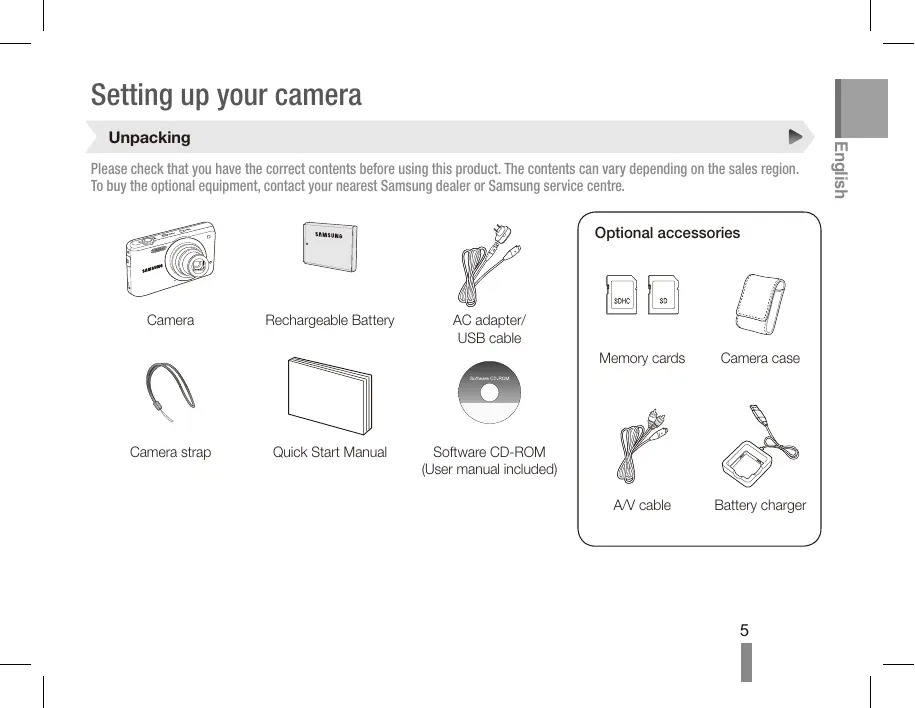

Unpacking

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Line drawing of a Samsung camera with no text or symbols on the body

Camera

Rechargeable Battery

AC adapter/ USB cable

Optional accessories

Memory cards

Camera case

Camera strap

Simple line drawing of a rectangular block with three parallel layers (no text or symbols)

Quick Start Manual

Software CD-ROM (User manual included)

A/V cable

Simple line drawing of a rectangular device with a coiled cable extending from its top (no text or symbols)

Battery charger

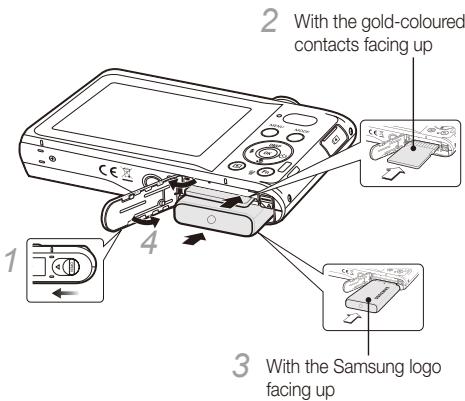

Inserting the battery and memory card

2 With the gold-coloured contacts facing up 3 With the Samsung logo facing up

▼ Removing the battery

Diagram of a car air vent with airflow arrows and control panel (no text or symbols)

▼ Removing the memroy card

Technical diagram of a mechanical assembly with no visible text or symbols

Push gently until the card disengages from the camera and then pull it out of the slot.

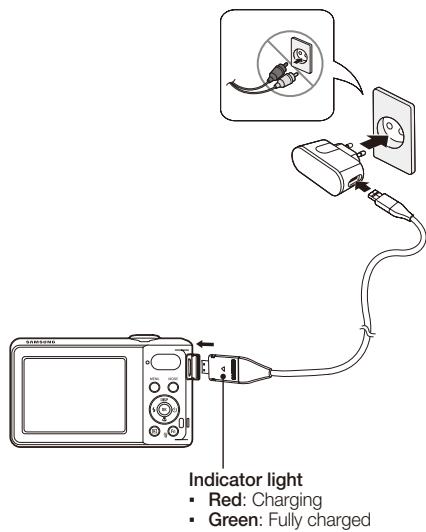

Charging the battery

Before using the camera for the first time, you must charge the battery.

Indicator light Red: Charging Green: Fully charged

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

12m 12m 1m 8m 5m 3m 1m Photo Size MENU Back Move

• To move left or right, press [⚡] or [💡].
• To move up or down, press [DISP] or [✿].

3 Press [OK] to confirm the highlighted option or menu.

- Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Press [MODE] to select (☐). (Press [SMART], [MODE] to select (☐).)

2 Align your subject in the frame.

3 Press [Shutter] halfway down to focus automatically.

- A green frame means the subject in focus.

Silhouette of a person holding a rectangular object, no text or symbols visible

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Press [MODE] to select ( ). (Press [SMART] to select ( SMART).)
2 Align your subject in the frame.
3 Press [Shutter]. - Press [OK] to pause or resume.
4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
12m	4000 x 3000	168	238	362
^1 Mn	3984 x 2656	195	267	407
^1 Mn	3968 x 2232	229	305	477
8m	3264 x 2448	244	326	514
5m	2592 x 1944	362	489	699
3m	2048 x 1536	543	674	752
1m	1024 x 768	978	1,086	1,222

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].

2 Press [⚡] or [💡] to scroll through files.

- Press and hold to view files quickly.

Silhouette of a person holding a pointer, no text or symbols present

Viewing videos

1 Press [▶].
2 Press [OK].

100-0002 00:00:11 OK Play Capture

3 Use the following buttons to control playback.

[⚡]	Scan backward
[OK]	Pause or resume playback
[💡]	Scan forward
[Zoom] left or right	Adjust the volume level

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Diagram showing a camera connected to a computer monitor via cable (no text or symbols present)

Disconnecting safely (for Windows XP)

EN® 10:00 AM Click Safely remove USB Mass Storage Device - Drive(H): EN 10:00 AM Click

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100PHOTO.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	Type: 1/2.3" (approx. 7.81 mm) CCDEffective pixels: approx. 12.2 mega-pixelsTotal pixels: approx. 12.4 mega-pixels
Lens	Focal length: Samsung lens f = 5.1 - 25.5 mm (35 mm film equivalent: 28.2 - 141 mm)F-stop range: F3.4 (W) - F5.9 (T)
Display	2.7" (6.86 cm) 230 K, TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF, Tracking AF)
Shutter speed	Smart Auto : 1/8 ~ 1/2,000 sec.Program : 1 ~ 1/2,000 sec.Night : 8 ~ 1/2,000 sec.Fireworks : 2 sec.
Storage	Internal memory: approx. 86 MBExternal memory (Optional): SD card (up to 4 GB guaranteed),SDHC card (up to 8 GB guaranteed)Internal memory capacity may not match these specifications.
DC power input connector	4.2 V
Rechargeable battery	BP70A
Dimensions (W x H x D)	96.8 × 57.5 × 20.2(18.9) mm (excluding protrusions)
Weight	120.3 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

Sommaire

19 Touche Navigation/Touche OK

20 Fixation du pied

21 Ecran LCD

Line drawing of a Samsung digital camera with no text or symbols on the body

Appareil photo

Batterie rechargeable

Simple line drawing of a rectangular block with three parallel layers (no text or symbols)

Simple line drawing of a square electronic device with a coiled cable (no text or symbols)

Diagram of a car air vent with airflow arrows and control panel (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Diagram showing cable connection between a camera and a plug, with an electrical socket diagram nearby.

Voyant lumineux

• Rouge: en charge
• Vert: rechargé

Silhouette of a person holding a rectangular object, no text or symbols present

Silhouette of a person holding a pointer, displayed within a play button interface (no text or symbols on the figure itself)

Diagram showing a digital camera connected to a computer via cable (no text or symbols present)

EN 10:00 AM Cliquez

Safely remove USB Mass Storage Device - Drive(H:) Cliquez EN 10:00 AM

Line drawing of a Samsung camera with no visible text or symbols on the body

相機

充電電池

交流電轉接器/ USB 纜線

選購配件

記憶卡
相機套

相機帯

Simple line drawing of a rectangular block with three parallel layers (no text or symbols)

快速入門手冊

軟體光碟 (含使用手冊)

A/V 纜線

Line drawing of a square electronic device with a coiled cable (no text or symbols)

充電器

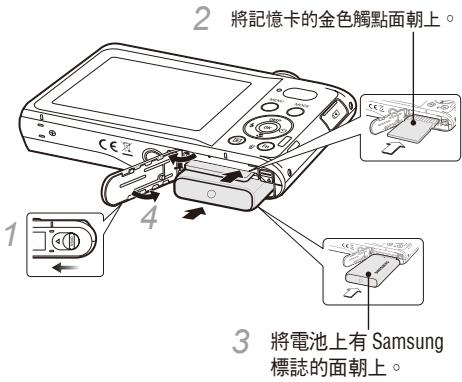

插入電池和記憶卡

Diagram of a car air vent with airflow arrows and control panel (no text or symbols)

▼ 取出記憶卡

Technical diagram of a mechanical assembly with no visible text or symbols

Diagram showing cable connection between a camera and a power outlet, with an instructional diagram illustrating the cable's application.

指示燈亮起

• 紅色：充電
• 綠色：電池已充滿電

使用觸控式螢幕

Silhouette of a person holding a rectangular object, no text or symbols present

4 將 [快門] 全部按下，即可拍照。

錄製影片

Silhouette of a person raising one finger, no text or symbols present

檢視影片

Diagram showing a camera connected to a computer via cable, with a separate monitor on the right (no text or symbols present)

安全斷開連接 (Windows XP)

按一下 Safely remove USB Mass Storage Device - Drive(H:) 按一下

Mentransfer file ke PC

(Windows) 10

Spesifikasi 11

1

8

7

15

12

37

20

62

93

90

Line drawing of a Samsung digital camera with no text or symbols on the body

Kamera

Baterai isi ulang

Adaptor AC / Kabel USB

Tali kamera

Simple line drawing of a rectangular block with three horizontal lines, no text or symbols present.

Panduan Cepat

Simple line drawing of a rectangular device with a coiled cable and connector (no text or symbols)

Charger baterai

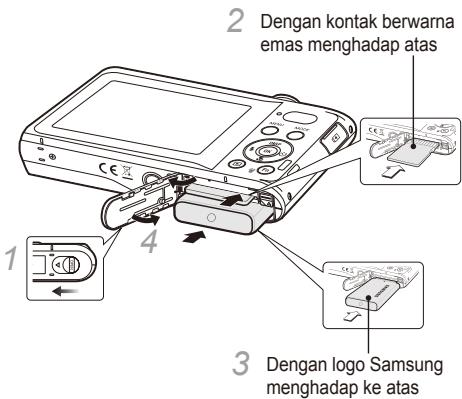

Memasukkan baterai dan kartu memori

Diagram of a car air vent with airflow arrows and control panel (no text or symbols)

▼ Mengeluarkan kartu memori

Technical diagram of a mechanical assembly with no visible text or symbols

Diagram showing cable connection between a camera and a plug, with an electrical socket diagram nearby.

Lampu indikator

Silhouette of a person holding a rectangular object, no text or symbols present

Silhouette of a person raising one finger, wearing casual clothing (no text or symbols)

Melihat video

Diagram showing a camera connected to a computer via cable, with a close-up of the device's cable being inserted (no text or symbols present)

Simple line drawing of a square electronic device with a coiled cable (no text or symbols)

شاحن البطارية

A/V كبل

Simple line drawing of a rectangular block with three parallel layers (no text or symbols)

دليل التشفيل السريع

Line drawing of a Samsung digital camera with lens and control buttons (no text or symbols on body)

الكاميرا

hzرام الكاميرا

تصميم الكاميرا

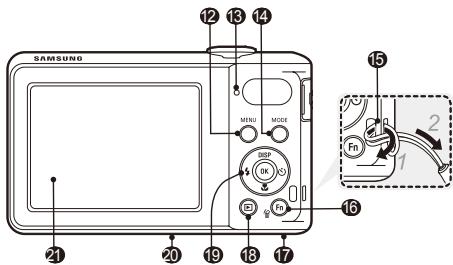

SAMSUNG MENU MODE 12 13 14 15 2 1 20 19 18 17 16

Silhouette of a person raising one finger, wearing casual clothing (no text or symbols)

الثقاط صور أو فيديو

تسجيل فيديو

( ) ل baking [MODE] اضغط 1

(.(SMART) لاختيار [SMART] ا Compact)

(. SMART) ل baking [MODE], [SMART] ا Compact

2

Silhouette of a person holding a rectangular object, no text or symbols present

Diagram showing a camera connected to a computer via cable, with no visible text or symbols

قم بتشغيل الكاميرا.

Line drawing of a Samsung camera with no text or symbols on the body

กล้อง

Simple line drawing of a rectangular block with three parallel layers (no text or symbols)

Line drawing of a handheld electronic device with a coiled cable and square base (no text or symbols)

Diagram of a car interior showing airflow or movement arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Silhouette of a person holding an object, no text or symbols visible

Silhouette of a person raising one finger, wearing casual clothing (no text or symbols)

การดูวิตีโอ

1 กต [▶].
2 กต [OK].

100-0002 00:00:11 OK

Diagram showing a digital camera connected to a computer via cable, with a close-up of the device's cable (no text or symbols present)

Line drawing of a rectangular device with a coiled cable extending from its top, no text or symbols present.

شارژر باتری

Simple line drawing of a rectangular block with three parallel layers (no text or symbols)

Line drawing of a Samsung digital camera with lens and screen (no text or symbols)

دوربين

بند دوربين

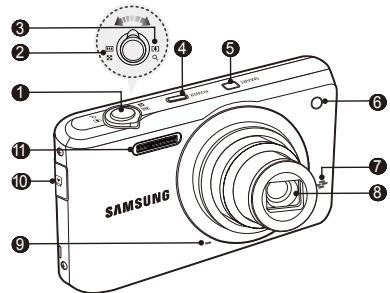

شکل ظاهری دوربين

SAMSUNG 12 13 14 MENU MODE SDF OK SD PM 16 21 20 19 18 17 15 2 1

12
13
14
15
16
17
18
19
20
21

SAMSUNG

Diagram of a device interior showing a door handle and control panel (no text or symbols)

Technical line drawing of a mechanical assembly or component (no visible text or symbols)

Silhouette of a person pointing upward, no text or symbols present

Silhouette of a person pointing upward, with no visible text or symbols on the figure itself

Diagram showing a camera connected to a computer monitor via cable (no text or symbols present)

Please refer to the warranty that came with your product or visit our website http://www.samsungimaging.com/ for after-sales service or inquiries.

AD68-04834A (1.0)
