USER MANUAL Voyager E600 (2011) Swift

Swift Group, Dunswell Road, Cottingham, East Yorkshire | IU16 4JS.

Tel: [phone] Fax: [phone]

email: [e-mail]

www.swiftgroup.co.uk

1091962

Issued February 2011

Black-and-white landscape photo of a vast grassland with rolling hills under a cloudy sky (no text or symbols visible)

Voyager / E600 Series

Specification, wiring diagrams and bulb chart

Plain gray square with a white rounded border (no text or symbols)

contents

Standard Specifications 2

Optional Specifications 3

Capacities 4

Towing Capabilities 5

Jacking 6

Wiring Diagrams 7

Bulb Replacement 13

Standard Specifications

Model Voyager 630EK / E630 Voyager 680FB /	E660 Voyager 695EL / E695
Roof Profile Low Line Low Line High Line
Engine Fiat '130 MultiJet' diesel Fiat '130 MultiJet	diesel Fiat '130 MultiJet' diesel
Enginc Capacity 228/cc 228/cc 228/cc
Engine Power 130chp @ 3600rpm	130bhp @ 3600rpm	130bhp @ 3600rpm
Torque	320Nm @ 2000rpm	320Nm @ 2000rpm	320Nm @ 2000rpm
Chassis	Flat Chassis Cab	Flat Maxi Chassis Cab	Flat Maxi Chassis Cab
Wheel base	3.60m/ 12' 6"	4.04m/ 13' 3"	4.04m/ 13' 3"
Designated Passenger Seats	1	3	3
Berths (sleeping positions)	2	4	4
Overall Length (no ladder)*	6.82m/ 22' 4"	7.08m/ 23' 3"	7.08m/ 23' 3"
Overall Width (mirrors folded)	2.35m/ 7' 8"	2.35m/ 7' 8"	2.35m/ 7' 8"
Overall Height	2.95m/ 9' 8"	2.95m/ 9' 8"	3.05m/ 10' 0"
Maximum Technical Permissible Ladan Mass (A)	3500kg	4005kg	4005kg
Mass in Running Order (B) I	3231kg	3391kg 3464kg
Maximum User Payload (A-B)	269kg	614kg	5/1kg
Unlodon Weight	2975kg	3135kg 3208kg
Essential Habitation Equipment	10kg	10kg	10kg
Thermal Insulation Grade	THREE	THREE	THREE
Bed Sizes
Front Double	2.11m x 1.80m / 6'11" x 5'11"	2.13m x 1.53m / 1.05m / 7'0" x 5'0"/3'6"
Front Neanside Single	1.80m x 0.72m / 5'11 x 2'4
Front Offside Single	1.80m x 0.72m / 5'11 x 2'4
Rear Double		1.90m x 1.31m / 6'3" x 4'4"	2.11m x 1.77m / 6'11" x 5'10"
Rear Neanside Single			1.89m x 0.70m / 6'2" x 2'4"
Rear Offside Single			1.77m x 0.70m / 5'10" x 2'4"
Overcab Bed			1.91m x 1.37m / 6'3" x 4'6"

NOTE: 1. The Maximum User Payload includes: at the conventional load (this is the allowance for passengers)
b) essential habitation equipment (items and fluids required for safe and proper functioning of habitation equipment)
c) optional equipment (items available from the manufacturer over and above the standard specification)
d) personal effects (those items not covered by the above)
2. The Mass in Running Order is the mass of the unladen vehicle including a 75kg allowance for the driver plus engine coolants and 90% of the fuel tank, water tank and gas capacity.
3. PLEASE TAKE CARE TO ENSURE THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR GARWAN,
e.g. passengers, optional equipment, essential habitation equipment and personal effects, such as clothing, food, pets, bicycles, sailboards, sports equipment etc.
4. WARNING - UNDER NO CIRCUMSTANCES SHOULD THE MAXIMUM TECHNICAL PERMISSIBLE LADEN MASS OF THIS MOTOR CARAVAN BE EXCEEDED.
* For optional roof ladder (add 125mm)

Optional Specifications

Model Voyager 630EK / E630 Voyager 680FB / E660 Voyager 695EL
Roof Profile Low Line Low Line High Line
Engine Fat '160 MultiJet' diesel Auto Fat '160 MultiJet' diesel Auto Fat '160 MultiJet' diesel Auto
Engine Capacity 2999cc 2999cc 2999cc
Engine Power 157chp 157bhp 157chp
Torque 400Nm 400Nm 400Nm
Chassis	Flat Chassis Cab	Flat Maxi Chassis Cab	Flat Maxi Chassis Cab
Wheel base	3.80m/ 12' 6"	4.04m/ 13' 3"	4.04m/ 13' 3"
Designated Passenger Seats	1	3	3
Bertha (sleeping positions)	2	4	4
Overall Length (no ladder)*	6.82m/ 22' 4"	7.08m/ 23' 3"	7.08m/ 23' 3"
Overall Width (mirrors folded)	2.35m/ 7' 8"	2.35m/ 7' 8"	2.35m/ 7' 8"
Overall Height	2.95m/ 9' 8"	2.95m/ 9' 8"	3.05m/ 10' 0"
Maximum Technical Permissible Ladan Mass (A) 3500kg 4005kg 4005kg
Mass in Running Order (B) I	3298kg 3458kg 3531 kg
Maximum User Payload (A-B)	202kg	547kg	474kg
Unlodon Weight	3042kg 3202kg 3275 kg
Essential Habitation Equipment	10kg	10kg	10kg
Thermal Insulation Grade	THREE	THREE	THREE
Bed Sizes
Front Double	2.11m x 1.80m / 6'11" x 5'11"	2.13m x 1.53m / 1.56m / 7'0" x 5'0" x 3'0"
Front Neanside Single	1.80m x 0.72m / 5'11" x 2'4"
Front Offside Single	1.80m x 0.72m / 5'11" x 2'4"
Rear Double		1.90m x 1.31m / 6'3" x 4'4"	2.11m x 1.77m / 6'11" x 5'10"
Rear Neanside Single			1.89m x 0.70m / 6'2" x 2'4"
Rear Offside Single			1.77m x 0.70m / 5'10" x 2'4"
Overcab Bed			1.91m x 1.37m / 6'3" x 4'6"

NOTE: 1. The Maximum User Payload includes: a) the conventional load (this is the allowance for passengers)
b) essential habitation equipment (items and fluids required for safe and proper functioning of habitation equipment)
c) optional equipment (items available from the manufacturer over and above the standard specification)
of personal effects (those items not covered by the above)
2. The Mass in Running Order is the mass of the unladen vehicle including a 75kg allowance for the driver plus engine coolants and 90% of the fuel tank, water tank and gas capacity.
3. PLEASE TAKE CARE TO ENSURE THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR CARWAN,
e.g. passengers, optional equipment, essential habitation equipment and personal effects, such as clothing, food, pets, bicycles, sailboards, sports equipment etc.
4. WARNING - UNDER NO CIRCUMSTANCES SHOULD THE MAXIMUM TECHNICAL PERMISSIBLE LADEN MASS OF THIS MOTOR CARAVAN BE EXCEEDED.
* For optional roof ladder (add 125mm).

Capacities

Water Tank Capacities

	Fresh Water Tank	Waste Water Tank	Water Heater	Toilet Tank (Flushing)
Voyager / E600 Series 90 litre 68 litre 10 litre 0 litre

Gas Capacities

	Capacity
Voyager / E600 Series	2 x 7kg

The above are recommended gas bottle sizes

NOTICE

For technical data on the base vehicle please refer to manufacturer's handbook

Towing Capabilities

Voyager / E600 Series Towing Capabilities

Model Engine / Chassis MTPLM Permissible			Front Axle Load	Permissible Rear Axle Load	Recommended Maximum Trailer Weight	Gross Train Weight
Voyager 630EK / E630 130MJ (2.3L) /MLWB/ABS 3500kg 1850kg 2000kg 1600kg 5100kg
Voyager 630EK / E630 130MJ (2.3L) /MLWB/ABS 4005kg 2100kg 2400kg 1600kg 5605kg
Voyager 630EK / E630 160MJ (3.0L) /MLWB/ABS 3500kg 2100kg 2400kg 1600kg 5100kg
Voyager 630EK / E630 160MJ (3.0L) /MLWB/ABS/AUTO 4005kg 2100kg 2400kg 1600kg 5605kg
Voyager 680FB / E660	130MJ (2.3L) /LWB/ABS	4005kg	2100kg	2400kg	1600kg	5605kg
Voyager 680FB / E660	160MJ (3.0L) /LWB/ABS/AUTO	4005kg	2100kg	2400kg	1600kg	5605kg
Voyager 695EL / E695	130MJ (2.3L) /LWB/ABS	4005kg	2100kg	2400kg	1600kg	5605kg
Voyager 695EL / E695	160MJ (3.0L) /LWB/ABS/AUTO	4005kg	2100kg	2400kg	1600kg	5605kg

To ensure adequate road holding, the load on the front axle, under all conditions, must not be less than 40% or more than 70% of the total weight.

Care must be taken when distributing loads. The loadings and weights above are maximums and must not be exceeded under any circumstances.

CAUTION: When fitting a towbar, it must meet certain minimum requirements as specified by Type Approval Regulations. The bar will have marked on it the approval standard (94/20/EC) and the maximum download, or noseweight, that it can accept. It must fit the manufacturer's approved mounting points and must not obscure the towing vehicle's number plate.

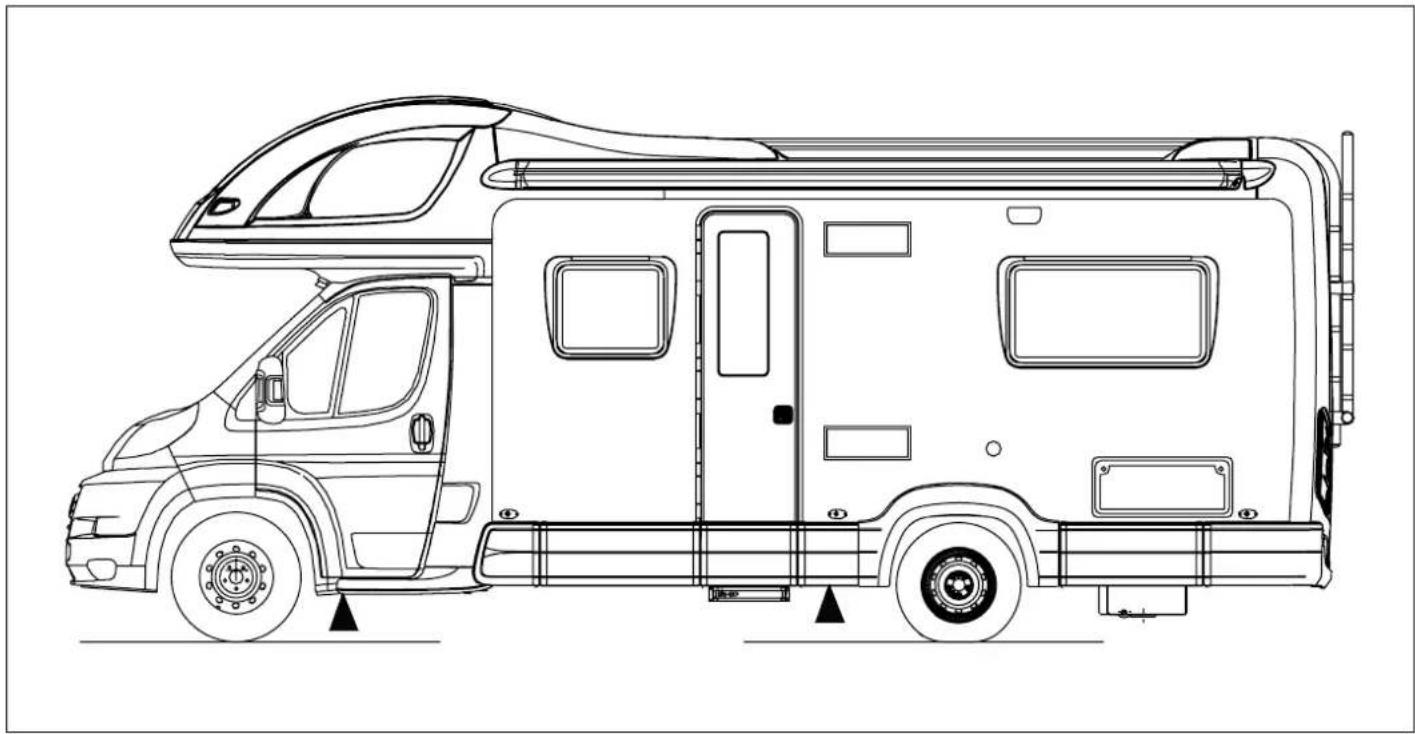

Jacking

VoyAGeR / e600 seRles

Line drawing of a two-wheeled vehicle with front and side views, no text or symbols present

Jacking Point: ▲

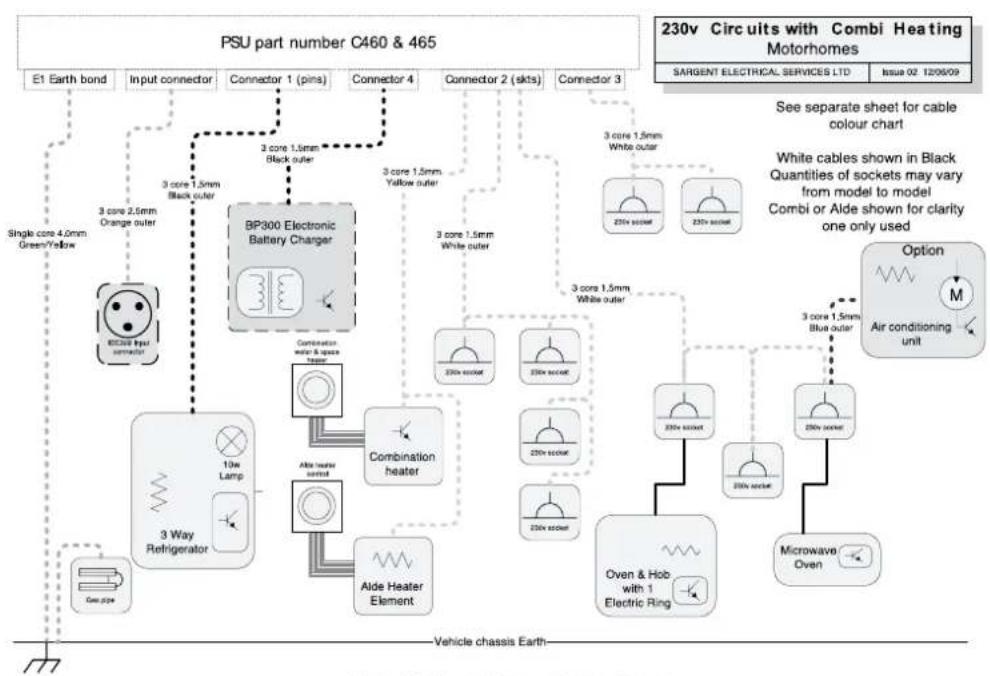

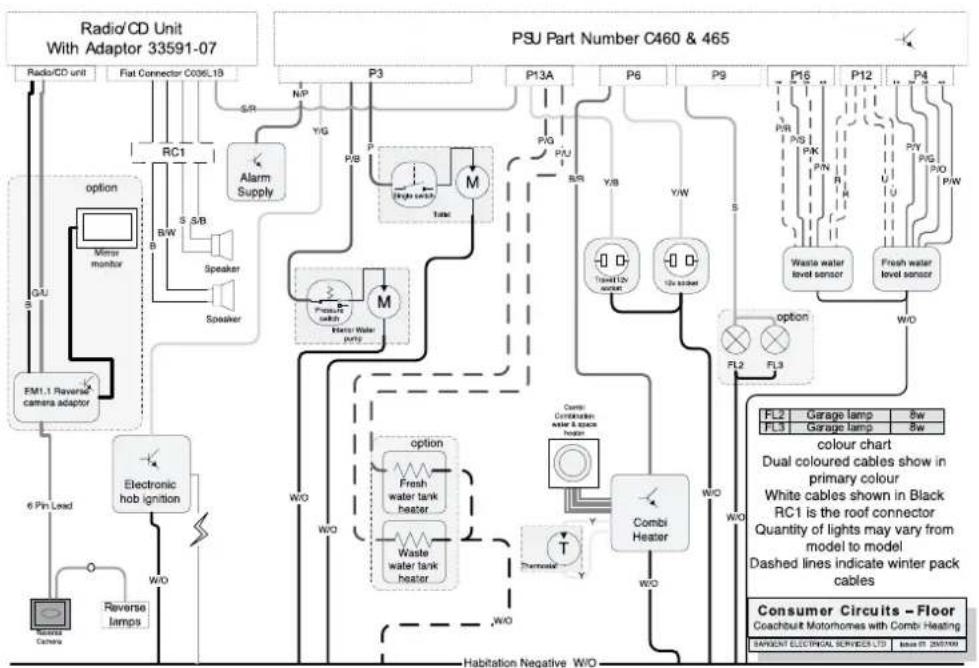

Wiring Diagrams

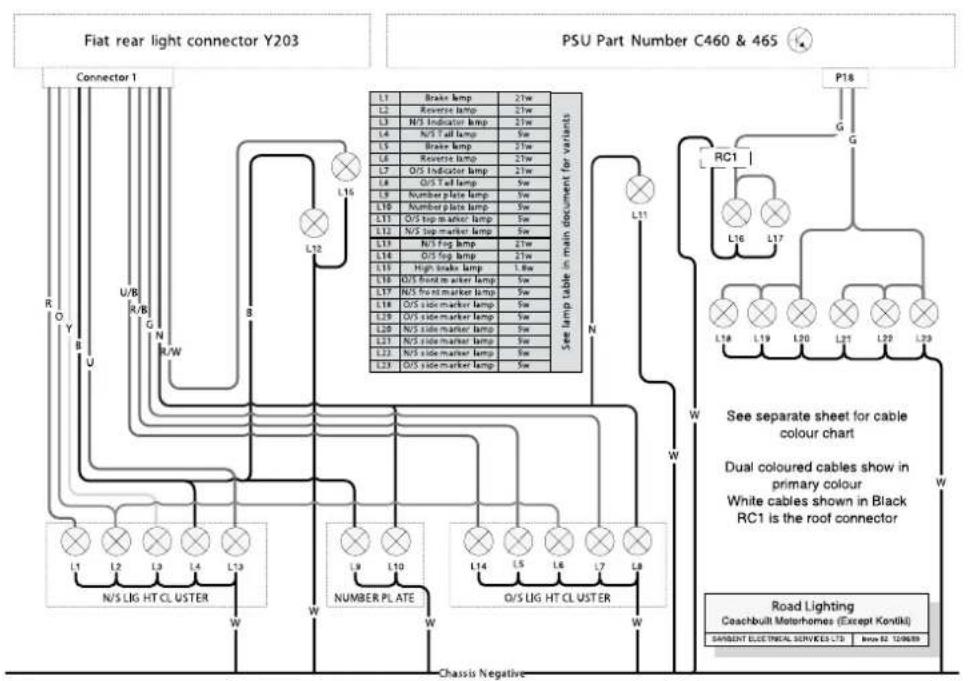

RoAd IIGHtInG

Copyright: Sappair Electrical Services Ltd, 2008 all rights reserved. Subject to change without prior notice.

Wiring Diagrams

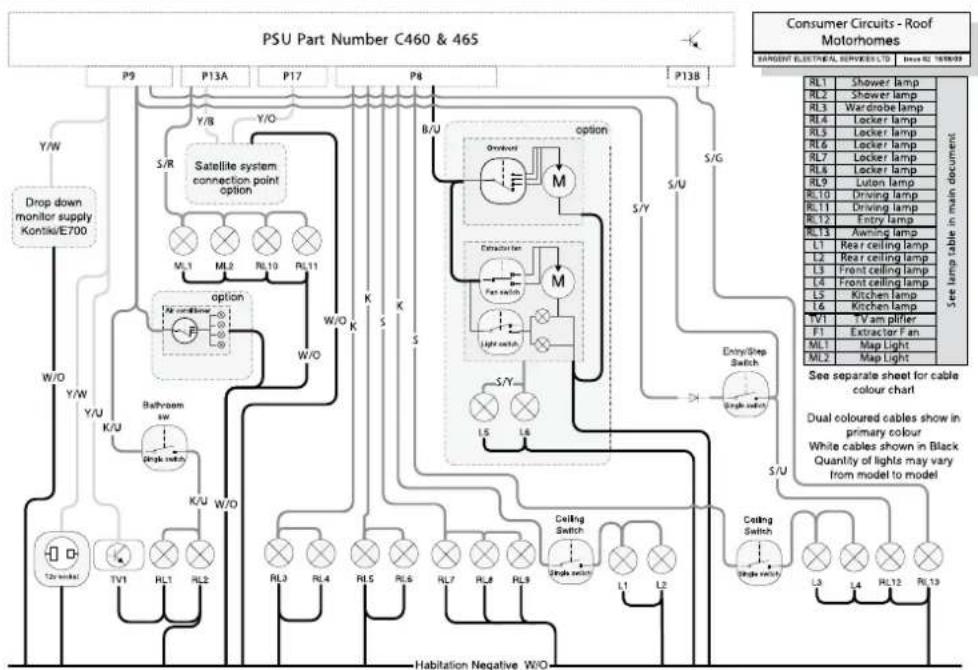

consUmeR cIRcUlts - RooF

Copyright,argent Electrical Services Ltd, 2008 all rights issued. Subject to change without prior notice.

Wiring Diagrams

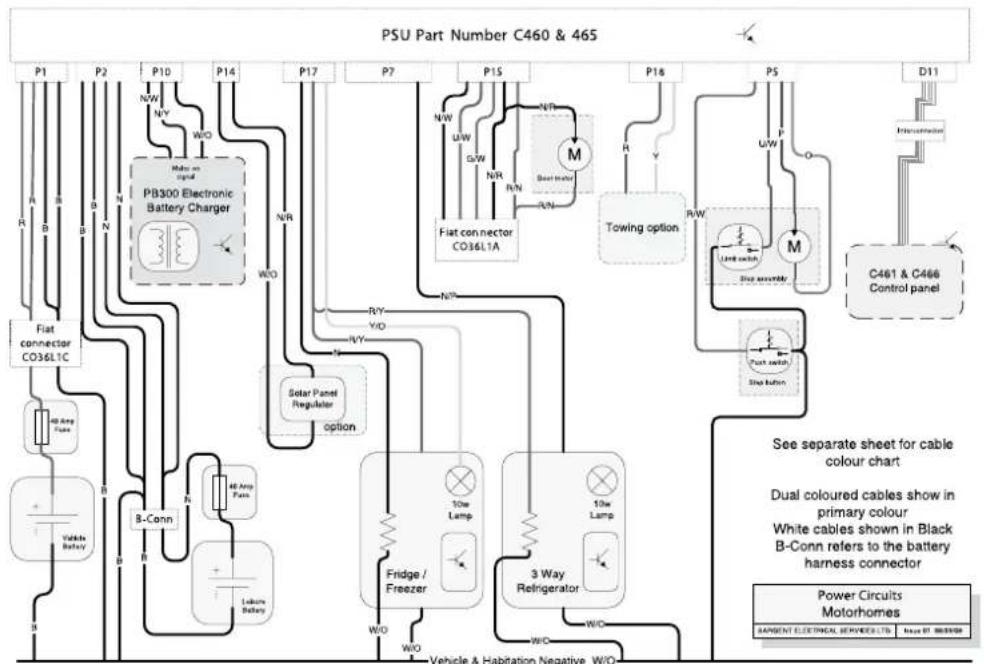

poWeR cIRcUlts

Copyright, Sargent Electrical Servicer Ltd., 2009 all rights reserved. Subject to charge without prior notice.

Wiring Diagrams

consUmeR cIRcUIts FlooR WltH combI HeAtInG
        direction TB
        A["Radio/CD Unit With Adaptor 33591-07"] --> B["RF"]
        B --> C["RF unit"]
        C --> D["RF unit"]
        D --> E["RF unit"]
        E --> F["RF unit"]
        F --> G["RF unit"]
        G --> H["RF unit"]
        H --> I["RF unit"]
        I --> J["RF unit"]
        J --> K["RF unit"]
        K --> L["RF unit"]
        L --> M["RF unit"]
        M --> N["RF unit"]
        N --> O["RF unit"]
        O --> P["RF unit"]
        P --> Q["RF unit"]
        Q --> R["RF unit"]
        R --> S["RF unit"]
        S --> T["RF unit"]
        T --> U["RF unit"]
        U --> V["RF unit"]
        V --> W["RF unit"]
        W --> X["RF unit"]
        X --> Y["RF unit"]
        Y --> Z["RF unit"]
        Z --> AA["RF unit"]
        AA --> AB["RF unit"]
        AB --> AC["RF unit"]
        AC --> AD["RF unit"]
        AD --> AE["RF unit"]
        AE --> AF["RF unit"]
        AF --> AG["RF unit"]
        AG --> AH["RF unit"]
        AH --> AI["RF unit"]
        AI --> AJ["RF unit"]
        AJ --> AK["RF unit"]
        AK --> AL["RF unit"]
        AL --> AM["RF unit"]
        AM --> AN["RF unit"]
        AN --> AO["RF unit"]
        AO --> AP["RF unit"]
        AP --> AQ["RF unit"]
        AQ --> AR["RF unit"]
        AR --> AS["RF unit"]
        AS --> AT["RF unit"]
        AT --> AU["RF unit"]
        AU --> AV["RF unit"]
        AV --> AW["RF unit"]
        AW --> AX["RF unit"]
        AX --> AY["RF unit"]
        AY --> AZ["RF unit"]
        AZ --> BA["RF unit"]
        BA --> BB["RF unit"]
        BB --> BC["RF unit"]
        BC --> BD["RF unit"]
        BD --> BE["RF unit"]
        BE --> BF["RF unit"]
        BF --> BG["RF unit"]
        BG --> BH["RF unit"]
        BH --> BI["RF unit"]
        BI --> BJ["RF unit"]
        BJ --> BK["RF unit"]
        BK --> BL["RF unit"]
        BL --> BM["RF unit"]
        BM --> BN["RF unit"]
        BN --> BO["RF unit"]
        BO --> BP["RF unit"]
        BP --> BQ["RF unit"]
        BQ --> BR["RF unit"]
        BR --> BS["RF unit"]
        BS --> BT["RF unit"]
        BT --> BU["RF unit"]
        BU --> BV["RF unit"]
        BV --> BW["RF unit"]
        BW --> BX["RF unit"]
        BX --> BY["RF unit"]
        BY --> BZ["RF unit"]
        BZ --> CA["RF unit"]
        CA --> CB["RF unit"]
        CB --> CC["RF unit"]
        CC --> CD["RF unit"]
        CD --> CE["RF unit"]
        CE --> CF["RF unit"]
        CF --> CG["RF unit"]
        CG --> CH["RF unit"]
        CH --> CI["RF unit"]
        CI --> CJ["RF unit"]
        CJ --> CK["RF unit"]
        CK --> CR["RF unit"]
        CR --> CS["RF unit"]
        CS --> CT["RF unit"]
        CT --> CU["RF unit"]
        CU --> CV["RF unit"]
        CV --> CW["RF unit"]
        CW --> CX["RF unit"]
        CX --> CY["RF unit"]
        CY --> CZ["RF unit"]
        CZ --> DA["RF unit"]
        DA --> DB["RF unit"]
        DB --> DC["RF unit"]
        DC --> DD["RF unit"]
        DD --> DE["RF unit"]
        DE --> DF["RF unit"]
        DF --> DG["RF unit"]
        DG --> DH["RF unit"]
        DH --> DI["RF unit"]
        DI --> DJ["RF unit"]
        DJ --> DK["RF unit"]
        DK --> DL["RF unit"]
        DL --> DV["RF unit"]
        DV --> DW["RF unit"]
        DW --> DX["RS/PA/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PS/PCP/S/PK/PN/R/PW<br>    end<br><br>    subgraph PSU Part Number_C460_465<br>            direction TB<br>            A1[P3"] --> A2["P3A"] --> A3["P3B"] --> A4["P3C"] --> A5["P3D"] --> A6["P3E"] --> A7["P3F"] --> A8["P3G"] --> A9["P3H"] --> A10["P3I"] --> A11["P3J"] --> A12["P3K"] --> A13["P3L"] --> A14["P3M"] --> A15["P3N"] --> A16["P3O"] --> A17["P3P"] --> A18["P3Q"] --> A19["P3R"] --> A20["P3S"] --> A21["P3T"] --> A22["P3U"] --> A23["P3V"] --> A24["P3W"] --> A25["P3X"] --> A26["P3Y"] --> A27["P3Z"] --> A28["P3A"] --> A29["P3B"] --> A30["P3C"] --> A31["P3D"] --> A32["P3E"] --> A33["P3F"] --> A34["P3G"] --> A35["P3H"] --> A36["P3I"] --> A37["P3J"] --> A38["P3K"] --> A39["P40P/W"] & B
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction TB
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LR
            direction LFF1
            direction LFF2
            direction LFF3
            direction LFF4
            direction LFF5
            direction LFF6
            direction LFF7
            direction LFF8
            direction LFF9
            direction LFF10
            direction LFF11
            direction LFF12
            direction LFF13
            direction LFF14
            direction LFF15
            direction LFF16
            direction LFF17
            direction LFF18
            direction LFF19
            direction LFF20
            direction LFF21
            direction LFF22
            direction LFF23
            direction LFF24
            direction LFF25
            direction LFF26
            direction LFF27
            direction LFF28
            direction LFF29
            direction LFF30
            direction LFF31
            direction LFF32
            direction LFF33
            direction LFF34
            direction LFF35
            direction LFF36
            direction LFF37
            direction LFF38
            direction LFF39
            direction LFF40
            direction LFF41
            direction LFF42
            direction LFF43
            direction LFF44
            direction LFF45
            direction LFF46
            direction LFF47
            direction LFF48
            direction LFF49
            direction LFF50
            direction LFF51
            direction LFF52
            direction LFF53
            direction LFF54
            direction LFF55
            direction LFF56
            direction LFF57
            direction LFF58
            direction LFF59
            direction LFF60
            direction LFF61
            direction LFF62
            direction LFF63
            direction LFF64
            direction LFF65
            direction LFF66
            direction LFF67
            direction LFF68
            direction LFF69
            direction LFF70
            direction LFF71
            direction LFF72
            direction LFF73
            direction LFF74
            direction LFF75
            direction LFF76
            direction LFF77
            direction LFF78
            direction LFF79
            direction LFF80
            direction LFF81
            direction LFF82
            direction LFF83
            direction LFF84
            direction LFF85
            direction LFF86
            direction LFF87
            direction LFF88
            direction LFF89
            direction LFF90
                    // 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4. RF units: RF units (with adaptors)
    end

    subgraph Consumer Circuits_Floor_Croachbuit Motorhomes with Combi Heating_EABRENT ELECTRICAL SURVECS LTD_BASE PT_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_2027XW9_20.REF Color Chart: Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector Quantity of lights may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Combi Heating_EABRENT ELECTRICAL SURVECS LTD_BASE PT_2027XW9_2027XW9_2027XW9_2027XW9_20.REF Color Chart: Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector Quantity of lights may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Combi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_2027XW9_2027XW9_2027XW9_20.REF Color Chart: Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector Quantity of lights may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Combi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector Quantity of lights may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Combi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Combi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Compi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured cables show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Compi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured wires show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Compi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured wires show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dotted lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Compi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured wires show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Compi Heating_EABRENT ELECTRanical SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured wires show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Compi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured wires show in primary colour White cables shown as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Compi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured wires show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorphones with Compi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart: Dual coloured wires show in primary colour White cables shown in Black RC1 is the roof connector Quantity as lightlines may vary from model to model Dashed lines indicate winter pack cables Consumer Circuits_Floor_Croachbuit Motorhomes with Compi Heating_EABRENT ELECTRICAL SURVECS LTBD_BASE PT_20.REF Color Chart:
    end

Copyright Surgical Electrical Services Ltd, 2008 all rights reserved. Subject to change without prior notice.

Wiring Diagrams

230V cIRcUlts

Copyright Sargers Electrical Services Ltd, 2000 all rights reserved. Subject to charge without prior notice.

Wiring Diagrams

cAble coloUR cHART

Y/U

Yellow cable with Blue stripe

Cable Colour Charti ro p
c c c

12v Cable Colours

B	BLACK
N	BR OWN
R	RED
O	OR ANGE
Y	YELLOW
G	GREEN
U	BLUE
P	PUR PLE
S	SLATE G REY
W	WHITE
K	PINK

230v Cable Colours

B	BLACK
N	BROWN
W	WHI TE
O	ORANGE
Y	YELLOW
G	GREEN
U	BLUE

Road Lights
Application Bulb Reference Bulb Rating
Front marker light LED complete lamp 12v <1w
Side marker light W5W 12v 5w
Rear high level marker light LED complete lamp 12v <1w
High level stop lamp T5/13.5 12v 2.3w
Rear indicator lamp PY21 Orange 12v 21w
Rear Stop / Tail lamp P21/5W 12v 21w / 5w
Rear reverse lamp P21 12v 21w
Rear fog lamp P21 12v 21w
Number plate light	C5W	12v 5w
Interior / Other
Downlighters, LED, main habitation (dry) areas	FEM0470 complete lamp	12v LED
Downlighters, LED, shower (wet) areas	FEM0441 complete lamp	12v LED
Locker spotlights, LED	FEM0440 complete lamp	12v LED
Furniture mounted cold cathode fluorescent lamps	530mm complete lamp, front fixed	12v 5w CCFL
Panel mounted fluorescent lamps	300mm fluorescent bulb	12v 8w
Panel mounted fluorescent lamps	600mm fluorescent bulb	12v 13w
Ceiling lights, round, single bulb	Halogen capsule	12v G4 20w
Ceiling lights, round, twin bulb	Halogen capsule	12v G4 20w
Ceiling lights, round, small white	Halogen capsule	12v G4 20w
Luton fluorescent lamps	300mm fluorescent bulb	12v 8w
B-pillar map reading lights	GU4/MR11 Dichroic bulb	GU4 12v 10w
Entrance step lamp	LED complete lamp	12v LED
Awning lamp	500mm LED complete unit	12v 2.2w LED

Replacement instructions

VoyAGeR / e600 seRles RoAd IIGHt bUIb Access

ReAR IndlcAtoR IAmps And/oR ReVeRse IAmps - ReplAcInG:

Bulb access is from rear of lamp.

The lamp is retained into the rear panel via a spring clip located at the bottom of the lamp body. To release the lamp:

Carefully insert a large flat bladed screwdriver between the top of the lamp body and the plastic of the rear panel.

Using a lever action push the lamp body down against the spring clip.

Once the spring clip is compressed sufficiently, the top of the lamp body can be withdrawn from the rear panel – with the top of the lamp withdrawn the remainder of the lamp will follow.

At the rear of the lamp, a two part metal clip holds the bulb holder in place. To release this:

Insert a flat bladed screwdriver between the rear of the lamp body and the curved section of the two part clip, and use a lever action to disengage the clip from the rear of the lamp body.

Continue to move the curved section of the clip away from the lamp body, and the second straight part will lift away from the back of the bulb holder.

The bulb holder can now be withdrawn from the lamp body.

Bulbs are a bayonet fitting – apply slight pressure on bulb towards the bulb holder, and twist to release.

Re-position the bulb holder into the lamp body and re-engage the two part clip.

Place the lamp body back into the aperture with the spring clip in position against the edge of that aperture. Using a downward force compress the spring clip until the top edge of the lamp body can also be pushed into the aperture.

stop & tAll Iamps - ReplAcInG

The procedure for these lamps is as for the indicator or reverse lamps.

In addition care is needed when fitting the replacement bulb, that the orientation of the bulb is correct. A simple check is that the lamp when operating as a brake light should be brighter than when operating as a tail lamp, this check can be undertaken before the lamp body is re-fitted into the rear panel.

It is wise to avoid dis-connecting the bulb holder from the harness, as incorrect re-connection can cause the brake / tail operation of the bulb to be reversed, an/or cause an bulb warning light to illuminate on the Fiat dashboard.

ReAR FoG IIGHts

Bulb access is from rear of lamp.

The light fitting can be accessed from underneath the rear of the vehicle.

At the rear of the lamp, twist the bulb holder relative to the lamp body to release, and withdraw the bulb holder and bulb.

Please note: The visible rubber terminal cover is not fixed to the bulb holder, and it may be easier to grip the bulb holder with this removed.

Bulbs are a bayonet fitting – apply slight pressure on bulb towards light fitting, and twist to release

Re-position the bulb holder into the lamp and twist to lock in place

FRont oR ReAR HIGH level mARkeR / position Iamps (Red / cleAR lense)

These lamps are LED and have no user serviceable parts inside.

Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

HIGH leVel bRAke lAmp

This lamp is single piece and has no user serviceable parts inside.

Remove the screw at both ends of lamp, and withdraw whole fitting away from rear panel of motorhome.

Please note : The screws which retain the lamp also retain the reverse camera housing.

Unplug the lamp from the harness, by squeezing the small tab on the side of the connector, and pulling the connector away from the lamp.

Re-connect the new lamp to harness, and secure with the original two screws.

Lamp retaining screws are fixed into a rubber sleeve with a threaded insert, often known as a rawlnut. If lamp has been removed and re-fitted several times the rubber sleeve may need replacing, these are available through your dealer.

nUmbeR pIAte Iamps

Bulb access is from via the front lense of each lamp

Remove the two screws in the lens of the lamp, and remove

Lever the bulb out of retaining clips

Reverse the procedure to re-fit a new bulb and the light lens

slde mARkeR / position Iamps

Bulb access is from rear of lamp

If rear of lamp is visible from inside the vehicle:

Depending on the location, a small brown plastic cover may be present covering the connections to the lamp. Remove the screws in the cover to release and access the rear of the lamp.

The harness plugs directly into the bulb holder – twist the bulb holder relative to the lamp body to release, and withdraw the bulb holder and bulb.

Bulbs are push fit into bulb holder – pull bulb directly away from holder to release

Reverse the procedure to replace the bulb in the holder, holder in the lamp and the lamp onto the motorhome body. Replace plastic cover.

Replacement instructions

If rear of lamp is not visible from inside the vehicle:

Remove the 2 screws from the front of the light fitting, and withdraw the whole fitting from motorhome body

The harness plugs directly into the bulb holder – twist the bulb holder relative to the lamp body to release, and withdraw the bulb holder and bulb.

Bulbs are push fit into bulb holder – pull bulb directly away from holder to release

Reverse the procedure to replace the bulb in the holder, holder in the lamp and the lamp onto the motorhome body.

nUmbeR plAte Iamps

Bulb access is from via the front lense of each lamp

Remove the two screws in the lens of the lamp, and remove

Lever the bulb out of retaining clips

Reverse the procedure to re-fit a new bulb and the light lens

Notes
