USER MANUAL IT100 SILVER SAMSUNG

Please refer to the warranty that came with your product or visit our website http://www.samsungcamera.com/ for after-sales service or inquiries.

AD68-03877A (1.1)

SAMSUNG

Quick Start Manual

IT100

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG/FRE/TUR/T.CHI/IND/ARA/THA/PER

Contents

Health and safety

information 2

Camera layout 4

Setting up your camera 5

Unpacking 5

Inserting the battery and memory card 6

Charging the battery 6

Turning on your camera. 7

Selecting options 7

Capturing photos or videos 8

Playing files 9

Transferring files to a PC

(Windows) 10

Specifications 11

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m / 3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

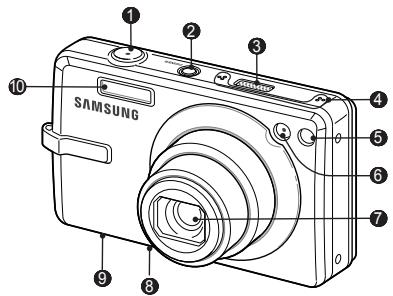

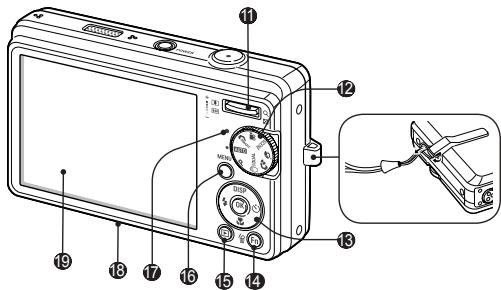

Camera layout

1 Shutter button
2 POWER button
3 Speaker
4 Microphone
Remote control sensor
6 AF-assist light/timer lamp
Lens
USB and AV port
9 Battery chamber cover
10 Flash

1 Zoom button
12 Mode dial
Navigation button/OK button
14 Function button
15 | Playback button
16: MENU button
1 Status lamp
13 Tripod mount
19 Display

Setting up your camera

Unpacking

Camera

AC adapter/ USB cable

Rechargeable battery

Strap

Software CD-ROM (User manual included)

Quick Start Manual

Optional accessories

Camera case

Memory cards

AV cable

Sold as a set

HDMI cradle manual

Remote control

Cradle

HDMI cable

Setting up your camera

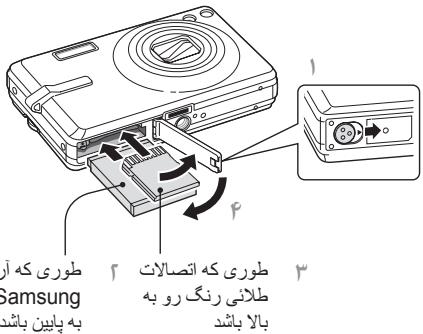

Inserting the battery and memory card

2 With the Samsung logo facing down

3 With the gold-coloured contacts facing up

Removing the battery

Removing the memroy card

Push gently until the card disengages from the camera and then pull it out of the slot.

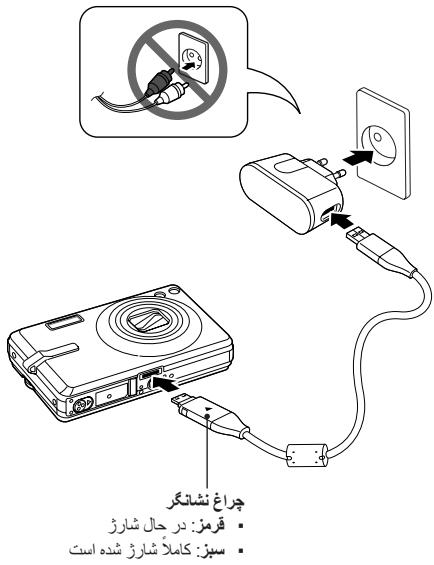

Charging the battery

Before using the camera for the first time, you must charge the battery.

Indicator light

Red:Charging
- Green: Fully charged

Turning on your camera

1 Press [POWER].

• The initial setup screen appears.

2 Press [O] to select Language and press [O].
3 Press [DISP] or [ ] to select a language and press [OK].
4 Press [DISP] or [ ] to select Date & Time and press [].
5 Press [4] or [心] to select an item.
6 Press [DISP] or [ ] to change the number or select another date format and press [OK].

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

To move left or right, press [4] or [心].
- To move up or down, press [DISP] or [].

3 Press [OK] to confirm the highlighted option or menu.

• Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Rotate the mode dial to AUTO.
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

• A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Rotate the mode dial to
2 Align your subject in the frame.
3 Press [Shutter].
- Press [OK] to pause or resume.
4 Press [Shutter] again to stop the recording.

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
12M	4000 x 3000	142	274	389
10M	3984 x 2656	162	302	426
5M	3968 x 2232	195	355	509
8M	3264 x 2448	204	361	518
5M	2592 x 1944	327	547	764
3M	2048 x 1536	514	774	1,028
2M	1920 x 1080	840	1,104	1,387
1M	1024 x 768	1,420	1,612	1,807

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [D].
2 Press [ ] or [ ] to scroll through files.

• Press and hold to view files quickly.

Viewing videos

1 Press [D].
2 Press [OK].

3 Use the following buttons to control playback.

[+]	Scan backward
[OK]	Pause or resume playback
[O]	Scan forward
[Zoom] up or down	Adjust the volume level

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Disconnecting safely (for Windows XP)

3 Turn on the camera.
4 On your PC, select My Computer Removable Disk DCIM 100SSCAM.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	• Type: 1/2.33" (approx. 1.09 cm) CCD • Effective pixels: approx. 12.2 mega-pixels • Total pixels: approx. 12.4 mega-pixels
Lens	• Focal length: Samsung lens f = 5 - 25 mm (35 mm film equivalent: 28 - 140 mm) • F-stop range: F3.4 (W) - F5.8 (T)
Display	3.0" (7.62 cm) 230 K, TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF)
Shutter speed	• Auto: 1/8 - 1/2,000 sec. • Program: 1 - 1/2,000 sec. (AEB, Continuous: 1/4 - 1/2,000 sec.) • Night: 8 - 1/2,000 sec. • Firework: 4 sec.
Storage	• Internal memory: approx. 76 MB • External memory (Optional): SD card (up to 4 GB guaranteed), SDHC card (up to 8 GB guaranteed), MMC Plus (up to 2 GB guaranteed, 4 bit 20 MHz) Internal memory capacity may not match these specifications.
DC power input connector	34 pin
Rechargeable battery	Lithium-ion battery (SLB-10A, 1,050 mAh)
Dimensions (W x H x D)	94.5 x 58.9 x 22.5 mm
Weight	155 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
