Product Type	Food Processor
Model	MJ-LZ30W223
Brand	Comfee
Dimensions (approx.)	12.6 x 8.7 x 10.2 inches (32 x 22 x 26 cm)
Weight (approx.)	7.5 lbs (3.4 kg)
Power Rating	300W
Voltage / Frequency	120V / 60Hz
Bowl Capacity	3.5 cups (0.8 L)
Main Materials	Plastic body (BPA-free), stainless steel blades
Functions	Chopping, slicing, shredding, mixing, pureeing
Speeds & Controls	2 speeds + pulse, rotary dial
Safety Features	Automatic shut-off when bowl is unlocked, overload protection
Cleaning	Removable parts are dishwasher safe; wipe motor base with damp cloth
Accessories Included	Chopping blade, slicing disc, shredding disc, pusher, spatula
Warranty	1 year limited warranty

Frequently Asked Questions - MJ-LZ30W223 COMFEE

How do I assemble the food processor?

Place the bowl on the motor base and lock it by twisting clockwise. Insert the desired blade or disc onto the drive shaft. Add your ingredients, then attach the lid securely until you hear a click.

Can I process hot liquids?

No, allow hot ingredients to cool below 140°F (60°C) before processing to avoid pressure buildup and damage to the bowl.

Why does the motor stop during use?

The motor may stop if overloaded. Remove some ingredients and let the unit rest for 2-3 minutes before resuming. The thermal protection will reset automatically.

How do I clean the blades safely?

Remove the blade carefully by gripping the plastic hub. Wash in warm soapy water or place on the top rack of the dishwasher. Use a brush to avoid sharp edges.

Can I use the processor to grind coffee or nuts?

Yes, but only in short pulses and for small quantities to avoid overheating. For nuts, ensure they are not too oily.

The lid won't lock. What should I do?

Check that the bowl is properly seated on the base and that the blade/disc is aligned. Also ensure the lid seal is clean and free of debris.

Is the bowl BPA-free?

Yes, all plastic parts that come into contact with food are made of BPA-free materials.

Can I replace the blade or disc?

Yes, spare parts such as blades, discs, and bowls are available through Comfee customer service or authorized retailers.

What is the maximum continuous operating time?

Do not run the processor for more than 1 minute continuously. Allow at least 2 minutes of rest between cycles to prevent overheating.

The appliance vibrates excessively. Is that normal?

Some vibration is normal at high speeds, but if excessive, check that the bowl and lid are locked correctly and that the load is balanced.

USER MANUAL MJ-LZ30W223 COMFEE

封面

Yellow Comfee blender with a transparent control panel, against a yellow background (no text or symbols on the device itself)

MJ-LZ30W223

Tritacarne

Instruction Manual

IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

CONTENUTO

AVVERTENZE PER LA SICUREZZA ....1

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

AVVERTENZE PER LA SICUREZZA

Suggerimenti

Simple line drawing of a mechanical component with a downward arrow and base, no text or symbols present.

Line drawing of a kitchen utensil with a bowl and a spoon, pouring food from a container (no text or symbols)

Diagram of a kitchen mixer with a lid and side bowl, showing internal components without any text or symbols.

ISTRUZIONI PER L'USO

Line drawing of hands operating a mechanical device with a lid and base (no text or symbols)

Simple line drawing of a container pouring granular material into a bowl (no text or symbols)

ISTRUZIONI PER L'USO

Note

Diagram showing a mechanical device before and after rotation, with no visible text or symbols

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

GUIDA PER L'UTENTE

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

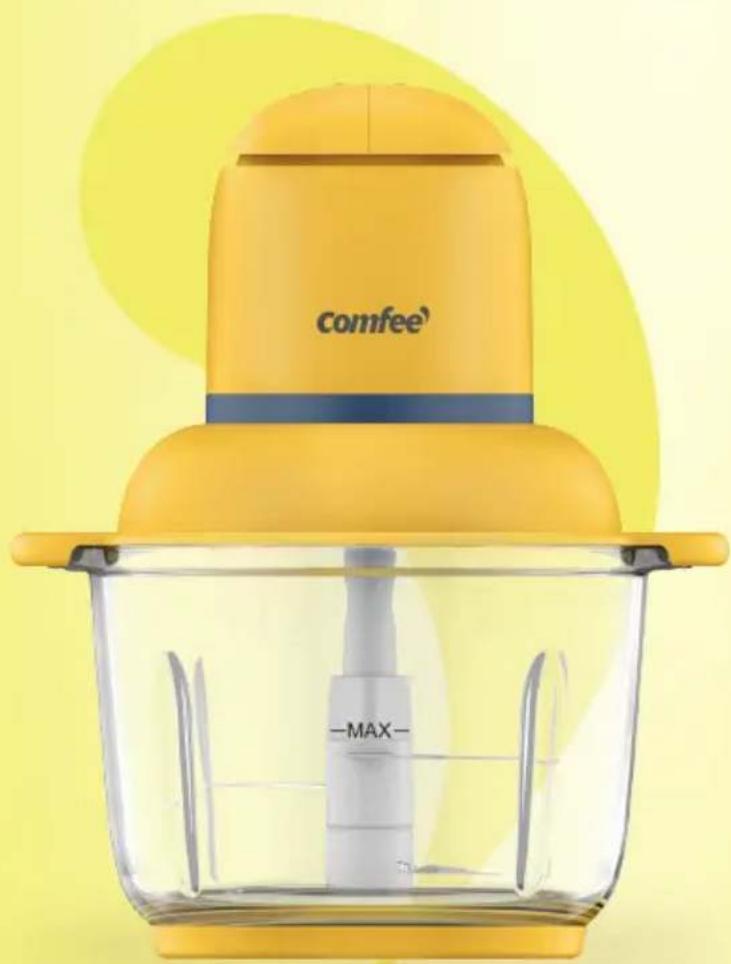

Yellow Comfee blender with a transparent control panel and yellow background (no text or symbols on the device itself)

MJ-LZ30W223

Meat Chopper

Instruction Manual

IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

CONTENT

SAFETY WARNING .... 1

PRODUCT INTRODUCTION 4

TECHNICAL DATA OF PRODUCT 5

OPERATION INSTRUCTIONS 6

RECIPE 8

CARE INSTRUCTIONS 8

USER GUIDE 11

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

SAFETY WARNING

Tips

In order to ensure the safety of use and avoid causing injury and property loss to you and others, please be sure to observe the following safety precautions. Failure to follow the safety warning and incorrect use may result in an accident.

The prohibited

• This product is for home use only and is prohibited for commercial use.
• This product is strictly prohibited to operate without load or use under excessive load.
- When this product is working, do not move the product or touch the moving parts to avoid accidental injury.
- Do not attach the power cord to a sharp object and do not connect it to a movable object.
- Do not use this product on tilting or unstable surfaces.
- Do not use inferior extension socket, to avoid fire and personal injury.
- Do not put the product too close to the stove, in order to avoid product damage or cause fire and personal injury.
- Do not add hot ingredients (no more than 60°C).
- The glass is not resistant to high temperature. Please do not boil the glass in hot water over 60°C or put it in microwave oven or wash it in dishwasher.

SAFETY WARNING

Compulsory contents

• If the plug or other parts are damaged, stop using the product, and go to the designated maintenance center, ask professionals to replace or repair it to avoid injury.
• Before disassembling or debugging any part of the product, make sure the product is in a power off state.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agentor similarly qualified persons in order to avoid a hazard.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children

▲ Matters that may cause loss of life or injury

• Do not use any accessories or parts other than those provided for this product to avoid fire and personal injury.
• Do not run the product unattended.
• Be careful when taking out the food processing blades, emptying the container (specific accessories are subject to the materials in the packing box) and cleaning. Be sure to pay attention to the sharp blades to avoid cuts.

SAFETY WARNING

▲ Matters that may cause loss of life or injury

• Do not use any accessories or parts other than those provided for this product to avoid fire and personal injury.
• Do not run the product unattended.
• Be careful when taking out the food processing blades, emptying the container (specific accessories are subject to the materials in the packing box) and cleaning. Be sure to pay attention to the sharp blades to avoid cuts.

⚠ Matters that may cause minor injury or damage to property

• Before use, please confirm whether the voltage is consistent with the product specification, to avoid safety hazards and damage to the product.
• Before using the product, please make sure the table is clean and clean up the oil in time.
• Keep the distance between the product and other kitchen appliances above 30 cm.
  • After using the product, please unplug and clean the product in time.
• You must ensure that the continuous running time of the product does not exceed 15 s. During operation, if overheating is found, the machine should be shut down for about 30 minutes, and the operation can continue after cooling down.

SAFETY WARNING

• This product has built-in overheating protection device. When the motor is in abnormal use or severely overloaded, the product will automatically stop for protection. If the product cannot be started after 30 minutes of protection, the product should be sent to the company's maintenance center. Do not disassemble the machine by yourself.
• If the product is stuck in the process of use, please immediately turn off the power, unplug the power cord, remove the container, take out the food, wait for the motor to cool down before continuing to use.
  • After using the product, clean the parts in contact with the food to avoid odor due to corrosion of residues.
• Please refer to the instructions of the chapter "cleaning and maintenance".
• For operating times and speed settings, follow the further instructions in this manual.
• Warning: Appliances shall be potential injury from misuse.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
  • Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
  • Children shall not play with the appliance.

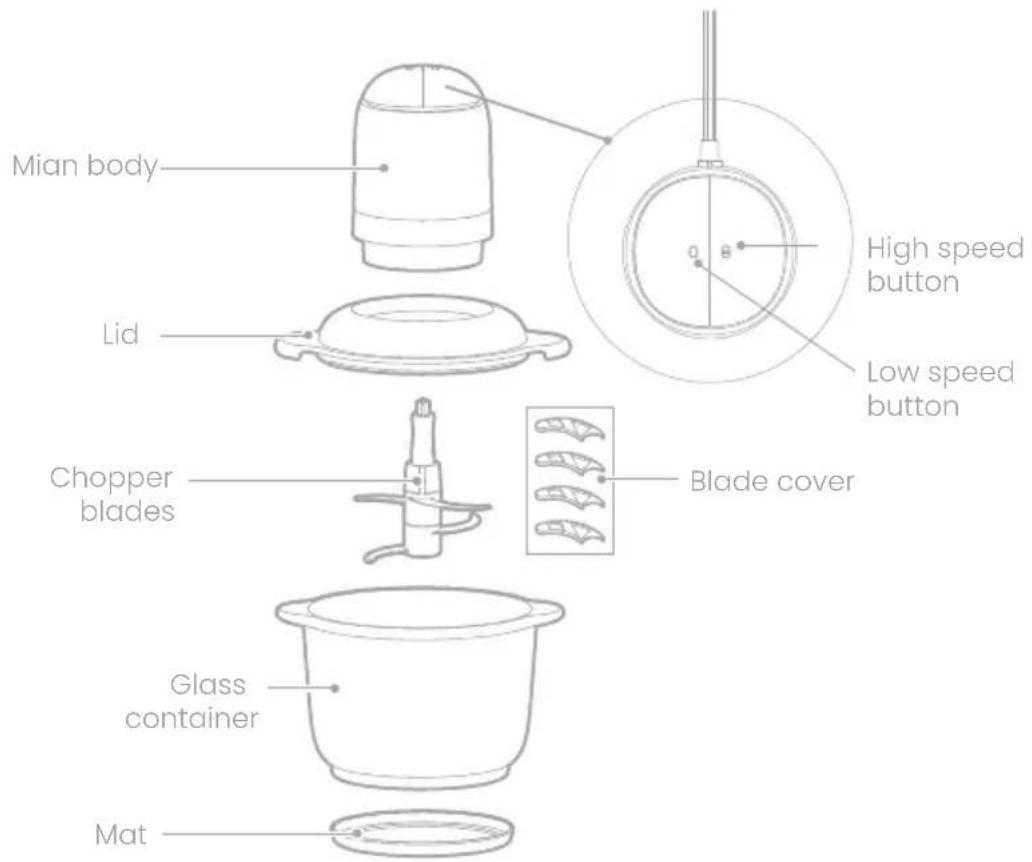

PRODUCT INTRODUCTION

Part name

Tips

• Due to the differences in product appearance, the wireframe diagram is for reference only. Please refer to the materials in the packing box for details.
• Due to the difference in appearance and function of different types of products, please refer to the materials in the packing box for details, and optionally read the function description.

TECHNICAL DATA OF THE PRODUCT

Product name Model No. Rated voltage Rated frequency Rated power

Meat Chopper MJ-LZ30W223 220-240V~

50-60Hz

300W

OPERATION INSTRUCTIONS

How to use it

1. Put the inner hole of the food processing blades shaft into the glass container by aligning it with the steel shaft, press it to the end, and then rotate it gently. The smooth rotation indicates that the assembly is in place.

Simple line drawing of a mechanical component with a downward arrow and a small rod inside a container (no text or symbols)

1. Cut the ingredients into pieces no larger than 2 × 2 × 5 cm and put them into the container.

Note

• Remove the skin and tendon for meat ingredients.
• Do not exceed the "maximum" scale of the container.
• If the position of the food processing blades is deviated after putting in the ingredients, please put the position right.

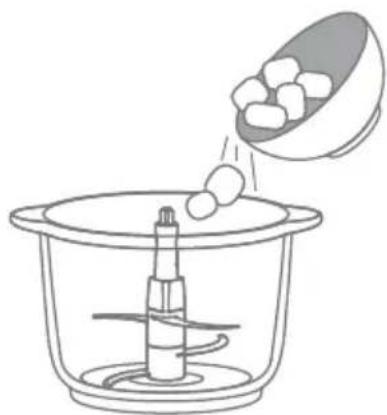

Line drawing of a kitchen appliance with a bowl and a spoon, pouring liquid from a container (no text or symbols)

1. Put the lid on the container (with non-slip mat at the bottom), then put the mian body on the lid smoothly, and switch om the product.

Diagram of a kitchen mixer with a lid and handle, showing internal components without any text or symbols

OPERATION INSTRUCTIONS

1. Hold the mian body by hand, press the switch button, the product starts to work, release the switch button, the product stops working.

Note

• The food processor should not be used for more than 15 s at a time, and the interval between each use should be greater than 2 minutes. Please wait 15 minutes before using the food processor after 3 consecutive uses.
• During the stirring process, if the ingredients are stuck on the container, please unplug the product, remove the lid, put the ingredients into the container, and then continue to stir them.

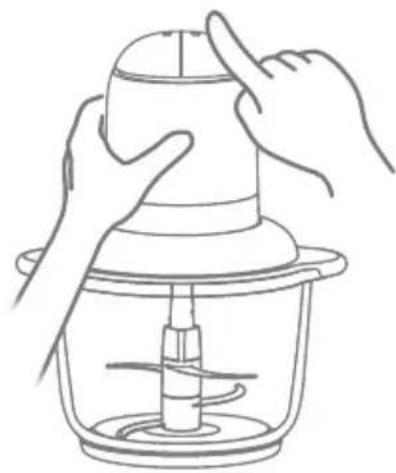

Line drawing of hands operating a kitchen appliance with a lid and base (no text or symbols)

1. After using the product, please wait for the blades to stop completely and unplug the product before removing the mian body. Then open the lid to take out the food processing blades, and finally take out the ingredients.

Note

- Be careful when removing the food processing blades.

Line drawing of a container pouring granular material into a bowl (no text or symbols)

OPERATION INSTRUCTIONS

Notes

• Please clean the parts in direct contact with the ingredients before use, and make sure the power supply is disconnected.
• It is a normal phenomenon that the machine will get hot after continuous use.
• The temperature of ingredients and liquid should not exceed 60°C; Capacity must not exceed the maximum scale.
• The glass container is not resistant to high temperature. Do not boil it in boiling water or place it in the microwave oven.
  • After each use, please refer to "cleaning and maintenance" for timely cleaning and maintenance.
• When stirring, place the food processing blades inside the container before adding the ingredients.
• It is forbidden to grind dry goods and hard Chinese medicinal materials (such as spirifer, fructus nelumbinis, magnetite, etc.).

RECIPE

Food	Suggested weight	Suggested time	Remarks
Pork 15s	≤400g		Remove skin, tendons and bones. Cut into 2×2× 5cm pieces and use the high speed button
Beef	≤400g	15s	Remove skin, tendons and bones. Cut into 2×2× 5cm pieces and use the high speed button
Celery	300g	15sIntermittent operation	Use the high speed button

RECIPE

Food	Suggested weight	Suggested time	Remarks
Carrot Cucumber	300g	15s Intermittent operation	Cut into 2×2×2cm pieces and use the high speed button
Coriander	100g	15s Intermittent operation	Use the low speed button
Garlic Onion	300g	15s Intermittent operation	Use the high speed button
Hot pepper	300g	15s Intermittent operation	Use the high speed button

CARE INSTRUCTIONS

Cleaning

Notes

• It is strictly prohibited to put the base into any liquid. It can not be flushed, but it can be cleaned with a wet cloth.
• Do not use abrasives and other cleaning materials for cleaning, the parts can not be cleaned in the dishwasher, nor disinfected in the disinfection cabinet.
• Be careful when cleaning the food processing blades.

CARE INSTRUCTIONS

After using the product, the removable parts must be cleaned immediately, please refer to the following operations for cleaning:

1. Separate the lid, food processing blades and container when cleaning.
2. All food processing blades can be disassembled and cleaned. It is recommended to wear gloves when cleaning the blades and remove the blades as shown in the picture.

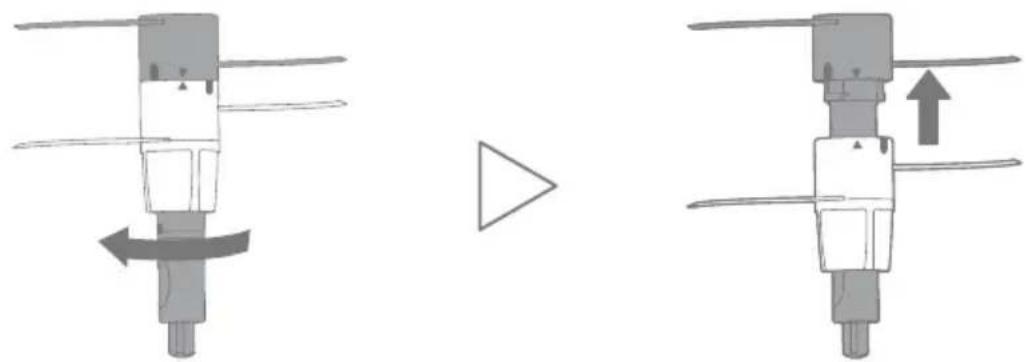

Diagram showing a mechanical device before and after rotation, with no visible text or symbols

1. The lid, food processing blades, container and other accessories can be washed under the faucet or washed in warm water with detergent.

2. If parts are stained by fruit and vegetable juice, add a few drops of cooking oil to wipe before rinsing, which can better remove stains.

3. After cleaning and drying, assemble the food processor. The food processing blades should be covered well to avoid scratches.

Maintenance

If not used for a long time, please store the product in a dry and ventilated place to prevent damp and rust of the motor, which will affect the use.

Abstract arrangement of colorful squares on white background (no text or symbols)

USER GUIDE

Fault analysis and troubleshooting

Tips

If the problem persists or other problems arise, please contact Midea's Customer Service Center for assistance.

Fault	Probable cause analysis	Solutions
The product does not work	The power plug is not plugged in	Please check whether the product is plugged in
	The motor shaft is not aligned with the food processing blades shaft.	Check whether the main motor shaft and food processing blades shaft are installed correctly.
	Press the edge of the switch button, instead of the center.	Press the center of the switch button in the vertical direction to start the product.
The motor device gives off an odor during processing	It is normal for new products to give off peculiar smell	It is normal for new products to give off peculiar smell when initially used. After a few uses, the smell is gone
	It has been used for too long	If it is used for a long time, the product must be stopped and cooled for 30 minutes.
The machine vibrates badly during processing.	It is normal for this product to vibrate when processing food.	Operate the machine by hand. After rapid intermittent operation, this situation no longer occurs.
	The motor shaft is not aligned with the food processing blades shaft.	Check whether the main motor shaft and food processing blades shaft are installed correctly.
The food processing blades do not turn after working for a period of time	There are too many ingredients in the container.	Turn off the power of the product, remove the motor and the middle frame, and reduce the quantity of ingredients.
	It has been used for too long	Unplug the product and allow it to cool for 30 minutes.

USER GUIDE

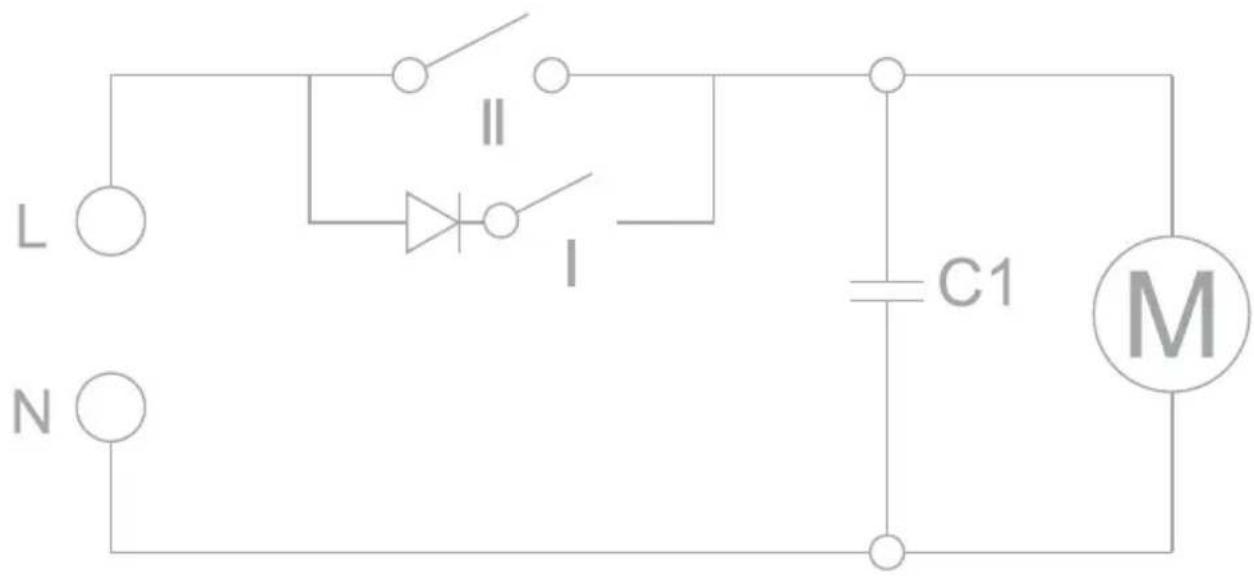

Schematic circuit diagram

Tips

Lines are subject to change without prior notice.

Environmental protection

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.

Abstract pattern of colorful squares arranged in a grid (no text or symbols)
