Product Type	USB 4.0 to Gigabit Ethernet Adapter
Brand	StarTech.com
Model	USB4000IPGB
Interface	USB 4.0 (Compatible with USB 3.2/3.0/2.0)
Network Speed	10/100/1000 Mbps (Gigabit Ethernet)
Connector Type	RJ45 Female
Chipset	Realtek RTL8156
Dimensions	7.5 x 2.5 x 1.5 cm (2.95 x 0.98 x 0.59 in)
Weight	50 g (1.76 oz)
Power Source	Bus-powered via USB
Operating Systems Supported	Windows 11/10/8/7, macOS 10.12+, Linux Kernel 3.x+
LED Indicators	Link/Activity (Green)
Compliance	IEEE 802.3, 802.3u, 802.3ab
Jumbo Frame Support	Up to 9k bytes
Wake-on-LAN	Supported
Housing Material	Aluminum
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Maintenance	Clean with dry, lint-free cloth; avoid liquids
Safety Precautions	Do not expose to moisture or extreme temperatures
Spare Parts / Repairability	Not user-serviceable; contact support for warranty

Frequently Asked Questions - USB4000IPGB StarTech.com

How do I install the USB4000IPGB adapter on Windows?

Plug the adapter into a USB port. Windows will automatically install the driver via Windows Update. If not, download the driver from StarTech.com support.

Does this adapter support USB 3.0/2.0 ports?

Yes, it is backward compatible with USB 3.2, 3.0, and 2.0 ports, but speeds will be limited to the port's maximum (e.g., 480 Mbps on USB 2.0).

What operating systems are supported?

Windows 11/10/8/7, macOS 10.12 or later, and Linux with kernel 3.x and above.

Can I use this adapter for gaming or streaming?

Yes, it provides a stable Gigabit Ethernet connection with low latency, suitable for gaming, streaming, and large file transfers.

Does it support Wake-on-LAN?

Yes, the adapter supports Wake-on-LAN functionality. Enable it in the driver settings or your operating system's network settings.

What is the maximum cable length?

The adapter supports standard Ethernet cabling up to 100 meters (328 feet) for Cat5e or better.

How do I check if the adapter is working?

After installation, check Device Manager (Windows) or System Information (macOS). The adapter should appear as a network device. Connect an Ethernet cable and look for a green LED on the adapter.

Is this adapter compatible with USB 4.0 only?

It is designed for USB 4.0 but works with all earlier USB types. For full performance, use a USB 4.0 or USB 3.2 Gen 2 port.

Why is my connection speed limited to 100 Mbps?

Ensure you are using a Cat5e or Cat6 cable and that your network equipment supports Gigabit Ethernet. Also check that the adapter is connected to a USB 3.0 or higher port.

Does the adapter come with a warranty?

Yes, StarTech.com offers a 2-year warranty. Register your product on their website for support.

USER MANUAL USB4000IPGB StarTech.com

USB Ethernet Network Device Server - 4 Ports

USB4000IP / USB4000IPGB / USB4000IPEU

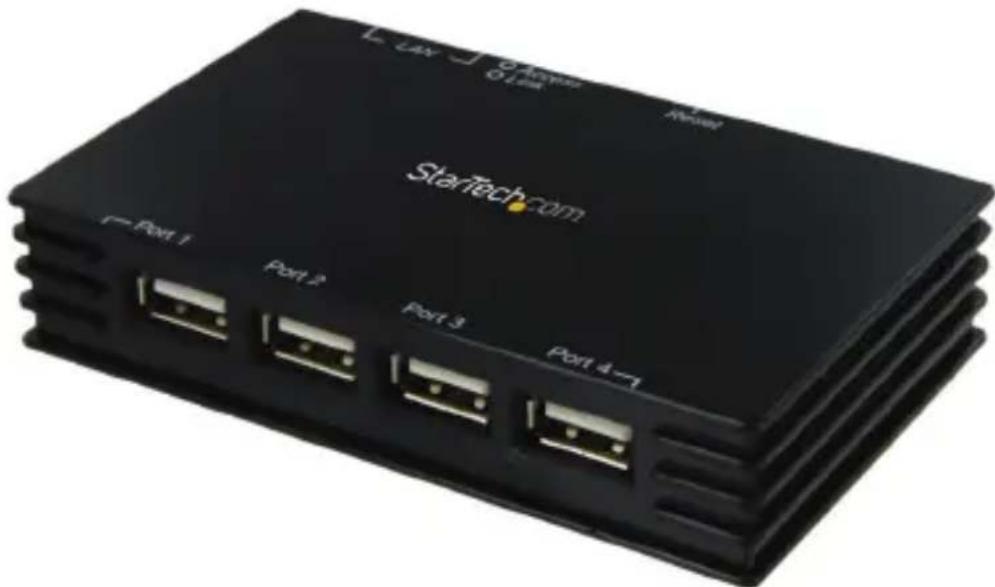

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ....1

Packaging Contents ....1

Installation 2

Hardware Installation 2

Installing the Server Utility Software ....2

Using Your First USB Device ....5

Technical Support ....7

Warranty Information ....7

Introduction

Thank you for purchasing a StarTech.com USB4000IP USB Ethernet Network Device Server - 4 Ports. This convenient unit allows you to share USB devices over a network/IP so they can be accessed on multiple computers. The USB4000IP also enables you to connect printers, scanners, card readers, external drives and more. Reach your USB devices from anywhere on your LAN. Now you can take full advantage of CAT5 cable lengths and the convenience of USB devices in all-in-one solution.

Packaging Contents

• 1 X Driver CD
• 1 X Instruction Manual
• 1 X Power Adapter
• 1 X USB Device Server

Installation

Hardware Installation

Note: Do not connect your USB device(s) to the USB Server until you have finished installing the USB Server software and hardware!

Step 1 - Connect the USB Server to Your Network

First connect one end of an ethernet cable to the USB Server's Ethernet port, and the other to your network. This can be a free Ethernet port on your DSL router, Ethernet hub, or WiFi router. If you do not have a network, you can connect the USB Server directly to the ethernet port on your computer.

Step 2 - Connect the USB Server's Power Supply

Connect the included power supply to the USB Server's power connector.

Installing the Server Utility Software

The following instructions outline the installation of the eserver Utility software for all versions of Windows operating systems. Although screen shots of the Server Utility software may not match your operating system, please note that the button, menu, and tab names are all identical on both platforms.

Step 1 - Insert the USB Server CD-ROM

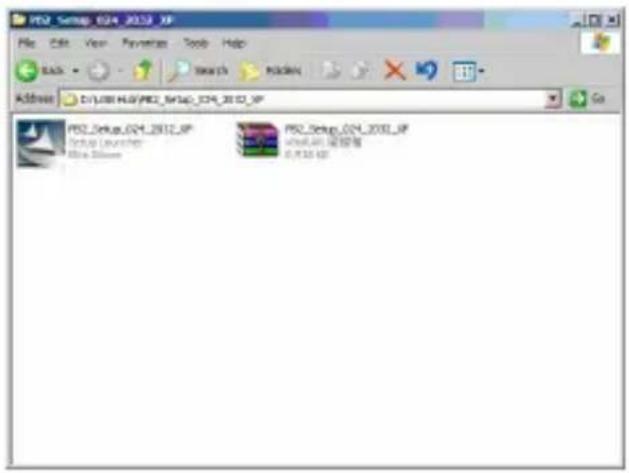

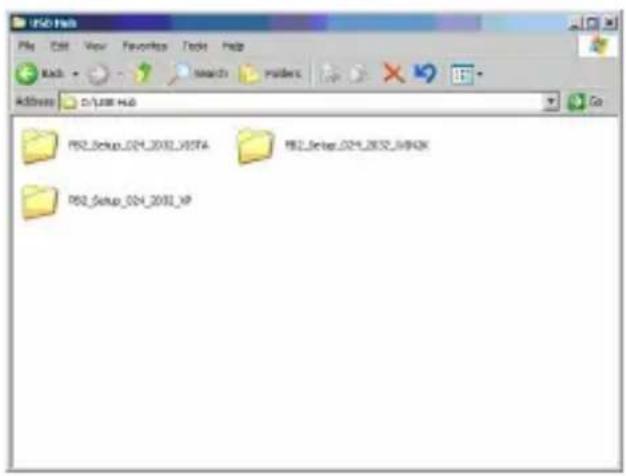

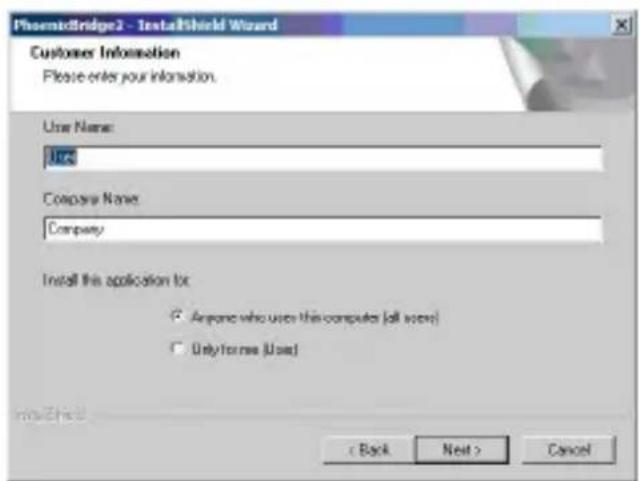

Turn your computer ON and place the USB Server CD into the CD-Rom drive. Windows will automatically open the CD Browser window. Choose your systems driver folder and click Setup to start the installation process.

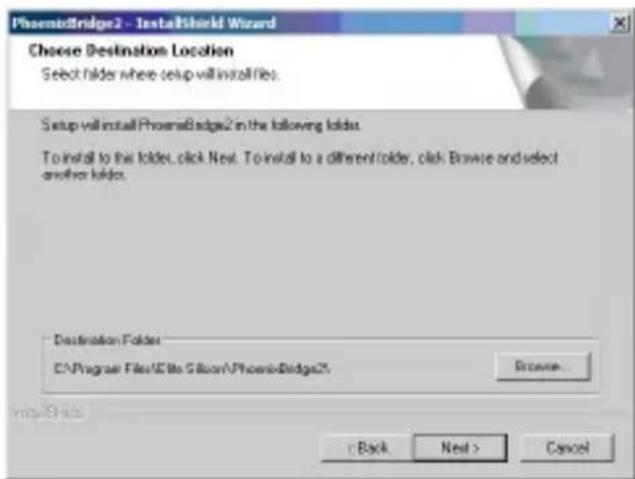

Follow the instructions on the screen.

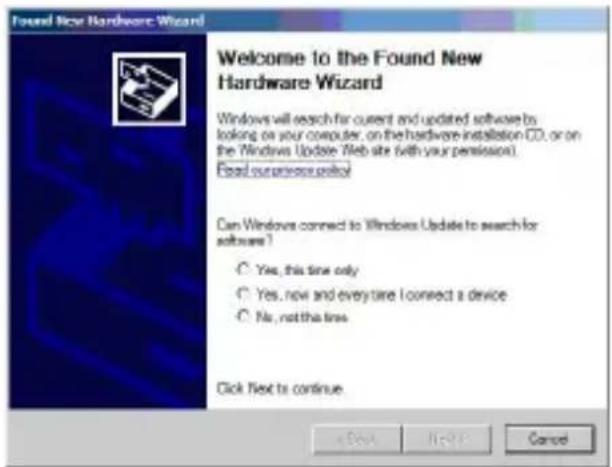

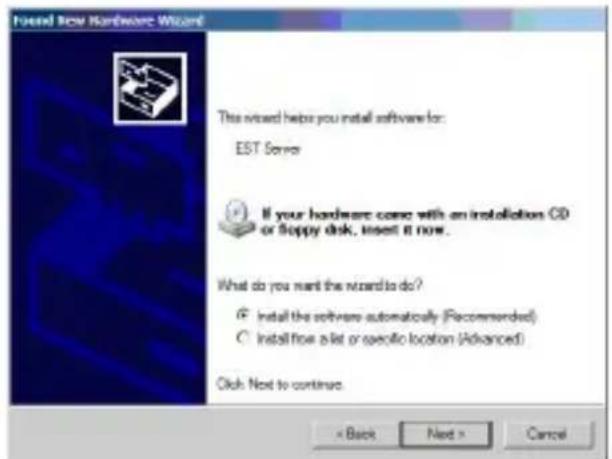

During and/or after the software installation, the Windows New Hardware Wizard may ask you to install software several times. Select 'Install the software automatically' and click next until the New Hardware Wizard completes the installation.

NOTE: You will not be able to use your USB Server until you complete the New Hardware Wizard process.

Step 2 - Running the PhoenixBridge2 Server Utility Application

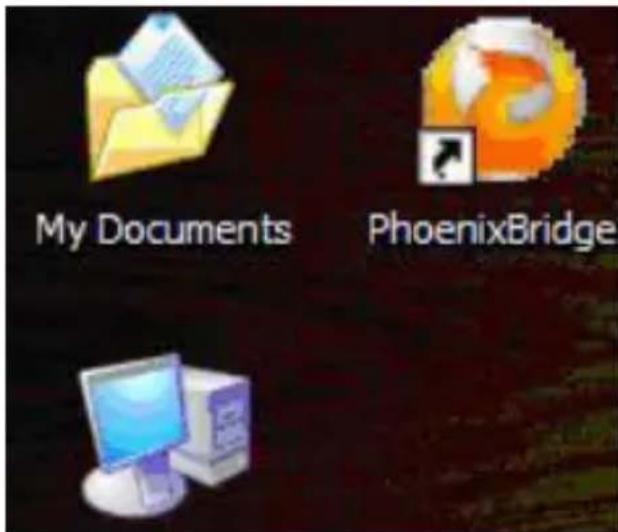

Once the installation is complete, click the PhoenixBridge2 icon on the desktop. This will launch the PhoenixBridge2 Server Utility Application which is used to configure the USB Server.

Using Your First USB Device

Step 1 - Connecting a USB Device to the USB Server

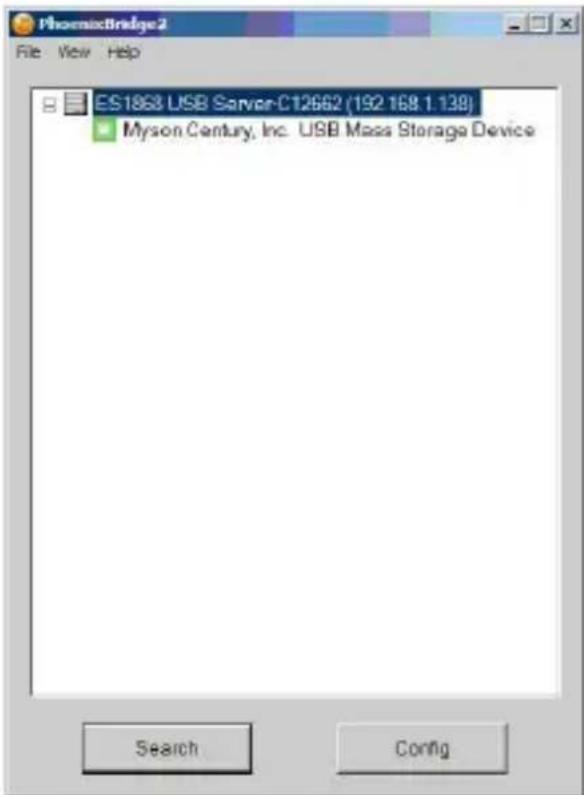

Once a USB device is connected to the USB Server, open the PhoenixBridge2 Server Utility. You will see the names of USB devices listed in this application.

Step 2 - Connecting a USB Device

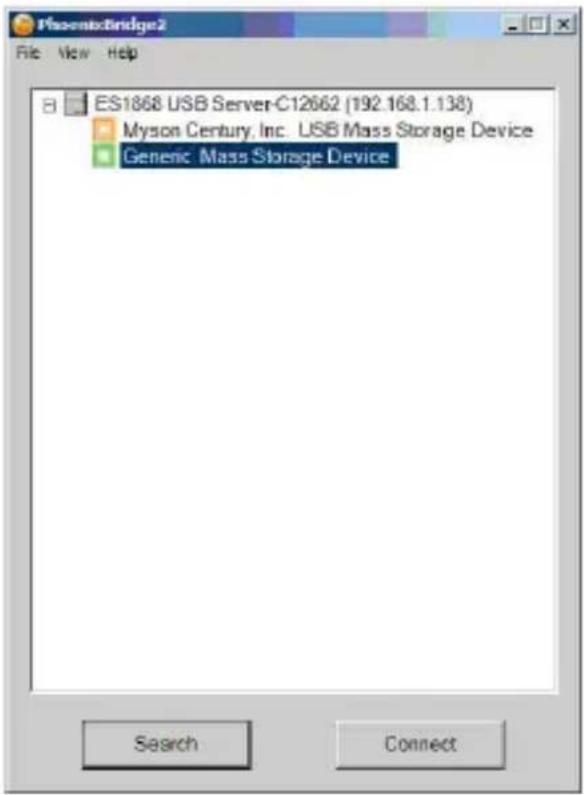

To connect a USB device to your computer via the USB Server, select the USB device then click Connect under the device list as shown below:

Step 3 - Disconnecting USB Devices

When finished using a USB device, you must disconnect it from your computer before it is available to everyone else on the network. To do this, open the Keyspan Server Utility application, select your USB device, then click the red Disconnect icon.

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
