SHT 70820 WH - Tumble drier TEKA - Free user manual and instructions
Find the device manual for free SHT 70820 WH TEKA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Tumble dryer |
| Brand | Teka |
| Model | SHT 70820 WH |
| Dimensions (W x D x H) | 597 x 584 x 850 mm |
| Net Weight | 48 kg |
| Power Supply | 220-240 V, 50 Hz |
| Total Power Consumption | 2500 W |
| Energy Class | B |
| Annual Energy Consumption | 561 kWh |
| Drum Volume | 118 L |
| Maximum Load Capacity | 8 kg |
| Drying Type | Condenser |
| Number of Programs | 16 |
| Programs | Cotton, Synthetics, Delicates, Wool, Shirts, Jeans, Quick 30', etc. |
| Sensor Drying | Yes |
| Reverse Tumbling | Yes |
| Anti-crease Function | Yes |
| Delay Start | Up to 24 hours |
| Child Lock | Yes |
| Filter Maintenance | Clean after each cycle |
| Condenser Cleaning | Periodically |
| Noise Level | 67 dB(A) |
| Spare Parts Availability | 7 years |
| Repairability Index | 7.5/10 |
Frequently Asked Questions - SHT 70820 WH TEKA

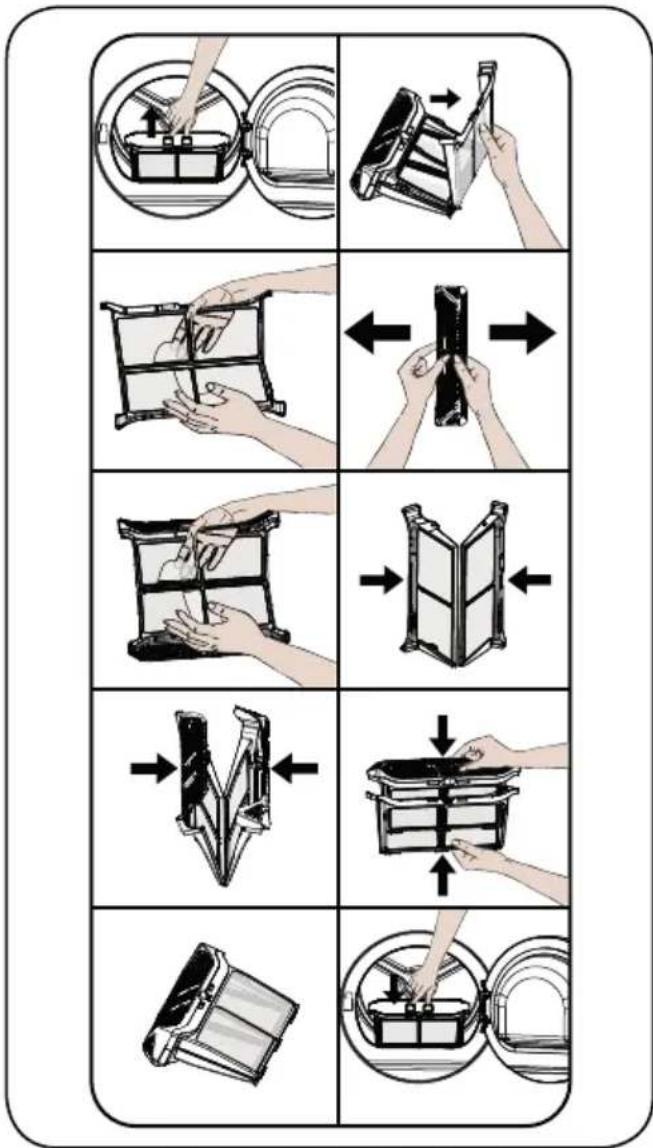

How do I clean the lint filter?
Open the door and pull out the lint filter located at the bottom of the door opening. Remove the lint by hand or with a soft brush. Rinse under running water if necessary. Dry completely before reinserting. Clean after every drying cycle to maintain efficiency.
Why is my dryer not starting?
Check that the door is fully closed and latched. Ensure the appliance is plugged in and the power supply is on. Verify that the delay start function is not active. If the problem persists, check the fuse or circuit breaker.
How often should I clean the condenser?
The condenser should be cleaned approximately once a month or after 30 drying cycles, depending on usage. Remove the lower front panel, pull out the condenser, and rinse it with warm water. Let it dry before reinstalling.
Can I dry wool in this dryer?
Yes, but use the Wool program specifically designed for machine-dryable wool items. Reduce the load to 1-2 kg and remove items as soon as the cycle ends to prevent creasing.
What does the 'Reverse Tumbling' function do?
Reverse tumbling alternates the drum direction during the drying cycle to reduce tangling and improve drying evenness. It also helps minimize creasing in clothes.
How to use the delay start feature?
Select your drying program, then press the Delay Start button repeatedly to set the desired delay from 1 to 24 hours. Press Start to confirm. The dryer will begin at the set time.
What is the maximum load capacity for cotton?
The maximum load for cotton is 8 kg. For optimal results, do not overload. Smaller loads (e.g., 4 kg) dry faster and more efficiently.
Why is my dryer taking too long to dry?
Check if the lint filter and condenser are clean. Ensure the room temperature is not too low. Overloading or selecting a high dryness level can also extend drying time. Verify that the load is appropriate for the selected program.
Is the child lock function available?
Yes, press and hold the Child Lock button (usually marked with a padlock icon) for 3 seconds to activate. This prevents accidental changes to settings during operation. Repeat to deactivate.
Where can I find spare parts?
Spare parts are available through authorized Teka service centers or online retailers. Use the model number SHT 70820 WH to ensure compatibility. Teka guarantees spare parts availability for at least 7 years after purchase.
