USER MANUAL CA-R-ISU.003AE PIONEER

Steering wheel control interface installation kit for:

ISUZU

Model: D-MAX

Year: 2020>

Kit content: SWC resistive interface wiring harness radio adapter (*) if included

Customer code: CA-R-ISU.003AE

Electrical wiring harness with various connectors and components, no visible text or symbols

INSTALLATION MANUAL

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

03/2021 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.R0

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

03/2021 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.

ATTENTION!

THE HARNESS IS COMPATIBLE WITH VEHICLES EQUIPPED WITH OEM TOUCHSCREEN RADIO ONLY

ATTENTION!

In order to prevent ESD damage, the WHEEL REMOTE JACK must be connected before plugging in the connectors on car side.

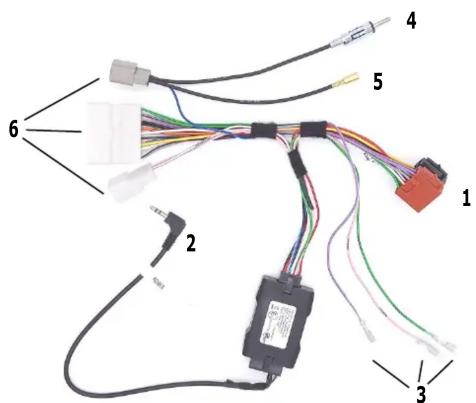

Connect cables to the radio side as follow:

1- to ISO CONNECTOR (red and black housings)

2- to WIRED REMOTE SOCKET (NOTE: do not connect to microphone socket)

3- to SERVICE (if required); function is marked on wire:

Green - Brake

Pink - Speed

Violet/White - Reverse

4- to FM/AM Radio Connector

5- to DAB Radio Connector

Connect cables to the car side as follow:

6- to CAR Connectors

1- Volume +

2- Volume -

3- Seek up

4- Seek Down

5- Source (Short press) /Mute (long press)

6- Accept incoming call

7- Voice

8- Reject incoming call
