Product Type	Floor Stand Base
Brand	B-Tech
Model	BT8380-AFB
Maximum Load Capacity	150 kg (330 lbs)
Level Adjustment	+/- 13.5 mm per corner
Compatible Columns	B-Tech BT8380, BT8381, BT8385
Compatible Poles	B-Tech BT4116, BT4118
Compatible Rails	B-Tech BT8390
Material	Steel
Application	Indoor use for AV equipment
Installation Type	Floor-mounted with anchoring
Included Hardware	8x M8 nuts, 8x cup washers, 8x dome washers, 4x M6x40mm cap head screws, 4x M8x40mm button head screws, 1x 5AF hex key
Required Tools	Drill, pencil, 13mm spanner
Safety Features	Designed for max weight, periodic inspection recommended
Maintenance	Wipe clean with damp cloth; avoid abrasives
Country of Origin	United Kingdom
Repair and Spare Parts	Contact B-Tech support
Warranty	Not specified; refer to seller

Frequently Asked Questions - BT8380-AFB B-Tech

How do I install the BT8380-AFB floor base?

Pre-drill holes in the floor and use suitable ground anchors (not supplied) to fix the base plate. Then attach the leveling plate and column using the provided hardware. Use a 13mm spanner to adjust the leveling nuts.

What is the maximum load capacity of this TV stand base?

The BT8380-AFB can support up to 150 kg (330 lbs). Do not exceed this weight to avoid instability.

Can I use this base with non-B-Tech columns?

No, the base is designed specifically for B-Tech columns (BT8380, BT8381, BT8385), poles (BT4116, BT4118), and rails (BT8390). Using incompatible parts may compromise safety.

How do I level the base on an uneven floor?

Loosen the top M8 nut with a 13mm spanner, then adjust the bottom nut up or down to level the plate. Each corner offers +/- 13.5 mm adjustment. Tighten the top nut once level.

What tools are needed for installation?

You will need a drill and pencil for marking and drilling holes, and a 13mm spanner for tightening nuts.

Is professional installation required?

B-Tech recommends installation by a professional AV installer or qualified person. If you are unsure, consult a professional to ensure safety.

How do I clean the floor base?

Wipe with a damp cloth. Do not use abrasive cleaners or solvents that may damage the finish.

Are spare parts available for this product?

Yes, spare parts such as nuts, washers, and screws are listed in the manual. Contact B-Tech support for replacements.

How often should I inspect the installation?

Inspect the product and its fixing points at least every 6 months to ensure safety. Check for loose bolts or signs of wear.

Can this base be used outdoors?

No, the BT8380-AFB is designed for indoor use only. Outdoor installation may lead to rust or instability.

USER MANUAL BT8380-AFB B-Tech

WITH LEVEL ADJUSTMENT

INSTALLATION GUIDE

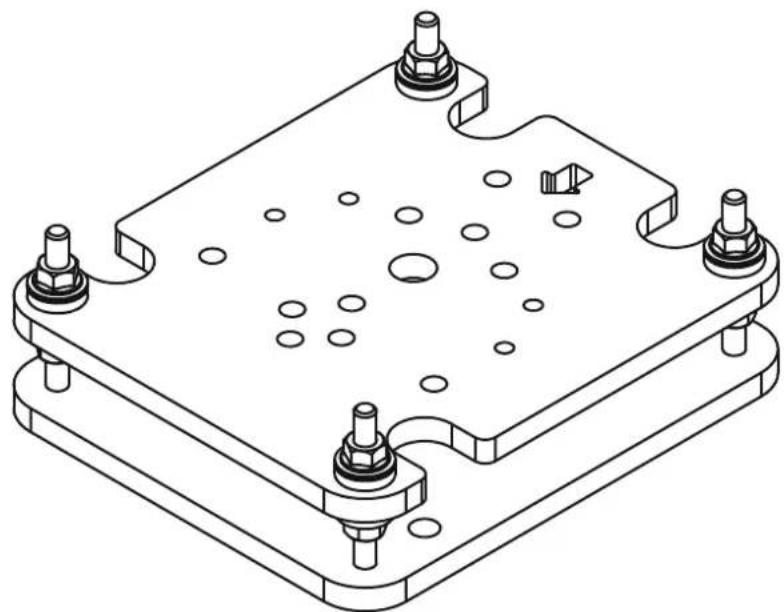

Isometric technical drawing of a mechanical component with four mounting holes and internal holes (no text or symbols)

SPECIFICATIONS

• Heavy duty floor base with level adjustment suitable for use on uneven floors
• Compatible with a variety of B-Tech columns (BT8380 / BT8381 / BT8385), poles (BT4116 / BT4118) and rails (BT8390)
  • Max load per base: 150kg (330lbs)
• Adjustment: +/- 13.5mm (0.5") in each corner

CONTENTS

Installation Safety Notes....2

Parts List.... 4

Product Dimensions.... 4

Installation Instructions....5

B-Tech Contact Details....8

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This mount is intended for use only with the maximum weights indicated. Use with equipment heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood.

Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death, both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.

This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Designed for indoor use, this mount is suitable for public or home installation. Check load capacity of the floor prior to installation as some surfaces are not suitable for installation. When verifying the stability of the structure, consider the following external factors: The strength of the floor, exposure to sudden and severe wind and danger arising from contact with people and / or objects (eg installations in passageways, emergency exits), if located in a public or frequently populated area ensure that the product is out of the immediate reach of people. When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation.

If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained.

If in doubt consult a professional AV installer or other suitably qualified person.

BT8380-AFB PARTS LIST

PLEASE KEEP THIS FOR FUTURE REFERENCE

ITEM	PART NAME QTY
1	BASE PLATE	1
2	LEVELLING PLATE	1
3	M8 NUT	8
4	CUP WASHER	8
5	DOME WASHER	8
6	M6 x 40mm CAP HEAD SCREW	4
7	M8 x 40mm BUTTON HEAD SCREW	4
8	5AF HEX KEY	1

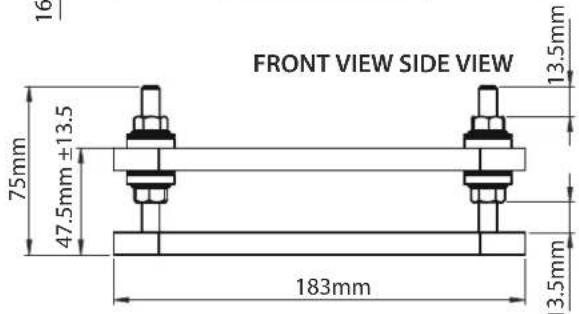

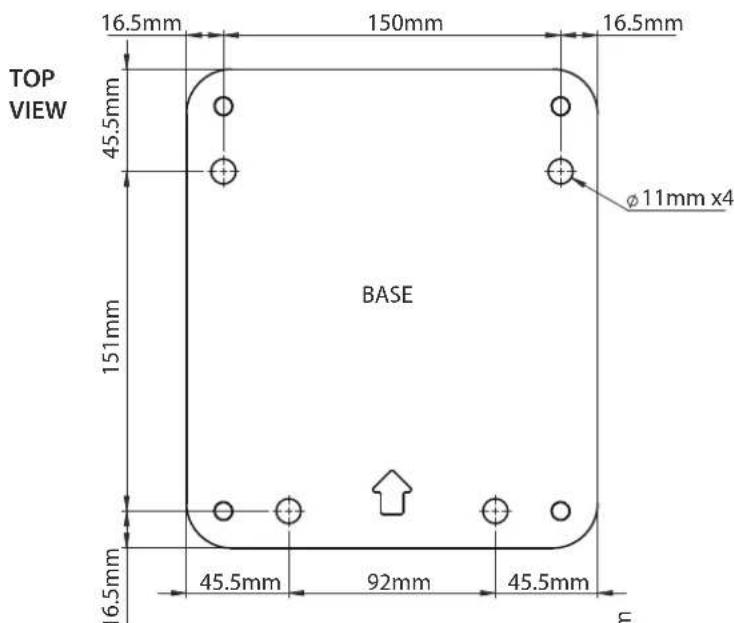

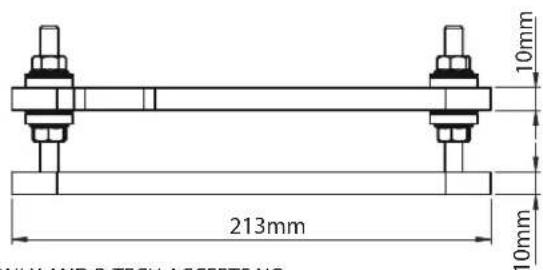

BT8380-AFB DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

PLATE FIXING POINTS

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

INSTALLATION INSTRUCTIONS

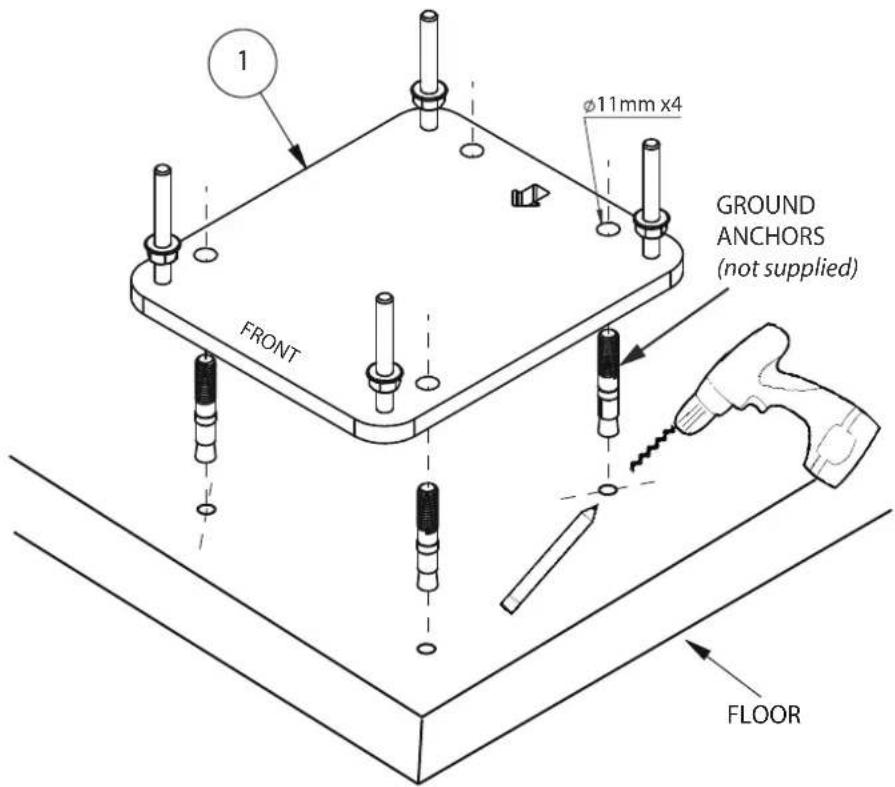

1 BOLT BASE ONTO FLOOR

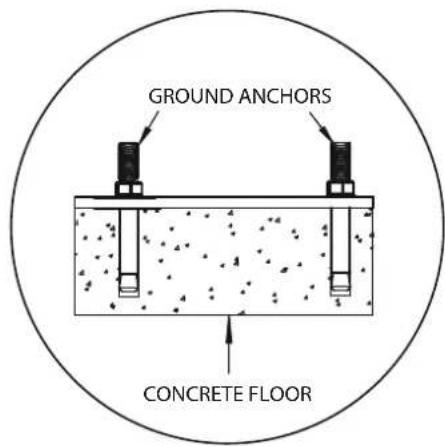

i. Pre-drill holes in floor and using suitable ground anchor fixings (not supplied), fix item 1 to the floor.

INSTALLATION TOOLS REQUIRED
Drill
Pencil
13mm
Spanner

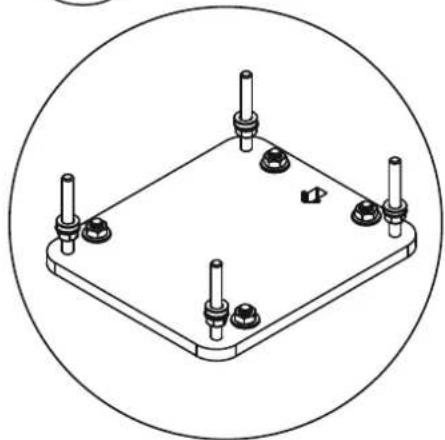

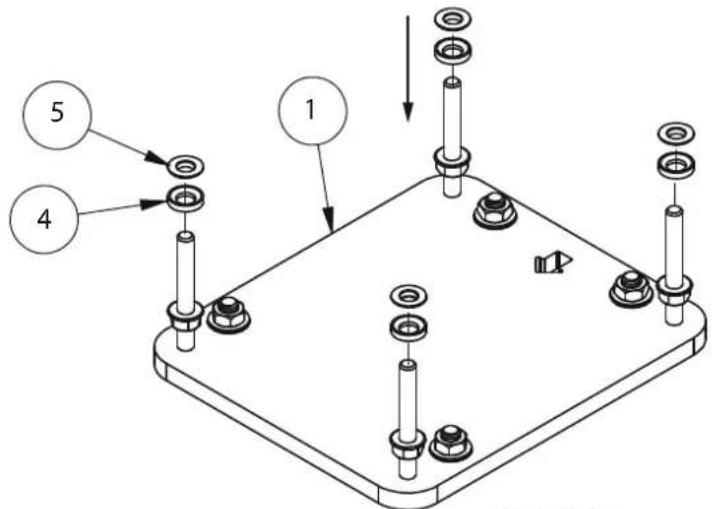

ii. Add items 4 & 5 onto the stems of item 1.

Isometric line drawing of a square mechanical base with four cylindrical components and mounting holes, enclosed in a circular border (no text or symbols)

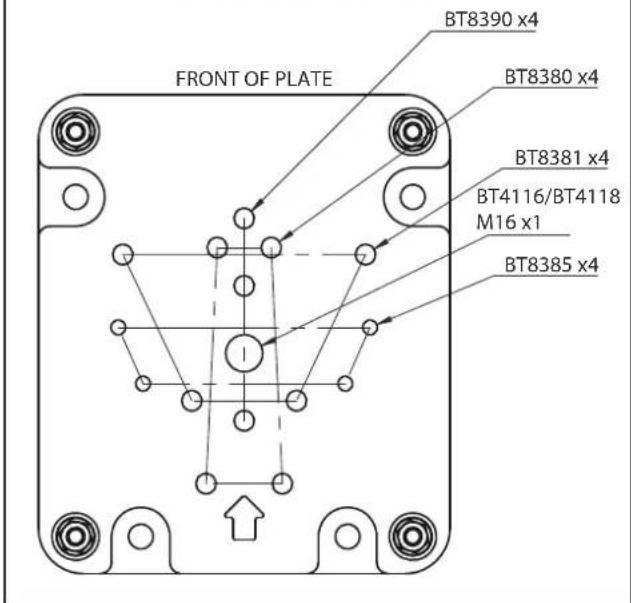

2. ATTACH COLUMN/POLE/RAIL TO PLATE

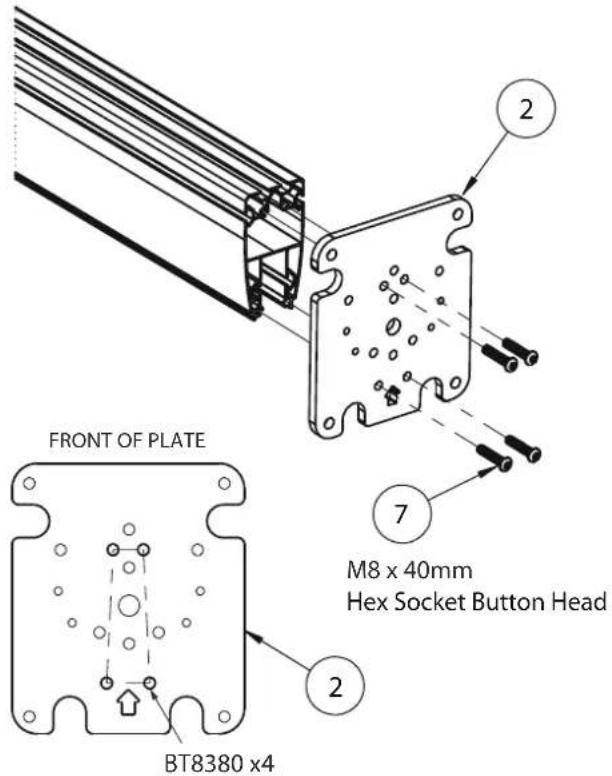

A. BT8380 COLUMN

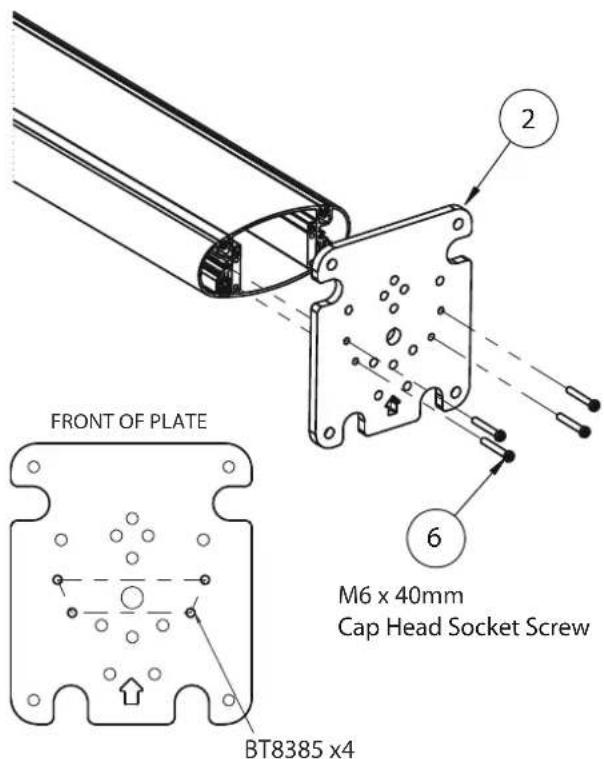

B. BT8385 COLUMN

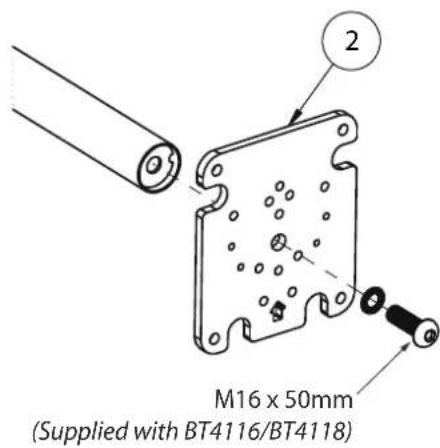

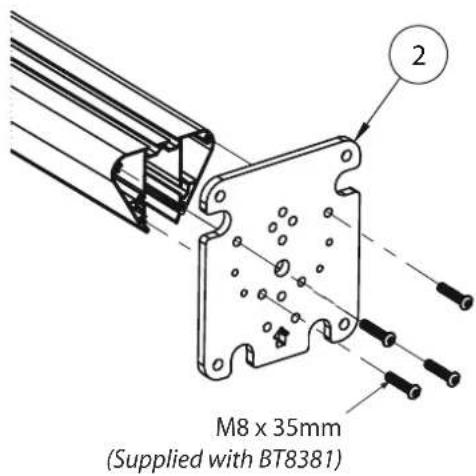

C. BT8381 COLUMN D. BT4116/BT4118 POLE

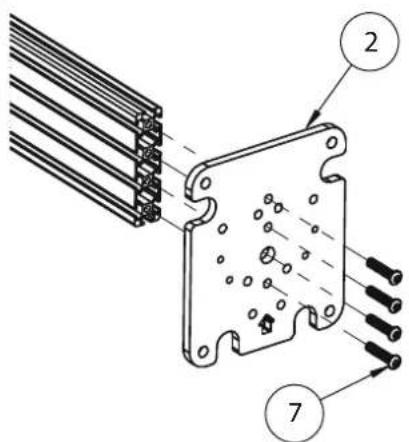

E. BT8390 RAIL

Note: Holes must be threaded on rail

FRONT OF PLATE

FRONT OF PLATE

FRONT OF PLATE

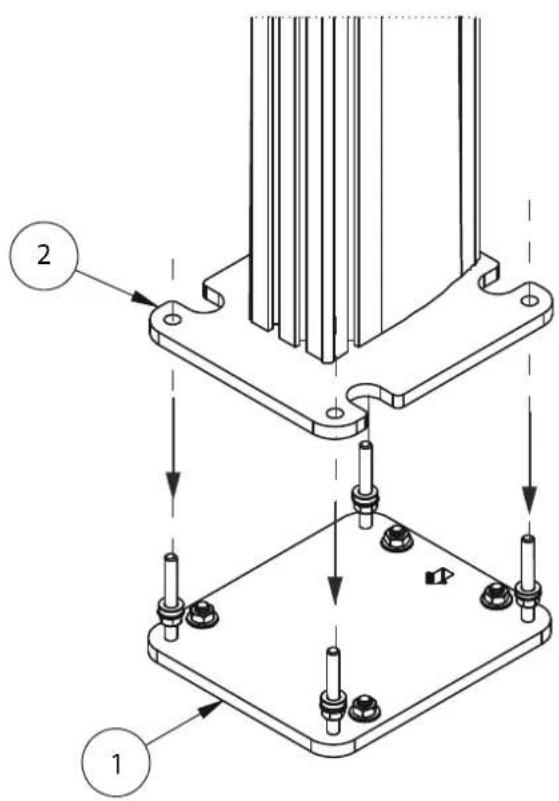

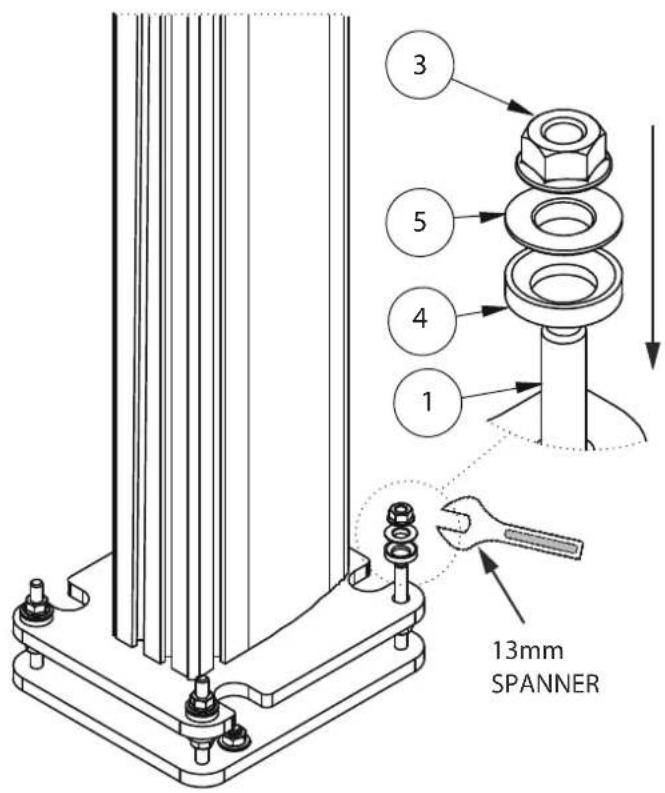

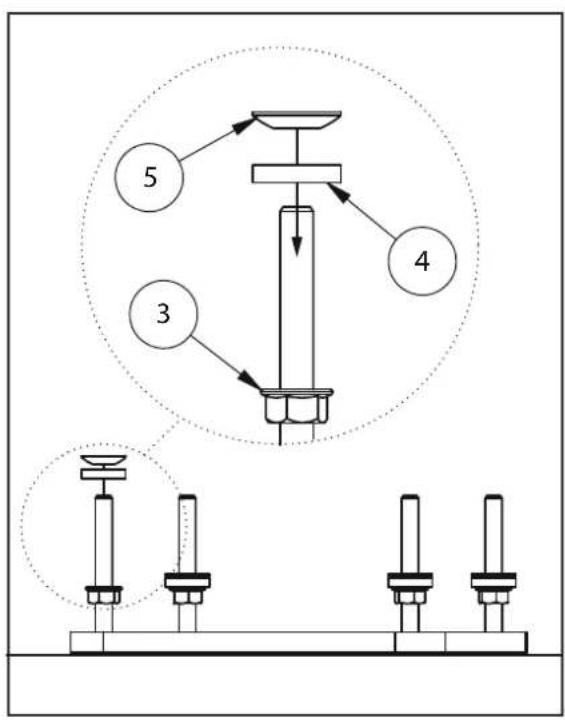

3. FIX PLATE & COLUMN ONTO BASE i. Mount item 2 onto item 1.

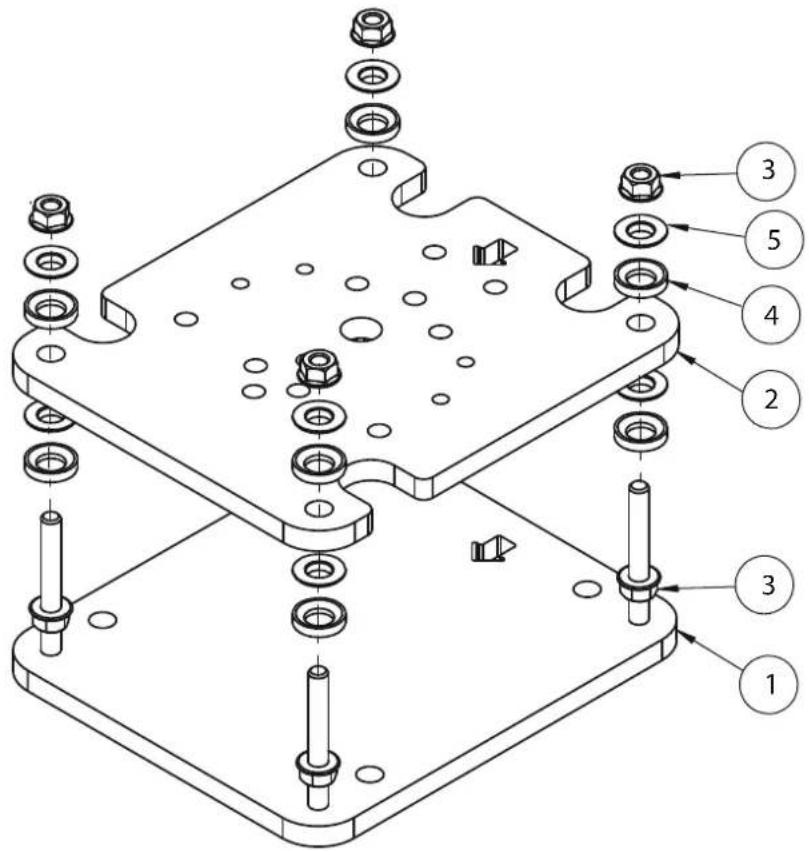

ii Fix items 3, 4 & 5 to item 1.

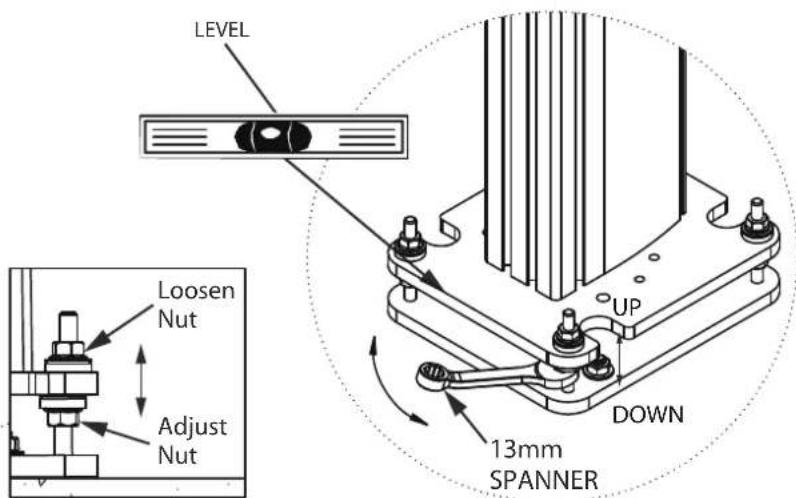

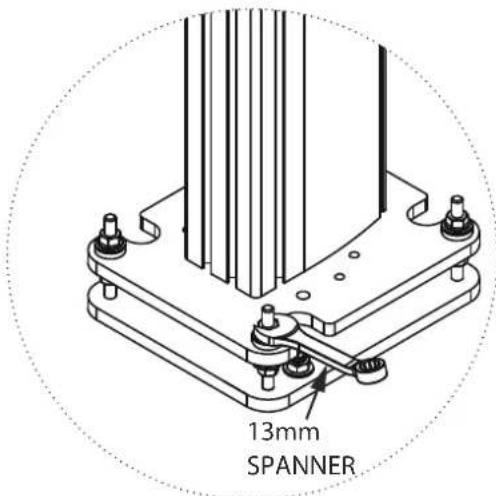

4. LEVEL BASE

Using a 13mm spanner, loosen the top nut (item 3)

and adjust the bottom nut (item 3) up or down to

level item 2. Once level, fully tighten the top nut.

Note: +/-13.5mm adjustment available in each corner.

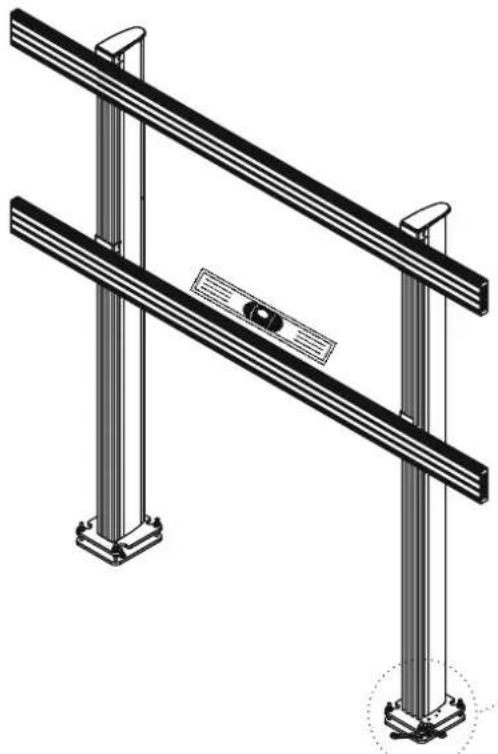

Technical line drawing of two parallel metal beams supported by vertical posts, with a small inset showing a circular detail (no text or symbols)

CONTACT:

[e-mail]

©2021 B-Tech International Design and Manufacturing Ltd. All rights reserved.

B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd.

B-Tech AV Mounts and the B-Tech logo are registered trade marks.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

AMA-BT8380-AFB-V1-1121-50 MADE IN THE UK
