Product Type	Electric Insect Killer
Model	IK610
Brand	Khind
Dimensions (Approx.)	38 x 28 x 12 cm
Weight	1.2 kg
Power Supply	AC 220-240 V, 50 Hz
Power Consumption	6 W
UV Light Wavelength	365 nm
Coverage Area	Up to 50 m²
Insect Attraction Method	UV fluorescent tube
Killing Mechanism	High-voltage electric grid (2.5 kV)
Housing Material	ABS plastic
Protection Grid	Front protective grid with spacing < 10 mm
Safety Features	Overheat protection, insulated casing
Cleaning	Unplug, remove tray, brush dead insects
Replacement Parts	UV tube (model G6T5)
Reparability	Replaceable UV tube and fuse
Usage	Indoor only
Installation	Hang on wall or stand on flat surface
Certification	CE, RoHS

Frequently Asked Questions - IK610 Khind

How do I clean the Khind IK610 insect killer?

Always unplug the device first. Remove the bottom tray and brush out dead insects. Use a damp cloth for the exterior. Do not use water on the electric grid.

Can I leave the IK610 on overnight?

Yes, the IK610 is designed for continuous operation. It has overheat protection and low power consumption, making it safe for overnight use.

How often should I replace the UV tube?

Replace the UV tube every 6-12 months or when it no longer attracts insects. Use model G6T5.

Is the IK610 safe for pets and children?

The front grid is designed to prevent accidental contact with the high-voltage grid inside. However, place it out of reach of small children and pets.

What insects does the IK610 attract?

It attracts flying insects such as mosquitoes, flies, moths, and gnats using UV light.

Why is the IK610 not working?

Check if the power cord is plugged in, the fuse is intact, and the UV tube is functional. If the grid is not sparking, there may be a short circuit.

Can I use the IK610 outdoors?

No, the IK610 is for indoor use only. Exposure to moisture can cause electric shock or damage.

What is the coverage area of the IK610?

It covers up to 50 square meters in an enclosed room. For best results, place it away from competing light sources.

How do I hang the IK610 on the wall?

Use the keyhole slots on the back. Mark the wall, install screws (not included), and hang the device securely.

Does the IK610 make noise?

When insects are zapped, you may hear a faint snap. The UV tube is silent. Overall, it is very quiet.

USER MANUAL IK610 Khind

Abstract grayscale graphic with white geometric shapes and curved lines, no text or symbols present

••• New Aedes Buster / 全新黑斑蚊克星/Penangkap Aedes

Instruction Manual/说明指示书/Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书。并将之收藏以作日后参考。

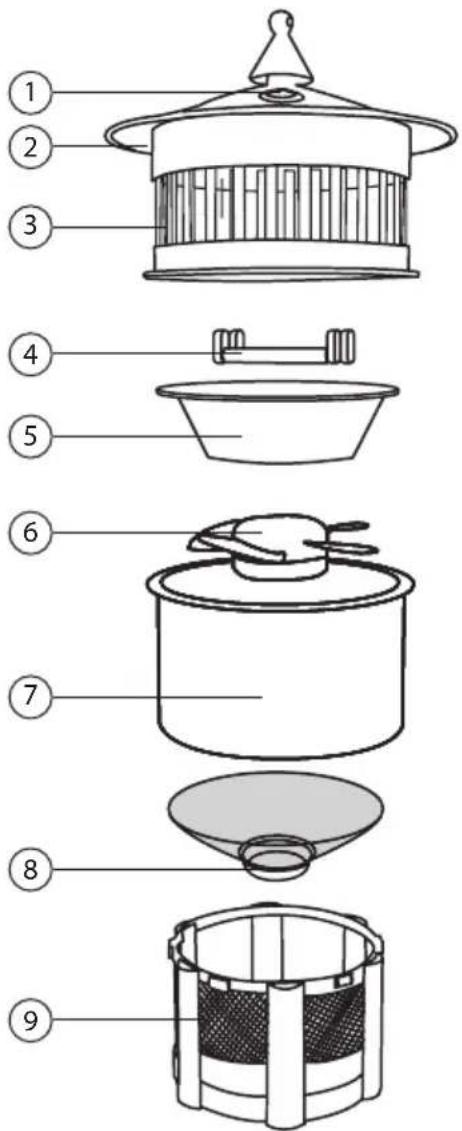

Parts Identification

1 Power / Timer Switch
② Top Cap
3 UV Tube Compartment
4 UV Tube
5 Titanium Dioxide Coated Panel
6 Fan Motor
7 Fan Compartment
8 Trap Funnel
9 Mosquitos Collecting Compartment

* Picture is for illustration purpose only.

Specifications

Model	IK610
Voltage	220-240V~ 50Hz
Power	26W
Effective Area	30 - 60m ^2
Net Weight	1.4 kg

* Specifications are subject to change without prior notice.

Caution & Cleaning & Maintenance

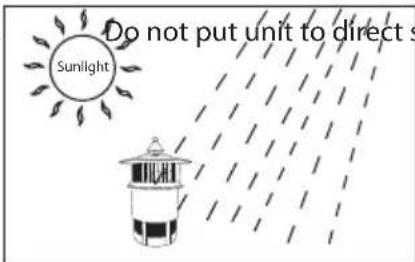

1. Do not put unit to direct sunshine and rain.

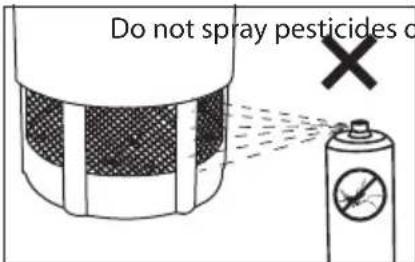

1. Do not spray pesticides onto unit.

1. Do not use the cleaning agents on the unit.
2. If this Khind New Aedes Buster does not work, please send it to the dealer or nearby service centre.

3. Unplug the power cord from the power supply before doing any maintenance.

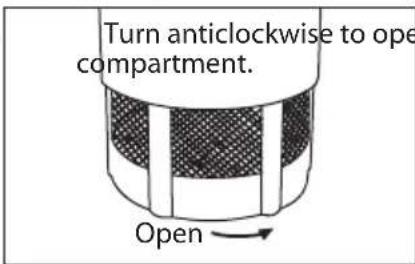

4. Turn anticlockwise to open the mosquitoes collecting

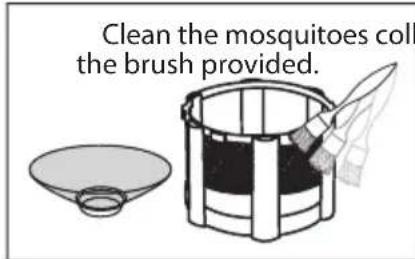

1. Clean the mosquitoes collecting compartment weekly by using the brush provided.

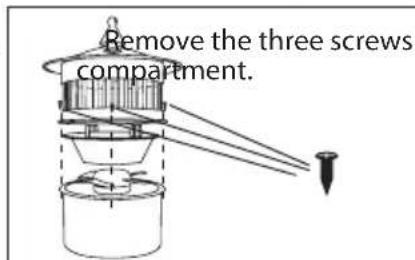

1. Remove the three screws to seprate the fan and the UV tube

1. Use damped cloth to clean the fan blade if necessary.

2. Change the UV tube every 6 months for optimum operation.

3. Do not immerse the unit into water or any other liquids.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is to be kept out of reach of children.
7. This appliance is not to be used in locations where flammable vapour or explosive dust is likely to exist.
8. This appliance is for indoor use only.

How to use

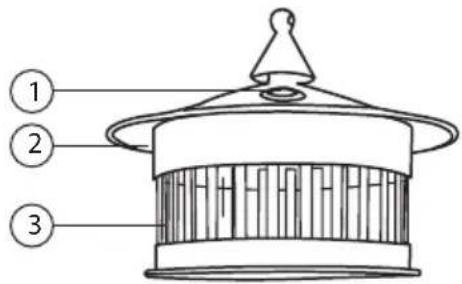

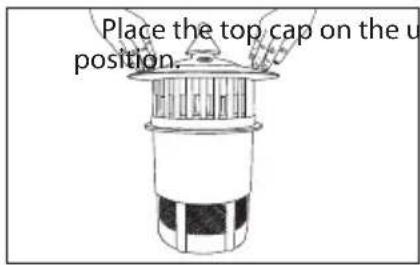

1. Place the top cap on the unit and press down to sit into

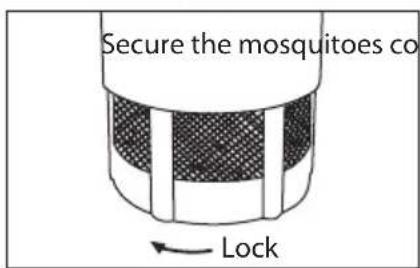

1. Secure the mosquitoes collecting compartment firmly.

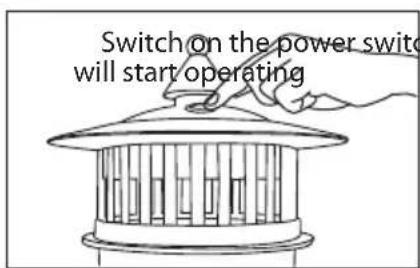

1. Switch on the power switch, the two UV lights up and the fan

1. The unit will automatically switch off after using 4 hours. Press the Power / Timer Switch twice to activate the timer.
2. Place it at least 10 ft away from you so that you don't distract the mosquitoes and become the wrong target, or place it 2 hours before using your room or hall, whichever is applicable.
3. Switch off other surrounding lighting sources, so that they do not affect the affectiveness of the UV tube.
4. This unit is designed for indoor use only. It is not water resistant.

How it works

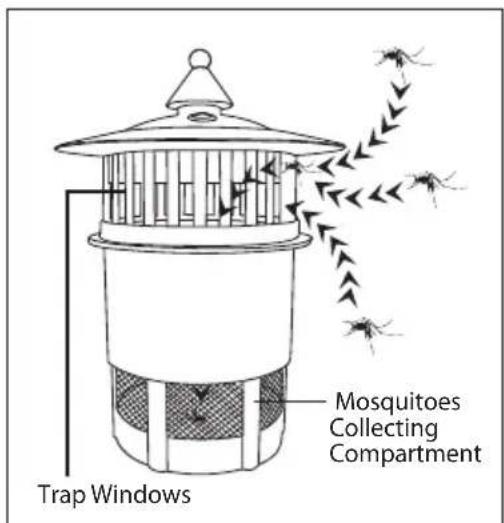

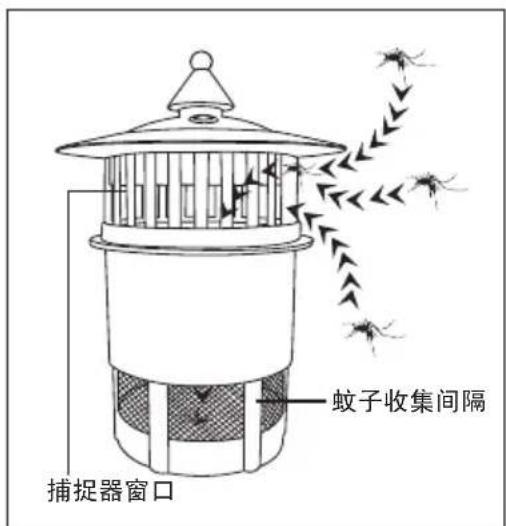

1. Mosquitoes are attracted by the CO2, UV light, heat and dark colour body of the Aedes Buster.

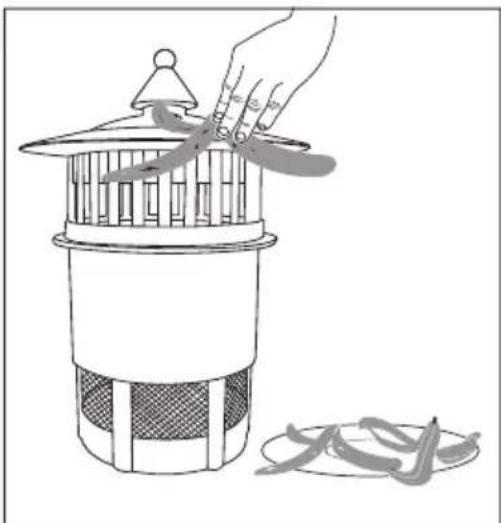

2. Do not clean the appliance with metal scouring pads as it may scratch the surface or cause electrical shock. (Diagram 1)
3. Empty the water tank to avoid odour when not using the appliance. (Diagram 2)

Line drawing of a hand using a fan blade to press down a cylindrical device with a mesh base, next to a small bowl of food (no text or symbols)

Diagram 1 Diagram 2

零件名称

Simple line drawing of a funnel with an arrow pointing to it, no text or symbols present.

Technical line drawing of a cylindrical mechanical component with internal layered structure (no text or symbols)

* 图片仅供参考。

规格

Line drawing of a hand using a fan-shaped tool to clean or prepare food from a portable stove (no text or symbols)

(插图1)

(插图2)

Pengenalan bahagian

1 Suis Kuasa
② Pelindung Atas
3 Bahagian Tiub UV
4 Tiub UV
5 Panel Lapisan Dioksida Titanium
6 Motor Kipas
7 Bahagian Kipas
8 Corong Perangkap
9 Ruang Pengumpulan Nyamuk

Simple line drawing of a funnel with an arrow pointing to it, no text or symbols present.

Technical line drawing of a cylindrical mechanical component with textured fill and labeled part (9), no readable text or symbols present.

Illustration of a hand using a propeller to clean or feed a small object (no text or symbols present)

Gambarajah 1 Gambarajah 2
