Product Type	Fridge-Freezer Combination
Brand	Teka
Model	RBF 3320 WH
Colour	White
Total Net Capacity	200 L (approx.)
Fridge Net Capacity	140 L (approx.)
Freezer Net Capacity	60 L (approx.)
Dimensions (H x W x D)	850 x 550 x 590 mm (approx.)
Net Weight	35 kg (approx.)
Energy Class	A+ (approx.)
Annual Energy Consumption	220 kWh/year (approx.)
Climate Class	N-ST
Noise Level	38 dB(A) (approx.)
Defrost Type	Fridge: Auto; Freezer: Manual
Temperature Control	Thermostatic dial
Door Reversibility	Yes (user reversible)
Shelves	3 adjustable glass shelves
Dairy Compartment	Yes
Crisper Drawer(s)	1
Freezer Drawers	2
Cooling System	Static (with fan optional)
Refrigerant	R600a (approx.)
Cleaning	Wipe with damp cloth; mild detergent
Defrosting	Freezer: manual defrost when ice >5 mm
Safety	Child lock (optional); self-closing door
Spare Parts Availability	Through authorized service centers
Repairability Index	7.5/10 (typical)

Frequently Asked Questions - RBF 3320 WH TEKA

What is the recommended temperature setting for the fridge and freezer?

The recommended temperature for the fridge is between 3°C and 5°C. For the freezer, set to -18°C for optimal food preservation.

How do I defrost the freezer?

Unplug the appliance. Remove all food and leave the freezer door open. Place towels to catch water. Do not use sharp objects to remove ice. Clean and dry before restarting.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for instructions. You will need a screwdriver and follow the steps to change hinges.

Why is my fridge making unusual noises?

Common causes include: the appliance not being level, items vibrating on shelves, or the compressor cycling. Ensure it stands on a flat surface and check for loose parts.

How often should I clean the condenser coils?

Clean the coils at least twice a year to maintain efficiency. Use a vacuum cleaner with a brush attachment. Disconnect power first.

What should I do if the fridge is not cooling properly?

Check if the thermostat is set correctly. Ensure the door seals are clean and closing properly. Verify that the condenser coils are not dusty. If problem persists, contact service.

Is there a child lock feature?

Some models have a child lock on the control panel. Check your manual to activate. It prevents accidental temperature changes.

Can I store hot food directly in the fridge?

No, let hot food cool to room temperature first. Placing hot food inside raises the internal temperature and increases energy consumption.

How do I replace the interior light bulb?

Unplug the fridge. Remove the light cover (usually by pressing sides). Replace with an identical bulb (e.g., E14, 15W max). Reattach cover and plug in.

What do the error codes on the display mean?

Error codes vary by model. Common codes: E1 (temperature sensor fault), E2 (defrost sensor fault). Refer to the manual or contact customer support for specific codes.

USER MANUAL RBF 3320 WH TEKA

1

2

Installation

User Manual

RBF 3320 SS

RBF 3320 WH

ES EN PT

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children from suffering electric shock or closing themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING! Do not damage the refrigerant circuit. WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer. WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. 1)

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

- During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- Avoid open flames and sources of ignition.

- Thoroughly ventilate the room in which the appliance is situated.

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

⚠ WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel. ⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ¹⁾

• Power cord must not be lengthened. - Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire. - Make sure that you can come to the mains plug of the appliance. - Do not pull the mains cable. - If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire. - You must not operate the appliance without the lamp. - This appliance is heavy. Care should be taken when moving it. - Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. - Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.

- Frozen food must not be re-frozen once it has been thawed out. ¹⁾

- Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.

- Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ¹⁾

- Ice lollies can cause frost burns if consumed straight from the appliance. ¹⁾

• To avoid contamination of food, please respect the following instructions

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ¹⁾
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ²⁾

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don’t put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long;
• Don't set the thermostat to excessively cold temperatures;

- Keep all accessories, such as drawers, shelves, and balconies, in place for lower energy consumption.

Environment Protection

This appliance does not contain gases that could damage the ozone layer, either in its refrigerant circuit or insulation materials. The appliance shall not be discarded with urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed of according to the appliance regulations obtained from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol 🌐 are recyclable.

The symbol on the product or its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose of the packaging in suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During use, service, and disposal of the appliance, please pay attention to the symbol similar to the one on the left side, which is located on the rear of the appliance (rear panel or compressor) and is yellow or orange in color.

Risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please stay away from fire sources during use, service, and disposal.

Note: The above picture is for reference only. The actual appliance may differ.

Space Requirement

• Select a location without direct exposure to sunlight.
• Select a location with enough space for the refrigerator doors to open easily.
• Select a location with level (or nearly level) flooring.
• Allow sufficient space to install the refrigerator on a flat surface.
• Allow clearance to the right, left, back, and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Keep at least 50mm gap at two sides and back.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

For refrigerating appliances with climate class:

• Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; (N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; (ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

Door Reversibility

Before reversing the door, please prepare the following tools and materials: straight screwdriver, cross screwdriver, spanner, and the components included in the poly bag:

Left Door Hinge Cover x 1

Left Aid-Closer on Upper Door Left Aid-Closer on Lower Door x 1

1. Unscrew the top hinge cover and then unscrew the top hinge.

Then lift the upper door and place it on a soft pad to avoid scratches and damage.

1. Remove the top left screw cover.

1. Remove the upper door, take out the screw from the middle hinge using a cross screwdriver, then remove the lower door.

1. Lay the refrigerator down, remove the adjustable feet as shown below, then remove the lower hinge using a cross screwdriver.

1. Adjust the hinge core position of the lower hinge and upper hinge to the opposite position.

1

2

1. Install the lower hinge underneath the refrigerator as shown below, screwing in the adjustable feet, and make sure it is level.

1. Detach the refrigerator and freezer door gaskets, then reattach them after rotating.

1. Remove the original aid-closers from the upper and lower doors, then install the aid-closers from the internal bag (with instruction manuals) on the opposite side.

1. Install the lower door, adjust and fix the middle hinge onto the cabinet.

Installation

1. Place the upper door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. Then insert the top hinge and screw it to the top of the unit, and then fix the hinge cover (in accessory bag) with a screw.

11 Fix the screw cover.

Install the door external handle (if an external handle is present).

Space Requirement

• Keep enough space for the door to open.
• Keep at least 50mm gap at two sides and back.

A	545
B	600
C	1810
D	min =50
E	min=50
F	min=50
G	1100
H	1135
I	135°

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

1. Temperature setting of the Fridge Compartment

The fridge temperature setting knob

• The knob in fridge compartment is used to adjust temperature of fridge compartment.
• The internal temperature is controlled by a sensor. There are 4 settings: OFF, COLD, COLDER and COLDEST. COLD is warmest setting and COLDEST is coldest setting.
• The appliance may not operate at the correct temperature if it is in especially hot or if you open the door often.
• Neither fridge, nor freezer compartment works when the setting is OFF.

2. Temperature setting of the Freezer Compartment

The freezer temperature setting slider

FREEZER CONTROL

• This slider in fridge compartment is used to adjust temperature of freezer compartment.
• Slider is positioned toward , the temperature in freezer compartment will be higher. Contrarily, the temperature in freezer compartment will be lower if the slider is moved toward .
• Middle position of slider is advised position for normal using.
• To get lowest temperature in freezer compartment, you can adjust setting knob at coldest and position the slider at ✿.

3. Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature	Freezer compartment		Fridge compartment
Summer (Above 38°C)		Set on *
			Set on colder~coldest
Normal		Set on *
			Set on colder
Winter (Below 16°C)		Set on *
			Set on colder~coldest

• Information above give users recommendation of temperature setting. - In winter or temperature below 16°C , users should avoid set on * and cold. - For energy saving, the ✦ and coldest set only apply to special need(such as quick-freezing or ice making), and need turn back after special need.

First use

Cleaning the Interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic inthe refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – to p	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment. • The maximum amount of food that can be frozen in 24 hours is specified on the rating plate. • The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooking).

Thawing

Deep-frozen or frozen food, prior to use, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

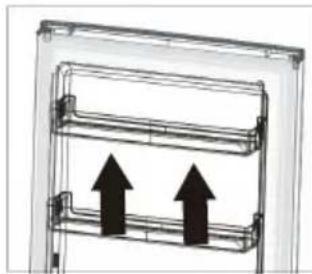

Positioning the door balconies

Door balconies can be disassembled for cleaning. To disassemble them, gradually pull the balcony in the direction of the arrows until it comes free. After cleaning, reposition it.

Disassembling the bottom drawer

1. Pull out the bottom drawer to the stopper position.
2. Lift up the front of the drawer.
3. Pull out the bottom drawer.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• The maximum quantity of food which can be frozen in 24 hours is shown on the rating plate;
• The freezing process takes 24 hours. No further food to be frozen should be added during this period;
• Only freeze top quality, fresh and thoroughly cleaned foodstuffs;
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• Lean foods store better and last longer than fatty ones; salt reduces the storage life of food;
• Water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• It is advisable to show the freezing-in date on each individual pack to enable you to keep track of the storage time.
• It is advisable to show the freezing-in date on each individual pack to enable you to keep track of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

Make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

Not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacturer.

Hints for fresh food refrigeration

To obtain the best performance:

- Do not store warm food or evaporating liquids in the refrigerator

- Do cover or wrap the food, particularly if it has strong flavour

Hints for refrigeration

Useful hints:

• Meat (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottles: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed.
• For energy efficiency, all drawers, baskets, and shelves must be in the right place and must not be kept in the fridge.

Cleaning

For hygienic reasons, the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning, switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g., lemon juice or the juice from orange peel, butyric acid, cleansers that contain acetic acid.

• Do not allow such substances to come into contact with the appliance parts.
• Do not use any abrasive cleaners.
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning, wipe with fresh water and rub dry. After everything is dry, place the appliance back into service.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact a qualified technician.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at coldest	Set the knob at other switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at coldest.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully be nd the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section.
Side panels are hot.	It's normal. Heat exchange parts are in the sides.	Take gloves to touch sides if needed.

If the malfunction occurs again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, referring to the rating plate.

Manual Leaflet

The functions mentioned below are not suitable for all models; this leaflet is for reference only.

This list provides all Eco-design requirements (following the (EU) 2019/2019 Eco-design and (EU) 2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such in its instruction manual.

The drawers, baskets, and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours, place the food to be frozen in the freezing compartment.

setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Correct disposal process of this product

According to the directive Waste of Electrical and Electronic Equipment (WEEE), the waste WEEE must be collected and treated separately. If in the future you need to dispose of this product DO NOT put it with household waste, send it to the WEEE collection points if they exist.

Brand	Teka
Model	RBF 3320 SS / RBF 3320 WH
Energy Class	E
Certification	CE CB GS EMC/ERP
Yearly Energy Consumption	220kWh / year
Net Volume Refrigerator	182L
Net Volume Freezer	71L
No. of Stars	4
Defrosting System	No-Frost
Autonomy for Black Out	9.5h
Freezing Capacity	3.2kg/24h
Climatic Class	N,ST
Noise Level	40dB
Overall Dimensions	545x600x1810 mm
Rated Voltage	220-240V
Rated Current	0.9A

User Manual

RBF 3320 SS

RBF 3320 WH

ES EN PT

INSTALLATION

INSTALLATION

Installation

Install the external door handle (if an external handle exists)

A	545
B	600
C	1810
D	min=50
E	min=50
F	min=50
G	1100
H	1135
I	135°

PLACE THE APPLIANCE HORIZONTALLY

User control panel

Disassemble the lower drawer

www.teka.com

3320-01
