Product type	Digital compact camera
Dimensions (W x H x D)	93 x 62 x 26.5 mm (without protruding parts)
Weight	123 g (without batteries or card)
Power supply	2 AA alkaline batteries (included) or rechargeable Ni-MH battery SNB-2512 (optional)
Sensor	1/2.5" CCD, 7.2 effective megapixels
Lens	SHD f=6.3~18.9 mm (equiv. 38~114 mm in 35 mm), F2.8 (W) ~ F5.2 (T)
Optical zoom	3x
Digital zoom	Up to 3x in still image mode
LCD screen	2.4-inch TFT color LCD, 230,000 dots
Shooting modes	Auto, Program, Manual, DIS (stabilization), Photo help, Portrait, Scene
Scene modes	Night, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow
Video	640x480 or 320x240 at 30/15 fps, with sound (mono)
Built-in flash	Range: 0.3~4.0 m (W), 0.5~2.1 m (T); modes: Auto, Red-eye reduction, Slow sync, Off
Storage	Internal memory 11 MB; SD/SDHC/MMC card (up to 4 GB SDHC guaranteed)
Interface	USB 2.0, AV output (NTSC/PAL)
Operating temperature	0 ~ 40 °C
Operating humidity	5 ~ 85 %
Included software	Samsung Master, Adobe Reader
Included accessories	AA alkaline batteries, USB cable, strap, user manual, warranty, software CD-ROM

Frequently Asked Questions - S760 SAMSUNG

How to insert batteries and memory card?

Open the battery compartment on the back of the camera. Insert two AA batteries respecting the polarities (+/-). For the memory card, insert it into the slot, contacts facing inward, until it clicks. Close the compartment.

How to take a photo in Auto mode?

Turn the mode dial to AUTO. Frame your subject, press the shutter button halfway for focusing (a green frame appears), then press fully to take the photo.

How to use optical and digital zoom?

Use the Zoom T button (telephoto) to zoom in and the Zoom W button (wide angle) to zoom out. Optical zoom is 3x; beyond that, digital zoom activates automatically (up to an additional 3x).

How to record a video?

Set the mode dial to VIDEO (camcorder icon). Frame the scene, then press the shutter button to start recording. Press again to stop. Duration depends on memory capacity.

How to transfer photos to a computer?

Install the Samsung Master software from the included CD. Connect the camera to the computer using the USB cable. Turn on the camera; the PC will recognize it as a removable drive. Copy images from the DCIM folder.

How to delete images?

In playback mode, select the image to delete with the Left/Right buttons. Press the Delete button (trash icon). Confirm by selecting YES with the OK button. To delete multiple images, use the multi-select function.

What to do if the camera does not turn on?

Check that the batteries are inserted correctly and are not discharged. Replace them if necessary. Ensure the battery compartment cover is properly closed. If the problem persists, contact a Samsung service center.

How to clean the lens?

Use a soft, dry cloth (microfiber) to gently wipe the lens in circular motions. Do not use solvents or chemicals. If the lens is dirty, first blow gently to remove dust.

What types of memory cards are compatible?

The camera accepts optional SD (up to 2 GB), SDHC (up to 4 GB), and MMC (up to 1 GB) cards. The 11 MB internal memory allows storing a few images without a card.

How to set date and time?

Turn on the camera. Access the menu by pressing the Menu button. Navigate to the Settings option (gear icon) then select Date & Time. Use the Up/Down buttons to change values and confirm with OK.

USER MANUAL S760 SAMSUNG

Thank you for buying a Samsung Camera.

This manual has basic instructions for quick and easy picture taking.

For more information, refer to the user manual included in the supplied CD-Rom.

※ This manual is based on model S860.

Getting to know your camera

• Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries
• All brand and product names appearing in this manual are registered trademarks of their respective companies.
• The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.
• Refer to the user manual included on the Software CD for more information.
• PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM.

Contents

Getting to know your camera	1
Identification of features / Contents of camera	4
Battery life & Number of shots (Recording time)	5
LCD monitor indicator	6
Mode dial	7
Taking a picture	8
Playing back / Deleting images	9
Downloading images	10
Specifications	11

FCC notice

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

■ CAUTION :

Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

■ Declaration of Conformity

Trade Name	: SAMSUNG TECHWIN
Model No.	: SAMSUNG S860/S760
Responsible Party	: Samsung Opto-Electronics America, INC.
Address	: 40 Seaview Dr. Secaucus,NJ 07094
Telephone No.	: 201-902-0347

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Getting to know your camera

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.

Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.

Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.

Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.

Do not operate this camera with wet hands. This could pose a risk of electric shock.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject's eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.: - Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately. - There is the possibility of injury from the camera's moving parts.

Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

Getting to know your camera

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Remove the battery when not planning to use the camera for a long period of time.

Otherwise the battery may leak corrosive electrolyte and permanently damage the camera's components.

Leaking, overheating, or damaged battery could result in fire or injury.

• Use battery with the correct specification for the camera.
• Do not short circuit, heat or dispose of battery in fire.
• Do not insert the battery with the polarities reversed.

Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns.

Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

Using an AC adapter that doesn't match with the camera specification may cause camera malfunction. We recommend supplied battery or exclusive rechargeable battery.

※ Available AC adapter :

⊕—●—⊖ Voltage: 3.3V, Ampere: 2.0A, Diameter: Φ 2.35
- After turning on the camera, Check whether the battery type and the camera setting set on the [Settings] > [Battery Type] menu are same.

Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case.

Do not insert the memory card the wrong way round.

Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

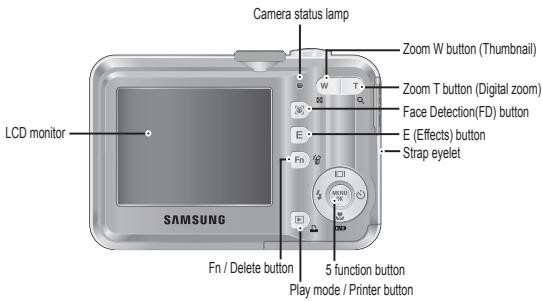

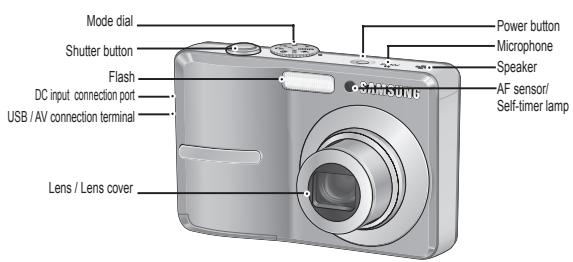

Identification of features / Contents of camera

Mode dial Shutter button Flash DC input connection port USB / AV connection terminal Lens / Lens cover Power button Microphone Speaker AF sensor/ Self-timer lamp

Camera status lamp Zoom W button (Thumbnail) Zoom T button (Digital zoom) Face Detection(FD) button E (Effects) button Strap eyelet LCD monitor SAMSUNG Fn / Delete button 5 function button Play mode / Printer button

Included items

Camera

AA Alkaline Batteries

USB Cable

Camera strap

User manual, Product warranty

Software CD

Optional items

SD / SDHC memory card / MMC

Rechargeable Battery (SNB-2512)

Charger (SBC-N2)

AV Cable

AC Cord

Camera case

※ Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Battery life & Number of shots (Recording time)

We recommend batteries for a digital camera (Within a year from the date of manufacture). The batteries are listed below.

• Non rechargeable batteries : 2 X AA Alkaline (High Capacity)
• Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)

■ SNB-2512 rechargeable battery Specification

Model	SNB-2512
Type	Ni-MH
Capacity	2500mAh
Voltage	1.2V x 2
Charging time	Approximately 300 Minutes (Use for SBC-N2)

※ Included battery may vary depending on sales region.

■ When using a 256MB MMC memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

• S860

Recorded image size		Super Fine	Fine	Normal	30FPS	15FPS
Still image	8"	About 58	About 83	About 118	-	-
	7"	About 64	About 132	About 186	-	-
	5"	About 76	About 151	About 195	-	-
	5"	About 91	About 179	About 252	-	-
	3"	About 140	About 269	About 372	-	-
	1"	About 459	About 600	About 744	-	-
*Movie clip	640	-	-	-	About 2'3"	About 4'7"
	320	-	-	-	About 7'44"	About 13'24"

• S760

Recorded image size		Super Fine	Fine	Normal	30FPS	15FPS
Still image	7"	About 65	About 130	About 190	-	-
	6"	About 74	About 147	About 205	-	-
	5"	About 88	About 173	About 248	-	-
	5"	About 88	About 173	About 248	-	-
	3"	About 140	About 274	About 372	-	-
	1"	About 538	About 710	About 744	-	-
*Movie clip	640	-	-	-	About 2'3"	About 4'7"
	320	-	-	-	About 7'44"	About 13'24"

※ The zoom button doesn't use during the movie recording. The recording times can be changed by the zoom operation.

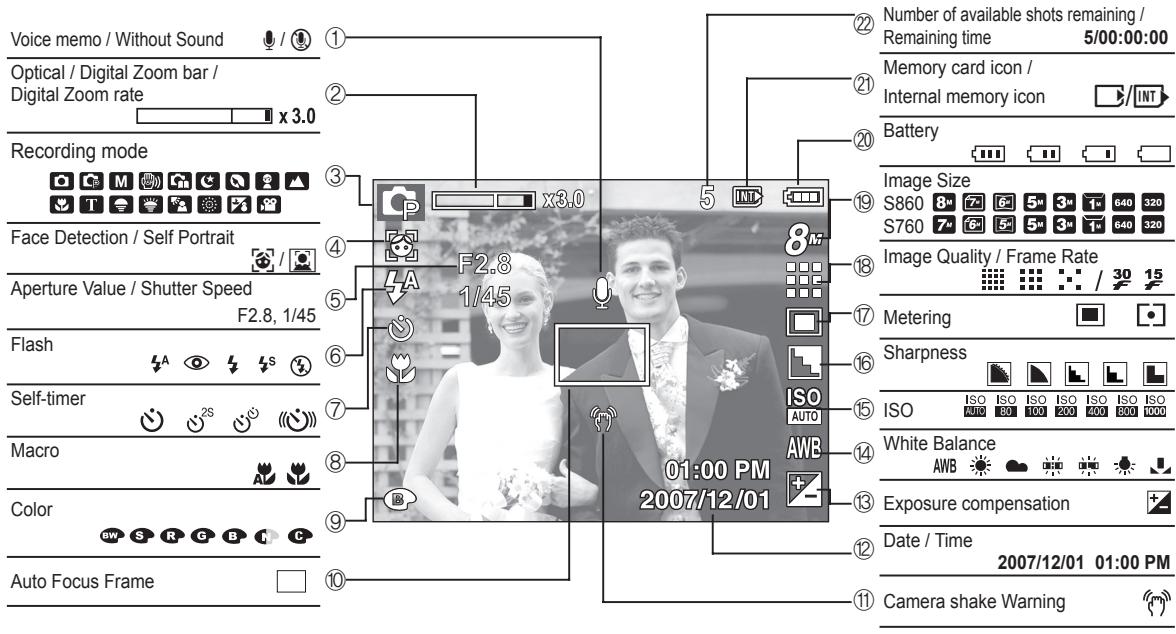

LCD monitor indicator

Voice memo / Without Sound Optical / Digital Zoom bar / Digital Zoom rate Recording mode Face Detection / Self Portrait Aperture Value / Shutter Speed Flash Self-timer Macro Color Auto Focus Frame Number of available shots remaining / Remaining time 5/00:00:00 Memory card icon / Internal memory icon Battery Image Size S860 8" 7" 6" 5" 3" 1" 640 320 S760 7" 6" 5" 3" 1" 640 320 Image Quality / Frame Rate Metering Sharpness ISO AUTO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO White Balance AWB Exposure compensation Date / Time 2007/12/01 01:00 PM Camera shake Warning

※ Refer to the user manual included on the Software CD for more information.

■ You can select a desired camera mode by using the Mode dial on the top of the camera.

AUTO

Selects this mode for quick and easy picture taking with minimal user interaction.

PHOTO HELP GUIDE

Helps the user to learn the correct picture taking method. This includes solutions for potential problems that may occur, and enables the user to practice shooting.

PROGRAM

Selecting the program mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed.

PORTRAIT

Use this menu to take a picture of a person.

MANUAL

You can manually configure all functions with the aperture value and shutter speed.

SCENE

Use the menu to easily configure optimal settings for a varisty of shooting situations.

DIS

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

MOVIE CLIP

A movie clip can be recorded for as long as the available recording time.

Taking a picture

■ How to take a picture

1. Turn on the camera and select a camera mode by rotating the mode dial.

Hand holding a coin with a finger pressing a button (no text or symbols visible)

1. Take a picture.

Diagram showing a hand pressing a button labeled 'W' and 'T' with a downward arrow indicating a process step.

Hand holding a device with a downward arrow indicating action (no text or symbols visible)

Pressing halfway down Focus and Flash status are checked.

Pressing fully Image is taken

1. Hold the camera as shown

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

1. Confirm the composition

Illustration of hands holding a Samsung camera with two men in the background (no text or symbols visible)

■ How to record a movie

Rotate the Mode dial and select ( 🔍 ).

1. Confirm the composition

Illustration of hands holding a device with a photo frame, no visible text or symbols on the device itself

1. Start the recording

Press the Shutter button and the recording starts and press the Shutter button again to stop the recording.

Hand holding a camera with a downward arrow indicating compression or disassembly (no text or symbols present)

Playing back / Deleting images

■ Playingback the images

-The last image stored on the memory is displayed.

Generic camera icon with play button and control buttons (no text or symbols)

Press the play button ( ▶ ).

MENU OK

Select an image that you want to play back by pressing the Left/ Right button

※ Manner mode : Pressing the play mode button for more than 3 seconds changes the buzzer and start-up sound setting to OFF, even though you may have set these to ON.

■ Deleting images

- This deletes images stored on the memory card.

1. Select an image that you want to delete by pressing the Left / Right button and press the DELETE (💡) button.

Delete? No Yes T Select OK Confirm

[Single Image]

100-0031 Delete? No Yes OK Confirm

[Thumbnail Image]

1. To add images to delete, press the T button.

2. Left / Right button : Selects images

3. T button : Checks for deletion
4. OK button : deletes the selected images.

100-0031 Prev Next T Select OK Delete

1. Select the submenu values by pressing the Up / Down button and then press the OK button.

2. If [No] is selected : cancels "Delete Image".

3. If [Yes] is selected : deletes the selected images.

Downloading images

For Windows	For Macintosh
PC with processor better than Pentium 450MHz (Pentium 800MHz recommended)	Power Mac G3 or later
Windows 98SE / 2000 / ME / XP/Vista	Mac OS 9.2 ~ 10.4
Minimum 128MB RAM (Over 512MB recommended) 200MB of available hard disk space (Over 1GB recommend)	Minimum 64MB RAM (Over 256MB recommended) 110MB of available hard-disk space
USB port	USB port
CD-ROM drive	CD-ROM drive
1024x768 pixels, 16bit color display compatible monitor (24bit color display recommended) MicroSoft DirectX 9.0C

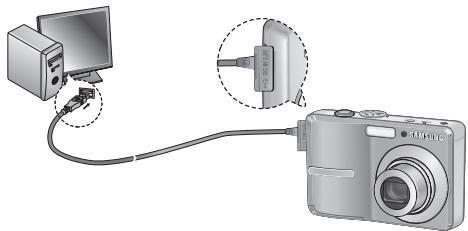

■ PC connection mode

1. Install the supplied Software.

Software CD-ROM

1. Download the images

Diagram showing a digital camera connected to a computer monitor via cable, with an inset close-up of the cable connector (no text or symbols present)

- Connect the camera and Computer with supplied USB cable and download the image on your computer to save them.

File Edit View Favorites Tools Help Add: D:\CDM1005\CDM Folders My Computer PC (C) G (C) E (E) Smart Screening E Removable Cells F Posts Otherware Modules Plants Control Panel Desktop Networking Scheduled Tasks Wind Filters Documents Information Express Network Neighborhood Mouse File 10.000x1 4.296 My Computer

Specifications

Image Sensor - Type : 1/2.5" CCD
- Effective Pixel : S860 : Approx. 8.1 Mega-pixel S760 : Approx. 7.2 Mega-pixel
- Total Pixel : S860 : Approx. 8.3 Mega-pixel S760 : Approx. 7.2 Mega-pixel
Lens - Focal Length : SHD Lens f = 6.3 \~ 18.9mm (35mm film equivalent : 38 \~ 114mm)
- F No. : F2.8(W) \~ F5.2(T)
- Digital Zoom : ·Still Image mode :1.0X \~ 3.0X ·Play mode : 1.0X \~ 12.8X (depends on image size)
LCD Monitor - 2.4" color TFT LCD (230,000 dots)
Focusing - Type : TTL auto focus (Multi AF, Center AF, Face Detection AF) - Range

	Normal	Macro	Auto Macro
Wide	80cm ~ Infinity	10cm ~ 80cm	10cm ~ Infinity
Tele		50cm ~ 80cm	50cm ~ Infinity

Shutter - Speed 1\~1/2,000 sec. (Manual / Night : 8\~1/2,000 sec., Firework : 4 sec.)

Exposure - Control : Program AE - Metering : Multi, Spot, Face Detection AE - Compensation : ±2EV (1/3EV steps) - ISO : Auto, 80, 100, 200, 400, 800, 1000

Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off
- Range : Wide : 0.3m \~ 4.0m, Tele : 0.5m \~ 2.1m
- Recharging Time : Approx. 5.5 sec
Sharpness - Soft+, Soft, Normal, Vivid, Vivid+
Color Effect - Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color
White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom
Voice Recording - Voice Recording (max. 10 hours)
- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting - Date, Date & Time, Off (user selectable)
Shooting - Still Image
•Mode : Auto, Program, Manual, DIS, Photo Help Guide, Portrait, Scene
- Scene : Night, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow
- Self-timer : 10 sec., 2 sec., Double, Motion Timer

Specifications

- Movie Clip

• With Audio (recording time : memory capacity dependent)
  -Size:640x480,320x240
  ·Frame rate : 30 fps, 15 fps
  ·3X Optical Zoom and Mute in Zooming
  •Movie Editing (Embedded): Pause during recording, Still Image Capture

Storage

• Media
• Internal memory : About 11MB flash memory
• External Memory (Optional) : MMC card (Up to 1GB guaranteed) SD card (Up to 2GB guaranteed) SDHC card (Up to 4GB guaranteed)
• File Format
• Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
  •Movie Clip : AVI (MJPEG)
  ·Audio : WAV
• Image Size

· S860

8^M			5^M
3264X	3264X	3264X	2592X	2048X	1024X
2448	2176	1836	1944	1536	768

·S760

7M	6M	5M	5M	3M	1M
3072X2304	3072X2048	3072X1728	2592X1944	2048X1536	1024X768

- Capacity (256 MB Size)

· S860

	8^M	7^M	6^M	5^M	3^M	1^M
Super Fine	About 58	About 64	About 76	About 91	About 140	About 459
Fine	About 83	About 132	About 151	About 179	About 269	About 600
Normal	About 118	About 186	About 195	About 252	About 372	About 744

· S760

	7^M	6^M	5^M	5^M	3^M	1^M
Super Fine	About 65	About 74	About 88	About 88	About 140	About 538
Fine	About 130	About 147	About 173	About 173	About 274	About 710
Normal	About 190	About 205	About 248	About 248	About 372	About 744

※ These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

"E" Button

• Effect : Color
• Editing : Resize, Rotate, Color

Image Play

- Type : Single image, Thumbnails, Multi Slide Show, Movie Clip

Interface

• Digital output connector : USB 2.0
• Audio : Mono
• Video output : NTSC, PAL (user selectable)
• DC Adapter : 3.3V

Power Source	- Primary Battery : 2 X AA Alkaline- Rechargeable battery (Optional) :SNB-2512B KIT (2xAA Ni-MH Battery & Charger )※ Included battery may vary depending on sale region.
Dimensions (WxHxD)	- 93 X 62 X 26.5mm(excluding protrusions)
Weight	- Approx. 123g (without batteries and card)
Operating Temperature	- 0 ~ 40°C
Operating Humidity	- 5 ~ 85%
Software	- Samsung Master, Adobe Reader

※ Specifications are subject to change without prior notice.
※ All trademarks are the property of their respective owners.

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household

wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable re-use of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

eco RoHS compliant

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

MEMO

Table des matières

Pile rechargeable (SNB-2512)

Chargeur (SBC-N2)

Câble AV

Câble secteur

Étui

Close-up of a hand pressing down on a mechanical component with a knob (no visible text or symbols)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

1. Confirmez la composition

Illustration of two hands holding a Samsung smartphone displaying a photo (no text or symbols on the device itself)

1. Prenez la photo

Diagram showing a hand pressing down a button with downward arrow and labeled buttons W and T

Hand pressing down on a device with a downward arrow (no text or symbols visible)

Illustration of two hands holding a device with a photo frame showing two men in suits (no text or symbols visible)

Hand pressing a button on a device, with a downward arrow indicating action (no text or symbols present)

Generic camera icon with play button and control buttons (no text or symbols)

Diagram showing a computer connected to a digital camera via cable, with an inset close-up of the cable (no text or symbols present)

eco RoHS compliant

Hand holding a coin with a finger pressing a button (no text or symbols visible)

1. Resmi çekin

Diagram showing a hand pressing a button with downward arrow and labeled buttons W and T

Hand pressing a button on a device (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a Samsung camera with two men in the background (no text or symbols visible)

■ Film kaydetme

Illustration of hands holding a Samsung TV displaying a photo (no text or symbols on the image itself)

1. Kaydı başlatın

Hand pressing a button on a device, with a downward arrow indicating action (no text or symbols present)

Close-up of a camera interface with a play button and control knob (no readable text or symbols)

100-0031 Prey Next T Seq OK SII

Diagram showing a computer connected to a digital camera via cable, with an inset close-up of the cable connector (no text or symbols present)

eco RoHS compliant

Close-up of a hand pressing down on a mechanical component with a knob (no visible text or symbols)

1. 拍照

Diagram showing a hand pressing a button with downward arrow and labeled buttons W and T

半按下檢查對焦和閃光燈狀態。

Hand pressing a button on a device (no text or symbols visible)

完全按下拍攝影像

1. 依所示方法手持相機

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

1. 確認構圖

Illustration of two hands holding a smartphone displaying a photo with two men in suits (no text or symbols visible)

■ 錄影方法

旋轉模式轉盤並選擇（）

1. 確認構圖

Illustration of hands holding a small electronic device displaying a photo frame (no text or symbols visible)

Hand pressing down on a camera lens with a downward arrow indicating action (no text or symbols present)

■ 播放影像

- 顯示記憶體上最後一次儲存的影像。

Generic camera icon with play button and control buttons (no text or symbols)

按「播放」鍵(☐).

MENU OK

Diagram showing a digital camera connected to a computer via cable, with an inset close-up of the cable (no text or symbols present)

eco RoHS compliant

Hand holding a coin with a finger pressing a button (no text or symbols visible)

1. Ambil gambar

Hand pressing a button on a device (no text or symbols visible)

Hand pressing a button on a device (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a Samsung camera with two men in the background (no text or symbols visible)

■ Cara merekam video

Putar tombol Mode, kemudian pilih ( ),

Illustration of two hands holding a laptop displaying a photo frame (no text or symbols visible)

1. Mulai merekam

Hand holding a camera with a downward arrow indicating action (no text or symbols present)

Memutar ulang / Menghapus gambar

■ Memutar ulang gambar

Generic camera icon with play button and control buttons (no text or symbols)

Tekan tombol putar ulang ( ▶ ).

MENU OK

100-0031 Prey Next T PILH OK HAPUS

Diagram showing connection between a computer monitor and a digital camera via cable, with no visible text or symbols.

eco RoHS compliant

لاستند Consumption McKاميرا في حالة خ Twول أي نع منLOSOUATÉLA UNAJASLAMGURBHE, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, physics, Physics

Hand pressing a button on a device (no text or symbols visible)

Hand holding a camera with a downward arrow and control buttons (no text or symbols on the device itself)

Close-up of a hand pressing down on a mechanical component with a knob and handle (no text or symbols visible)

كيفية التقاط صورة

Illustration of hands holding a Samsung camera with a photo frame (no text or symbols on the device itself)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a Samsung camera (no text or symbols visible)

Hand pressing a button on a device component (no text or symbols visible)

Illustration of hands holding a device with a photo frame, no visible text or symbols on the device itself

1. قم بنأكيد التكوين

حنف الصور

Generic camera icon with play button and playback controls (no text or symbols)

Diagram showing a computer connected to a digital camera via cable, with an inset close-up of the camera (no text or symbols present)

File Explorer - 100x76 File Edit View Insert Tools Help Address: C:\WINDOWS\100\524\M Paths: 1. Top view 2. Top view 3. Top view 4. Top view 5. Top view 6. Top view 7. Top view 8. Top view 9. Top view 10. Top view 11. Top view 12. Top view 13. Top view 14. Top view 15. Top view 16. Top view 17. Top view 18. Top view 19. Top view 20. Top view 21. Top view 22. Top view 23. Top view 24. Top view 25. Top view 26. Top view 27. Top view 28. Top view 29. Top view 30. Top view 31. Top view 32. Top view 33. Top view 34. Top view 35. Top view 36. Top view 37. Top view 38. Top view 39. Top view 40. Top view 41. Top view 42. Top view 43. Top view 44. Top view 45. Top view 46. Top view 47. Top view 48. Top view 49. Top view 50. Top view 51. Top view 52. Top view 53. Top view 54. Top view 55. Top view 56. Top view 57. Top view 58. Top view 59. Top view 60. Top view 61. Top view 62. Top view 63. Top view 64. Top view 65. Top view 66. Top view 67. Top view 68. Top view 69. Top view 70. Top view 71. Top view 72. Top view 73. Top view 74. Top view 75. Top view 76. Top view 77. Top view 78. Top view 79. Top view 80. Top view 81. Top view 82. Top view 83. Top view 84. Top view 85. Top view 86. Top view 87. Top view 88. Top view 89. Top view 90. Top view 91. Top view 92. Top view 93. Top view 94. Top view 95. Top view 96. Top view 97. Top view 98. Top view 99. Top view

240x320.480x640:الجم

eco RoHS compliant

مذكرة

AR-15

مذكرة

AR-16

Close-up of a hand pressing down on a device with a scroll wheel (no visible text or symbols)

1. ถายภาพ

Diagram showing a hand pressing a button labeled 'W T' with a downward arrow indicating a process step.

Hand pressing a button on a device (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

Illustration of hands holding a digital camera (no text or symbols visible)

วิธีบันทึกภาพยนตร์

Illustration of hands holding a digital camera with a photo frame (no visible text or symbols)

Illustration of hands holding a Samsung camera with two men in suits (no text or symbols visible)

Hand holding a camera with a downward arrow indicating action (no text or symbols present)

■ การเปิดเล่นภาพ

Generic camera icon with play button and control buttons (no text or symbols)

กดปุ่มเล่น ( □ ).

MENU OK

Diagram showing a digital camera connected to a computer monitor via cable, with an inset close-up of the cable connector (no text or symbols present)

eco RoHS compliant

OPTICS & DIGITAL IMAGING DIVISION

145-3, SANGDAEWON 1-DONG, JUNGWONGU,

SUNGNAM-CITY, KYUNGKI-DO, KOREA

462-121

TEL:[phone],8488,8490

FAX : [phone]

www.samsungcamera.com

SAMSUNG OPTO-ELECTRONICS AMERICA, INC.

If you have any questions or comments relating to

Samsung cameras, Please contact

the SAMSUNG customer care center

SAMSUNG FRANCE S.A.S.

(free for calls from UK only)

UK Service Hotline : [phone]

www.samsungcamera.co.uk

RUSSIA INFORMATION CENTER

SAMSUNG ELECTRONICS

117545 ST. DOROZHNAYA BUILDING 3,

KORPUS 6, ENTRANCE 2, MOSCOW, RUSSIA

TEL : [phone]

CALL FREE : (8) 800 555 55 55 (from Russia only)

www.samsungcamera.ru

Internet address - http://www.samsungcamera.com

CE

The CE Mark is a Directive conformity

mark of the European Community (EC)

6806-4695
