Product Type	Remote Power Controller
Model	RPC-20-SCD
Brand	Lowell
Input Voltage	100-240 VAC, 50/60 Hz
Output Voltage	12 VDC
Maximum Output Current	20 A
Number of Outputs	8
Control Interface	RS-232, Ethernet
Dimensions (W x H x D)	17 x 1.75 x 8.5 inches (rackmount 1U)
Weight	5.5 lbs (2.5 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Humidity	5% to 95% non-condensing
Power Cord	Detachable, 6 ft (1.8 m) with NEMA 5-15P plug
Mounting	19-inch rackmount with included brackets
LED Indicators	Power, status per output
Overload Protection	Built-in circuit breaker
Certifications	UL, CE, RoHS
Warranty	2 years limited

Frequently Asked Questions - RPC-20-SCD Lowell

What is the RPC-20-SCD used for?

The RPC-20-SCD is a remote power controller designed to manage power distribution to multiple devices from a central location. It is commonly used in server rooms, audio/video installations, and industrial settings.

How do I connect the RPC-20-SCD to my network?

Connect the Ethernet port on the rear panel to your local network using a standard RJ45 cable. The device will obtain an IP address via DHCP by default. You can then access the web interface using a browser.

Can I control the outputs individually?

Yes, each of the 8 outputs can be independently turned on/off via the web interface, RS-232 commands, or SNMP. You can also set power-on delays and sequence.

What is the maximum load per output?

Each output is rated for 20 A maximum, but the total load across all outputs must not exceed the maximum power rating of the device (2400 VA at 120 V).

How do I reset the device to factory defaults?

Locate the reset button on the front panel (recessed). Press and hold it for 10 seconds using a paperclip. The device will reboot with default IP (192.168.1.100) and login credentials (admin/admin).

Does the RPC-20-SCD support SNMP?

Yes, it supports SNMP v1/v2c for monitoring and control. You can configure community strings and trap destinations through the web interface.

What type of power cord does it require?

The unit comes with a detachable power cord with a NEMA 5-15P plug for 120 V installations. For other regions, use a compatible cord with IEC C13 connector.

Can I mount the device in a standard rack?

Yes, the RPC-20-SCD is designed for 19-inch rackmount and occupies 1U of space. Mounting brackets are included.

How do I update the firmware?

Download the latest firmware from the Lowell website. Access the web interface, go to Administration > Firmware Update, and upload the file. Do not power off during update.

What are the LED indicators on the front panel?

There is a Power LED indicating the unit is receiving power, and status LEDs for each output showing on/off and fault conditions.

USER MANUAL RPC-20-SCD Lowell

Electric electrical power supply unit with black cable, plug, and terminal block (no visible text or symbols)

Intertek

(1) 2017年1月1日

[Non-Text]

Model to U21

Made in USA with Global

with global Components

Certified

US Steel

[Non-Text]

Ideal for Lowell switches featuring maintained closure (order separately):

RPSB-P Black wall plate w/rocker switch

RPSW-P White wall plate w/rocker switch

RPSW-KP White wall plate w/key switch

RPSB-R Rack panel w/rocker switch

RPSB-KR Rack panel w/key switch

Model No.

RPC-20-SCD

Remote Power Control

actives remote equipment — external trigger required

REMOTE POWER CONTROLS can be combined with a variety of switches or sequencers for an intrinsically safe, low voltage method of controlling AC power to equipment at remote locations. Controlling power distribution without directly accessing equipment minimizes the potential for unauthorized access, while simplifying activation and deactivation of equipment.

Note: RPCs require an external trigger for activation (order separately).

FEATURES

CHASSIS: Steel chassis (8.00"L x 3.25"W x 2.75"H) with black finish and mounting holes.

POWER:

• Power Rating: 125VAC 60Hz 20A
- Outlets: NEMA 5-20R duplex
- Attached Cord: 6 ft. cord with NEMA 5-20P plug

SURGE PROTECTION:

• Maximum Surge Current: 20,000A
• VPR (UL 1449-3): 400V
• Response Time: 1 nanosecond
• EMI/RFI Noise Reduction: 20dB@100kHz
• Protection Mode: Line to Neutral
• Ground Contamination: None

ACTIVATION: The RPC must be connected to an external control for activation and deactivation (choose one):

- Dry Contact Closure: Connect to SPST switch, power sequencer, or independent control system with dry contact closure.

Contact Coil Rating:

- Voltage: 24VDC

- Current: 37.5mA

- Voltage Trigger (5-24V AC or DC 5mA): DSP connection.

ORIGIN: Made in the U.S.A. with global components

THIRD PARTY APPROVAL: ETL Listed to UL60065 (U.S. and Canada)

INSTALLATION: The RPC is typically installed near the equipment to be controlled. Low voltage cable is run from its terminal strip to a control switch (or other control method).

• Systems can be configured with multiple RPCs controlled by a single "Maintained Closure" switch or voltage trigger source.
• Systems can also be configured with a single RPC controlled by multiple "Momentary Closure" switches and Lowell's MSM2 module (which converts momentary closure to maintained).

COMPATIBLE DEVICES: (order separately)

• SPST Switch (RPS Series): Low voltage wall-mount or rack-mount switch:
• Switch with maintained closure connects directly to RPC.
• Switch with momentary closure requires Lowell conversion module MSM2 placed between the switch and RPC.
• POWER SEQUENCER (SEQ SERIES): A low voltage sequencer can be used with the RPC for time-delayed activation and deactivation of connected equipment. Lowell standalone sequencers will require a switch for activation, while Lowell rack-mount sequencers include a switch. See product spec sheets for information.

A&E SPECIFICATIONS:

The device for remotely controlling AC power shall be Lowell model RPC-20-SCD, which shall feature a 8.00"L x 3.25"W x 2.75"H steel chassis with black powder epoxy finish, 125VAC 60Hz 20A power rating, NEMA 5-20R duplex outlet, 6 ft. cord with NEMA 5-20P plug, and basic surge protection up to 20,000A. The unit shall require an external trigger for activation (not included).

SERIES OVERVIEW

Model No.	Chassis	Outlets	Input	Power Rating	Surge Suppression	External Activation Required	Connections
RPC-15	Standalone	NEMA 5-15R (2)	6' attached cord	125VAC 60Hz 15A	---	Dry contact closure	Terminal Strip
RPC-15-S	Standalone	NEMA 5-15R (2)	6' attached cord	125VAC 60Hz 15A	Yes	Dry contact closure	Terminal Strip
RPC-15-SCD-RJ	Standalone	NEMA 5-15R (2)	6' attached cord	125VAC 60Hz 15A	Yes	Dry contact closure or VT*	TS or RJ45
RPC-15-U	Standalone	IEC C13 (2)	6' detachable cord (2)	100-240VAC 50/60Hz 15A	---	Dry contact closure or VT*	Terminal Strip
RPC-20-CD	Standalone	NEMA 5-20R (2)	6' attached cord	125VAC 60Hz 20A	---	Dry contact closure or VT*	Terminal Strip
RPC-20-SCD	Standalone	NEMA 5-20R (2)	6' attached cord	125VAC 60Hz 20A	Yes	Dry contact closure or VT*	Terminal Strip
RPC-20-SCD-RJ	Standalone	NEMA 5-20R (2)	6' attached cord	125VAC 60Hz 20A	Yes	Dry contact closure or VT*	TS or RJ45
RPC-3N1	Standalone	NEMA 5-15R (8)	6' attached cord	125VAC 60Hz 15A	---	Dry contact closure	Terminal Strip
RPC-4CD	Rack-mount	NEMA 5-15R (8)	6' attached cord	125VAC 60Hz 15A	---	Dry contact closure	Terminal Strip
RPC-20-HW	Standalone	NEMA 20A (2)	6' flexible whip	125VAC 60Hz 20A	---	Dry contact closure or VT*	Terminal Strip
RPC-20-SHW	Standalone	NEMA 20A (2)	6' flexible whip	125VAC 60Hz 20A	Yes	Dry contact closure or VT*	Terminal Strip
RPC-30-SHW	Standalone	Twistlock 30A (1)	6' flexible whip	125VAC 60Hz 30A	Yes	Dry contact closure or VT*	Terminal Strip

* VT indicates the RPC can also accept a voltage trigger provided by an independent control system.

RPC DIAGRAM:

RPC TYPICAL CONTROL METHODS (low voltage, limited current Class 2 wiring):

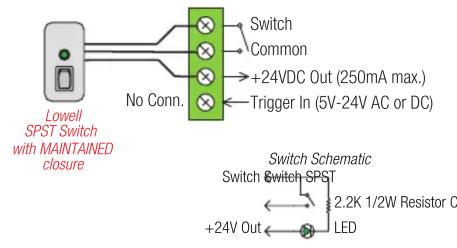

EXAMPLE 1: SPST switch with MAINTAINED closure.
See Lowell RPS Series models listed on pg. 1

EXAMPLE 2: Sequencer or Control System.
Lowell SEQ Series sequencer or control system by others.

Follow polarity indicators, if any, on sequencer/controller
(rating: 24V, 37.5mA)
ON = connection applied (closed)
OFF = connection removed (open)

EXAMPLE 3: Voltage Input.
Voltage input from external control system (by others).

5V-24V, AC or DC, 5mA
ON = voltage applied
OFF = voltage removed
EXAMPLE 4: Fire Alarm Panel Interface.
Application Example: RPC controls power to music/paging system.

A signal from Fire Alarm Panel forces music/paging system OFF so an alarm can be heard.
Normally Closed (N.C.) line
from Fire Alarm System.
Closed loop from Fire Alarm
Panel holds RPC ON. When loop
is opened by Fire Alarm Panel, the RPC turns OFF.

Normally Open (N.O.) line

from Fire Alarm System.
Voltage from +24V Out,
through a resistor, ^* to
Trigger In holds power to
outlet ON. Shorting Trigger In
to Com via Fire Alarm Panel contact
closure forces power to outlet OFF.
