USER MANUAL ACS-2014-HW Lowell
ACS Series Model No.
ACS-2014-HW
Hardwired AC Power Strip
Hardwired power strip with 14 NEMA 20A receptacles (7 duplex) includes universal mounting brackets for desk, wall or rack-mount.
FEATURES
POWERRATING: 120VAC, 60Hz, 20A
CHASSIS: 30" x 2" x 2" steel chassis with black powder epoxy finish
TERMINATION: Hardwired non-metallic flexible conduit with pigtail leads rotates in any direction. The 6-ft. conduit can be trimmed in the field if needed.
RECEPTACLES: Total of 14 NEMA 5-20R receptacles (7 duplex)
Universal Mounting Brackets: The universal brackets allow for power strip installation in a variety of applications with receptacles facing front, center or rear. Brackets are engineered with multiple mounting points and include two types of hardware to facilitate easy installation in a rack with adjustable or fixed rails, to a wall, or under a desk/counter. The brackets can be mounted so they are exposed for easy access or concealed beneath the power strip for an aesthetically cleaner installation.
CERTIFICATION: ETL Listed in U.S./Canada (UL Listed in U.S./Canada UL5-14th Edition, CSA C22.2 No. 62)
ORIGIN: Assembled in U.S.A. with global components
A&E SPECIFICATIONS
The hardwired power strip shall be Lowell model ACS-2014-HW, which shall have a power rating of 120VAC 60Hz 20A and include 14 NEMA 5-20R receptacles (7 duplex). The chassis shall measure 30" x 2" x 2". Termination shall be to a 6-ft. non-metallic flexible conduit with pigtail leads. The power strip shall be ETL listed and made in the U.S.A. with U.S. steel and global components. It shall include universal mounting brackets and hardware.


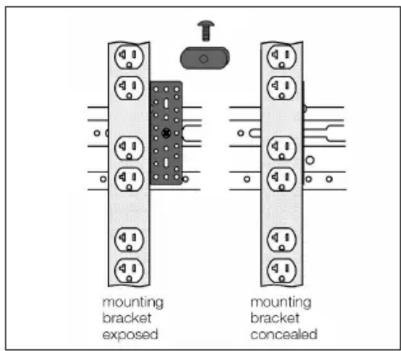

Two black metal bracket components with mounting brackets and accessories, no visible text or symbolsUNIVERSAL MOUNTING BRACKETS: The brackets can be mounted exposed for easy access or concealed for a cleaner install. Includes variety of hardware for versatile installation.
(4) Brackets
RACK w/ ADJUSTABLE RAILS
(side mount): Mount to horizontal side supports with universal brackets, 1/4"-20 screws, flat nuts.
(rear mount): Mount to rear rail with universal brackets, 10-32 screws.
RACK w/ FIXED POSITION RAILS

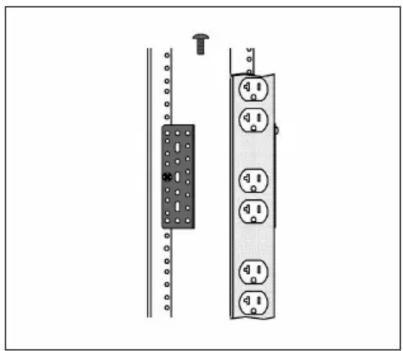

(and rear Z-angle bracket): Mount to Z-angle with universal brackets, 10-32 screws, cage nuts.
HOW TO TRIM THE CONDUIT: The 6 ft. non-metallic flexible conduit can be trimmed in the field.
Snip reinforcing rib at desired length. Bend the conduit to expose the cut and carefully cut around the conduit without cutting the wires inside. Remove excess length.
2) REMOVE CONNECTOR:
Carefully snip the last rib(s) to loosen the connector from the excess length, then twist/pull to remove it.
3) REATTACH CONNECTOR:
Twist/push the connector to attach it to the shortened conduit.
SERIES SUMMARY
| Power NEMA Model No. | Chassis Rating | Chassis On/Off Surge Rating | Remote Mounting Receptacles | Country Circuits | Length | Profile | Termination | Switch | Suppression | Power Control | Aids | of Origin | |
| ACS-1505-SW | 15A | 5 (15A) | 1 | 12" | Standard | 6' Det. cord | Yes | --- | --- | Brackets | U.S. | ||
| ACS-1505-SW-SD | 15A | 5 (15A) | 1 | 12" | Standard | 6' Det. cord | Yes | 2-stage | --- | Brackets | U.S. | ||
| ACS-1506 | 15A | 6 (15A) | 1 | 20" | Low | 6' Fixed cord | --- | 1-stage | --- | Clips | China | ||
| ACS-1506-WW | 15A | 6 (15A) | 1 | 12" | Low | 6' Fixed cord | --- | --- | --- | Screws | U.S. | ||
| ACS-1507 | 15A | 7 (15A) | 1 | 12" | Low | 6' Det. cord | --- | --- | --- | Screws | U.S. | ||
| ACS-1512 | 15A | 12 (15A) | 1 | 32" | Low | 12' Fixed cord | --- | 1-stage | --- | Clips | China | ||
| ACS-1524 | 15A | 24 (15A) | 1 | 60" | Low | 12' Fixed cord | --- | 1-stage | --- | Clips | China | ||
| ACS-1524-2C | 15A | 24 (15A) | 2 | 70" | Low | Pigtail leads | --- | --- | --- | Clips | China | ||
| ACS-2012 | 20A | 8 (15A) + 4 (20A) | 1 | 32" | Low | 12' Fixed cord | --- | 1-stage | --- | Clips | China | ||
| ACS-2024 | 20A | 16 (15A) + 8 (20A) | 1 | 70" | Low | 12' Fixed cord | --- | 1-stage | --- | Clips | China | ||
| ACS-2014-HW | 20A | 14 (20A) | 1 | 30" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | ||
| ACS-2014-2C-HW | 20A | 8 (15A) + 6 (20A) | 2 | 30" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | ||
| ACS-2020-6C-HW | 20A | 20 (20A) | 6 | 60" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | ||
| ACS-2020-IG-6C-HW | 20A | 20 (I.G. 20A) | 6 | 60" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | ||
| ACS-2020-IG-10C-HW | 20A | 20 (I.G. 20A) | 10 | 60" | Standard | 6' Conduit | --- | --- | --- | Brackets | U.S. | ||
| ACS-2024-2C | 20A | 24 (20A) | 2 | 70" | Low | Pigtail leads | --- | --- | --- | Clips | China | ||
| ACS-1510-RPC | 15A | 10 (15A) | 1 | 30" | Standard | 6' Det. cord | --- | --- | Yes | Brackets | U.S. | ||
| ACS-2010-RPC-HW | 20A | 10 (20A) | 1 | 30" | Standard | 6' Conduit | --- | --- | Yes | Brackets | U.S. | ||
| ACS-2018-5C-RPC-HW | 20A | 18 (20A) | 5 | 60" | Standard | 6' Conduit | --- | --- | Yes | Brackets | U.S. | ||
| ACS-2018-5C-RPC-P-HW | 20A | 18 (20A) | 5 | 60" | Standard | 6' Conduit | --- | 1-stage | Yes (P) | Brackets | U.S. | ||
Chassis Profile = Standard profile (2" x 2"), Low profile (1.625" x 1.375")
Termination = Det. cord (detachable cord), Fixed cord (cord is attached—cannot be removed), Conduit (non-metallic flexible whip w/pigtail leads), Pigtail leads (leads at ends of chassis—no whip)
Switch = Yes (On/off rocker switch)
Surge Suppression = 1-stage (basic surge protection), 2-stage (surge protection with backup)
Remote Power Control = Some receptacles are controlled by a remote switch or sequencer (ordered separately); (P) indicates compatibility with Lowell P-Series pass-through sequencers.
Mounting Aids = Brackets (multi-hole brackets with hardware), Clips (clips and screws with wire tires), or Screws (power strips can mount to rear of US or USV Series shelves).
