Product Type	Bass Speaker Cabinet
Brand	Hartke
Model	115XL
Speaker Configuration	1 x 15-inch
Power Handling (RMS)	200 Watts
Impedance	8 Ohms
Frequency Response	40 Hz - 5 kHz
Sensitivity	98 dB SPL @ 1W/1m
Dimensions (H x W x D)	24 x 20 x 18 inches (610 x 508 x 457 mm)
Weight	42 lbs (19 kg)
Cabinet Material	Plywood with carpet covering
Input Connector	1/4" jack
Handle	Side-mounted metal handle
Grille	Perforated steel grille
Recommended Amplifier Power	100 - 400 Watts into 8 Ohms
Safety Features	Rubber feet for stability; no exposed sharp edges
Maintenance	Wipe with dry cloth; do not use solvents; avoid moisture
Repairability	Rear panel removable for access to speaker and wiring

Frequently Asked Questions - 115XL Hartke

How do I connect the Hartke 115XL cabinet to an amplifier?

Use a standard 1/4" instrument cable to connect the amplifier's speaker output to the cabinet's input jack. Ensure the amplifier is turned off before connecting.

What is the power handling of the 115XL?

The cabinet handles 200 Watts RMS and is rated at 8 Ohms. It is recommended to use an amplifier delivering between 100 and 400 Watts into 8 Ohms.

Can I use the 115XL with a guitar amplifier?

While possible, it is not ideal as guitar amps are optimized for different frequency ranges. Use a bass amp for best performance.

How should I clean the cabinet?

Wipe the exterior with a soft dry cloth. Avoid using water, solvents, or abrasive cleaners. Keep the grille dry and free of dust.

What are the dimensions and weight of the 115XL?

Dimensions are 24 x 20 x 18 inches (H x W x D) and it weighs approximately 42 lbs (19 kg).

Is the Hartke 115XL a powered cabinet?

No, it is a passive cabinet and requires an external amplifier to drive it.

How do I ensure optimal sound quality?

Place the cabinet on a stable surface, away from walls to avoid bass buildup. Use a high-quality amplifier and avoid overdriving the speaker.

What type of speaker does the 115XL use?

It features a custom Hartke 15-inch driver designed for low-frequency reproduction and durability.

Can I daisy chain multiple 115XL cabinets?

Yes, many Hartke cabinets have a parallel output jack. Ensure the total impedance matches your amplifier's minimum load (e.g., two 8-ohm cabinets in parallel = 4 ohms).

Where can I find the serial number on my 115XL?

The serial number is located on the back panel near the input jack, on a sticker or engraved plate.

USER MANUAL 115XL Hartke

1 x15" Stackable Aluminum Drive Bass Enclosure

Owners Manual

Hartke

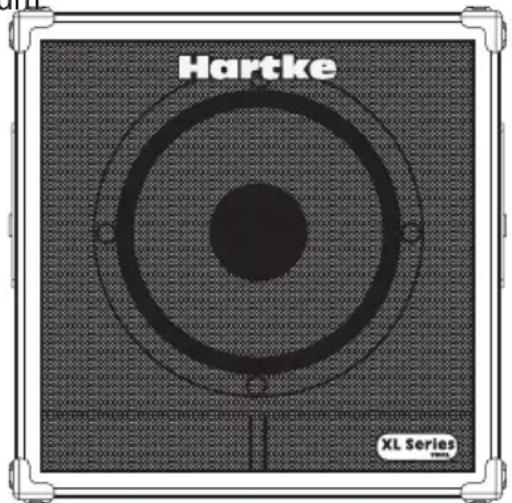

115XL Introduction and Features

Congratulations on purchasing the 115XL bass enclosure by Hartke! The XL Series enclosures have been designed to provide excellent tone with a warm punchy output. The 115XL features a 15", proprietary low frequency driver with an aluminum cone, impregnated fabric surround, and matched convex dust cover all mounted in a heavy-duty steel frame. Using heavy-duty plywood construction, covered in rugged carpet with recessed jack plate and ergonomic handle, the 115XL will provide reliable performance from gig to gig and venue to venue.

In these pages, you'll find a detailed description of the features of the 115XL, as well as a description of its front and rear panels, step-by-step instructions for its setup and use and full specifications. You'll also find a warranty card enclosed—please don't forget to fill it out and mail it in so that you can receive online technical support and so we can send you updated information about these and other Samson products in the future.

We recommend you record your serial number in the space provided below for future reference.

Serial number:

Date of purchase:

Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing materials and if possible, return the unit in the original carton and packing materials.

115XL Features

• 1 x 15 Inch heavy-duty, Aluminum

Low Frequency driver

• 3/4" Plywood construction

- Front Shelf Port

• Perforated metal speaker grill

- Recessed metal handles

- Stacking corners

- Dual, parallel wired 1/4" jacks

• Covered in durable carpet

Connecting the 115XL

About Impedance

Before you hook up your speaker cabinet, be sure that you understand a little about impedance. Impedance is the electronic load that the speaker puts on the power amplifier and is measured in Ohms.

Here is the tricky, yet simple rule of impedance: When two speakers, of equal impedance are wired in "Parallel", the total impedance is cut in half and when two speakers are wired in “Series,” the total impedance is the sum of the speakers individual impedance.

The 115XL impedance is 8 Ohms. So, when two 115XL's are connected together in parallel, the total impedance is 4 Ohms. The impedance of your speaker also has an effect on your amplifier. In general, the lower the impedance, the more power your amplifier will put out.

IMPORTANT: There is a minimum safe impedance so be sure to check the manufacturer's recommended impedance for your amplifier to avoid any damage to your amplifier or voiding your warranty.

Connecting the 115XL to Your Amplifier

The 115XL connections are made via 1/4" phone jacks located on the rear panel jack-plate. Be sure to make your connection with un-shielded speaker cable. Connect the Amplifier Output to the speaker Input on the 115XL's rear jackplate.

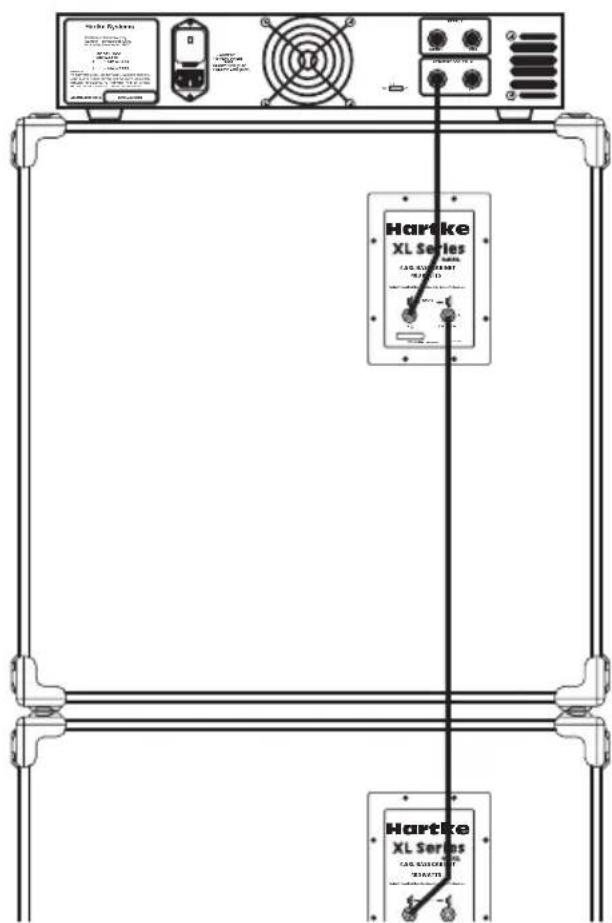

Using the EXTENSION Output

The 115XL provides a convenient Extension Output for connecting additional speaker cabinets in parallel. Be sure to read the section above on impedance to insure a proper hook up with your amplifier. Follow the steps below to connect two 115XL's using the Extension Output. Connect the Amplifier Output to the Input of the first 115XL. Now, connect the Extension Output to the Input of the second 115XL.

Specifications

Hartke 115XL Specifications

Type Tuned, Vented Enclosure

Impedance (Ohms) 8 Ohms Impedance

Power Handling 200 Watts RMS Power Handling

Drivers 1-Hartke 15XL8 Special Design

Aluminum 15", 8 ohm, 200 watt drive unit

SPL 98dB

Frequency Response 30Hz - 2.5kHz

Inputs Parallel 1/4"

Weight 63 lbs. (28.58)

Dimensions Height:24" (60.96 cm)

Width: 24" (60.96 cm)

Depth: 15" (38.1 cm)
