Product Type	Bass Amplifier Head
Brand	Hartke
Model	VX810
Power Output	800W RMS at 4 ohms
Impedance	4 ohms (minimum)
Frequency Response	20 Hz - 20 kHz
EQ Controls	10-band graphic EQ, Bass, Treble
Inputs	1/4" instrument input, XLR input
Outputs	1/4" speaker output, XLR line out
Cooling	Variable speed fan
Dimensions (W x H x D)	19" x 3.5" x 12" (48.3 x 8.9 x 30.5 cm)
Weight	22 lbs (10 kg)
Power Supply	AC 120V/240V, 50-60 Hz, IEC detachable cord
Protection	Short circuit, thermal, overcurrent
Construction	Steel chassis, aluminum front panel
Cleaning	Wipe with dry cloth; avoid solvents
Safety	Use grounded outlet; do not expose to rain
Spare Parts	Contact authorized service center
Repairability	Serviceable by qualified technician only
Warranty	2 years limited

Frequently Asked Questions - VX810 Hartke

What impedance speaker cabinet can I use with the VX810?

The VX810 amplifier is designed to work with a minimum 4 ohm load. Using a lower impedance may cause damage.

Can I use the VX810 with an active bass?

Yes, the input accepts both passive and active basses. For active basses, ensure the input pad is engaged if the signal is too hot.

How do I connect the amplifier to a speaker cabinet?

Use a 1/4 inch speaker cable from the speaker output to your cabinet. Do not use an instrument cable.

What is the power consumption of the VX810?

The amplifier draws approximately 800W at full power. Use a suitable power source with proper grounding.

How do I clean the amplifier?

Disconnect from power. Wipe the exterior with a dry, lint-free cloth. Do not use liquid cleaners or solvents.

Does the VX810 have a headphone output?

No, the VX810 does not include a headphone output. Use a headphone amplifier or a mixer with headphone monitoring.

Can I rack mount the VX810?

Yes, the amplifier has standard 19-inch rack ears and fits in a standard rack case. Allow proper ventilation.

What is the warranty period?

The VX810 comes with a 2-year limited warranty from the date of purchase. Register online to activate.

Where can I find the serial number?

The serial number is located on the rear panel near the power cord entry. Keep it for warranty service.

How do I update the firmware?

The VX810 does not have user-updateable firmware. Contact Hartke support for any updates.

USER MANUAL VX810 Hartke

Six circular mechanical components arranged in a grid pattern on a textured background, framed by corner brackets (no text or symbols)

8 x 10" + 1" High Frequency CD Bass Enclosure

Owners Manual

Yx-series

Hartke

VX810 Introduction and Features

Congratulations on purchasing the VX810 bass enclosure by Hartke! Continuing Larry Hartke's legendary commitment to bass players, the VX "Very Extreme" Series enclosures have been designed to provide excellent tone with a warm punchy output. The VX810 features eight proprietary, 10-inch low frequency drivers with specially treated cones, impregnated fabric surrounds and matched convex dust covers all mounted in a heavy duty steel frame. Rounding out the tone is a proprietary, horn loaded, 1-inch titanium compression driver. Using heavy-duty plywood construction, covered in rugged carpet with recessed jack plate and ergonomic handle, the VX810 will provide reliable performance from gig to gig and venue to venue.

In these pages, you'll find a detailed description of the features of the VX810, as well as step-by-step instructions for its setup and use and full specifications. You'll also find a warranty card enclosed—please don't forget to fill it out and mail it in so that you can receive online technical support and so we can send you updated information about these and other Hartke products in the future.

We recommend you record your serial number in the space provided below for future reference.

Serial number:

Date of purchase:

Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before shipping your unit to Hartke. Without this number, the unit will not be accepted. Please call Hartke at 1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit. Please retain the original packing materials and if possible, return the unit in the original carton and packing materials.

VX810 Features

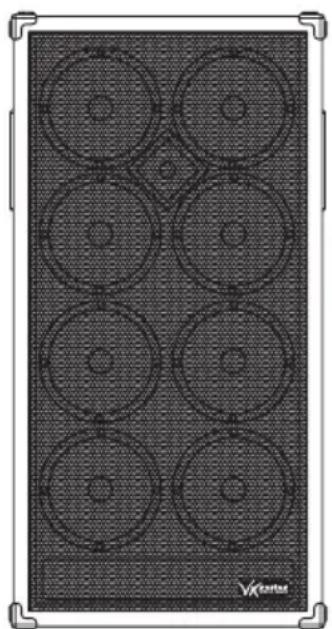

• 8 x 10-inch, heavy-duty, low frequency drivers
• 1-inch titanium, high frequency compression driver
• 800 Watt Power Handling
- 3/4" plywood construction
• T uned front shelf port
• Perforated metal speaker grill
- Recessed handles
- Stacking corners
- 1/4" Input jack
• Covered in durable carpet

Six circular mechanical components arranged in a grid pattern on a dark textured background (no text or symbols)

Connecting the VX810

About Impedance

Before you hook up your speaker cabinet, be sure that you understand a little about impedance. Impedance is the electronic load that the speaker puts on the power amplifier and is measured in Ohms.

Here is the tricky, yet simple rule of impedance: When two speakers are wired in "Parallel" the total impedance is cut in half and when two speakers are wire in "Series" the total impedance is the sum of the speakers individual impedance.

The VX810 impedance is 4 Ohms. So, when two VX810's are connected together in parallel, the total impedance is 2 Ohms. The impedance of your speaker also has an effect on your amplifier. In general, the lower the impedance, the more power your amplifier will put out.

IMPORTANT: There is a minimum safe impedance so be sure to check the manufacturer's recommended impedance for your amplifier to avoid any damage to your amplifier or voiding your warranty.

Connecting the VX810 to Your Amplifier

The VX810 connections are made via 1/4" phone jack located on the rear panel jack-plate. Be sure to make your connection with un-shielded speaker cable. Connect the Amplifier Output to the speaker Input on the VX810's rear jackplate.

VX810 Specifications

Type Bass reflex speaker enclosure

System Impedance 4 Ohms

Power Handling 800 Watts

Low Frequency Drivers 8 x 10" Special Design, 8 ohm, 100 watt Speaker

High Frequency Driver 1" Throat, 34 mm Titanium Compression Driver

Dimensions Height: 51" (1293 cm)

Width: 25" (64.8 cm)

Depth: 15" (38.1 cm)

Weight 146 lbs. (67 kg)

Specifications subject to change without notice.
