Nami ECO - Loudspeaker ENERGY SISTEM - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Energy Sistem
Model	Nami ECO
Dimensions (approx.)	200 x 70 x 70 mm
Weight (approx.)	500 g
Power Source	Built-in rechargeable lithium battery
Charging	USB-C
Bluetooth Version	5.0
Wireless Range	10 m
Audio Inputs	Bluetooth, AUX 3.5 mm, microSD card slot
FM Radio	Yes
Speaker Output Power	5 W (typical)
Battery Capacity	2000 mAh (approx.)
Playback Time	Up to 10 hours
Charging Time	2-3 hours
Water Resistance	IPX5 (splash-proof)
Controls	Buttons for volume, play/pause, track, and calls
Microphone	Built-in for hands-free calls
Color Options	Black, Green (ECO)
Material	Plastic and fabric
Accessories Included	USB-C charging cable, AUX cable, user manual
Maintenance	Wipe with a soft, dry cloth
Safety Precautions	Keep away from extreme temperatures and liquids
Spare Parts Availability	None (non-user-serviceable)
Reparability	Contact authorized service center

Frequently Asked Questions - Nami ECO ENERGY SISTEM

How do I pair the Nami ECO speaker with my phone?

Turn on the speaker and enable Bluetooth on your phone. Search for devices and select Energy Sistem Nami ECO. If prompted for a PIN, enter 0000.

What is the battery life of the Nami ECO?

The Nami ECO offers up to 10 hours of playback time at moderate volume. Actual battery life may vary based on usage.

Is the Nami ECO speaker waterproof?

It has an IPX5 rating, meaning it is splash-proof. It can withstand light rain or splashes, but should not be submerged in water.

Can I use the Nami ECO while charging?

Yes, you can use the speaker while it is charging via the USB-C port.

How do I reset the Nami ECO speaker?

Press and hold the power button for about 10 seconds until the LED flashes to reset the speaker to factory settings.

Does the Nami ECO support microSD cards?

Yes, it has a microSD card slot for playing music directly from a memory card (up to 32GB).

Can I answer calls with the Nami ECO?

Yes, the speaker has a built-in microphone for hands-free calling. Press the play/pause button to answer or end a call.

How do I switch between Bluetooth and FM radio?

Press the mode button to cycle through Bluetooth, AUX, microSD, and FM radio modes. In FM mode, long-press the play/pause to auto-scan stations.

What is the charging time for the Nami ECO?

Full charging takes approximately 2-3 hours using a standard 5V/1A USB charger.

Why won't my Nami ECO connect to Bluetooth?

Ensure the speaker is in pairing mode (LED blinks rapidly). Delete old pairings from your phone's Bluetooth list and try again. Keep devices within 10 meters.

USER MANUAL Nami ECO ENERGY SISTEM

General presentation 4

True Wireless Stereo (TWS) 4

Signal input modes (USB/MicroSD/Line in/Bluetooth) 4

Call control (Handsfree function) 5

Battery charging 5

Reset 6

Care and maintenance 6

Technical specifications 6

Audio 6

Wireless connectivity 6

TWS compatible with 6

Audio input 7

microSD and USB playback 7

Battery 7

Warranty 7

ENERGY♥SISTEM

nami eco/ yume eco

- Thank you for trusting us and purchasing your new Speaker ECO. We hope you enjoy it.

Product content

ENERGY♥SISTEM

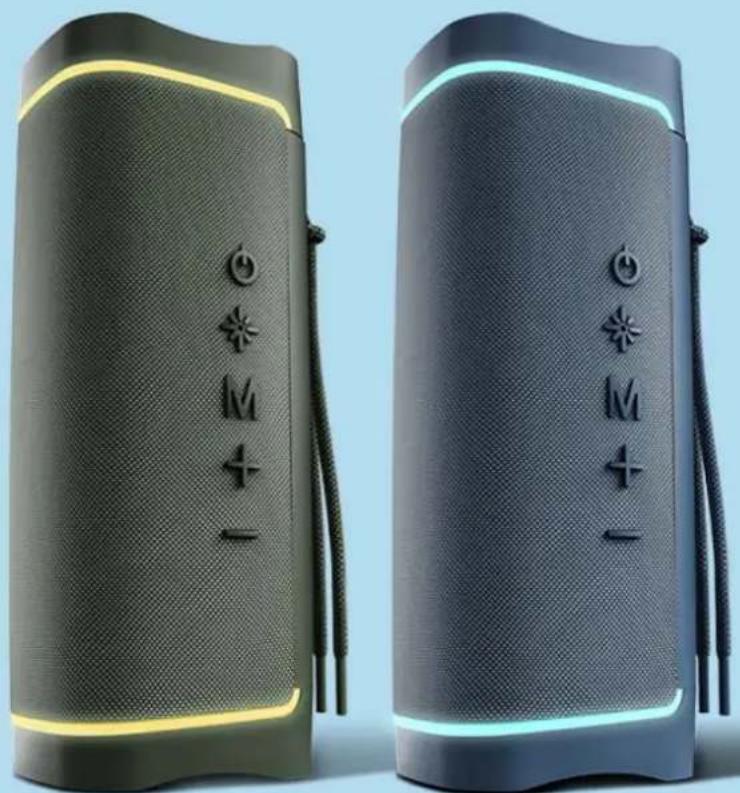

General presentation

True Wireless Stereo (TWS)

Note: This function is only available in Bluetooth mode. In all other playback modes (USB, microSD or Aux-in) a TWS connection is not possible.

Signal input modes (USB/MicroSD/Line in/Bluetooth)

ENERGY♥SISTEM

The folders and files contained in the root of the external USB and microSD memory sticks are read in chronological order of writing and the songs contained in the folders are read in alphabetical order.

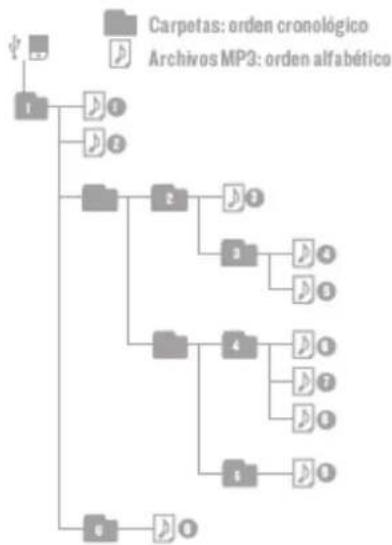

A diagram of the reading order is shown below:

Note: Input mode (Line in or Audio input)

-In this mode of use it is not possible to control playback from the speaker itself, but it is necessary to do so from the connected external player.

-The maximum volume depends directly on the power of the signal supplied by the transmitting device.

Call control (Handsfree function)

Once you have paired your Speaker ECO with your smartphone, you can control your calls from the speaker itself.

When you receive a call, the song you are listening to will stop and the ringtone will sound. To answer the call press the On/Off/Play/Pause/Call button (1), and to end the call press the *On/Off/Play/Pause/Call button again.

Note: When you receive a call and you are using the TWS function, you will only hear the conversation through the speaker connected to your Smartphone.

Battery charging

ENERGY♥SISTEM

10%

Recommendations:

• Use a 5V 2A AC/DC power adapter.

Reset

You can force the device to turn off by pressing the reset button hidden inside the Auxiliary Audio Input connector for 2 seconds.

Note: Avoid using metallic elements when performing the reset.

Care and maintenance

• Do not expose your Speaker ECO to shock, dust, moisture or high temperatures.
• Do not use corrosive or abrasive cleaning products.
• Do not disassemble it. Any repair must be carried out exclusively by qualified Energy Sistem Technology, S.A. personnel.
• Be sure to keep your Speaker ECO switched off when not in use and do not leave it for a long period of time with the battery completely discharged.

Technical specifications

Audio

• System: 2.0.
• Power: 15 W.
• Speakers: 2 x 40mm full range.
  • Bass radiator: double membrane
  • Frequency response: 80 Hz \~ 18 KHz.
  • Signal to noise ratio: > 60 dB.

Wireless connectivity

• Bluetooth v5.3, class II. Up to 20 metres range.
  • Supports HSP / HFP / A2DP /AVRCP profiles.
  • Working frequency: 2.4 GHz (2.402 \~ 2.480 GHz).
  • Maximum transmitting power: < 20 dBm
• Hands-free function. Microphone sensitivity: -42 dB
  • TWS (True Wireless Stereo) technology

TWS compatible with

- Nami / Yume

Audio input

• 3.5 mm stereo mini jack auxiliary audio input

microSD and USB playback

- MicroSD and USB decoder: plays MP3 and WAV files from external memory sticks up to 128 GB capacity in FAT / FAT32 format.

Battery

• Capacity: 2000 mAh
• Type: Lithium polymer
- Battery life: 12 hours*.
- Charging system: Type-C
- Charging time: 3 hours

Note: *Battery life varies according to the volume level selected and the type of music played.

Warranty

You can check the warranty conditions here:

https://www.energysistem.com/condiciones-de-garantia
