SDA1685 - Uncategorized DAEWOO - Free user manual and instructions

Product Type	Electric Kettle
Brand	Daewoo
Model	SDA1685
Capacity	1.7 Liters
Power Rating	3000 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Material	Stainless Steel (body)
Fast Boil	Yes
Auto Shut-Off	Yes
Water Level Indicator	Yes (on side)
Lid Release Button	Yes
Base	Cordless, 360° rotation (assumed)
Filter	Removable scale filter (inside)
Boil-Dry Protection	Yes (via auto shut-off)
Cleaning	Wipe with damp cloth; do not immerse
Decalcification	Required periodically (depending on water hardness)
Warranty	1 year standard + 2 years extended (upon registration within 28 days)
Customer Support	Email: [e-mail]; Phone: [phone]
Safety Features	Overheat protection, non-slip base, cool-touch handle
Approvals	BS 1363 plug, 13 Amp fuse

Frequently Asked Questions - SDA1685 DAEWOO

How do I clean my Daewoo SDA1685 kettle?

Unplug the kettle and let it cool. Wipe the exterior with a soft damp cloth. Do not use abrasive cleaners. The interior can be cleaned with a descaling solution. Never immerse the kettle or base in water.

How do I descale the kettle?

Mix equal parts water and white vinegar or use a commercial descaling product. Fill the kettle to the max mark, boil, let it soak for 15-20 minutes, then rinse thoroughly. Repeat if necessary. Descaling frequency depends on water hardness.

Can I open the lid while the water is boiling?

No. WARNING: Do not open the lid during boiling to avoid scalding from steam and hot water. Wait until the kettle has switched off and the water has stopped bubbling.

What is the warranty period for the Daewoo SDA1685?

The kettle comes with a 1-year standard guarantee. By registering your purchase online at www.daewoowarrantyregistration.com within 28 days, you can extend the warranty by an additional 2 years (total 3 years). Proof of purchase is required.

How do I register the extended warranty?

Visit www.daewoowarrantyregistration.com and complete the registration form within 28 days of purchase. You will need your proof of purchase (receipt) and product model number SDA1685.

What should I do if the kettle stops boiling before the water is hot?

This usually indicates scale buildup. Decalcify the kettle (see descaling question). If the problem persists, check that the kettle is properly seated on the base and the lid is closed.

Is the kettle safe to use on an induction hob?

No. This is a cordless electric kettle with its own heating base. It should only be used on a flat, level, non-flammable surface and never on a hob or stove.

Can I immerse the kettle or base in water for cleaning?

No. Never immerse the kettle, base, cord, or plug in water or any other liquid. This poses a serious electric shock hazard. Only wipe with a damp cloth.

What type of plug and fuse does the kettle use?

It is fitted with a BS 1363 plug with a 13 Amp fuse (BS 1362). If the plug needs replacing, ensure the wiring is done correctly (Brown=Live, Blue=Neutral, Green/Yellow=Earth) and use only BSI or ASTA approved fuses.

How do I replace the scale filter?

The filter is located inside the kettle near the spout. Gently pull it out. Clean or replace it as needed. Rinse under running water or soak in vinegar. Ensure it is properly reinserted before use.

USER MANUAL SDA1685 DAEWOO

3KW STAINLESS STEEL

1.7L JUG KETTLE

FAST BOIL

User Manual

*Please refer to the warranty section for terms of your extended guarantee

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Kettle.
• Before plugging your kettle into the mains, visually check that the kettle is intact and has not suffered any transit damage.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Do not immerse the appliance, base or its cord in water or any other liquids.
• Close supervision is required when using this appliance near children.
• Never leave this appliance within reach of children.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of the reach of children aged less than 8 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
  • Always use this appliance on a solid, level, non-flammable surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.

- If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard.

- Do not operate this appliance after a malfunction or after being dropped or damaged in any way.

- Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

- Do not run the mains cable under carpets, rugs, etc.

- Allow the unit to cool before storage.

- Never place the appliance near to flammable material or high pressure containers.

- This appliance is intended for household use only and should not be used for industrial purposes.

- Do not use any accessories or attachments with this appliance other than those supplied or recommended by the supplier – only use the base provided with this kettle.

- Do not use this appliance for anything other than its intended use.

- Do not push objects into any openings as damage to the appliance and/or electric shock may occur.

- Ensure appliance is situated in an open area, do not allow it to come in contact with cupboards, curtains, wall coverings, clothing or other flammable materials.

- Unplug after each use. Grasp the plug, not the cord.

- Do not cover this appliance.

- Never place this appliance on an electric, gas, or any other type of hob.

- WARNING: Do not open the lid while the water is boiling. Never fill the kettle more than its capacity, if the kettle is overfilled, boiling water may be ejected – ensure the water level is between the min and max marks.

• Always close the lid during use.

- CAUTION: The outside surface of the kettle will get hot during use.

- Ensure the kettle is switched off before removing it from the base.

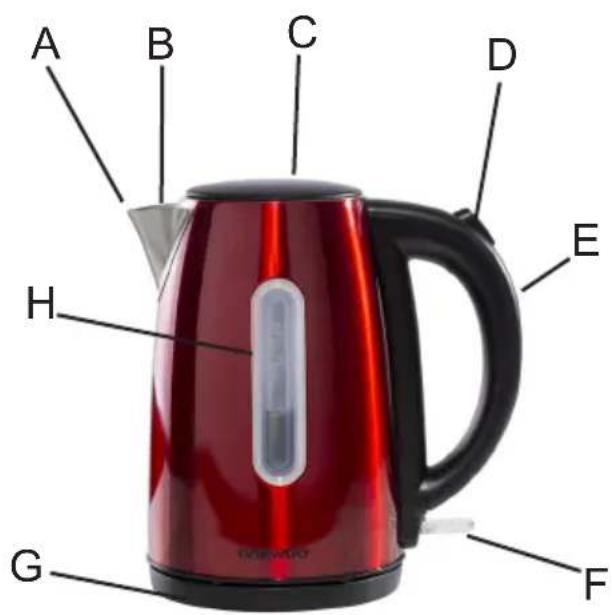

Description of parts

A. Spout
B. Filter (inside kettle)
C. Lid
D. Lid release button
E. Handle
F. On/Off Switch
G. Base
H. Water level indicator

Before the first time you use your kettle

• Please read these operating instructions thoroughly and keep them in a safe place for future reference.
• Remove all packaging materials and discard responsibly.
• Before using the kettle for the first time, fill to the max mark and allow it to boil.
• Pour away the boiled water and then repeat the process. If a slight taste or odour remains repeat the above process once more.
• Do not immerse the kettle or its base in water.

Instructions for use

• Place the kettle base on a flat, level, non-flammable surface.
• Press the Lid Release button (D) and fill the kettle with water to the desired level ensuring that it is above the MIN mark and below the MAX mark.
• Replace the lid on the kettle by pushing it closed and place it onto the base.
• Insert the mains plug (with dry hands) into the mains socket and switch on if applicable.
• Push down the power on/off switch which will illuminate the Power Indicator Light and the water will begin to boil.
• At the end of the boiling cycle the power on/off switch will automatically switch off.
• Wait until the water has finished boiling before removing it from the base unit.
• Ensure the lid is correctly closed before pouring boiling water – beware of scalding.

Cleaning your kettle

• Do not clean your kettle in a dishwasher.
  • Always disconnect the kettle from the mains power supply before cleaning.
• Wipe clean the outside of the kettle with a soft damp cloth. Never clean any part of the kettle with harsh or abrasive cleaners.
• Do not submerge any part of the base, mains cable or kettle in water or any other liquids.

Decalcification of your kettle

• The frequency of the decalcification depends on the hardness of the water in your area and how often the appliance is used
• If the kettle switches off before it boils or has a white deposit building up inside then it probably needs to be decalcified.

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

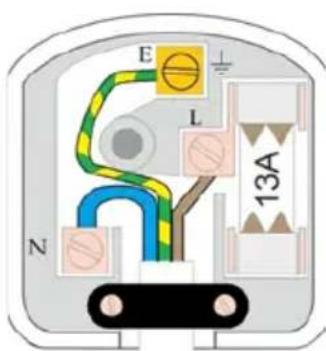

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown below. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:

Connect Green & Yellow to Earth (E)

Connect Blue to Neutral (N)

Connect Brown to Live (L)

Ensure the outer sheath of the mains lead is securely held by the cable clamp

• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• The Green and Yellow wire must be connected to the terminal marked E or coloured Green.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 13 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
• After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

Technical Data

Voltage 220-240V AC 50/60Hz
Rated power 3000W
Capacity 1.7Litre
Model Number SDA1685

Customer Support

Should you require any product information, replacement parts or accessories, please contact our customer care team at [e-mail] or call 0161 831 7879.

● Replacement parts and accessories are guaranteed for 1 year from the date of purchase.

- It is important to note that your warranty becomes invalid should non Daewoo parts or accessories be used with this appliance

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

WARRANTY

Thank you for purchasing your Daewoo product.

As part of our commitment to quality we are offering you an extra 2 years warranty in addition to your 1 year guarantee.

Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defects should arise due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.

The guarantee is subject to the following provisions:

- The product must be correctly installed and operated in accordance with the requirements contained in the instruction manual.

- The product must be used solely for domestic purposes.

- It does not cover general wear and tear, damage, misuse or any consumable parts.

- The Guarantee is rendered invalid if the product has been resold or has been damaged through inexpert repair.

- The guarantee is only valid within the UK and Eire.

Your standard 1 year guarantee will only be extended to the maximum available for your individual product upon registration. (Note: products must be registered individually and covers the main body and housing) If you do not register your product within 28 days of the original purchase date, your product will only be guaranteed for 1 year.

To validate your extended 2 year warranty* please register your purchase online within 28 days of the original purchase date by registering at

www.daewoowarrantyregistration.com/warranty-registration

*Your extended warranty is only valid with proof of purchase receipt and subject to the conditions outlined above.

ESG Ltd

Manchester M3 1JS

www.esgltd.com
