Product Type	Electric Multicooker
Brand	Daewoo
Model	SDA1363
Capacity	2.0 liters
Power Consumption	300 W
Dimensions (W x D x H)	25 x 25 x 25 cm
Weight	2.0 kg
Voltage / Frequency	220-240 V / 50-60 Hz
Material	Plastic housing, non-stick aluminum inner pot
Cooking Modes	Rice, Slow Cook, Steam, Sauté, Soup, Porridge, Keep Warm
Timer	Up to 24 hours delay start
Keep Warm Function	Automatic after cooking, up to 24 hours
Accessories	Steam basket, measuring cup, rice paddle, power cord
Control Type	Push-button with LED indicators
Safety Features	Auto shut-off, overheat protection, cool-touch handles
Cleaning & Maintenance	Removable inner pot (dishwasher safe), wipe exterior with damp cloth
Spare Parts Availability	Inner pot, sealing ring, steam valve available separately
Repairability	Common spare parts; professional repair recommended
Warranty	2 years (standard)

Frequently Asked Questions - SDA1363 DAEWOO

How do I cancel a cooking program?

Press and hold the Cancel button for 3 seconds to stop the current program and return to standby mode.

Can I use the multicooker to pressure cook?

No, the SDA1363 is a multi-cooker with functions like rice, slow cook, and steam, but it does not have pressure cooking capability.

What is the maximum cooking time for slow cook?

The slow cook mode can be set from 2 to 12 hours, depending on your recipe.

How do I clean the steam valve?

Remove the steam valve cover and wash it with warm soapy water. Rinse and dry thoroughly before reassembling.

Why does the display show 'E01'?

Error code E01 indicates a temperature sensor malfunction. Unplug the unit and contact customer support.

Can I cook frozen food directly?

Yes, but add extra cooking time. For best results, thaw food before cooking in the multicooker.

Is the inner pot dishwasher safe?

Yes, the non-stick inner pot is dishwasher safe. However, hand washing with a soft sponge is recommended to prolong its life.

How do I set the delay timer?

Select a cooking program, then press the Timer button. Use the +/- buttons to set the desired delay time (up to 24 hours). Then press Start.

What should I do if the lid does not close properly?

Ensure the sealing ring is correctly seated and the inner pot is placed properly. If the lid still won't close, check for obstructions.

Can I replace the power cord myself?

No, the power cord is not user-replaceable. Contact an authorized service center for replacement.

USER MANUAL SDA1363 DAEWOO

1.5L STAINLESS STEEL

SLOW COOKER

with 3 heat settings

User Manual

*Please refer to the warranty section for terms of your extended guarantee

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Slow Cooker.
• Do not touch hot surfaces. Use the handles and/or knobs provided.
  • Always ensure that the voltage on the rating label corresponds with the voltage in your home.
• Keep the appliance out of the reach of children.
• Keep the mains lead away from the body of the Slow Cooker.
• Do not leave the appliance unattended whilst operating.
• Disconnect the appliance from the mains after use.
• To disconnect the appliance grip and pull the mains plug. DO NOT pull the power cord.
• Do not wrap the power cord around the appliance in use or during storage.
  • Always disconnect the plug from the mains before cleaning. Wipe clean only, do not immerse the unit, plug or cord in water or any other liquid.
  • Always allow the unit to cool before storage or cleaning.
• Retain the instruction manual for future use and reference.
• There are no user serviceable parts, if the unit fails, consult a qualified technician, a repair centre or contact the supplier if the unit is under warranty.
• If the supply cord is damaged, it must be replaced by the manufacturer, it's service agent or similarly qualified persons in order to avoid a hazard.
• It is recommended that this appliance should not be operated in conjunction with an electrical extension lead.
• Avoid moving the appliance whilst it is still hot or contains hot food or liquids. Turn the appliance off and disconnect from the mains and let it cool sufficiently before moving it.
• For indoor use only.

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of the reach of children aged less than 8 years.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should be supervised to ensure they do not play with the appliance.

- Keep away from splashes of water or damp conditions.

- For domestic use only.

- Do not use accessories with this appliance other than those recommended by the supplier.

- Do not use this product with an external programmer, timer, separate remote control system or any other device.

- DO NOT touch hot surfaces. Accessible surfaces are liable to get hot during use. Always use the handles.

- Oven gloves should be worn when using this appliance.

- Hot steam may be released when opening and closing the appliance during use – Risk of scalding!

• Always carry the appliance with both hands. Always use oven gloves.

Burn hazard!

THIS APPLIANCE MUST BE EARTHED

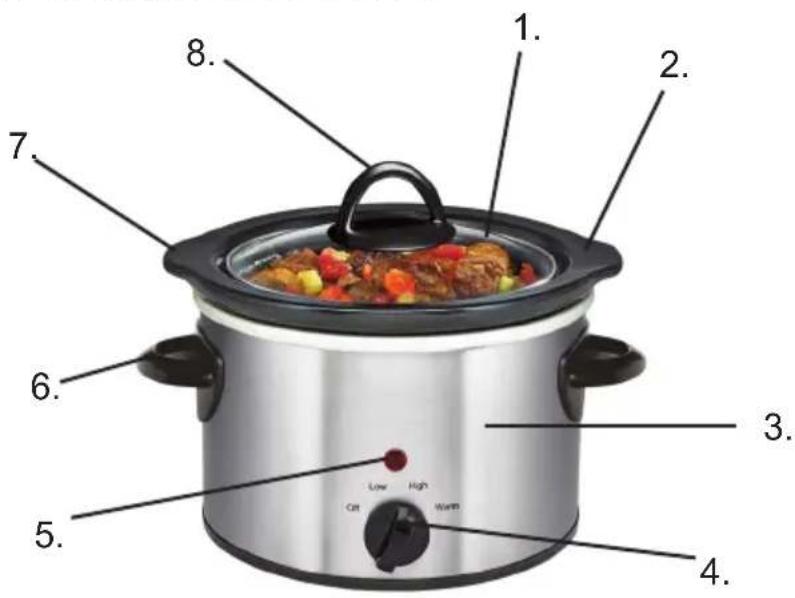

Description of parts

1. Glass Lid.
2. Ceramic inner pot.
3. Base Unit.
4. Mode switch
5. Power indicator light
6. Base unit carrying handles
7. Ceramic pot handles
8. Lid Handle

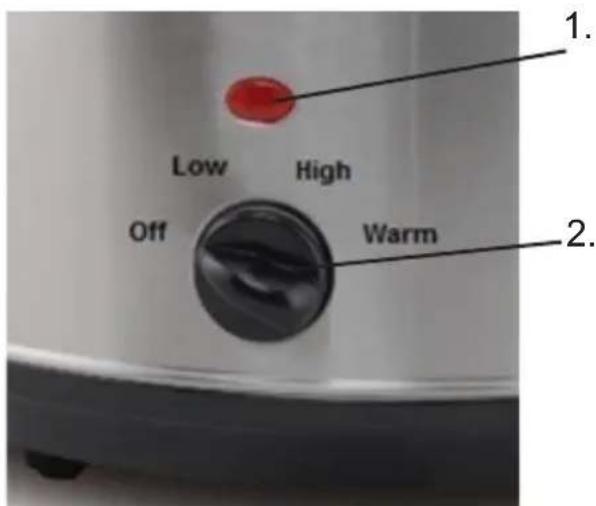

Description of controls

1. Power indicator light.
2. Mode selector switch.

Before the first time you use your Slow Cooker

• Please read these operating instructions thoroughly and keep them in a safe place for future reference.
• Remove all packing materials and discard responsibly.
• Wash the ceramic pot and glass lid in hot soapy water with a sponge or cloth, rinse thoroughly and dry.

Do's and Don'ts for using your Slow Cooker

• DO NOT IMMERSE THE SLOW COOKER BASE IN WATER OR ANY OTHER LIQUIDS.

- NEVER place the ceramic pot or glass lid in a freezer, on the hob, in the oven or in a microwave.

- Do not use the slow cooker to pre heat ingredients.

- Do not subject the ceramic pot to sudden changes in temperature, plunging a hot ceramic pot into cold water could cause it to crack or shatter.

- Do not allow the pot to stand in water for a long time (though you can leave water inside the pot to soak).

- Do not switch on the Slow Cooker whilst the ceramic pot is missing or empty.

- The glass lid sits a little loosely on the ceramic pot and is deliberately not a tight fit.

NOTE: During initial use you may notice a slight odour due to the burning off of manufacturing residues.

This is completely normal and will disappear after a short time.

About Slow Cooking

Slow cooking has traditionally been used for soups and casseroles but it can also cook most modern family meals. Slow cooking has always been the best way to cook a delicious hot meal with the minimum preparation.

The cooking temperature is the same on both settings, so the setting you choose merely dictates how quickly the slow cooker gets up to temperature. The lower setting (usually 8 hour to 10 hours cooking times) heats food gently, whereas the higher setting (4 hour to 6 hours cooking times) will heat food quicker.

NB the Slow Cooker will not ‘boil’ food but gently cook it over a long period of time.

Instructions for use

Cooking

- Place the base on a dry, level, heat resistant surface, away from the edge of the work surface. Do not use on the floor.

- Place the ingredients into the ceramic pot and place the pot into the base.

- Cover with the glass lid. If you need to pre-cook or brown ingredients prior to slow cooking, this must be done in a pan. Do not try to brown or pre-cook food in the slow cooker.

• DO NOT place the Ceramic Pot and Lid on a hob or in an oven.

- Set the control switch to the OFF position before plugging the slow cooker into the mains socket.

- Set the temperature to LOW or HIGH setting according to the recipe.

- It is recommended not to exceed 8 hours cooking time.

- Once food is cooked the slow cooker can be switched off or set to the WARM position to keep food heated for up to 4 hours.

- To turn off, set the control to the OFF position and unplug from the mains socket. Remove the ceramic pot using heat resistant gloves or mitts.

CAUTION: DO NOT TOUCH THE BASE UNIT IMMEDIATELY AFTER COOKING AS IT WILL REMAIN HOT FOR SOME TIME

Warm function

- Food can be kept warm in the slow cooker for up to 4 hours

- Food cooked in other appliances can be transferred to the slow cooker to be kept warm

NOTE: Beyond 4 hours food may become dry and the flavour may alter

Cleaning and maintenance.

• Always ensure the slow cooker is unplugged and the control switch is in the OFF position before storing away or cleaning. Ensure the slow cooker has cooled completely before cleaning.
- The ceramic inner pot and glass lid are dishwasher safe however it is recommended they should be cleaned by hand with warm soapy water.
- The base of the slow cooker can be wiped with a damp cloth and dried.
- DO NOT use abrasive cleaning materials or scouring pads to clean any part of the slow cooker as this will damage the surface.
- Do not submerge the base unit in water or any other liquid.

Technical data

Model SDA1363
Voltage 220-240V AC 50/60Hz
Rated power 100W
Protection class I (This appliance must be earthed)
Inner pot capacity 1.5 litres

Customer Support

Should you require any product information, replacement parts or accessories, please contact our customer care team at [e-mail] or call 0161 831 7879.

● Replacement parts and accessories are guaranteed for 1 year from the date of purchase.

- It is important to note that your warranty becomes invalid should non Daewoo parts or accessories be used with this appliance

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

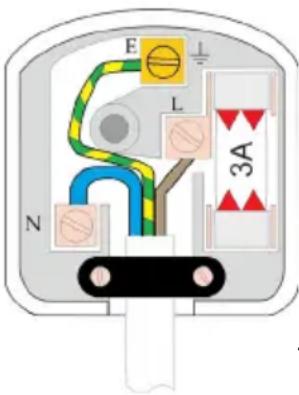

Fitting a new plug

The mains lead must be connected as shown below. The wires are coloured with the following code - Brown wire = Live (L), Blue wire = Neutral (N).

NB no connection must be made to the Earth terminal (E).

Connect Green & Yellow to Earth (E)

Connect Blue to Neutral (N)

Connect Brown to Live (L)

Ensure the outer sheath of the mains lead is securely held by the cable clamp

• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• The Green and Yellow wire must be connected to the terminal marked E or coloured Green.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 10 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
• After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

Recipes for you to try....

Brown Rice Risotto With Lamb

Ingredients

Approximately 750g of boneless lamb shoulder

Nonstick cooking spray

275ml vegetable stock

125g brown rice

12 teaspoon curry powder

14 teaspoon salt

1 medium carrot (chopped)

100g green sweet pepper (chopped)

Pile of cooked rice grains on a white background (no text or symbols visible)

Directions

1. Trim the fat from the meat and cut to sizable chunks and precook on a skillet until browned.

2. Place vegetable stock, uncooked brown rice, curry powder and salt in the slow cooker and top with carrots then place the meat on top of the carrots.

3. Place the lid on the slow cooker and cook on LOW for 8-9 hours or on HIGH for 4 - 4 12 hours.

4. Add the sweet pepper to the slow cooker, cover and let stand for 15 minutes or until the sweet pepper is tender.

Close-up of fresh white mushrooms with visible cross-sections (no text or symbols)

Pork Chops In Mushroom Sauce

Ingredients

3 pork loin chops cut 2cm thick

1 tablespoon cooking oil

1 small onion thinly sliced

1 tablespoon quick cooking tapioca

150g mushroom soup

50ml apple juice or apple cider

1 teaspoon Worcestershire sauce

1 teaspoon thyme

150g sliced fresh mushroom

14 teaspoon garlic powder

Directions

1. Trim the fat from the chops and precook on a skillet until browned.

2. Place the onion in the slow cooker and add chops then add the tapioca (crushed), mushroom soup, apple juice, Worcestershire sauce, thyme, garlic and mushrooms and stir well.

3. Place the lid on the slow cooker and cook on LOW for 8-9 hours or on HIGH for 4 - 4 12 hours.

Fireside Beef Stew

Ingredients

450g boneless beef

200g butternut squash (peeled, seeded and cut into

2cm cubes)

1 small onion cut into wedges

1 clove garlic (crushed)

200g beef broth

100g passata

1 tablespoon Worcestershire sauce

12 teaspoon mustard powder

14 teaspoon black pepper

1/8 teaspoon allspice

2 teaspoons cornflour

150g green beans

Directions

1. Trim fat from the meat and cut into 2cm cubes then place in the slow cooker along with the squash, onion, garlic, broth, posata, Worcestershire sauce, mustard powder, pepper and allspice.
2. Place the lid on the slow cooker and cook on LOW for 8-9 hours or on High for 4-5 hours.
3. After the cooking cycle stir in the cornflour and green beans and cook for a further 15 minutes on HIGH.

Chicken Curry

Close-up of a white bowl filled with cooked chicken breast and rice (no text or symbols visible)

Ingredients

500g boneless skinless chicken breast cut into 2.5cm cubes
250g peeled and chopped potatoes
175g sliced carrot
125g coarsely chopped cooking apple
100g chopped onion 1 clove of garlic (crushed)
1 Jalapeno pepper finely chopped
1 teaspoon instant chicken bouillon
75ml water 200g coconut milk
3 tablespoons plain flour 3 tablespoons curry powder
1 teaspoon cumin 1 teaspoon salt

Directions

1. Place the chicken, flour, curry powder, cumin and salt in a large plastic bag and shake to coat the chicken.
2. Place potatoes, apple, onion, garlic, jalapeno pepper and chicken bouillon in the slow cooker, top with the chicken and pour water over.
3. Place the lid on the slow cooker and cook on LOW for 6-7 hours or on HIGH for 3-3½ hours.
4. After the cooking cycle add the coconut milk and cook on HIGH for a further 30 minutes

WARRANTY

Thank you for purchasing your Daewoo product.

As part of our commitment to quality we are offering you an extra 2 years warranty in addition to your 1 year guarantee.

Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defects should arise due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.

The guarantee is subject to the following provisions:

- The product must be correctly installed and operated in accordance with the requirements contained in the instruction manual.

• The product must be used solely for domestic purposes.

- It does not cover general wear and tear, damage, misuse or any consumable parts.

- The Guarantee is rendered invalid if the product has been resold or has been damaged through inexpert repair.

• The guarantee is only valid within the UK and Eire.

Your standard 1 year guarantee will only be extended to the maximum available for your individual product upon registration. (Note: products must be registered individually and covers the main body and housing) If you do not register your product within 28 days of the original purchase date, your product will only be guaranteed for 1 year.

To validate your extended 2 year warranty* please register your purchase online within 28 days of the original purchase date by registering at

www.daewoowarrantyregistration.com/warranty-registration

*Your extended warranty is only valid with proof of purchase receipt and subject to the conditions outlined above.

ESG Ltd

Manchester M3 1JS

www.esgltd.com
