USER MANUAL Delta 513X Black Hydra

Line drawing of a speaker emitting sound waves, no text or symbols present

Line drawing of a speaker bowl with concentric rings and central perforated socket (no text or symbols)

Line drawing of a speaker bowl with a central mesh grille and mounting feet (no text or symbols)

Technical line drawing of a speaker component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a speaker or fan assembly with internal components and external connectors (no text or symbols)

Technical line drawing of a speaker component with mounting holes and a central hub (no text or symbols)

Line drawing of a car interior showing dashboard, steering wheel, and seatbelt (no text or symbols)

ИНФОРМАЦИЯ О ГАРАНТИЙНОМ СРОКЕ, СЕРВИСНОМ ОБСЛУЖИВАНИИ И СРОКЕ СЛУЖБЫ

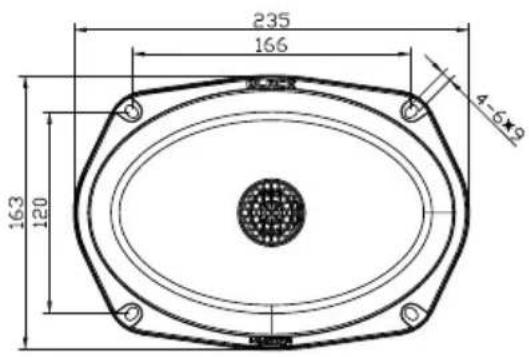

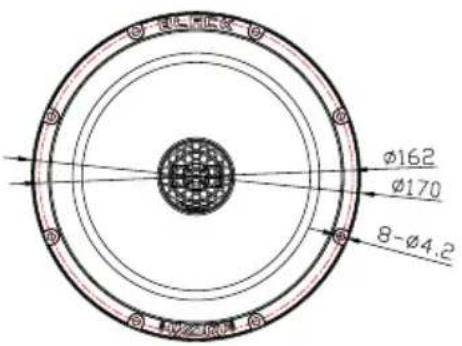

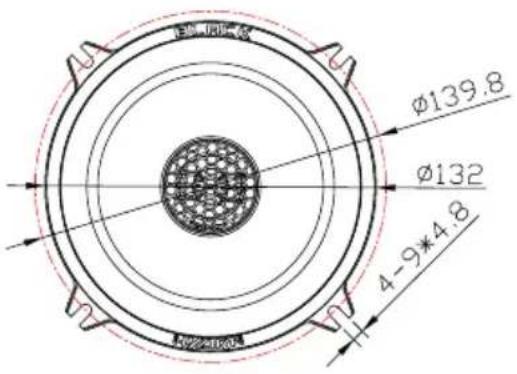

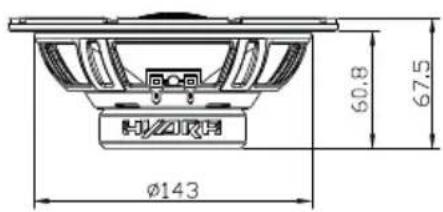

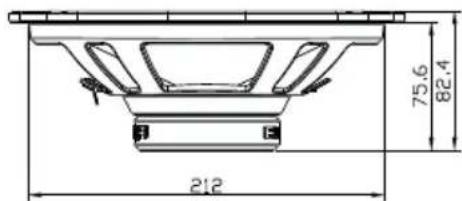

UNITS DIMENSIONS....17

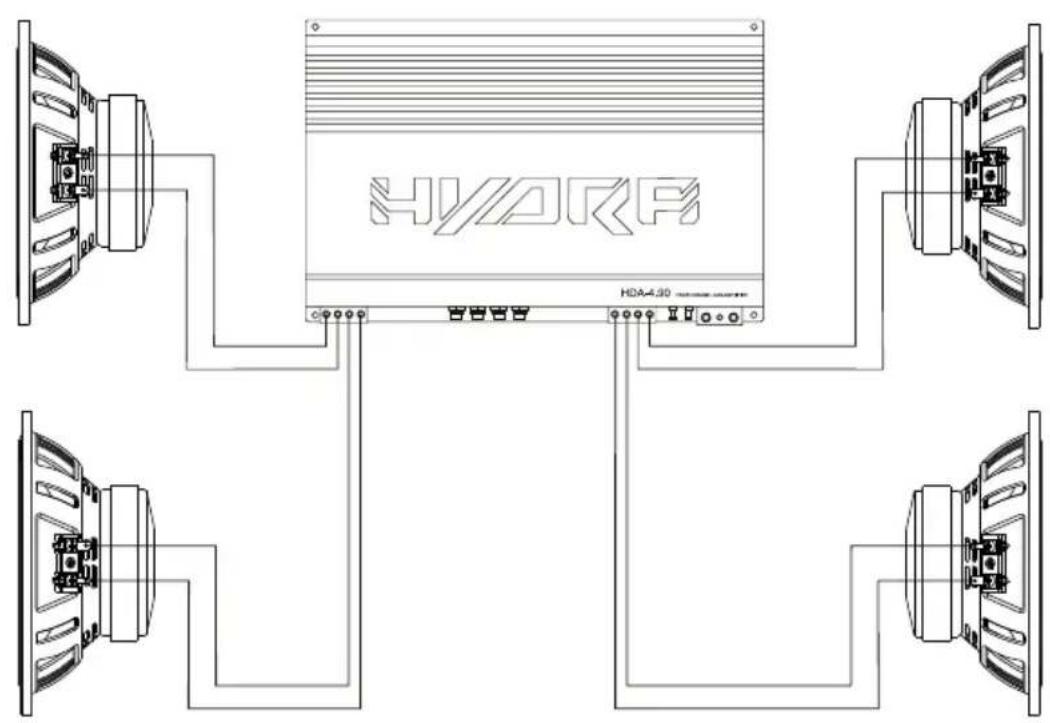

WIRING DIAGRAM....18

SPEAKER'S INSTALLATION OPTION....19

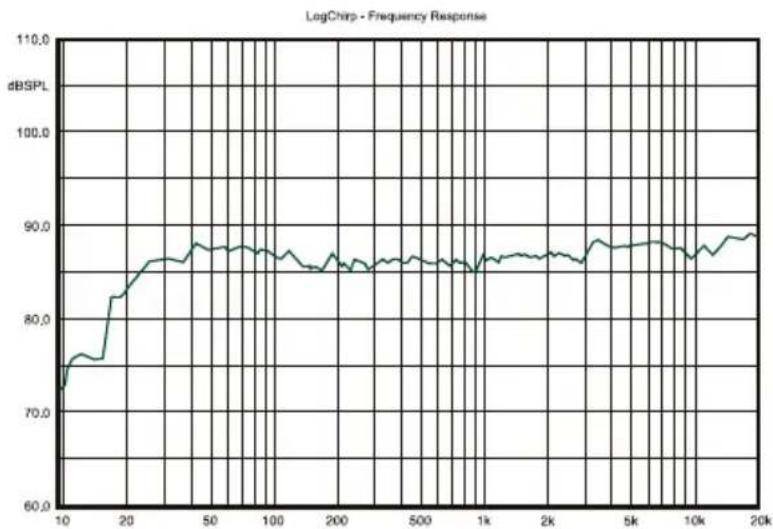

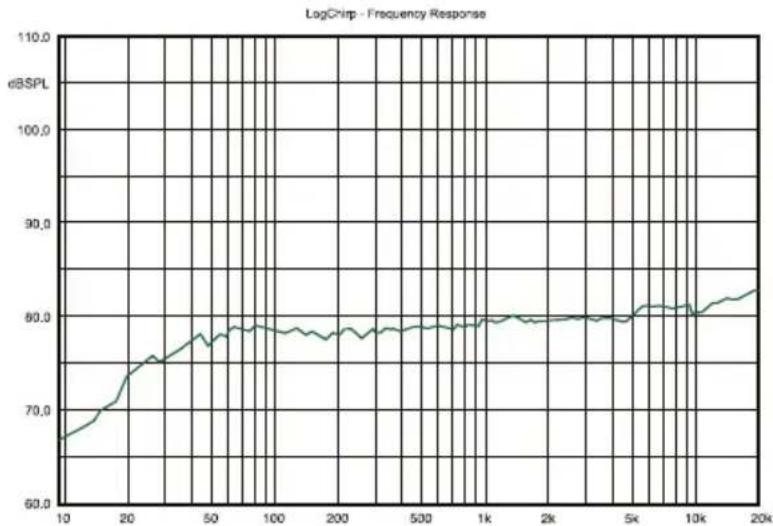

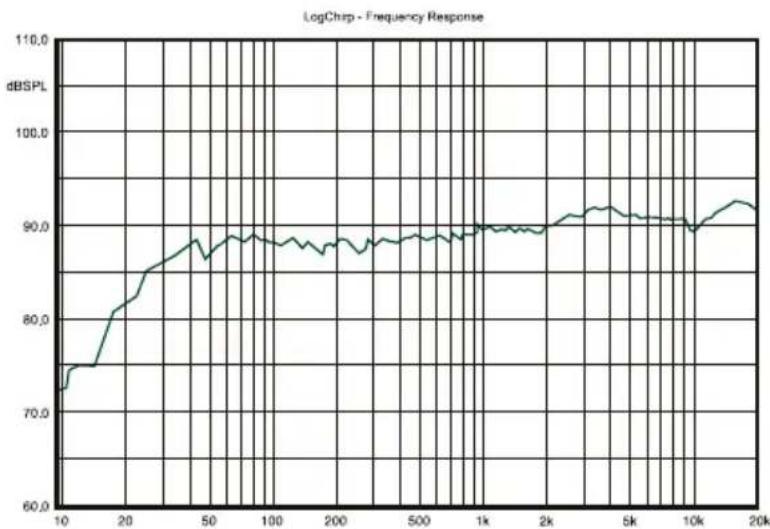

SPECIFICATIONS AND FREQUENCY RESPONSE CHARTS....20

MAINTENANCE AND UTILIZATION....22

Line drawing of a speaker emitting sound waves, no text or symbols present

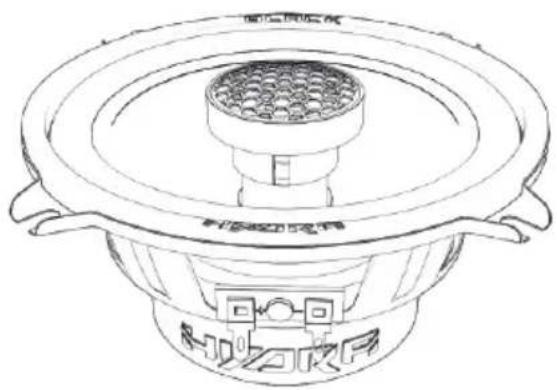

Coaxial speaker DELTA-513X
(2 pcs)

or

Line drawing of a speaker bowl with concentric rings and central perforated socket (no text or symbols)

Coaxial speaker DELTA-613X
(2 pcs)

or

Line drawing of a speaker bowl with a central mesh component and mounting holes (no text or symbols)

Coaxial speaker DELTA-6913X
(2 pcs)

First of all, we would like to congratulate you for your choice of the BLACK HYDRA products!

On these pages, you will not find an absolutely accurate justification for the superiority / uniqueness of our audio systems, because music can only be assessed by emotions gained from listening.

Black Hydra speakers will satisfy you by the excellent sound quality rather than with the numbers. It will give you true emotions of the listening to your favorite music, incomparable with the evaluation of «dry figures» written in specifications.

During building of audio system based on Black Hydra speaker systems we recommend that You use only high quality components in each of the chain links, to achieve the most accurate transmission of the music material. Remember, the quality of any system is determined by it's weakest link.

Technical specifications of Black Hydra speaker systems are equal and correspond to the most of best industry representatives, but at the same time it surpassing them on subjective estimations of sound quality.

New combinations of materials used in our products were the result of intensive scientific research in the field of ultralight composites made of cellulose fibers with reinforcing fillers.

This technology allowed to greatly reduce Mms (one of important parameters) and improve impulse response, which led to significant enhancement in the sound quality, expressed in excellent tonal accuracy, micro and macro dynamics.

In the «Specifications and frequency response» section, the frequency response and impulse response are given, which correspond to the most modern requirements for high-End sound reproduction systems.

In order to avoid problems in the operation of the equipment, we convincingly ask you to follow the advice mentioned in this manual.

JUST ENJOY

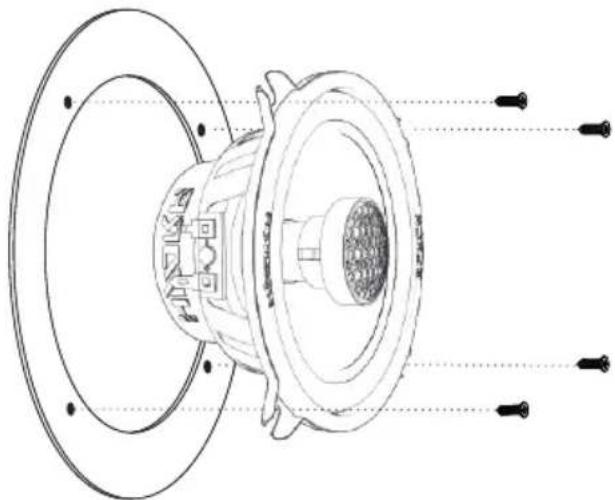

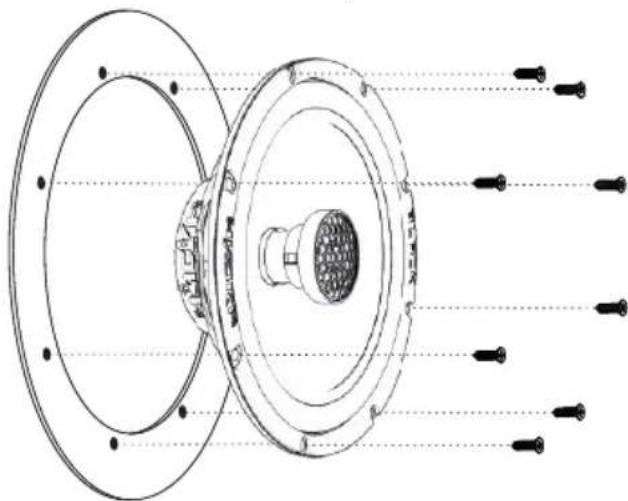

Installation of coaxial speaker DELTA-513X

Technical line drawing of a speaker component with mounting holes and internal structure (no text or symbols)

Installation of coaxial speaker DELTA-613X

Cross-sectional diagram of a speaker or fan assembly with labeled components (no text or symbols present)

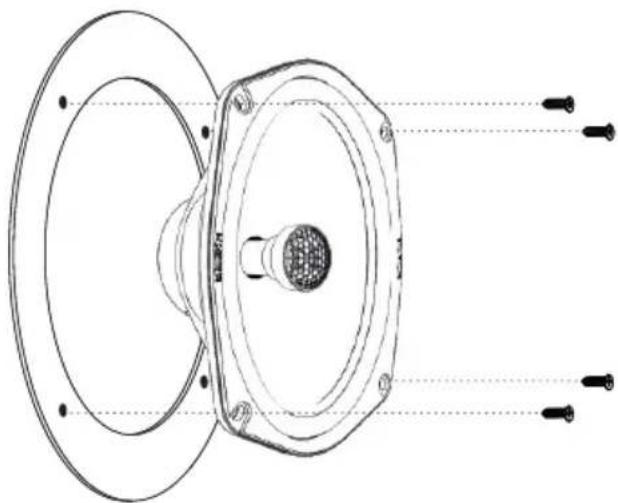

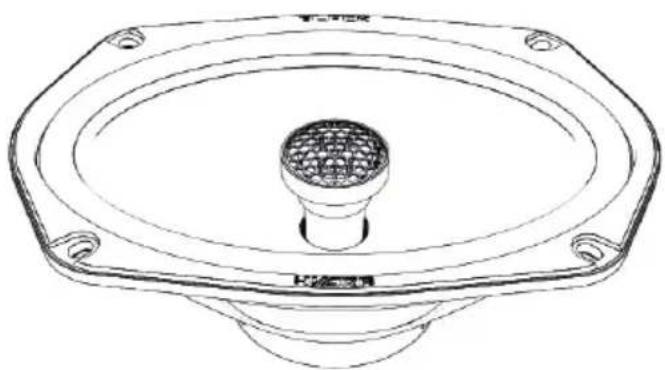

Installation of coaxial speaker DELTA-6913X

Technical line drawing of a speaker component with mounting holes and central hub (no text or symbols)

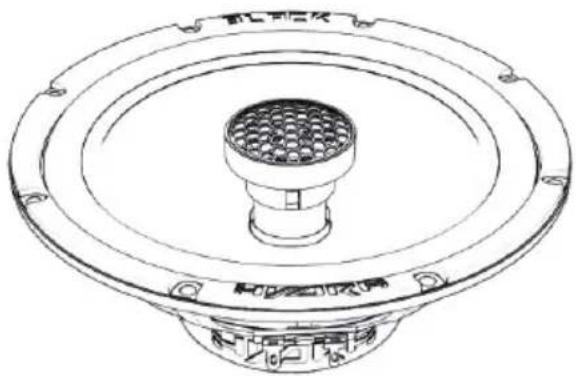

Coaxial speaker DELTA-513X

Coaxial speaker DELTA-613X

Coaxial speaker DELTA-6913X

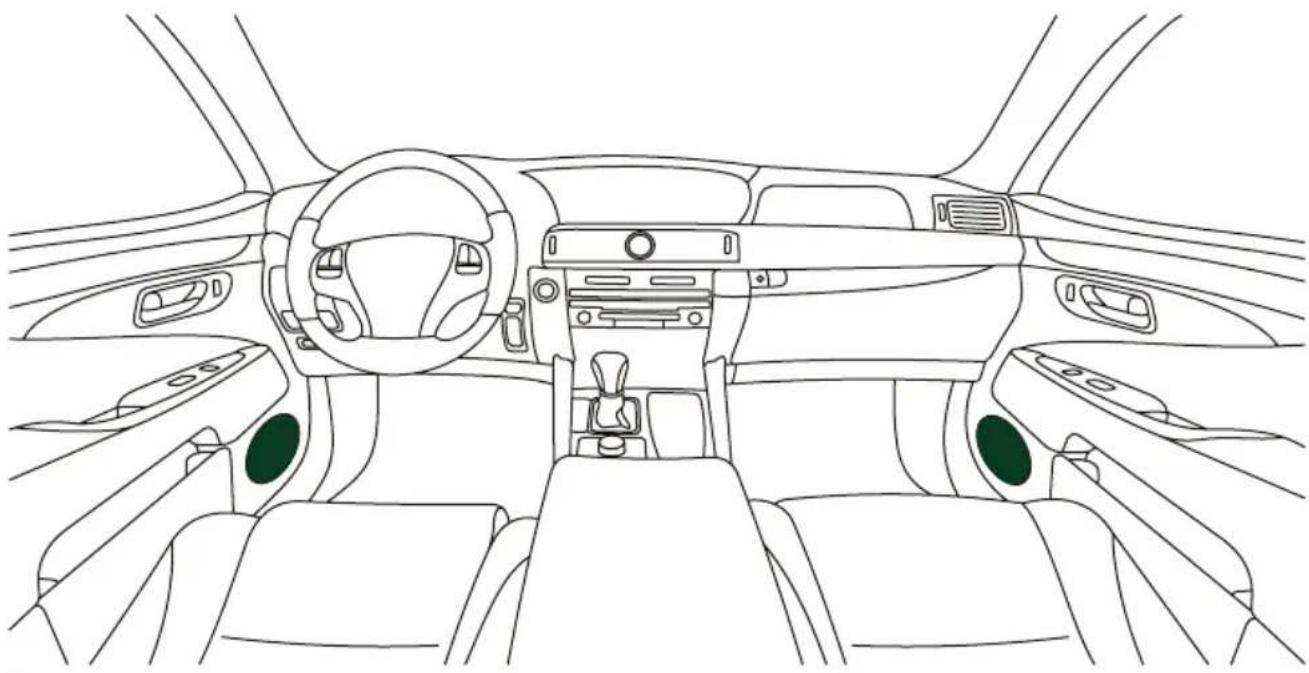

Line drawing of a car interior showing dashboard, steering wheel, and seatbelt (no text or symbols)

Coaxial speaker

It should be noted that the various arrangement of places for installing speakers in different models of the vehicles, does not allow us to provide you with accurate recommendations for adjusting the crossover. We recommend you to use only authorized installation service centers or professional car audio studios for installing of our speakers.

MODEL	DELTA-513X DELTA-613X DELTA-6913X
Fs 91 Hz 65	Hz 67 Hz
Qms	11.91 9.89 6.45
B.I 2.97 T.M	3.43 T.M 4.56 T.M
Zmin	3.19 Ω	3.17 Ω	3.15 Ω
Vas	5.86 L 20.97 L 20.63 L
Qes	1.29 0.91	1.02
dBspl 87.4	89.8 89.9
Mms	6.53 g	9.05 g	16.73 g
Mas	31.57 kg/m4	41.25 kg/m4	43.17 kg/m4
Rmt	8.24 Ωm	9.59 Ωm	10.12 Ωm
Zmax	42.12 Ω	38.14 Ω	39.15 Ω
L1kHz	0.0000 mH	0.0000 mH	0.0000 mH
Qts 1.16	0.84 0.88
Sd	0.0094 m2	0.0136 m2	0.021 m2
Res	42.12 Ω	51.24 Ω	47.25 Ω
Mmd	6 g	8 g	15 g
MaxP	120 w	120 w	140 w
NomP 60 w	60 w 70 w

Coaxial speaker DELTA-513X

Coaxial speaker DELTA-613X

Coaxial speaker DELTA-6913X

WARRANTY PERIOD, AFTER-SALES SERVICE AND SERVICE LIFE INFORMATION

Each Black Hydra product is warranted to be free from defects in materials and workmanship under normal use and service.

The warranty period for the product is 12 (twelve) months from the date on which the product is transferred to the consumer (this date shall be deemed to be the date on which the consumer starts using the product).

During the warranty period, defective parts will be repaired or replaced at the discretion of the manufacturer provided that there are grounds for doing so under the laws of the consumer's country. The defective product must be returned to the dealer from whom it was purchased together with the duly filled out warranty certificate, complete, with original packaging.

Our company shall not be liable for any damage caused by transportation. Our company shall not be liable for any expenses or lost profits arising out of or in connection with the use or inability to use the product or any other incidental or indirect costs, expenses, or damages incurred by the customer. The warranty is valid in accordance with the laws currently in force. For more information, please visit our company website and refer to the warranty card.

The manufacturer reserves the right to change the design and specification of the product without prior notice.

The service life of the product is 12 (twelve) months from the date on which the product is transferred to the consumer (this date shall be deemed to be the date on which the consumer starts using the product).

The product or any part (component) of the product must not be used in any way (including, but not limited to use for intended or any other purpose, transportation, storage, modification/alteration/improvement/upgrade) after the expiry of the service life.

At the end of its service life, the product must be disposed of.

INFORMATION ON DISPOSAL OF THE ELECTRICAL AND ELECTRONIC EQUIPMENT (FOR THE EUROPEAN COUNTRIES WITH SEPARATE WASTE COLLECTION)

Items marked “crisscrossed wheeled bin” are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal / recycling spot and the rules of delivery of waste, please contact your local municipal office. Recycling and proper disposal helps to protect the environment and prevent harmful effects on health.
