ZDAPT1 - Car audio accessory PHOENIX GOLD - Free user manual and instructions

Brand	Phoenix Gold
Model	ZDAPT1
Product Type	Car Audio Installation Kit (DSP Interface)
Compatible Vehicle	Toyota Auris 2015 (E180) Basic Sound System
Main Unit	ZDA4.6 DSP Amplifier
Included Cable	ZDAISOT2SOT Wiring Harness
Power Supply	12V DC (Vehicle Battery)
Dimensions (Main Unit)	Approx. 170 x 100 x 30 mm
Weight (Main Unit)	Approx. 400 g
Installation Tools Required	10mm Wrench/Socket, Plastic Pry Tool, Computer
Software Required	Phoenix Gold ZDA4.6 Software (download from phoenixgold-eu.com/downloads/)
Sound Curve Customization	Yes, via PC software with presets
Audio Processing	4-Channel DSP with signal optimization
Connectivity	ISO connectors for direct OEM radio integration
Recommended Installation Location	Under vehicle seat
Included Components	ZDA4.6 module, ZDAISOT2SOT cable, Installation Manual
Safety Warning	Disconnect vehicle battery before installation
Maintenance	Clean with dry cloth; avoid liquids
Spare Parts / Repairability	Contact Phoenix Gold support for any replacements
General Info	Designed to upgrade factory sound system with DSP tuning

Frequently Asked Questions - ZDAPT1 PHOENIX GOLD

What vehicles is the ZDAPT1 compatible with?

The ZDAPT1 is specifically designed for the Toyota Auris 2015 (E180) with a Basic Sound System. Some differences may occur between different car and year models.

What tools are required for installation?

You will need a 10mm wrench/socket, a plastic pry tool, and a computer for software installation.

How do I install the ZDA4.6 module?

Follow the step-by-step manual: remove the stereo panel, disconnect connectors, route the ZDAISOT2SOT cable under the seat, and mount the ZDA4.6 under the seat. Reassemble in reverse order.

How do I program the sound curve?

Download the ZDA4.6 software from phoenixgold-eu.com/downloads/. Connect your computer, press 'Program', load a PC presets file (Phoenix Gold sound curve), save it as a machine preset, and press 'OK'.

Where can I download the software and sound curves?

Go to phoenixgold-eu.com/downloads/ to download the ZDA4.6 software and your desired Phoenix Gold sound curve.

Can I install the ZDAPT1 myself?

Yes, the manual provides detailed instructions and diagrams. Basic mechanical skills and the listed tools are sufficient. Always disconnect the battery before starting.

Does the ZDAPT1 work with factory speakers?

Yes, it is designed to integrate with the factory sound system, including the original speakers, and enhance the audio quality through DSP tuning.

What is the ZDAISOT2SOT cable used for?

The ZDAISOT2SOT cable connects the ZDA4.6 module to the vehicle's ISO connectors, providing power, audio signals, and speaker connections.

What should I do if the installation doesn't work?

Verify all connections are secure, ensure the software is correctly programmed, and check that the vehicle's stereo is compatible. Refer to the manual or contact Phoenix Gold support.

Where can I get support for my ZDAPT1?

For support, visit the Phoenix Gold website or contact their customer service. The manual also includes a thank-you note from the Phoenix Gold team.

USER MANUAL ZDAPT1 PHOENIX GOLD

ZDAPT1

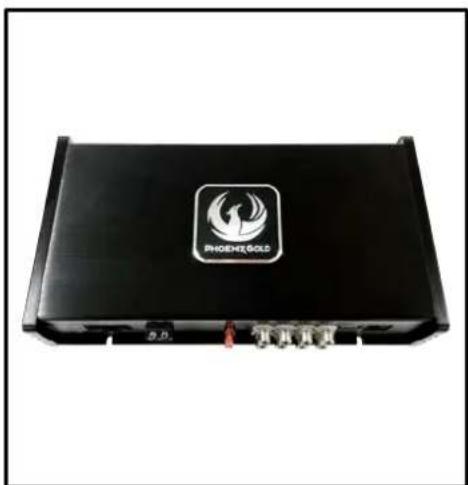

ZDA4.6

Pure electrical circuit lines without any symbols

Black Phoenix GOLD GPU device with visible branding and ports (no readable text beyond logo)

ZDAISOT2SOT Cab

Coiled black electrical connector with multiple colored wires, no visible text or symbols

Installation Tools Required

Vehicle used for installation:\*

Toyota Auris 2015 (E180)

Basic Sound System

*Some differences may occur between different car and year models.

10mm Wrench / Socket

Simple line drawing of a wrench (no text or symbols)

Plastic Pry Tool

Simple black vertical line with gray triangular shapes on both sides (no text or symbols)

ZDAPT1 Installation 1

Tools required:

1x Plastic Pry Tool

1. Stereo removal

Interior view of a car dashboard with digital displays and control knobs (no visible text or symbols)

3. Cover panel removed

Close-up of a car interior showing the side arm and dashboard controls (no readable text or symbols)

2. Remove the plastic cover panel

4. Remove the stereo panel

Interior view of a car dashboard with blue steering wheel and red warning symbol (no readable text or symbols)

ZDAPT1 Installation 2

Tools required:

1. Stereo panel pulled out


Interior view of a car's dashboard and air conditioning unit (no visible text or symbols)

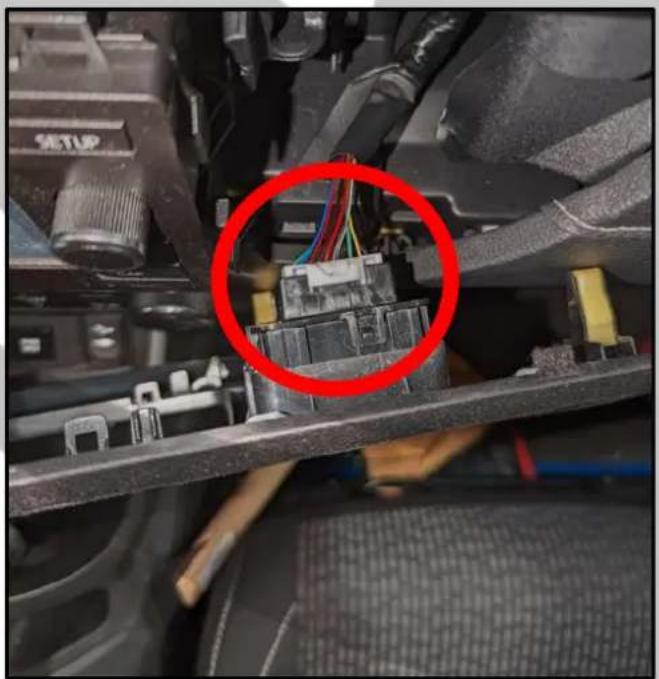

1. Disconnect the other connector


Close-up of a car's internal components with a red circle highlighting a component, no visible text or symbols.

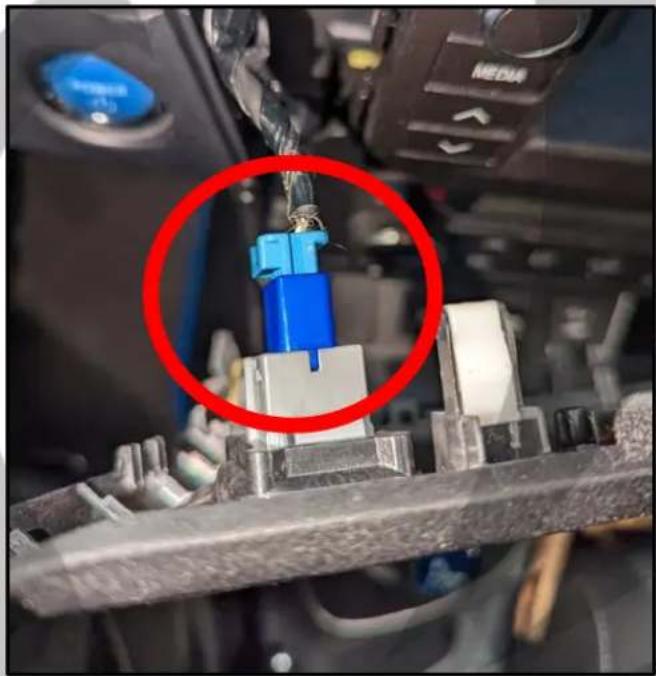

1. Disconnect the connector


Close-up of a mechanical component with blue and white blocks, highlighted by a red circle (no visible text or symbols)

1. Set the stereo panel aside


Interior view of a car dashboard with a digital navigation screen and control knobs (no visible text or symbols)

ZDAPT1 Installation 3

Tools required:

1x 10mm Wrench / Socket

9. Unscrew the four bolts

Close-up of a car electrical connector showing two views with red circles highlighting specific components (no text or symbols visible)

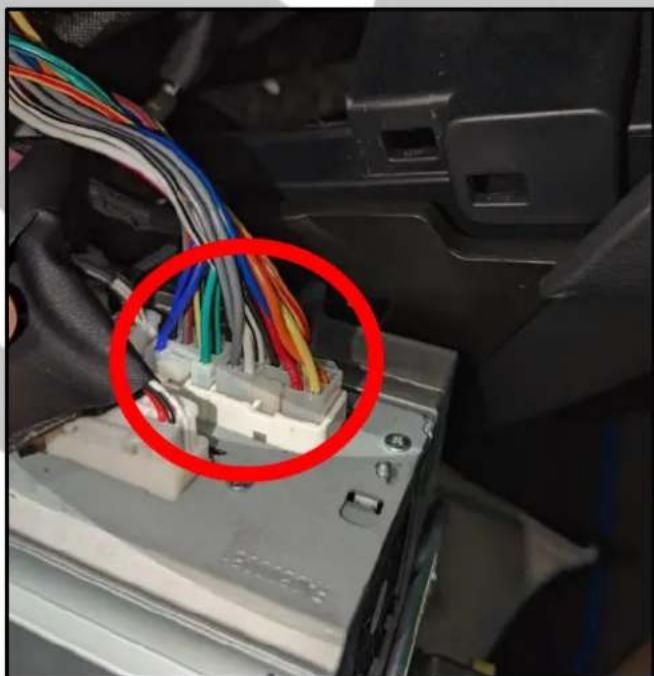

11. Disconnect the connectors

Close-up of a car's internal cable connector with colorful wires, highlighted by a red circle (no text or symbols visible)

10. Pull out the stereo

Interior view of a car showing the backrest of the Audi vehicle's internal dashboard and control panel (no visible text or symbols)

12. Connect the SOT cable

Close-up of automotive electrical connectors with white and multicolored wires (no visible text or symbols)

ZDAPT1 Installation 4

Tools required:

1. Connect ZDAISOT2


Interior view of a car's internal electronics assembly showing wiring and components (no visible text or symbols)

1. Center side panel removed


Interior view of a vehicle's lower backrest and dashboard assembly (no visible text or symbols)

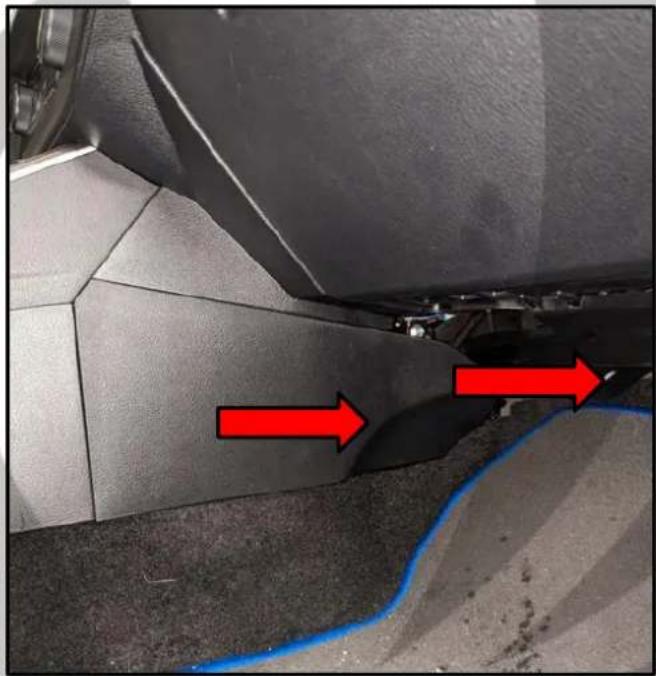

1. Pull out the center side panel


Close-up of a car's lower body showing red arrows pointing to a blue curved line, indicating a path or crack (no text or symbols present)

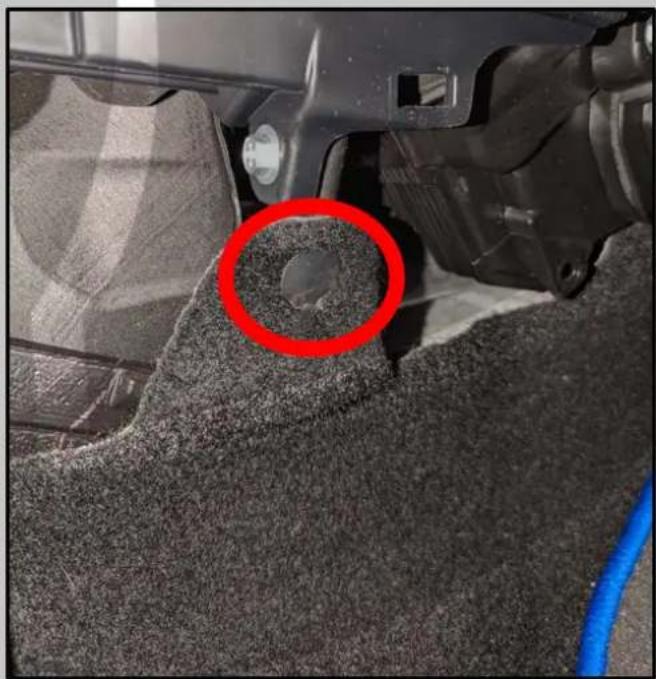

1. Remove the plastic clip


Close-up of a car's front wheel and dashboard area with a red circle highlighting a specific component (no text or symbols visible)

ZDAPT1 Installation 5

Tools required:

1. Remove the glove box bottom plate

Close-up of a car's front bumper with red arrows pointing to the side panel (no text or symbols visible)

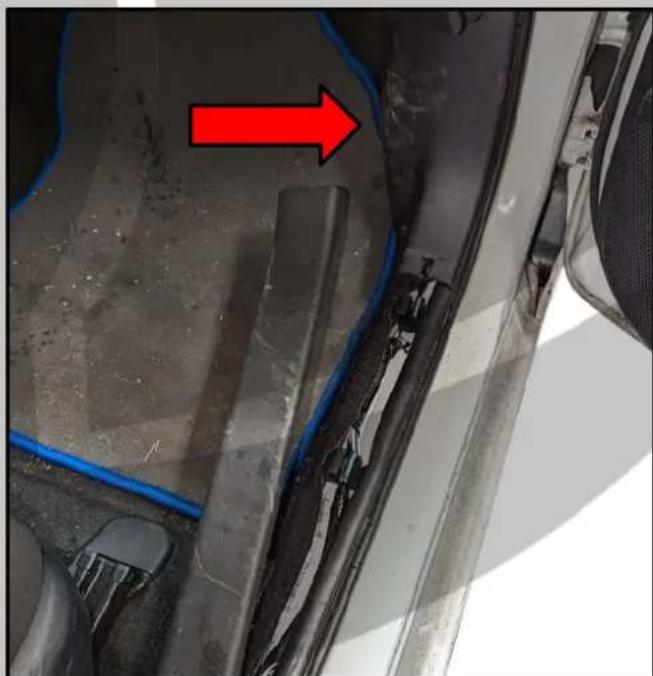

1. Remove the threshold panel

Close-up of a car's side panel showing red arrows pointing to structural components (no text or symbols visible)

1. Bottom plate removed

Close-up of a mechanical assembly with visible wiring and components, no text or symbols present

1. Remove the side panel

Close-up of a car's side panel with blue safety net and red arrow indicating a specific area (no text or symbols)

ZDAPT1 Installation 6

Tools required:

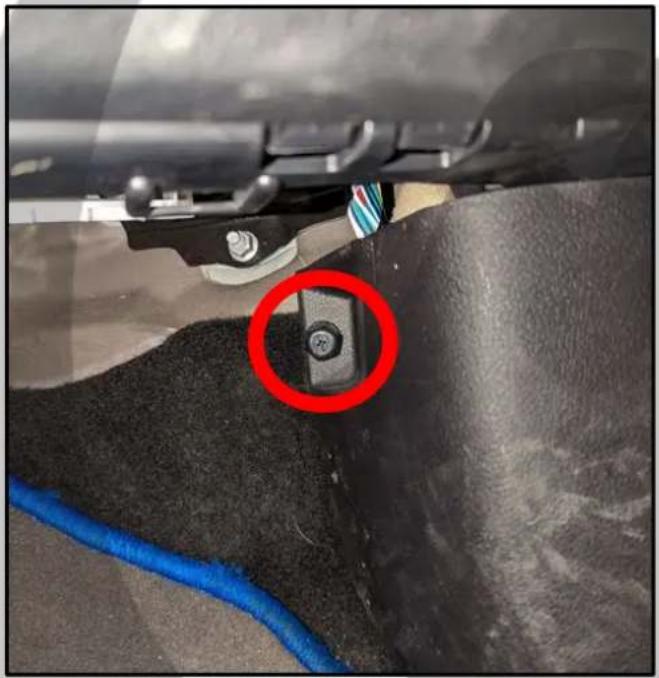

1. Unscrew the bolt cap


Close-up of a mechanical component with a red circle highlighting a bolt detail (no text or symbols visible)

1. Route ZDAISOT2 behind the stereo


Interior view of a car showing an electronic device with wiring and a 'Laser Project' label, no readable text or symbols beyond the label.

1. Side panel removed


Interior view of a car showing wiring and a blue cable (no visible text or symbols)

1. Route ZDAISOT2 to the floor


Interior view of a car showing a textured seatbelt and dashboard, with no visible text or symbols.

ZDAPT1 Installation 7

Tools required:

1. Lift up the floor mat

Close-up of a car's interior showing a white plastic component and gray fabric, with no visible text or symbols.

1. Route ZDAISOT2 under the seat

Close-up of a car's internal components including a white plastic bracket and black wiring, with no visible text or symbols.

1. Route ZDAISOT2 under the mat

Interior view of a car showing a black-and-white striped cable securing a textured floor near the backrest (no visible text or symbols)

1. Install the ZDA4.6 under the seat

Black electronic device with visible wiring and a logo, placed on a textured surface (no readable text or symbols)

ZDAPT1 Installation 8

Tools required:

1x Computer

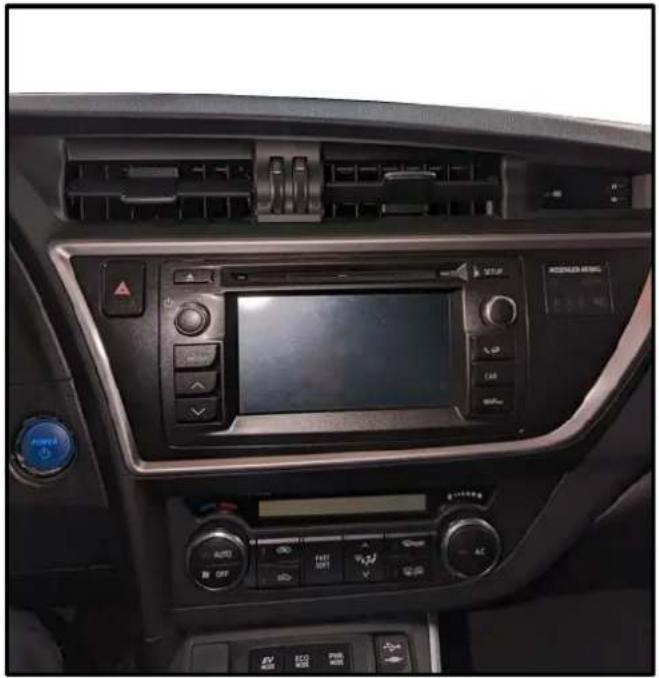

1. Reassemble the stereo in reverse 30. Physical install is now complete


Interior view of a car dashboard with digital displays and control knobs (no visible text or symbols)

Stylized orange bird logo within a circular frame, no text or symbols present

1. Go to phoenixgold-eu.com/downloads/ and download the ZDA4.6 software and your Phoenix Gold sound curve


Software Installation 1

Tools required:

1x Computer

1. Press "Program"


1. Press "Load PC Presets File"


1. Go to your saved location and choose your Phoenix Gold sound curve, then click "Open"


Software Installation 2

Tools required:

1x Computer

1. Press "Program"

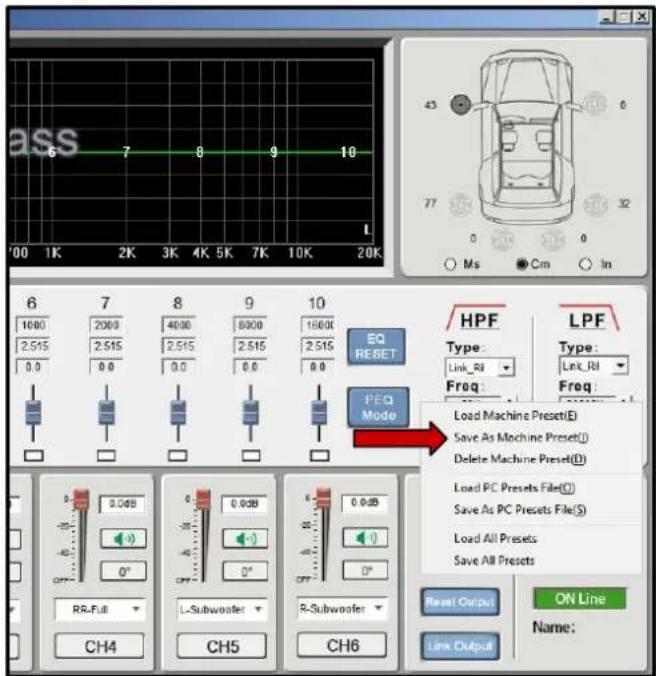

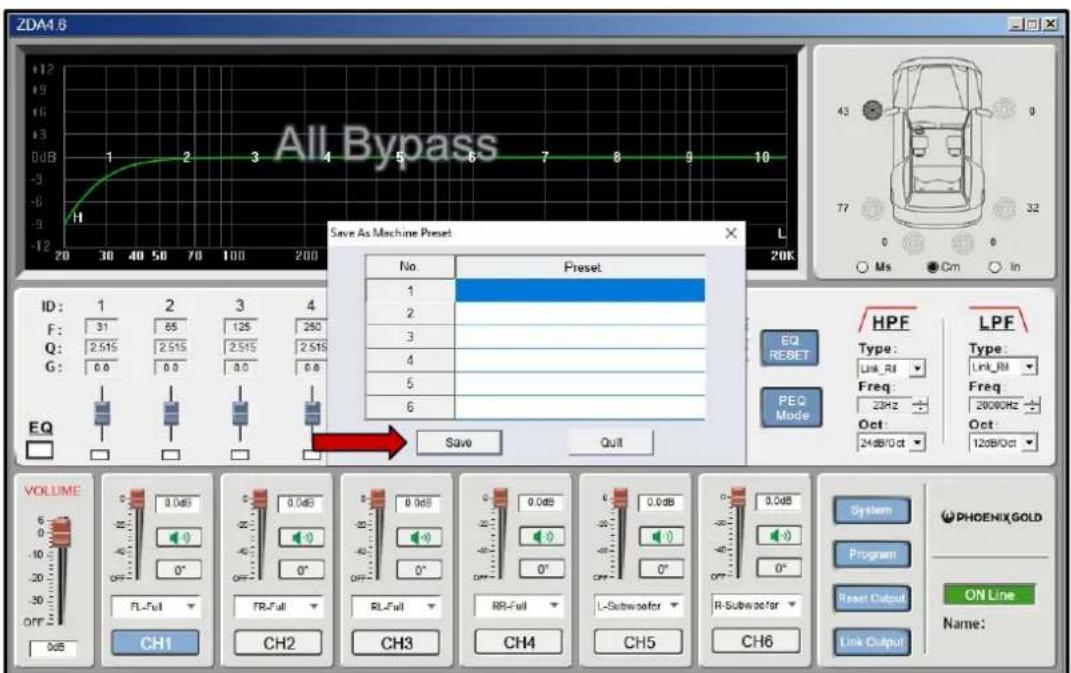

1. Press "Save As Machine Preset"


1. Press "Save"


Software Installation 3

Tools required:

1x Computer

1. Press "OK". The sound curve is now installed and saved to the ZDA4.6.

On Behalf of the Phoenix Gold team, Thank you for choosing us!

Your installation is complete and we hope that your new upgraded system will bring you joy and happiness for many years to come when listening to your favorite music. As always, our goal is bringing you The Gold Standard in Sound.
