AC-110 - Memory reader Sven - Free user manual and instructions

Brand	Sven
Model	AC-110
Product Type	External Memory Card Reader
Supported Memory Cards	MS, MS PRO, MS DUO, MS MagicGate, SD, miniSD, MMC, RS-MMC, CF (I/II, Ultra II, Extreme III), Micro Drive, Magicstor, Micro SD, XD, M2
Card Slots	7 slots: M2, MS, CF, SD, Micro SD, XD, Mini USB
Interface	USB 1.1 / 2.0
Plug & Play	Yes
LED Indicator	Access LED: lights up when connected and card inserted, flashes during read/write
Power Source	USB bus-powered
Operating Systems	Windows XP/Vista/7, Mac OS 10.1x/10.2x+, Linux 2.4.x+
Safety Precautions	Do not disconnect device during read/write; use only one memory card at a time
Package Contents	Card reader, USB cable, user manual, warranty card
Country of Origin	China
Manufacturer	Oy Sven Scandinavia Ltd., Finland

Frequently Asked Questions - AC-110 Sven

What memory cards does the Sven AC-110 support?

The Sven AC-110 supports a wide range of memory cards including MS, MS PRO, MS DUO, SD, MMC, CF (Type I/II, Ultra II, Extreme III), Micro SD, XD, and M2. Consult the manual's memory card installation table for full compatibility.

How do I install a memory card?

Insert the memory card into the correct slot according to the table (e.g., SD card into the SD slot). Ensure the card is oriented correctly and push until it clicks. Only use one card at a time.

What does the LED indicator mean?

The Access LED lights up when the device is connected to a USB port and a memory card is inserted correctly. It flashes during read/write operations. Do not disconnect the device while the LED is flashing.

Can I use multiple memory cards at once?

No, you can only use one memory card at a time. Inserting multiple cards may cause conflicts or data loss.

What are the system requirements?

The Sven AC-110 requires an available USB 1.1 or 2.0 port and one of the following operating systems: Windows XP/Vista/7, Mac OS 10.1x/10.2x or later, or Linux 2.4.x or later.

Is the Sven AC-110 compatible with USB 3.0?

Yes, it is compatible with USB 3.0 ports as they are backward compatible with USB 2.0 devices. However, the reader will operate at USB 2.0 speeds.

Why is my Sven AC-110 not recognized by the computer?

First, ensure the memory card is inserted correctly into the appropriate slot. If the device still does not work, try connecting to a different USB port. For further assistance, visit www.sven.fi.

How do I safely remove the Sven AC-110?

Always use the 'Safely Remove Hardware' feature in your operating system before disconnecting the reader. Wait for the LED to stop flashing to avoid data loss.

Can I use the Sven AC-110 with a Mac?

Yes, the reader supports Mac OS 10.1x/10.2x or later. Plug and play functionality should work; no additional drivers are needed.

What is included in the package?

The package includes: card reader, USB cable, user manual, and warranty card.

USER MANUAL AC-110 Sven

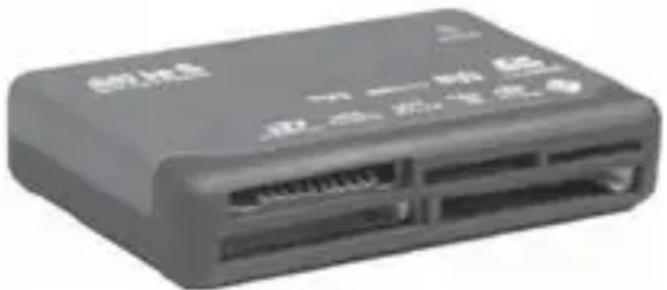

Exterior view of a black USB device with ports and connectors (no visible text or symbols)

Thank you for purchasing SVEN PC card reader!

USAGE

Sven AC-110 external card reader is designed for reading/writing memory cards.

SAFETY PRECAUSIONS

• Do not disconnect the device while reading/writing a memory card to avoid data loss.
• Insert a memory card into the slot according to the table below. Use one memory card at a time only!

SPECIAL FEATURES

• Compatible with USB connectors supporting Plug & Play technology
  • Supports most modern memory cards: MS/MSPRO, SD/MMC, TF, M2, XD, CF, etc.

SYSTEM REQUIREMENTS

• Available USB 1.1 or 2.0 port
• OS Windows XP/Vista/7, Mac
system B10.1x, B10.2x or up, Linux 2.4.x or up

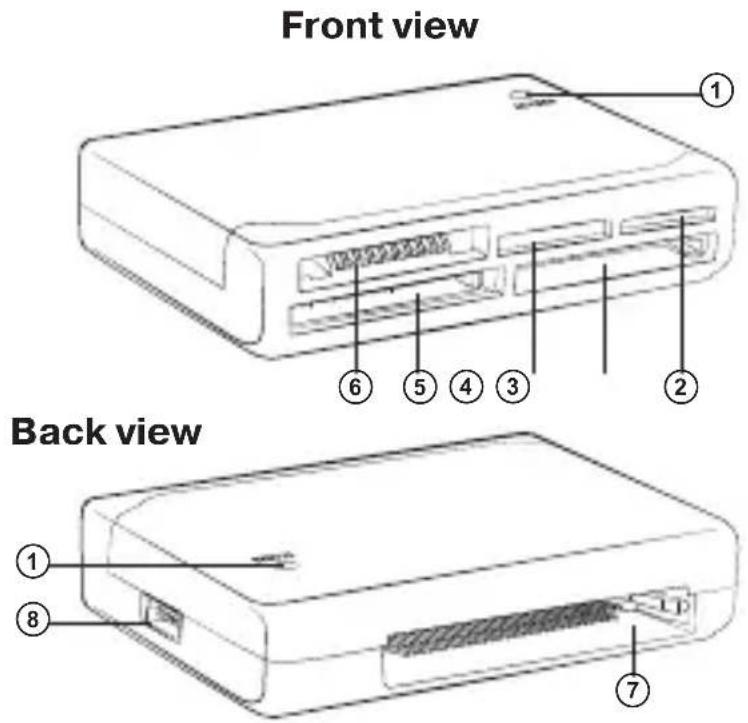

DESCRIPTION

① ACCESS: LED
② Micro SD Slot
③ XD Slot
④ M2 Slot
⑤ MS Slot
⑥ SD Slot
⑦ CF Slot
⑧ Mini USB port

MEMORY CARD INSTALLATION TABLE

Slot	Memory cards supported
M2 SlotMS Slot	M2MS, MS-DUO, MS Pro, MS PRO-Duo, MS MagicGate, MS Pro MagicGate, MS-Duo MagicGate, MS Pro-DUO MagicGate, etc.
CF SlotSD Slot	CF I/II, CF Ultra II, CF Extreme III, Micro Drive, Magicstor SD, miniSD, MMC-I, MMC-II, MMC4.0, MMC Dual Voltage, RS-MMC, RS-MMC Dual Voltage, RS-MMC 4.0.
Micro SDXD Slot	Micro SDXD

OPERATION MODE LED

• If the device is connected to a USB port and the memory card is inserted into the slot correctly, Access LED ① will light up.
• During reading/writing Access LED ① flashes.

PACKAGE CONTENTS

• Card reader – 1 pc
• PC connection cable – 1 pc
• User's manual — 1 pc
• Warranty card — 1 pc

TROUBLE SHOOTING

- If the device does not operate after its connection to a USB port, make sure the memory card is inserted into the slot correctly.

Technical support is on www.sven.fi

External Card Reader

SVEN®

YOU WANT - WE CAN

Exterior view of a gray USB flash drive (no visible text or symbols)

Модель: AC-110

Produced under the control of Oy Sven Scandinavia

Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310.

Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

AC-110
