W341-- - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Projector
Brand	OPTOMA
Model	W341--
Display Technology	DLP (0.65" DMD)
Native Resolution	WXGA (1280 x 800)
Brightness	3,500 ANSI Lumens
Contrast Ratio	20,000:1
Lamp Life	6,000 h (Normal Mode) / 10,000 h (Eco Mode)
Keystone Correction	Vertical ±40°, Horizontal ±30°
Zoom	1.1x Manual
Dimensions (W x D x H)	316 x 224 x 102 mm
Weight	2.7 kg
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	280 W (Max) / < 0.5 W (Standby)
Video Inputs	HDMI 1.4a, VGA (D-Sub 15-pin), Composite, S-Video
Audio Output	3.5mm Audio Jack
Built-in Speaker	1 x 10W
Cleaning	Removable and Washable Air Filter
Security	Kensington Lock, User Password
Spare Parts	Replacement Lamp (Model: SP.8A01GC01), Filter Kit

Frequently Asked Questions - W341-- OPTOMA

How to install the OPTOMA W341-- projector?

Place the projector on a stable surface at a distance of 1.2 to 12 meters from the screen. Use the adjustable feet to adjust the angle. Connect the power cable and press the Power button.

What are the available connections?

The projector has HDMI, VGA, Composite and S-Video inputs, as well as a 3.5mm audio jack output. A USB port is also available for maintenance.

How to adjust the focus and zoom?

Turn the zoom ring to enlarge or reduce the image, then the focus ring to get a sharp image. Use keystone correction if the image is distorted.

What to do if the image is blurry or distorted?

First check the projection distance and focus. Enable keystone correction via the OSD (on-screen display) menu. If the problem persists, clean the lens with a soft cloth.

How to replace the projector lamp?

Turn off the projector and unplug it. Let it cool for 30 minutes. Open the lamp compartment (screw on the side), remove the old lamp and insert the new one (ref. SP.8A01GC01). Do not touch the glass.

How often should I clean the air filter?

Clean the air filter every 100 hours of use or more often in a dusty environment. Remove the filter, wash it with warm water, dry it completely before reinstalling.

The projector does not turn on, what should I do?

Check that the power cable is properly connected and that the outlet works. The Power indicator should be lit. If the indicator flashes red, the lamp has reached the end of its life or an internal fault is detected.

Can I use the projector with a laptop?

Yes, connect your laptop via an HDMI or VGA cable. Select the corresponding source in the input menu. For sound, use the built-in speaker or an external audio output.

What is the lamp life in eco mode?

In Eco mode, the lamp can last up to 10,000 hours, compared to 6,000 hours in normal mode. Eco mode reduces brightness and fan noise.

How to reset the lamp counter?

After replacing the lamp, go to the Settings menu > Lamp Reset. Hold down the Enter key for 3 seconds to confirm. Caution: only reset after replacement.

USER MANUAL W341-- OPTOMA

Line drawing of a projector with visible ports and control buttons (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

Avis: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Diagram of a cable VGA connector with two connectors and cables (no text or symbols on the diagram itself)

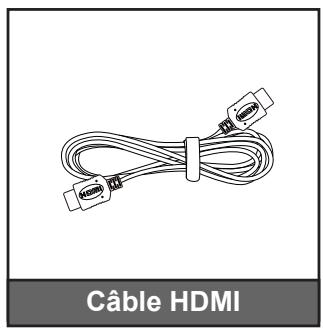

Coiled cable with two connectors, labeled 'Câble HDMI' below (no other text or symbols)

CONFIGURATION ET INSTALLATION

Line drawing of a person sitting in a chair watching a projector on a small table (no text or symbols)

Line drawing of a person sitting in a chair watching a projector projection (no text or symbols)

Line drawing of a person sitting in a chair watching a projector on a screen (no text or symbols)

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Illustration of hands using a tool to adjust or install a component, with red arrows indicating direction (no text or symbols present)

UTILISER LE PROJECTEUR

Illustration of a projector with internal components and a separate heat sink component (no text or symbols)
