Product Type	Universal wall speaker, 2-way outdoor speaker
Model	WX502MK2
Dimensions (W x H x D)	212 x 147 x 136 mm
Weight	2.52 kg
RMS Power	50 W
Nominal Impedance	8 Ω (low impedance), selectable taps for 100V line
Line Transformer Power Tappings (100V)	40 W (250 Ω), 20 W (500 Ω), 10 W (1000 Ω)
Sound Pressure Level (1W/1m)	87 dB
Max SPL (8Ω)	104 dB
Frequency Response (±3 dB)	90 Hz – 18 kHz
Frequency Response (-10 dB)	70 Hz – 20 kHz
Cross-over Frequency	2500 Hz
Coverage (H x V)	110° x 110°
Drivers	1" HF tweeter + 5 1/4" LF woofer
Connector	AWX5™ rotatable 5-pole waterproof connector
Enclosure Material	ABS housing, powder coated aluminum grill and bracket
Mounting	Included wall bracket, horizontal and vertical mounting, adjustable focus
Weather Resistance	IP55, 720-hour salt spray test
Protection	Integrated advanced protection network for tweeter overload
Color Options	Black or White
Certifications	CE (EMC 2014/30/EU, LVD 2014/35/EU)
WEEE Compliance	Yes, do not dispose with household waste

Frequently Asked Questions - WX502MK2 Audac

What are the available power tap settings for the WX502MK2?

The WX502MK2 has three selectable power taps for 100V systems: 40W, 20W, and 10W. It also supports low-impedance operation at 8Ω (50W RMS).

How do I change the power tap setting?

Rotate the AWX5™ waterproof connector on the rear of the speaker until the white dot on the cable part aligns with the desired power tap indicated on the sticker. Then screw the outer ring to secure and maintain waterproofing.

Can the WX502MK2 be used with 70V or 50V systems?

Yes, when connected to 70.7V systems the power is reduced by half, and to 50V systems by a quarter. For example, the 40W tap becomes 20W at 70V and 10W at 50V.

Is the speaker suitable for outdoor use?

Yes, it is designed with an IP55 rating, ABS housing, powder coating, and a drain hole. The aluminum bracket and grill pass a 720-hour salt spray test for corrosion resistance.

What is the maximum SPL of the WX502MK2?

At 8Ω, the maximum SPL is 104 dB at 1m. At 100V, it is 102 dB at 1m.

How should I mount the speaker?

Use the included powder-coated aluminum bracket. Attach the bracket securely to the wall with appropriate screws (two required). Then fix the speaker to the bracket using the thumbscrews. A safety wire is recommended for overhead mounting.

What kind of cable should I use to connect the speaker?

Use cables of appropriate gauge for the distance and power. Maintain correct polarity throughout the system using clear color coding.

Does the speaker have built-in protection?

Yes, it features an integrated advanced protection network that prevents overload damage to the tweeter.

What is the frequency response of this speaker?

The frequency response is 90 Hz – 18 kHz (±3 dB) and extends from 70 Hz – 20 kHz at -10 dB.

Can the speaker be painted?

The speaker is available in black or white. Painting is not recommended as it may affect the acoustic properties and weather resistance. Use the original finish for best performance.

USER MANUAL WX502MK2 Audac

Universal wall speaker

The WXMK2/0 are powerful 2-way performance speakers, which are especially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech in every environment, ranging from modern residential applications to the most demanding outdoor applications in parks, stadiums, hotels and even clubs.

It features a stunningly designed and elegant looking ABS housing which is fitted with high quality components. The speaker is available in three sizes, 3", 5 1/4" and 8", and can be used in standard ow impedance systems as well as 100V PA installations. A special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the powder coated aluminum bracket and grill can pass the 720 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.

Precautions

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY
  • ALWAYS HANDLE THIS UNIT WITH CARE
  • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER.
• ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE SPEAKER DOWN.
• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL DOWN
• ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS MOUNTED HIGH UP. ONLY USE INDUSTRY—ACCEPTED RIGGING TOOLS AND METHODS
• CAREFULLY CHECK THE UNIT'S CONDITION AFTER UNPACKING. IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF, INFORM YOUR VENDOR IMMEDIATELY.
• ALWAYS FOLLOW THE LOCAL REGULATIONS AND REQUIREMENTS REGARDING INSTALLATION, SUSPENSION AND CONNECTION OF THIS LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED IN THIS DOCUMENT.
• THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE DONE BY QUALIFIED PERSONNEL ONLY.

CAUTION

• USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER
- USE CABLES WITH CLEAR COLOR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM.
- ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES. AVOID EXPLOSIONS: DO NOT USE THE SPEAKER AROUND GASOLINE, THINNER OR OTHER COMBUSTIBLES
- AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER WHEN CONNECTING THE LOUDSPEAKER
- DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED PERIOD OF TIME AT DISTORTED SOUND. THIS COULD CAUSE PERMANENT DAMAGE.

Three white line drawings of hands and a cross symbol on a gray background (no text or labels)

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to do so.)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/EU (EMC) and 2014/35/EU (LVD)

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be disposed with regular household waste at the end of its product life. This regulation is created to protect both the environment and human health.

This product is developed and manufactured with high quality materials and components which can be recycled and/or reused. Please dispose this product to your local collection point or recycling centre for electrical and electronic waste. This will make to sure that it will be recycled on an environmentally friendly manner, and will help to protect the environment in which we all live.

Installing the WXMK2/0 Step 1: Mount the loudspeaker

The loudspeaker can be mounted both horizontally and vertically by means of the supplied mounting bracket. For mounting the loudspeaker on the desired mounting location, the mounting bracket should be removed from the loudspeaker. This can be done by loosening the thumbscrews on either side of the loudspeaker. After this is done, the mounting holes should be indicated.

For a stable mounting of the loudspeaker it should always be fastened by two screws. The position of the mounting holes depends on the mounting orientation, horizontally or vertically. After this, the bracket can be mounted on the desired location. Always use the proper fasteners depending of the mounting surface. Once the bracket is mounted on the desired location, the loudspeaker can be fixed to the bracket.

	A	B
WX302MK2/0	174 mm 108 mm
WX502MK2/0	219 mm 160,4 mm

Step 2: Power settings

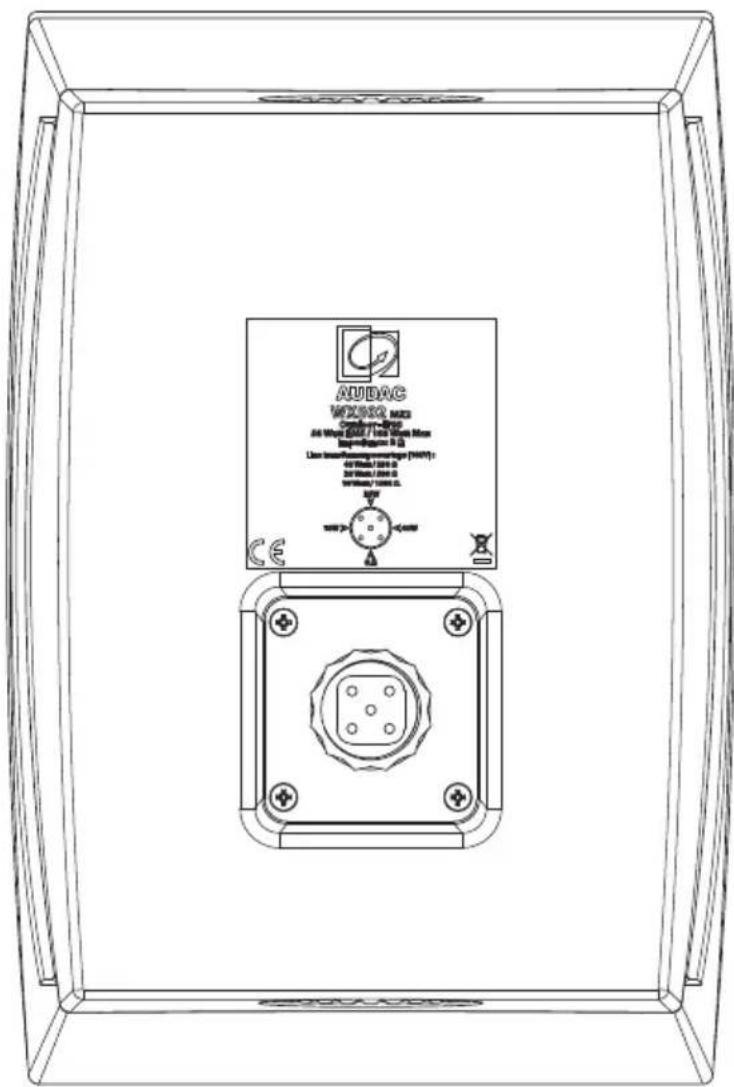

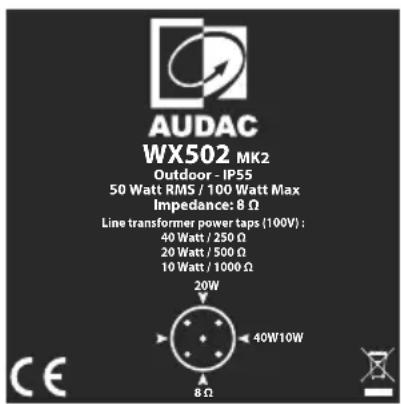

The power tap of the WXMK2/0 speakers can be selected depending on the orientation of the waterproof connector on the rear side of the loudspeaker. A white dot is displayed on the cable part of the connector. Depending on the direction of the white dot, the desired power tap is connected. The corresponding power taps are shown on the sticker on the rear side of the loudspeaker. The power / impedance of the loudspeaker can be set in 3 adjustable steps of impedance for 100V and 1 step for standard low impedance applications.

	WX302MK2/O WX502MK2/O
1	10W (1000 Ohm) 8 Ohm
2	5W (2000 Ohm) 40W (250 Ohm)
3	8 Ohm 20W (500 Ohm)
4	20W (500 Ohm) 10W (100 Ohm)

When the loudspeaker is connected to 70.7V facilities, the power indicated in the table above will be reduced to half the power, and when connected to 50V facilities, the power will be reduced to a quarter.

Step 3: Make the connections

After connecting the AWX5™ connector in the orientation corresponding to your desired power tap, screw on the outer ring to secure the connector in place and guarantee a waterproof connection.

Step 4: Enjoy the music

After the WX loudspeakers have been installed correctly, you deserve to have a short break, relax and enjoy the sound of the speakers!

Additional information

Technical specifications

WX302MK2 WX502MK2

RMS Power 30 W 50 W

Nominal Impedance 8 Ohm 8 Ohm

Line transformer power tappings 500 Ohm / 20 W 250 Ohm / 40 W

1000 Ohm / 10 W 500 Ohm / 20 W

2000 Ohm / 5 W 1000 Ohm / 10 W

Sound pressure level 1W / 1m 85 dB 87 dB

Sound pressure max W / 1 m @ 8 Ohm 100 dB 104 dB

Sound pressure max W / 1 m @ 100V 95 dB 102 dB

Frequency response ( ± 3 dB) 90 Hz – 18 kHz 90 Hz – 18 kHz

Frequency response (-10 dB) 60 Hz – 20 kHz 70 Hz – 20 kHz

Cross-over frequency 2500 Hz 2500 Hz

Horizontal coverage 110° 110°

Vertical coverage 110° 110°

Drivers 1" HF + 3" LF 1" HF + 5 1/4" LF

Connector AWX5 ^TM AWX5 ^TM

Mounting bracket Powder coated aluminum Powder coated aluminum

Front finish Powder coated powder coated aluminum grill aluminum grill

Dimensions (W x H x D) 199 x 129 x 120 mm 212 x 147 x 136 mm

Weight 1,66 Kg 2,52 Kg

Construction ABS ABS

Accessories included Wall bracket Wall bracket

Colors Black / White Black / White
