Product Type	Industrial Fast Ethernet Switch
Model	ISW-511TS15
Copper Ports	4 x 10/100BASE-TX (auto-negotiation, auto-MDI/MDI-X)
Fiber Port	1 x 100BASE-FX (single-mode, 15km)
Fiber Cable	9/125µm single-mode fiber
Dimensions (W x D x H)	135 x 97 x 32 mm
Weight	436 g
Power Input	12~48V DC redundant with polarity reverse protection
Power Consumption	13.7 watts / 46 BTU
Switching Fabric	1 Gbps
Throughput	0.74 Mpps (64-byte packets)
MAC Address Table	2K entries
Packet Buffer	1 Mbit
Flow Control	Back pressure (half-duplex), IEEE 802.3x pause frame (full-duplex)
Standards Compliance	IEEE 802.3, 802.3u, 802.3x
Operating Temperature	-40 to 75°C
Storage Temperature	-40 to 85°C
Humidity	5% to 90% (non-condensing)
Enclosure	IP30 metal case
Mounting	DIN rail and wall mount (kits included)
Stability Testing	IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration)
Regulatory Compliance	FCC Part 15 Class A, CE

Frequently Asked Questions - ISW-511TS15 Planet

What is the maximum distance for the fiber port?

The single-mode fiber port supports distances up to 15 km using 9/125µm fiber.

How do I connect power to the switch?

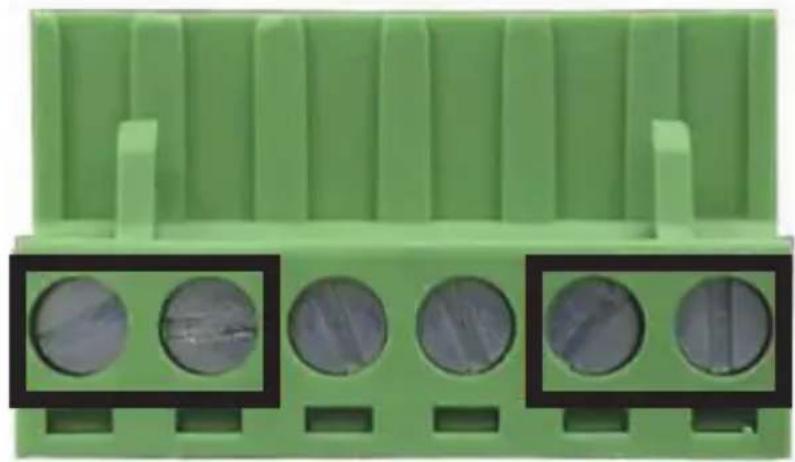

Use the 6-contact terminal block on the top panel. Connect positive/negative wires to contacts 1 and 2 for Power 1, or 5 and 6 for Power 2. Tighten screws and ensure wire gauge is 12-24 AWG.

Can I use both power inputs simultaneously?

Yes, the switch supports redundant power. Connect both Power 1 and Power 2 for backup. The FAULT LED will light if one power fails.

What type of Ethernet cable should I use?

For 10BASE-T use Category 3, 4, 5 cable (max 100m). For 100BASE-TX use Category 5, 5e, or 6 cable (max 100m). The ports support auto-MDI/MDI-X, so straight-through or crossover cables work.

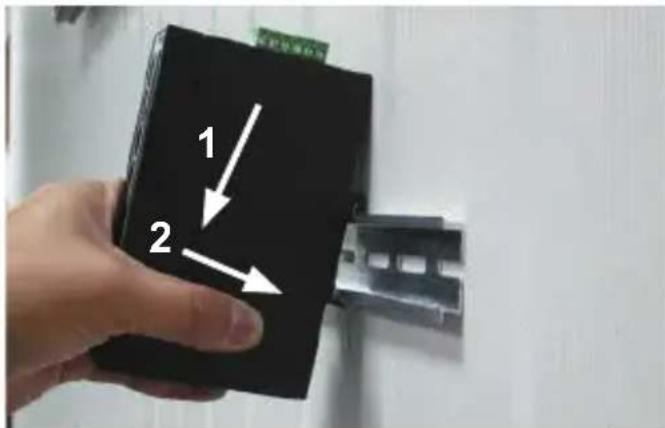

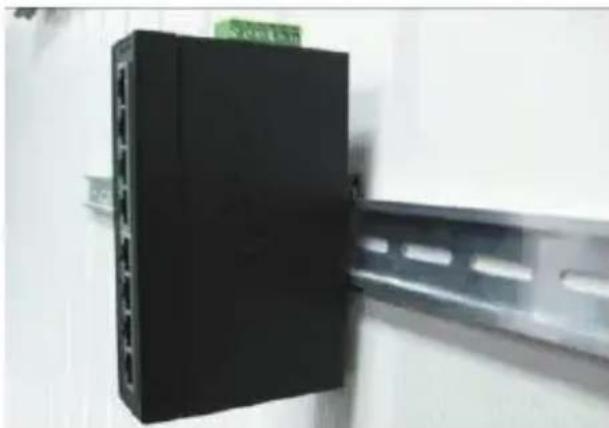

How do I mount the switch on a DIN rail?

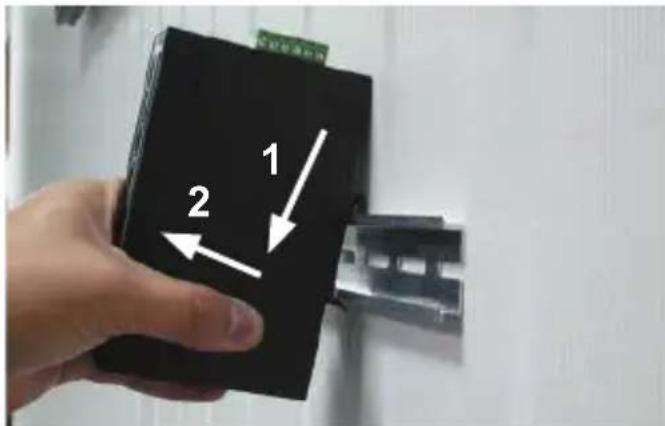

The DIN rail kit is pre-installed. Lightly insert the bottom of the switch into the track and push upward until it clicks. To remove, pull the release tab and lift off.

What do the LED indicators mean?

P1/P2 green: power on. FAULT green: power failure. 100 green (fiber/copper): link at 100Mbps. LNK/ACT green: link established, blinking indicates activity.

Can I use this switch in extreme temperatures?

Yes, the ISW-511TS15 operates from -40 to 75°C, making it suitable for harsh industrial environments.

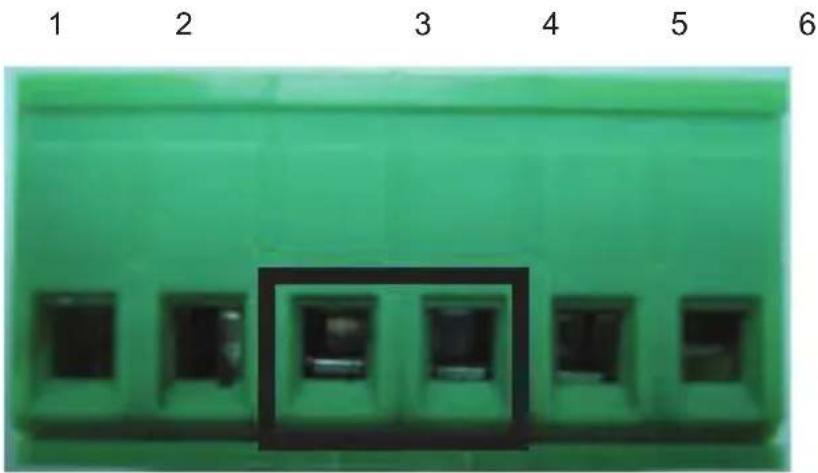

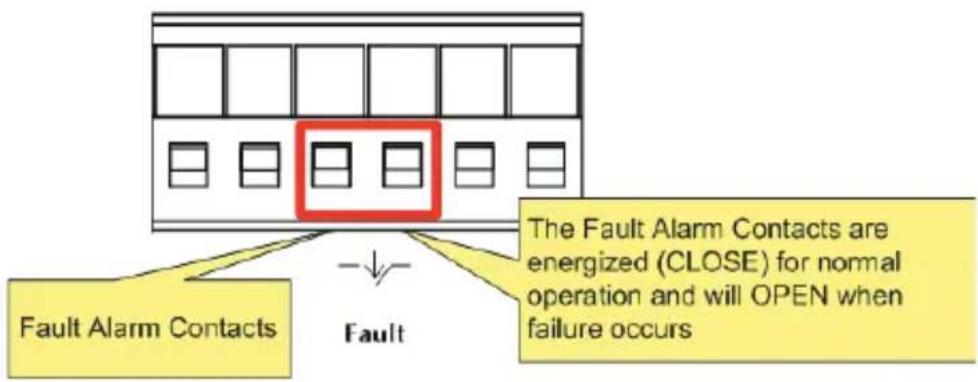

How do I wire the fault alarm contact?

Insert wires into the middle terminals of the terminal block. The alarm relay closes on power failure (rated up to 30V, 3A). Use 12-24 AWG wire.

What switching method does this switch use?

It uses store-and-forward architecture, checking frames for errors before forwarding, preventing error propagation.

Does the switch support auto-negotiation?

Yes, all copper ports support auto-negotiation for speed (10/100Mbps) and duplex mode (half/full). Fiber ports operate at 100Mbps full duplex.

USER MANUAL ISW-511TS15 Planet

4-Port 10/100Mbps +1/2 100FX Fiber Port Industrial Fast Ethernet Switch

ISW-511 / ISW-621 Series

ISW-511T / ISW-621T Series

User's Manual

Trademarks

Copyright © PLANET Technology Corp. 2015

Contents are subject to revision without prior notice

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.

PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes no commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET 4-Port 10/100Mbps +1/2 100FX Industrial Fast Ethernet Switch User's Manual

For Models: ISW-511 / ISW-621 / ISW-511T / ISW-621T Series

Revision: 1.4 (April, 2015)

Part No: EM-ISW-511_621_v1.4 (2350-AH0150-003)

Table of Contents

1. Introduction......6

1.1 Package Contents....6
1.2 How to Use This Manual....6
1.3 Product Features .... 7
1.4 Product Specifications 8

2. Installation ....14

2.1 Product Description....14

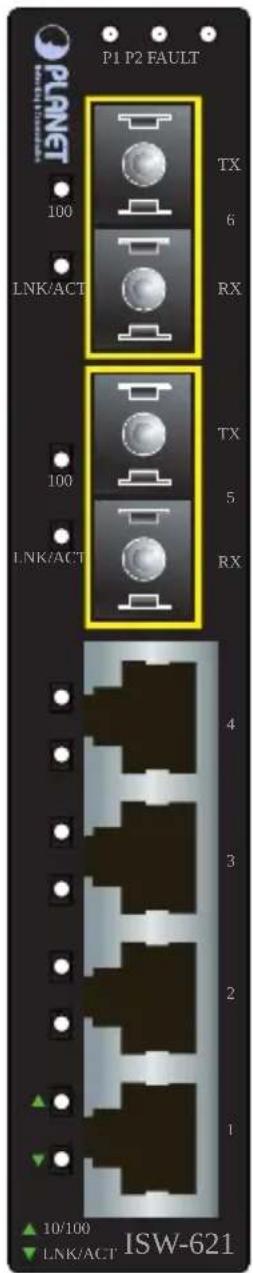

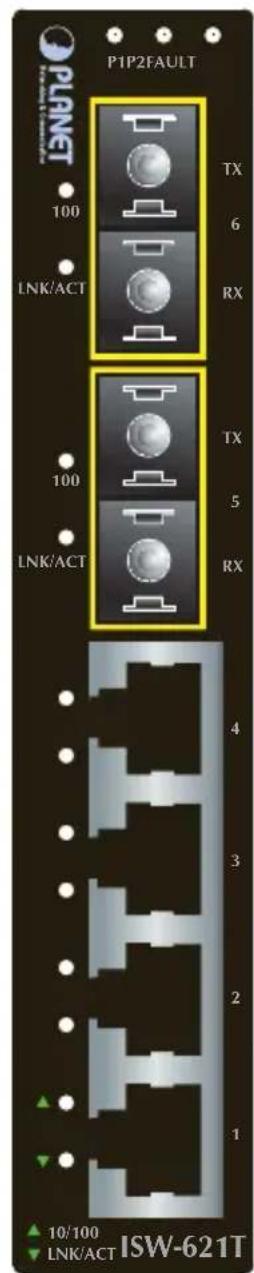

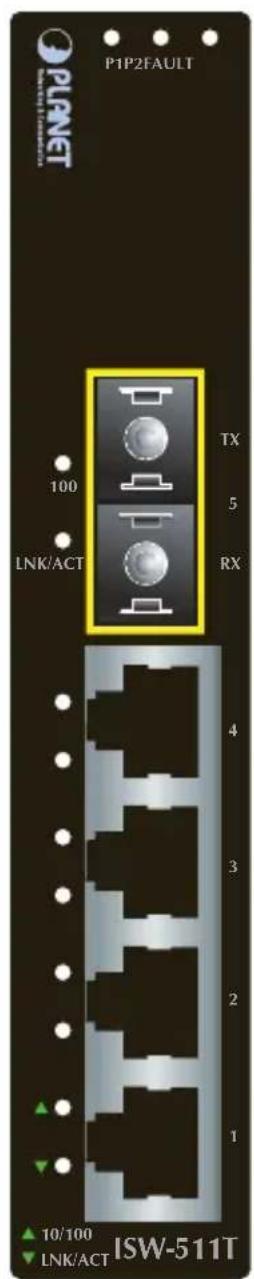

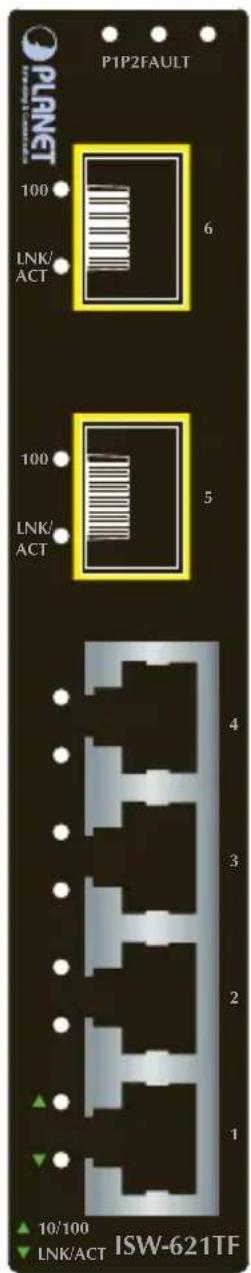

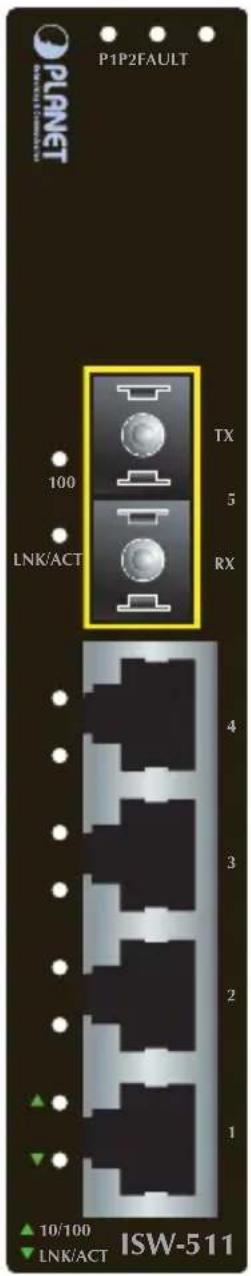

2.1.1 Switch Front Panel 15
2.1.2 LED Indicators 17

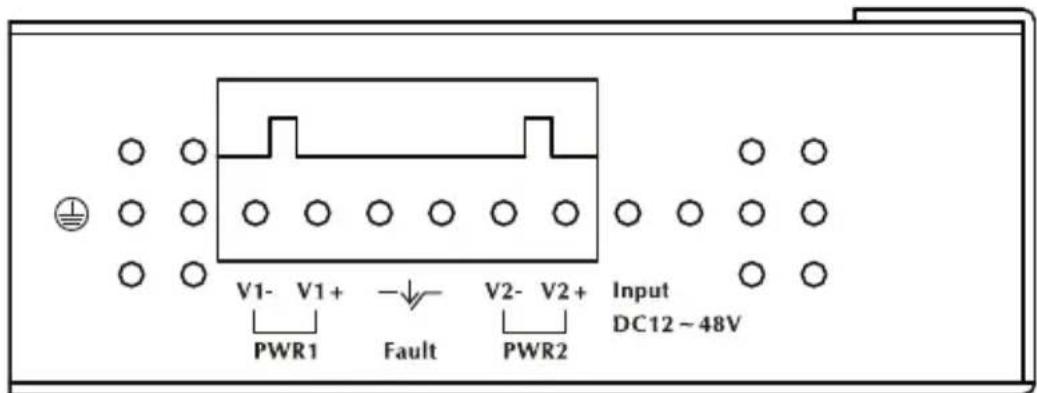

2.1.3 Switch Upper Panel 17

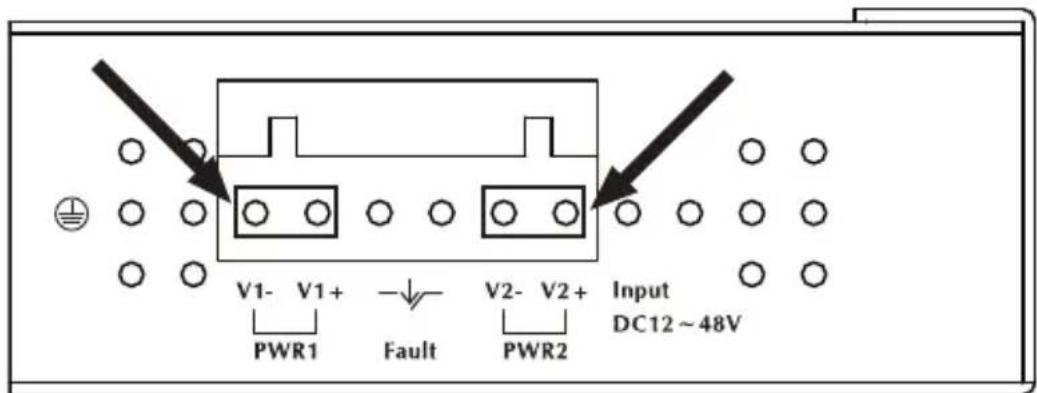

2.1.4 Wiring the Power Inputs....18
2.1.5 Wiring the Fault Alarm Contact....19

2.2 Mounting Installation 20

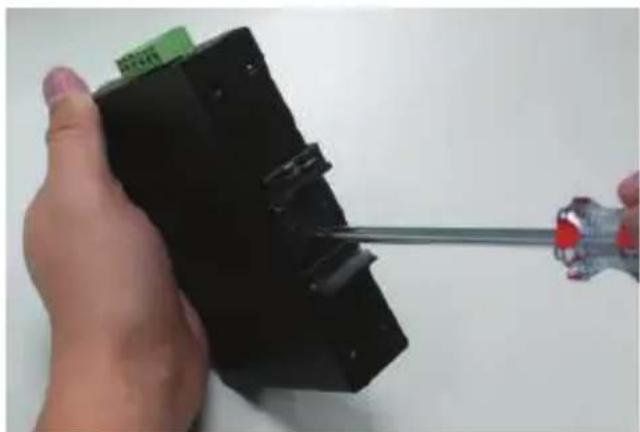

2.2.1 Install DIN-Rail Mounting 20

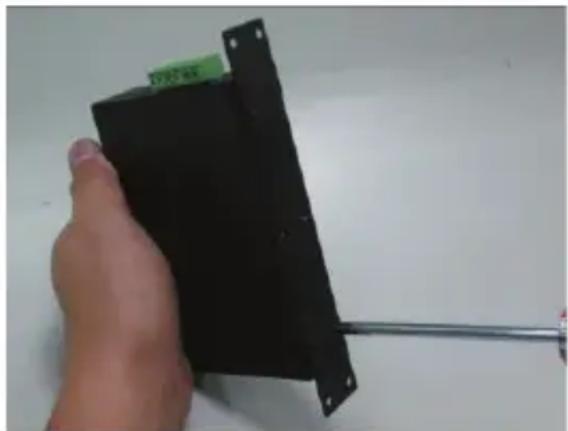

2.2.2 Wall Mount Plate Mounting....22

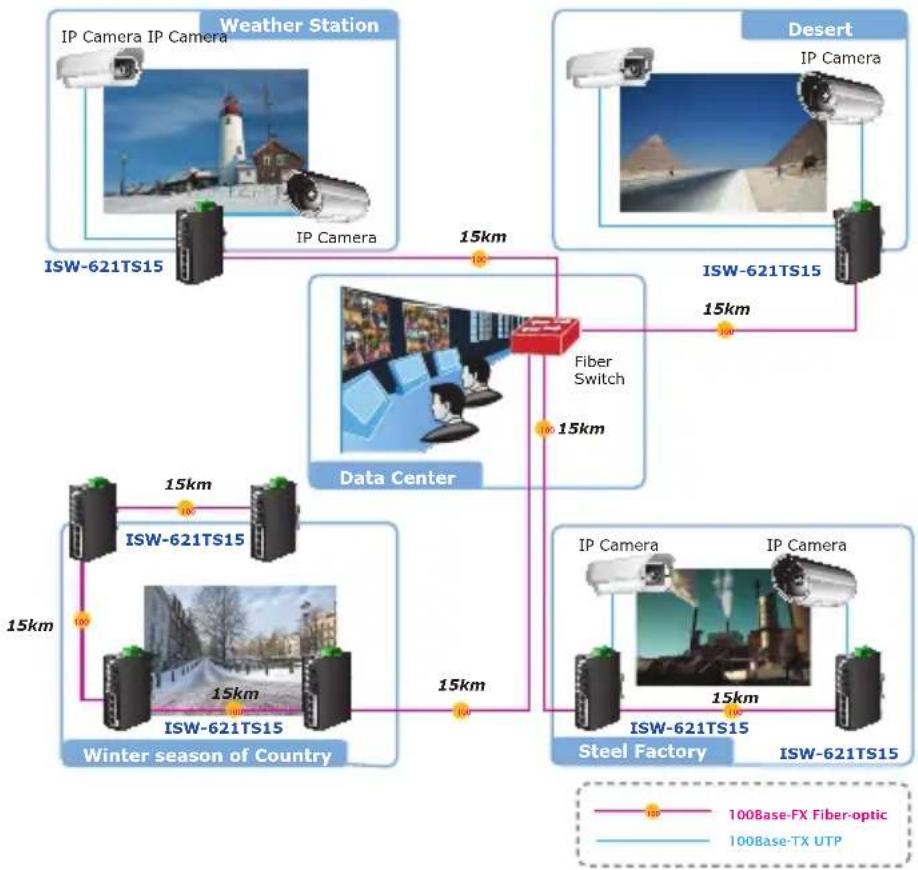

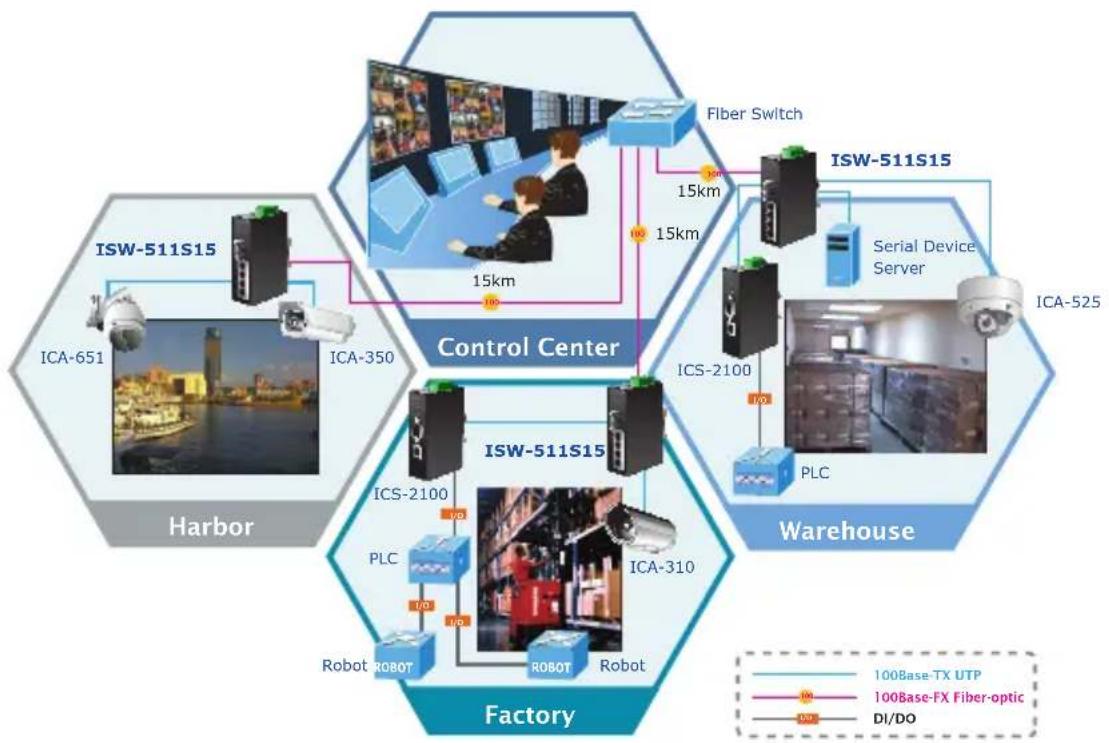

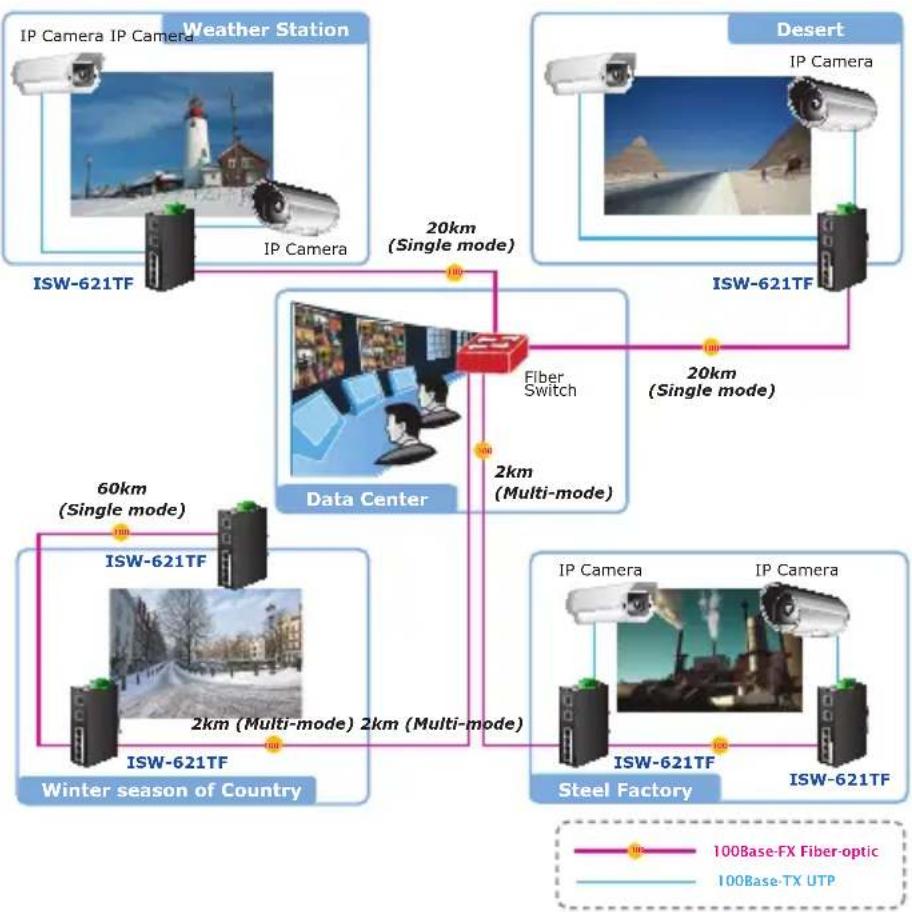

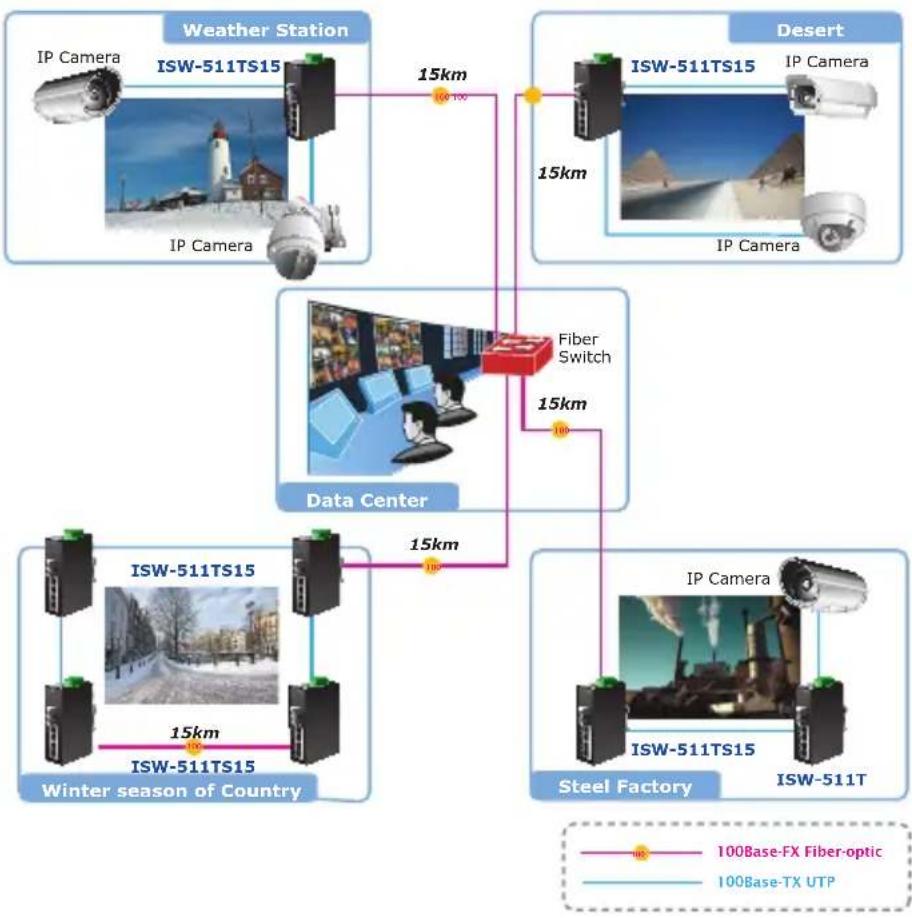

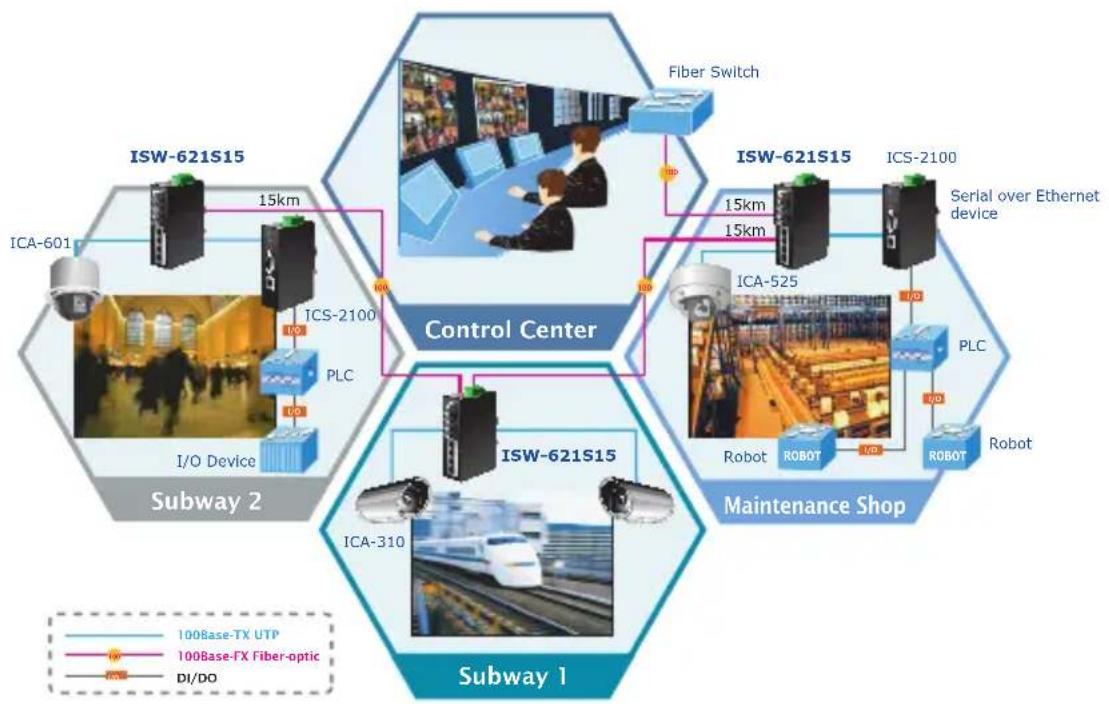

3. Applications ......23

4. Switch Operation....27

4.1 Address Table....27
4.2 Learning ......27
4.3 Forwarding & Filtering....27
4.4 Store-and-Forward....28
4.5 Auto-negotiation....28

5. Troubleshooting....29

APPENDIX A: Networking Connection....30

A.1 Switch's RJ45 Pin Assignments ....30
A.2 RJ45 cable Pin Assignments 31

1. Introduction

1.1 Package Contents

Check the contents of your package for the following parts:

• User's Manual x 1
• DIN Rail Kit x 1
• Wall Mount Kit x 1

- Industrial Fast Ethernet Switch x 1

If any of these are missing or damaged, please contact your dealer immediately. If possible, retain the carton including the original packing material, and use them again to repack the product in case there is a need to return it to us for repair

1.2 How to Use This Manual

This Industrial Fast Ethernet Switch User Manual is structured as follows:

Chapter 2 Installation

The chapter explains the feature, functionality and the physical installation of the Industrial Fast Ethernet Switch.

Chapter 3 Application

The chapter explains the Industrial Fast Ethernet Switch application.

Chapter 4 Switch operation

The chapter explains the Industrial Fast Ethernet Switch transmit operation.

Chapter 5 Troubleshooting

The chapter explains the troubleshooting of the Industrial Fast Ethernet Switch.

Appendix A

This chapter contains cable information of the Industrial Fast Ethernet Switch.

1.3 Product Features

Physical Port

Model Name	Ports Fiber Optical Interface
	Copper Optical Mode Distance
ISW-511	4 x 10/100BASE-TX	1 x 100BASE-FX	Multi-mode	2km
ISW-511T
ISW-511S15			Single-mode	15km
ISW-511TS15
ISW-621		2 x 100BASE-FX	Multi-mode	2km
ISW-621T
ISW-621S15			Single-mode	15km
ISW-621TS15
ISW-621TF			Multi / Single Mode	depending on SFP Module

Layer 2 Features

☐ Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX
□ Supports auto-negotiation and 10/100Mbps half / full duplex mode for each copper port
☐ High performance store and forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth

☐ Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

□ Backplane (switching fabric):
ISW-511 / ISW-511T Series: 1Gbps
ISW-621 / ISW-621T Series: 1.2Gbps

☐ Integrated address look-up engine, supporting 2K absolute MAC addresses

☐ 1Mbit on-chip frame buffer on ISW-511 / ISW-621 Series and ISW-511T / ISW621T Series

□ Automatic address learning and address aging
□ CSMA/CD Protocol

Industrial Case / Installation

□ IP30 metal case
☐ DIN rail and wall mount design

☐ 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power

☐ -10 to 60 degrees C operating temperature on ISW-511 / ISW-511S15 / ISW-621 / ISW-621S15

☐ -40 to 75 degrees C operating temperature on ISW-511T / ISW-511TS15 / ISW-621T / ISW-621TS15 / ISW-621TF

1.4 Product Specifications

Model ISW-51		1 ISW-511S15
Hardware Specifications
Copper	Ports	4 x 10/100BASE-TX, auto-negotiation, auto-MDI/MDI-X
	Cable	10BASE-T: 2-pair UTP Cat. 3, 4, 5 cable (100 meters, max.)100BASE-TX: 2-pair UTP Cat. 5, 5e, 6 cable (100 meters, max.)
Fiber Optical	Port 1 x 100BASE-FX
	Cable	50/125μm fiber62.5/125μm fiber	9/125μm fiber
	Mode multi-mode single-mode
	Distance 2km 15km
Dimensions (W x D x H) 13		5 x 97 x 32mm
Weight 436g
Power Requirements		12~48V DC, Redundant power with polarity reverse protection function
Power Consumption / Dissipation		9.1 watts / 31BTU
Installation DIN rail kit and		wall mount ear

Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table 2K entries
Buffer 1Mbit
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric 1Gbps
Throughput (Packet Per Second)	0.74Mpps @ 64Bytes
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet, 10BASE-T IEEE 802.3u Fast Ethernet, 100BASE-TX, 100BASE-FX IEEE 802.3x full-duplex flow control
Stability testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Temperature	Operating: -10~60 degrees C Storage: -40~85 degrees C
Humidity Operating	Operating: 5% to 90%, Storage: 5% to 90% (non-condensing)
Regulation Compliance FCC	Part 15 Class A, CE

Model ISW-511T ISW-511TS15
Hardware Specifications
Copper	Ports	4 x 10/100BASE-TX, auto-negotiation, auto-MDI/MDI-X
	Cable	10BASE-T : 2-pair UTP Cat. 3, 4, 5 cable (100 meters, max.)100BASE-TX : 2-pair UTP Cat. 5, 5e, 6 cable (100 meters, max.)
Fiber Optical	Port 1 x 100	BASE-FX
	Cable	50/125μm fiber62.5/125μm fiber	9/125μm fiber
	Mode multi-	mode single-mode
	Distance 2km	15km
Dimensions (W x D x H) 13		5 x 97 x 32mm
Weight 436g
Power Requirements		12~48V DC, Redundant power with polarity reverse protection function
Power Consumption / Dissipation		13.7 watts / 46BTU
Installation DIN rail kit and		wall mount ear
Switch Specifications
Switch Processing Scheme		Store-and-Forward
Address Table 2K entries
Buffer 1Mbit
Flow Control		Back pressure for half duplex,IEEE 802.3x pause frame for full duplex
Switch Fabric 1Gbps
Throughput(Packet Per Second)		0.74Mpps @ 64Bytes
Standards Conformance
Standards Compliance		IEEE 802.3 Ethernet, 10BASE-TIEEE 802.3u Fast Ethernet, 100BASE-TX,100BASE-FXIEEE 802.3x full-duplex flow control
Stability Testing		IEC60068-2-32 (free fall)IEC60068-2-27 (shock)IEC60068-2-6 (vibration)
Temperature		Operating: -40~75 degrees CStorage: -40~85 degrees C
Humidity		Operating: 5% to 90%, Storage: 5% to 90%(non-condensing)
Regulation Compliance FCC		Part 15 Class A, CE

Model ISW-621 ISW-621S15
Hardware Specifications
Copper	Ports	4 x 10/100BASE-TX, auto-negotiation, auto-MDI/MDI-X
	Cable	10BASE-T: 2-pair UTP Cat. 3, 4, 5 cable (100 meters, max.)100BASE-TX: 2-pair UTP Cat. 5, 5e, 6 cable (100 meters, max.)
Fiber Optical	Port 2 x 100BASE-FX
	Cable	50/125μm fiber62.5/125μm fiber	9/125μm fiber
	Mode multi-mode single-mode
	Distance 2km 15km
Dimensions (W x D x H) 135 x 97 x 32mm
Weight 442g
Power Requirements		12~48V DC, Redundant power with polarity reverse protection function
Power Consumption /Dissipation		11.6 watts / 40BTU
Installation DIN rail kit and wall mount ear
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Buffer 1Mbit
Flow Control		Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric 1.2Gbps
Throughput (Packet Per Second)		0.89Mpps @ 64Bytes
Standards Conformance
Standards Compliance		IEEE 802.3 Ethernet, 10BASE-T IEEE 802.3u Fast Ethernet, 100BASE-TX, 100BASE-FX IEEE 802.3x full-duplex flow control
Stability Testing		IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Temperature		Operating: -10~60 degrees C Storage: -40~85 degrees C
Humidity		Operating: 5% to 90%, Storage: 5% to 90% (non-condensing)
Regulation Compliance FCC		Part 15 Class A, CE

Model ISW-621T ISW-621TS15 ISW-621TF
Hardware Specifications
Copper	Ports 4 x 10/100BASE-TX, auto-negotiation, auto-MDI/MDI-X
	Cable	10BASE-T : 2-pair UTP Cat. 3, 4, 5 cable (100 meters, max.)100BASE-TX : 2-pair UTP Cat. 5, 5e, 6 cable (100 meters, max.)
Fiber Optic	Port 2 x 100BASE-FX
	Cable	50/125μm fiber62.5/125μm fiber	9/125μm fiber	Multi-Mode:50/125μm fiber62.5/125μm fiberSingle-Mode:9/125μm fiber
	Mode multi-mode single-mode
	Distance 2km 15km			Depend onSFP Module

Dimensions (W x D x H)	135 x 97 x 32mm
Weight 442g
Power Requirement	12~48V DC, Redundant power with polarity reverse protection function
Power Consumption / Dissipation	16 watts / 54BTU
Installation DIN rail kit and wall mount ear
Switch Specification
Switch Processing Scheme	Store-and-Forward
Address Table 2K entries
Buffer 1Mbit
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric 1.2Gbps
Throughput (Packet Per Second)	0.89Mpps @ 64Bytes
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet, 10BASE-T IEEE 802.3u Fast Ethernet, 100BASE-TX, 100BASE-FX IEEE 802.3x full-duplex flow control
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Temperature	Operating: -40~75 degrees C Storage: -40~85 degrees C
Humidity Operating	Operating: 5% to 90%, Storage: 5% to 90% (non-condensing)
Regulation Compliance FCC Part 15 Class A, CE

2. Installation

This section describes the functionalities of the Industrial Fast Ethernet Switch's components and guides how to install it on the desktop. Basic knowledge of networking is assumed. Please read this chapter completely before continuing.

2.1 Product Description

PLANET ISW-511 / ISW-621 series and ISW-511T / ISW-621T series are 4-Port 10/100Mbps + 1/2 100FX Fiber Port Industrial Fast Ethernet Switch with non-blocking wire-speed performance and new slim type with IP30 metal case for easy deployment in Heavy Industrial demanding environments.

With 1 / 1.2Gbps internal switching fabric, the Industrial Fast Ethernet Switch can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers.

The Industrial Fast Ethernet Switch has 2K MAC address table and offers wire-speed packets transfer performance without risk of packet loss. The stable throughput of the device makes it ideal for most Ethernet environments.

All RJ45 copper interfaces support 10/100Mbps auto-negotiation for optimal speed detection through RJ45 Category 5, 4 or 3 cables. With auto-MDI/MDI-X, it can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

The flow control function allows Industrial Fast Ethernet Switch supported routers and servers to directly connect to this device for fast, reliable data transfer.

2.1.1 Switch Front Panel

Figures 2-1, 2-2, 2-3 and 2-4 show their front panels.

Figure 2-1 ISW-511 / ISW-511S15 Front Panel

Figure 2-2 ISW-621 / ISW-621S15 Front Panel

Figure 2-3 ISW-511T / ISW-511TS15 Front Panel

Figure 2-4 ISW-621T / ISW-621TS15 Front Panel

Figure 2-5 ISW-621TF Front Panel

2.1.2 LED Indicators

LED Color Function
P1 Green	Lit: indicates power 1 has power.
P2 Green	Lit: indicates power 2 has power.
FAULT Green		Lit: indicates either power 1 or power 2 has no power.
100 Green		Fiber Optic	Lit: indicates the Fiber port is successfully connecting to the network at 100Mbps.
10/100 Green Copper			Lit: indicates the Switch is successfully connecting to the network at 100Mbps.Off: indicates that the Switch is successfully connecting to the network at 10Mbps.
LNK/ACT	Green	Fiber Optic	Lit: indicates the link through that port is successfully established.Blinking: indicates that the Switch is actively sending or receiving data over that port.
		Copper

2.1.3 Switch Upper Panel

The upper panel of the Industrial Fast Ethernet Switch consists of one terminal block connector within two DC power inputs. Figure 2-6 shows the upper panel of the Industrial Fast Ethernet Switch.

Figure 2-6 Industrial Fast Ethernet Switch Upper Panel.

2.1.4 Wiring the Power Inputs

The 6-contact terminal block connector on the top panel of Industrial Fast Ethernet Switch is used for two DC redundant powers input. Please follow the steps below to insert the power wire.

1. Insert positive / negative DC power wires into contacts 1 and 2 for POWER 1, or 5 and 6 for POWER 2.

V1- V1 + V2 - V2 +

1. Tighten the wire-clamp screws for preventing the wires from loosening.

Green plastic electrical connector with four circular slots, shown in two rectangular insets (no text or symbols visible)

1 2 3 4 5

6 ____ ____

Power 1 Fault Power 2

- +

- +

Note

The wire gauge for the terminal block should be in the range between 12 and 24 AWG.

2.1.5 Wiring the Fault Alarm Contact

The fault alarm contacts are in the middle of the terminal block connector as the picture shows below. Inserting the wires, the Industrial Fast Ethernet Switch will detect the fault status of the power failure, or port link failure (available for managed model) and then forms an open circuit. The following illustration shows an application example for wiring the fault alarm contacts.

Insert the wires into the fault alarm contacts

Note

1. The wire gauge for the terminal block should be in the range between 12 and 24 AWG.

2. Alarm relay circuit accepts up to 30V, max. 3A currents.

2.2 Mounting Installation

This section describes how to install the Industrial Fast Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented.

In the installation steps below, this Manual uses IGS-801 (PLANET 8-Port Industrial Gigabit Switch) as the example. However, the steps for PLANET Industrial Switch and Industrial Media Converter are similar.

2.2.1 Install DIN-Rail Mounting

The DIN-Rail is screwed on the Industrial Gigabit Ethernet Switch when out of factory. When needed to replace the wall mount application with the DIN-Rail application on Industrial Gigabit Ethernet Switch, please refer to the following figures to screw the DIN-Rail on the Industrial Gigabit Ethernet Switch. To hang the Industrial Gigabit Ethernet Switch, follow the steps below:

Hand holding a black electronic device with a screwdriver inserted, no visible text or symbols

Step 1: Screw the DIN-rail on the Industrial Fast Ethernet Switch.

Step 2: Lightly insert the bottom of the switch into the track.

Black electronic device mounted on a wall with a metallic bracket (no visible text or symbols)

Step 3: Check whether the DIN-rail is tightly on the track.

Step 4: Please refer to the following procedures to remove the Industrial Fast Ethernet Switch from the track.

Step 5: To remove the wall mount plate, reverse the steps above.

2.2.2 Wall Mount Plate Mounting

To install the Industrial Fast Ethernet Switch on the wall, please follow the instructions described below.

Step 1: To remove the DIN-Rail from the Industrial Fast Ethernet Switch; loosen the screws to remove the DIN-rail.

Step 2: Place the wall mount plate on the rear panel of the Industrial Fast Ethernet Switch.

Hand holding a black electronic device with a metallic rod extending from its side (no visible text or symbols)

Step 3: Use the screws to screw the wall mount plate on the Industrial Fast Ethernet Switch.
Step 4: Use the hook holes at the corners of the wall mount plate to hang the Industrial Fast Ethernet Switch on the wall.
Step 5: To remove the wall mount plate, reverse the steps above.

3. Applications

In this paragraph, we will describe how to install Industrial Fast Ethernet Switch and the installation points for the attention.

    subgraph Factory
        BEI["ICA-310"] --> BFII["ICA-310"]

    subgraph Harbor
        BFII["ICA-310"] --> BGII["ICA-310"]

    subgraph Control Center
        BHII["ICA-310"] --> BHIII["ICA-310"]

    subgraph Warehouse
        BIII["ICA-310"] --> BJII["ICA-310"]

    subgraph Factory
        BKII["ICA-310"] --> BKIII["ICA-310"]

    subgraph Harbor
        BLII["ICA-310"] --> BLIII["ICA-310"]

    subgraph Control Center
        BNII["ICA-310"] --> BNIII["ICA-310"]

    subgraph Warehouse
        BOII["ICA-310"] --> BOIII["ICA-310"]

    subgraph Factory
        BPII["ICA-310"] --> BPIII["ICA-310"]

    subgraph Harbor
        BQII["ICA-310"] --> BQIII["ICA-310"]

    subgraph Control Center
        BWII["ICA-310"] --> BWIII["ICA-310"]

    subgraph Warehouse
        BXII["ICA-310"] --> BXIII["ICA-310"]

    subgraph Factory
        BQIIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["Robot"] & BQIII["R Bot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["RBot"] & BQIII["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["RBot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] & BQ_III["R Bot"] &
Bq_III["R Bot"] & Bq_III["R Bot"]

Installation Steps

Step 1: Unpack the Industrial Fast Ethernet Switch.

Step 2: Check whether the DIN-rail is screwed on the Industrial Fast Ethernet Switch. (Please refer to DIN-rail mounting section for DIN-rail installation. If you want to wallmount the Industrial Fast Ethernet Switch, then please refer to the Wall-mount Plate Mounting section for wallmount plate installation.

Step 3: To hang the Industrial Fast Ethernet Switch on the DIN-rail track or wall, please refer to the Mounting Installation section.

Step 4: Power on the Industrial Fast Ethernet Switch (Please refer to the Wiring of the Power Inputs section for power input). The power LED on the Industrial Fast Ethernet Switch will light up. Please refer to the LED Indicators section for LED status.

Step 5: Prepare the twisted-pair, straight-through Category 5 cable for Ethernet connection.

Step 6: Insert one side of Category 5 cables into the Industrial Fast Ethernet Switch Ethernet port (RJ45 port) and the other to the network devices' Ethernet port (RJ45 port), e.g., Switch, PC or Server. The UTP port (RJ45) LED on the Industrial Fast Ethernet Switch will light up when the cable is connected with the network device. Please refer to the LED Indicators section for LED status.

Make sure the connected network devices support MDI/MDI-X. If the network devices do not support MDI/MDI-X, please use the crossover Category 5 cable to connect.

Step 7: Insert fiber cable from the ISW-511 / 621 series or ISW-511T / ISW-621T series to the fiber network. TX, RX must be paired at both ends. The optical port LED on the Industrial Fast Ethernet Switch will light up when the cable is connected with network device. Please refer to the LED Indicators section for LED status.

Step 8: When all connections are set and all LEDs are lit without any issue, the installation is complete.

4. Switch Operation

4.1 Address Table

The Industrial Fast Ethernet Switch is implemented with an address table. This address table is composed of many entries. Each entry is used to store the address information of some node in the network, including MAC address, port no., etc. This information comes from the learning process of Industrial Fast Ethernet Switch.

4.2 Learning

When one packet comes from any port of Industrial Fast Ethernet switch, the Industrial Fast Ethernet Switch will record the source address, port no. and the other related information in address table. This information will be used to decide either forwarding or filtering for future packets.

4.3 Forwarding & Filtering

When one packet comes from some port of the Industrial Fast Ethernet Switch, it will also check the destination address besides the source address learning. The Industrial Fast Ethernet Switch will look up the address table for the destination address. If not found, this packet will be forwarded to all the other ports except the port where this packet comes in. And these ports will transmit this packet to the network if connected. If found and the destination address is located at a different port from this packet comes in, the Industrial Fast Ethernet Switch will forward this packet to the port where this destination address is located according to the information from address table. But, if the destination address is located at the same port where this packet comes in, then this packet will be filtered.

4.4 Store-and-Forward

Store-and-Forward is one type of packet-forwarding techniques. A Store-and-Forward Industrial Switch stores the incoming frames in an internal buffer and checks any error from the frames before transmission. No error packets occurrence, it is the best choice when a network needs efficiency and stability.

The Industrial Fast Ethernet Switch scans the destination address from the packet-header, searches the routing table provided for the incoming port and forwards the packet, only if required. The fast forwarding makes the switch attractive for connecting servers directly to the network, thereby increasing throughput and availability. However, the switch is most commonly used to segment existing hubs, which nearly always improves overall performance. An Ethernet Switching can be easily configured in any Ethernet network environment to significantly boost bandwidth using conventional cabling and adapters.

Due to the learning function of the Industrial Fast Ethernet Switch, the source address and corresponding port number of each incoming and outgoing packet are stored in a routing table. This information is subsequently used to filter packets whose destination address is on the same segment as the source address. This confines network traffic to its respective domain, reducing the overall load on the network.

The Industrial Fast Ethernet Switch performs "Store-and-Forward" therefore, no error packets occur. More reliably, it reduces the re-transmission rate. No packet loss will occur.

4.5 Auto-negotiation

The STP ports on the Industrial Fast Ethernet Switch have built-in "Auto-negotiation". This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset). This is done by detecting the modes and speeds at the second of both devices that are connected and capable of. Both 10BASE-T and 100BASE-TX devices can connect with the port in either half- or full-duplex mode.

5. Troubleshooting

This chapter contains information to help you solve issues. If the Industrial Fast Ethernet Switch is not functioning properly, make sure the Industrial Fast Ethernet Switch was set up according to instructions in this manual.

The Link LED is not lit

Solution:

Check the cable connection of the Industrial Fast Ethernet Switch.

Link LED is lit, but the traffic is irregular

Solution:

Check whether the attached device is not set to dedicated full duplex. Some devices use a physical or software switch to change duplex modes. Auto-negotiation may not recognize this type of full-duplex setting.

Why doesn't the Industrial Fast Ethernet Switch connect to the network?

Solution:

1. Check every port LED on the Industrial Fast Ethernet Switch.

2. Try another port on the Industrial Fast Ethernet Switch to make sure the cable is installed properly while making sure the cable is the right type.

3. Turn off the power and turn on the power again after a while.

APPENDIX A: Networking Connection

A.1 Switch's RJ45 Pin Assignments

10/100Mbps, 10/100BASE-TX

RJ45 Connector pin assignment
Contact	MDIMedia Dependent Interface	MDI-XMedia DependentInterface -Cross
1 Tx + (transmit) Rx + (receive)
2 Tx - (transmit) Rx - (receive)
3 Rx + (receive) Tx + (transmit)
4, 5 Not used
6 Rx - (receive) Tx - (transmit)
7, 8 Not used

A.2 RJ45 cable Pin Assignments

3D rendering of a Ethernet RJ4 connector (no text or symbols visible)

Illustration of a USB connector with a curved cable (no text or symbols)

The standard RJ45 receptacle/connector

There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight-through cable and crossover cable connection:

Straight Cable

SIDE 1

SIDE 2

SIDE 1

1 = White/Orange

2 = Orange

3 = White/Green

4 = Blue

5 = White/Blue

6 = Green

7 = White/Brown

8 = Brown

SIDE 2

1 = White/Orange

2 = Orange

3 = White/Green

4 = Blue

5 = White/Blue

6 = Green

7 = White/Brown

8 = Brown

Cross Over Cable

SIDE 1

SIDE 2

SIDE 1 SIDE 2

1 = White/Orange

2 = Orange

3 = White/Green

4 = Blue

5 = White/Blue

6 = Green

7 = White/Brown

8 = Brown

[EMPTY]

1 = White/Green
2 = Green
3 = White/Orange
4 = Blue
5 = White/Blue
6 = Orange
7 = White/Brown
8 = Brown

Figure A-1: Straight-through and Crossover Cables

Please make sure your connected cables are with same pin assignment and color as the above picture before deploying the cables into your network.

EC Declaration of Conformity

For the following equipment:

*Type of Product : 4+1 / 4+2 100FX Port Industrial Ethernet Switch

*Model Number : ISW-511 / ISW-511S15 / ISW-511T / ISW-511TS15

ISW-621 / ISW-621S15 / ISW-621T / ISW-621TS15 / ISW-621TF

* Produced by:

Manufacturer's Name : Planet Technology Corp.

Manufacturer's Address : 10F., No.96, Minquan Rd., Xindian Dist.,

New Taipei City 231, Taiwan (R.O.C.)

is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2004/108/EC).

For the evaluation regarding the EMC, the following standards were applied:

Emission EN 55022 (Class A: 2006)

Harmonic EN 61000-3-2 (2006)

Flicker EN 61000-3-3 (1995 + A1: 2001 + A2: 2005)

Immunity EN 55024 (1998 + A1: 2001 + A2: 2003)

ESD IEC 61000-4-2 (2001)

RS IEC 61000-4-3 (2008)

EFT/ Burst IEC 61000-4-4 (2004)

Surge IEC 61000-4-5 (2005)

CS IEC 61000-4-6 (2008)

Magnetic Field IEC 61000-4-8 (2001)

Voltage Disp IEC 61000-4-11 (2004)

Responsible for marking this declaration if the:

☑ Manufacturer ☐ Authorized representative established within the EU

Authorized representative established within the EU (if applicable):

Company Name: Planet Technology Corp.

Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan(R.O.C.)

Person responsible for making this declaration

Name, Surname Kent Kang

Position / Title : Product Manager

Taiwan

Place

25 ^nd , March, 2011

Date

Legal Signature
