Product Type	Electric Broom
Brand	Russell Hobbs
Model	RHUV6001
Power Supply	600W (corded)
Voltage	220-240V, 50-60Hz
Cord Length	Approx. 5 meters
Weight	2.0 kg
Dimensions (L x W x H)	110 x 25 x 15 cm
Dust Capacity	0.5 liters
Filtration System	Washable HEPA filter
Suction Power	Adjustable (2 levels)
Attachments Included	Crevice tool, dusting brush
Floor Type	Hard floors and low-pile carpets
Noise Level	~75 dB
Maintenance	Empty dust cup after each use; wash filter monthly
Safety Features	Overheat protection, cord strain relief
Warranty	2 years
Spare Parts Availability	Filters and brushes available online

Frequently Asked Questions - RHUV6001 RUSSELL HOBBS

How do I assemble the Russell Hobbs RHUV6001 electric broom?

Attach the handle to the main body until it clicks. Insert the dust cup and ensure it locks. No tools required.

How do I clean the filter?

Remove the dust cup, take out the filter, and tap it clean over a trash bin. For deeper cleaning, rinse with water and let it dry completely for 24 hours before reinstalling.

My electric broom stopped working. What should I do?

Check if the dust cup is full or the filter is clogged. Also ensure the power cord is properly plugged in. If the problem persists, contact Russell Hobbs support.

Can I use the electric broom on thick carpets?

The RHUV6001 is designed for hard floors and low-pile carpets. For thick carpets, performance may be reduced.

How often should I replace the filter?

The filter is washable and reusable. Replace it every 6-12 months or if it becomes damaged.

Is the dust cup dishwasher safe?

No, hand wash the dust cup with mild soap and water. Do not put it in the dishwasher.

What is the cord length?

The power cord is approximately 5 meters long, allowing a good range of movement.

Where can I buy spare parts?

Spare parts such as filters and brushes are available on the Russell Hobbs website or through authorized retailers.

How do I store the electric broom?

Unplug and wrap the cord around the cord hooks. Store upright in a dry place. Attachments can be clipped to the handle.

Is there a warranty?

Yes, the Russell Hobbs RHUV6001 comes with a 2-year manufacturer's warranty against defects in materials and workmanship.

USER MANUAL RHUV6001 RUSSELL HOBBS

Line drawing of a vacuum cleaner with a hand adjusting its handle, showing a downward arrow and magnified detail (no text or symbols)

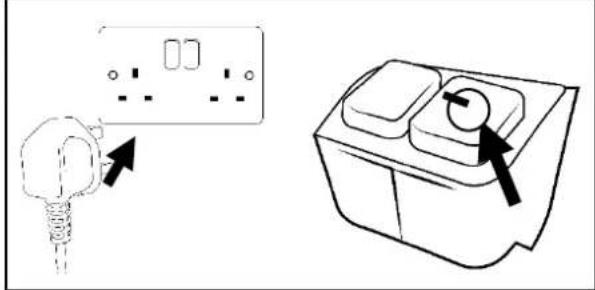

POWERING ON

Diagram showing a plug inserted into a wall socket and a switch with a circular button (no text or symbols)

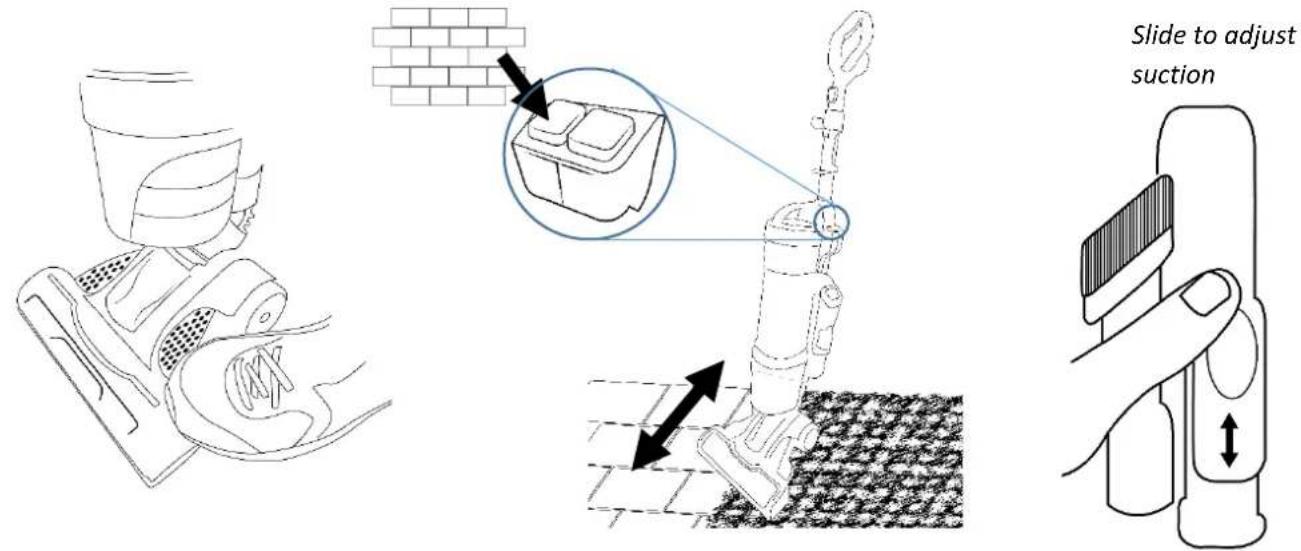

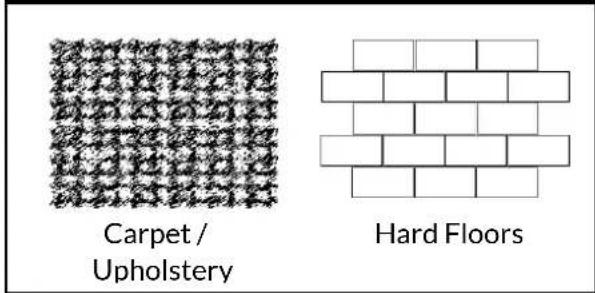

SUITABLE FOR USE

WASH FILTERS

Wash the filters with cold water at least once a month

1

MONTH

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

GUARANTEE

At Russell Hobbs, we take all our customer feedback seriously.

Feel free to contact our Product Care Team, on 0345 209 7461 who will be more than happy to assist you.

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

Refund or replacement is at the discretion of the retailer.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This guarantee does not cover wear and tear, damage, misuse or consumable parts.
• This does not affect your statutory rights.

RUSSELL HOBBS CONTACT DETAILS

Website: https://mda.russellhobbs.com

Telephone: [phone]

Address: Product Care Customer Service, Green Bank Business Park, Hindley Green, Wigan, WN2 4AY

Note your serial number below for future reference.

Empty white rectangle with black border (no text or symbols)

Image for illustration purposes only

REGISTER ONLINE

Visit our website to register your full parts and labour guarantee online.

https://mda.russellhobbs.com

REGISTER BY PHONE

Call our friendly Product Care team.

0345 209 7461

IMPORTANT SAFETY INSTRUCTIONS

• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to electrical parts.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use with damaged cord or plug. Do not run the vacuum cleaner over any cables, or its own power cable. As this will result in damaging the cable.
• This product is intended for household use only. Do not use outdoors.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
• Do not direct at people, animals, electrical outlets, or equipment containing electrical components.
• Do not use this appliance to pick up water or any other liquids, combustible substances or hot/burning objects.
• Unplug from outlet when not in use, and before putting on and taking off parts, and before cleaning. Do not leave unattended whilst plugged in.
• Do not use appliance if it has been dropped, damaged, left outdoors or dropped into water. Do not operate this appliance for anything other than its intended use.
• Keep the appliance and adapter away from water; do not allow it to get wet.
• If unit is wet, do not plug unit into wall socket or turn unit on. Do not immerse in water or other liquids for cleaning. Do not handle the appliance with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, or expose cord to heated surfaces.
• The use of accessory attachments not recommended by the manufacturer may cause fire, electric shock or injury. Only use the accessories supplied by the manufacturer.
• Only use the appliance when fully assembled.
• Never place your fingers or other objects into any part of the appliance. Be aware that loose clothing or hair may become trapped in the cleaner if improperly used.
• Caution: Exhaust air discharged from the sides of the appliance may extinguish a gas fire, pilot light, or disturb ashes in an open fire. Always avoid directing the appliance toward naked flames. Before use, ensure that all of the air vents are clear and there is no restriction of air flow.

OPERATION

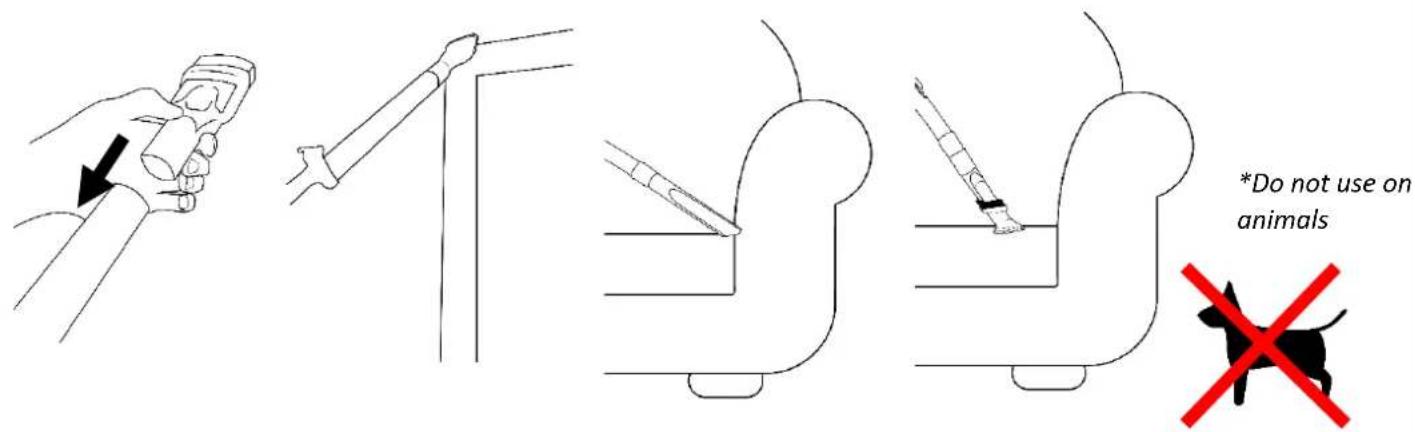

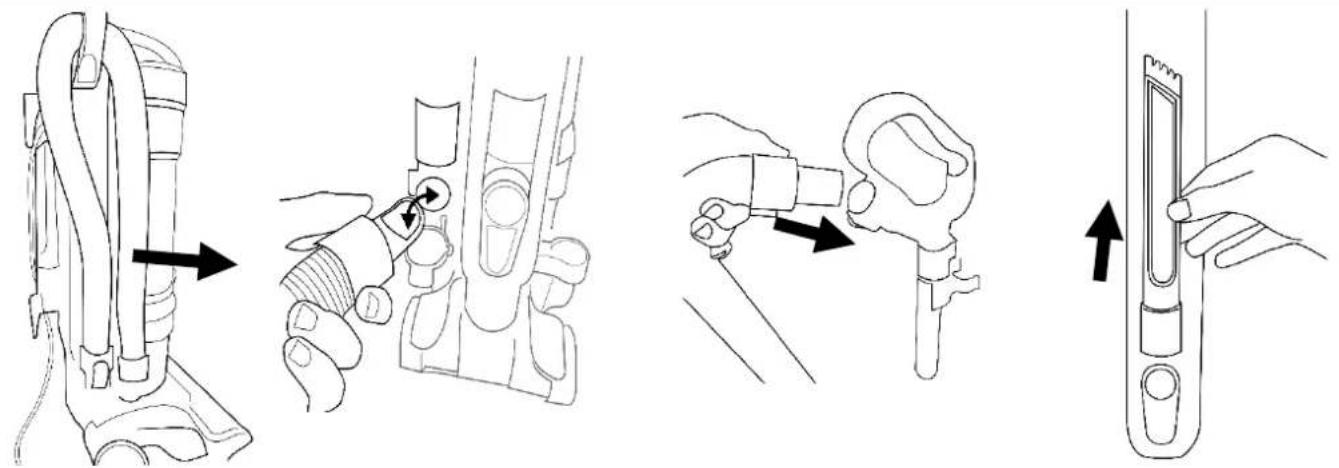

TOOL ATTACHMENTS

TOOL ATTACHMENTS

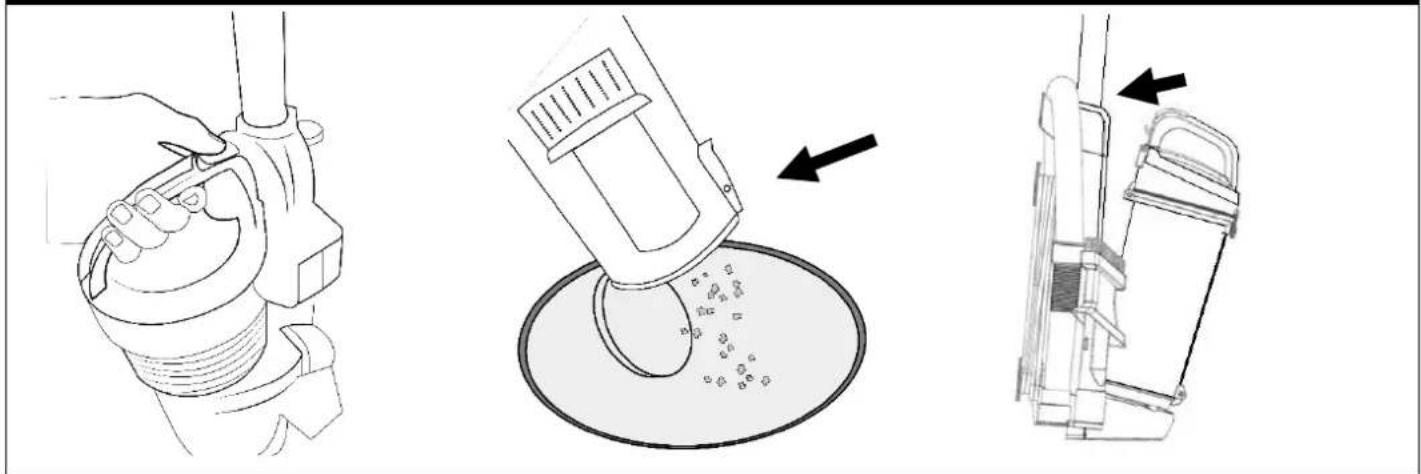

EMPTYING THE BIN

Three-step diagram showing a hand operating a tool, pouring liquid into a container, and finally adding a component (no text or symbols present)

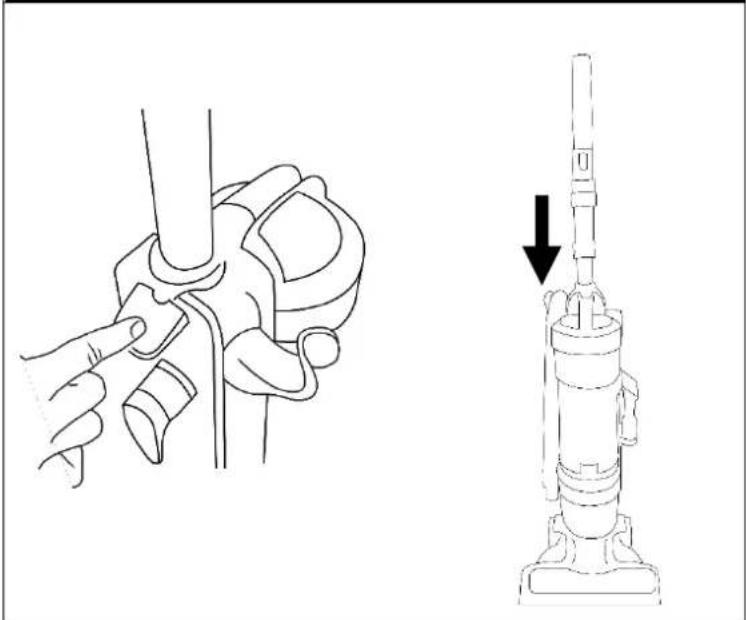

STORING THE VACUUM

Technical illustration showing a hand operating a pipe and a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

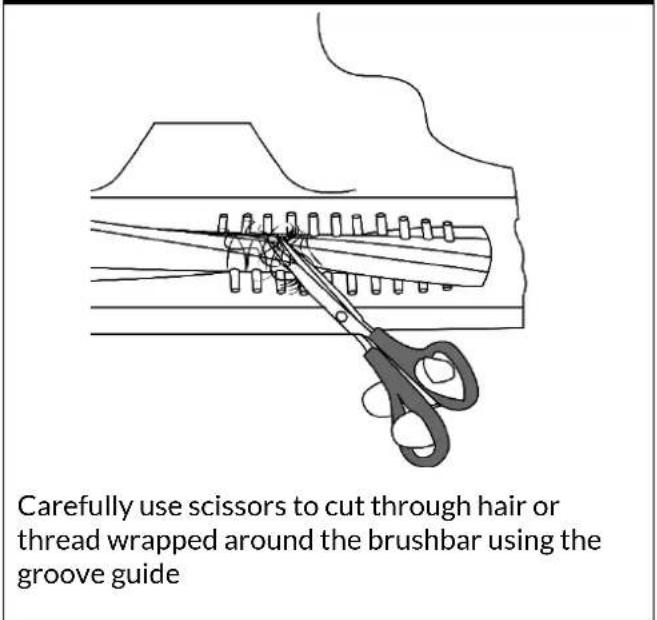

CLEANING THE BRUSH

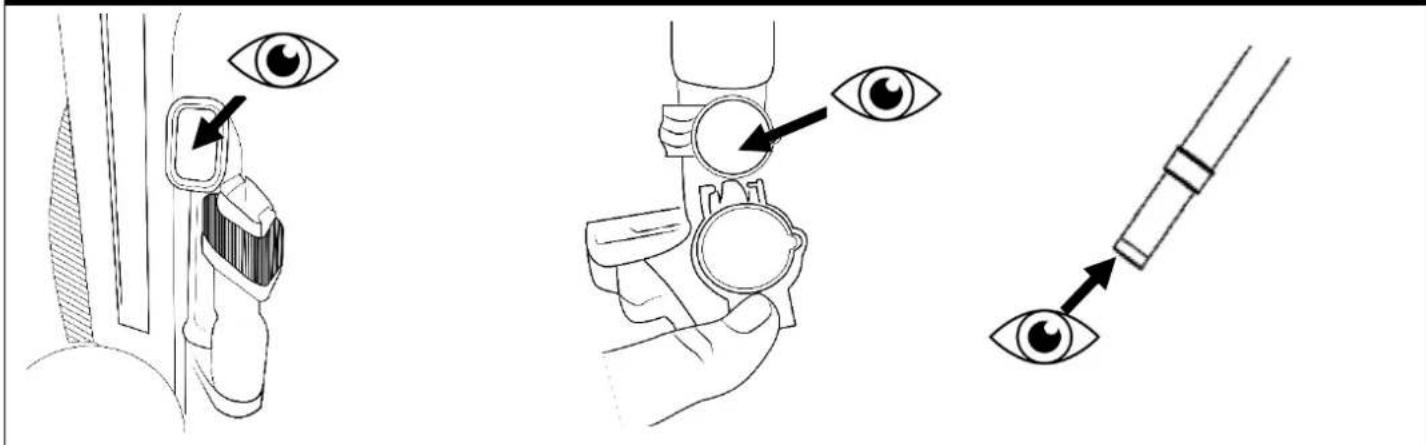

LOOKING FOR BLOCKAGES

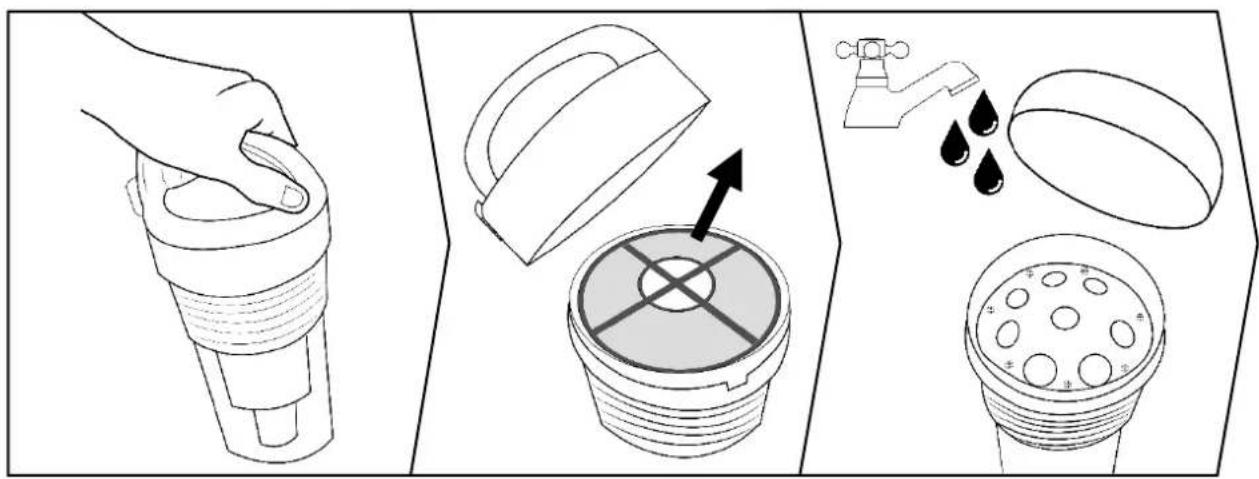

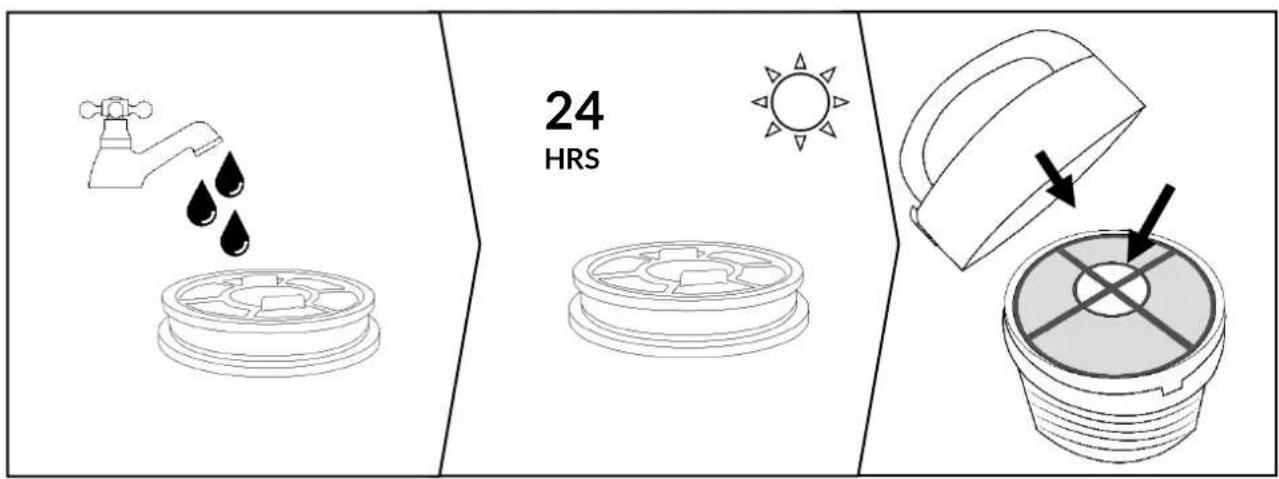

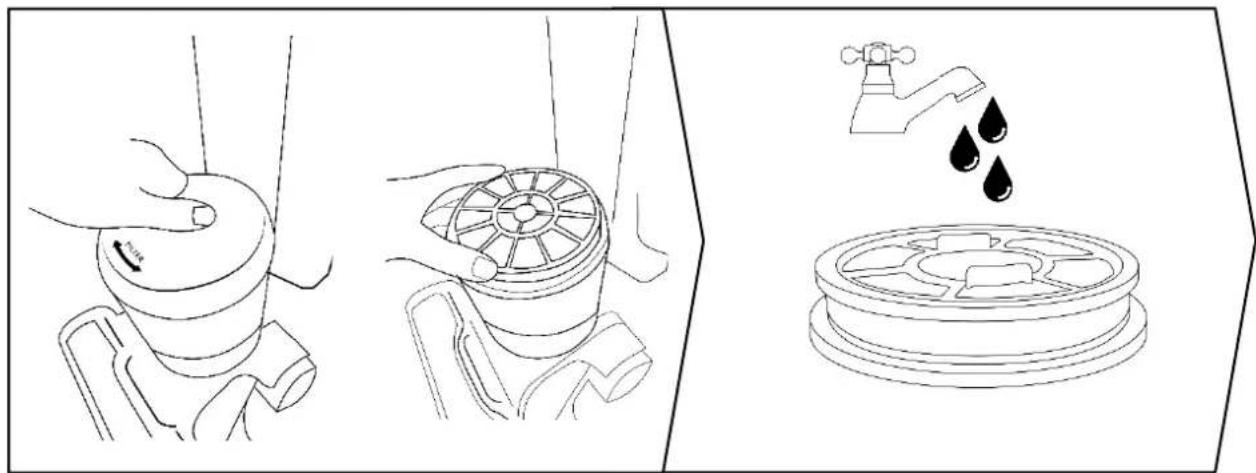

IMPORTANT! WASH

THE FILTERS

Illustration showing three steps of a water filter device: handle, lid with arrow, and drain with drop (no text or symbols)

Illustration showing three different water level control methods: manual pump, fan blade with water drop, and water tap (no text or symbols)

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

WASH FILTERS

Wash the filters with cold water at least once a month

1

MONTH

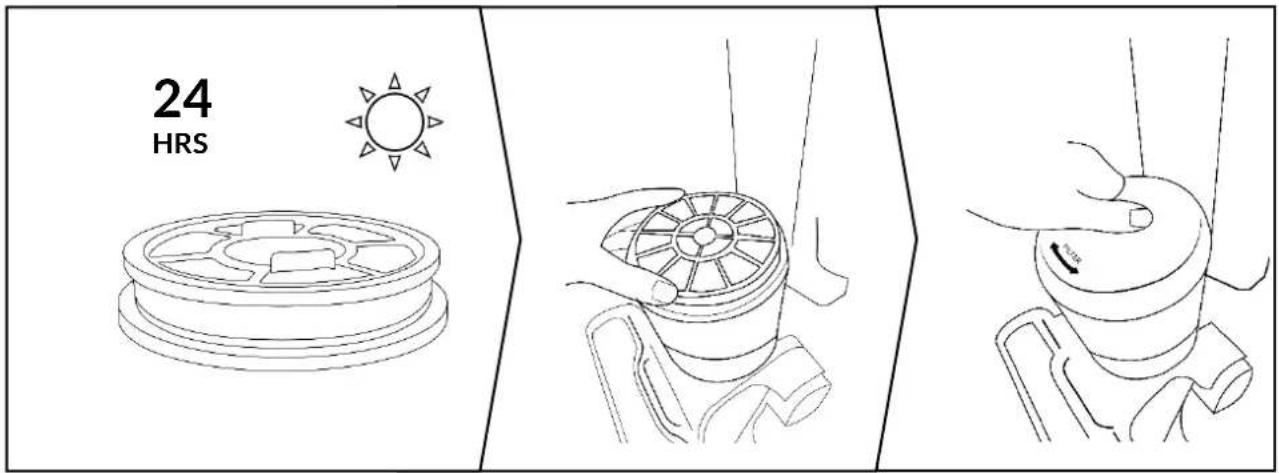

IMPORTANT! WASH

THE FILTERS

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

WASH FILTERS

Wash the filters with cold

water at least once a month

1

MONTH

PROBLEM SOLVING
The vacuum cleaner doesn’t switch on	Check the vacuum is plugged inCheck the socket is switched onCheck another appliance in the socketCheck for any obvious signs of damage to cord or plugIf recently used, allow to cool for 1 hour then try again
The suction is decreasing and dirt is not adequately being picked up	Check if the dust canister is full; if so, empty itClean the filters following the instructions in this manualCheck there are no blockages in the hose, and clear any obstructions
The brushbar has stopped	Press the brushbar buttonCheck the vacuum isn’t in upright & locked positionUnplug & check for hair wrapped around the brushbar
Vacuum cleaner is over heating	Check the filters are clean
Dust is coming out of the vacuum	The dust canister has not been fitted correctly. Refit the canister following the instructions in this manual.Ensure the filters are properly fitted
The air exhausted from the vacuum smells	Clean the filters, hose, and dust container following the instructions in this manual
The vacuum cleaner has cut out	Allow the vacuum to cool for 1 hour. Clean all filters and dust containers before trying to use again.

If you are still experiencing difficulties with the appliance please contact us BEFORE returning the appliance to the retailer it was purchased from:

Website: https://mda.russellhobbs.com

Telephone: [phone]

Address: Product Care Customer Service, Green Bank Business Park, Hindley Green, Wigan, WN2 4AY

IMPORTANT!

WASH FILTERS

Wash the filters with cold water at least once a month The filters may require more frequent washing if vacuuming fine dust

1

MONTH

Russell Hobbs

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

By registering your product you will get an additional year guarantee free of charge. Additional cover can be purchased through the website.

REGISTER ONLINE

Visit our website toregister your full partsand labour guarantee online.

https://mda.russellhobbs.com

REGISTER BY PHONE

Call our friendly Product Care team.

0345 209 7461

NOTES

NOTES

Red oval logo with white stylized letter 'R' and swirl design (no text or symbols)

Russell Hobbs

Russell Hobbs is a registered trademark used under license from Spectrum Brands (UK) Ltd. Made under license by G2S Limited, Wigan, WN2 4AY/G2S (NI) Ltd, Belfast, BT5 5AD

Russell Hobbs Support: call 0345 209 7461 or visit https://mda.russellhobbs.com

UK CA CE

Simple geometric diagram with two concentric squares (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

The ‘wheelie bin’ symbol is known as the ‘Crossed-out wheelie bin Symbol’. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

SEDEX – Connecting businesses and their global suppliers to share ethical data and enabling improvement in ethical performance. Visit www.sedex.org.uk for further information.

We reserve the right, due to possible changes to design, to alter the instruction manual without prior notice.
