Type	Fan heater with adjustable thermostat
Brand	Russell Hobbs
Model	RHRETFH1002G
Power settings	2 heat settings: 1000W / 2000W
Fan only mode	Yes, cool air function
Thermostat	Adjustable thermostat with auto shut-off
Safety features	Overheat protection, tip-over switch
Dimensions (HxWxD)	25.5 x 18.0 x 14.5 cm
Weight	1.2 kg
Power supply	220-240V ~ 50/60Hz
Power cord length	1.5 m
Heat output	2000W max
Heating element	PTC ceramic
Control type	Rotary knob + push buttons
Noise level	~45 dB (low setting)
Color	Black / Grey
Certifications	CE, UKCA
Cleaning	Wipe with dry cloth, do not immerse
Spare parts availability	Contact Russell Hobbs support
Repair index	Not rated
Included accessories	User manual

Frequently Asked Questions - RHRETFH1002G RUSSELL HOBBS

How do I turn on the heater?

Plug into a mains socket, set the thermostat to max, then select the desired heat setting using the power knob (I for 1000W, II for 2000W). The fan will start blowing.

Can I use the heater in a bathroom?

No, this heater is not IP-rated for bathroom use. Keep away from water and moisture.

Why does the heater turn off by itself?

The heater has overheat protection and a tip-over switch. If it overheats or is knocked over, it will auto shut-off. Reset by unplugging for 5 minutes and placing on a level surface.

How do I clean the heater?

Unplug and allow to cool. Use a soft dry cloth to wipe the exterior. Do not use water or cleaning agents. Do not insert objects into the air vents.

Is there a fan-only mode?

Yes, set the heat selection knob to the position marked FAN (usually after off) to use the heater as a cool air fan.

What is the recommended room size?

This 2000W fan heater is suitable for rooms up to 20-25 m² (approx. 215-270 sq ft) with good insulation.

Does it have a timer?

No, this model does not have a built-in timer. It operates continuously until manually turned off or the thermostat reaches the set temperature.

How do I adjust the temperature?

Turn the thermostat knob clockwise to increase the desired temperature. The heater will cycle on/off to maintain the room temperature.

Can I use an extension cord?

Plug directly into a wall socket. If an extension cord is necessary, use a heavy-duty cord rated for at least 13A. Do not overload.

What if the heater emits a burning smell?

On first use, a slight burning odor is normal as manufacturing residues burn off. If persistent, unplug and contact customer support.

USER MANUAL RHRETFH1002G RUSSELL HOBBS

Modern white electric heating fan with a circular top and black ventilation grille, mounted on three legs (no visible text or symbols)

Model Number:

RHRETFH1002G

RHRETFH1002B

220-240V AC 50Hz 2000W

This product is only suitable for well insulated spaces or occasional use

For Customer Services & Spare Parts please call 0345 209 7461

Or visit us at mda.russellhobbs.com

PLEASE RETAIN

FOR FUTURE REFERENCE

CONTENTS

Section	Page Number
Contents	2
Safety Instructions	3-5
Electrical Safety	6
Feature Diagram	7
Using Your Heater	8-9
Cleaning & Care	10
Problem Solving	11
Guarantee	12
Connecting to the Mains	13
Specification	14

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be observed, including the following:

• Read all instructions.
• Check that the mains voltage corresponds with the rating on the appliance.
• This appliance must be positioned upright on the floor away from curtains, furniture or wall coverings and other flammable items.
• The appliance must not be left unattended while it is connected to the mains supply.
• Do not touch hot surfaces. Use the handle or the controls.
• To protect against electrical shock do not immerse cord, plug, or appliance in water or other liquid. Do not operate with wet hands.
• Do not let the cord hang over the edge of a worktop, table etc. or touch hot surfaces.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• The use of accessory attachments not recommended by the appliance manufacturer may cause fire, electric shock or injury.
  • This appliance must not be immersed in any liquid.
• To disconnect remove the plug from the mains outlet. Do not pull the plug out by the cord.
• Never remove parts from the appliance, such as the feet, screws and so on.

SAFETY INSTRUCTIONS

• Never use the appliance near a bath, shower or a swimming pool.
• Never place flammable objects or clothing on top of the appliance.
• Allow a 100cm safe area around the appliance on the top and sides and a 150cm safe area at the front.
• Never use the appliance in a room with explosive gas such as petrol, or while using any kinds of flammable glues, sprays or solvents.
• Prevent overheating of the appliance by keeping the air inlets and outlets clean and free of anything that may cause blockage. Check all inlets and outlets regularly for accumulated dust. DO NOT COVER.
• Do not place any part of your body near the air inlet, outlet or on the fins, to avoid personal injury, electric shock or fire.
• If overheating should occur, the built-in overheating safety device will shut the appliance off.
• Caution: Some parts of this product can become very hot and cause burns. Particular attention must be given when children or vulnerable people are present.
• Do not insert any foreign objects into the grill.
• Keep all grills clear of any draped fabric or curtains.
• The appliance must not be located immediately below a mains socket. Do not use the appliance with a programmer, timer or any other device that switches the appliance on automatically. A fire risk exists if the appliance is covered or positioned incorrectly.
• Do not operate this appliance for any thing other than its intended use.
  • This appliance is not intended for commercial use

SAFETY INSTRUCTIONS

• Do not insert any foreign objects into the ventilation.
• Keep all ventilation clear of any draped fabric or curtains.
• The appliance must not be located immediately below a mains socket. Do not use the appliance with a programmer, timer or any other device that switches the appliance on automatically. A fire risk exists if the appliance is covered or positioned incorrectly.

- Caution: Some parts of this product can become very hot and cause burns. Particular attention must be given when children or vulnerable people are present.

- Do not operate this appliance for anything other than its intended use.

• This appliance is not intended for commercial use.

- This product is intended for household use only. Do not use outdoors.

• This product is only intended for heating.

- Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to electrical parts.

- This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak.

- When scrapping the heater, follow the regulations concerning the disposal of oil.

- Warning: Children should not use this appliance. Close supervision is necessary when any appliances are used near children.

SAFETY INSTRUCTIONS

• This product is intended for household use only. Do not use outdoors.
  • This product is only intended for heating.
• Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to electrical parts.
• Warning: Children should not use this appliance. Close supervision is necessary when any appliances are used near children.
• Warning: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to make sure that they do not play with or use the appliance.
• Warning: In order to avoid overheating, do not cover the heater.

This symbol means "DO NOT COVER"

SAFETY INSTRUCTIONS

Electrical Safety

THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET

• Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 220 - 240V AC; 50Hz. Connection to any other power source may damage the unit.
• This product may be fitted with a non re-wireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
• If the plug has to be changed because it is not suitable for your socket, or becomes damaged in any way, it should be cut off and an appropriate plug fitted. This should be carried out by a qualified electrician. The plug removed must be disposed of safely, as insertion into a 13 Amp socket is likely to cause an electrical hazard.

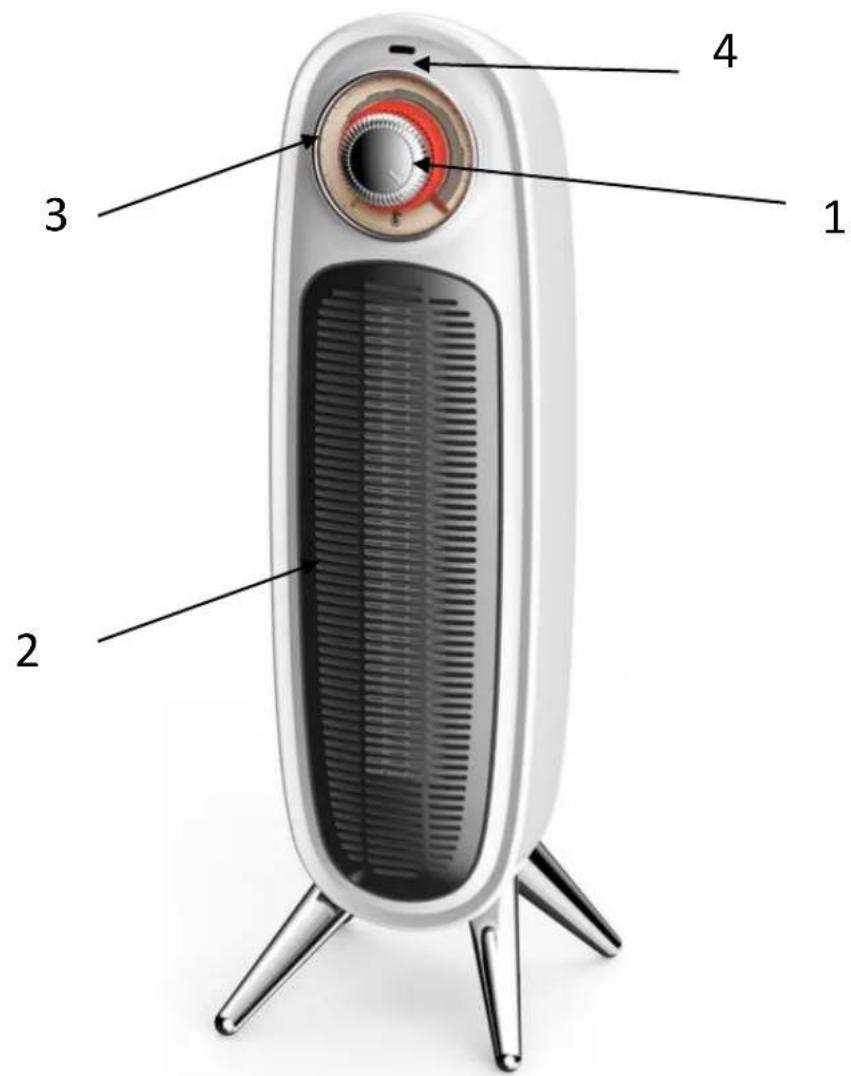

FEATURE DIAGRAM

1. Power/Heat Control Dial
2. Air outlet
3. Thermostat Control Dial
4. Power Indication Light

USING YOUR HEATER

1. Before connecting to the mains socket, position the appliance away from curtains, furniture or wall coverings and other flammable materials.
2. Insert the mains plug into a suitable 13 Amp mains socket.
3. To activate the heater, turn the power control dial clock wise to the fan icon ' for cool air, the ' setting for the low heat setting (1200W) and to the ' setting for the maximum heat setting (2000W).
4. Turn the Thermostat Control clockwise to increase the temperature.

Note: this appliance will not operate if the thermostat has been set too low.

Note: If the thermostat dial is set toward the highest setting and the power control is set to off then the indicator light will not stay illuminated. No heat will be emitted as the power to the heating elements is off.

USING YOUR HEATER

Safety Protective Devices

The appliance is fitted with an over heat protection system and a tip over switch.

- Overheat protection - the power to the heating elements will automatically cut off if the temperature of the heating elements exceeds a certain limit. In the event of overheating, the heater will stop operating. Switch the appliance off and allow it to completely cool.

- Tip over switch - The unit needs to be placed on a flat and firm surface to ensure that the tip over switch is balanced. If in the event that the unit tips over or is placed on an uneven or soft surface the fan will not operate as the tip over switch will be activated and the appliance will cut out.

- Note: the safety tip over switch is housed within the product. When the product is moved you will hear the tip over switch moving. It will make a rattling noise but please note this is normal.

CLEANING AND CARE

WARNING

Before you clean the appliance, disconnect the mains plug from the wall socket.

• Allow the appliance to cool down completely before cleaning.
• Do not immerse cord, plug or appliance in any liquid or allow moisture to come into contact with electrical parts.
• Clean the outer surface using a moist cloth and wipe over with a dry, soft cloth.
• Do not use harsh detergents, abrasives or spray on cleaners.
• Don’t allow water to seep into the openings or come into contact with electrical connections.
• Allow sufficient drying time before operating again.
• Clean the air inlets and outlets regularly with a vacuum cleaner using the brush attachment (with regular use, at least twice a year).
• When the appliance is not in use. We recommend that, the heater is re-packed in its original packaging and stored in a cool, dry place.

PROBLEM SOLVING

My appliance does not work when I turn it on:

• Check that your appliance is plugged in and the power is turned on at the mains socket.
  • Try another mains socket.
• Check the appliance is in an upright position.
• Check that the thermostat setting has not been set too low.
• If the appliance still doesn’t work, do not try to repair it yourself.
• Check the tip over switch has not activated by lifting the appliance up and rotating it before placing the feet on a firm and flat surface

If your appliance power is automatically cut off, follow the step below:

• Unplug your appliance from the mains socket and allow it to completely cool down.
• Inspect your appliance. Clean the air inlet and air outlet with a vacuum cleaner if necessary. If there are any signs of physical damage (e.g. melting, or burning of the case), do not attempt to use the appliance. Please leave all maintenance work to qualified personnel.
• Plug in the appliance and switch it on again. If it cuts off again, move the appliance to a better ventilated location.

GUARANTEE AND CUSTOMER SERVICES

At Russell Hobbs, we take all our customer feedback seriously.

Feel free to contact our Customer Service Team, on 0345 209 7461, who will be more than happy to assist you.

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

Refund or replacement is at the discretion of the retailer.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or consumable parts.

This does not affect your statutory rights.

For Customer Services & Spare Parts please call 03452097461 Or visit us at mda.russellhobbs.com

CONNECTION TO THE MAINS SUPPLY

This appliance is designed to operate from a mains supply of 220-240V\~50Hz/60Hz.

Check that the voltage marked on the product corresponds with your supply voltage.

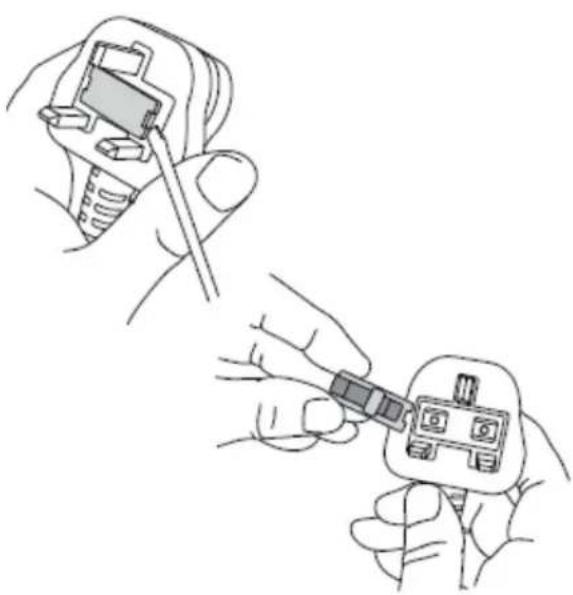

How to change the fuse

1. Slot the end of a screwdriver into the recess in the fuse holder of the plug.
2. Pull the fuse holder upwards until free of the plug and slide the fuse out.
3. Replace the fuse and replace fuse holder, pushing down until locked into place.

Important: Only ever use a 10 amp fuse.

Illustration of hands using a screwdriver to adjust or install an electrical plug (no text or symbols present)

SPECIFICATION

Model number	RHRETFH1002B, RHRETFH1002G
Item Symbol Value Unit Item Unit
Heat output					Type of heat input, for electric storage local space heaters only
Nominal heat output	Pnom 2.0 kW				manual heat charge control, with integrated thermostat	No
Minimum heatoutput (indicative)	Pmin 1.2 kW				manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c 2.0 kW				electronic heat charge control with room and/or outdoor temperature feedback	No
					fan assisted heat output	No
Auxiliary electricity consumption					Type of heat output/room temperature control
At nominal heat output	elmax N/A kW				single stage heat output and no room temperature control	No
At minimum heat output	elmin N/A kW				Two or more manual stages, no room temperature control	No
In standby mode	elSB 0	kW			with mechanic thermostat room temperature control	No
					with electronic room temperature control	No
					electronic room temperature control plus day timer	No
					electronic room temperature control plus week timer	No
					Other control options (multiple selections possible)
					room temperature control, with presence detection	No
					room temperature control, with open windowdetection	No
					with distance control option	No
					with adaptive start control	No
					with working time limitation	No
					with black bulb sensor	No
Contact details	G2S Limited, Wigan, WN2 4AY
	G2S (NI) Ltd, Belfast, BT5 5AD
