USER MANUAL SYNCMASTER 214T SAMSUNG

Safety Instructions Introduction Setup Adjusting Your Monitor Troubleshooting Specifications Information MagicTune™ MagicBright Natural Color MagicRotation Regulatory Manual Reader

SyncMaster 214T

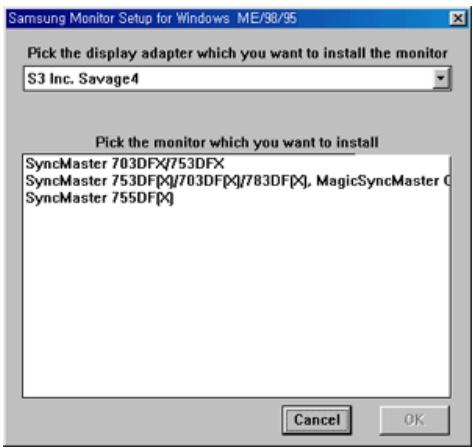

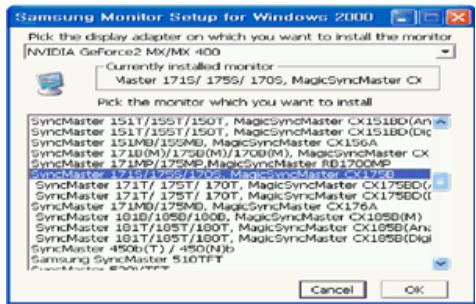

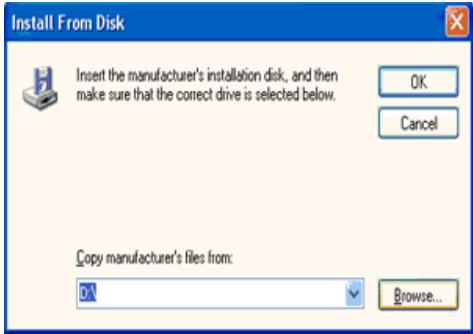

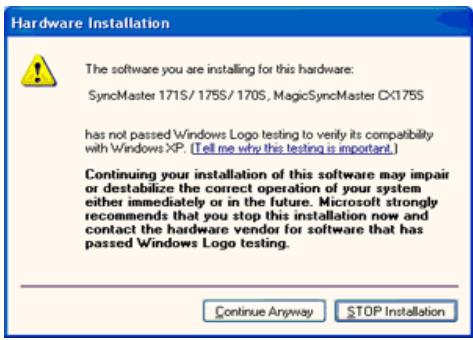

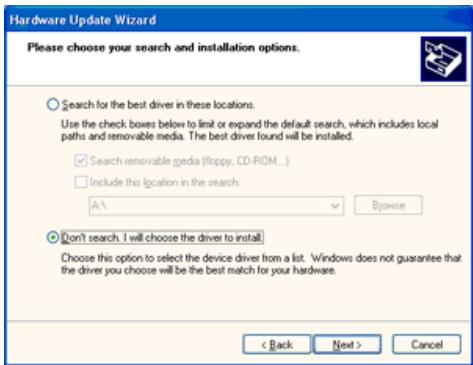

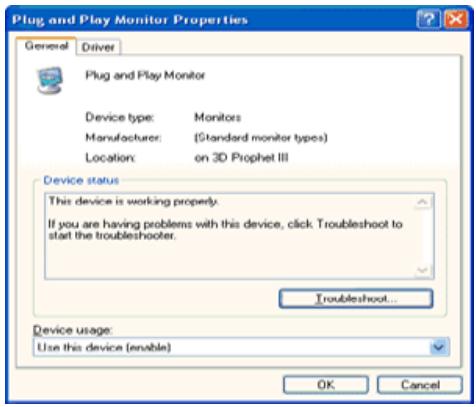

Install drivers

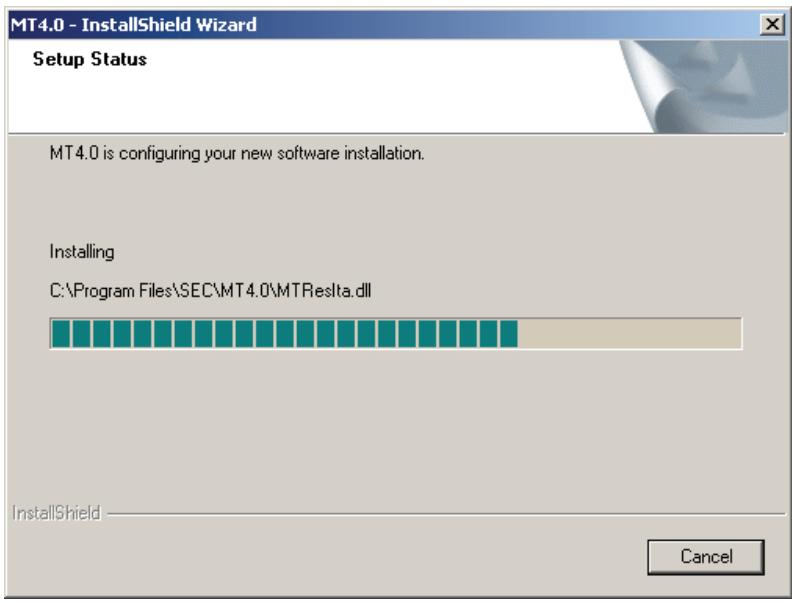

Install programs

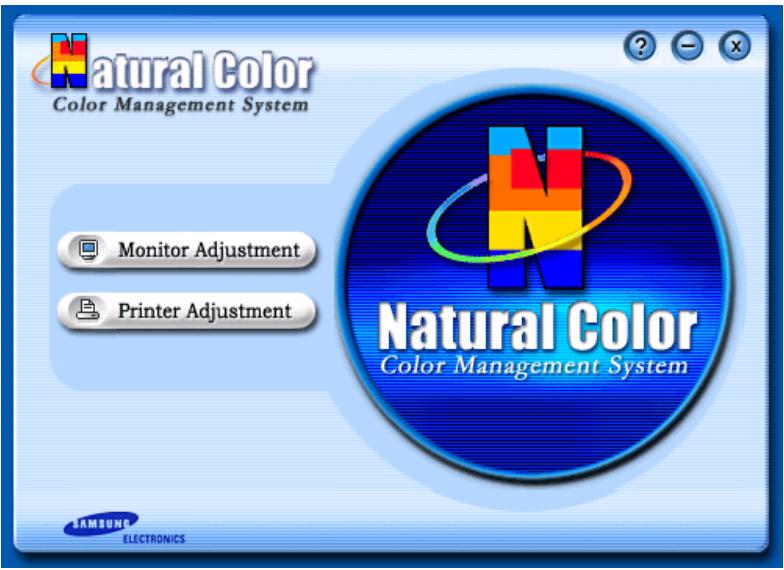

Natural Color

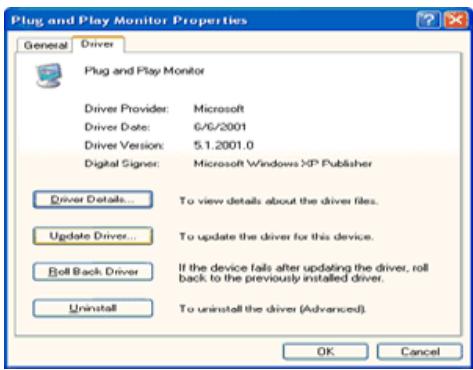

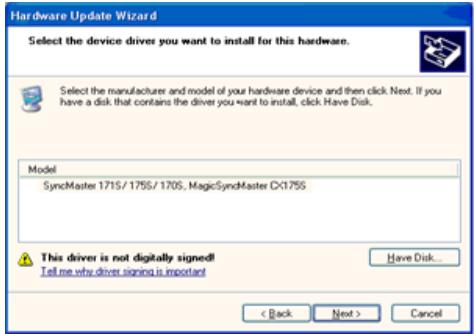

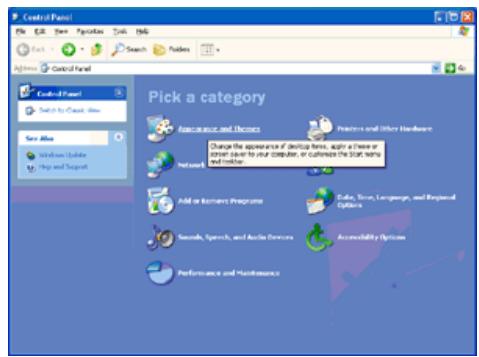

Windows 2000 Microsoft Windows xp MagicTune MagicTune™

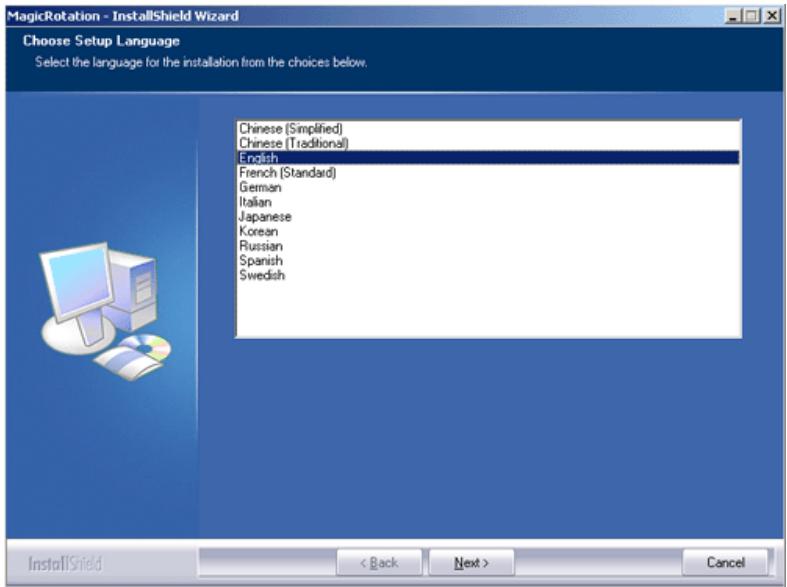

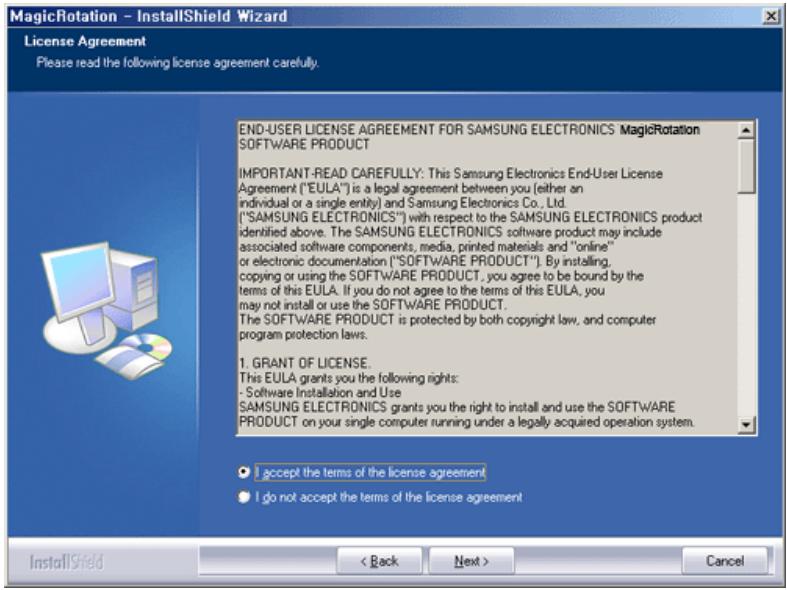

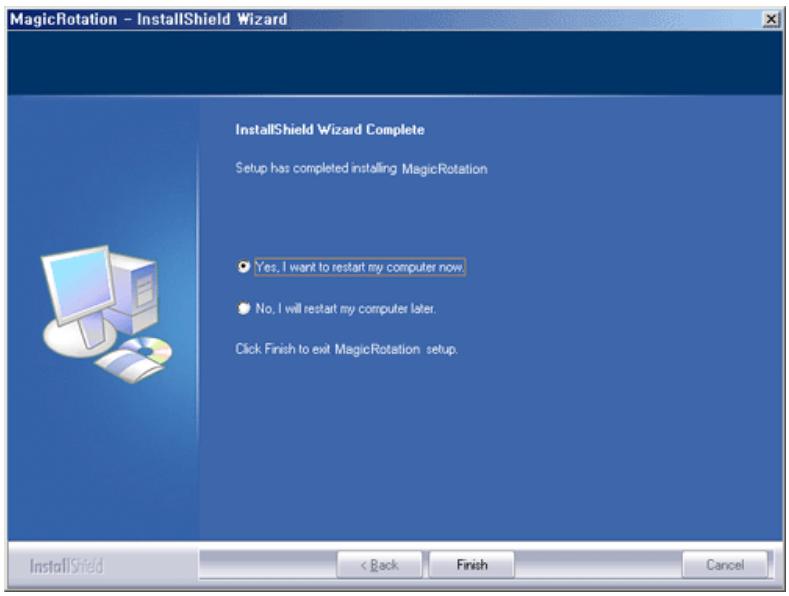

MagicRotation Windows
MagicRotation Windows 200

SAMSUNG ELECTRONICS SAMSUNG DIGITALL everyone's invited™

Safety Instructions ■ Introduction ■ Setup ■ Adjusting Your Monitor ■ Troubleshooting ■ Specifications ■ Information

Notational

Power

Installation

Clean

Others

Notational

Please read the following safety instructions as they are designed to prevent damage to property and harm to the user.

! Warning / Caution

Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment.

Notational Conventions

Prohibited

Important to read and understand at all times

Do not disassemble

Disconnect the plug from the outlet

Do not touch

Grounding to prevent an electric shock

Notational

Power

Installation

Clean

Others

Power

When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to the active screen mode.

Do not use a damaged or loose plug.

- This may cause an electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

• This may cause an electric shock or fire.

Use only a properly grounded plug and receptacle.

- An improper ground may cause electric shock or equipment damage.

Insert the power plug firmly so that it does not come loose.

- A bad connection may cause fire.

Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.

- This may cause an electric shock or fire.

Do not connect too many extension cords or plugs to an outlet.

• This may cause fire.

Notational

Power

Installation

Clean

Others

Installation

Be sure to contact an authorized Service Center when installing your set in a location with heavy dust, high or low temperatures, high humidity, and chemical substances, or where it will be operated for 24 hours continuously such as an airport, train station or etc.

Failure to do so may cause serious damage to your set.

- Put your monitor in a location with low humidity and a minimum of dust.

- Failure to do so may cause an electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

- This may cause damage to the product or human body.

Install the monitor base in a showcase or shelf so that the end of the base does not protrude from the showcase or shelf.

- Dropping the product may cause damage to the product or personal injury.

Do not place the product on an unstable or small surface area.

- Place the product on an even, stable surface, as the product may fall and cause harm to someone walking by, specifically children.

Cartoon illustration of a computer monitor with a sad face and a surprised cat, no text or symbols present

Do not place the product on the floor.

- Someone, specifically children could trip over it.

Illustration of a computer monitor with a sad face and warning symbols (no text or labels)

- Keep any flammable objects such as candles, insecticides or cigarettes away from the product.

- Otherwise, this may cause a fire.

- Keep any heating devices away from the power cable.

- A melted coating may lead to electric shock or fire.

Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc.

- Any increase in internal temperature may cause fire.

Set down the monitor carefully.

- The monitor could be damaged or broken.

Do not place the monitor face down.

- The TFT-LCD surface may be damaged.

Installing a wall bracket must be done by a qualified professional.

• Installation by unqualified personnel may result in injury.
- Always use the mounting device specified in the owner's manual.

Cartoon illustration of a computer monitor with a smiling face and a blue exclamation mark (no text or symbols)

When installing the product, make sure to keep it away from the wall (more than 10cm/4inch) for ventilation purposes.

- Poor ventilation may cause an increase in the internal temperature of the product, resulting in a shortened component life and degraded performance.

Notational

Power

Installation

Clean

Others

Clean

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft fabric.

Do not spray water or detergent directly on the monitor.

- This may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

- If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.

- A dirty connector may cause an electric shock or fire.

Make sure to unplug the power cord before cleaning the product.

- Otherwise, this may cause electric shock or fire.

Cartoon illustration of a smiling computer monitor with a hand holding a magnifying glass, connected to a cable and a globe icon (no text or symbols)

- Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth.

- Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent.

Contact the Service Center or Customer Center for interior cleaning once a year.

- Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause malfunction or fire.

Notational

Power

Installation

Clean

Others

Others

Do not remove cover (or back).

• This may cause an electric shock or fire.
- Refer servicing to qualified service personnel.

If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service center.

• This may cause an electric shock or fire.

Illustration of a cartoon apple character on a computer monitor with raindrops falling, no text or symbols present

- Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle.

• This may cause malfunction, an electric shock or fire.
• Especially avoid operating the monitor near water or outdoors where the monitor could be exposed to snow or rain.

Cartoon illustration of a computer monitor with a sad face and a pointing hand, showing a warning sign (no text or symbols present)

If the monitor is dropped or the casing is damaged, turn the monitor off and unplug the power cord. Then contact the Service Center.

- The monitor may malfunction, causing an electric shock or fire.

- Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time.

- Failure to do so may cause an electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal cable.

- This may cause a breakdown, electric shock or fire due to damage to the cable.

Do not move the monitor right or left by pulling only the wire or the signal cable.

- This may cause a breakdown, electric shock or fire due to damage to the cable.

Do not cover the vents on the monitor cabinet.

- Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects on the monitor.

- This may cause malfunction, an electric shock or fire.

- If a foreign substance enters the monitor, unplug the power cord and contact the Service Center.

- Keep the product away from combustible chemical sprays or inflammable substances.

• This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

- This may cause an electric shock, fire or injury.

Cartoon illustration of a computer monitor character with expressive faces and tools (no text or symbols)

Do not insert metal objects such as chopsticks, wire and gimlet or inflammable objects such as paper and match into the vent, headphone port or AV ports.

- It may cause a fire or an electric shock. If an alien substances or water flows into the product, turn the product off, unplug the power connector from the wall outlet and contact Service Center.

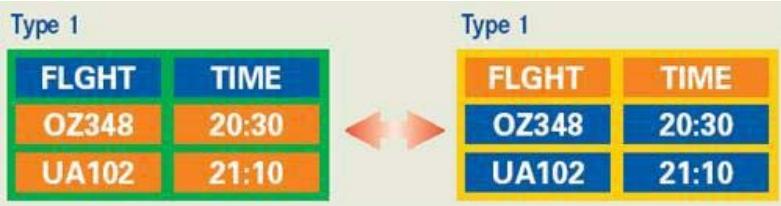

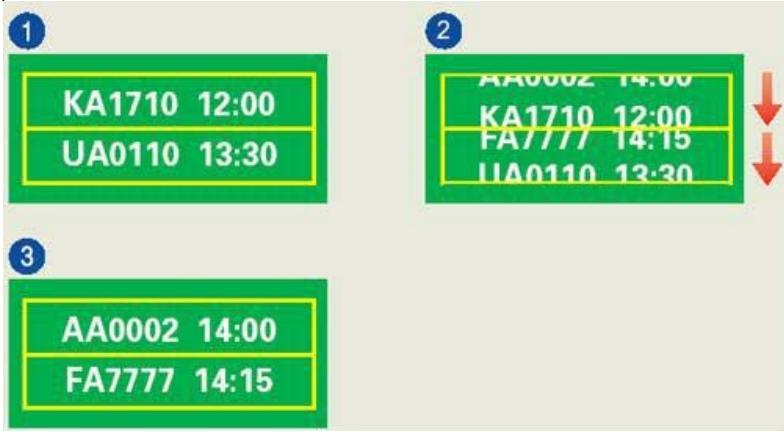

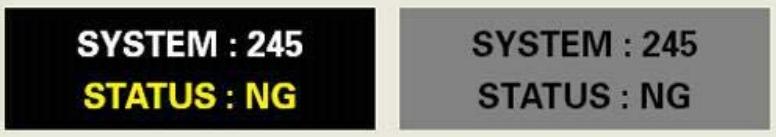

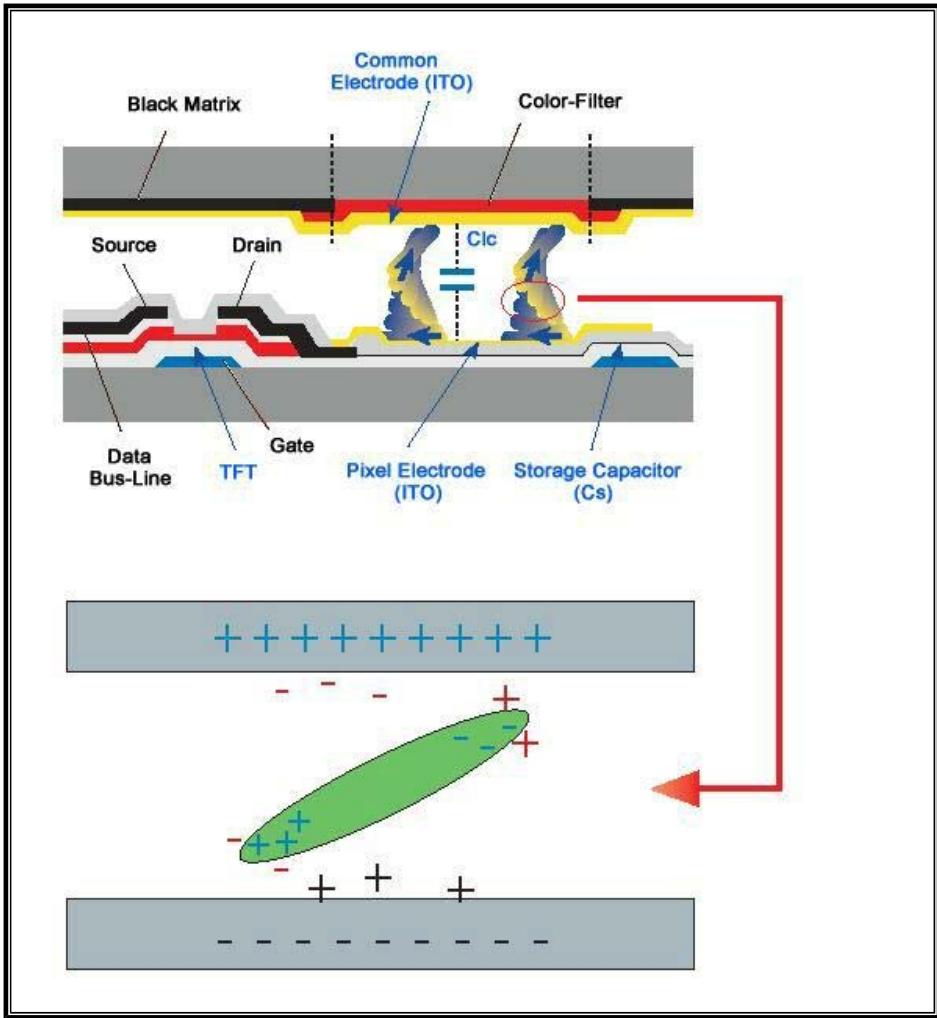

If you view a fixed screen for an extended period of time, residual image or blurriness may appear.

- Change the mode to energy save or set a screensaver to moving picture when you need to be away from the monitor for an extended period of time.

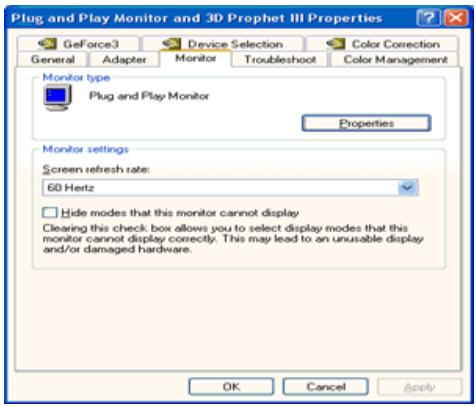

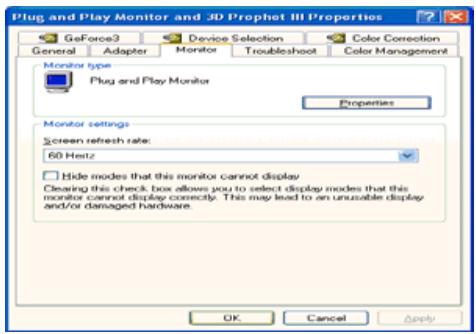

Adjust the resolution and frequency to the levels appropriate for the model.

- Inappropriate resolution may cause undesirable picture quality.

21 inch (54cm) - 1600 X 1200 @ 60 Hz

- Watching the monitor continuously at a too close angle may result in eyesight damage.

To ease eye strain, take at least a five-minute break after every hour of using the monitor.

Do not install the product on an unstable, uneven surface or a location prone to vibrations.

- Dropping the product may cause damage to the product or personal injury. Using the product in a location prone to vibrations may shorten the lifetime of the product or may catch fire.

When moving the monitor, turn off and unplug the power cord. Make sure that all cables, including the antenna cable and cables connected to other devices, are disconnected before moving the monitor.

- Failure to disconnect a cable may damage it and lead to fire or an electric shock.

Place the product out of children's reach, as they could damage it by hanging onto it.

- A falling product could cause physical damage even death.

When not using the product for an extended time period, keep the product unplugged

- Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, leading to electric shock or fire.

Do not place children's favorite objects (or anything else that may be tempting) on the product.

- Children may try to climb on the product to retrieve an object. The product could fall, causing physical damage or even death.

SAMSUNG ELECTRONICS SAMSUNG DIGITALL everyone's invited™ ■ Safety Instructions ■ Introduction ■ Setup ■ Adjusting Your Monitor ■ Troubleshooting ■ Specifications ■ Information

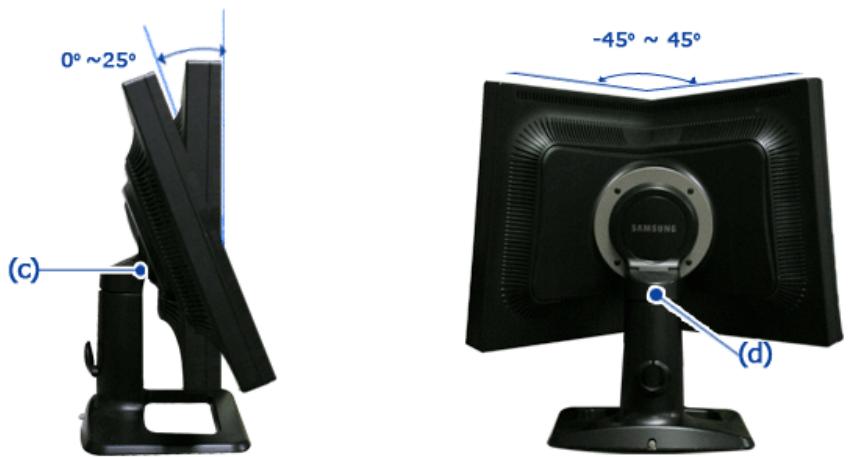

HAS Stand : Height Adjustable & Pivot Stand (214T : 100mm)
PIP/PBP : Uses MagicTune to adjust PIP for the best viewing position

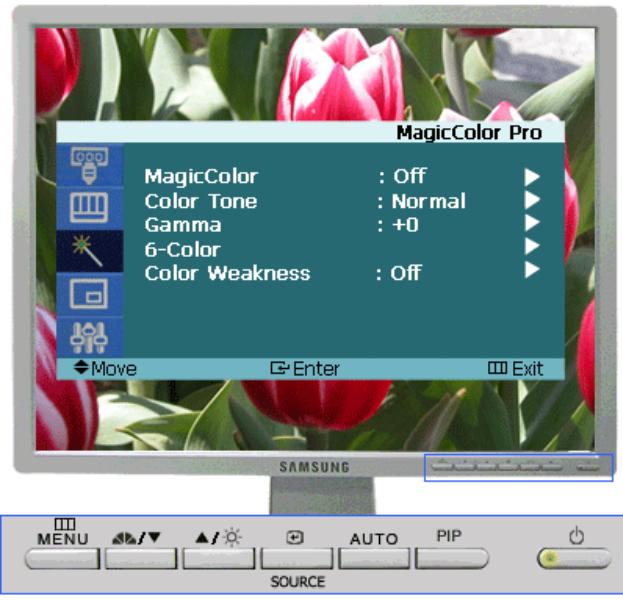

Adopts MagicColor Pro to make adjustments of a variety of colors at an expert level
Color Weakness : Enables those with color weakness to view the screen as easily as those with normal vision.

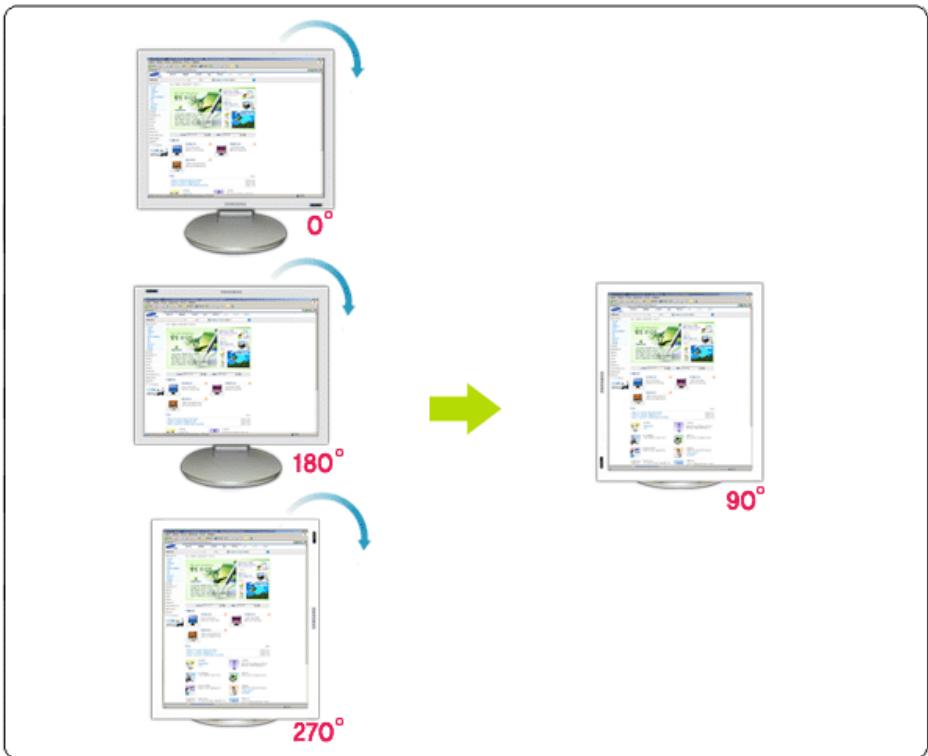

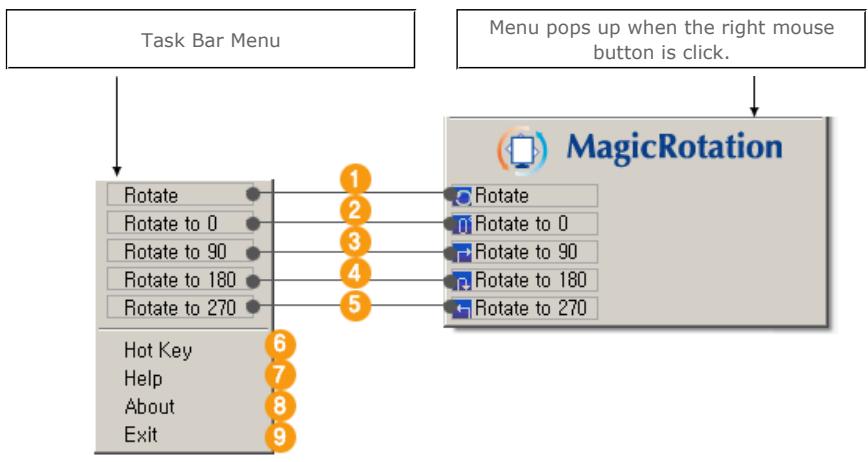

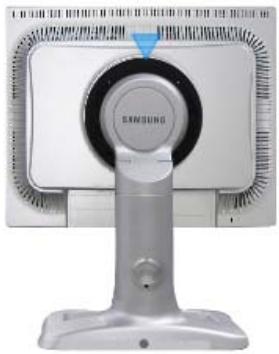

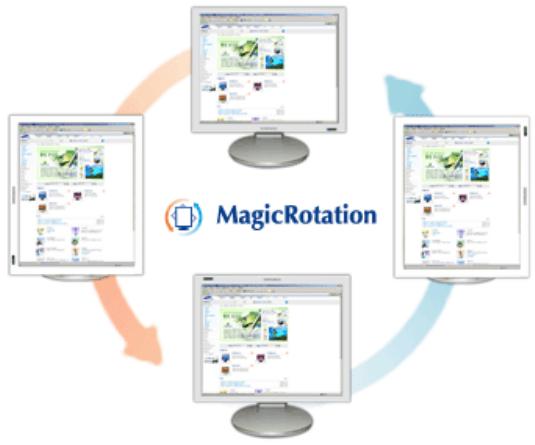

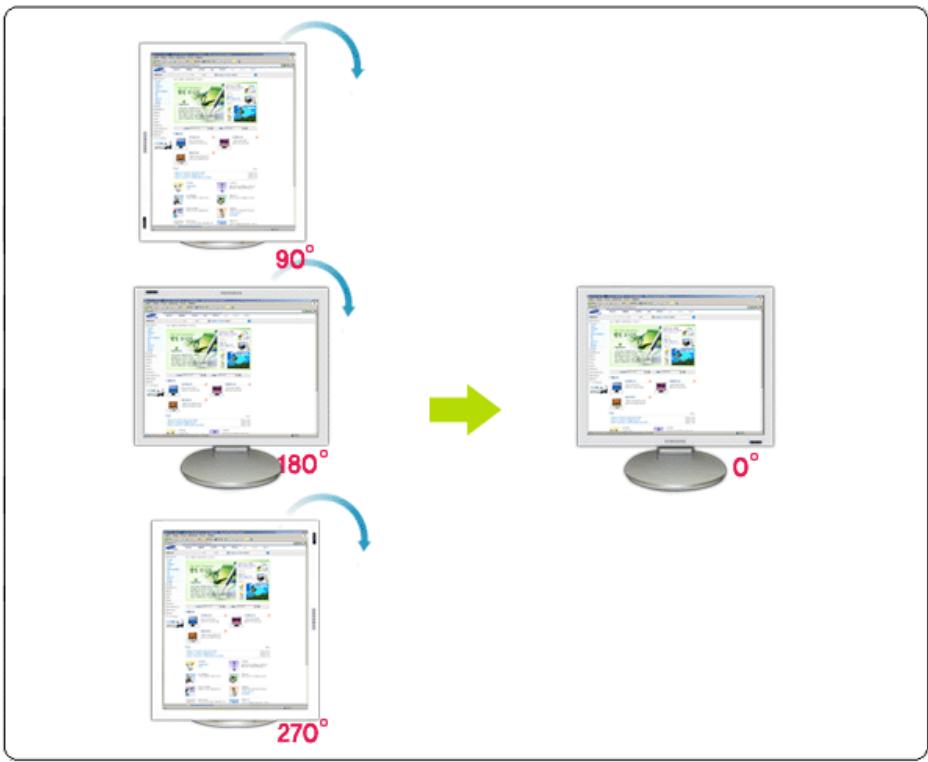

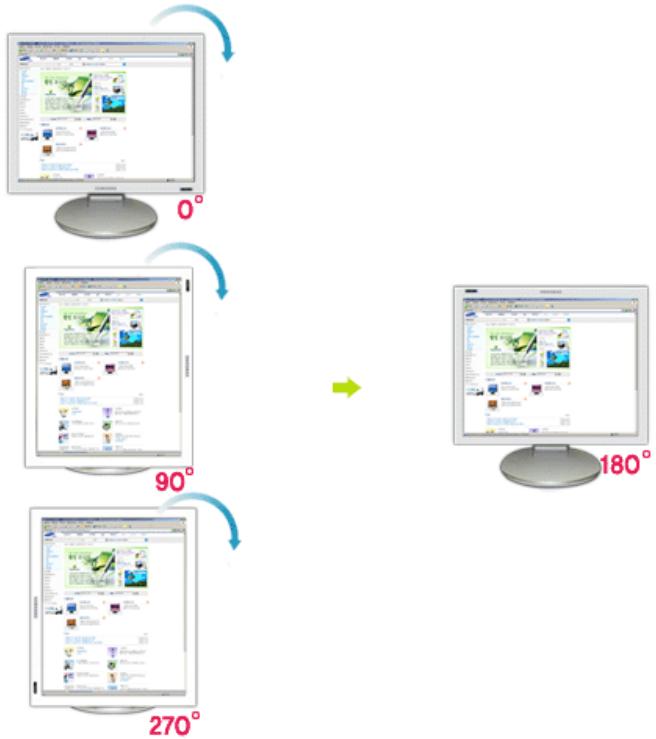

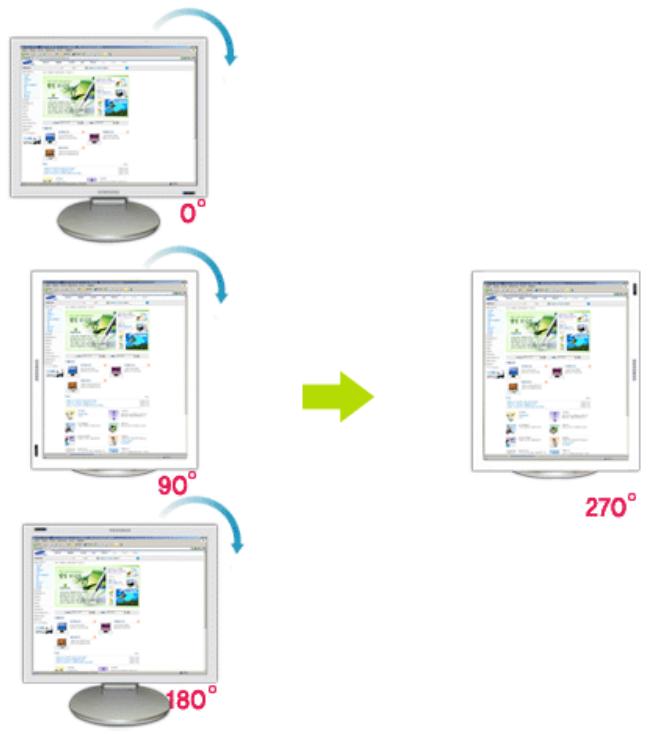

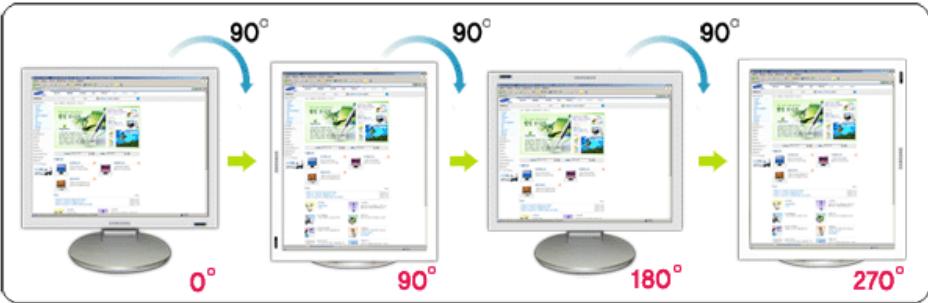

Auto Rotation applied (Implemented by MagicRotation)

SyncMaster 214T

Unpacking

Front

Rear

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

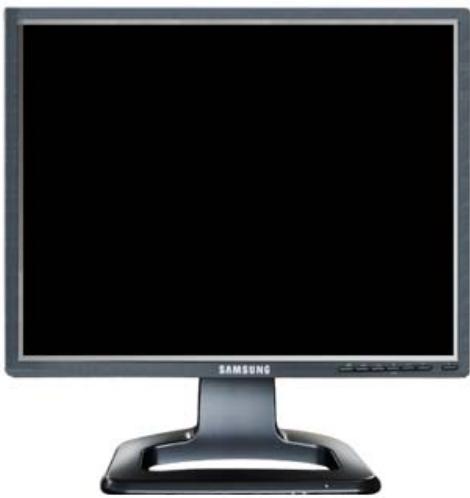

Front view of a Samsung computer monitor with a black stand and control buttons (no visible text or symbols on the screen)

Monitor

Manual

Quick Setup Guide

Warranty Card (Not available in all locations)

User's Guide, Monitor Driver, Natural Color, MagicTune™, MagicRotation software

Cable

D-sub Cable

Power Cord

DVI Cable

Sold separately

S-Video Cable

Set-Bracket

Video Cable

Screws (4EA)

Unpacking

Front

Rear

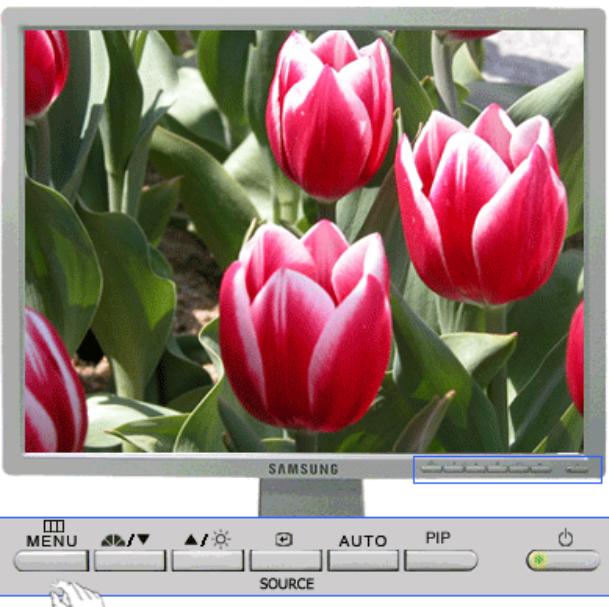

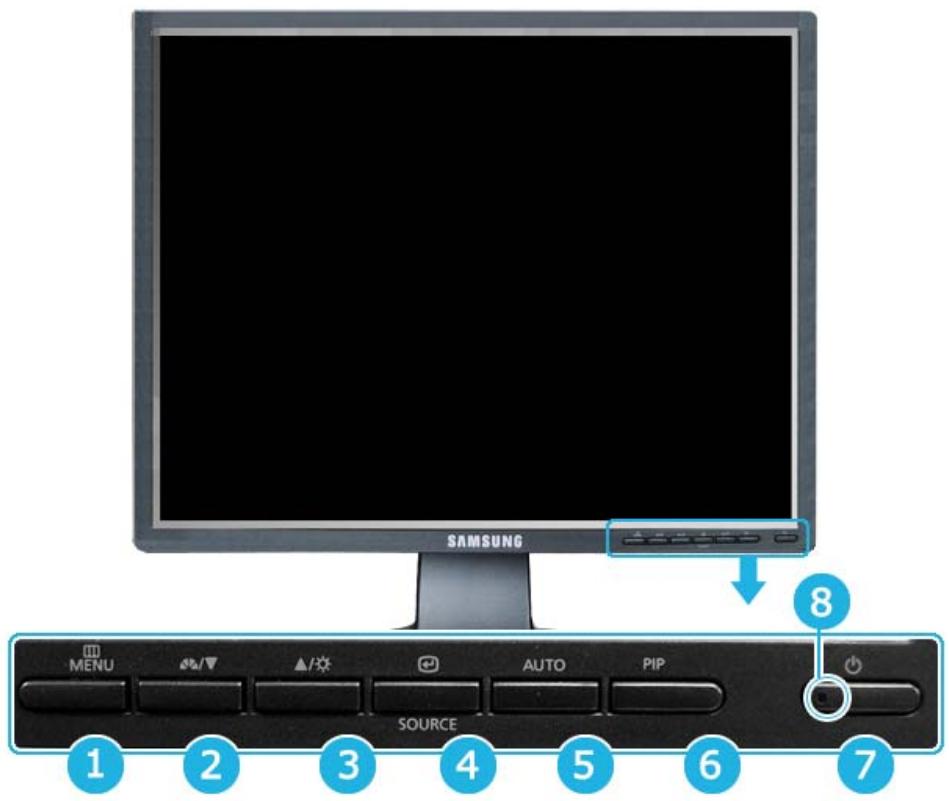

Front

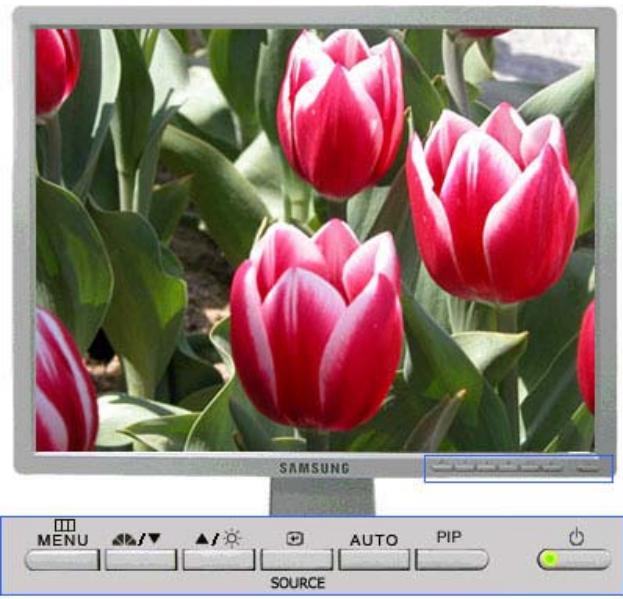

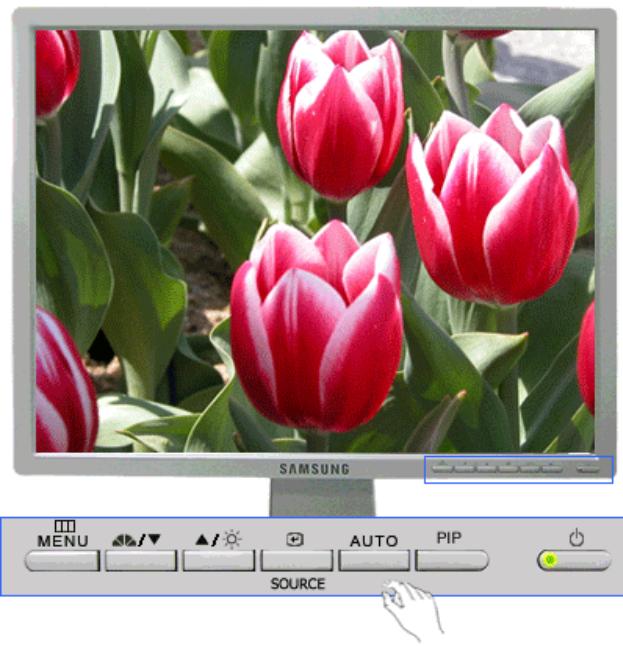

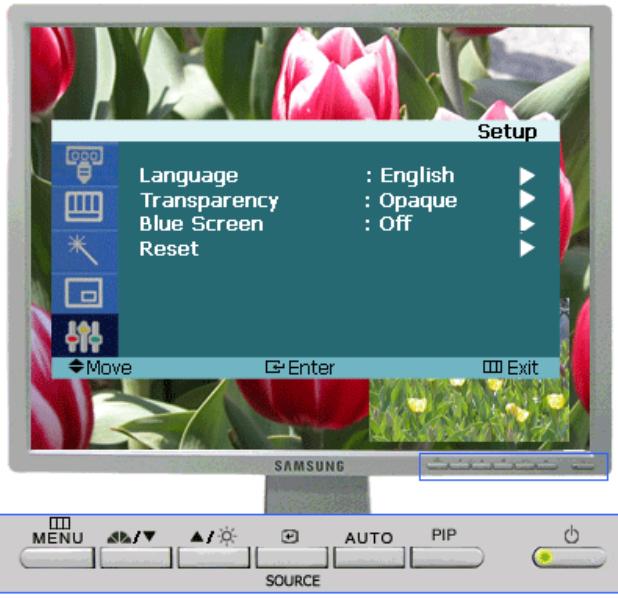

SAMSUNG MENU SOURCE 1 2 3 4 5 6 7 AUTO PIP 8

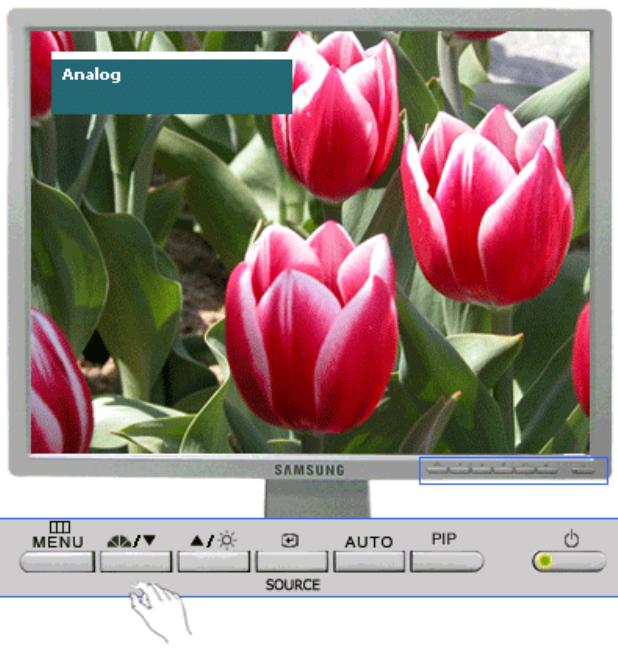

1 MENU button [☐]
2 3 Adjust buttons [▼/▲]
2 Analog/Digital(PC) : MagicBright™ button [▲▲]

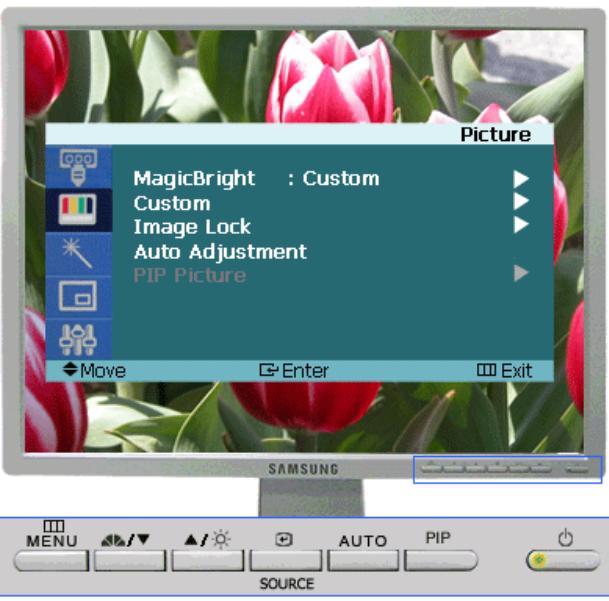

Opens the OSD menu.

Also use to exit the OSD menu or return to the previous menu.

These buttons allow you to adjust items in the menu.

MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of the image you are watching. Currently four different modes are available: Custom, Entertain, Internet, and Text. Each mode has its own pre-configured brightness value. You can easily select one of four settings by simply pressing MagicBright™ control buttons.

1) Custom

Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. If this is the case, adjust the brightness and contrast by using the OSD menu.

2) Entertain : High brightness

For watching motion pictures such as a DVD or Video CD.

3) Internet : Medium brightness

For working with a mixture of images such as text and graphics.

4) Text : Normal brightness

For documentations or works involving heavy text.

Click here to see an animation clip

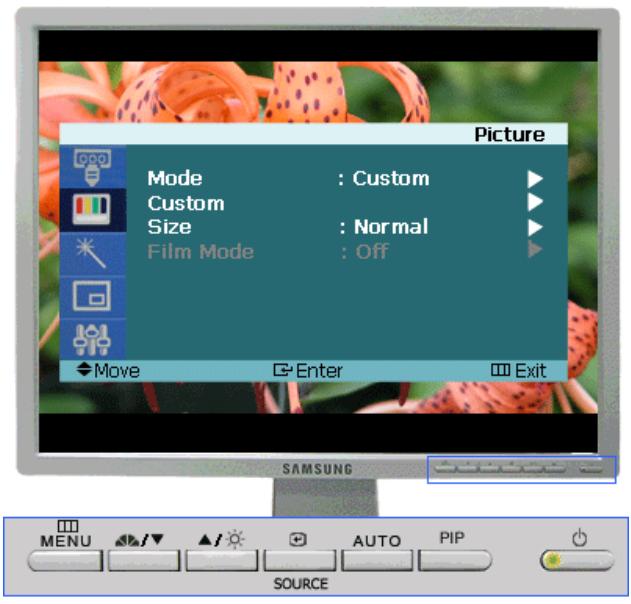

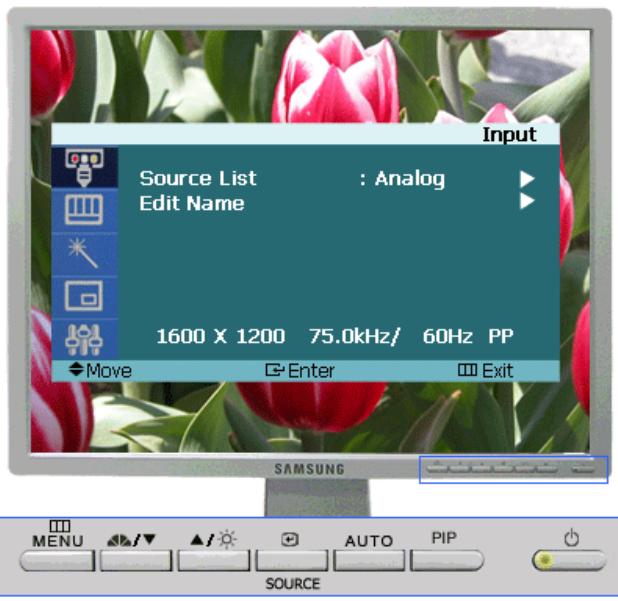

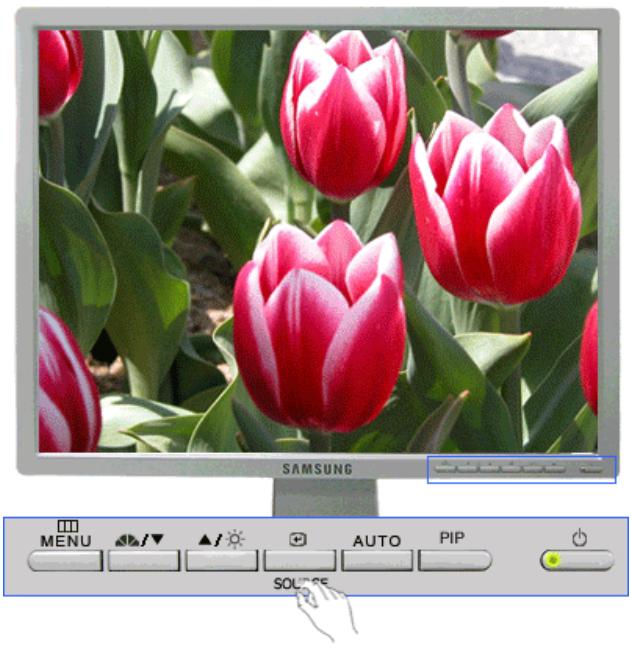

Digital(DVD)/Video

/S-Video :

Mode button

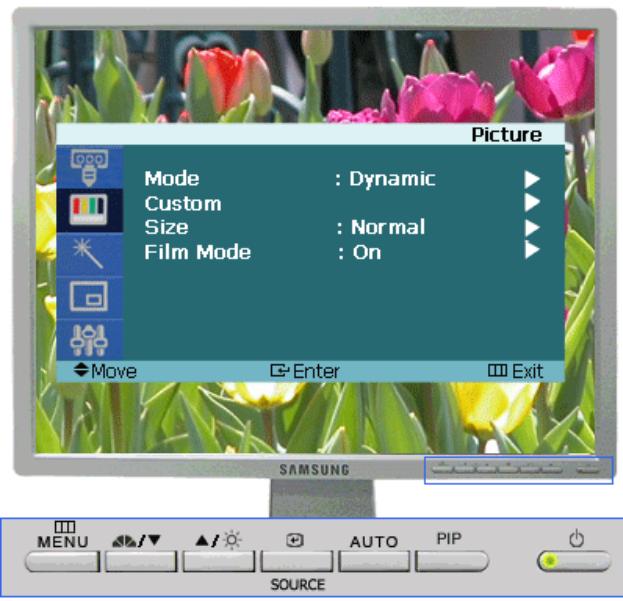

The Monitor has four automatic picture settings ("Dynamic", "Standard", "Movie" and "Custom") that are preset at the factory. You can activate either Dynamic, Standard, Movie, or Custom. You can select "Custom" which automatically recalls your personalized picture settings.

1) Dynamic

Select this mode to view a sharper image than in "Standard" mode.

2) Standard

Select this mode when the surroundings are bright. This also

provides a sharp image.

3) Movie

Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.

4) Custom

Select this mode when you want to adjust the image according to your preferences.

Click here to see an animation clip

3 Brightness button [○]

(Available in Analog Mode Only)

When OSD is not on the screen, push the button to adjust brightness.

Click here to see an animation clip

4 Enter button [☐] / SOURCE button

Activates a highlighted menu item. /

Push the 'SOURCE', then selects the video signal while the OSD is off. (When the SOURCE button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- Analog, Digital, Video and S-Video input signal.)

Note : Changing the source is allowed only in external devices that are connected to the monitor at the time.

5 AUTO button

(Available in Analog mode only)

When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically.

Click here to see an animation clip

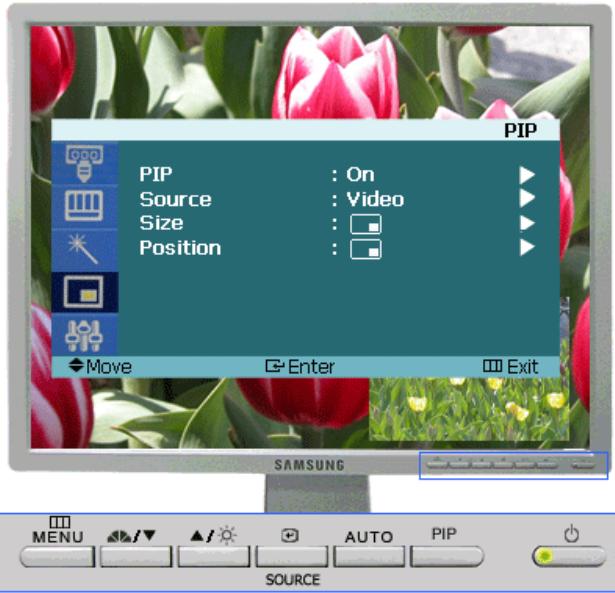

6 PIP button

(Available in Analog/Digital(PC) Mode Only)

In Analog or Digital Mode, turns on Video screens in PIP Mode.

7 Power button [◎]

Use this button for turn the monitor on and off.

8 Power Indicator

This will enable you to see the overall power status of the system. For more information, see the PowerSaver section.

See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods.

Unpacking

Front

Rear

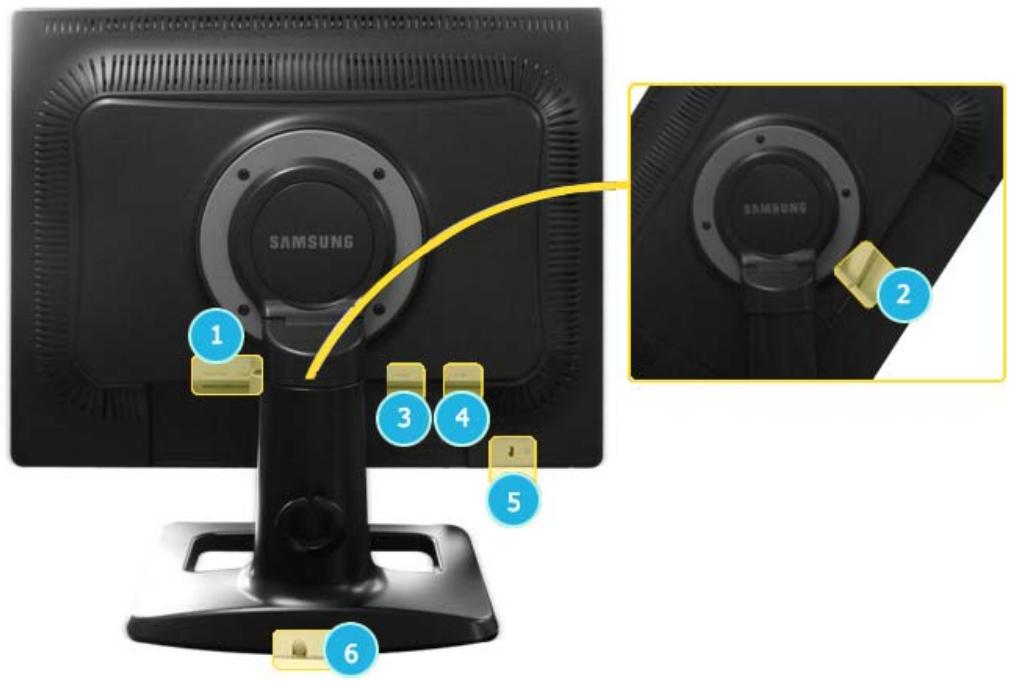

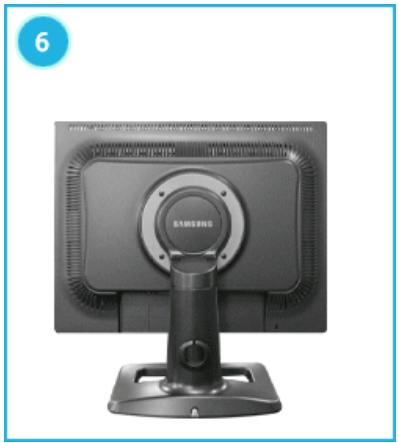

Rear

(The configuration at the back of the monitor may vary from product to product.)

SAMSUNG 1 2 3 4 5 6

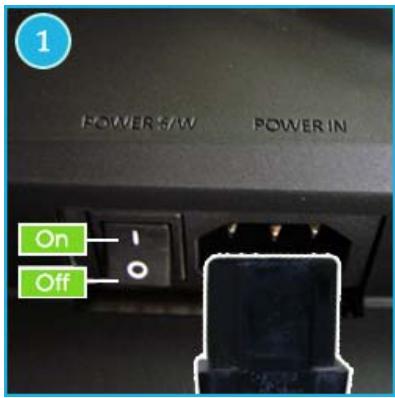

1 POWER S/W POWER IN On Off

POWER S/W

: Switch the monitor on and off.

POWER IN

: Connect the power cord for your monitor to the POWER IN on the back of the monitor.

Close-up of a DVI IN audio jack connector with a GND card and DVI port (no text or symbols on the device itself)

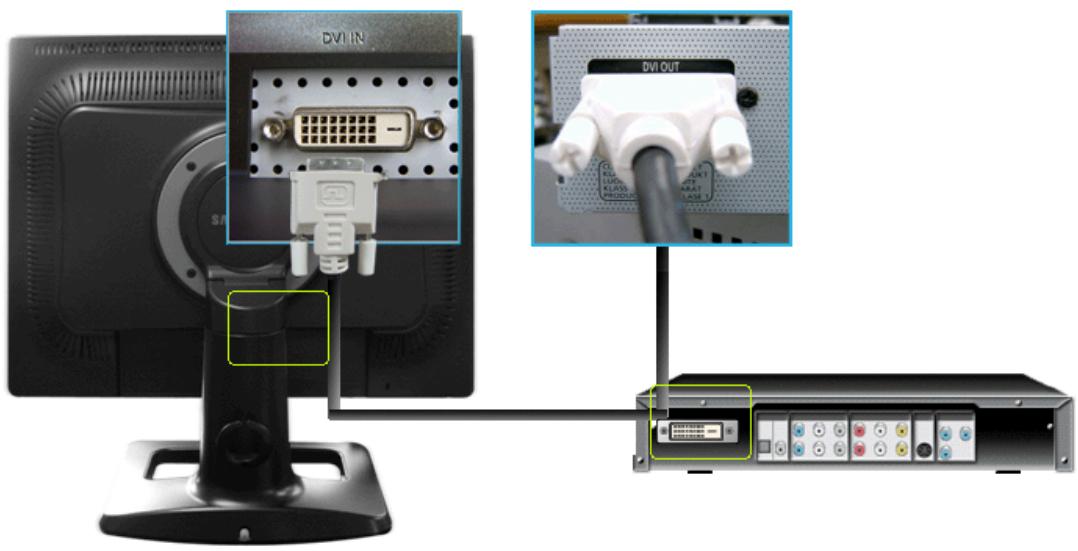

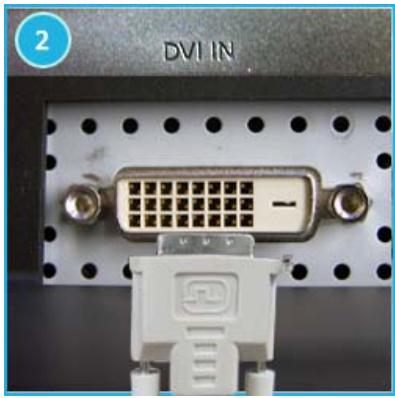

DVI IN (Source List : Digital) :

Connect the DVI cable to the DVI IN port on the back of your monitor.

Close-up of a RGB IN audio jack with a blue DVI connector (no text or symbols on the device body)

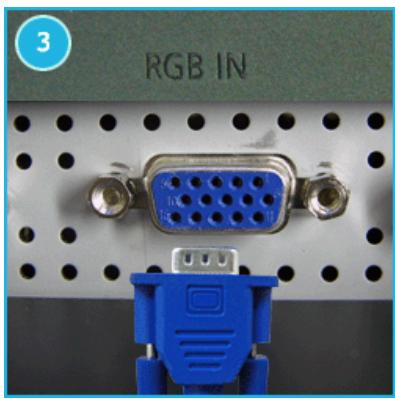

RGB IN (Source List : Analog) :

Connect the signal cable to the 15-pin, RGB IN port on the back of your monitor.

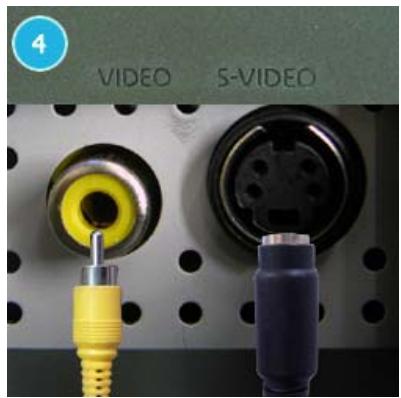

Close-up of audio equipment components including a yellow audio jack, black 5V/8V connectors, and two connected cables (no text or symbols visible)

: External device (video) input terminal S-VIDEO (Source List : S-Video)
: External device (S-video) input terminal

Close-up of a black electronic device's surface with ventilation grilles and a small indicator button (no text or symbols visible)

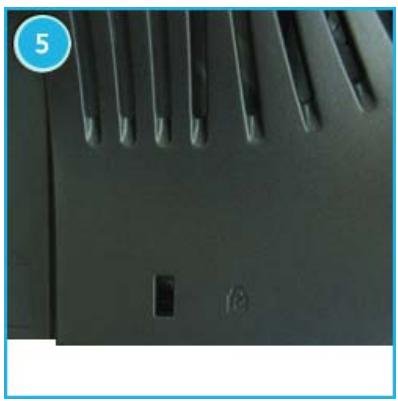

Kensington Lock

: The Kensington lock is a device used to physically fix the system when using it in a public place. (The locking device has to be purchased separately.) For using a locking device, contact where you purchase it.

Front view of a black Samsung computer monitor with a circular head cover and stand (no visible text or symbols)

Stand Height Adjustment

1. Press the top side of the stand and then push the button at the rear bottom of the stand.
2. Press the top side of the stand and then push the button at the rear bottom of the stand. You can adjust the stand height using this button.

When you are using a stand height as maximum, it will go down a little bit from spring elasticity.

See Connecting the Monitor for further information regarding cable connections.

SAMSUNG ELECTRONICS SAMSUNG DIGITALL everyone's invited™ ■ Safety Instructions ■ Introduction ■ Setup ■ Adjusting Your Monitor ■ Troubleshooting ■ Specifications ■ Information

Connecting the Monitor Using the Stand Installing the Monitor Driver (Automatic) Installing the Monitor Driver (Manual) Natural Color

Connecting the Monitor

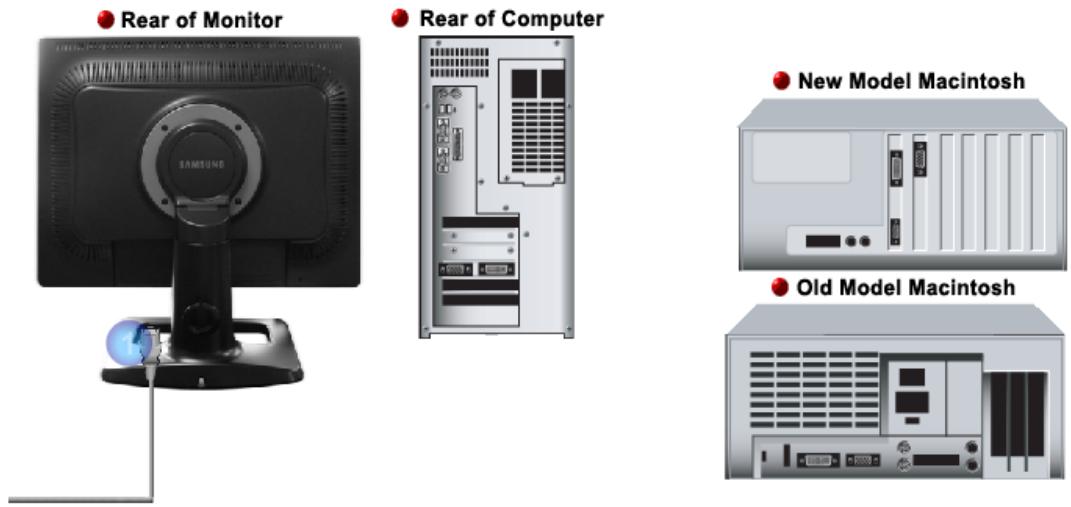

Rear of Monitor Rear of Computer New Model Macintosh Old Model Macintosh

1. Connect the power cord for your monitor to the POWER IN on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.
   2-1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, RGB IN port on the back of your monitor.

2-2. Using the DVI (Digital) connector on the video card. Connect the DVI cable to the DVI IN port on the back of your monitor.

2-3. Connected to a Macintosh. Connect the monitor to the Macintosh computer using the D-sub connection cable.
2-4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac adapter.
3. Turn on your computer and monitor. If your monitor displays an image, installation is complete.

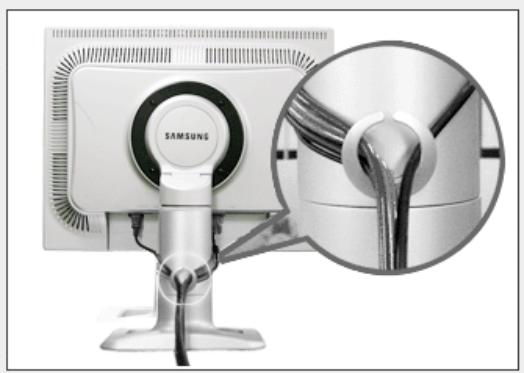

Cable Fix Ring

When connecting the cable is finished, fix the cables to the

Close-up of a Samsung computer monitor with a close-up inset showing internal cable routing (no text or symbols visible)

Cable Fix Ring.

Connecting to Other devices

This monitor allows the user to connect it to such input devices as a DVD player, a VCR or a camcorder without disconnecting the PC.

The configuration at the back of the monitor may vary from product to product.

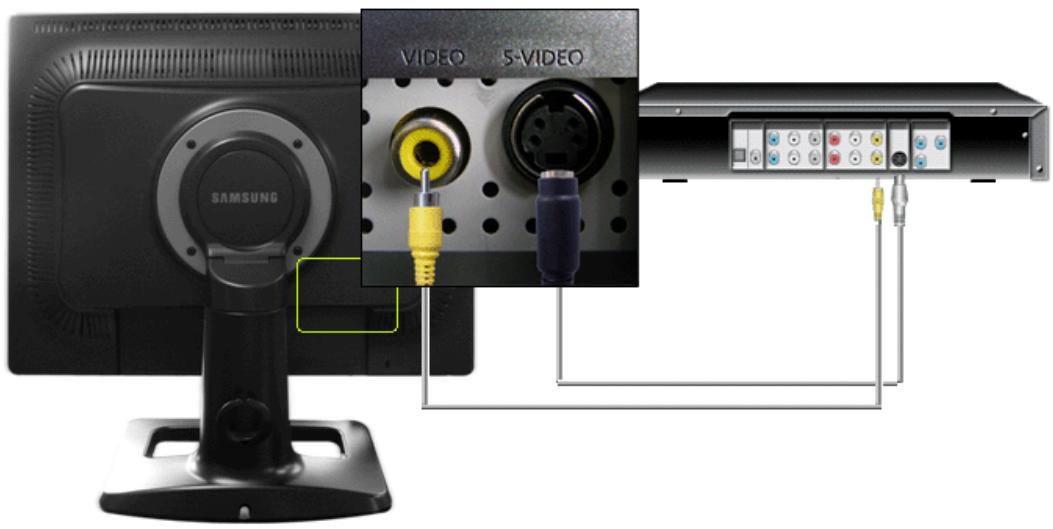

1. Connecting AV Devices

The monitor has AV connection terminals to connect AV input devices like DVD, VCR or Camcorder. You may enjoy AV signals as long as the monitor is turned on.

SAMSUNG VIDEO S-VIDEO

1. Input devices such as DVD, VCR or Camcorder are connected to the VIDEO or S-VIDEO terminal of the monitor using the Video or S-Video cable.

Video, S-Video cable are optional.

1. Then, start the DVD, VCR or Camcorder with a DVD disc or tape inserted.

2. Select Video or S-Video using the SOURCE button.

2. Connecting Digital DVD

The monitor has DVI IN connection terminals to connect DVI input devices digital DVD.

DVI IN DVI OUT CLASS PRODUIT ARAT CLAM

1. Input devices such as digital DVD are connected to the DVI IN terminal of the monitor using the DVI cable.
2. Then, start the DVD with a DVD disc inserted.
3. Select Digital using the SOURCE button.

Connecting the Monitor

Using the Stand

Installing the Monitor Driver (Automatic)

Installing the Monitor Driver (Manual)

Natural Color

Using the Stand

Pivot Stand

MagicRotation

Using the Swivel Stand and the MagicRotation program, you can use the monitor lengthwise or heightwise according to your needs.

The permitted angle of rotation of the monitor is determined by the model of the monitor. The permitted angle of rotation of the monitor is determined by the model of the monitor.

(a) (b)

Front view of a Samsung air conditioner unit (no visible text or symbols)

Using (a), you can rotate the screen within a range of 0 \~ 90 degrees.

Using (b), you can use the screen lengthwise.

Press the top side of the stand and then push the button at the rear bottom of the stand.

You can adjust the stand height using this button.

When you are using a stand height as maximum, it will go down a little bit from spring elasticity.

If you rotate the screen without lifting it to its maximum height, the screen may be damaged because the edge of the screen would hit the floor.

Tilt angle

Using (c), you can adjust the height.

You can adjust the tilt within a range of 0 \~ 25 degrees.

Using (d), you can horizontally rotate it within a range of -45 \~ 45 degrees.

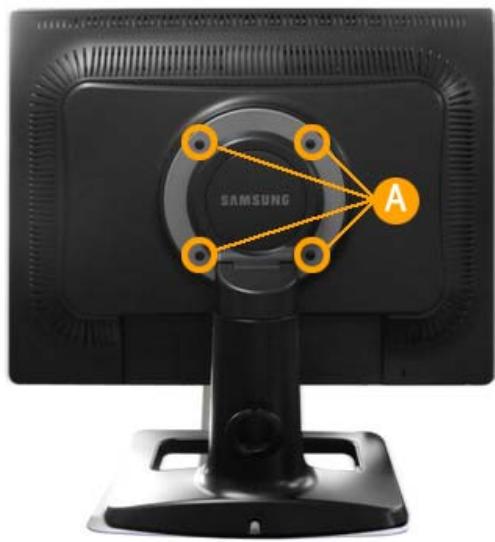

Removing the base

SAMSUNG A

1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3. Remove four screws(A) and then remove the Stand from the LCD monitor.

- Attaching a Base

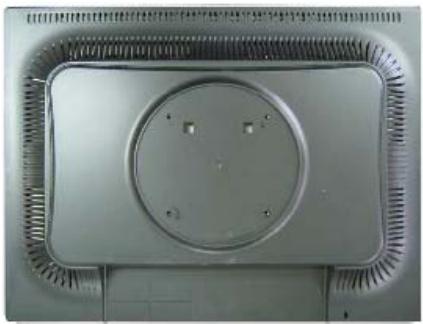

This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

Top-down view of a rectangular electronic device with a circular recess and ventilation grille (no text or symbols visible)

A. Monitor
B. Mounting interface pad (sold separately)

1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3. Remove four screws and then remove the stand from the LCD monitor.
4. Align the mounting interface Pad with the holes in the rear cover mounting pad and secure it with four screws that came with the arm-type base, wall mount hanger or other base.

To mount the monitor on a wall, you should purchase the wall mounting kit that allows you to mount the monitor at least 10cm away from the wall surface.

Contact the nearest Samsung Service Center for more information.

Samsung Electronics will not be responsible for damages caused by using a base other than those specified.

Please use Wall Mount according to the International standards.

Connecting the Monitor

Using the Stand

Installing the Monitor Driver (Automatic)

Installing the Monitor Driver (Manual)

Natural Color

Installing the Monitor Driver (Automatic)

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

http://www.sec.co.kr/monitor (Korea)

http://www.samsungmonitor.com.cn/ (China)

Windows ME

1. Insert CD into the CD-ROM drive.
2. Click "Windows ME Driver".
3. Choose your monitor model in the model list, then click the "OK" button.

Samsung Monitor Setup for Windows ME/98/95 Pick the display adapter which you want to install the monitor S3 Inc. Savage4 Pick the monitor which you want to install SyncMaster 703DFX/753DFX SyncMaster 753DF[X]/703DF[X]/783DF[X], MagicSyncMaster C SyncMaster 755DF[X] Cancel OK

1. Click the "Install" button in the "Warning" window.

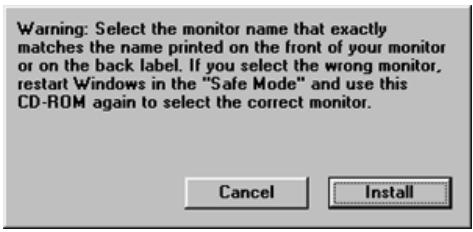

Warning: Select the monitor name that exactly matches the name printed on the front of your monitor or on the back label. If you select the wrong monitor, restart Windows in the "Safe Mode" and use this CD-ROM again to select the correct monitor. Cancel Install

1. Monitor driver installation is completed.

Windows XP/2000

1. Insert CD into the CD-ROM drive.
2. Click "Windows XP/2000 Driver"
3. Choose your monitor model in the model list, then click the "OK" button.

Samsung Monitor Setup for Windows 2000 Pick the display adapter on which you want to install the monitor NVIDIA GeForce2 MX/MX 400 Currently installed monitor Master 1715/175S/170S, MagicSyncMaster CX Pick the monitor which you want to install SyncMaster 1517/155T/150T, MagicSyncMaster CX151BD(An) SyncMaster 1517/155T/150T, MagicSyncMaster CX151BD(Dic SyncMaster 151MB/155MB, MagicSyncMaster CX156A SyncMaster 1718(M)/175B/170B(M), MagicSyncMaster CX SyncMaster 171MP/175MP, MagicSyncMaster 161700MP SyncMaster 1719/175S/170S, MagicSyncMaster CX175B SyncMaster 171T/175T/170T, MagicSyncMaster CX175BD(( SyncMaster 171T/175T/170T, MagicSyncMaster CX175BD(( SyncMaster 171MB/175MB, MagicSyncMaster CX176A SyncMaster 101B/105B/100B, MagicSyncMaster CX105B(M) SyncMaster 101T/105T/100T, MagicSyncMaster CX105B(An) SyncMaster 101T/105T/100T, MagicSyncMaster CX105B(Dig SyncMaster +50b(T) / +50(N)b Samsung SyncMaster 510TFT SyncMaster 520(T)

1. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button.

Hardware Installation The software you are installing for this hardware: SyncMaster 171S/175S/170S, MagicSyncMaster CX175S has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

This monitor driver is under certifying MS logo, and this installation don't damage your system. The certified driver will be posted on Samsung Monitor Homepage http://www.samsung.com/.

1. Monitor driver installation is completed.

Installing the Monitor Driver (Manual)

Windows XP | Windows 2000 | Windows Me | Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

http://www.sec.co.kr/monitor (Korea)

http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

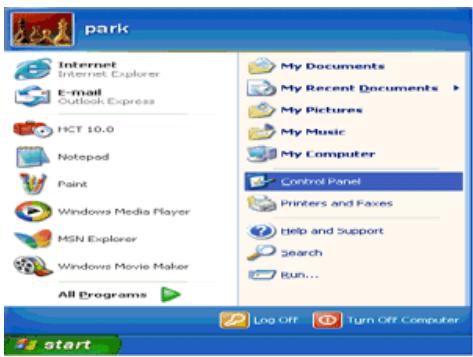

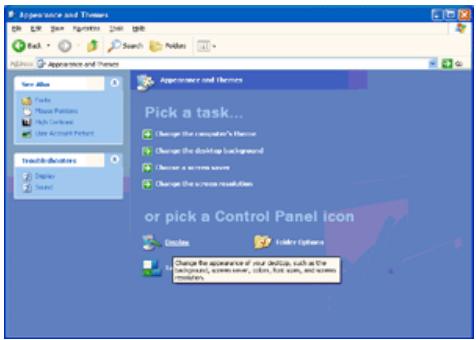

2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" icon.

park Internet Internet Explorer E-mail Outlook Express HCT 10.0 Notepad Paint Windows Media Player MSN Explorer Windows Movie Maker All Programs My Documents My Recent Documents My Pictures My Music My Computer Control Panel Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer start

Control Panel Edit Edit View Properties Tools Help Back Search Folders Address Control Panel Enabled Panel Select to Create New Save All Windows Ubs Help and Support Pick a category Accelerate and Discreas Plants and Other Hardware Change the appearance if: desktop files, apply a theme or other server for your computer, or click the Start menu and folder. Networks Add or Remove Programs Sales, Store, Language, and Regional Options Smooth, Speech, and Audio Devices Accessibility Options Performance and Maintenance

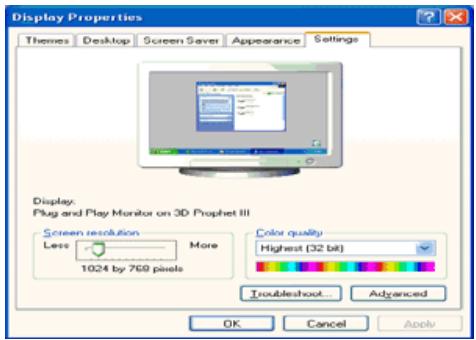

1. Click "Display" icon and choose the "Settings" tab then click "Advanced..".

Appraemon and Powers Pick a task... Change the computer's theme Change the desktop background Change a screen screen Change the screen resolution or pick a Control Panel icon Cancel Hold Options Change the appearance of your icons, such as the background, screen icon, color, light icon, and screen minutes.

Display Properties Themes Desktop Screen Saver Appearance Settings Display: Plug and Play Monitor on 3D Prophet III Screen resolution More Less 1024 by 769 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

1. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

Plug and Play Monitor Properties General Driver Plug and Play Monitor Device type: Monitors Manufacturer: (Standard monitor types) Location:,on 3D Prophet III Device status This device is working properly. If you are having problems with this device, click Troubleshoot to start the troubleshooter. Troubleshoot... Device usage: Use this device (enable) OK Cancel

1. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.

Plug and Play Monitor Properties General Driver Plug and Play Monitor Driver Provider: Microsoft Driver Date: 6/6/2001 Driver Version: 5.1.2001.0 Digital Signer: Microsoft Windows XP Publisher Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced). OK Cancel

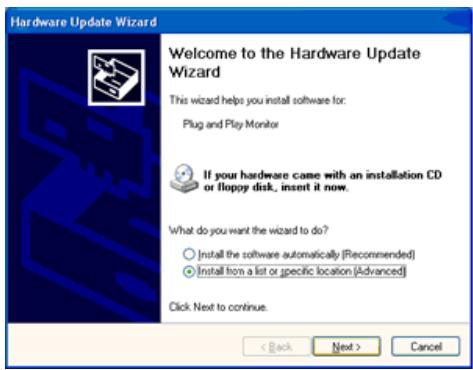

Hardware Update Wizard Welcome to the Hardware Update Wizard This wizard helps you install software for: Plug and Play Monitor If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ● Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

1. Select "Don't search, I will.." then click "Next" and then click "Have disk".

Hardware Update Wizard Please choose your search and installation options. Search for the best driver in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed. ✓ Search removable media (floppy, CD-ROM...) Include this location in the search: A:\ Browse Don't search. I will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware. < Back Next > Cancel

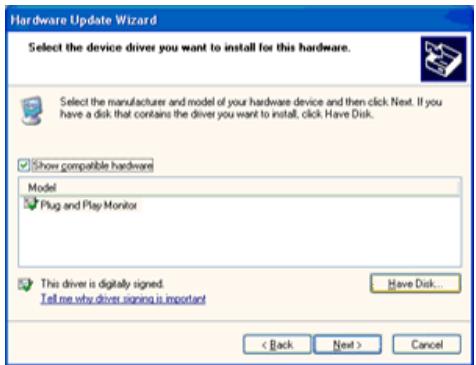

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Show compatible hardware Model Plug and Play Monitor This driver is digitally signed. Tell me why driver signing is important Have Disk... < Back Next > Cancel

1. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.

Install From Disk Insert the manufacturer's installation disk, and then make sure that the correct drive is selected below. OK Cancel Copy manufacturer's files from: Browse...

Hardware Update Wizard Select the device driver you want to install for this hardware. Select the manufacturer and model of your hardware device and then click Next. If you have a disk that contains the driver you want to install, click Have Disk. Model SyncMaster 1715/1755/1705, MagicSyncMaster D:\1755 This driver is not digitally signed! Tell me why driver signing is important Have Disk... < Back Next > Cancel

1. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button.

Hardware Installation The software you are installing for this hardware: SyncMaster 171S/ 175S/ 170S, MagicSyncMaster CX175S has not passed Windows Logo testing to verify its compatibility with Windows XP. (I tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

This monitor driver is under certified MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung.com/

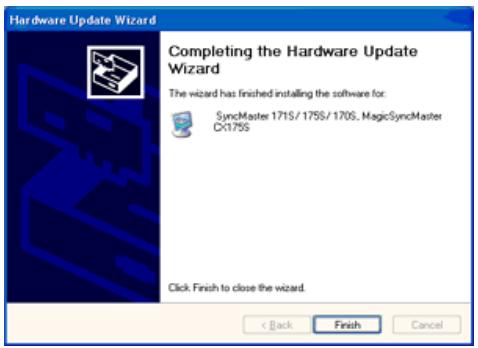

1. Click the "Close" button then click "OK" button continually.

Hardware Update Wizard Completing the Hardware Update Wizard The wizard has finished installing the software for: SyncMaster 171S/ 175S/ 170S, MagicSyncMaster CX175S Click Finish to close the wizard. < Back Finish Cancel

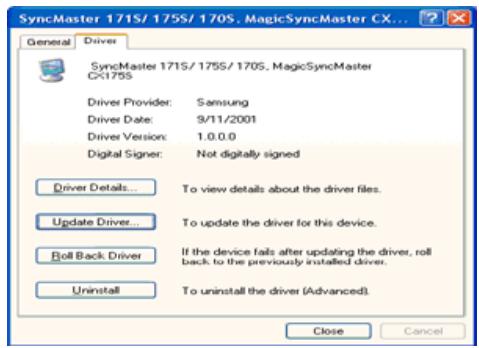

SyncMaster 171S/175S/170S, MagicSyncMaster CX... General Driver SyncMaster 171S/175S/170S, MagicSyncMaster CX175S Driver Provider: Samsung Driver Date: 9/11/2001 Driver Version: 1.0.0.0 Digital Signer: Not digitally signed Driver Details... To view details about the driver files. Update Driver... To update the driver for this device. Roll Back Driver If the device fails after updating the driver, roll back to the previously installed driver. Uninstall To uninstall the driver (Advanced). Close Cancel

Plug and Play Monitor and 3D Prophet III Properties GeForce3 Device Selection Color Correction General Adapter Monitor Troubleshoot Color Management Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Heiz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

1. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "Insert disk" window.
2. Click the "Browse" button on the "File Needed" window.
3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

1. Click "Start", "Setting", "Control Panel".
2. Double click the "Display" Icon.
3. Choose the "Settings" tab and then click "Advanced.".
4. Choose "Monitor".

Case1: If the "Properties" button is inactive, it means your monitor is properly configured. Please stop installation

Case2: If the "Properties" button is active, click the "Properties" button then follow next steps continually.

1. Click "Driver" and then click on "Update Driver.." then click on the "Next" button.
2. Choose "Display a list of the known drivers for this device so that I can choose a specific driver" then click "Next" and then click "Have disk".
3. Click the "Browse" button then choose A:(D:\Driver).
4. Click the "Open" button, then click "OK" button.
5. Choose your monitor model and click the "Next" button then click "Next" button.
6. Click the "Finish" button then the "Close" button.

If you can see the "Digital Signature Not Found" window then click the "Yes" button. And click the "Finish" button then the "Close" button.

Microsoft® Windows® Millennium Operating System

1. Click "Start", "Setting", "Control Panel".
2. Double click "Display" icon.
3. Select the "Settings" tab and click "Advanced Properties" button.
4. Select the "Monitor" tab.
5. Click the "Change" button in the "Monitor Type" area.
6. Choose "Specify the location of the driver".
7. Choose "Display a list of all the driver in a specific location.." then click "Next" button.
8. Click the "Have Disk" button
9. Specify A: D: then click "OK" button.
10. Select "Show all devices" and choose the monitor that corresponds to the one you connected to your computer and click "OK".
11. Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue box.

Microsoft® Windows® NT Operating System

1. Click Start, Settings, Control Panel, and then double-click Display icon.
2. In Display Registration Information window, click Settings Tab and then click All Display Modes.
3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then click OK.
4. Click Apply button if you see the screen working normally after clicking Test. If the screen is not normal, change to a different mode (lower mode of resolution, colors or frequency).

If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and the second screen after executing the X86Config file.
2. The third screen is for setting your mouse.
3. Set a mouse for your computer.
4. The next screen is for selecting a keyboard.
5. Set a keyboard for your computer.
6. The next screen is for setting your monitor.
7. First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)
8. Set a vertical frequency for your monitor. (You can enter the frequency directly.)
9. Enter the model name of your monitor. This information will not affect the actual execution of X-Window.
10. You have finished setting up your monitor. Execute X-Window after setting other requested hardware.

Connecting the Monitor

Using the Stand

Installing the Monitor Driver (Automatic)

Installing the Monitor Driver (Manual)

Natural Color

Natural Color

Natural Color Software Program

Natural Color Color Management System Monitor Adjustment Printer Adjustment Natural Color Color Management System SAMSUNG ELECTRONICS

One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor.

The Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI).

This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.

For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program Natural Color will be executed. Click Natural Color on the initial screen to install the Natural Color software.

To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM Drive, click the [Start] button of Windows and then select [Execute].

Enter D:\color\eng\setup.exe and then press the key.

(If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select "Setting/Control Panel" on the "Start" menu and then double-click "Add/Delete a program".

Select Natural Color from the list and then click the "Add/Delete" button.

SAMSUNG DIGITAL everyone's invited™ ■ Safety Instructions ■ Introduction ■ Setup ■ Adjusting Your Monitor ■ Troubleshooting ■ Specifications ■ Information

User Control Buttons

Direct Functions

OSD Functions

MagicTune™

MagicRotation

Close-up of pink tulips in a garden setting, displayed on a computer monitor (no text or symbols on the image itself)

MENU

Use this button for open the on-screen menu and exits from the menu screen or closes screen adjustment menu.

	Analog/Digital(PC) : MagicBrightTMMagicBrightTM is a new feature providing the optimum viewing environment depending on the contents of the image you are watching.Then push button again to circle through available preconfigured modes. (Custom → Entertain → Internet → Text )
	Digital(DVD)/Video/S-Video: ModeThe Monitor has four automatic picture settings that are preset at the factory.Then push button again to circle through available preconfigured modes. (Dynamic → Standard → Movie → Custom )
▼	This button allows you to adjust items in the menu.
▲	This button allows you to adjust items in the menu.
○	When OSD is not on the screen, push the button to adjust brightness.
◎	Press this button to activate a highlighted menu item.
SOURCE	Selects the input signal while the OSD is off.
AUTO	Press to self-adjust to the incoming Analog signal.The values of fine,coarse and position are adjusted automatically.
PIP	Push the PIP button to turn PIP On/Off.

AUTO : Available in Analog mode only

Close-up of red tulips in a garden setting, displayed on a computer monitor (no text or symbols on the image itself)

Menu

Description

AUTO

When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center.Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically.(Available in Analog mode only)To make the automatic adjustment function sharper, execute the 'Auto Adjustment' function while the AUTO PATTERN is on.- If auto adjustment does not work properly, press AUTO button again to adjust picture with more accuracy.- If you change resolution in the control panel, auto function will be executed automatically.

Locked

Close-up of vibrant red tulips in a garden setting, displayed on a Samsung monitor interface (no text or symbols on the flower image itself)

Menu	Description	Play/Stop
Locked	After pushing the "MENU" button more than 5 seconds, OSD function is locked (unlocked).Even if you use the OSD adjustment lock function, you can still adjust MagicBrightTM and Brightness and Contrast of the monitor.	MENUAUTO/PIP

Analog SAMSUNG MENU AUTO PIP SOURCE

Menu	Description	Play/Stop
	Analog/Digital(PC) : MagicBrightTMMagicBrightTM is a new feature providing the optimum viewing environment depending on the contents of the image you are watching.	MagicBrightTM

MagicBright™ / Mode

Then push button again to circle through available preconfigured modes.

(Custom → Entertain → Internet → Text)

Digital(DVD)/Video/S-Video : Mode

The Monitor has four automatic picture settings that are preset at the factory. Then push button again to circle through available preconfigured modes.

( Dynamic → Standard → Movie → Custom )

Mode

Brightness : Available in Analog/Digital Mode Only

Close-up of red tulips in a garden setting, displayed on a computer monitor (no text or symbols on the image itself)

Menu	Description
Brightness	When OSD is not on the screen, push the button to adjust brightness.

SOURCE

Close-up of pink tulips in a garden setting, displayed on a Samsung monitor interface (no text or symbols on the image itself)

Menu	Description
SOURCE	Selects the input signal while the OSD is off.(When the source button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode -- Analog, Digital, Video and S-Video input signal.)Note: Changing the source is allowed only in external devices that are connected to the monitor at the time.

PIP ( Available in Analog/Digital(PC) Mode Only )

Close-up of red tulips in a garden setting, displayed on a Samsung monitor interface (no text or symbols on the image itself)

Menu	Description
PIP	Push the PIP button to turn PIP screen On/Off.Source : Video, S-Video

Input

Input Source List : Analog Edit Name 1600 X 1200 75.0kHz/ 60Hz PP Move Enter Exit SAMSUNG MENU AUTO PIP SOURCE

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu	Description	Play/Stop
Source List	Use to select PC or other external input sources connected to the Monitor.Use to select the screen of your choice.1) Analog2) Digital3) Video4) S-Video
Edit Name	Name the input device connected to the input jacks to make your input source selection easier.1) Analog2) Digital3) Video4) S-Video

Picture (Analog / Digital : PC)

Picture MagicBright : Custom Custom Image Lock Auto Adjustment PIP Picture Move Enter Exit SAMSUNG MENU AUTO PIP SOURCE

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu	Description	Play/Stop
MagicBrightTM	MagicBrightTM is a new feature providing the optimum viewing environment depending on the contents of the image you are watching. Currently four different modes are available: Text, Internet, Entertain and Custom. Each mode has its own pre-configured brightness value.You can easily select one of four settings by simply pressing MagicBrightTM [▲▲] button.1)Entertain: High brightnessFor watching motion pictures such as a DVD or Video CD.2)Internet: Medium brightnessFor working with a mixture of images such as text and graphics.3)Text: Normal brightnessFor documentations or works involving heavy text.4)CustomAlthough the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste.If this is the case, adjust the brightness and contrast by using the OSD menu.
Custom	You can use the on-screen menus to change the contrast and brightness according to personal preference.1)Contrast: Adjust the Contrast.2)Brightness: Adjust the Brightness.	ContrastBrightness
	Image Lock is used to fine-tune and get the best image by removing noise that creates unstable images with jitter and shimmer. If satisfactory results are not obtained using the Fine adjustment, use the Coarse adjustment and then use Fine again.-Available in Analog Mode Only1)Coarse: Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You	CoarseFine
Image Lock	may relocate it to the center using the Horizontal Control menu.2) Fine: Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).3) Sharpness: Adjust the Sharpness.4) H-Position: Adjusts the screen location horizontally.5) V-Position: Adjusts the screen location vertically.
Auto Adjustment	The values of Fine, Coarse, position are adjusted automatically. If you change resolution in the control panel, Auto function will be executed.- Available in Analog Mode Only
PIP Picture	When the PIP is on, you can adjust the PIP screen setting.1) Contrast: Adjusts the Contrast of the PIP window on the screen.2) Brightness: Adjusts the Brightness of the PIP window on the screen.3) Sharpness: Adjusts the Sharpness of the PIP window on the screen4) Color: Adjusts the Color of the PIP window on the screen5) Tint: Adds a natural tone to the PIP window. This function is only available for DVD titles supporting NTSC. (The broadcasting system is marked with "NTSC" or "PAL" above the DVD title)	ContrastBightnessSharpnessColorTint

Picture (Digital : Digital DVD)

Picture Mode : Custom Custom Size : Normal Film Mode : Off Move Enter Exit SAMSUNG MENU AUTO PIP SOURCE

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu	Description	Play/Stop
Mode	The Monitor has four automatic picture settings ("Dynamic", "Standard", "Movie" and "Custom") that are preset at the factory. You can activate either Dynamic, Standard, Movie, or Custom. You can select "Custom" which automatically recalls your personalized picture settings.1) Dynamic: Select this mode to view a sharper image than in "Standard" mode.2) Standard: Select this mode when the surroundings are bright. This also provides a sharp image.3) Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.4) Custom: Select this mode when you want to adjust the image according to your preferences
Custom	You can use the on-screen menus to change the contrast and brightness according to personal preference.1) Contrast: Adjust the Contrast.2) Brightness: Adjust the Brightness.3) Sharpness: Adjust the Sharpness.4) Color: Adjust the picture Color.	ContrastBrightnessSharpnessColor
Size	You can switch the Size.1) Normal2) Zoom13) Zoom24) Wide

Picture (Video/S-Video)

Picture Mode : Dynamic Custom Size : Normal Film Mode : On Move Enter Exit SAMSUNG MENU AUTO PIP SOURCE

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu	Description	Play/Stop
Mode	The Monitor has four automatic picture settings ("Dynamic", "Standard", "Movie" and "Custom") that are preset at the factory. You can activate either Dynamic, Standard, Movie, or Custom. You can select "Custom" which automatically recalls your personalized picture settings.1) Dynamic: Select this mode to view a sharper image than in "Standard" mode.2) Standard: Select this mode when the surroundings are bright. This also provides a sharp image.3) Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.4) Custom: Select this mode when you want to adjust the image according to your preferences
Custom	You can use the on-screen menus to change the contrast and brightness according to personal preference.1) Contrast: Adjust the Contrast.2) Brightness: Adjust the Brightness.3) Sharpness: Adjust the Sharpness.4) Color: Adjust the picture Color.5) Tint:Adds a natural tone to the display.This function is only available for DVD titles supporting NTSC. (The broadcasting system is marked with "NTSC" or "PAL" above the DVD title)	ContrastBrightnessSharpnessColorTint
Size	You can switch the Size.1) Normal2) Zoom13) Zoom24) Wide
Film Mode	You can turn Film Mode Off / On.The Film Mode feature offers you a theater-quality viewing experience.

MagicColor Pro

MagicColor Pro MagicColor : Off Color Tone : Normal Gamma : +0 6-Color Color Weakness : Off Move Enter Exit SAMSUNG MENU AUTO PIP SOURCE

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu	Description	Play/Stop
MagicColor	Implements the natural color chroma according to the display screen. Automatically adjusts to the display screen.Can improve the skin tones.1) Off2) IntelligentEnhance natural color except skin tone.3) FullDisplays both natural skin tones and enhanced colors.4) DemoDisplays the improved image on the left and the original on the right.
	Adjusts color tones to the preference of the user.
Color Tone	Analog/Digital(PC): Cool4 / Cool3 / Cool2 / Cool1 / Normal / Warm1 / Warm2Digital(Digital DVD)/Video/S-Video: Cool2 / Cool1 / Normal / Warm1 / Warm2
Gamma	Gamma correction changes the luminance of the colors with intermediate luminance.Increased Mode number - Displays the full screen more naturally and softer and sharpens the dark scale.Decreased Mode number - Displays the full screen sharper and improves the bright scale.- Available in Analog/Digital(PC) Mode Only
6-Color	6 types: Red, Green, Blue, Cyan, Magenta and Yellow - Can adjust each of them to the preference of the user.1) SaturationAdjusts the color saturation.2) HueAdjusts the color tones.3) ResetReturns to the original screen mode.- The 6-Color function is only available when the Color Weakness function is turned Off.	SaturationHueReset
Color Weakness	Enables those with color weakness to view the screen as easily as those with normal vision.1) Off2) Custom13) Custom2

PIP (Analog / Digital : PC)

PIP PIP : On Source : Video Size : Position : Move Enter Exit SAMSUNG

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu

Description

Play/Stop

PIP	Turn the PIP Screen on or off.1) Off2) On
Source	Select the input source for the PIP.Analog / Digital(PC) : Video / S-Video Mode
Size	Change the Size of the PIP window.□/□/□/□If you select □, □ in Size, Position will not be activated.
Position	Change the Position of the PIP window.□/□/□/□

Setup

Language : English Transparency : Opaque Blue Screen : Off Reset Move Enter Exit SAMSUNG MENU AUTO PIP SOURCE

The default setting may different depending on the selected Input Mode (input signal source selected in External Input List) and the selected resolution.

Menu	Description					Play/Stop
Language	You can choose one of 11 languages.
	1) English	2) Deutsch	3) Français	4) Español	5) Italiano
	6) Svenska	7) Português	8) Русский	9) 한국어	10) 中国语
	11) 日本語
Transparency	Changes the opaqueness of the background of the OSD.
	1) High
	2) Medium
	3) Low
	4) Opaque
Blue Screen	If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor

	picture, you must set the "Blue screen" mode to "Off".
Reset	Picture parameters are replaced with the factory default values.	-
	1) Image Reset: Image parameters are replaced with the factory default values.- Available in Analog Mode Only
	2) Color Reset: Color parameters are replaced with the factory default values.- Available in Analog/Digital(PC) Mode Only

Overview

What is MagicTune™?

Monitor performance can vary due to the graphics card, host computer lighting conditions and other environmental factors. In order to get the best image on a monitor requires you to adjust it for your unique setting. Unfortunately, the manual controls available to tune the image often prove to be challenging. Proper adjustment (tuning) requires an easy to use program that goes through a step-by-step process to obtain the best overall picture quality.

In most cases even simple adjustments to Brightness, or Contrast require navigation of the multi-level, on-screen display (OSD) menus that are not easy to understand. Furthermore, there is no feedback to assist in correctly setting the controls of the monitor. MagicTune™ is a software utility that guides you through the tuning process with easy to understand instructions and back ground patterns designed for each monitor control. The display settings for each user can be saved, providing an easy way to select display characteristics in a multi-user environme or having a single user have multiple defined presets based on content and ambient lighting.

Basic Functionality

MagicTune™ is a software utility that allows monitor adjustment and color tuning using the Display Data Channel Command Interface (DDC/CI) protocol. All adjustments to the display are controlled via software to eliminate the need to use the monitor on-screen display (OSD).

MagicTune™ supports Windows™ 98 SE, Me, 2000, XP Home, and XP Professional.

It is recommended using MagicTune™ in Windows™ 2000 or later.

MagicTune ^™ allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you.

OSD Mode

The OSD mode allows easy adjustment of monitor settings without taking pre-defined steps. You can access the desired menu item to set with ease.

The MagicTune™ program is an additional program for monitor products.

Some computing systems that install either an older or the latest video driver are not compatible with MagicTune™.

Please visit the MagicTune™ Website for technical support for MagicTune™.

Specifications subject to change without notice.

MagicTune™ is a trademark of SAMSUNG ELECTRONICS CO., Inc.

Windows™ is a registered trademark of Microsoft Corp.

Other trademarks are property of their respective holders.

Overview

Installation

OSD Mode

Color Calibration

Uninstall

Troubleshooting

Installation

1. Insert the installation CD into the CD-ROM drive.
2. Click the MagicTune™ installation file.

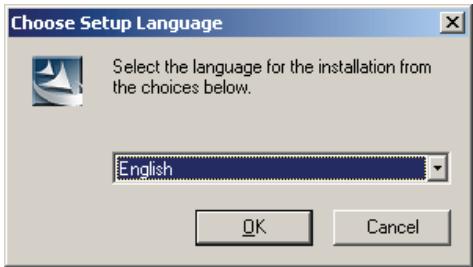

3. Select installation Language, Click "Next".

Choose Setup Language Select the language for the installation from choices below. English OK Cancel

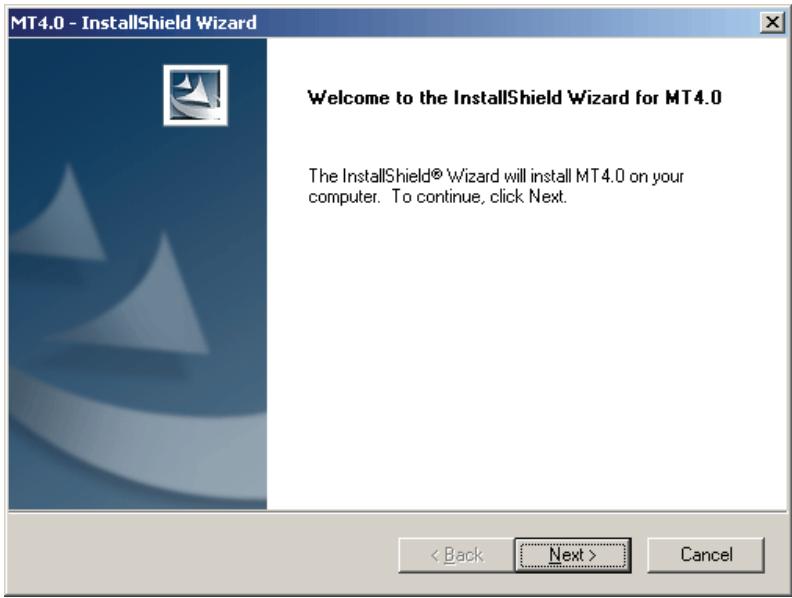

1. When the InstallationShield Wizard window appears, click "Next."

MT4.0 - InstallShield Wizard Welcome to the InstallShield Wizard for MT4.0 The InstallShield® Wizard will install MT4.0 on your computer. To continue, click Next. < Back Next > Cancel

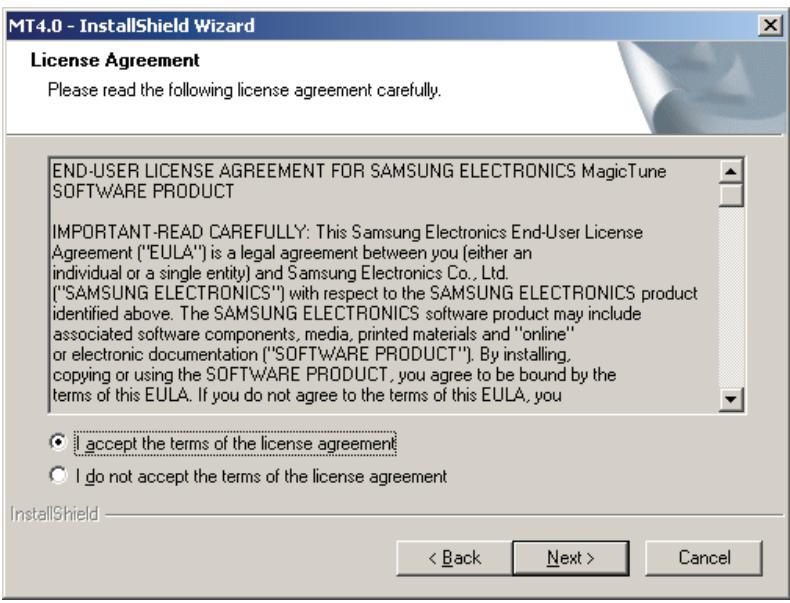

1. Select "I agree to the terms of the license agreement" to accept the terms of use.

MT4.0 - InstallShield Wizard License Agreement Please read the following license agreement carefully. END-USER LICENSE AGREEMENT FOR SAMSUNG ELECTRONICS MagicTune SOFTWARE PRODUCT IMPORTANT-READ CAREFULLY: This Samsung Electronics End-User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Samsung Electronics Co., Ltd. ("SAMSUNG ELECTRONICS") with respect to the SAMSUNG ELECTRONICS product identified above. The SAMSUNG ELECTRONICS software product may include associated software components, media, printed materials and "online" or electronic documentation ("SOFTWARE PRODUCT"). By installing, copying or using the SOFTWARE PRODUCT, you agree to be bound by the terms of this EULA. If you do not agree to the terms of this EULA, you I accept the terms of the license agreement I do not accept the terms of the license agreement InstallShield- < Back Next > Cancel

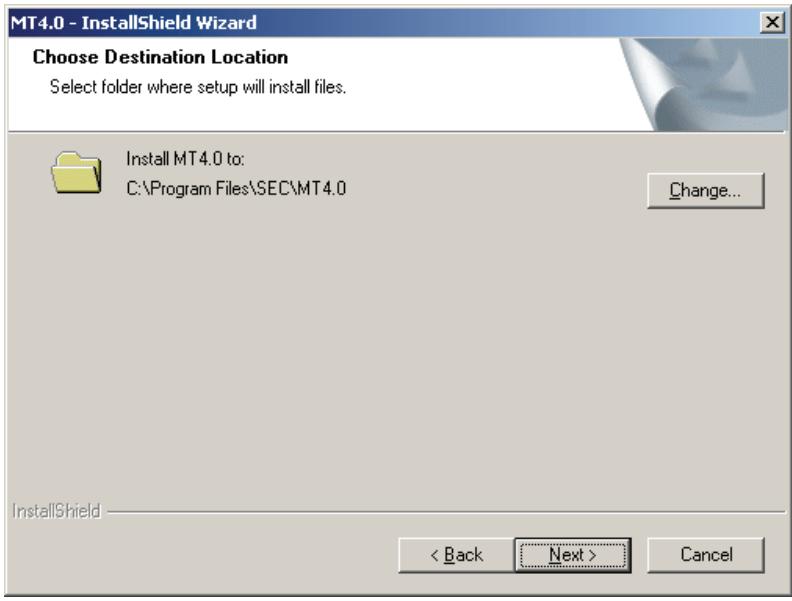

1. Choose a folder to install the MagicTune program.

MT4.0 - InstallShield Wizard Choose Destination Location Select folder where setup will install files. Install MT4.0 to: C:\Program Files\SEC\MT4.0 Change... InstallShield < Back Next > Cancel

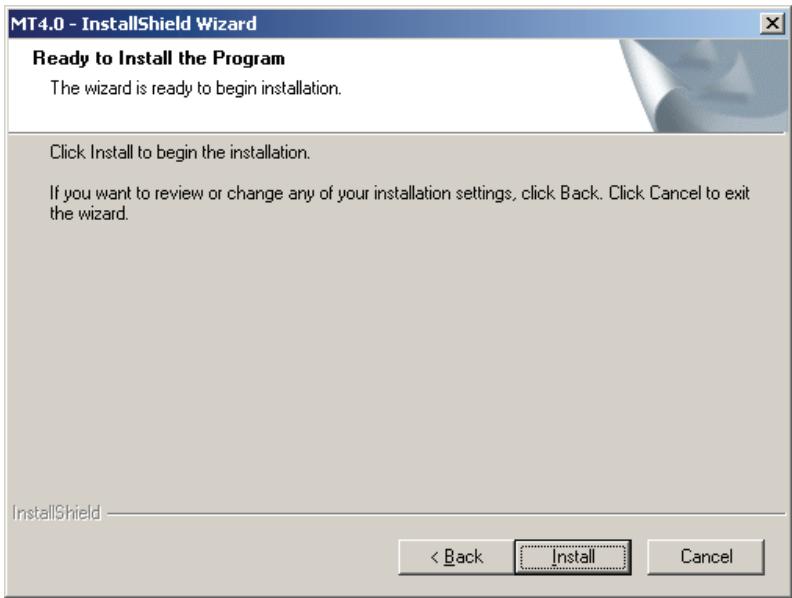

1. Click "Install."

MT4.0 - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. InstallShield < Back Install Cancel

1. The "Installation Status" window appears.

MT4.0 - InstallShield Wizard Setup Status MT4.0 is configuring your new software installation. Installing C:\Program Files\SEC\MT4.0\MTResIta.dll InstallShield Cancel

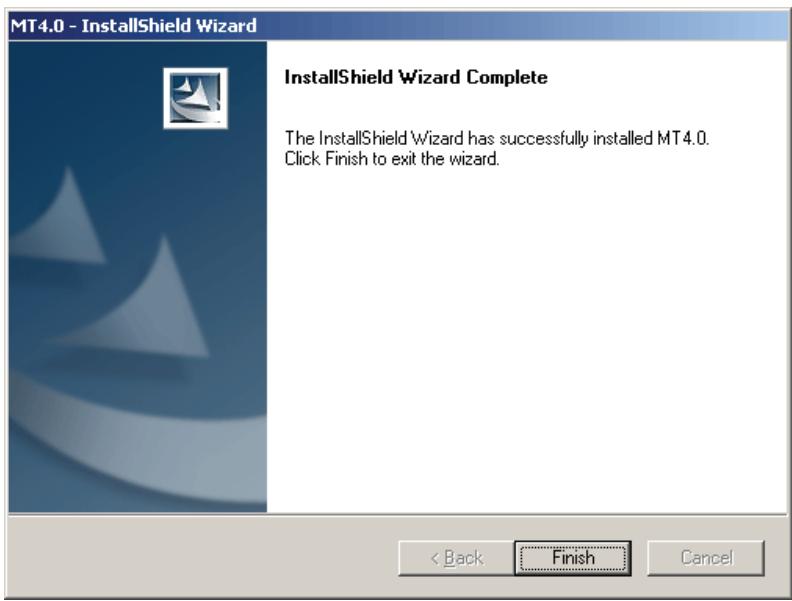

1. Click "Finish."

MT4.0 - InstallShield Wizard InstallShield Wizard Complete The InstallShield Wizard has successfully installed MT4.0. Click Finish to exit the wizard.

1. When the installation is complete, the MagicTune executable icon appears on your desktop.

Double-click the icon to start the program.

Magictune execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key.

? Installation Problems

The installation of MagicTune ^™ can be affected by such factors as the video card, motherboard and the network environment.

See "Troubleshooting" if you have trouble during installation.

System Requirements

• Windows™ 98 SE
• Windows™ Me
• Windows™ 2000
• Windows™ XP Home Edition
• Windows™ XP Professional

It is recommended using MagicTune in Windows™ 2000 or later.

Hardware

• 32MB Memory above
  • 25MB Hard disk space above

* For more information, visit the MagicTune website.

Specifications subject to change without notice. MagicTune is a trademark of SAMSUNG ELECTRONICS CO., Inc. Windows is a registered trademark of Microsoft Corp. Other trademarks are property of their respective holders.

Overview

Installation

OSD Mode

Color Calibration

Uninstall

Troubleshooting

MagicTune allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you.

• OSD mode may appear inconsistent with the explanation in guidance book depending on specification of each monitor.
• When Rotation is functioning, part of MagicTune Program may not operate normally.

- MagicTune control mode will be different according to monitor models.

OSD Mode

The OSD mode makes the adjustment of settings on all monitors easy. When selected, each tab on top of the control window displays the general descriptions of the sub-menu items for adjustment.

When selected, each tab displays a list of menus. For quick adjustment of the monitor settings, the OSD mode allows easy and convenient access to all tabs and sub-menu items.

Button Tab Definition

OK	Applies any changes made and exits MagicTune.
Reset	Restores the display settings to the factory settings.
Cancel	Exits MagicTune without applying the changes made. If you have not made any changes in the control window, clicking "Cancel" does not cause any actions.

Picture Tab Definition

Allows the user to adjust the screen settings to the desired values.

Brightness	Makes the entire screen brighter or darker. The detailed data of the images in the dark areas can be lost if the brightness is not adjusted to the proper level. Adjust the brightness for best viewing conditions.
Contrast	Adjusts the difference in brightness between the bright and dark areas on screen. Determines the crispness of the images.
Resolution	Lists all display resolutions supported by the program.
MagicBrightTM	MagicBrightTMis a new feature providing the optimum viewing environment depending on the contents of the image you are watching. Currently four different modes are available: Text, Internet, Entertain and Custom. Each mode has its own pre-configured brightness value. You can easily select one of four settings by simply pressing MagicBright control buttons.

1. Text: For documentations or works involving heavy text.
2. Internet: For working with a mixture of images such as text and graphics.
3. Entertain: For watching motion pictures such as a DVD or VCD.

Color Tab Definition

Adjusts the "warmth" of the monitor background or image color.

MagicColor and Gamma will be shown only in the monitor that supports these functions.

The tone of the color can be changed.

• Warm2 - Warm1 - Normal - Cool 1 - Cool 2 - Cool 3 - Cool 4
• Off

Color Tone

Color Tone mode will be different according to monitor models. Some monitor will only support Four modes(Warm, Normal, Cool, Custom)

Color Control

Adjusts of the monitor image color.

You can change the monitor color to your desired color.

- Not Available

Calibration

The process through which the colors of your choice are optimized and maintained. You will find MagicTune extremely useful if you are one of those who wish to view images with their full details accurately reproduced - including web images and ones produced by a digital camera or scanner.

MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

1. OFF : Returns to the original mode.
2. DEMO : The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.
3. Full : Displays not only vivid natural color but also more realistic natural skin color with clearness.
4. Intelligent : Displays vivid natural color with clearness.

MagicColor

- Depending on the monitor models Color Control, Sharpness, Contrast, Color Tone will not be adjustable in MagicColor mode of Full and Intelligent.

Gamma correction changes the luminance of the colors with intermediate luminance.

Gamma

Gamma mode will be different according to monitor models. Some monitor will only support Three modes( Mode1, Mode2, Mode3)

This refers to the process that optimizes the color according to the user's needs and maintains the optimized color. MagicTune will be helpful for users wishing to view images including web images, as

6-Color

• Saturation - To adjust the chroma.
• Hue - To adjust the color tone.
• Reset - To reset the monitor settings to the factory defaults.

Image Tab Definition

Adjusts the Fine, Coarse and Position values.

Image Setup	Fine: Removes noise such as horizontal stripes.If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).Coarse: Removes noise such as vertical stripes.Coarse adjustment may move the screen image area.You may relocate it to the center using the Horizontal Control menu.Auto Setup: Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically.
Position	Adjusts the screen location horizontally and vertically.
Sharpness	Changes the clearance of image.

Option Tab Definition

You can configure MagicTune using the following options.

	Loads the Preferences Dialog Box. Preferences in use will have an "V" in the check box. To turn on or off any Preference, position the cursor over the box and click.
Preferences	Enable task tray menu.- To access the MagicTune menus, click the icon on the [task tray menu].The menus are not displayed if the [Enable System Tray] is deselected in [Options] ' [Basic Settings].Select Language - The language chosen affects only the language of the OSD.
Source Select	AnalogDigital
Color Weakness	This refers to the process that optimizes the color and maintains the optimized color.Off - To cancel Partial Color Blindness Mode.Custom - Partial Color Blindness TestReset - To reset the monitor settings to the factory defaults.
PIP	When external A/V devices such as VCRs or DVDs are connected to the monitor, PIP allows you to watch video from those devices in a small window super-imposed on the PC Video signal. (Off / On)
	PIP	Turn the PIP Screen on or off.
	Source	Select the input source for the PIP.
	Size	Change the Size of the PIP window.
	Position	Change the Position of the PIP window.

Support Tab Definition

Shows the Asset ID and the version number of the program, and allows you to use the Help feature.

Help	Visit the MagicTune website or click to open the Help files (User Manual) if you need any help installing or running MagicTune. The User Manual opens within a basic browser window.
Asset ID	You can use the server to control the Client monitor.(Server program should be installed to use this program as Client)
	User Name	Shows the user name that is registered in PC.
	User ID	Shows the user ID that is registered in PC.
	Server IP	Write down the server IP .
	Department	Write down the department.
	Location	Write down the location.
Version	Displays the version of MagicTune.

The MagicTune™ program is an additional program for monitor products.

Some computing systems that install either an older or the latest video driver are not compatible with MagicTune™.

Please visit the MagicTune™ Website for technical support for MagicTune™.

Specifications subject to change without notice.

MagicTune™ is a trademark of SAMSUNG ELECTRONICS CO., Inc.

Windows ^™ is a registered trademark of Microsoft Corp.

Other trademarks are property of their respective holders.

Color Calibration

1. Color Calibration

Color Calibration guides you to get optimal color condition for your monitor.

Proceed following 5 steps for getting optimal monitor color condition.

1. Control "Brightness control bar" for matching the brightness of control patch and the brightness of background pattern
2. When you detect specific color tone on "Control patch", move the control cursor toward to the direction of the color tone referring to "Color reference Circle".
   => Adjustment is finished properly, you won't detect any color tone on Control patch.
3. When you finish adjustment for step1, Click "Next" button.
4. Repeat 1), 2), 3) procedures for remaining step2 \~ step5.
5. You can easily view the calibration effect through clicking "Preview" button!

How multiple users can use adjusted color values

Definition

When monitor is used by multiple users, color values which are adjusted via Color calibration for each users can be saved and used. Up to 5 users can use the saved color values.

1. How to save adjusted color values:
   Press Next to make it change into Apply and then you can save adjusted color values.
   As many as 5 values can be saved.
2. How to apply the saved color values:
   Press Multi User button on main screen to select and use one of the saved color values.

2. Preview

Still life arrangement of fresh fruits including grapes, apples, bananas, broccoli, and carrots on a red-and-white checkered tablecloth against a blue background (no text or symbols)

1. Press "View Uncalibrated" button to see the original image.

The MagicTune™ program is an additional program for monitor products.

Some computing systems that install either an older or the latest video driver are not compatible with MagicTune™.

Please visit the MagicTune™ Website for technical support for MagicTune™.

Specifications subject to change without notice.

MagicTune™ is a trademark of SAMSUNG ELECTRONICS CO., Inc.

Windows™ is a registered trademark of Microsoft Corp.

Other trademarks are property of their respective holders.

Uninstall

The MagicTune™ program can be removed only by using the "Add or Remove Programs" option of the Windows™ Control Panel.

Perform the following steps remove MagicTune ^TM .

1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows™ XP, go to [Control Panel] in the [Start] menu.
2. Click the "Add or Remove Programs" icon in Control Panel.
3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune™." Click on it to highlight it.
4. Click the "Change/Remove" button to remove the program.
5. Click "Yes" to begin the uninstall process.
6. Wait until the "Uninstall Complete" dialog box appears.

Visit the MagicTune™ website for technical support for MagicTune™, FAQs (questions and answers) and software upgrades.

The MagicTune™ program is an additional program for monitor products.

Some computing systems that install either an older or the latest video driver are not compatible with MagicTune™.

Please visit the MagicTune™ Website for technical support for MagicTune™.

Specifications subject to change without notice. MagicTune™ is a trademark of SAMSUNG ELECTRONICS CO., Inc. Windows™ is a registered trademark of Microsoft Corp. Other trademarks are property of their respective holders.

Troubleshooting

The current computing system is not compatible with MagicTune ^TM .

? Please press OK and click on the "Shortcut to the MagicTune™ site" to view our home page for further reference.

An error may occur when your video/graphic card is not in the 'Available' list. (The latest or oldest video cards may not be compatible.)

Please visit our homepage to see the Troubleshooting section.

An error may occur if the card maker has modified the video card driver or the graphics chip even when the video card is in the list.

Please visit our homepage to see the Troubleshooting section.

Check if your monitor is manufactured by Samsung. Products from other manufacturers may cause errors.

Only Samsung products are able to support this feature.

An error may occur even when your monitor is manufactured by Samsung but is out of date. Check if your monitor is able to support MagicTune™.

This feature is only supported by those monitors that are registered on our homepage. Check for the monitor before purchasing it as out-of-date models are not supported.

An error occurs when no information on EDID (Extended Display Identification Data) exists for the current monitor.

This happens when from your desktop, Start > Setup > Control Panel > System > Hardware > Device Manager > Monitor is selected, the current "Plug-and-play monitor" is removed and new hardware is searched for but the system couldn't find any "Plug-and-play monitor".

Please visit our homepage to see the Troubleshooting section.

An error occurs when replacing the monitor with a new one when the system power is off but the system has not been restarted.

Please restart the system each time the monitor is replaced before using MagicTune ^TM .

An error occurs when the video card driver is not installed properly. This happens when the current video card list is not displayed normally. You can check this via Start > Setup > System > Hardware > Device Manager > Display Adapter.

? To ensure normal operation, please restart your system.

An error occurs when the system is not restarted after installing MagicTune™. (This is for Win98SE and WinMe only.)

Restart the system before use.

For the best performance of MagicTune™, adjust to the optimal resolution. Refer to the User Guide for the optimal resolution.

If you do not adjust to the optimal resolution and perform Color Calibration, the monitor cannot be adjusted to the optimal condition.

Refer to the manual for the optimal resolution.

? This video card does not support MagicTune™. Please install a new video card driver.

An error occurs when the video card driver is not installed properly. This happens when the current video card list is not displayed normally. You can check this from Start > Setup > System > Hardware > Device Manager > Display Adapter.

Visit the video card manufacturer's homepage and download and install the latest driver. For more information about the video card, contact the card manufacturer.

As the Highlight program uses the communication lines, please exit the Highlight program before you can access MagicTune™.

Some of Samsung CDT monitors support the Highlight feature. When using both the Highlight feature and MagicTune™ simultaneously, conflicts occur, which cause errors.

Make sure to turn OFF Highlight before using MagicTune™.

Troubleshooting

- MagicTune™ may not work in case monitor is replaced or driver of graphic card is updated while MagicTune™ is operating. If so, please restart the system.

Symptom

Check when MagicTune™ does not function properly.

Check List

MagicTune™ feature is found only on PC (VGA) with Window OS that supports Plug and Play.

Solutions

* To check whether your PC is available for MagicTune™ feature, follow the steps below (When Windows™ is XP);

Control Panel -> Performance and Maintenance -> System -> Hardware -> Device Manager -> Monitors -> After deleting Plug and Play monitor, find 'Plug and Play monitor' by searching new Hardware.

MagicTune™ is an additional software for the monitor. Some graphic cards may not support your monitor. When you have a problem with

the graphic card, visit our website to check the compatible graphic card list provided. http://www.samsung.com/monitor/MagicTune

MagicTune™ doesn't work properly.

Have you changed your PC or video graphic card?

Download the latest program. The program can be downloaded http://www.samsung.com/monitor/MagicTune.

• Visit the MagicTune™ website for technical support for MagicTune™, FAQs (questions and answers) and software upgrades.
• Visit the MagicTune™ website and download the installation software for MagicTune™ MAC.

The MagicTune™ program is an additional program for monitor products. Some computing systems that install either an older or the latest video driver are not compatible with MagicTune™. Please visit the MagicTune™ Website for technical support for MagicTune™.

Specifications subject to change without notice. MagicTune™ is a trademark of SAMSUNG ELECTRONICS CO., Inc. Windows™ is a registered trademark of Microsoft Corp. Other trademarks are property of their respective holders.

Overview

Installation

Interface

Uninstall

Troubleshooting

Overview

What is MagicRotation?

Traditionally, computer displays allowed the user to view only in landscape mode. In today's information age, more users need to view documents, web pages, emails, etc. in there day to day life. These types of applications can be better viewed in portrait mode where the entire contents are available on the screen. This greatly improves the user's productivity allowing him the flexibility to switch between landscape and portrait modes.

The MagicRotation Software from Samsung Electronics, Inc. provides the user with a rotation feature (0, 90, 180, 270 orientation) that facilitates the optimum utilization of computer display screen, better viewing and improved user productivity.

Basic Function

MagicRotation will support Windows™ 98 SE, Me, NT 4.0, 2000, XP Home and XP Professional.

* Windows™ is registered trademark of Microsoft Corporation, Inc.

The specifications are subject to change without notice. MagicRotation is a trademark of SAMSUNG ELECTRONICS CO., LTD. All other product trademarks mentioned in this document may be registered trademarks of their respective companies. Windows™ is registered trademark of Microsoft Corporation, Inc.

MagicRotation Help

Overview

Installation

Interface

Uninstall

Troubleshooting

Installation

1. Insert the installation CD into the CD-ROM drive.

2. Click the MagicRotation installation file.

3. Select installation Language, Click "Next".

MagicRotation - InstallShield Wizard Choose Setup Language Select the language for the installation from the choices below. Chinese (Simplified) Chinese (Traditional) English French (Standard) German Italian Japanese Korean Russian Spanish Swedish InstallShield < Back Next > Cancel

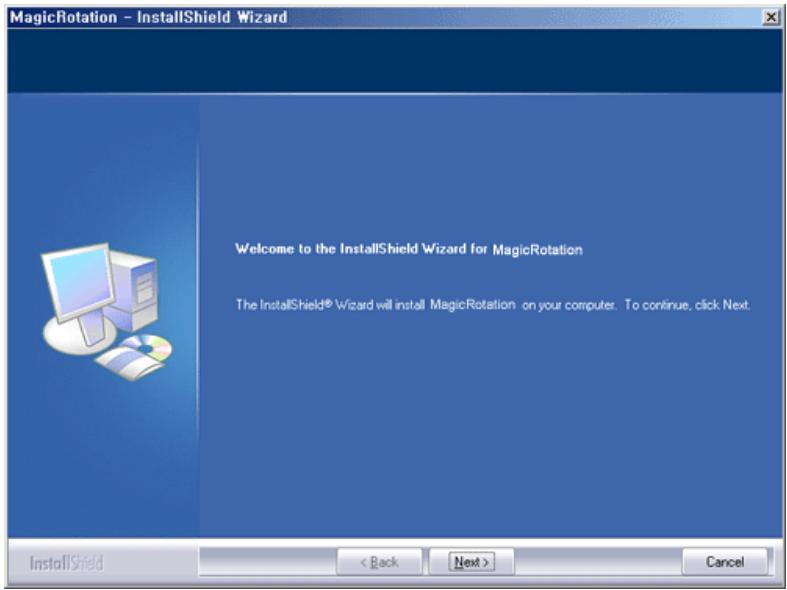

1. When the InstallShield Wizard window appears, click "Next."

MagicRotation - InstallShield Wizard Welcome to the InstallShield Wizard for MagicRotation The InstallShield® Wizard will install MagicRotation on your computer. To continue, click Next. InstallShield < Back Next > Cancel

1. Select "I accept the terms of the license agreement" to accept the terms of use.

MagicRotation - InstallShield Wizard License Agreement Please read the following license agreement carefully. END-USER LICENSE AGREEMENT FOR SAMSUNG ELECTRONICS MagicRotation SOFTWARE PRODUCT IMPORTANT-READ CAREFULLY: This Samsung Electronics End-User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Samsung Electronics Co., Ltd. ("SAMSUNG ELECTRONICS") with respect to the SAMSUNG ELECTRONICS product identified above. The SAMSUNG ELECTRONICS software product may include associated software components, media, printed materials and "online" or electronic documentation ("SOFTWARE PRODUCT"). By installing, copying or using the SOFTWARE PRODUCT, you agree to be bound by the terms of this EULA. If you do not agree to the terms of this EULA, you may not install or use the SOFTWARE PRODUCT. The SOFTWARE PRODUCT is protected by both copyright law, and computer program protection laws. 1. GRANT OF LICENSE. This EULA grants you the following rights: • Software Installation and Use SAMSUNG ELECTRONICS grants you the right to install and use the SOFTWARE PRODUCT on your single computer running under a legally acquired operation system. ● I accept the terms of the license agreement ● I do not accept the terms of the license agreement InstallShield < Back Next > Cancel

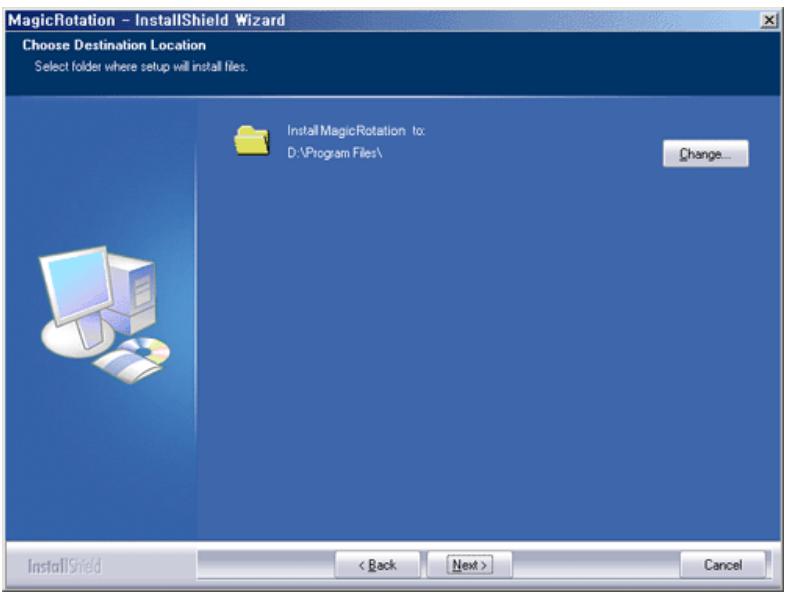

1. Choose a folder to install the MagicRotation program.

MagicRotation - InstallShield Wizard Choose Destination Location Select folder where setup will install files: Install MagicRotation to: D:\Program Files\ Change... InstallShield < Back Next > Cancel

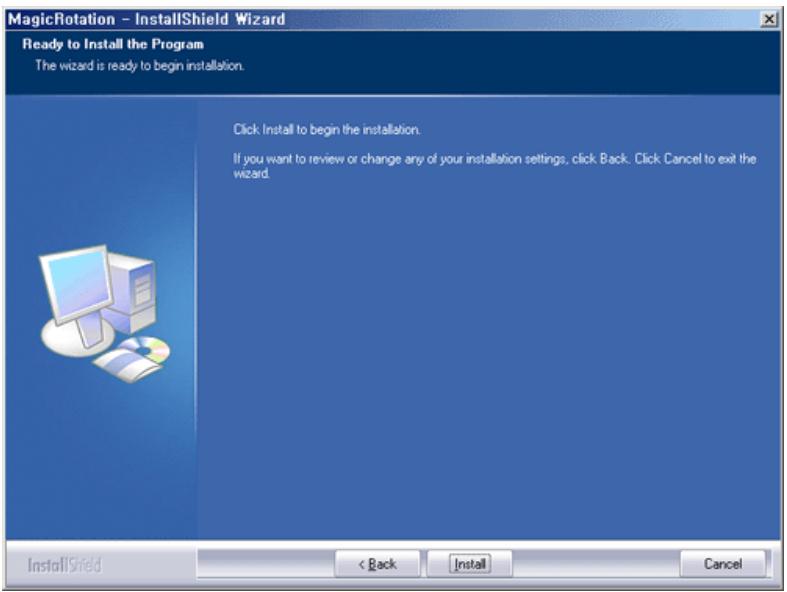

7. Click "Install."

MagicRotation - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. InstallShield < Back Install Cancel

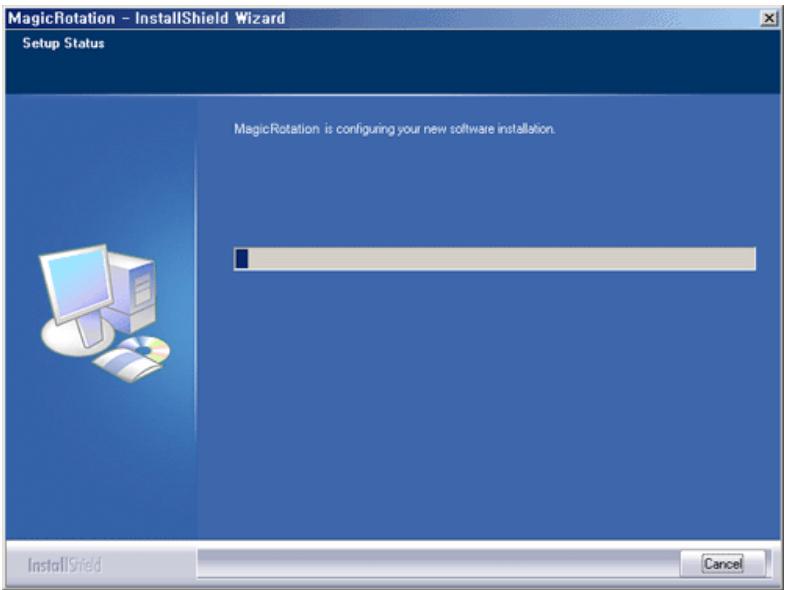

8. The "Setup Status" window appears.

MagicRotation - InstallShield Wizard Setup Status MagicRotation is configuring your new software installation. InstallShield Cancel

9. Click "Finish."

Have to reboot the system in order for the MagicRotation to work properly.

MagicRotation - InstallShield Wizard InstallShield Wizard Complete Setup has completed installing MagicRotation Yes, I want to restart my computer now. No, I will restart my computer later. Click Finish to exit MagicRotation setup. InstallShield < Back Finish Cancel

1. When the installation is complete, the MagicRotation executable icon appears on your desktop.

MagicRotation

Installation Problems

The installation of MagicRotation can be affected by the factors such as video card, motherboard and the network environment.

See "Troubleshooting" if you have trouble during installation.

Limitation

1. The "Display Driver" should be properly loaded for the MagicRotation to work properly. The installed "Display Driver" should be the latest driver supplied by the vendor.

2. If some applications like Windows Media Player, Real Player, etc. are not displaying movie files properly in 90, 180 and 270 orientations then do the following :

3. Close the application.

4. Select the Orientation (90, 180, 270) you want to view the application.
5. Relaunch the application.

In most cases this should fix the problem.

1. User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the orientation mode selected (90, 180, 270). e.g. 3D games
2. DOS based applications in Full Screen Mode will not function as per the orientation mode selected (90, 180, 270).
3. Dual is not supported in Windows ^™ 98, ME, NT 4.0.
4. MagicRotation does not provide support for 24 bits per pixel (Bit depth/Color Quality).
5. If you are changing your Graphic Card it is recommended that you uninstall the MagicRotation Software before doing so.

System Requirements

os

• Windows™ 98 SE
• Windows™ Me
• Windows™ NT 4.0

• Windows™ 2000

• Windows™ XP Home Edition

• Windows™ XP Professional

Hardware

• 128MB Memory above(recommended)
• 25MB Free Hard disk space above

Service Packs

• It is recommended that your System has the latest Service Pack installed.
• For Windows™ NT 4.0, it is recommended to install Internet Explorer 5.0 and above with Active Desktop component.

* For more information, visit the MagicRotation website.
* Windows™ is registered trademark of Microsoft Corporation, Inc.

The specifications are subject to change without notice.

MagicRotation is a trademark of SAMSUNG ELECTRONICS CO., LTD.

All other product trademarks mentioned in this document may be registered

trademarks of their respective companies.

Windows ^™ is registered trademark of Microsoft Corporation, Inc.

MagicRotation Help

Overview

Installation

Interface

Uninstall

Troubleshooting

• When Rotation is functioning, portion of MagicTune™ program may not operate normally.
• AutoRotation : The screens display will automatically rotate when the monitor is rotated.

To execute Auto Rotation, it should be done as below.

• Please install both MagicRotation and MagicTune™ 3.6 programs in your computer.
• Launch MagicTune 3.6
• Option → Preference → Click the small box in the enable task tray menu.

- MagicRotation™ program can not be provided as Simple Stand does not support Pivot function.

- The permitted angle of rotation of the monitor is determined by the model of the monitor.

Interface

1 Rotate : Display will get rotated by the unit of 90 degree.

2 Rotate to 0 : Display will get rotated to 0 degree from the current angle of Rotation.

3 Rotate to 90 : Display will be rotated 90 degrees from the current angle.

4 Rotate to 180 : Display will be rotated 180 degrees from the current angle.

5 Rotate to 270 : Display will be rotated 270 degrees from the current angle.

6 Hot key : Hot Keys are available by default and can be changed by user. It can be assigned by user directly with keyboard after changing the existing HotKey . User can create the hot key with the combination of Shift, Ctrl, Alt and general keys. In case only general key is pressed, it will be assigned in the form of Alt+general key.
7 Help : Shows the HELP of MagicRotation program.
8 About : Shows the version and copyright of MagicRotation program.
9 Exit : Exits from MagicRotation program.

MagicRotation Help

Overview

Installation

Interface

Uninstall

Troubleshooting

Uninstall

The MagicRotation program can be removed only by using the "Add/Remove Programs" option of the Windows Control Panel.

Perform the following steps to remove MagicRotation.

1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows™ XP, go to [Control Panel] in the [Start] menu.
2. Click the "Add/Remove Programs" icon in Control Panel.
3. In the "Add/Remove Programs" screen, scroll down to find "MagicRotation" Click on it to highlight it.
4. Click the "Change/Remove" button to remove the program.
5. Click "Yes" to begin the uninstall process.
6. Wait until the "Uninstall Complete" dialog box appears.
7. After uninstall restart the system to complete the uninstallation.

Visit the MagicRotation website for technical support for MagicRotation, FAQs (questions and answers) and software upgrades.

* Windows™ is registered trademark of Microsoft Corporation, Inc.

The specifications are subject to change without notice.

MagicRotation is a trademark of SAMSUNG ELECTRONICS CO., LTD.

All other product trademarks mentioned in this document may be registered

trademarks of their respective companies.

Windows ^™ is registered trademark of Microsoft Corporation, Inc.

MagicRotation Help

Overview

Installation

Interface

Uninstall

Troubleshooting

Troubleshooting

Before You Call Technical Support

- MagicRotation Software works with the installed "Display Driver" supplied by your Graphic Card Vendor to provide screen rotation capabilities. If the installed "Display Driver" is working incorrectly or has bugs in it, then these bugs would still exist even after MagicRotation Software is installed. Any incorrect/random behaviour resulting due to problems in the installed "Display Driver" are not due to MagicRotation Software.

In order to verify if a problem exists in the installed "Display Driver", you can perform the following diagnostic steps:

1. Check if the problem is occurring in both 0 orientation (Landscape mode) and 90 orientation (Portrait mode).

2. Check if the problem occurs with different color depths (8/16/32 bits per pixel) and different resolution modes (800 x 600, 1024 x 768).

3. Check if the problem occurs without installing MagicRotation Software.

If the problem is repeating in any/all of the following scenarios then it may be the problem with your installed "Display Driver":

In order to correct the problem you need to perform the following steps :

1. Uninstall MagicRotation Software.
2. Obtain the latest "Display Driver" from your Graphic Card Vendor. The latest "Display Driver" from (ATI, NVIDIA, MATROX, INTEL, etc.) are easily available for download from their respective websites.
3. Install the latest "Display Driver"

4. Install MagicRotation Software. In most of the cases this should correct the problem.

5. MagicRotation may not work in case monitor is replaced or driver of graphic card is updated while MagicRotation is operating.
   If so, please restart the system.

- Visit the MagicRotation website for technical support for MagicRotation, FAQs (questions and answers) and software upgrades.

The specifications are subject to change without notice. MagicRotation is a trademark of SAMSUNG ELECTRONICS CO., LTD. All other product trademarks mentioned in this document may be registered trademarks of their respective companies. Windows™ is registered trademark of Microsoft Corporation, Inc.

SAMSUNG ELECTRONICS SAMSUNG DIGITall everyone's invited™ ■ Safety Instructions ■ Introduction ■ Setup ■ Adjusting Your Monitor ■ Troubleshooting ■ Specifications ■ Information

Check List

Q & A

Self-Test Feature Check

Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer.

Symptom	Check List	Solutions
No images on the screen. I cannot turn on the monitor.	Is the power cord connected properly?	Check the power cord connection and supply.
	Can you see "Check Signal Cable" on the screen?	(When connecting D-sub cable)Check the signal cable connection.(When connecting DVI cable)If you still see an error message on the screen when the monitor is connected properly, check to see if the monitor status is set to analog.Press 'SOURCE' button to have the monitor double-check the input signal source.
	If the power is on,reboot the computer to see the initial screen (the login screen),which can be seen.	If the initial screen (the login screen) appears,boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Preset Timing Modes)Note: If the initial screen (the login screen) does not appear, contact a service center or your dealer.
	Can you see "Not Optimum Mode","Recommended mode : 1600 X 1200 60Hz" on the screen?	You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can properly handle.Adjust the maximum resolution and frequency that the monitor can handle properly.If the display exceeds UXGA or 75Hz (In case of UXGA, 60Hz), a "Not Optimum Mode","Recommended mode : 1600 X 1200 60Hz" message is displayed. If the display exceeds 85Hz, the display will work properly but the "Not Optimum Mode", "Recommended mode : 1600 X 1200 60Hz" message appears for one minute and then disappears. Please change to the recommended mode during this one-minute period. (The message is displayed again if the system is rebooted.)
	There is no image on the screen.Is the power indicator on the monitor blinking at 1 second intervals?	The monitor is in PowerSaver mode.Press any key on the keyboard to activate the monitor and restore the image on the screen.If there is still no image, press the 'SOURCE' button.Then press any key on the keyboard again to activate the monitor and restore the image on the screen.
	Is the monitor connected using the DVI cable?	You may get a blank screen if you boot the system before you connect the DVI cable, or disconnect and then reconnect the DVI cable while the system is running as certain types of graphic cards do not send out video signals. Connect the DVI cable and then reboot the system.
I cannot see the On Screen Display.	Have you locked the On Screen Display (OSD) Menu to prevent changes?	Unlock the OSD by pressing the MENU button for at least 5 seconds.
The screen shows strange colors or just black and white.	Is the screen displaying only one color as if looking at the screen through a cellophane paper?	Check the signal cable connection. Make sure the video card is fully inserted in it's slot.
	Have the screen colors become strange after running a program or due to a crash between applications?	Reboot the computer.
	Has the video card been set properly?	Set the video card by referring to the video card manual.
The screen suddenly has become unbalanced.	Have you changed the video card or the driver?	Adjust screen image position and size using the OSD.
	Have you adjusted the resolution or frequency on the monitor?	Adjust the resolution and frequency of the video card.(Refer to the Preset Timing Modes).
	The screen can be unbalanced due to the cycle of the video card signals. Readjust Position by referring to the OSD.
The screen is out of focus or OSD cannot be adjusted.	Have you adjusted the resolution or frequency on the monitor?	Adjust the resolution and frequency of the video card.(Refer to the Preset Timing Modes).
Power Indicator is blinking but no images on the screen.	Is the frequency properly adjusted when checking the Display Timing on the menu?	Adjust the frequency properly by referring to the video card manual and the Preset Timing Modes.(The maximum frequency per resolution may differ from product to product.)
There are only 16 colors shown on the screen.The screen colors have changed after changing the video card.	Have the Windows colors been set properly?	Windows ME/2000/XP:Set the colors properly at the Control Panel → Display → Settings.
	Has the video card been set properly?	Set the video card by referring to the video card manual.
There is a message that reads "Unrecognized monitor, Plug & Play (VESA DDC) monitor found".	Have you installed the monitor driver?	Install the monitor driver according to the Driver Installation Instructions.
	See the video card manual to see if the Plug & Play (VESADDC) function can be supported.	Install the monitor driver according to the Driver Installation Instructions.
Check when MagicTuneTM does not function properly.	MagicTuneTM feature is found only on PC (VGA) with Window OS that supports Plug and Play.	* To check whether your PC is available for MagicTuneTM feature, follow the steps below (When Windows is XP);Control Panel -> Performance and Maintenance -> System -> Hardware -> Device Manager -> Monitors -> After deleting Plug and Play monitor, find 'Plug and Play monitor' by searching new Hardware.
		MagicTuneTM is an additional software for the monitor. Some graphic cards may not support your monitor. When you have a problem with the graphic card, visit our website to check the compatible graphic card list provided.http://www.samsung.com/monitor/magictune
MagicTuneTM doesn't work properly.	Have you changed your PC or video graphic card?	Download the latest program. The program can be downloadedhttp://www.samsung.com/monitor/magictune.

Visit our website and download the installation software for MagicTune™ MAC.

Check the following items if there is trouble with the monitor.

1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting. (If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if the installed the adapter (video) driver and the monitor driver.
4. Check if the scanning ratio of the video screen is set at 56Hz \~ 75Hz. (Do not exceed 60Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter at the "Control Panel→System→Device Administrator" and then reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized service center.

Check List

Q & A

Self-Test Feature Check

Q & A

Question	Answer
How can I change the frequency?	Frequency can be changed by reconfiguring the video card.Note that video card support can vary, depending on the version of the driver used. (Refer to the computer or the video card manual for details.)
How can I adjust the resolution?	Windows ME/XP/2000 : Set the resolution at the Control Panel→Display→Settings.* Contact the video card manufacturer for details.
How can I set the Power Saving function?	Windows ME/XP/2000 : Set the function at BIOS-SETUP of the computer or the screen saver. (Refer to Windows/Computer Manual).
How can I clean the outer case/LCD Panel?	Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water.Do not leave any remains of the detergent nor scratch the case.

Self-Test Feature Check

Self-Test Feature Check | Warning Messages | Environment | Useful Tips

Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.

1. Self-Test Feature Check

1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
   If the monitor is functioning properly, you will see a box in the illustration below.

Check Signal Cable Analog

This box appears during normal operation if the video cable becomes disconnected or damaged.

1. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after using the previous procedure, check your video controller and computer system; your monitor is functioning properly.

2. Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on. The message may indicate that the monitor is out of scan range or that you need to check the signal cable.

Not Optimum Mode

Recommended Mode 1600X1200 60Hz

3. Environment

The location and the position of the monitor may influence the quality and other features of the monitor.

1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room.
2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.

4. Useful Tips

- A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the computer or the video card, this can cause the monitor to become blank, have poor coloring, noise, video mode not supported, etc. In this case, first check the source of the problem, and

then contact the Service Center or your dealer.

• Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode : 1600 X 1200 60Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on.

○ If there is a message coming up on the screen or if the screen goes white, this means the monitor is in working condition.
- In this case, check the computer for trouble.

SAMSUNG DIGITAL everyone's invited™ ■ Safety Instructions ■ Introduction ■ Setup ■ Adjusting Your Monitor ■ Troubleshooting ■ Specifications ■ Information

General

PowerSaver

Preset Timing Modes

General

General
Model Name	SyncMaster 214T
LCD Panel
Size	21.3" Diagonal (54 cm)
Display area	432 mm (H) x 324 mm (V)
Pixel Pitch	0.270 mm (H) x 0.270 mm (V)
Type	a-si TFT/SPVA
Synchronization
Horizontal	30 ~ 81 kHz
Vertical	56 ~ 75 Hz
Display Color
16.7M Colors
Resolution
Optimum resolution	1600 x 1200 @ 60 Hz
Maximum resolution	1600 x 1200 @ 60 Hz (Analog)1600 x 1200 @ 60 Hz (Digital)
Input Signal, Terminated
Analog RGB, DVI Compliant Digital RGB, CVBS, S-VideoComposite Sync,SOG, 0.7Vp-p Positive at 75ΩSeparate H/V sync,TTL level positive or negative
Video
Video format	CVBS, S-Video
Maximum Pixel Clock
162 MHz (Analog/Digital)
Power Supply
AC 100 ~ 240 VAC(±10%), 60/50 Hz ± 3 Hz
Signal Cable

15pin-to-15pin D-sub cable, detachable, 1.8 m DVI-D to DVI-D connector, detachable, 2.0m

Power Consumption

Less than 63W(Analog/Digital)

Dimensions (WxDxH)/ Weight

469.0 x 228.5 x 466.2mm (18.5 x 9.0 x 18.4 inch) / 8.8 kg (state of stand installed)

VESA Mounting Interface

100 mm x 100 mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating	Temperature: 32°F ~ 122°F (0°C ~ 50°C) Humidity: 20% ~ 90%, non-condensing
Storage	Temperature: -4°F ~ 149°F (-20°C ~ 65°C) Humidity: 5% ~ 90%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Dot Acceptable

TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

- For example, the number of TFT LCD sub pixels that is contained in this product are 5,760,000

Note: Design and specifications are subject to change without prior notice.

General

PowerSaver

Preset Timing Modes

|

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in your computer. Use a software utility installed on your computer to set up this feature.

State	Normal Operation	Power saving mode EPA/ENERGY 2000	Power off (Power S/W off)
Power Indicator	Green	Green, Blinking	Black
Power Consumption	Analog/Digital Less than 63W	Analog/Digital Less than 2 W (Off-mode)	Less than 0 W

This monitor is EPA ENERGY STAR ^® compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality.

As an ENERGY STAR ^® Partner, SAMSUNG has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)
IBM, 640 x 350	31.469	70.086	25.175	+/-
IBM, 720 x 400	31.469	70.087	28.322	-/+
IBM, 640 x 480	31.469	59.940	25.175	-/-
VESA, 640 x 480	37.861	72.809	31.500	-/-
VESA, 640 x 480	37.500	75.000	31.500	-/-
MAC, 640 x 480	35.000	66.667	30.240	-/-
MAC, 832 x 624	49.726	74.551	57.284	-/-
VESA, 800 x 600	35.156	56.250	36.000	+/-, +/-
VESA, 800 x 600	37.879	60.317	40.000	+/+
VESA, 800 x 600	48.077	72.188	50.000	+/+
VESA, 800 x 600	46.875	75.000	49.500	+/+
VESA, 1024 x 768	48.363	60.004	65.000	-/-
VESA,1024 x 768	56.476	70.069	75.000	-/-
VESA, 1024 x 768	60.023	75.029	78.700	+/+
VESA, 1280 x 1024	63.981	60.020	108.00	+/+
VESA, 1280 x 1024	79.976	75.025	135.00	+/+
VESA, 1600 x 1200	75.000	60.000	162.00	+/+

Cartoon illustration of an open book with a rising graph inside, surrounded by question marks (no text or symbols)

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

SAMSUNG ELECTRONICS SAMSUNG DIGITALL everyone's invited™ ■ Safety Instructions ■ Introduction ■ Setup ■ Adjusting Your Monitor ■ Troubleshooting ■ Specifications ■ Information

Contact SAMSUNG WORLD-WIDE

Terms

For Better Display

Authority

Image Retention Free

Correct Disposal

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

North America
CANADA	1-800-SAMSUNG (7267864)	http://www.samsung.com/ca
MEXICO	01-800-SAMSUNG (7267864)	http://www.samsung.com/mx
U.S.A	1-800-SAMSUNG (7267864)	http://www.samsung.com

Latin America
ARGENTINE	0800-333-3733	http://www.samsung.com/ar
BRAZIL	0800-124-421	http://www.samsung.com/br
CHILE	800-726-7864 (SAMSUNG)	http://www.samsung.com/cl
COSTA RICA	0-800-507-7267	http://www.samsung.com/latin
ECUADOR	1-800-10-7267	http://www.samsung.com/latin
EL SALVADOR	800-6225	http://www.samsung.com/latin
GUATEMALA	1-800-299-0013	http://www.samsung.com/latin
JAMAICA	1-800-234-7267	http://www.samsung.com/latin
PANAMA	800-7267	http://www.samsung.com/latin
PUERTO RICO	1-800-682-3180	http://www.samsung.com/latin
REP. DOMINICA	1-800-751-2676	http://www.samsung.com/latin
TRINIDAD & TOBAGO	1-800-7267-864	http://www.samsung.com/latin
VENEZUELA	1-800-100-5303	http://www.samsung.com/latin

Europe
BELGIUM	02 201 2418	http://www.samsung.com/be
CZECH REPUBLIC	844 000 844	http://www.samsung.com/cz
DENMARK	38 322 887	http://www.samsung.com/dk
FINLAND	09 693 79 554	http://www.samsung.com/fi
FRANCE	08 25 08 65 65 (€ 0,15/min)	http://www.samsung.com/fr
GERMANY	01805 - 121213 (€ 0,12/Min)	http://www.samsung.de
HUNGARY	06 40 985 985	http://www.samsung.com/hu
ITALIA	199 153 153	http://www.samsung.com/it
LUXEMBURG	02 261 03 710	http://www.samsung.lu
NETHERLANDS	0900 20 200 88 (€ 0.10/Min)	http://www.samsung.com/nl
NORWAY	231 627 22	http://www.samsung.com/no
POLAND	0 801 801 881	http://www.samsung.com/pl
PORTUGAL	80 8 200 128	http://www.samsung.com/pt
SLOVAKIA	0850 123 989	http://www.samsung.com/sk
SPAIN	902 10 11 30	http://www.samsung.com/es
SWEDEN	08 585 367 87	http://www.samsung.com/se
U.K	0870 242 0303	http://www.samsung.com/uk

CIS

RUSSIA	8-800-200-0400	http://www.samsung.ru
UKRAINE	8-800-502-0000	http://www.samsung.com/ur

Asia Pacific

AUSTRALIA	1300 362 603	http://www.samsung.com/au
CHINA	800-810-5858, 010- 6475 1880	http://www.samsung.com.cn
HONG KONG	2862 6001	http://www.samsung.com/hk
INDIA	3030 8282, 1600 1100 11	http://www.samsung.com/in
INDONESIA	0800-112-8888	http://www.samsung.com/id
JAPAN	0120-327-527	http://www.samsung.com/jp
MALAYSIA	1800-88-9999	http://www.samsung.com/my
PHILIPPINES	1800-10-SAMSUNG (7267864)	http://www.samsung.com/ph
SINGAPORE	1800-SAMSUNG (7267864)	http://www.samsung.com/sg
THAILAND	1800-29-3232, 02-689-3232	http://www.samsung.com/th
TAIWAN	0800-329-999	http://www.samsung.com/tw
VIETNAM	1 800 588 889	http://www.samsung.com/vn

Middle East & Africa

SOUTH AFRICA	0860 7267864 (SAMSUNG)	http://www.samsung.com/za
U.A.E	800SAMSUNG (7267864)	http://www.samsung.com/mea

Terms

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm

Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs.

Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This number shows the accuracy of the display. High resolution is good for performing multiple tasks as more image information can be shown on the screen.

Example: If the resolution is 1600 X 1200, this means the screen is composed of 1600 horizontal dots (horizontal resolution) and 1200 vertical lines (vertical resolution).

S-Video

Short for "Super Video." S-Video allows up to 800 lines of horizontal resolution, enabling high-quality video.

External Device Input

External device input refers to video input from such external video devices as VCRs, camcorders and DVD players, separate from a TV broadcast.

DVD

A type of digital disk technology that takes up only the benefits of CD and LD, to implement a high resolution/quality, which enables the user to enjoy clearer images.

For Better Display

1. Adjust computer resolution and screen injection rate (refresh rate) oncomputer as described below to enjoy the best quality of picture. You can have an uneven quality of picture in the screen if the best quality of picture is not provided in TFT-LCD.

○ Resolution: 1600 X 1200
○ Vertical frequency (refresh rate): 60 Hz

1. TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm (one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without uneasiness.

☐ For example, the number of TFT LCD sub pixels that is contained in this product are 5,760,000.

1. When you clean the monitor and the panel outside, please apply the recommended small amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but to be scrubbed out softly. If excessive force is applied, you can have a stain on it.
2. If you are not satisfied with the quality of picture, you can get better quality of picture by executing "Auto adjustment" function in display screen that is appeared as window termination button is pressed. If there's still noise after automatic adjustment, use Fine/Coarse adjustment function.
3. If you view a fixed screen for an extended period of time, residual image or blurriness may appear. Change the mode to energy save or set a screensaver to moving picture when you need to be away from the monitor for an extended period of time.

Contact SAMSUNG WORLD WIDE

Terms

For Better Display

Authority

Image Retention Free

Correct Disposal

Authority

Information in this document is subject to change without notice.

© 2006 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are registered trademarks of Video Electronics Standard Association; the ENERGY STAR® name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® Partner, Samsung Electronics Co., Ltd. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. - All other product names mentioned herein may be the trademarks or registered trademarks of their respective owners.

Class B

This device is a Class B digital apparatus. For Safety and EMC compliance guide, you may refer to "Regulatory" Guide.

MÉXICO

IMPORTADO POR:

SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V.

Vía Lopez Portillo No. 6, Col. San Fco. Chilpan

Tultitlán, Estado de México, C.P. 54940

Tel: [phone]

EXPORTADO POR:

Samsung Electronics CO.,LTD.

416, Mae tan-3dong, Yeongtong - gu,

Suwon City, Gyeonggi-do Korea

LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time.

This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.

Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

What is Image retention?

During normal operation of a LCD panel, pixel image retention doesn't occur. However, if the same image is displayed for a long time, a slight difference in electric charge accumulates between the two electrodes which encase the liquid crystal. This may cause the liquid crystal to build up in a certain areas of the display. Thus, the previous image is retained when switching to a new video image. All display products, including LCD, are subject to image retention. This is not a product defect.

Please follow the suggestions below to protect your LCD from image retention

Power Off, Screen Saver, or Power Save Mode Ex)

• Turn the power off when using a stationary pattern.
• Turn the power off for 4 hours after 24 hours in use
• Turn the power off for 2 hours after 12 hours in use

- Use a Screen saver if possible

- Screen saver in one color or a moving image is recommended.

- Set the Monitor to power off with the PC Display Properties Power Scheme.

Suggestions for specific applications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems We recommend that you follow set up of your display system program as below:

- Display Information together with Logo or Moving image cycle.

Ex) Cycle : Display Information for 1 hour followed by a Display Logo or moving image for 1 minute.

Change the Color Information periodically (Use 2 different colors).

Ex) Rotate the Color Information with 2 colors every 30 minutes.

Type 1 FLIGHT TIME OZ348 20:30 UA102 21:10 Type 1 FLIGHT TIME OZ348 20:30 UA102 21:10

Avoid using a combination of characters and background color with large difference in luminance.

Avoid using Grey colors, which can cause Image retention easily.

- Avoid: Colors with big difference in luminance (Black & White, Grey) Ex)

SYSTEM : 245 STATUS : NG SYSTEM : 245 STATUS : NG

- Recommended settings: Bright colors with little difference in luminance - Change the characters color and background color every 30 minutes Ex)

SYSTEM : 245 STATUS : OK SYSTEM : 245 STATUS : OK SYSTEM : 245 STATUS : OK SYSTEM : 245 STATUS : OK

- Every 30 minutes, change the characters with movement.

Ex)

1 KA1710 12:00 UA0110 13:30 2 AA0002 14:00 KA1710 12:00 FA7777 14:15 UA0110 13:30 3 AA0002 14:00 FA7777 14:15

The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it.

Image retention may not occur when a LCD panel is operated under normal conditions.

Normal conditions are defined as continuously changing video patterns. When the LCD panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight difference in voltage between electrodes that work the liquid crystal (LC) in a pixel. The voltage difference between electrodes increases with time, forcing the liquid crystal to lean. When this occurs, the previous image may be seen when the pattern is changed.

To prevent this, the accumulated voltage difference must be decreased.

Black Matrix Common Electrode (ITO) Color-Filter Source Drain CIC Data Bus-Line TFT Gate Pixel Electrode (ITO) Storage Capacitor (Cs) + + + + + + + + +

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
