Product Type	Mechanical Keyboard
Brand	Keychron
Model	Q10
Layout	75% (83 keys)
Connectivity	USB-C (wired), Bluetooth 5.1 (wireless)
Switch Type	Gateron G Pro (Red/Blue/Brown) or Keychron optical (Hot-swappable)
Hot-swappable	Yes, supports 3-pin and 5-pin mechanical switches
Backlight	Per-key RGB with 16 million colors
Battery Capacity	4000 mAh (estimated 80 hours without backlight)
Dimensions (L x W x H)	385 mm x 142 mm x 30 mm (including knob)
Weight	Approximately 880 g (keyboard only)
Cable	Detachable USB-C to USB-A cable (1.5m)
Operating Systems Supported	Windows, macOS, Linux, iOS, Android
Keycaps	Double-shot PBT, OEM profile, full side-printed for macOS/Win
Multimedia Keys	Dedicated rotary encoder knob + FN layer
Programmability	VIA software (QMK firmware) for key remapping, macros, and lighting
Polling Rate	1000 Hz (wired)
Angle Adjustment	Two-step adjustable feet (6°/9°)
Materials	Aluminum frame, polycarbonate plate
Maintenance	Clean with soft brush or compressed air; remove keycaps for deep cleaning
Spare Parts	Replacement keycaps, switches, and cables available from Keychron or authorized retailers
Environmental Operating Temperature	0°C to 40°C

Frequently Asked Questions - Q10 Keychron

How do I pair the Q10 via Bluetooth?

Turn on the keyboard, select Bluetooth mode (switch to Bluetooth icon), then press and hold the Fn + 1 key for 3 seconds until the backlight flashes rapidly. Search for 'Keychron Q10' on your device and pair.

Can I use the keyboard while charging?

Yes, the Q10 supports pass-through wired mode via USB-C. You can type and charge simultaneously.

What switches are compatible with the hot-swap sockets?

The sockets support 3-pin and 5-pin mechanical switches (e.g., Gateron, Cherry, Kailh). Optical switches are not compatible.

How do I reset the keyboard to factory settings?

Disconnect the cable, turn the power switch to Off, then press and hold the Esc key while connecting the USB cable. Release after 5 seconds.

Is the Q10 compatible with macOS?

Yes, it includes dedicated macOS keycaps (Command, Option) and a system toggle switch for macOS/Windows layout.

How long does the battery last on a full charge?

Approximately 80 hours (without backlight) or 10-20 hours with RGB on, depending on brightness.

Can I program custom macros with VIA?

Yes, download the VIA software from the Keychron website, connect via USB, and you can remap keys, create macros, and adjust lighting.

What is the purpose of the rotary knob?

The knob can be customized via VIA. By default, it controls volume (rotate) and mute (press). You can also assign it to zoom, scroll, etc.

How do I clean the keyboard?

Turn off power. Remove keycaps with a keycap puller. Use a soft brush or compressed air to remove debris. Wipe the surface with a slightly damp cloth; avoid liquid inside.

Where can I find replacement keycaps?

You can purchase official Keychron keycap sets from the Keychron store or compatible OEM-profile PBT sets from third-party vendors.

USER MANUAL Q10 Keychron

Fully Assembled Version

Keyboard

1x Fully Assembled Keyboard

Including

1x Aluminum Case
1x PCB
1x Steel Plate
14x Gaskets (10 Installed and 4 in the Box)
5 sets x Stabilizers
1 set x Keycaps (PBT Double-shot)
1 set x Switches

Cable

1x Type-C to Type-C Cable

1x Type-A to Type-C Adapter

Tools

1x Switch Puller
1x Keycap Puller
1x Screwdriver
1x Hex Key

Line drawings of five different screwdriver and tool packages (no text or symbols)

Barebone Version

Keyboard Kit

1x Keyboard Kit (Without Keycaps & Switches)

Including

1x Aluminum Case

1x PCB

1x Steel Plate

14x Gaskets (10 Installed and 4 in the Box)

5 sets x Stabilizers

Cable

1x Type-C to Type-C Cable

1x Type-A to Type-C Adapter

Tools

1x Switch Puller

1x Keycap Puller

1x Screwdriver

1x Hex Key

Line drawings of five different screwdriver tools (no text or symbols)

QUICK START GUIDE

If you are a Windows user, please find the appropriate keycaps in the box, then follow the instructions below to find and replace the following keycaps.

Mac / Windows

1 Switch To The Right System

Please make sure the system toggle on the top center has been switched to the same system as your computer's operating system.

+

+

2 The VIA Key Remapping Software

Please visit caniusevia.com to download the latest VIA software to remap the keys. If the VIA software cannot recognize your keyboard, please reach out to our support to get the instruction.

3 The Layers

There are four layers of key settings on the keyboard. The layer 0 and layer 1 are for the Mac system. The layer 2 and layer 3 are for the Windows system.

If your system toggle is switched to Mac, then the layer 0 will be activated.

If your system toggle is switched to Windows, then the layer 2 will be activated. Remember that if you are using it in Windows mode, please make changes to the layer 2 instead of the top layer (the layer 0). This is a common mistake people are making.

4 The Backlight

Press fn + Q to change the lighting effect

Press fn + tab to turn the backlight on/off

5 Adjust The Backlight Brightness

Press fn + W to increase the backlight brightness

Press fn + S to decrease the backlight brightness

6 Warranty

The keyboard is highly customizable and easy to be rebuilt. If anything goes wrong with any of the keyboard components of keyboard during the warranty period, we will only replace the defective parts of the keyboard, not the whole keyboard.

7 Watch The Building Tutorial On Our Website

If you are building the keyboard for the first time, we highly recommend you watch the building tutorial video on our website first, then start building the keyboard yourself.

8 Factory Reset

Troubleshooting? Don't know what's going on with the keyboard?

① Try factory reset by pressing fn + J + Z (for 4 seconds).
② Download the right firmware for your keyboard from our website. Remove the power cable from the keyboard.
③ Remove the space bar keycap to find the reset button on the PCB.
④ Hold the reset key while plugging in the power cable and then release the reset key. The keyboard now will enter DFU mode.
⑤ Flash the firmware with the QMK Toolbox.
⑥ Factory reset the keyboard again by pressing fn + J + Z (for 4 seconds).

* Step by step guide can be found on our website.

Q10 CUSTOMIZABLE KEYBOARD SPECIFICATIONS

Specifications
Layout	75%
Switch type	Mechanical
Width	140 mm / 156.85 mm
Length	385.3 mm
Front height	19.6 mm (without keycaps)
Back height	33 mm (without keycaps)
Front height	31 mm (with OSA keycaps installed)
Back height	43 mm (with OSA keycaps installed)
Keyboard feet height	2.4 mm
Angle	5 degree

Q10 MECHANICAL KEYBOARD OVERVIEW

Windows

① Type-C Port
② Mac Layout
③ Windows Layout

DEFAULT KEY LAYOUT:

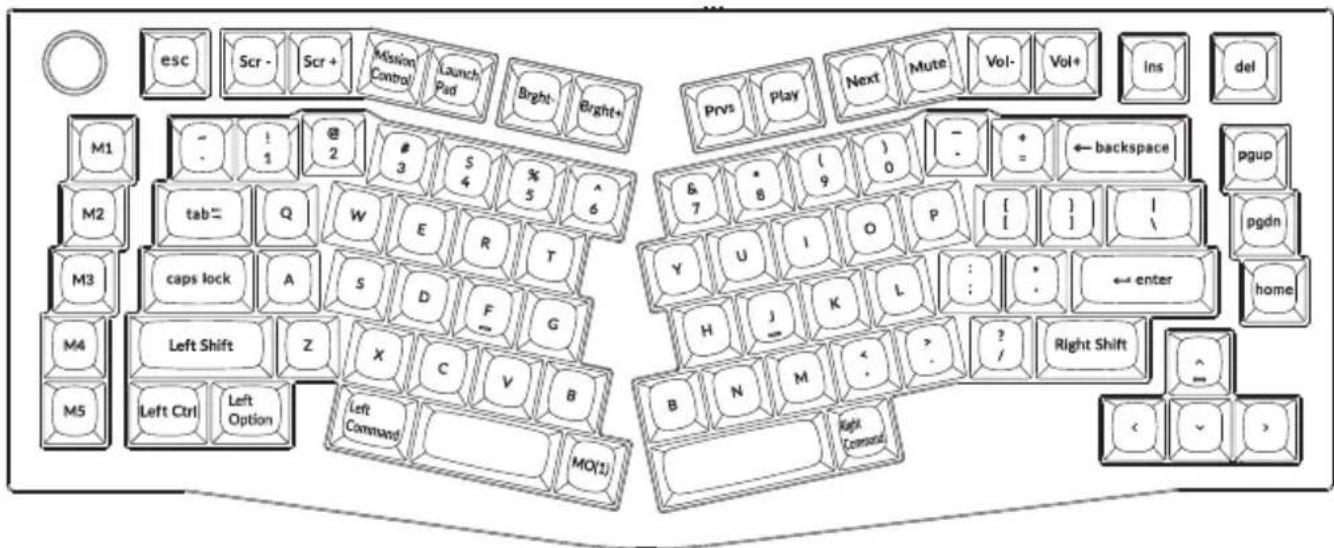

LAYER 0: This layer will be activated when your keyboard's system toggle is switched to Mac.

LAYER 1: This layer will be activated when your keyboard's system toggle is switched to Mac and press the fn/MO(1) key.

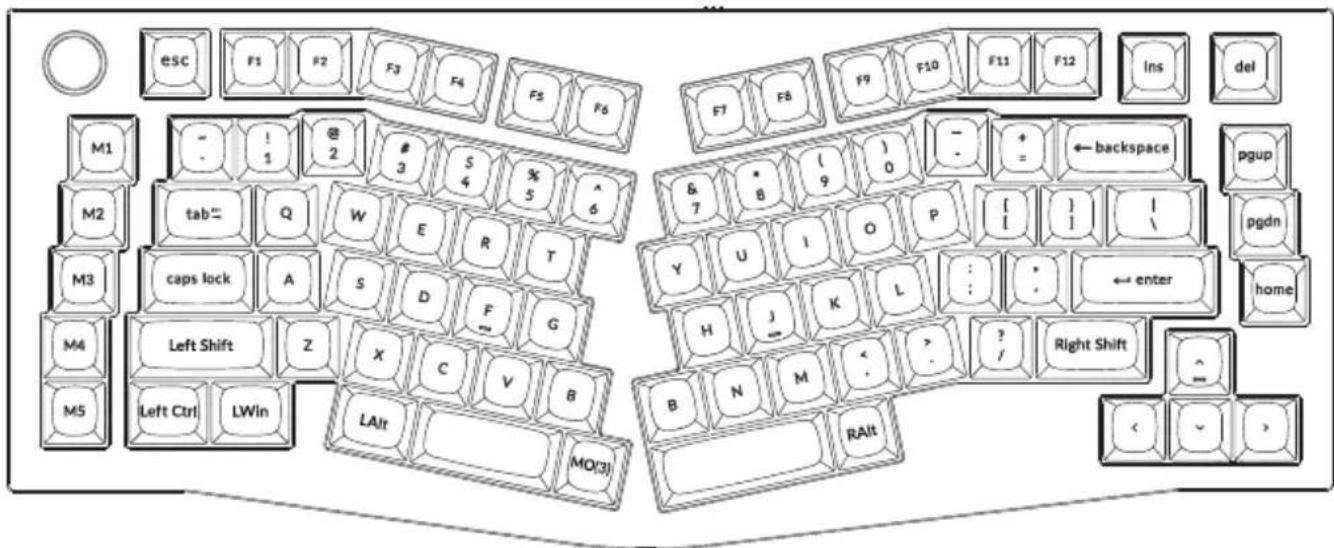

LAYER 2: This layer will be activated when your keyboard's system toggle is switched to Windows.

LAlt = Left Alt LWin = Left Windows RAlt = Right Alt

LAYER 3: This layer will be activated when your keyboard's system toggle is switched to Windows and press the fn/MO(3) key.

KEY DESCRIPTION

Key Description
Scr-	Screen Brightness Decrease
Scr+	Screen Brightness Increase
Bright-	Backlight Decrease
Bright+	Backlight Increase
Prvs	Previous
Play	Play/Pause
Next	Next
Mute	Mute
Vol-	Volume Decrease
Vol+	Volume Increase
RGB Toggle	Turn Backlight on/off

Key Description
RGBMd+	RGB Mode Next
RGBMd-	RGB Mode Previous
Hue+	Hue Increase
Hue-	Hue Decrease
RGB SPI	RGB Speed Increase
RGB SPD	RGB Speed Decrease
MO(1)	Layer 1 will be activated when holding this key
MO(3)	Layer 3 will be activated when holding this key

Third party input tools are not compatible with the keyboard.

Due to compatibility, versions, brands and drivers of Windows/macOS, functionalities of third Party input tools may be affected while using the keyboard. Please make sure your operating system and drivers are up to date.

Certain fn keys or multimedia keys does not work under Windows/Android mode.

Functionalities of certain multimedia keys may be disabled due to compatibility, versions, brands and drivers of Windows/Android OS.

Safety Precaution:

Keep the product, accessories and packaging parts out of reach of children to prevent any accidents and choking hazards.

Always keep the product dry to avoid corrosion.

Do not expose the product to extreme temperatures below -10^ ( 5^ ) or above 50^ ( 131^ ) to preserve the lifespan of the keyboard.

Keychron, Inc.

Dover, DE 19901, United States

Find us at:

https://www.keychron.com

[e-mail]

@keychron

@keychron

@keychronMK

Designed by Keychron

Made in China

Keychron

Q10 客制化键盘用户手册

旋钮版本

完全组装版本

键盘

1x已组装成品键盘

1x铝合金金属外壳

1x PCB

1x 铁质定位板

Line drawings of five different screwdriver tools (no text or symbols)

套件版本

键盘

1x 键盘本体 (不包含键帽、轴体)

1x 铝合金金属外壳

1x PCB

1x 铁质定位板

Line drawings of five different screwdriver tools (no text or symbols)

快速入门指南

3、关于键盘键层说明

如果键盘出现了故障,不知道怎么办?

LAlt = Left Alt LWin = Left Windows RAlt = Right Alt

Dover, DE 19901, United States

https://www.keychron.com

通过以下方式与我们联系

[e-mail]

@keychron

@keychron

@keychronMK

Keychron设计

中国制造

中国区总代：渴创技术（深圳）有限公司
