Product Type	Household Floor Fan
Brand	Black & Decker
Model	BDTF450
Blade Diameter	16 inches (approx. 40 cm)
Dimensions (H x W x D)	52 x 18 x 18 inches (approx.)
Weight	12.5 lbs (approx. 5.7 kg)
Power Source	120V AC, 60 Hz
Power Consumption	60 Watts (typical)
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, 90 degree wide-angle oscillation
Adjustable Height	Yes, telescoping pole up to 52 inches
Remote Control	Not included (manual control only)
Tilt Adjustment	Yes, adjustable fan head tilt
Timer	Not available
Safety Features	Overheat protection, stable base, finger-safe grille
Maintenance	Clean blades and grille with damp cloth; lubricate motor annually
Warranty	2-year limited warranty
Spare Parts Availability	Replacement blades, grille, and motor available from manufacturer
Recommended Use	Indoor home cooling, bedrooms, living rooms

Frequently Asked Questions - BDTF450 BLACK & DECKER

How do I assemble the BDTF450 fan?

To assemble the fan, attach the base to the pole, then the motor housing, and finally the blade and grille. Refer to the manual for step-by-step assembly instructions.

How do I clean the fan?

Unplug the fan, remove the front grille by unscrewing the ring. Wipe the blades and grille with a damp cloth and mild detergent. Avoid using water on the motor.

What are the speed settings?

The fan has three speeds: Low, Medium, and High, controlled by a push button on the fan base.

Does the fan oscillate?

Yes, press the oscillation button on the motor housing to enable 90-degree oscillation for wider air distribution.

How do I adjust the height of the fan?

Loosen the height adjustment collar, extend or retract the pole to the desired height, then tighten the collar securely. The fan can reach a maximum height of 52 inches.

Is the fan noisy?

The BDTF450 operates quietly, especially on lower speeds. On high speed, a normal fan hum is audible.

What safety features does it have?

The fan includes overheat protection that automatically shuts off if the motor overheats, and a stable base to prevent tipping.

Can I use the fan outdoors?

No, this fan is designed for indoor household use only. Do not expose to rain or moisture.

Where can I find spare parts?

Spare parts such as blades, grilles, and motors are available from the Black & Decker website or authorized service centers.

What is the warranty period?

The BDTF450 comes with a 2-year limited warranty covering defects in materials and workmanship.

USER MANUAL BDTF450 BLACK & DECKER

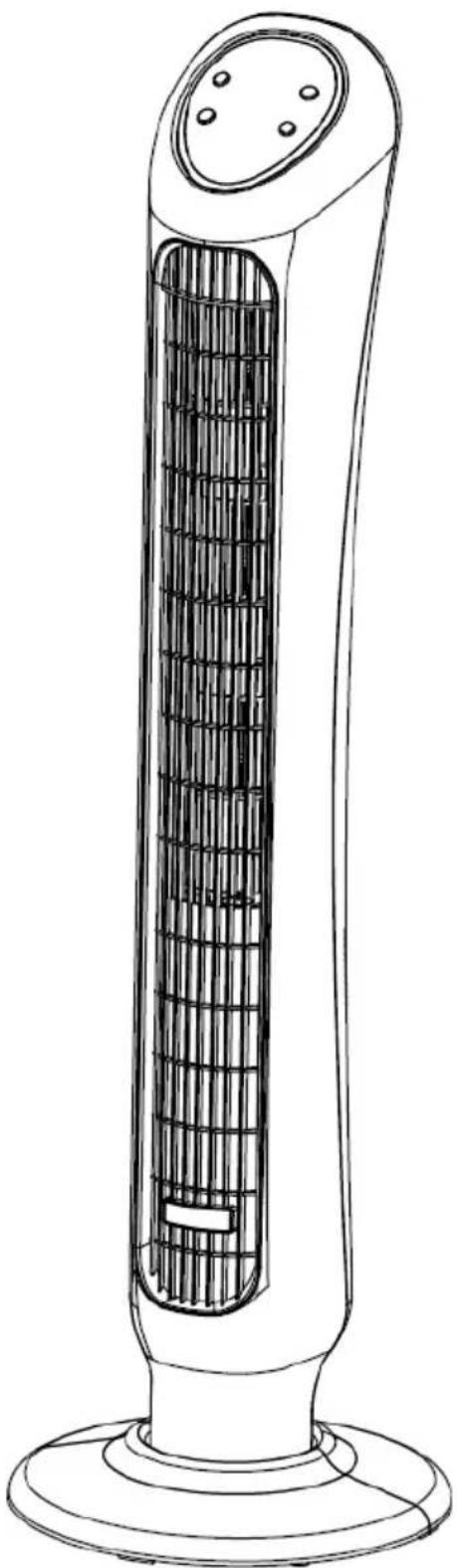

Line drawing of a vertical cylindrical device with internal grid structure (no text or symbols)

General Care and Safety Guide

Thank you for choosing this Black & Decker product. This appliance has been designed and manufactured to high standards of engineering and with proper use and care, as described in this leaflet, will give you years of useful service. Please read these instructions carefully and keep them for future reference.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Ensure that the fan is switched off from the supply mains before removing the guard.
5. Use only the voltage specified on the rating plate of the appliance.
6. Keep all objects at least 1 Metre from the front, sides and rear of the appliance
7. This appliance is intended for household use only and not for commercial or industrial use.
8. Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.
9. The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning the air vents and grills.
10. Always unplug appliance when not in use.
11. When the appliance has been unpacked, check it for transport damage and ensure all parts have been delivered. If parts are missing or the appliance has been damaged, contact the Black & Decker Customer Services Team.
12. If your appliance does not work, or is not working properly, contact the place of purchase. Repair work on the appliance by unqualified persons can cause serious risk to the user.
13. Ensure hands are dry before handling the plug or the main unit.
14. Carry out regular checks of the supply cord to ensure no damage is evident.
15. Ensure that the cord is fully extended (not coiled) while in use.
16. Avoid contact with the moving parts. Keep hands, hair, clothing, away from blade of the fan during operation to reduce the risk of injury to person and/or damage to the unit.
17. Switch off and use handles provided when moving.
18. It is recommended that this fan is plugged directly into the wall socket.
19. A correctly specified, undamaged extension cord may be used with this fan provided it is used in a safe manner.

General Care and Safety Guide

1. Never place appliance close to radiant heat source.
2. Never operate in areas where petrol, paint or other flammable liquids are used or stored.
3. Never use the appliance to dry clothes.
4. Never insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
5. Never use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.
6. Never connect the appliance to mains supply until completely assembled and adjusted.
7. Never remove plug from power socket until the appliance has been switched off.
8. Never remove plug from power socket by pulling cord – always grip plug.
9. Never twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split. Always ensure that all cord has been removed from any cord storage area and is unrolled before use.
10. Never use this appliance in the immediate surrounds of a bath, a shower, or a swimming pool or other liquids. The appliance must not be immersed in any liquids.
11. Due to the risk of injury, never use this appliance for any purpose other than its intended use. This appliance is intended for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses, by clients in hotels, motels, bed and breakfast type environments and other residential type environments
12. Never use this appliance outdoors.
13. Never operate the appliance with a damaged cord or plug, after it malfunctions, or if it has been damaged in any manner. Have the appliance checked and repaired by a qualified electrician if repair is necessary.
14. Never place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.

Assembly

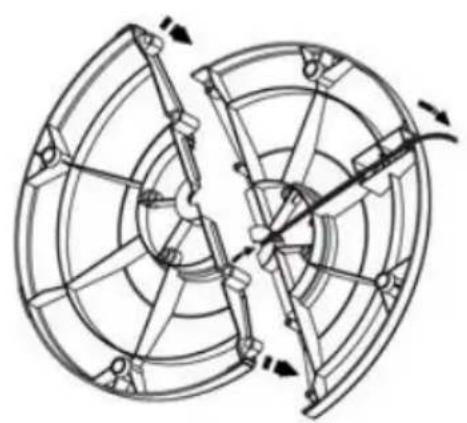

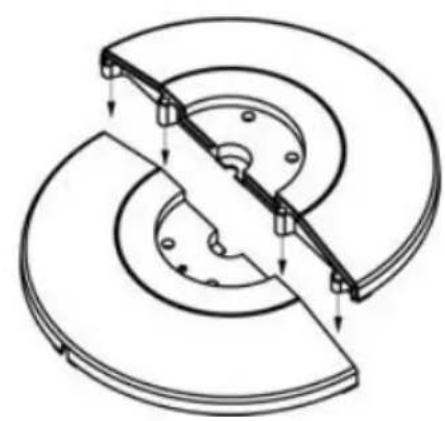

Pass the cord through the base. Assemble the two base halves together. Position the base half with the alignment pin, over the other base half with the alignment sockets. Press the two halves together until flush.

Technical line drawing of a mechanical component with radial arms and mounting holes (no text or symbols)

Mechanical assembly diagram showing a rotating wheel with mounting holes and a central shaft (no text or labels)

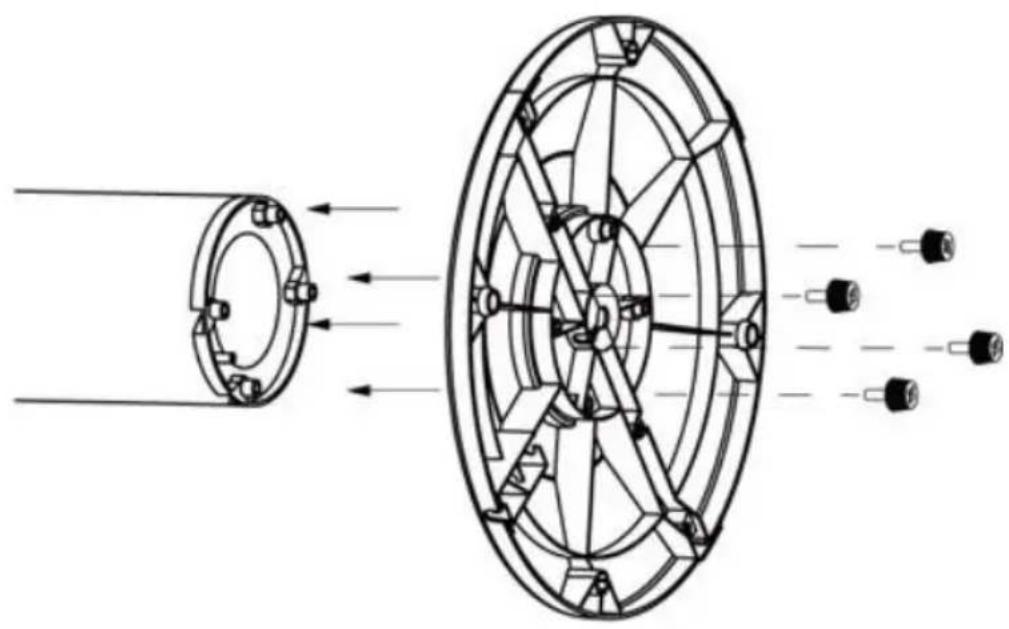

Assemble the base to the tower bottom. With the tower on its side, align the 4 base sockets onto the tower bottom pins. Tighten the thumb screws securely.

Technical diagram of a mechanical assembly showing internal components and fluid flow direction (no text or labels)

Operating your Fan

Always choose a safe location for the fan, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. This appliance requires no installation, it should be used solely as a portable appliance.

WARNING: Keep all objects at least 1 metre from the front, sides and rear of the appliance

Place the fan on a dry, level and sturdy surface.

Plug the power cord into the socket ensuring the fan switch is in the off position.

This Fan may be operated by the Manual Controls located on top of the unit or by the Remote Control.

On/Off: To turn fan on, press the Power button. The fan will start on high speed.

Speed Control: Press the Fan button repeatedly to change speed.

Auto-off Timer: This setting will automatically turn your fan off after 1, 2, 4, or 8 hours.

1 hour: Press one time
2 hours: Press two times
4 hours: Press three times
8 hours: Press four times
Turn Timer off: Press five times or press power button

Oscillation: Press the oscillation button to oscillate the fan from side to side.

To turn off, press the On/Off button.

Remote Control

Install 2 x AAA batteries (not supplied) into the back of the remote control.

All the functions performed with the Remote-Control work identically to the Manual Controls.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.

DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

IMPORTANT! NEVER COVER THIS APPLIANCE!

Cleaning

Ensure that the fan is switched off from the supply mains before removing the guard.

To avoid risk of electric shock, before cleaning, you MUST ALWAYS switch off and unplug the fan.

Use only a soft, damp cloth to gently wipe the fan and dry well.

DO NOT immerse the fan in water and never allow water to enter the motor housing.

DO NOT use harsh chemicals to clean the fan.

1 Year Warranty

Thank you for purchasing this Black & Decker product. Your product is warranted against faults and manufacture when used in normal domestic use for a period of one year. In non-domestic use Black & Decker limits the voluntary warranty to three months.

Black & Decker undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.

This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone other than a qualified electrical service technician.

PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.

The benefits to you given by this warranty are in addition to other rights and remedies available to you under a law in relation to the goods or services to which this warranty relates.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

New Zealand

Australia

CDB

PO Box 100-707

N.S.M.C

Auckland, 0745

Phone [phone]

Phone [phone]

CDB Goldair Australia Pty

PO Box 574

South Morang

Victoria, 3752

Phone [phone]

Phone [phone]

Black & Decker One Year Warranty (IMPORTANT: Please complete and retain this warranty card)

Name

Address

Place Of Purchase Date of Purchase

Name Of Product Model Number

Attach a copy of the purchase receipt to this warranty card
