Rove 2 - Bluetooth speaker MONSTER - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Model	Monster Rove 2
Dimensions	Approximately 8.3 x 3.5 x 3.5 inches
Weight	Approximately 1.5 lbs
Power Source	Rechargeable lithium-ion battery via USB-C
Battery Life	Up to 12 hours at moderate volume
Charging Time	Approximately 3 hours
Bluetooth Version	Bluetooth 5.0
Wireless Range	Up to 100 feet
Water Resistance	IPX7 (submersible up to 1m for 30 min)
Speaker Configuration	Single full-range driver with passive radiator
Output Power	20W RMS
Frequency Response	80 Hz - 20 kHz
Controls	Power, Bluetooth pairing, volume, play/pause, track control, speakerphone button
Microphone	Built-in for hands-free calls
Compatibility	All Bluetooth-enabled devices
Cleaning	Wipe with a damp cloth; avoid abrasive cleaners
Safety	Do not expose to extreme temperatures; keep away from water when charging
Spare Parts & Repairability	Battery replacement by authorized service center; no user-serviceable parts
Included Accessories	USB-C charging cable, user manual, carabiner
Warranty	Limited 1-year warranty

Frequently Asked Questions - Rove 2 MONSTER

How do I pair the Monster Rove 2 with my phone?

Turn on the speaker by pressing the power button. The Bluetooth indicator will flash. On your phone, enable Bluetooth and select Monster Rove 2 from the list. If prompted for a PIN, enter 0000.

Can I use the Rove 2 while it is charging?

Yes, you can use the speaker while it is charging, but it is recommended to use it wirelessly to preserve battery health.

How do I reset the speaker?

If the speaker is unresponsive, press and hold the power button for 10 seconds until the indicator light turns off. Then turn it on again.

What is the water resistance rating?

The Monster Rove 2 has an IPX7 rating, meaning it can be submerged in up to 1 meter of water for 30 minutes. However, the charging port cover must be closed.

How long does the battery last?

Battery life is up to 12 hours at moderate volume levels. Actual battery life may vary depending on volume and usage.

Can I pair two Rove 2 speakers together?

Yes, if your speaker supports TWS (True Wireless Stereo). Press the Bluetooth button on both speakers twice to enter pairing mode. They will automatically connect.

How do I clean the speaker?

Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive materials. Ensure the charging port cover is dry before charging.

What should I do if the speaker won't turn on?

First, charge the speaker for at least 30 minutes. If it still doesn't turn on, try resetting it by holding the power button for 10 seconds. If the issue persists, contact Monster support.

Is the speaker compatible with voice assistants?

The Monster Rove 2 does not have built-in voice assistant support, but you can still use your phone's assistant via the speaker's microphone during a call.

How do I update the firmware?

Firmware updates are not user-accessible. If an update is needed, it may be performed through an authorized service center. Check Monster's website for any available updates.

USER MANUAL Rove 2 MONSTER

Close-up of a glossy, curved black button with a blue illuminated circular design and white logo (no text or symbols visible)

MONSTER®

ROVE

PORTABLE BLUETOOTH SPEAKER

USER MANUAL

VER. 1.12

MODEL: MROVE-BK

TABLE OF CONTENTS

Package Contents 4

Controls & Connections 5

Getting Started - Charging The Speaker 7

3.5 mm Aux Input 8

Bluetooth Connection 9

LED Light Functions 10

EZ-SYNC Wireless Connection 11

Specifications 12

Important Safety Instructions 13-14

Help & Troubleshooting 15

FCC Warning Statement 16-17

Limited Warranty 18-19

FOR QUESTIONS OR TECHNICAL SUPPORT PLEASE CALL: 1-800-976-0677

OR EMAIL: [e-mail]

Please do not return this product to the store. www.MyMonsterAudio.com

PACKAGE CONTENTS

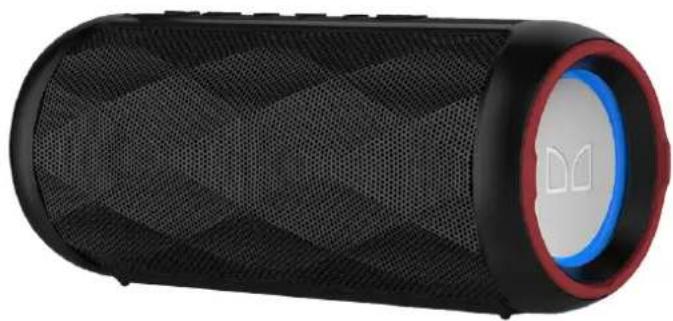

1. MONSTER ROVE: Portable Bluetooth Speaker

Black and red portable phone with blue accent ring and logo (no visible text or symbols)

1. 5V/2.1A Micro USB

Coiled black USB cable with two connectors (no text or symbols visible)

1. Aux Cable 4. Carrying Strap

Coiled black cable with two metallic connectors (no text or symbols visible)

Simple black rope tied with a knot (no text or symbols)

1. Quick Start Guide

2. User Manual (incl. Limited Warranty Statement)

*Items shown not to scale

If any items are missing, contact our customer service team at 1.800.976.0677.

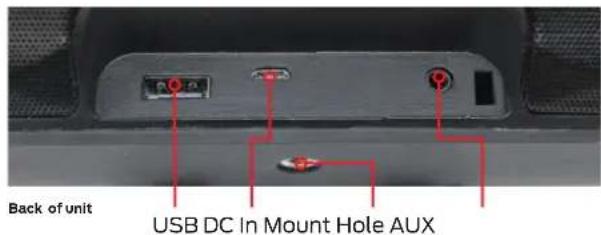

CONTROLS & CONNECTIONS

Woman performing a yoga pose on a yoga mat against a mountainous landscape (no text or symbols visible)

Person performing bench press exercise with dumbbells and fitness equipment (no text or symbols visible)

Person in black leather shoes resting on a wooden dock beside a wooden pier at sunset, with a lit lamp and bridge in the background (no text or symbols visible)

Three people relaxing on a swimming pool with a decorative water feature, surrounded by greenery (no text or symbols visible)

GETTING STARTED - CHARGING THE SPEAKER

Black and white photo of a portable electronic device with a gold connector inserted, showing mesh grille and cable (no text or symbols visible)

BEFORE FIRST USE:

Charge the unit for 6 hours.

Connect the speaker to a power outlet to start charging.

When fully charged

3 WHITE LEDS Will remain solid

When low on battery

WHITE LED will flash rapidly.

To indicate battery level

Press the Power button ⏻

1. Connect the power cable to the Rove speaker.

2. Plug the power cable into a wall outlet.

3. Press and hold the Power button ⏻

4. Rove will enter Bluetooth Pairing mode automatically. Pair with your Bluetooth device.

When not in use, the speaker will enter standby mode after 10 minutes of inactivity.

3.5MM AUX INPUT (Cable Included)

1. Ensure the speaker is turned on
2. Plug a the 3.5mm cable into the AUX port
3. Connect your audio device to the AUX cable to play your music.
4. Control volume on the speaker.

POWER BANK (Cable Not Included)

Use the speaker as a power bank to charge your mobile phone or other device via the Rove's USB charging port.

Black and white photo of a modern portable speaker with visible sound waves and a blue-lit head (no text or symbols)

BLUETOOTH CONNECTION

1. Place the Bluetooth device and speaker within pairing distance (\~3 feet).
2. Press and Hold the Bluetooth button for 3 seconds to enter pairing mode (BLUE LED around power button ⏻will flash).
3. Search for Bluetooth connections on your device. Select "Monster Rove."
4. The speaker will confirm connection with an audible message (BLUE LED will turn solid).

Illustration of a smartphone displaying audio icons with sound waves, symbolizing mobile audio or video consumption (no text or symbols present)

ROVE must be In Bluetooth iringMode (Blue LED Flashing) to connect to device.

Press & Hold the Light button to turn the LED lights on or off.

Changing Colors

Press the Light button to cycle through the different colors available.

Changing Light Brightness

While Pressing & Holding the Light button, Press the Volume Up button + to increase brightness, or Press the Volume Down button - to decrease brightness.

EZ-SYNC CONNECTION

Two black portable speakers with visible sound waves and a red cover, shown from front and side views (no text or symbols on the devices themselves)

Connect with EZ-SYNC

1. Connect music device to one speaker via Bluetooth, this will be the Transmitting speaker. (page 9 for reference)
2. Press and Hold the EZ-SYNC button for 3 seconds on the Transmitting speakers to enter sync mode (WHITE LED next to EZ-SYNC button will flash). Transmitting speaker will automatically search for the nearest EZ-SYNC compatible speaker to connect to.
3. Both speakers are connected when EZ-SYNC light stays solid.
4. Speakers can be no further than 30ft apart for EZ-SYNC to work

SPECIFICATIONS

General
Input(s) Bluetooth 3.0 | AUX | EZ-SYNC | Micro USB | USB
Buttons	ON/OFF | Light | Bluetooth | Volume Down/UP | EZ-SYNC
LED Indicators EZ-SYNC (White) | AUX (Blue) | Bluetooth (Blue) | Battery (White x3)
Power Input 5V/2.1A Micro USB
Power Saving Auto off after 10 min.
Speaker Power 10W x 2
Drive(s) 2' Driver x 2
THD + Noise <10%
Cabinet Material Plastic
Dimensions (W x H x D) W 3" x H 7.25" x D 3"
Weight 1.25 lbs

Operating Temperature
Operating Temperature Range 32F ^ - 104F ^
Operating Humidity Range	40-90% RH
Storage Temperature Range	-13F ^ to 158F ^

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions and save them for personal reference in the future.
2. Follow all directions for operating the product.
3. Heed all warnings on the product and in the operation instructions.
4. Clean with a dry cloth only. Always unplug the product from any power source before cleaning.
5. Do not use third-party attachments or non-recommended accessories with this product.
6. Do not place product on an unstable surface, such as a cart, stand, tripod, table, etc.

Unstable surfaces may cause the product to fall and cause serious injury to people and serious damage to the product. Follow all manufacturer instructions for mounting and accessories.

1. Do not block or cover ventilation slots. Openings in the product cabin ensure reliable operation and prevent overheating. Avoid placing on beds, sofas, and rugs, or mounting on racks or bookcases, unless proper ventilation is provided.
2. Do not use plug incorrectly. The product may come with a polarized, alternating-current line plug (one blade is wider/larger than the other). This is a safety feature: the plug will only go into outlet receptacles one way. Do not force the plug. If the plug does not fit, contact your electrician to replace the outlet.
3. Prevent power cord hazards. Route cords to avoid walking on them or pinching them, especially at plug ends and connection points to the product & power outlets.

IMPORTANT SAFETY INSTRUCTIONS(CONTINUED)

1. Unplug power cord when not in use. The product should not be plugged into a power source when not in use for long periods of time.
2. Do not use this product near bodies of water. The product is not waterproof and cannot be fully submerged in water. Power cords and electric currents should never be exposed to water.
3. Do not set up near heat sources. Avoid radiators, stoves, heat registers, amplifiers, and other devices that produce heat. Avoid long exposure to sunlight and high temperatures.
4. Refer all service to qualified personnel. If the product becomes damaged during use or encounters a malfunction, contact qualified service personnel. Do not attempt to service yourself.
5. To use wirelessly, disconnect AC plug completely. The plug must be completed disconnected from the power outlet.
6. Do not stand, sit, jump or strike the ROVE with sharp objects. The product may break and not function.

HELP & TROUBLESHOOTING

No power / Will not turn on	Press the battery indicator button to check the current battery level. Plug into a power source and charge the speaker.
No sound playing	Increase the volume on source device, pressVolume Up (+). Ensure device is not muted.Increase the volume on speaker, pressVolume Up (+).Ensure speaker is properly paired with the source device.Press Play/Pause button on speaker.If source device is outside Bluetooth range move speaker closer.
Smartphone / Tablet remote app isn't working	Ensure phone or tablet is properly paired with the ROVE speaker.
LED button is flashing red	Please charge by plugging directly into wall outlet. Ensure that charging cable is not damaged.

For additional help please contact our support team at:

Phone: Telephone: [phone]

Email: [e-mail]

Hours of Operation:

Monday - Friday: 7:00 am - 4:00 pm (PST)

Saturday - Sunday: CLOSED

FCC WARNING STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  -Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IC WARNING

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

A lightning flash and arrowhead within an equilateral triangle denotes the presence of insulated “dangerous voltage” within the product’s enclosure. The voltage may be of sufficient magnitude to constitute a risk of electric shock to persons who come into contact with it.

An exclamation point within an equilateral triangle denotes the presence of important operation & maintenance/service instructions.

WARNING

Prevent fire and shock hazards. Do not use extension cords or outlets that expose plug blades. Do not expose cables and plugs to rain or moisture.

Do not attempt to perform any servicing that is not included in the operating instructions. Do not attempt to replace the battery, as incorrect installation can cause fire or explosion. For service, contact qualified service personnel.

Do not remove cover or back of product. There are no user-serviceable parts inside. Attempting to modify controls or performance beyond manufacturer specifications may result in hazardous exposure to radiation.

LIMITED WARRANTY

Model: MROVE-BK

This Monster-branded product, marketed as new, in the original carton to the original purchaser (“Product”), is warranted by Russell Distribution Company, LLC against manufacturing defects in materials and workmanship for a limited warranty period of Ninety (90) Days for Labor and One (1) year for Parts. This Limited Warranty is conditioned upon proper use of Product by you, the Purchaser.

This Limited Warranty does not apply to store display products and product sold as a 'marked down' special, in as is condition, 'close outs', "liquidation and clearance sales", "open box", products missing accessories, or no fault found.

Proof of purchase in the form of a Bill of Sale, Receipt or Receipted Invoice is evidence the Product is within the limited warranty period. The Bill of Sale, Receipt or Receipted Invoice must be presented as a pre-condition to obtaining the limited warranty service.

This limited warranty begins on the original date of purchase and is valid only on Products purchased through authorized dealers and used in the United States, and Puerto Rico, by the original Purchaser. To receive warranty service, the Purchaser must first contact us for problem determination and service procedures. The original dated bill of sale, receipt or receipted invoice must be presented upon request as proof of purchase.

We will repair your product or if repairs cannot be made, we will replace it at no charge with the same or similar product. If the Product is defective as specified in this limited warranty during the limited warranty period, we may use new or remanufactured parts to repair the Product. All replaced parts and products become our property and must be returned to us. Replacement parts and products assume the remaining original limited warranty, or ninety (90) days, whichever is longer.

Product freight must be prepaid by you, the original Purchaser and shipped in either its original packaging or packaging affording an equal degree of protection. We will not be responsible for or obligated to replace damaged Products.

If the Product is received damaged, it is your responsibility as the consumer to file a claim against the carrier. We will only store the damaged Product for 30 days and reserve the right, in our sole discretion, to dispose of the damaged Product or ship it back to you at your expense after 30 days.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement noncommercial use of this Product, and shall not apply to the following, including, but not limited to: Damage which occurs in shipment; delivery and installation; applications and uses for which this Product was not intended; altered Product or serial numbers; cosmetic damage or exterior finish: accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, hardware, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by us or the manufacturer, which damage this Product result in service problems: incorrect electrical line voltage, fluctuations and surges: customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems; burned-in images. Uninterrupted or error-free operation of the Product is not warranted.

THERE ARE NO EXPRESS OR IMPLIED WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NOW WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON US. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS YOUR EXCLUSIVE REMEDY ASTHE CONSUMER. WE SHALL NOT BE LIABLE FOR ANY INCIDENTAL, OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT; EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED FOR THE DURATION OF THIS LIMITED WARRANTY THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, sothe above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Any provision contained herein which is found contrary to state or local laws shall be deemed null and void and the remaining provisions shall continue in full force and effect.

To obtain warranty service:

Telephone: [phone]

Email: [e-mail]

MONSTER®

ROVE

PORTABLE BLUETOOTH SPEAKER

MUSIC WITHOUT LIMITS

www.MyMonsterAudio.com

Monster and the Monster logo are registered trademarks of Monster Inc., and its subsidiaries in the U.S. and other countries, used under license.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.

Printed in China

Version: 1.12
