USER MANUAL AMF42AU Blustream

Our AMF42AU is an advanced 4K 4x2 multi-format presentation switcher featuring 3 x HDMI and 1 x USB-C input to 2 x HDMI / 1 x HDBaseT™ output. The AMF42AU provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with phantom power, audio mixing and PoC to power a Blustream compatible HDBaseT™ receiver. The AMF42AU also features a Web GUI for control and configuration, source and display control via: RS-232, CEC, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP. The AMF42AU is an ideal product for your boardroom, classroom or lecture theatre.

FEATURES:

• Features 3 x HDMI and 1x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
• Seamless source switching with manual or auto source selection
• Independent video scaling on dual outputs
  • Supports HDMI 2.0 18Gbps specification
  • Supports resolutions up to 4K UHD 60Hz 4:4:4
• Dual HDMI / HDBaseT™ on output 2. HDBaseT™ output supports distribution of video sources up to 70m 1080p (4K 60Hz 4:4:4 up to 40m) to the Blustream RX70CS receiver
  • Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
  • Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
  • Audio mixing capabilities with independent level adjustment
• Analogue audio inputs support both balanced and unbalanced audio
• MIC input supports line level or 48V phantom power
• Configurable source and display control via RS-232, IR and CEC
• Web interface module for control and configuration of matrix
  • Control via TCP/IP, RS-232, IR and front panel
• Open control API (IP / RS-232) for integration with 3rd party control platforms
  • HDCP 2.2 compliant with advanced EDID management

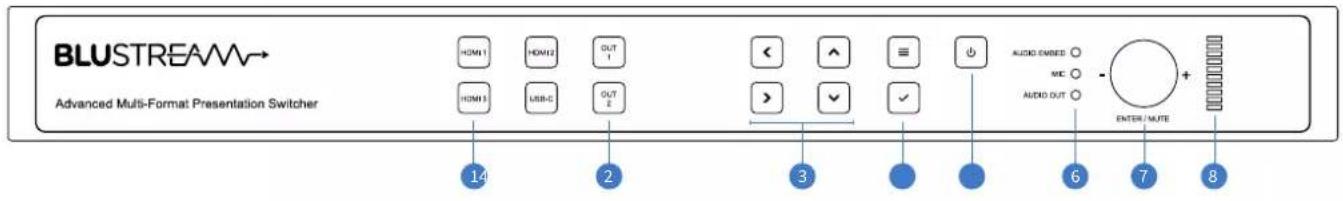

Front Panel Description

1 Input Selection Buttons - Press to select the input signal between HDMI 1 to 3 and USB-C
2 Output Selection Buttons - Press to select the output port between outputs 1 and 2
3 Menu Up / Down / Left / Right Buttons - Press to navigate through the on-screen menu system
4 Menu and Select Buttons - Press the menu button to bring up the on-screen menu, and the select button to select items within the on-screen menu system
5 Power Button - Press and hold to power the switcher on or off
6 Audio Embed / Mic / Audio Out LED Indicator - Indicates the currently selected audio source for volume adjustment
7 Enter / Mute Rotary Dial Button - Press to adjust the currently selected audio source, rotate to adjust the volume level up or down
8 LED Level Indicator - Indicates the volume level of the currently selected audio source

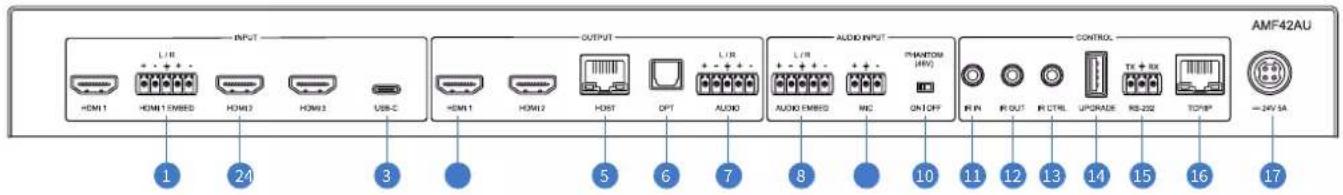

Rear Panel Description

HDMI Audio Embed Input - Supports balanced or unbalanced analogue audio to be embedded over HDMI input 1

2 HDMI Inputs 1-3 - Connect to HDMI source equipment

3 USB-C Input - Connect to USB-C source equipment - please ensure that a USB-C cable is used that is capable of carrying video

4 HDMI Outputs 1-2 - Connect to HDMI display equipment

5 HDBaseT™ Output - Output for remote display. Connect to compatible Blustream HDBaseT™ receiver

6 Optical Audio Output - Toslink connector to connect to external audio distribution equipment or amplifier

⑦ Analogue Audio Output - Supports balanced or unbalanced analogue audio output to connect to external audio distribution equipment or amplifier

8 Audio Embed Input - Supports balanced or unbalanced audio to be embedded over the input signal

9 Mic Audio Input - Supports balanced and unbalanced microphones

10 Phantom Power On / Off Switch - Enables or disables 48V phantom power for the microphone input

11 IR Input - 3.5mm stereo jack. Sends 5V IR to a compatible Blustream HDBaseT™ receiver

12 IR Output - 3.5mm mono jack. Receives 5V IR from a compatible Blustream HDBaseT™ receiver

13 IR Control Input - 3.5mm stereo jack. 5V input to connect an IR receiver or control processor to control AMF42AU

14 USB Upgrade Port - Used for firmware update

15 RS-232 Port - 3-pin Phoenix connector for control of the Matrix from PC or 3rd party control processor

16 TCP/IP Port - RJ45 connector to connect to LAN for TCP/IP control of matrix and to access web GUI

17 Power Port – Use included 24V/5A DC adaptor

RS-232 Configuration

The RS-232 port is used for configuration and control of the product, as well as pass through of RS-232 commands to the Blustream RX70CS receiver.

The default RS-232 communication settings are:

Baud Rate: 57600

Data Bit: 8

Stop Bit: 1

Parity Bit: none

For a complete RS-232 command list please see the User Manual - available to download from the Blustream website.

EDID Control

EDID (Extended Display Identification Data) is a data structure that is used by a source device to find out what audio and video resolutions are supported by the display. By specifying the video resolution and audio format of the source device you can improve the EDID hand shaking thus making HDMI more reliable.

Configuration of the EDID settings for each input can be achieved using the following RS-232 commands:

EDIDxxDFzz

Where xx = Input: 00 refers to ALL inputs; 01-04 = specific input

zz = EDID as shown below
zz = 00: HDMI 1080p@60Hz, Audio 2ch PCM (Default)
zz = 01: HDMI 4K@30Hz 4:4:4, Audio 2ch PCM
zz = 02: HDMI 4K@60Hz 4:2:0, Audio 2ch PCM
zz = 03: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
zz = 04: DVI 1280x1024@60Hz, Audio None
zz = 05: DVI 1920x1080@60Hz, Audio None
zz = 06: DVI 1920x1200@60Hz, Audio None
zz = 07: HDMI 1920x1200@60Hz, Audio 2ch PCM
zz = 08: User EDID 1
zz = 09: User EDID 2
zz = 10: EDID Passthrough1 (Copy from HDBT)
zz = 11: EDID Passthrough2 (Copy from HDMI OUT1)
zz = 12: EDID Passthrough3 (Copy from HDMI OUT2)

Web GUI Control

The Matrix features an in-built Web GUI which can be used for control and configuration of the product.

Default Username is: blustream

Default Password is: 1234

Default IP Address is: 192.168.0.200

For further information please see the User Manual - available to download from the Blustream website.

Specifications Package Contents

AMF42AU

• Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C
• Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
• Audio Input Connectors: 2 x 5-pin Phoenix connector (2ch balanced / unbalanced analogue audio)
- MIC Input Connectors: 1 x 3-pin Phoenix connector
• Audio Output Connectors: 1 x 5-pin Phoenix connector (2ch balanced / unbalanced analogue audio), 1 x Toslink (S/PDIF)
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 2 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Product Upgrade: 1 x USB Type A female
- Rack Mountable: 1U rack height, rack ears included
- Dimensions (L x W x H): 436.4mm x 270mm x 56.5mm (with feet and connections)
- Dimensions (L x W x H): 436.4mm x 263.5mm x 44mm (without feet and connections)
• Shipping Weight: 4.05Kg
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 24V/5A DC

NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.

AMF42AU

• 1 x AMF42AU
• 1 x Remote Control
  • 1 x 24V/5A DC Power Supply
• 1 x Rack Mounting Kit
• 2 x IR Receiver
• 1 x IR Emitter
  • 1 x RS-232 Control Cable
  • 1 x Quick Reference Guide
