W331 - Projector OPTOMA - Free user manual and instructions

Product type	DLP Projector
Brand	OPTOMA
Model	W331
Projection technology	DLP
Native resolution	WXGA (1280 x 800)
Brightness	3000 ANSI lumens
Contrast ratio	15,000:1
Lamp life (normal / eco)	5000 h / 10,000 h
Lens	Manual zoom and manual focus
Keystone correction	Vertical ± 40°
Built-in speaker	1 x 10 W
Video inputs	1x HDMI, 1x VGA, 1x Composite
Connectivity	1x USB-A, 1x RS-232
Power supply	100-240 V, 50/60 Hz, 250 W
Dimensions (W x D x H)	316 x 243 x 98 mm
Weight	2.5 kg
Noise level (normal / eco)	30 dB / 28 dB
Special features	Eco mode, auto power off
Maintenance	Lamp replacement and filter cleaning
Safety	Security lock, overheat protection
Spare parts	Replacement lamp available

Frequently Asked Questions - W331 OPTOMA

How to turn on the OPTOMA W331 projector?

Plug in the power cord and press the Power button on the top or remote. Wait a few seconds for the lamp to warm up.

The projected image is blurry, what to do?

Use the focus ring on the lens. If necessary, adjust the keystone correction using the OSD menu.

How to clean the dust filter?

Turn off the projector and unplug it. Open the filter cover on the side, remove the filter and dust it with a vacuum or compressed air. Replace it.

The projector does not turn on, why?

Check that the power cord is properly connected and the outlet works. Make sure the security lock is not activated. If the indicator blinks, consult the manual.

How to change the projector lamp?

Turn off the projector and let it cool. Unscrew the lamp cover, remove the old lamp and insert the new one following the markings. Reattach the cover. Reset the lamp counter in the menu.

What is the recommended projection distance for a 100-inch image?

It depends on the throw ratio. For the W331, a distance of about 3 meters is typical. Refer to the distance table in the manual.

The sound is not working, what should I check?

Check that the audio cable is connected to the appropriate input (HDMI or Audio). Make sure the volume is not muted and the projector is not in mute mode. Test with another source.

How to use keystone correction?

Access the OSD menu with the Menu button, select Keystone correction and adjust using the arrow keys. You can also use the remote.

The projector overheats and shuts down, what to do?

Ensure the air intakes are not blocked and the filter is clean. Reduce the ambient temperature. If the problem persists, contact a technician.

Where to find spare parts for the OPTOMA W331?

You can order replacement lamps and filters from authorized OPTOMA dealers. Check the official website for a list of distributors.

USER MANUAL W331 OPTOMA

Line drawing of a projector with visible ports and control buttons (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ 4

Avis: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Diagram of a cable VGA connector with two connectors and cables (no text or symbols on the diagram itself)

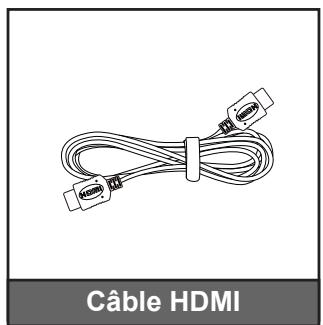

Coiled cable with two connectors, labeled 'Câble HDMI' below (no other text or symbols)

CONFIGURATION ET INSTALLATION

Line drawing of a person sitting in a chair watching a projector on a table (no text or symbols present)

Line drawing of a person sitting in a chair watching a projector projection (no text or symbols)

Line drawing of a person sitting in a chair watching a projector on a screen (no text or symbols)

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Illustration of hands using a tool to adjust or install a component, with red arrows indicating direction (no text or symbols present)

Illustration of a projector with internal components and a separate heat sink component (no text or symbols)
