Product Type	Blender
Model	MX-EX1021
Brand	Panasonic
Dimensions (H x W x D)	Approx. 35 x 18 x 18 cm
Weight	Approx. 1.8 kg
Power Supply	220-240 V, 50/60 Hz, 600 W
Jar Capacity	1.5 L
Jar Material	Glass
Speed Settings	2 speeds + pulse
Main Functions	Blending, crushing ice, mixing
Safety Features	Safety lock on lid, overheat protection
Cleaning	Detachable blade assembly, jar dishwasher safe
Maintenance	Regular cleaning, check seals
Spare Parts	Replacement jar, blade, lid, seal
Repairability	Spare parts available via service centers
Cord Length	Approx. 1.2 m
Warranty	1 year
Color	White/Black
Accessories Included	Blender jar, lid, measuring cup

Frequently Asked Questions - MX-EX1021 PANASONIC

Can I crush ice with the Panasonic MX-EX1021?

Yes, the blender has a pulse function that allows you to crush ice cubes. Add ice and use short bursts for best results.

How do I clean the blender jar?

The glass jar is dishwasher safe. You can also wash it by hand with warm soapy water. The blade assembly is detachable for thorough cleaning.

What is the maximum capacity of the jar?

The jar has a capacity of 1.5 liters. Do not fill beyond the maximum marking to avoid spills.

Can I blend hot liquids?

It is not recommended to blend hot liquids as the steam pressure can cause the lid to pop off. Let liquids cool before blending.

How do I use the pulse function?

Turn the speed dial to the pulse setting (usually marked P) and press down on the lid or use the pulse button, depending on the model.

What should I do if the blender leaks?

Check the seal under the blade assembly. If it is damaged, replace it. Also ensure the jar is properly tightened onto the base.

Is the blade assembly removable for cleaning?

Yes, the blade assembly can be unscrewed from the jar for easy cleaning. Be careful of sharp blades.

What should I do if the motor stops during use?

The blender has overheat protection. Let it cool down for 15-20 minutes before resuming use. Avoid overloading.

How do I replace the blender jar?

Order a replacement jar from Panasonic service centers. Simply attach the new jar to the base following the same procedure.

Can I use the blender for grinding nuts or coffee beans?

This blender is not designed for dry grinding hard items like nuts or coffee beans. Use a dedicated grinder for that purpose.

USER MANUAL MX-EX1021 PANASONIC

Operating Instructions

Operating Instructions

MX-EX1021

Thank you for purchasing this Panasonic product.

• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to "Safety Precautions" and "Important Information" (P. EN2 - EN4).
• Please keep this Operating Instructions for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, failure to comply with these instructions.

Contents

Safety Precautions......EN2 Important Information...... EN4 Parts Names and Instructions ...... EN5 Before Use...... EN5 How to Use...... EN6 Cleaning and Care......EN7 Safety Lock ...... EN7 Overload and Overheating Protection ...... EN7 Troubleshooting ...... EN8 Specifications......EN8

Safety Precautions

Please make sure to follow these instructions.

To reduce the risk of personal injury, electric shock or fire, please observe the following:

■ The following signals indicate the degree of harm and damage when the product is misused.

WARNING: Indicates potential hazard that could result in serious injury or death.

CAUTION: Indicates potential hazard that could result in minor injury or property damage.

The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates a requirement that must be followed.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, scald, or injury.

• Do not allow infants and children to play with packaging material. (It may cause suffocation.)
• Do not disassemble, repair, or modify this appliance.

Contact Panasonic Service Centre for inspection or repair.

Do not damage the power cord or power plug.

The following actions are strictly prohibited:

Modifying, touching, or placing near heating elements or hot surfaces, bending, twisting, pulling, hanging/pulling over sharp edges, putting heavy objects on top, bundling the power cord, or carrying the appliance by the power cord.

WARNING

• Do not plug or unplug the power plug with wet hands.
• Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard. Insert the power plug firmly.

Do not immerse the motor housing, power cord, or power plug in water, or splash it with water and/or any liquid.

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep the appliance and its power cord out of reach of children. Dust off the power plug regularly.

Unplug the power plug, and wipe with a dry cloth.

Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

For example, for abnormal occurrences or breakdowns.

• The power plug or the power cord become abnormally hot. The appliance power fails.
• The motor housing is deformed, has visible damage, or is abnormally hot.
• There is a crack on the blender jug or other parts. There is an unpleasant smell.
• There is abnormal turning noise while in use.
• There is another abnormality or failure.

Contact Panasonic Service Centre for inspection or repair.

Make sure the voltage indicated on the label of the appliance is the same as your local supply. Also avoid plugging other devices into the same outlet to prevent electric overheating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet. Be careful if hot liquid is poured into the blender jug as it can be ejected out of the appliance due to sudden steaming.

CAUTION

To avoid risk of electric leakage, electric shock, fire due to short circuit, scald, injury or property damage.

- Do not use the appliance on the following places.

• On uneven surfaces, on carpets or tablecloths etc.
• Place where it may be splashed with water or near a heat source.
• Near any open water such as bathtubs, sinks, or other containers.
• Near a wall or furniture. → Place the appliance on a firm, dry, clean flat worktop.

CAUTION

• Do not blend or place over 60 °C ingredients into the blender jug.
• Do not put any liquids or wet ingredients into mill container. (MX-EX1021 only)
• Do not open the lid and put your fingers or utensils such as spoon or fork into the blender jug while the appliance is operating.
• Do not stretch the gasket to avoid deforming.
• Do not replace any parts of the appliance with non-genuine spare parts.
• Do not carry the appliance by holding the power cord, blender jug or mill container.
• Do not insert any object in the gaps of the appliance.
• Do not allow children to use the appliance without supervision.
• Do not blend more than the working capacity marked on the blender jug. For the mill container, do not place more than the maximum quantity. (MX-EX1021 only) (P. EN8 "Specifications")
• Do not use prohibited ingredients as stated in this instructions. (P. EN5)
• Do not push the safety lock pin with any implement such as thin stick, etc. (P. EN7)

● Make sure to hold the power plug when unplugging it. Never pull on the power cord. ● Beware not to trip over or get caught in the power cord while in use. ● Care shall be taken when handling the sharp blades, emptying the blender jug, mill container and during cleaning. Do not clean the blender blade or mill blade by bare hand. ● Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, moving or cleaning. - Switch off the appliance and disconnect from supply before changing attachments or approaching parts that move in use. - Ensure to operate and rest the appliance as stated on specification table. (P. EN8 "Specifications") - Ensure to clean the appliance especially surfaces in contact with food after use. (P. EN7 "Cleaning and Care") ● This product is intended for household use only.

Important Information

• Do not use the appliance outdoors.
• Do not drop the appliance or attachments to avoid damaging it.
• Do not wrap the power cord around the motor housing.
• Make sure the parts or attachments are set firmly before use.
• Do not operate the appliance without ingredients.
• Be sure the mill gasket is attached properly to prevent leakage. (MX-EX1021 only)

Parts Names and Instructions

Blender

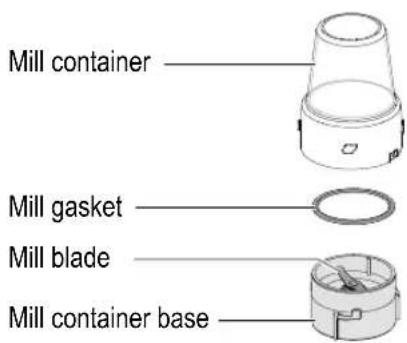

Dry mill (MX-EX1021 only)

Accessory

Scraper

● During blending, use the scraper only through the lid opening. Do not use with the lid off.

Rotary switch

① ON (continuous operation)

0 OFF

Pulse (the blade rotates only while the switch is being turned to "P" position)

●Repeatedly turn and release for intermittent rotation.

*The shape of the plug may differ from the illustration.

Before Use

Clean all detachable parts before using the appliance for the first time or when you have not used it for a while, and then assemble them securely. (P. EN 6 "How to Use" and P. EN7 "Cleaning and Care")

Blender

The blender is intended for

• Blending fluids e.g. fruit/vegetable juices, smoothies, soups, sauces. •Pureeing cooked ingredients e.g. for baby foods.

Prohibited Ingredients

• Meat • Fish • Commercial ice cubes • Hard ingredients (e.g. dried beans, turmeric, frozen food) • Sticky ingredients (e.g. peanut butter) • Ingredients with low water content (e.g. boiled potatoes)

Handling Precautions

• Ice food first (1-2 cm), then blend with liquid.
• Do not place ingredients with a maximum total volume exceeding 1000 mL in the blender jug.
• Do not operate more than 3 minutes at one time, rest about 1 minute before use again.

Dry mill (MX-EX1021 only)

The dry mill is intended for

• Grinding dry ingredients; e.g. pepper, dried chillies, coffee beans, dried soy beans, dried peas, sesame seeds, rice, wheat, nuts (shelled), breadcrumbs.

Note: Do not put any liquids or wet ingredients into mill container.

Guidelines of Maximum Quantity to be Placed in Mill Container

Food	Maximum Quantity	Time
Pepper 20	g	60 - 90 seconds
Dried chilies 20	g	60 - 90 seconds
Coffee beans 50	g	15 - 30 seconds

Handling Precautions

• Do not place any ingredients more than 50 g in the mill container.
• Do not operate more than 1 minute, rest about 2 minutes before use again.

Blender

1 Place the ingredients into blender jug, and then close the lid.

- Pour liquid first, followed by soft ingredients and then others. (i) Liquid (ii) Soft ingredients (iii) Hard ingredients (iv) Ice cubes

2 Attach blender jug to the motor housing.

① Align the ▲ on the motor housing with the ▽ on the blender jug. ② Twist blender jug clockwise until you hear a click sound. - Blender jug can only be attached by following the above steps.

3 Plug in. Hold the blender jug, and then turn the rotary switch to "1" position to start.

● If the appliance stops during operation. (P. EN8)

4 When blending is completed, turn the rotary switch to "0" position to switch off. Unplug.

Turn the blender jug anticlockwise to remove it, open the lid and take out the ingredients.

Dry mill (MX-EX1021 only)

To disassemble

Turn anticlockwise

To assemble

Turn clockwise

Make sure the mill gasket is not damaged and placed properly before assembling.

1 Turn the mill container upside down and place the ingredients in it. Twist the mill container base clockwise until you hear a click sound.

2 Attach the mill container to the motor housing.

Align the ▲ on the motor housing with the ▽ on the mill container. Twist the mill container clockwise until you hear a click sound. The mill container can only be attached by following the above steps.

Plug in. Hold the mill container, and then turn the rotary switch to "1" position to start.

If the appliance stops during operation. (See page EN8)

When blending is completed, turn the rotary switch to "0" position to switch off. Unplug.

Turn the mill container anticlockwise to remove it, open the mill container, and take out the ingredients.

How to use the scraper

• It can be inserted through the lid opening while blending without interfering with the blender blade.
• Slide the scraper through the lid opening and scrape to remove food sticking to the blender jug sides.
• To avoid ingredients splattering, it is recommended to insert the scraper from the lid opening when using the blender jug.

The scraper is useful when:

• Too little liquid makes ingredients hard to blend (e.g., for dips, sauces, curry dishes). • Ingredients stick to the inner side of the container (e.g., garlic, chile pepper).

Cleaning and Care

• Unplug before cleaning. • Clean the parts thoroughly after every use. Keep all parts clean and dry at all times. • Do not wash any part of the appliance in the dishwasher. • Do not use benzine, thinner, bleach, alcohol, nylon scouring pads, metal brushes, or polish powder, etc. • Some discoloration of the plastic parts may occur upon usage, but it does not affect usage.

Blender jug prewash

Add 400 mL of clean water into the blender jug, plug in, and blend for about 1 minute.

Blender jug and mill blade

Wash each part in cold or lukewarm water with a soft sponge. Rinse and dry thoroughly.

• Remove the mill gasket before washing. Carefully clean around the blade with a brush under running water. (Brush is not provided.)

Storing

• Assemble the mill container base with the mill container. (MX-EX1021 only) Dry the lid thoroughly, then keep it separately.

Other parts

Wash each part in cold or lukewarm water with a soft sponge. Rinse and dry thoroughly.

Motor housing

Wipe motor housing with a damp cloth.

Safety Lock

The safety lock has been designed to prevent the blender from switching on when blender jug or mill container is not properly in place.

Safety lock pin

Overload and Overheating Protection

In case of overload and overheating, the protection device is triggered to stop operation and it is not abnormal. After rotation stops, follow the below steps:

- Do not use the appliance repeatedly without any countermeasure.

1 Turn the rotary switch to "0" position, unplug the appliance. 2 Remove blender jug or mill container from motor housing. Reduce the ingredients to less than half. (For blender jug, it also can add liquid.)

- Remove the prohibited ingredient if used.

3 Reset the blender jug or mill container, start blending again. (P. EN 6)

If the appliance still does not operate after performing the above, overheating protection has been activated.

Turn the rotary switch to "0" position, unplug and rest the appliance for about 15 minutes or more (until motor housing returns to a normal temperature) to release overheating protection before using again.

(If appliance still does not operate, contact Panasonic Service Centre for inspection or repair.)

Troubleshooting

Check following points before calling or arranging for repair.

	Problem Cause	Action
Blender & Dry mill	Even turn to "1" position, the appliance does not start blending.	The blender jug/mill container is not set properly.Make sure to align the marks on blender jug/mill container and motor housing, then twist it firmly until you hear a "click" sound.The mill container base is not assembled tightly. (MX-EX1021 only)assemble it tightly. (P. EN6)The protection device of overload or overheating is activated.Defer to "Overload and Overheating Protection" for inspection. (P. EN7)The power plug is disconnected.Insert the power plug into outlet firmly.
	Rotation stops abruptly.	The protection device of overload or overheating is activated.Defer to "Overload and Overheating Protection" for inspection. (P. EN7)
	There is abnormal noise or vibration increases.	Too much ingredients.Reduce ingredient amount.The mill container base is not assembled tightly. (MX-EX1021 only)Assemble it tightly. (P. EN6)
	The ingredient is leaking.(MX-EX1021 only)	The mill container base is not assembled tightly.Assemble it tightly. (P. EN6)The mill gasket is not attached or attached loosely.Attach it properlyforeign matters are attached to the mill gasket.Remove them.The mill gasket is damaged.Contact Panasonic Service Center to replace it.
Blender	The blade is idling.	The liquid amount is not enough.Add more liquid.Moo much ice cubes. (e.g. juice with a lot of ice)Remove blender jug after rotation stop completely.Shake the blender jug gently.

Specifications

		When the blender is used	When the dry mill is used (MX-EX1021 only)
Power supply		220 - 240 V ~50 - 60 Hz
Power consumption		230 - 260 W
Rated time		Continuous operation (Repeat the cycle of 3 minutes ON and then 1 minute OFF)	Continuous operation (Repeat the cycle of 1 minute ON and then 2 minutes OFF)
Working capacity (approximately)		1000 mL	50 g
Dimensions (approximately)	W	173 mm	148 mm
	D	161 mm	161 mm
	H	353 mm	257 mm
Mass. (approximately)		1.5 kg	1.3 kg
