BH 6010 B - Range hood LERAN - Free user manual and instructions

Product Type	Range Hood
Brand	LERAN
Model	BH 6010 B
Installation Type	Wall-mounted
Width	60 cm
Depth	50 cm
Height (min-max)	62-110 cm
Weight	12 kg
Power Supply	220-240 V ~ 50 Hz
Total Power Consumption	150 W
Motor Power	130 W
Airflow (Max)	650 m³/h
Noise Level (Max)	65 dB
Number of Speeds	3
Control Type	Slider
Lighting	2 x 3 W LED
Filter Type	Aluminum grease filter
Ducting	Ducted (outlet Ø 150 mm)
Recirculation Mode	Possible with carbon filter (optional)
Material	Stainless steel
Warranty	2 years

Frequently Asked Questions - BH 6010 B LERAN

How do I install the range hood?

For wall installation, ensure the hood is at least 65 cm above gas cooktops or 50 cm above electric cooktops. Use the provided mounting bracket, fix it to the wall with anchors, then hang the hood and secure it. Connect the duct to the outlet (Ø 150 mm) leading outside for ducted mode.

Can the BH 6010 B be used in recirculation mode?

Yes, it can be used in recirculation mode by installing an optional carbon filter (sold separately). This filters air and returns it to the kitchen. Replace the carbon filter every 3-6 months.

How do I clean the grease filter?

The aluminum grease filter can be cleaned by hand in warm soapy water or in the dishwasher (low temperature cycle). Ensure it is completely dry before reinstalling. Clean it every 2-3 months.

Why is my range hood not working?

First, check the power supply: ensure the plug is connected and the circuit breaker is on. If the motor does not run, the thermal fuse may have tripped; let it cool for 30 minutes. If the lights don't work, the LED bulbs may need replacement.

How do I change the LED bulbs?

Turn off the power. Remove the bulb cover (usually clipped or screwed). Replace the LED bulb with a G4 type (3W max) or similar as specified. Reattach the cover and restore power.

What is the noise level of this hood?

The noise level ranges from approximately 55 dB on the lowest speed to 65 dB on the highest speed. This is typical for a range hood in this class.

Can I install the hood if my cooktop is a gas stove?

Yes, but ensure a minimum distance of 65 cm between the hood and the gas burner tops. Also, the kitchen must have adequate ventilation (e.g., a window).

How often should I service the range hood?

Clean the grease filter every 2-3 months. If using recirculation, replace the carbon filter every 3-6 months. Check the ductwork annually for any blockages or leaks.

What is the maximum airflow of the BH 6010 B?

The maximum airflow is 650 m³/h, which is suitable for medium-sized kitchens (up to 30 m²). Use the highest speed when heavily cooking to remove odors and smoke efficiently.

Where can I find spare parts like filters?

Spare parts such as grease filters and carbon filters can be purchased from authorized LERAN dealers or online. Use the model number BH 6010 B to ensure compatibility.

USER MANUAL BH 6010 B LERAN

Architectural floor plan diagram showing room layout and airflow direction (no text or labels)

Режим рециркуляции

Установка

Technical line drawings of a mechanical device with exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

Technical line drawing of a mechanical connector with two views (top and side), no text or symbols present.

Technical line drawing of a mechanical component with internal structure and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with two rectangular components and mounting brackets (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Line drawing of a cabinet or storage unit with two doors and a door handle (no text or symbols)

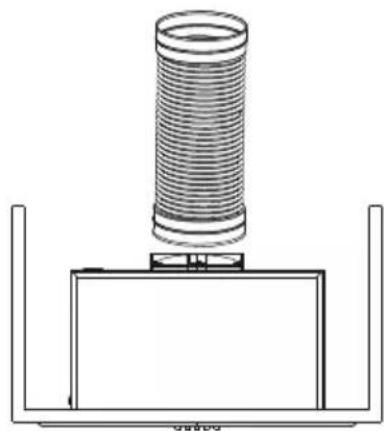

Simple line drawing of a cylindrical spring mounted on a base, with no text or symbols present.

Technical line drawing of a mechanical device with open and closed views (no text or symbols)

Technical line drawing of a mechanical cabinet or enclosure with open door and side brackets (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows internal components, bottom shows assembled parts (no text or symbols)

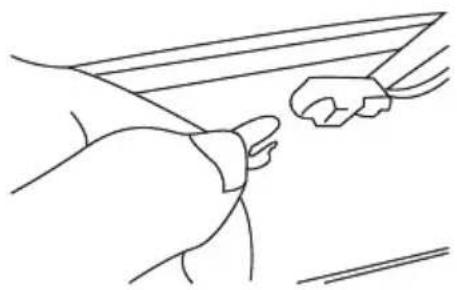

Line drawing of a hand holding a tool near a surface, with no text or symbols present.
