Product Type	Solar Water Heater (Evacuated Tube Collector)
Brand	Neopower
Model	Evacuated Tubes
Collector Area	2.5 m²
Dimensions (Collector)	2000 x 1500 x 100 mm
Weight (Dry)	50 kg
Tube Quantity	20 tubes
Tube Material	Borosilicate Glass with Selective Coating
Manifold Material	Stainless Steel (304)
Insulation	Polyurethane Foam, 50 mm
Max Operating Pressure	6 bar
Energy Source	Solar Radiation
Primary Function	Domestic Hot Water Heating
Efficiency	Up to 70% (annual average)
Freeze Protection	Down to -40°C (with proper antifreeze)
Overheat Protection	Heat Dump Valve / Drainback Option
Warranty	5 years on collector, 10 years on tubes
Maintenance	Annual tube cleaning and seal inspection
Spare Parts Available	Replacement tubes, manifold, brackets, seals

Frequently Asked Questions - Evacuated Tubes Neopower

How does an evacuated tube solar collector work?

Evacuated tubes use a vacuum between two glass layers to minimize heat loss. The inner tube has a selective coating that absorbs solar radiation, heating a heat pipe or circulating fluid inside the tube.

What is the recommended tilt angle for installation?

For optimal performance, the collector should be tilted at an angle equal to your latitude, typically between 30° and 60°. Adjust for seasonal use.

Can the system provide hot water on cloudy days?

Yes, but with reduced efficiency. Evacuated tubes can still absorb diffuse solar radiation, but a backup heater (e.g., electric or gas) is recommended for continuous supply.

How long do the evacuated tubes last?

With proper maintenance, the tubes can last 15–20 years. The selective coating degrades slowly, but efficiency remains high for at least 10–15 years.

What maintenance is required?

Clean the tubes annually with water and a soft cloth to remove dust. Check seals and insulation for damage. Replace any broken tubes immediately.

Can I install the system myself?

While possible, professional installation is recommended to ensure proper plumbing connections, roof sealing, and compliance with local building codes.

What happens if a tube breaks?

The system will still operate but with reduced efficiency. Replace the broken tube as soon as possible. A replacement tube can be ordered from Neopower.

Does the system work in freezing climates?

Yes, if properly installed with a glycol-based antifreeze or a drainback system. The vacuum insulation prevents heat loss even in sub-zero temperatures.

How much space is needed for the collector?

For a standard 2.5 m² collector, allow about 3 m x 2 m of unshaded roof area with a maximum of 5% shading between 9 AM and 3 PM.

What is the typical water temperature output?

On a sunny day, the water can reach 60°C to 80°C (140°F to 176°F). Use a mixing valve to prevent scalding.

USER MANUAL Evacuated Tubes Neopower

Illustration of vertical orange bars with a horizontal bar at the top (no text or symbols)

EVACUATED TUBES

FEATURES.

EFFICIENCY

80% Collector Efficiency Superior Winter performance.

CONSERVATION

80% Annual Energy Savings.

FROST PROTECTION

Frost tolerant by design Rated to -15 Degrees C.

AESTHETICS

Sleek, black collector for neutral aesthetic. Looks great on any roof.

IMPACT RESISTANCE

Evacuated tubes undergo the same rigorous impact testing as flat panel solar hot water, and solar power panels.

Tubes break very rarely, however they are inexpensive and easy to replace. No plumber needed, no downtime, no leaking.

RELIABILITY

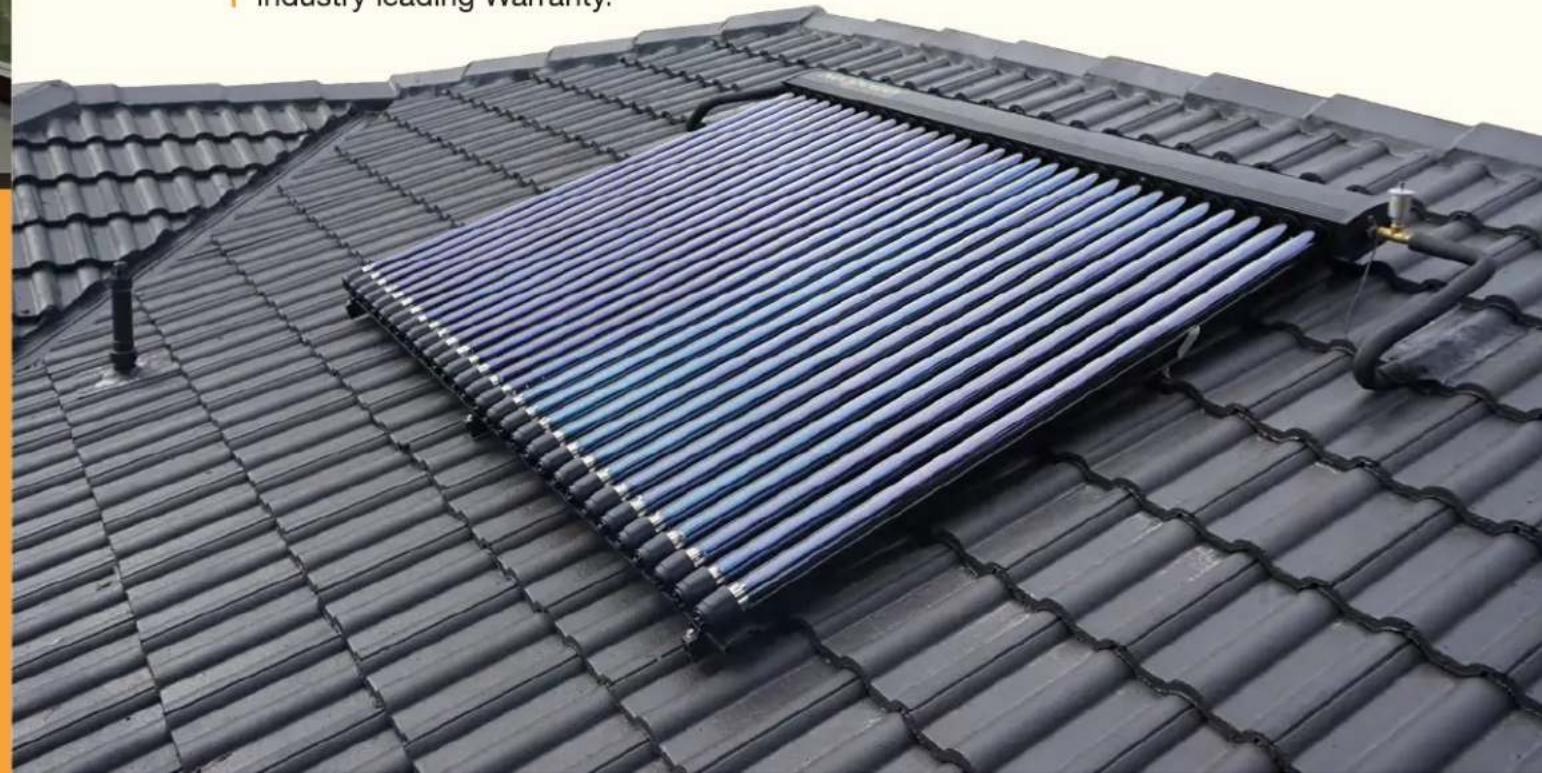

Controller displays tank and collector temperature. Fault codes for easy diagnostics. Industry leading Warranty.

LONGEVITY

Nickel dipped copper heat pipe. Powder-coated aluminium collector frame & manifold.

REVIEWS.

NEOPOWER IS POSITIONED AS A TRUE MARKET LEADER.

WHAT ARE NEOPOWER CUSTOMERS SAYING..?

GREAT PRODUCT! AWESOME SERVICE!

From initial consultation, through to installation, the service provided by Neopower has been great. We are located in Melbourne and the Neopower Solar Hot Water system is well suited to our family of four. Have turned on the booster mid April. Very happy with our purchase.

Date Purchased Jan 2019

SHOULD HAVE DONE IT EARLIER

This electric solar hot water system has been in use for just over a year. Since that time we have used our booster for around one month during a real cold spell in winter. It has saved us a fortune (we had a gas hot water heater before). One regret is that we did not install it earlier.

Date Purchased Oct 2017

IN WITH THE NEW

\*EFFECTIVE AUGUST 2019 5 STAR AVERAGE - SIX YEARS RUNNING

When my old electric hot water system started leaking I decided to investigate hot water systems and after months of research I decided on a gas boosted solar hot water system using evacuated tubes. Neopower seemed to be offering the best quality and price so I went ahead last May 2018. My power bill has dropped by 50% and it is great having a shower knowing it is the sun that is providing the hot water!

Date Purchased May 2018

So far so good the power consumption in the the 1st week is unbelievable, we have gone from using 30 to 40 kwhs a day to under 10. It actually looks better on the roof than most and the price was much better. anytime I needed to know anything from Neopower themselves they have been ever so helpful and the guys we bought and had it fitted by very helpful and nice. Extremely happy customers here.

Date Purchased Nov 2018

QUALITY SYSTEM AND GOOD PRICE

I decided to give it a try because the sales person gave me a quite attractive price. Installer was very helpful in explaining everything, and when I asked him about Neopower system, he said it's a quite reliable system. All went well after I decided to purchase their system. Now it has been 8 months and I am very happy with my current electricity bills.

Date Purchased Ari 2016

As such they offer me a price for supply & installation of a new SHW system - 250L Gas Boosted SHW with 25 Evacuated Tubes & Rinnai s20 gas booster, and would also take care of the rebate paperwork. I am writing this now as I have had the system nearly 2-years and it's fantastic, hardly any boosting required.

Date Purchased Aug 2012

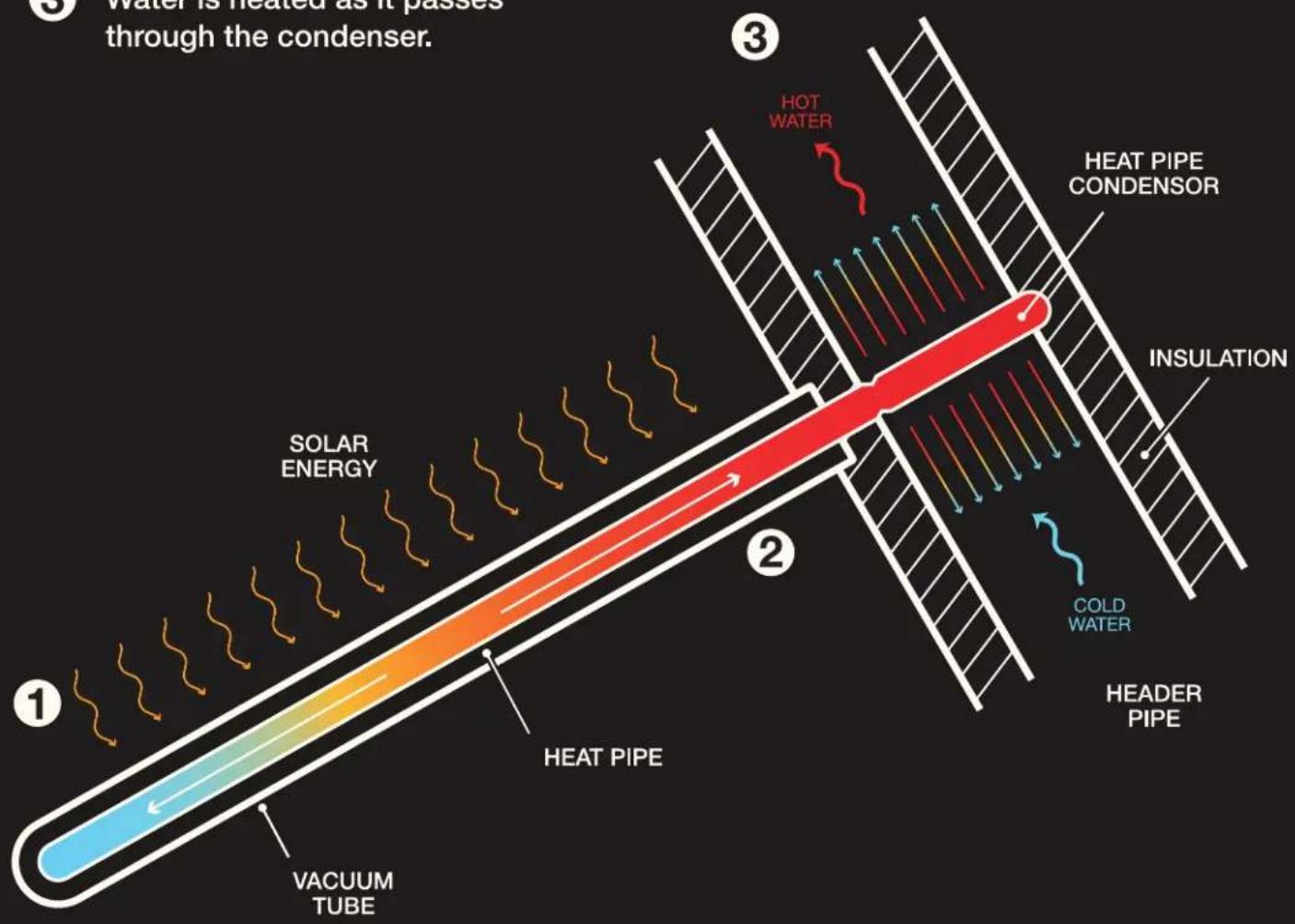

HOW EVACUATED TUBES WORK.

1 The coating on the inner tube converts sunlight into heat.
② Heat is transferred to sealed copper “heat pipes” containing liquid. The liquid is heated and forms a vapour which rises to the condenser.
③ Water is heated as it passes through the condenser.

ADVANTAGES

CYLINDRICAL COLLECTOR CAPTURES ENERGY FROM SUNRISE THROUGH TO SUNDOWN.

NO CONVECTIVE OR CONDUCTIVE HEAT LOSS.

LONGER LASTING / INDUSTRY LEADING WARRANTY.

DURABLE 2.5MM GLASS STRENGTHENED WITH BOROSILICATE.


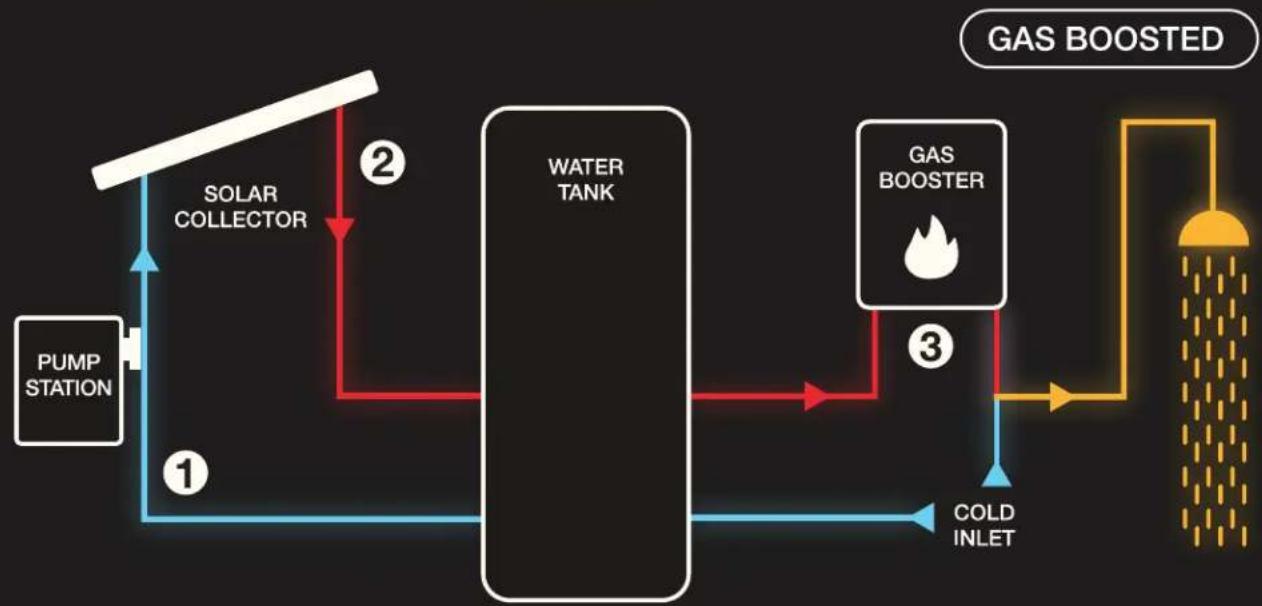

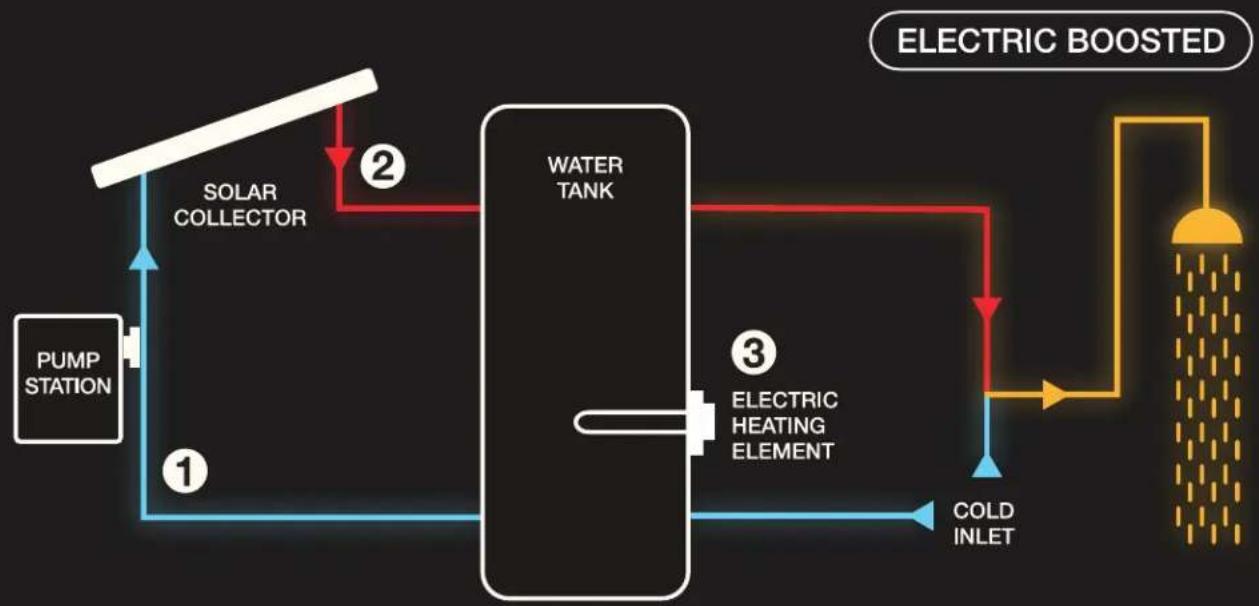

HOW THE SYSTEM WORKS.

1 Cold water is pumped through the condenser in the collector.
② Heated water returns to the tank, and is stored for later use.
3 A gas or electric booster ensures the water is delivered to the home at a usable temperature, even during Winter.

ADVANTAGES

HASSLE FREE HOT WATER.

SAVE UP TO 80% ON GAS OR ELECTRICITY.

6 STAR COMPLIANT.

ELIGIBLE FOR GOVERNMENT REBATES.

OUR

PRODUCTS.

NEXT GENERATION

SOLAR

HOT

WATER

SIZING GUIDE

SPECIFICATIONS & SIZING GUIDE

	TANK	Size	A-Height (mm)	B-Hot Water Outlet (mm)	C-Cold Water Inlet (mm)	D-Colector (Flow & Sensor Port) (mm)	E-Collector (Return) (mm)	F-PTR Valve (mm)	G-Diameter (mm)	Weight Kilograms (Dry)
		200 Litre	1495	1292	74	74	617	1292	540	81
		250 Litre	1388	1167	74	74	574	1167	648	84
		315 Litre	1700	1464	74	74	574	1464	648	102
		400 Litre	1711	1474	74	74	574	1474	730	150
	COLLECTOR	Size	Length (mm)		Width (mm)	Depth (mm)		Weight (KG)	Aperture Area (m2)
		20 Tubes	2020		1825	155		77.1	1.86
		25 Tubes	2020		2240	155		96.1	2.33
		30 Tubes	2020		2655	155		114.1	2.79
	GAS BOOSTED	Dwelling			System Description			Product Code
		1-2 Bedroom (1 x Bathroom)			200 Litre | 20 Tubes | 20LPM			STC-160L-N26-ET20
		2-4 Bedroom (2 x Bathroom)			250 Litre | 25 Tubes | 26LPM			STC-250L-N26-ET25
		4-6 Bedroom (3 x Bathroom)			315 Litre | 30 Tubes | 26LPM			STC-315L-N26-ET30
		6+ Bedroom (3 x Bathroom)			400 Litre | 40 Tubes | 26LPM			STC-400L-N26-ET40
	ELECTRIC BOOSTED	Dwelling			System Description			Product Code
		1-2 Bedroom (1 x Bathroom)			250 Litre | 25 Tubes | 3.6kW			STC-250L-EO-ET25
		2-4 Bedroom (2 x Bathroom)			315 Litre | 30 Tubes | 3.6kW			STC-315L-EO-ET30
		4-6 Bedroom (3 x Bathroom)			400 Litre | 40 Tubes | 3.6kW			STC-400L-EO-ET40

GAS BOOSTER SPECIFICATIONS

Specifications	T Series		RS Series
	T20	T26	RS20	RS26
Energy Star Rating	6-Star	6-Star	N/A	N/A
Thermal Efficiency	80.5	81.7	N/A	N/A
Rating (l/min @ 25°C rise)	20	26	20	26
Nominal Gas Consumption (MJ/h)	160	193	125	188
Weight (KG)	15.7kg	17.2kg	14.5kg	15.0kg
Height (mm)	530	530	530	530
Height Plus Bracket (mm)	570	570	571	571
Width (mm)	350	350	350	350
Depth (mm)	170	230	194	194
Water Connections Diameter (mm)	20 BSP	20 BSP	20 BSP	20 BSP
Gas Connection Diameter (mm)	20 BSP	20 BSP	20 BSP	20 BSP
Gas Types (Natural Gas / LPG)	NG / LPG	NG / LPG	NG / LPG	NG / LPG
Housing Colour Beige	Beige	Beige	Dune	Dune
Warranty (Heat Exchanger)	10 Years	10 Years	12 Years	12 Years
Warranty (Parts & Labour)	3 Years	3 Years	3 Years	3 Years

WARRANTY

Collector	15 Years
Storage Tank	10 Years
T Series Gas Booster (Heat Exchanger)	10 Years
RS Series Gas Booster (Heat Exchanger)	12 Years
Gas Booster (Parts & Labour)	3 Years
Parts & Labour	1 Year

* Neopower has 140+ registered systems. The systems listed above are our most popular models.

Please contact us on 1300 062 788 to discuss a solar hot water solution tailored to your specific needs.
