USER MANUAL CBS-2242 Fetco

User's Guide and Operator Instructions

CBS-2241 & CBS-2242 Next Generation Brewing System

FETCO Next Generation-NG® Commercial Beverage Equipment

Exterior view of a modern stainless steel industrial machine (no visible text or symbols)

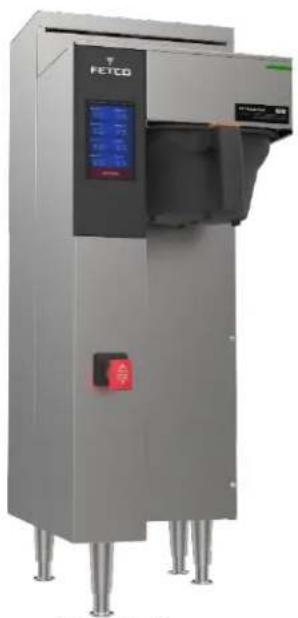

CBS-2241
(Dispensers not included)

Exterior view of a stainless steel industrial machine (no visible text or symbols)

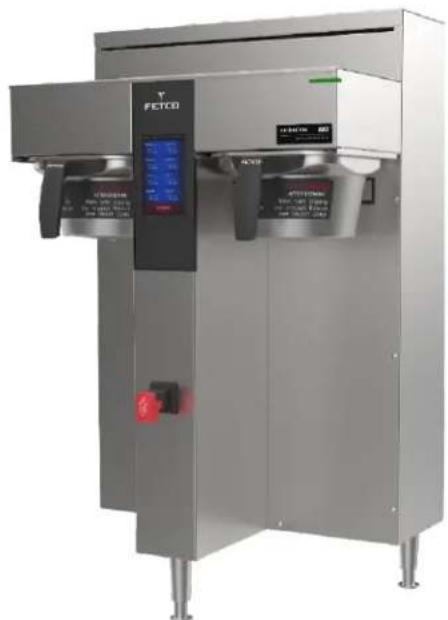

CBS-2242
(Plastic brew baskets are standard, brewers available with optional stainless steel brew baskets)

CONTACT INFORMATION

FETCO® FOOD EQUIPMENT TECHNOLOGIES COMPANY

600 ROSE ROAD

LAKE ZURICH • IL • 60047-0429 • USA

Product made in USA

INTERNET: www.fetco.com

PATENTS:https://www.fetco.com/pl,pages,patents,74.html

©2020-2023 FOOD EQUIPMENT TECHNOLOGIES COMPANY

fetco.com

PHONE: [phone] (US & CANADA)

[phone] (All Countries and International)

FAX:[phone]

EMAIL:[e-mail]

[e-mail] (to order parts and equipment)

[e-mail] (all service queries)

P216 February 2023

COFFEE BREWER CBS-2240NG Series

TABLE OF CONTENTS

Specifications and Requirements 2

Weights and Capacities....2

Rough-In Drawings 2

Electrical and Output Specifications....3

Brew Recipes....5

Settings....6

Inputs 7

Service....7

Error Codes 8

Hot Water Portions....9

Calibration 10

How to calibrate the flow rate....10

Outputs 11

Counters 12

Brewer Setup....13

Operator Training 15

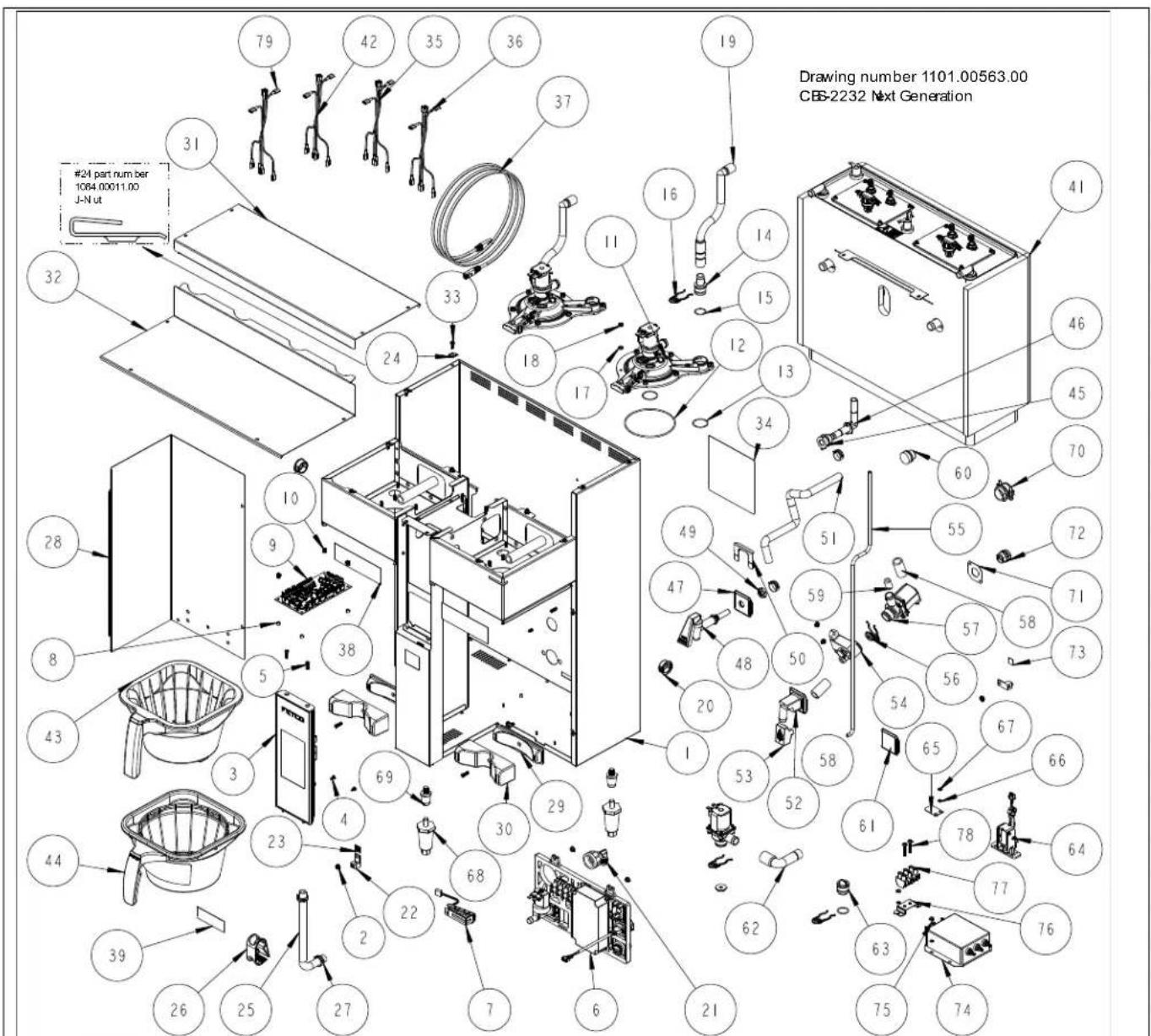

Parts diagrams 18

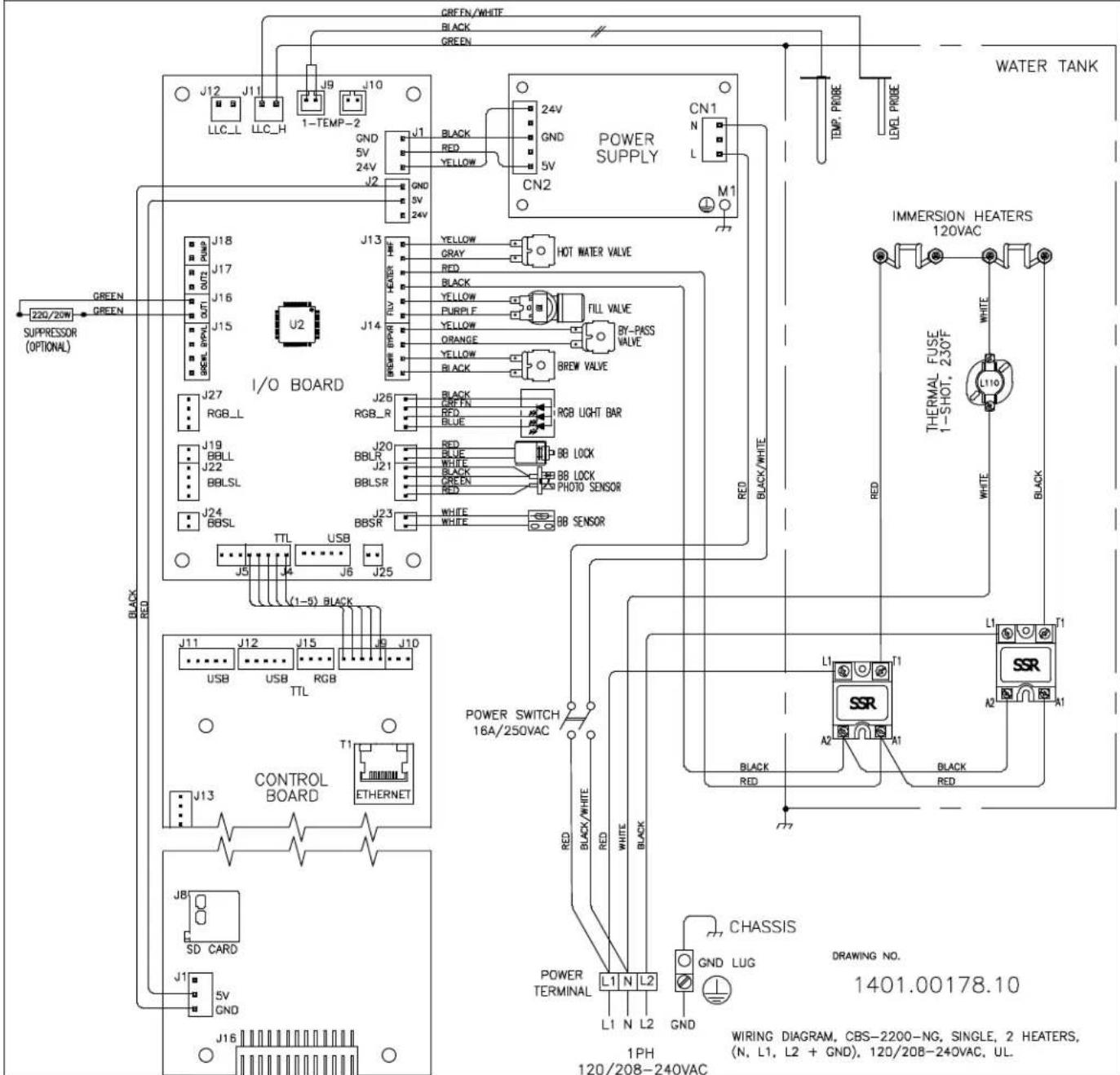

Wiring diagrams....30

Specifications and Requirements
FETCO CBS-2240 Brewers have unique construction only available for these models.
Water Requirements:	Coffee Filter Size:
CBS-2240 20-75 psig, (138-517kPa) 1 12 gpm/(5.7 lpm)	13" X 5 or FETCO# F002"
Optimal water hardness between 125-250 TDS (6-13 grain) Important! Please use a water filter for all beverage equipment	Temperature, as set by factory:200°F (93°C) inside water tank (at sea level)

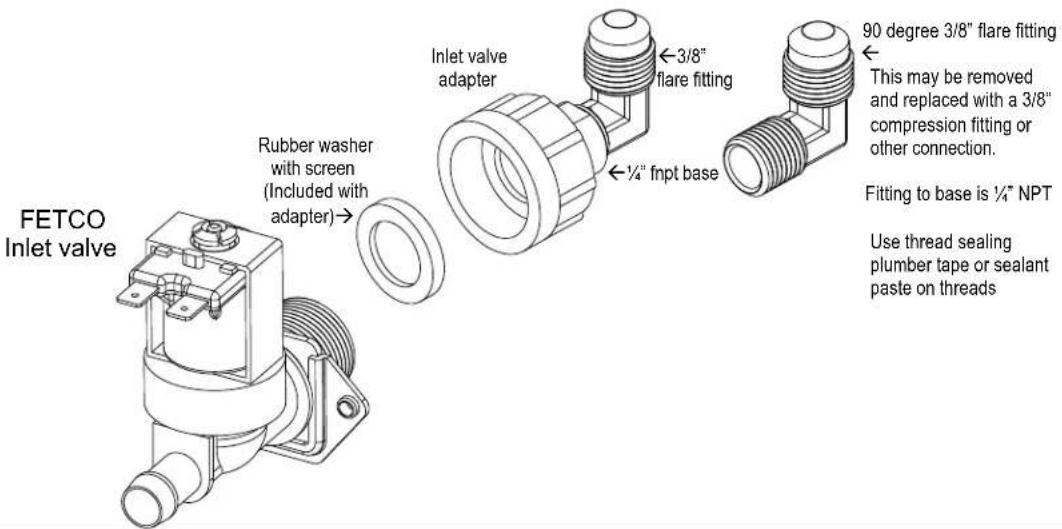

Water inlet fitting: 3/8 inch male flare.Brewer supplied with inlet valve adaptor for BSP to SAE	Electrical: See electrical configuration chart Pg 3.
Brew Volume: Full Batch 3.8 L/1.0 gal brew
Brew Capacity (approximate)	CBS-2241 4-10 brews per hour CBS-2242 11-16 brews per hour Output is controlled by heater power and water temperature
Total Brew Cycle: Factory setting: 6 minutes consisting of 4 min. brew time and 2.0 min. drip delayIndividual menu brew-process parameters are user controllable for:Basic user controls for brew volume, brew time, units of measure, recipe nameAdvanced user controls for pulse count, prewet percent and prewet delay, drip delay, programmable energy saving
See pages 4-5 for how to adjust controls for temperature, brew volume, units - and all other settings

Weights and Capacities
Model	Height	Width	Depth	Water tank capacity	Empty Weight	Filled Weight	Shipping Weight	Shipping Dimensions
CBS-2241Brewer	34 1/2 in880 mm	11 3/4 in300 mm	20 3/8 in520 mm	4.5 gallon17 L	29 lbs13.2 kg	55 lbs25.0 kg	41 lbs18.6 kg	35" x 17" x 22"88.9 x 43.2 x 55.9 cm
CBS-2242Brewer	34 1/2 in880 mm	19 3⁄4 in500 mm	20 3/8 in520 mm	8.5 gallon32 L	47 lbs21.3 kg	92 lbs41.7 kg	58 lbs26.. kg	35" x 23" x 25"88.9 x 58.4 x 63.5 cm
Calibrated for 1.0 gal brew/3.75 L				Brew Basket 13" X 5"		Coffee Filter 13" X 5 or FETCO# F002

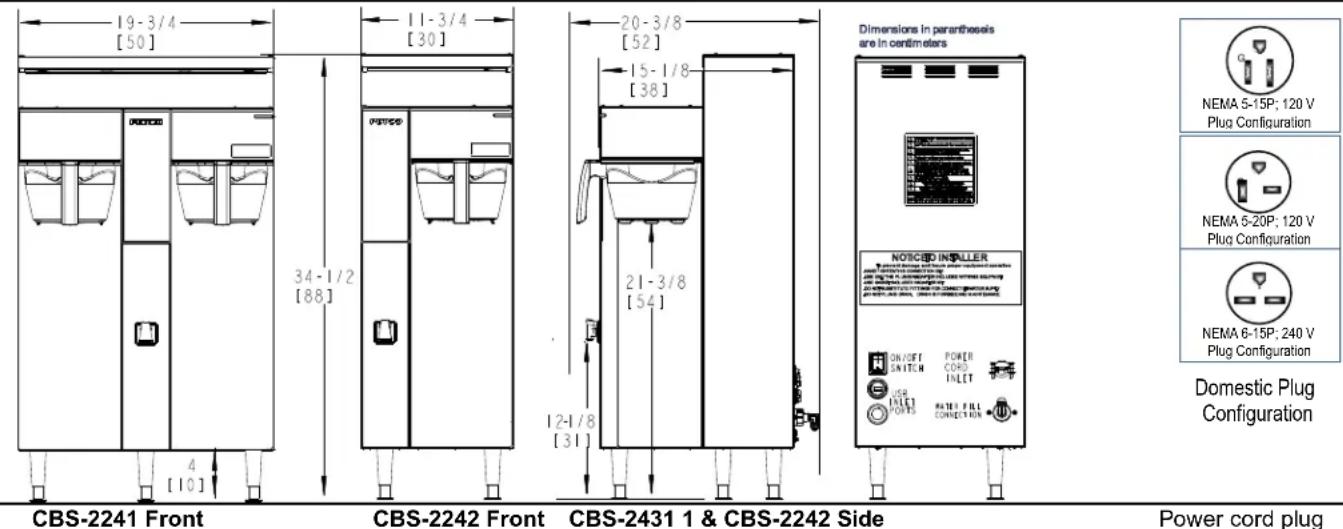

Rough-In Drawings

SKU NUMBER IDENTIFICATION KEY EXAMPLE: SKU E2241US-1X117-PM001

Product Line

Level

Family

Region ID

Phase

Voltage Range

# Heaters

Individual HeaterWattage

Brew Basket

Hot WaterFaucet

Bypass

Brew BasketLocks

Power Cord

E

2

2

4

1

U

S

1

A

1

1

5

P

M

0

0

1

E=extractor

US =United States

1

A = 100-120

1

1.5

P=plastic

M=manual

1=Yes

1=Yes

0=Terminal Block

12=PLUS Series

41=single side

IN = International

2

B = 200-240

2

1.7

M=metal

A=automatic

0=No

0=No

1= NEMA 5-15P

22=Next Generation

42=dual side

CE = IEC

3

C = 380-415

3

2.3

C=metal with clips

N=None

2=NEMA 5-20P

NM = NOM

U = 1 or 3

D = 440-480

6

3.0

3=NEMA 6-15P

4.0

4=NEMA 6-30P

X=120 or 240 Dual Voltage

5.0

5=CEE 7/7 Schuko

6=UK1-13P

7= AUSTRALIAN AS3112 (YP-35)

Electrical and Output Specifications

CBS-2241Next Gen Single 3.0-4.0 Liter Coffee Brewers Field configurable Domestic Electrical and Output Specifications Brewer has factory installed cord and plug & terminal block 50Hz or 60Hz
SKU	Voltage	Heater Configuration	Wires	KW	Electrical Connection	Phase	Amp Draw	Brew-Volume per hour
E2241US-1X117-PA011Domestic-Dual Voltage	120208-240	1 X 1.7 kW2 X 1.7 kW	2+G3+G	1.72.6-3.4	NEMA 15-5PTerminal Block	11	14.712.8-14.7	3.9 gal/14.8 L5.8 gal/22 L
Electrical Specifications, Domestic Single brewer-single voltage 120 volt cord and plug single phase 50Hz or 60Hz

CBS-2241Next Gen Single 3.0-4.0 Liter Coffee Brewers Domestic models Electrical and Output Specifications All brewers have factory installed cord and plug 50Hz or 60Hz
SKU	Voltage	Heater Configuration	Wires	KW	Electrical Connection	Phase	Amp Draw	Brew-Volume per hour
E2241US-1A115-PA011	120	1 X 1.5 kW	2+G	1.5	NEMA 15-5P	1	13.0	4.0 gal/15.1 L
E2241US-1A115-PA011	120	1 X 2.3 kW	2+G	2.3	NEMA 5-20P	1	19.7	5.8 gal/22 L
E2241US-1A123-PM112	120	1 X 2.3 kW	2+G	2.3	NEMA 5-20P	1	19.7	5.8 gal/22 L

CBS-2241Next Gen Single 3.0-4.0 Liter Coffee Brewers Field configurable NOM (Mexico) In Spanish Electrical and Output Specifications Brewer has factory installed cord and plug & terminal block 50Hz or 60Hz
SKU	Voltage	Heater Configuration	Wires	KW	Electrical Connection	Phase	Amp Draw	Brew-Volume per hour
E2241NM-1X123-PA012	120	1 X 2.3 kW	2+G	2.3	NEMA 5-20P	1	19.7	6.1 gal/23.2 L
Dual Voltage	208-240	2 X 2.3 kW	3+G	4.6	Terminal Block	1	17.1-19.7	7.6 gal/30 L
NM in SKU suffix (above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide

CBS-2241Next Gen Single 3.0-4.0 Liter Coffee Brewers International models Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz
SKU	Voltage	Heater Configuration	Wires	KW	Electrical Connection	Phase	Amp Draw	Brew-Volume per hour
E2241NM-1B140-PA010	208-240	1 X 4.0 kW	2+G	2.8-4.0	Terminal Block	1 14.9-17.2 10.0 gal/37.9 L
NM in SKU suffix (above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide
E2241IN-1B140-PA010	208-240	1 X 4.0 kW	2+G	2.8-4.0	Terminal Block	1	14.9-17.2	10.0 gal/37.9 L
E2241IN-1B123-PA010	200-240	1 X 2.3 kW	2+G	1.6-2.3	Terminal Block	1 8.5-10.1 5.8 gal/22 L
E2241IN-1B130-PA010	200-240	1 X 3.0 kW	2+G	2.1-3.0	Terminal Block	1	10.9-13.0	7.7 gal/29.1 L

CBS-2242Next Gen Dual 3.0-4.0 Liter Coffee Brewers Domestic models Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz
SKU	Voltage	Heater Configuration	Wires	KW	Electrical Connection	Phase	Amp Draw	Brew-Volume per hour
E2242US-1B223-PA010	208-240	2 X 2.3 kW	2+G	3.5-4.6	Terminal Block	1	17.1-19.7	11.0 gal/42.0 L
E2242US-1B230-PA010	208-240	2 X 3.0 kW	2+G	4.5-6.0	Terminal Block	1	22.2-25.5	14.3 gal/54 L
E2242US-1B230-MA110	208-240	2 X 3.0 kW	2+G	4.5-6.0	Terminal Block	1	22.2-25.5	14.3 gal/54 L

CBS-2242Next Gen Dual 3.0-4.0 Liter Coffee Brewers International models Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz
SKU	Voltage	Heater Configuration	Wires	KW	Electrical Connection	Phase	Amp Draw	Brew-Volume per hour
E2242IN-1B223-PA010	200-240	2 X 2.3 kW	2+G	3.2-4.6	Terminal Block	1	16.5-19.7	12.2 gal/46.3L
E2242IN-1B230-PA010	200-240	2 X 3.0 kW	2+G	4.2-6.0	Terminal Block	1	21.3-25.5	15.8 gal/60 L
E2242NM-1B230-PA010	208-240	2 X 3.0 kW	2+G	4.5-6.0	Terminal Block	1	22.2-25.5	15.8 gal/60 L
NM in SKU suffix (above) denotes equipment with NOM certification, Spanish labeling for Mexico and Spanish language user guide

Customer options e.g. E2241US-1X117-P ^1 A ^2 O ^3 1 ^4 1	BREW BASKET TYPE (P, M)	HOT WATER FAUCET (M, A OR N)	BYPASS (1 OR 0)	Brew Basket Lock (1 OR 0)
Factory standard features Add all the following numbers after all SKU numbers	^1 P=Plastic (most versions) M=Gourmet Metal	^2 A=Automatic electronic M=Standard manual N=No hot water faucet	^3 O=None 1=With	^4 1=With 0=None

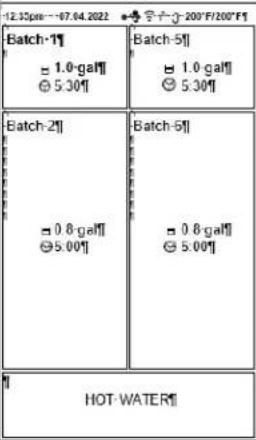

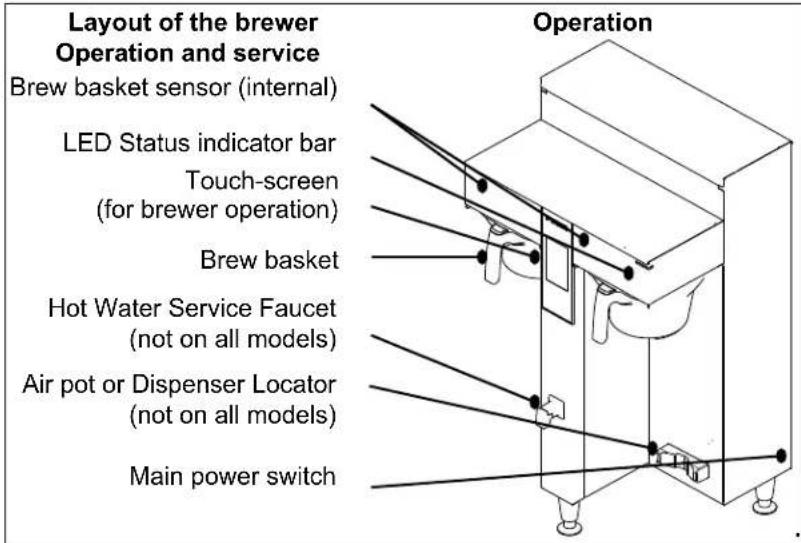

Fast Start Brewing

Starting The Brew

1. Turn the power switch "ON". (Twin Shown)
2. Prepare a brew basket with the correct size filter and appropriate
   amount of coffee. (4-8 ounces or 113-227 grams for 1 gal/3.8 liters)
3. Slide the brew basket completely into the rails.
4. Place a clean, empty, preheated dispenser under the brew basket.
5. Select a batch & touch the corresponding BREW icon
   (Batch #1 selected in illustration), then press "START"
6. -STOP icon will illuminate,
   -Countdown time will display, with proportional graphic circle icon -LED indicator will pulse.
   -All other BREW icons for that brew head will be hidden.
   ....-Opposite side BREW icons on dual brewer remain active
7. When the brew cycle is finished,
   -Spray icon will extinguish and the BREW circular icon will remain. This indicates that coffee may still be dripping from the brew basket For safety- do not remove brew basket until drip-out is complete.

Batch 11.5 gal6:00	Batch 51.5 gal6:00
	Batch 61.5 gal6:00
	Batch 71.5 gal6:00
STOP	Batch 81.5 gal6:00
HOT WATER

Twin Brewer ready to brew.

Batch one-top left brew position selected

Brewing in process

Batch one selected

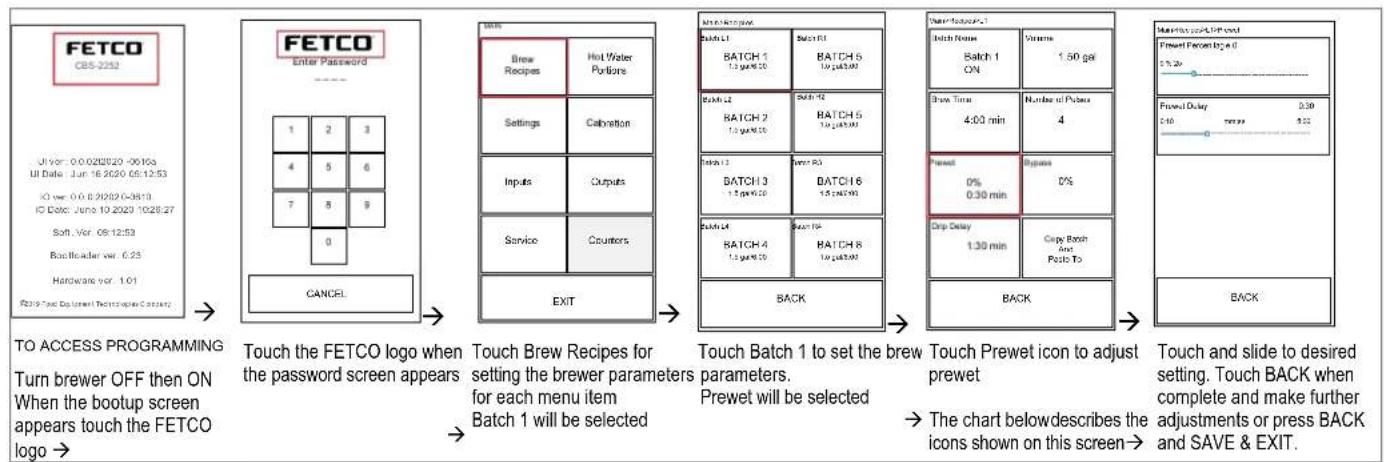

Programming

To enter programming

1.

Turn the power switch "OFF", then "ON": Bootup will begin

Touch the cen of the screen (shown on right →)

Bootup screen

2. (shown right→) Operator password is 1,2,3,4: Note: For general use

Service password is 9,8,7,6 Note: Do not distribute this number

Password Screen

3.

Make changes and adjustments from the

Programming Menu screen

(Shown right→)

See programming menu layout next page

Brew Recipes	Hot Water Portions
Settings	Calibration
Inputs	Outputs
Service	Counters
EXIT

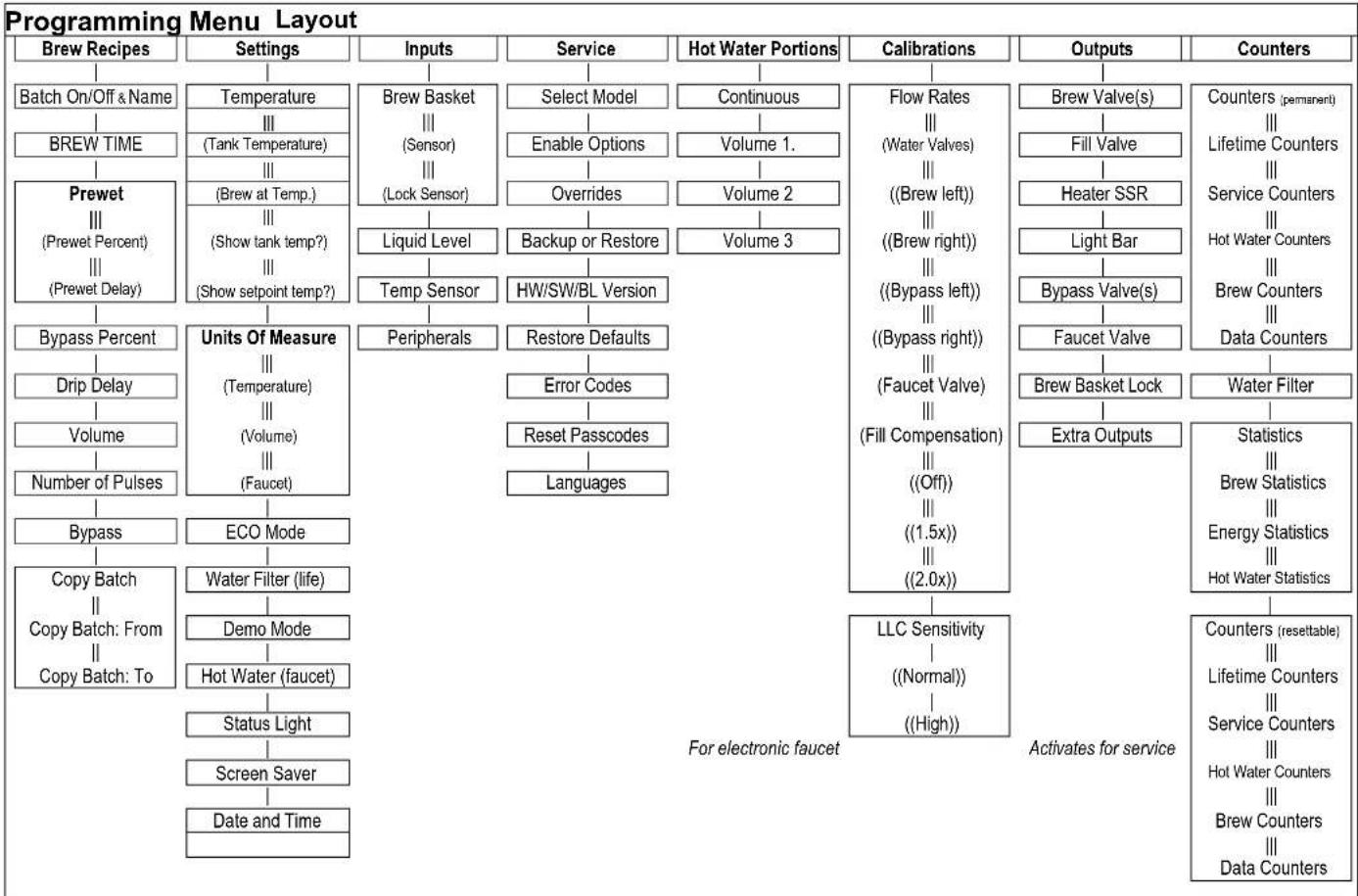

Programming access

    N --> BN["Units Of Measure"]
    BN --> BO["(Temperature)"]
    BN --> BP["(Volume)"]
    BN --> BQ["(Faucet)"]

    O --> BR["ECO Mode"]
    BR --> BS["Water Filter (life)"]

    N --> BT["Demo Mode"]
    BT --> BU["Hot Water (faucet)"]

    O --> BV["Status Light"]
    BV --> BW["Screen Saver"]
    BW --> BX["Date and Time"]

    P --> BY["Brew Water Storage"]

    Q --> BZ["For electronic faucet"]

    R --> CA["LLC Sensitivity"]

    S --> CB["((Normal))"]

    T --> CC["((High))"]

    U --> CD["Activates for service"]

    style A fill:#f9f,stroke:#333
    style B fill:#f9f,stroke:#333
    style C fill:#f9f,stroke:#333
    style D fill:#f9f,stroke:#333
    style E fill:#f9f,stroke:#333
    style F fill:#f9f,stroke:#333
    style G fill:#f9f,stroke:#333
    style H fill:#f9f,stroke:#333
    style I fill:#f9f,stroke:#333
    style J fill:#f9f,stroke:#333
    style K fill:#f9f,stroke:#333
    style L fill:#f9f,stroke:#333
    style M fill:#f9f,stroke:#333

Brew Recipes	Program Items	Factory set Default	Programming Range	Notes
Batch Name	Batch On/Off	All “ON”	On/Off	Only top batch(s) are always enabled
Batch Name	Customize Name	Batch (1-4 L) (5-8 R)	Complete keypad	Scroll and tap three virtual keypads
Brew Time	Time of brew	4:00 minutes	2:00-12:00 mins/secs	Add to prewetting and drip delay times
Prewet Prewet percentage		0 0-25% brew volume		Initial wetting to stabilize very fresh coffee
Prewet	Prewet delay time	1:00 sec.	0:10 sec to 5:00 min	Pause after coffee bed is prewetted
Drip Delay	Pause after brew	2:00 min:sec.	00.30 to 6:00	Time that brew basket remains locked during drip-out. This is a safety feature.
Brew Volume	Total volume	1 gallon/3.8 liters	0.5-1.25 gal./0.95-4.75 liters	Factory set for 1 gallon dispenser
Number of Pulses	Start/stop in brew	8	4-20	Algorithm evenly divides brew time cycle
Bypass Percentage	Diverts brew water	0	0-40% of brew volume	Affects flavor, strength and mouth-feel
Copy & Paste Menu	Current recipe		Paste into all other recipes	Will paste selected into the other
Settings	Program Items	Factory set Default	Programming Range	Notes
Temperature	Tank Temperature	200°F/92°C	170-208°F/77-98°C	Hot water tank, brewing water temp.
Temperature	Brew at Temperature*	ON	OFF/ON	See note below
Temperature	Show Tank Temp.	ON	OFF/ON	Shows 1 ^st at top right screen
Temperature	Show Setpoint Temp.	ON	OFF/ON	Shows 2 ^nd at top right screen
Units of Measure	TemperatureVolumeHot water Faucet	F° - FahrenheitGal-Gallonsml - Milliliters	NO or YES	Main>Settings>UNITSTemperature °F °CVolume gal L Faucet 52 ml
ECO Mode	ON/OFFEco idle time (to start)Eco Tank temperature	OFF (default)(if activated)1 hour 169°F	Turn on or off1-6 hours158°F to 176°F	Screen will display Eco Mode when activated-will take time to reheat to set brew water temperature
Water Filter	Water filer installedRated filtering volume	NO2625 gallons	NO or YES250 gallons to 3950 gallons
Demo Mode	Brewer ON Disables valves & heaters	OFF	OFF/ON	For training and user familiarization
Hot Water	Digital H. Wtr Faucet	Auto	ON/OFF/Automatic	Automatic activates portion control
Status Light	READY LED color	White	White/Blue/Green	Color when brewer is ready to brew
Screen Saver	Covers recipe screen	OFF	ON/OFF & Timeout setting	“OFF” leaves recipe screen
Date and Time	Set unit date and time	12 hour format	12/24 hour format & date	Store in real time clock
NOTES: Brew at Temperature*Brew At Temp: “ON”(Default: factory programmed into brewer)“BREW START” will not be accessible until tank temperature is at set point.“BREW START” becomes accessible when hot water tank is at the selected temperature.Menu screen will be dimmed if tank temperature is lowBrew At Temp: “OFF” USER SELECTABLE (Not recommended)Allows brewing at any temperature above 170°F/77°C.May not apply for two sided brewer if one side is in brew cycle

Altitude Correction Chart

Chart to correct for altitude for boiling point in tank water temperature.
[ft] [m]		Suggested Setting[°F]	Boiling point[°F]	Suggested Setting[°C]	Boiling point [°C]
0	0	205	212.0	96	100.0
500	152	205	211.0	96	99.5
1000	305	200	210.1	93	98.9
2000	610	200	208.1	93	97.8
2500	762	200	207.2	93	97.3
3000	914	200	206.2	93	96.8
3500	1067	197	205.3	92	96.3
4000	1219	195	204.3	91	95.7
4500	1372	194	203.4	90	95.2
5000	1524	194	202.4	90	94.7
5500	1676	193	201.5	89	94.2
6000	1829	192	200.6	89	93.6
6500	1981	191	199.6	88	93.1
7000	2134	190	198.7	87	92.6
7500	2286	188	197.8	86	92.1
8000	2438	187	196.9	86	91.6
8500	2591	185	196.0	85	91.1

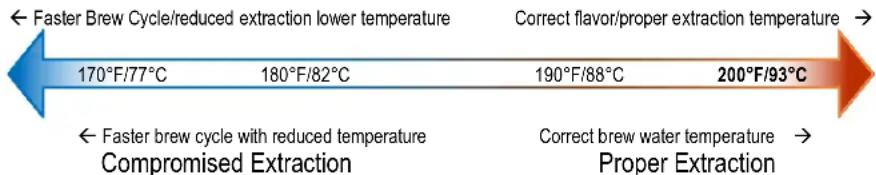

Brew at Temperature

Ideal brew water temperature is 200^ F/93°C. After brewing, brewers can take time to recover the hot water tank temperature and signal READY to brew. This is called “recovery time”. The lag in recovery time is caused by rapid brewing cycles in a rush, low power heating elements, low incoming electrical voltage, water supply temperature, even the barometric pressure.

Operators will adjust the "Brew At" temperature to allow the brewing at lower temperatures. This will allow a slightly faster recovery time and give a small increase in brew cycles per hour.

Reduced brew temperature will always compromise the quality of the finished brew and lower the temperature of the customers coffee.

Inputs	Program Items	Factory set Default	Programming Range Notes
Brew Basket	Sensor	Displays activity	Brew basket in place?	LEFT ○ RIGHT ○ (green=on;red=off)
Brew Basket	Lock Sensor	Displays activity	Brew basket locked?	LEFT ○ RIGHT ○ (green=on;red=off)
Liquid Level	LOW	Not used	Not used	Not used
Liquid Level	HIGH	Hot water tank fill	Filled/Not Filled & signal	Green=Filled/Red=Not Filled
Temp. Sensors	Sensor 1	Hot water tank temp.	Actual temperature & signal
Temp. Sensors	Sensor 2	Not used	Not used	Not used
Peripherals	USB1	Digital input/output	Displays activity	(green=active;red=off)
Peripherals	USB2	Not used	Not used	Not used
Peripherals	RS-232	Digital input/output	Displays activity	(green=active;red=off)

Service	Program Items	Factory set Default	Programming Range Notes
Select Model	Set brewer model	CBS-2242	MODEL (single side) 1 (dual side) 2223x224x225x226x	To select: touch icon for brewer, touch “BACK” and got to EXIT & SAVE
Enable Options			OptionsElectric HW faucetOFF ONBypass Valve(s)OFF ONBrew Basket Lock(s)OFF ONExpansion BoardOFF ON
Overrides	Brew Basket SensorBrew Basket LockBrew Basket Lock SensorHW Press and hold		Override Safety FeaturesLeft RightBrew Basket SensorOFFON OFFONBrew Basket LockOFFON OFFONBr. Basket Lock SensorOFFON OFFONHW Press and holdOFFON OFFON	Overriding deactivates onboard safety systems. This is not recommended for normal operation. A warning/reminder will display in the start screen
Backup or Restore	Backup current configuration	Will save all programmed settings	Requires USB thumb drive	Insert USB thumb drive and touch “BACKUP” & follow instructions
Backup or Restore	Installs saved settings	USB thumb drive with one file-	One file, must be titled: backup.txt	Insert USB thumb drive and touch “RESTORE” & follow instructions
HW/SW/BL Version			SoftwareUI 0.2.221011aIO 0.3.20221119aBootloader UIBootloader IOCompilation TimeUI Oct 11 2022 13:28:09IO Nov 29 2022 15:12:20HardwareMain Board revIO Board rev
Restore Defaults	Return factory sets		Will overwrite all settings	Touch and hold icon 5 seconds
Error Codes			Error LogCode & definition Date/time stampExport Log To USBFollow prompts to exportError StatisticsError code frequencyError StatisticsFollow prompts to delete
Reset Passcodes	Overrides default		Operator CodeFollow prompts to changeService CodeFollow prompts to change
Languages	Reserved for future use
Error Codes (From SERVICE – Page7)
DO NOT CLEAR ERROR CODES UNTIL ERROR IS IDENTIFIED AND CORRECTED→Contact factory or specialized personnel for error codes
Code	Description	Possible Cause	Corrective Action
001	Software error-error on start up or corrupted software	Improper start-up or shutdown	Restart, if still fault: reload software
002	Internal flash corruptedinternal data memory malfunction	Error found in cyclic redundancy check CRC	Restart, if still fault: reload softwareIf not corrected: replace board
050	Short-circuit in temperature probe	Probe failure.	Replace probe.
051 Open temperature probe.		Bad probe connection, or probe failure.	Check all connections. Replace probe if necessary.
100	Initial Fill Error.Initial fill time took longer than expected after powering up.	Water supply flow rate is too low, fill valve is stuck, water line kinked or closed.	Reboot machine. If persists-investigate cause of low flow rate. (Clogged water filter, kinked line, stuck fill valve)
101	Error on refill-.Tank did not refill within expected time.	Water supply flow rate to hot water tank is too low, or fill valve stuck or damaged (SEE PAGE 13)	Check water supply line. Flow should be 20-75 psig, (138-517kPa) >1gal/3.8L/minInvestigate cause of low flow rate. If the flow rate is in range-replace fill valve
200	Heating flatline-Tank is boiling	Heater is on, temperature is not rising/dropping	High elevation correction. Bad heaters or temperature probe or position
201	If the hot water tank heaters are turned on during a heating cycle and tank temperature is not increasing according to software logic and the tank temperature is below setpoint	1) Failure of SSR, high limit, temperature probe, or heating element.2) Water being removed by hot water faucet during heating (control displays “heating”)	1)Test and check SSRs, high limit devices temperature probe. Check heating elements with current clamp, replace if necessary.2)Advise staff to refrain from taking large amounts of water from hot water tank, especially during “heating”.
202 Heater Shorted or Stuck SSR		Heater is off and heating SSR is stuck “ON”	Check ohms on heater (15-60Ω). SSR may be stuck in ON mode-replace SSR.
255	Keyboard [HID] error(Human Interface Device)	Usually from longer than 10 seconds’ contact. Or faulty reassembly after service	Restart, if still fault: reload software. If mechanical: replace module
NOBSKTInsert Brew Basket		Brew basket must be in placeThis is a SAFETY FEATURE	Insert brew basket into brewer rails to enable brewer
Hot Water Portions	Program Items	Factory set Default	Programming Range Notes
This setting is only for brewers with an electronic hot water faucet. In the SETTINGS menu, the “Automatic” feature must be enabled
Hot Water Portions	Enabled	“ON”		OFF/ON
Hot Water Portions	Name	Continuous	Rename on keypad	Scroll and tap three virtual keypads
	Safety Timeout	0:25	0:10 min 0:60----0----Scroll and go to EXIT&SAVE	Sets limit for touch and dispense
Hot Water Portions	Volume 1	6 oz.
	Enabled	ON	Turns “ON” or “OFF”	OFF/ON
	Name	Volume 1	Rename on keypad	Scroll and tap three virtual keypads
	Volume dispensed	6 oz	Volume 62 oz 30----0----Scroll and go to EXIT&SAVE	Sets limit for #1 touch and dispense
Hot Water Portions	Volume 2	8 oz
	Enabled	ON	Turns “ON” or “OFF”	OFF/ON
	Name	Volume 2	Rename on keypad	Scroll and tap three virtual keypads
	Volume dispensed	8 oz	Volume 82 oz 30----0----Scroll and go to EXIT&SAVE	Sets limit for #2 touch and dispense
Hot Water Portions	Volume 3	8 oz
	Enabled	ON	Turns “ON” or “OFF”	OFF/ON
	Name	Volume 3	Rename on keypad	Scroll and tap three virtual keypads
	Volume dispensed	12 oz	Volume 122 oz 30----0----Scroll and go to EXIT&SAVE	Sets limit for #3 touch and dispense
Calibration	Program Items	Factory set Default	Programming Range	Notes
Flow RatesWater Valves	Brew left	0.50gal/min	Brew Left 0.50 (gal)0.40 gal/min 0.58----○----	Use to attenuate and compensate for variations in brew valve output
Flow RatesWater Valves	Brew right	0.50gal/min	Brew Right 0.50 (gal)0.40 gal/min 0.58----○----	Use to attenuate and compensate for variations in brew valve output
Flow RatesWater Valves	Bypass left	0.36gal/min	Bypass left 0.36 (gal)0.29 gal/min 0.43----○----	Use to attenuate and compensate for variations in bypass valve output
Flow RatesWater Valves	Bypass right	0.36gal/min	Bypass right 0.36 (gal)0.29 gal/min 0.43----○----	Use to attenuate and compensate for variations in bypass valve output
Flow RatesFaucet Valve	For automatic hot water faucet	1500 ml/min	Faucet 1500500 ml/min 5000----○----	To compensate variations in timed dispense from automatic hot water faucet
Fill Compensation	Slow Flow Compensation	OFF	○ Offo .. 1.5xo 2.5x	Use for FloJet bottled water supply or for reduced water supply from mains.
Display			Display % Contrast 7010 ----○ ---- 100Brightness % 7020 ----○ 100
LLC		NORMAL	○ Normalo .. High	Liquid level control sensitivity.Normal for most water.High is for reverse osmosis water or very pure water.

How to calibrate the flow rate

Set the flow rates of the brewer valves to adjust for over or under potting.

Built-in algorithms in brewer controller software corrects brew parameter to customer preferences or to trim variations in flow control components. The control software uses the new flow rate entered in the CALIBRATION screen to adjust and correct the amount of water delivered by the valve

Increasing the flow rate value DECREASES the volume of brew water dispensed

Decreasing the flow rate value INCREASES the volume of brew water dispensed

Flow rate adjustment will control all batches made by the valve. All batches on the side of the valve will be adjusted, (left or right)

-Obtain the VOLUME DISPENSED of water only, by brewing a batch without coffee or filter paper.

-Obtain the PROGRAMMED VALUE of the same brew. This is displayed on the home screen in the batch box

-Obtain the CURRENT SETTING for the flow rate from the brewer. Do this by entering PROGRAMMING and

Tap to "CALIBRATION" then, tap "Flow Rates" and then "Water Valves". The valves f low rate is in the top right corner.

Using the values obtained above to obtain the new flow rate setting to correct the volume dispensed: Divide the volume dispensed by the programmed volume and then multiply by the current setting

VOLUME DISPENSED

VALUE × CURRENT SETTING = NEW FLOW RATE SETTING

-Enter programming mode, tap to "CALIBRATION"

-Tap back to "Flow Rates" and then to "Water Valves"

-Enter the new flow rate into the calibration slider for the valve tested

Note: values for brewers set in gallons are in decimal format. Place all quantities in ounces and divide by 128 (One gallon =128 ounces) to obtain decimal format → 3 quarts delivered=96oz, 96oz÷128=0.75 gal.

Example below shows shortpotting of 16oz over 0.08 gal. batch corrected by recalibration using the formula above

Obtain Volume Dispensed

Example:

A CBS-2242 delivered 3qts or 6oz over the 0.8 gallon (102oz) setting for Batch 2-Left Side(96oz÷128=0.75)

The value is 0.75

Batch 11.5 gal0.30	Batch 51.5 gal0.30
Batch 21.5 gal0.30	Batch 61.5 gal0.30
HOT WATER

Obtain Programmed Value The Programmed value for batch 2 -left side of the CBS-2242 is on the home screen in the batch box.

The value is 0.8 gallon

Obtain Current Setting
The valves flow rate is in the top right corner
Brew Left	0.50 (gal)
0.40 gal/min		0.58
O
The value is 0.50

Use the formula above

0.75/0.8 × 0.50 = 0.47

The new flow rate is 0.47

Enter the New Flow Rate
Brew Left	0.47 (gal)
0.40 gal/min		0.58
----O----
Enter new setting on the slider as shown and EXIT to save. Retesting recommended

By entering the new flow rate number into the brewer, the software automatically corrects the volume discrepancy

Outputs	Program Items	Factory set Default	Programming Range	Notes
These settings are used to activate individual controls for testing verifications and servicing operations
Brew Valve(s)	Momentarily operate Left or Right Brew valves		Brew	Have dispenser under spray head! Touch to activate flow
Fill Valve	Momentarily operate fill valve		Fill [IMAGE]	Have dispenser under spray heads! Touch to activate flow
Heater SSR	Turns on all heaters		Heater 3 sec max	Activates SSRs to turn on heaters
Light Bar	Momentarily operate light bar(s)		Status Ligi
Bypass Valve(s)	Momentarily operates Left or Right Bypass valves		Bypass Left Right	Have dispenser under bypass port! Touch to activate flow
Faucet Valve	Momentarily operate faucet valve	For brewers with automatic hot water faucet	Faucet	Have dispenser under faucet! Touch to activate flow
Brew Basket Lock	Operates brew basket locks, toggling them on and off		BBL lock BBL Unlock BBL Sensor	Will toggle brew basket locks to be engaged then OFF.
Extra Outputs	For future use	Not used	Not used	Not used
Counters	Program Items	Factory set Default	Programming Range Notes
This setting shows usage of the brewers functions
Lifetime CountersThese counters are permanent and cannot be deleted. The quantities shown are a permanent record for the machine,	Service Counters		Main>Counters>Lifetime>ServicoLifetime Counters(units in hours and liters)Unit Uptime 0Fill ValveVolume 0Activation 0HeaterTime On 0Activation 0Hot Water Dispense Count 0Hot Water ValveVolume 0Activation 0BrewerVolume 0Left RightBrew Count 0 0Brew ValveVolume 0 0Activation 0 0Bypass ValveVolume 0 0Activation 0 0LocksActivation 0 0
	Hot Water Counters		Main>Counters>Lifetime>FaucetLifetime Counters(units in liters)Volume ActivationContinues 0 01 0 02 0 03 0 0
	Brew Counters		Main>Counters>Lifetime>BrewLifetime Counters(units in liters)Recipe Number Volume Activation1 0 02 0 03 0 04 0 05 0 06 0 07 0 08 0 0
	Data Counters	Reserved for future
Water Filter	Water Filer Life Time		Main>Counters>Reset FilterWater Filter Life TimeFilterLife Time 0% of 10,000Press and hold button for 5 secondsTo Reset Filter
Statistics	Brew Statistics	Reserved for future
	Energy Statistics	Reserved for future
	Hot Water Statistics	Reserved for future
Resettable CountersThese are the same screens as above in "lifetime counters". These can be reset	Service Counters	See screen above	Main>Counters>Reset>ClearClear Resettable CountersPress and hold button for 5 secondsTo Clear Error Log
	Hot Water Counters	See screen above
	Brew Counters	See screen above
	Service Counters	See screen above

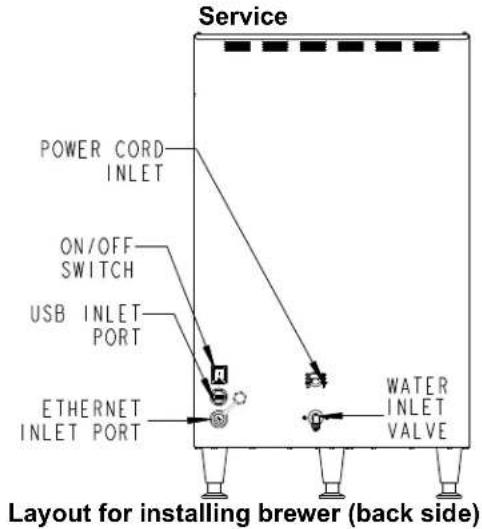

Brewer SetupNOTE-Assemble legs immediately after unpacking the brewer and before connection to utilities
1) Attach legs
	4” flange foot legs -Part number 1073.00007.003 required for CBS-22424 required for CBS-2241
Legs are sent from factory inside brew basket. Attach legs before installing

Brewer Setup

2) Attach water inlet adapter

Place rubber washer with screen in adapter. Hand tighten only-and 1/4 turn with wrench

Install the adapter on inlet valve first before attaching water line. Adapter is shipped in the brew basket

The valve threads are 3/4" BSP MALE THREAD and are not 3/4 garden hose fittings.

Use of any other connector to valve will damage the valve

DO NOT use US dishwasher water adapter or US washing machine adapter for this connection.

The threads on the USA adapters are unusable for the valve

TO PREVENT DAMAGE AND INSURE PROPER EQUIPMENT OPERATION

The inlet valve thread is 3/4 INCH BSP (British Standard Pipe).

This valve is not a standard USA washing machine or dishwasher thread (3/4" GHT)

-Use only the plumbing adaptor kit included with this equipment. Use the gasket included in adaptor kit

-Plumber's tape is not recommended for the adapter to valve connection

-Hand tighten adapter on valve with gasket, then very lightly wrench 1/4 turn to set

-DO NOT SUBSTITUTE FITTINGS FOR CONNECTING TO WATER SUPPLY

Damage to inlet valve from improper installation will void the warranty

NOTE: DO NOT TANK PLUMB DRAIN. DRAIN IS FOR SERVICE AND MAINTENANCE.

(For Qualified Service Technicians Only)

General:

1. If not installed correctly by qualified personnel, the brewer will not operate properly, and damage may result.
2. Utilize only qualified beverage equipment service technicians for service and installation.
3. Always have an empty dispenser under spray head of all coffee brewing equipment-including when at idle
4. Damages resulting from improper installation are not covered by the warranty and will void the warranty. Below are the key points to consider before installation:

Electrical:

1. All CBS_Series brewers require an electrical ground wire. Installation without grounding is dangerous.
2. Note Equipotentiality Terminal, if present, (To identify the terminals which, when connected together, bring the various parts of equipment or of a system to the same potential, not necessarily being the earth (ground) potential, e.g. for local bonding.)
3. Verify voltages, polarity, circuits, and circuit breaker access before attaching equipment.
4. Brewers in this series wire differently in regard to a neutral wire. Review the wire diagrams.
5. The electrical diagram is located in the User's Guide and online at www.fetco.com.
6. Make sure of the tight grounding of the equipment and use the external ground bolt.
7. The installation must comply with applicable federal, state, and local codes having jurisdiction at your location. Check with your local inspectors to determine what codes will apply.

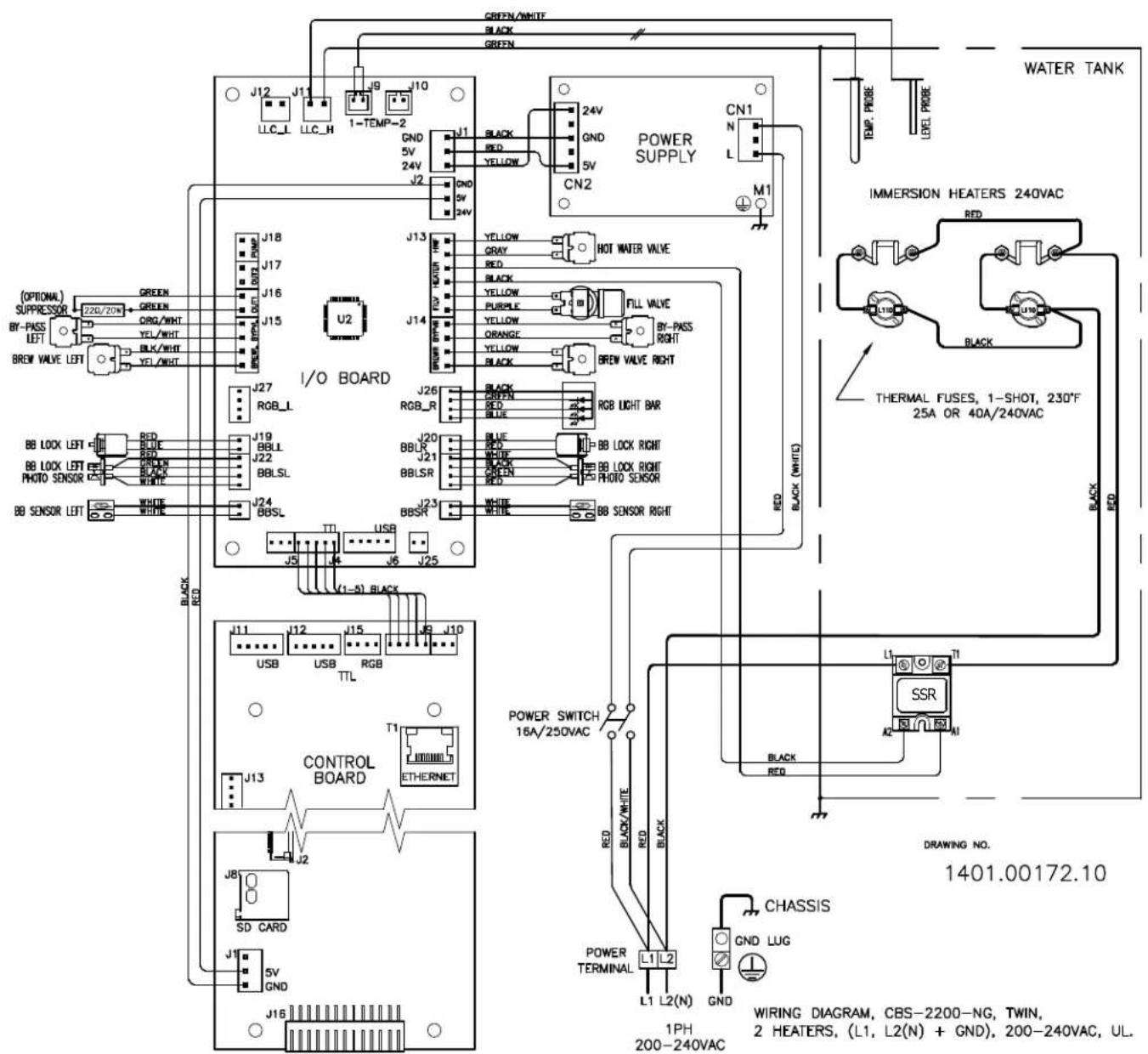

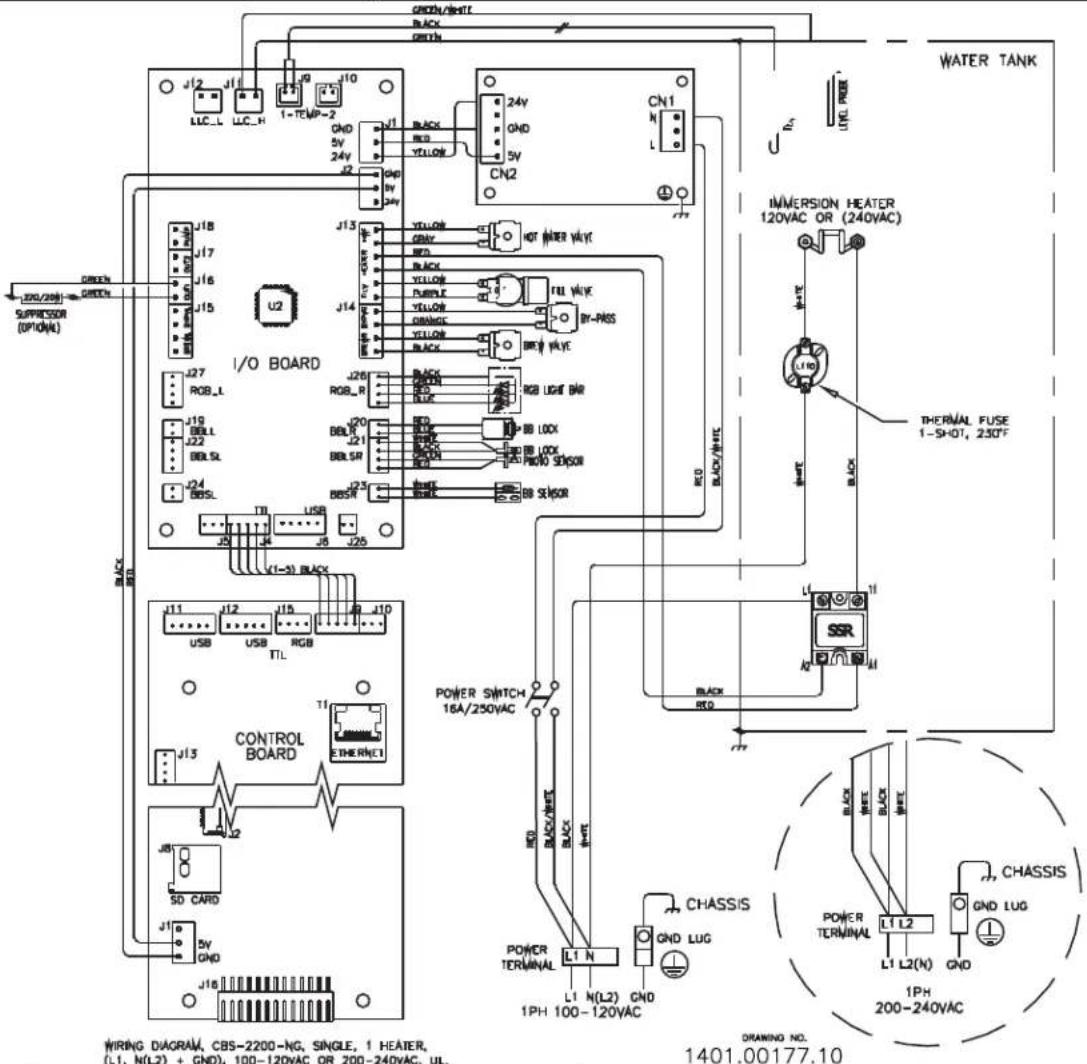

→See wiring diagrams on pages 29-31 for connections

Plumbing:

1. North America: All installations must comply with applicable federal, state, or local plumbing codes.
2. All Others: The water and waste piping and connections shall comply with the International Plumbing Code, International Code Council (ICC), or to the Uniform Plumbing Code (IAPMO).
3. Install a backflow prevention device. Most municipalities require a recognized backflow preventer Usable on all hot beverage and cold beverage equipment is a WATTS® SD-2 or SD-3.

WATTS spring loaded double check valve models are accepted by most zoning authorities.

→The check valve should be as close to the water supply inlet of the beverage equipment as possible

1. All beverage equipment must use a water filter. A finishing carbon filter is preferred
2. Install the filter unit after a water shutoff valve and in a position to facilitate filter replacement.
3. The water line and newly installed filter cartridge must be flushed thoroughly prior to connecting it to the brewer to prevent debris from contaminating the machine
4. Verify that the water line will provide a flow rate of at least 112 gpm/(5.7lpm) per minute and the water pressure is between 20-75 psig (138-517kPa) before making any connections
5. IMPORTANT: Only use the supplied factory fitting to attach water supply line to brewer (shipped in brew basket)
6. The supplied fitting is a 3/8" flare/compression fitting for 1/4" supply line. Other adaptors may be substituted.
7. Hand tighten the factory fitting when connecting the stub on the brewer. This will reduce stress on the internal connections and reduce the possibility of leaks developing after the install has been completed

Tank Drain

The water tank must be drained before maintenance procedures, and when the unit is to be relocated or shipped. Drain is for service use only and must not be permanently connected. NOTE: Never plumb a water line to the drain.

1. Disconnect power and water to unit. DANGER: Ensure that all utility connections to the brewer are broken.
2. Move the unit near a sink or obtain a container large enough to hold four gallons of water.
   →Note: The CBS-2241 hot water tank when full holds 3.3 gallons; the CBS-2242 6 gallons.
3. Remove the front panel and tank cover and allow the tank to cool to a safe temperature
4. The tank drain line and clamp are located inside-under the hot water tank. Pinch the drain line clamp to close
5. Locate the fill valve against the back wall, using pliers, loosen the hose clamp and move it back over the tube.
   →Note Do not loosen the hose clamp to the bottom of the hot water tank
6. Crimp the tube an inch or two away from the drain plug to prevent water from flowing and pull it off the valve.
7. Pull the tube end out of the brewer and position over sink or bucket.
8. Release the crimped tube and hose clamp and allow the water to flow into the sink or container.
9. Reverse steps 4-8 when service is complete. Ensure pinch clamp is open and hose clamps are in place.

Brewer Hot Water Tank Capacity		OPENLeave open for usePINCH SHUTTo drain tank & service brewer
CBS-2241 Single	4.5 gallon 17 L
CBS-2242 Twin	8.5 gallon 32 L

Operator Training

Review the operating procedures with whoever will be using the brewer.

Pay particular attention to the following areas:

1. Always pre-heat the dispensers before the first use of each day by filling them half way with hot water, and letting them stand for at least 5 minutes.
2. Do not remove the brew basket from a coffee brewer until it has stopped dripping.
3. Make sure the dispenser is empty before brewing into it.
4. Show how to attach covers, close, and or secure the dispensers for transporting.
5. Show the location and operation of the water shut off valve as well as the circuit breaker for the brewer.
6. Steam from the tank will form condensation in the vent tubes. This condensation will drip into and then out of the brew baskets. Up to 1/4 cup/60 cc discharging overnight is possible. Place an appropriate container under each brew basket when not in use.
7. We recommend leaving the power to the brewer on overnight. The water tank is well insulated and very little electricity is used to keep the tank hot. Leaving the brewer in the "ON" position will also avoid delays at the beginning of shifts for the brewer to reach operating temperature.

Cleaning & Maintenance

After Each Brew:

1. Dispose of grounds and rinse brew basket.-
2. Never strike a brew basket or hit it against a hard surface.
   This will damage the brew cone, and may damage the brew basket support rails
3. Rinse dispensers before reuse.

Technical line drawing of a mechanical component with concentric rings and a central shaft (no text or symbols)

Every Day:

1. Wash brew basket with hot sudsy water.
2. Pull CSD from the spray head, it is magnetically attached. Use gloves or a heavy towel. → Wash off any film and reattach. Use vinegar if limescale filming is present.
3. Clean dispensers with hot suds water and a brush, rinse and air dry.
4. Use only a soft cloth and hot suds on the outside to avoid scratches. Never use abrasives that will scratch surface.

Weekly

1. Use a commercial coffee dispenser cleaner such as URNEX™, TABZ™, DIP-IT™ or Squeak 'n Clean™.
2. Carefully Follow the instructions supplied with the cleaning product
3. Never use spray cleaners, solvent, solvent based cleaner or petroleum based polish anywhere on dispensers

Warning

1. Turn off power before any cleaning procedure, including wiping the exterior for appearance reasons.
2. Dry the exterior, especially the face panel, before turning on power.
3. Do not apply any type of spray cleaner on the face panel of this equipment.
4. Never use solvent or solvent-based cleaner or petroleum based polish anywhere on this equipment.
5. Dry the face of the touch pad before turning on power
6. Do not electrically energize this equipment or attempt operation without all covers in place and all screws fastened.
7. Unplug machine before disassembly or servicing.

Installation safety and hygiene directions-For International and CE equipment

1. Access to the service area is restricted to persons having safety/hygiene knowledge and practical experience of the coffee brewer. This appliance must be installed in locations where it can be overseen by trained personnel.
2. For proper operation, this appliance must be installed indoors where the temperature is between 10^ C/50°F to 35^ C/95°F. Drain and remove all liquid from equipment and lines if exposed to freezing temperatures.
3. All commercial cooking equipment, including this unit, is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from the unit.
4. Children should be supervised to ensure that they do not play hot beverage equipment.
5. This unit must be installed and serviced by qualified personnel only.
6. Installation must conform to all local electrical and plumbing codes. Installation by unqualified personnel will void the unit warranty and may lead to electric shock or burn, as well as damage to unit and/or its surroundings.
7. If the power cord requires repair or replacement-it must be performed by the manufacturer or authorized service personnel with the specified cord only from the manufacturer in order to avoid a hazard.
8. Review the dimensions for the unit and verify that it will fit properly in the space intended for it. Verify that the counter or table will support the total weight of the brewer and dispensers when filled (See: Technical Data).
9. Place the brewer on the counter or stand. When the brewer is in position, level it front to back as well as side-to-side by adjusting the legs.
10. Brewers will need a sturdy supported surface for operation. Do not move brewers when filled.
11. Do not tilt appliance more than 10^ to insure safe operation.
12. Unit is for protected indoor use only. Do not steam clean or use excessive water on unit.
13. This unit is not "jet-proof" construction. Do not pressure wash or use jet spray to clean this unit.
14. The unit is not waterproof-do not submerge or saturate with water.

Equipment exposed to flood and contaminated must not be used due to electrical and food safety. Do not operate if unit has been submerged or saturated with water.

WARNING

All electrical connections must be in accordance with local electrical codes and any other applicable codes. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

To prevent an electric shock hazard this device must be bonded to equipment in close proximity with an equipotential bonding conductor. This device is equipped with a bonding lug for this purpose and is marked with the following symbol

Labels and warnings for hot beverage equipment

!	WARNING	To reduce risk of electric shock or fire.
!	FETCO® Hot Beverage Equipment is for oommercial use only.
!	Do not remove or open cover. No user serviceable parts inside. Refer installation and service to qualified personnel.
!	Caution, disconnect from power supply before servicing.
!	GROUND: National Electrical Code requires separate grounding wire.
!	Use dedicated circuit with capacity rated by local code or National Electrical Code for the current draw of this equipment. Check serial number plate on right side for power requirements.
!	Locate unit away from source of heat. Do not install or use near combustibles.
!	THIS APPLIANCE IS ENERGIZED WHENEVER IT IS CONNECTED TO A POWER SOURCE
!	FAILURE TO COMPLY RISKS EQUIPMENT DAMAGE, PROPERTY DAMAGE, FIRE, OR SHOCK HAZARD
Notice	This equipment must be installed with a backflow protection device to comply with federal, state or local municipality codes.
Notice	Read the user guide before installing and operating this unit.

Label for BACK PANEL of equipment (1046.00035.00)

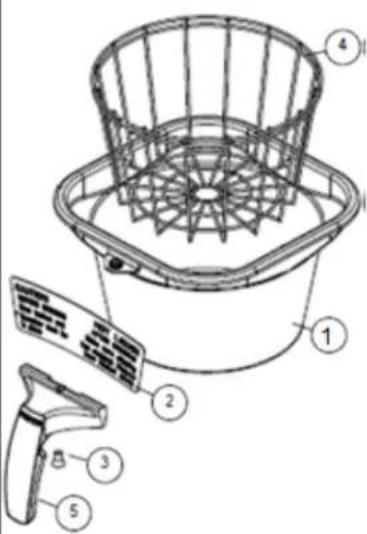

Brew Baskets

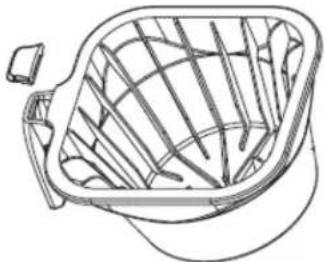

Plastic Brew Basket For CBS-2241 & CBS-2242
Part Number B014218BN2BK – Complete Plastic Brew Basket 13" X 5", .218 DIA HOLE
Brew basket handle plug for polymeric brew baskets is available in optional colors.		Part Number PLUG INSERT COLOR
		1023.00195.00
		1023.00194.00
		1023.00190.00
		1023.00191.00
		1023.00192.00
		1023.00180.00

Stainless Steel Brew Basket For CBS-2241 & CBS-2242
Part Number B003218B1 - Complete Stainless Steel Brew Basket 13" X 5", .218 DIA HOLE
	Ref#	Qty	Part Number	Description
	1	1	1112.00128.00	BB WLDMNT 13" X 5", .218 DIA HOLE
	2 1 10	46.00025	00 BREW BASKET	WARNING LABEL
	3	1	1082.00040.00	SCREW, 1/4-20 X .5, FL HD, PH., W/NYLN
	4 1 10	09.00006	00 WIRE BASKET
	5 1 11	02.00064	00 HANDLE W/MAGNET ASY, BLACK
	Optional colored handle		1102.00065.00	HANDLE W/MAGNET ASY, RED
	Optional colored handle		1102.00066.00	HANDLE W/MAGNET ASY, GREEN
	Optional colored handle		1102.00067.00	HANDLE W/MAGNET ASY, ORANGE
Specialty Brew Baskets for Iced Tea/Tea and Specialty Coffee Brewing.These brew baskets have reduced orifice sizes and may require PROGRAMMING changes to increase brewing time and pulses to enhance extraction and prevent basket overflow during steeping. SEE Page 5- Brew Recipes
Stainless Steel
Part Number	Orifice Size		Handle Color	Filter Paper Size
B003218B1 (from above)	0.218-Sandard		Black	13" X 5" or FETCO# F002
B003158B1	0.158		Black	13" X 5" or FETCO# F002
B003110G1	0.110		Green	13" X 5" or FETCO# F002
B003110B1	0.110		Black	13" X 5" or FETCO# F002
B003079B1	0.079		Black	13" X 5" or FETCO# F002
Plastic
Part Number	Orifice Size		Plug Color	Filter Paper Size
B014218BN2BK (from above)	0.218-Sandard		Black	13" X 5" or FETCO# F002
B014140G2BK	0.140		Green	13" X 5" or FETCO# F002

Parts diagrams

Ref	Qty	PartNumber	Description Drawing 1101.00563.00 CBS-2242
1	1	1111.00101.00	WELDMENT BODY, CBS-2242
2	8	1084.00051.00.	NUT, HEX LOCKWASHER, #8-32, 18-8 ST. STL
3	1	1102.00448.00	FRONT PANEL ASSEMBLY, CBS-2200 SERIES
4	2	1082.00029.00	SCREW, #6 X 3/8 LG, TRUSS HD PHIL, SHEET MTL
5	4	1082.00058.00	SCREW, # 8-32 X 5/8, FLAT HD, PH, 18-8 SS
6	1	See Drawing Pg 27	ELECTRICAL COMPONENT LATTICE, CBS-2200
7	1	1102.00444.00	VISUAL COMMUNICATION RGB LED BAR, ASSY
8	4	1081.00006.00	SPACER, 6MM OD x 3.2MM ID x 5MM LG, Z/P
9	1	1051.00046.00	CBS-2200 SERIES, I/O BOARD, 24V
10	4	1029.00006.00	NUT, FINGER KNURLED, #4-40
11	2	See Drawing Pg 26	SPRAYHEAD ASSY,CBS-30/40'S, QUICK CONNECT
12	2	1024.00063.00	O-RING, 3 15/16" x 3/32" CS, DASH # 154, BUNA-N, DURO-A50
13	4	1024.00107.00	O-RING, 1 3/16" OD X 1 1/16" ID X 1/16" TH, BYPASS SEAL
14	2	1023.00343.00	VENT INSERT, QUICK CONNECT
15	3	1024.00106.00	O-RING, 13/16"OD X 11/16"ID X 1/16" TH, FOR QUICK CONNECT
16	5	1023.00342.00	QUICK CONNECT CLIP
17	18	1083.00010.00	WASHER, #12 SCREW W/NEOPRENE-BONDED SEAL
Parts list continues next page
Ref	Qty	PartNumber	Description Drawing 1101.00563.00 CBS-2242NGContinued from page 16
18	18	1084.00006.00	NUT, 8-32 18-8 HEX MACHINE SCREW
19	2	1024.00098.00	VENT TUBE, CBS- EXTRACTOR SERIES
20	2	1086.00004.00	BUSHING, SNAP, 1" MOUNTING HOLE
21	1	1102.00243.00	ADAPTER ASSY, 3/4" BSP x 1/4" NPT x 3/8" TUBE
22	2	1065.00009.00	GROUND LUG CONNECTOR, 14-2 AWG, ALUMINUM
23	1	1044.00012.00	LABEL GROUND, CE
24	11	1084.00011.00	NUT, CLIP ON (J-NUT), #6-32, 22-20 GA., BLK-PH FINISH
25	1	1025.00058.00	TUBE, 9/16"OD X 5/16"ID X 25.00"LG
26	1	1086.00009.00	CLAMP, 3/4" MAX TUBE OD FLOW CONTROL
27	5	1086.00003.00	UNICLAMP, 15.9 HOSE OD CLAMP
28	1	1112.00530.00	WELDMENT, RIGHT COVER, CBS-2240
29	2	1023.00354.00	LOCATOR, DISPENSER, CBS-2240
30	2	1023.00355.00	LOCATOR, AIRPOT ADAPTER, CBS-2240
31	1	1001.00408.00	COVER TOP, CBS-2242/42
32	1	1001.00409.00	COVER, UPPER BASE, CBS-2242/42
33	11	1082.00017.00	SCREW, TRUSS HD. PHIL. MACHINE, # 6-32 X 1/2 LG.
34	1	1046.00035.00	LABEL, WARNING "TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE"
35	1	1402.00106.00	HARNESS, CBS-2240/50-NG, LOW AMP, UNIVERSAL
36	1	1402.00107.00	HARNESS ADDITION, CBS-2242/52-NG, LOW AMP, UNIVERSAL
37	1	1063.00042.00	ETHERNET CABLE, CAT-7, 5FT LENGTH
38	2	1046.00003.00	LABEL, CSD WARNING, 1.5" X 5.0"
39	1	1041.00032.00	BLACK EXTRACTOR NG LABEL, LASER ENGRAVED
40	2	1025.00142.00	TUBE, SILICONE, 3/4" OD X 1/2" ID X 3.75" LG, BREW
41	1	See Drawing Pg. 18	TANK ASSEMBLY, CBS-2242
42	1	1402.00037.10	HARNESS HIGH AMP, CBS-2242/42/51, UL
43	1	B014218BN2BK	BREW BASKET ASSY, BLACK, 13" X 5", 0.218" DIA HOLE, BROWN PLUG (Page 28)
44	1	B003218B1	BREW BASKET ASSY, 13" X 5", .218 DIA HOLE, BLACK (Page 28)
45	1	1024.00111.00	GROMMET, SILICONE, W/ POSITION TABS
46	1	1023.00362.00	FITTING VENT, ELBOW, .375" X .375", SELF POSITIONING
47	1	1023.00348.00	HOT WATER INSERT, MANUAL FAUCET
48	1	1071.00055.00	FAUCET, HOT WATER, PSC-BR-8, WITH FLAT AND STEM
49	1	1084.00048.00	JAM NUT, 1/2-20 UNF, NICKEL PLATED BRASS
50	1	1003.00370.00	HOT WATER INSERT LOCK
51	1	1025.00120.00	TUBE, 9/16"OD X 5/16"ID X 13.00"LG
52	1	1023.00346.00	HOT WATER INSERT, AUTO FAUCET
53	1	1029.00041.00	COVER, AUTO HOT WATER FAUCET, SILICONE
54	1	1023.00347.00	VALVE MOUNT, HOT WATER DISPENSER
55	1	1025.00026.00	TUBE, 1/4"OD X 1/8"ID X 30"LG, VENT, HOT WATER VAPOR
56	2	1023.00369.00	ORIFICE INSERT, QUICK CONNECT, 3/16" HOLE
57	2	1057.00076.00	VALVE ASSEMBLY, COMPLETE, NG, DELTROL
58	2	1025.00138.00	TUBE, SILICONE, 3/4" OD X 1/2" ID X 1-1/2" LG, HOT WATER
59	1	1025.00135.00	TUBE, 1/2"OD X 1/4"ID X .75" LG, RESTRICTOR
60	1	1024.00051.00	GROMMET, SILICONE, BLANK
61	1	1023.00349.00	HOT WATER INSERT, NO FAUCET
62	1	1029.00042.00	BYPASS L-TUBE, SILICONE, 2200 SINGLE SERIES
63	1	1023.00344.00	PLUG INSERT, QUICK CONNECT
64	1	1102.00445.00	ASSY, BREW BASKET LOCKER W/FEEDBACK
65	1	1003.00259.00	BRACKET, BREW BASKET LOCK COVER
66	3	1083.00009.00	WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
67	1	1084.00010.00	NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
68	3	1073.00016.00	LEG, THERMOPLASTIC, 2.50"(63mm)
69	3	1073.00019.00	LEG, 3/8-16 THREAD x 1" LG., GRAY
70	1	1086.00008.00	CONNECTOR, CLAMP, NON-METALLIC CABLE, 3/4"
71	1	1003.00348.00	ADAPTER PLATE, CBS-1130-XV+, STRAIN RELIEF, CE
72	1	1086.00029.00	BUSHING, STRAIN RELIEF, .360"-.430" DIA CABLE
73	1	1044.00013.00	LABEL EQUIPOTENTIALITY, CE
74	1	1052.00027.00	EMI FILTER, THREE LINE 30A, 250/440VAC
75	2	1084.00012.00	NUT, HEX, #6-32 MACHINE SCREW
76	1	1112.00246.00	WELDMENT BRACKET TERMINAL BLOCK, 3 POLE
77	1	1052.00022.00	EUROSTRIP HE10 TERM. BLOCK, 3 POLE, 50AMP, 18-8 AWG
78	2	1082.00082.00	SCREW, PHILLIP HD., 8-32 THREAD
79	1	1402.00121.10	WIRE HARNESS ADDITION, HIGH AMP, EMI FILTER, 2-POLE, CE

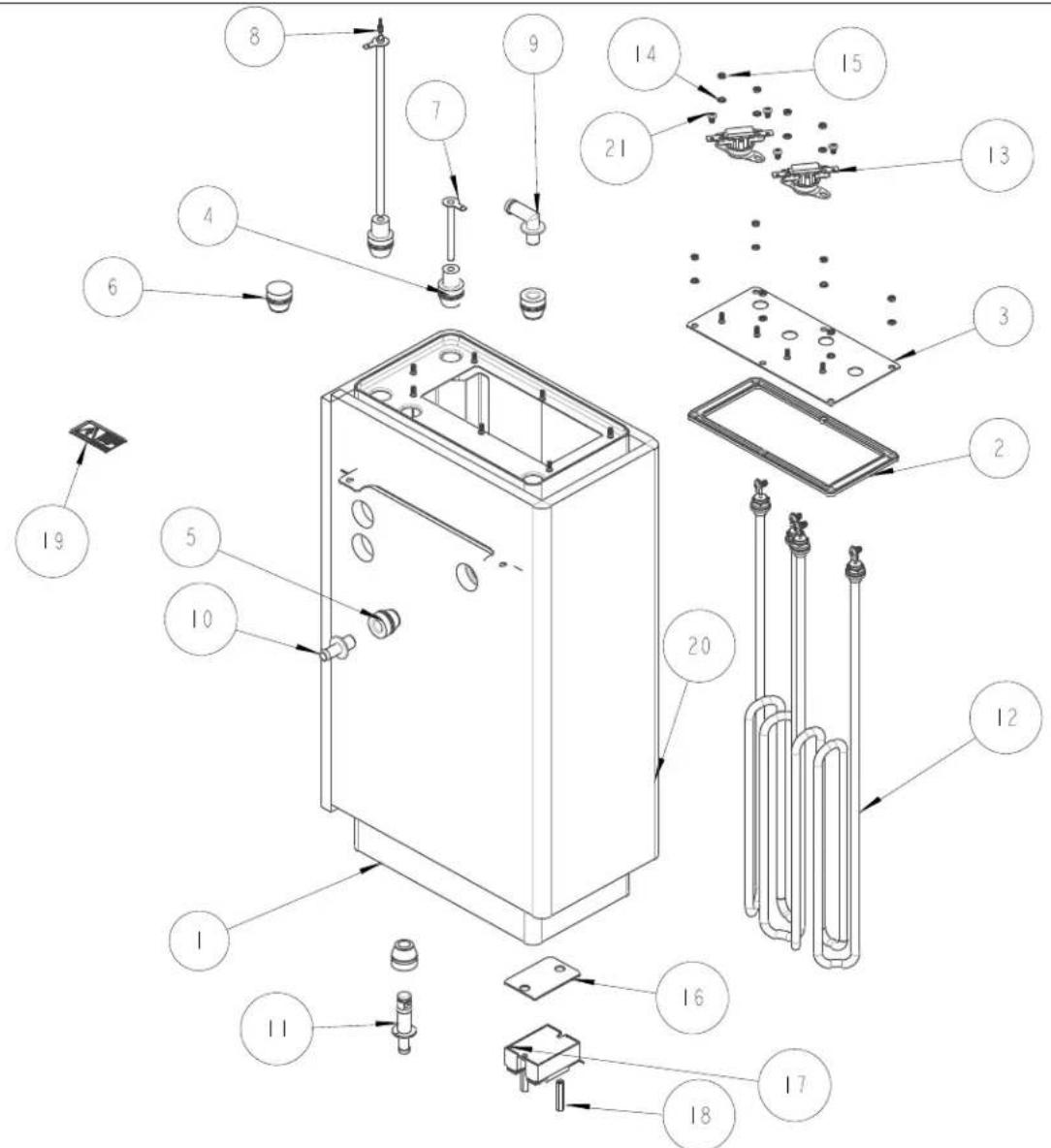

Hot Water Tank Assembly CBS-2242 Next Generation

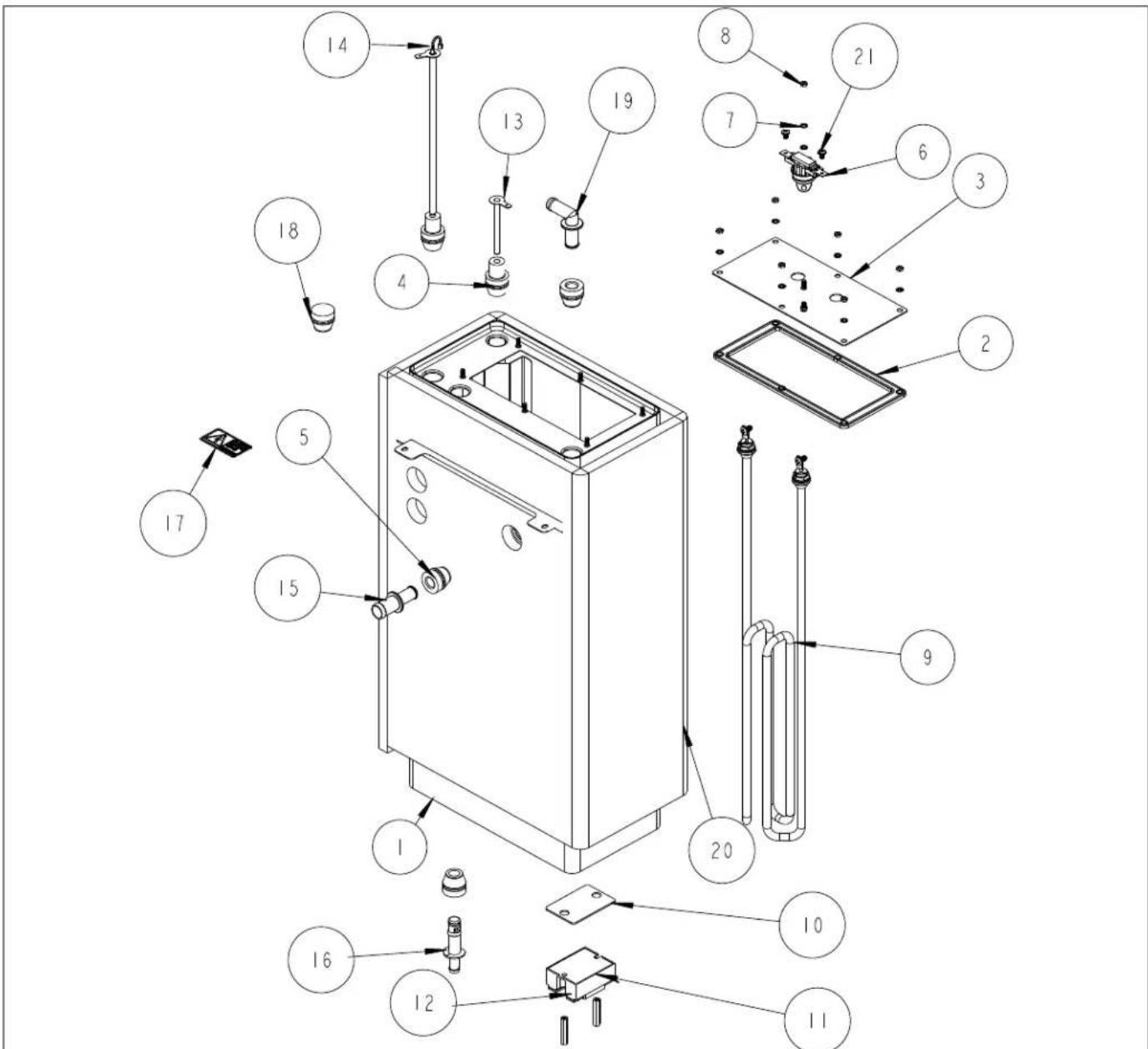

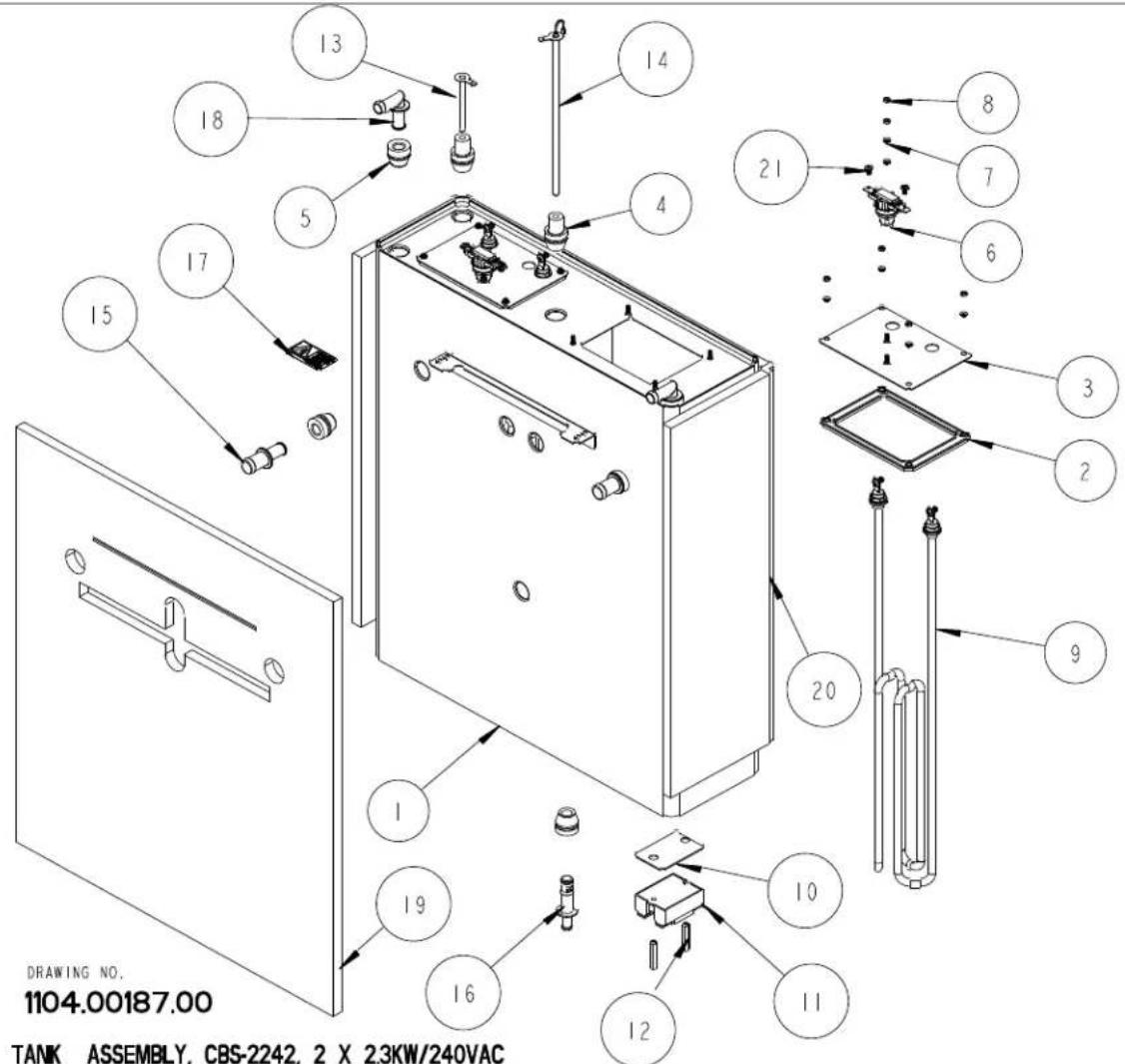

CBS-2242 Hot Water Tank Drawing 1104.00187.00

CBS-2242 Hot Water Tank Parts List Drawing 1104.00187.00
Ref#	Qty	Part number	Description
1	1	1114.00171.00	WELDMENT TANK NG-2242, GROMMET DESIGN
2	2	1024.00115.00	TANK GASKET - NG HEATER PLATE, ONE ELEMENT
3	2	1114.00181.00	WELDMENT TANK HEATER BRACKET, NG-SMALL, ONE HEATER
4	2	1024.00053.00	LEVEL AND TEMP PROBE GROMMET
5	5	1024.00050.00	GROMMET, SILICONE, 11.4mm ID
6	2	1053.00052.00	THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A
7	12	1083.00009.00	WASHER, #6 SCREW, INTL TOOTH LOCKWASHER
8	12	1084.00010.00	NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
9	2	1107.00037.00	HEATER ASSEMBLY, IMMERSION 2300W/240VAC
9	2	1107.00005.00	HEATER ASSEMBLY, IMMERSION 3000W/240VAC
9	2	1107.00010.00	HEATER ASSEMBLY, IMMERSION 4000W/240VAC
10	1	1003.00140.00	ALUMINUM BRACKET FOR SSR
11	1	1052.00033.00	RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
12	2	1081.00042.00	STANDOFF, 1/4" HEX
13	1	1112.00019.00	PROBE WELDMENT, WATER LEVEL 2.600" LG
14	1	1102.00161.00	PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
15	2	1023.00203.00	FITTING, STRAIGHT, GROMMET, .625"
16	1	1023.00166.00	FITTING, COLD WATER INLET, GROMMET DESIGN
17	1	1044.00004.00	LABEL, DANGER, HIGH VOLTAGE
18	2	1023.00212.00	FITTING, ELBOW, GROMMET, .500"
19	1	1022.00066.00	TANK INSULATION FRONT, CBS-2142
20	1	1022.00067.00	TANK INSULATION BACK, CBS-2142
21	4	1082.00136.00	BRASS SCREW, #8-32 X 1/4", PHILLIPS PAN HEAD

Table of authorities for CBS-2242NG replacement hot water tank module-tank is sold complete with insulation
SKU Number. See page 3 for list	Description	Tank Part Number
E2242US-1B223-PA010; E2242IN-1B223-PA010	TANK CBS-2242, 2 X 2.3KW/240VAC	1104.00187.00
E2242US-1B230-MA110, E2242US-1B230-PA010, E2242IN-1B230-PA010 E2242NM-1B230-PA010	TANK CBS-2242, 2 X 3.0KW/240VAC	1104.00188.00
	TANK CBS-2242, 2 X 4.0KW/240VAC	1104.00189.00

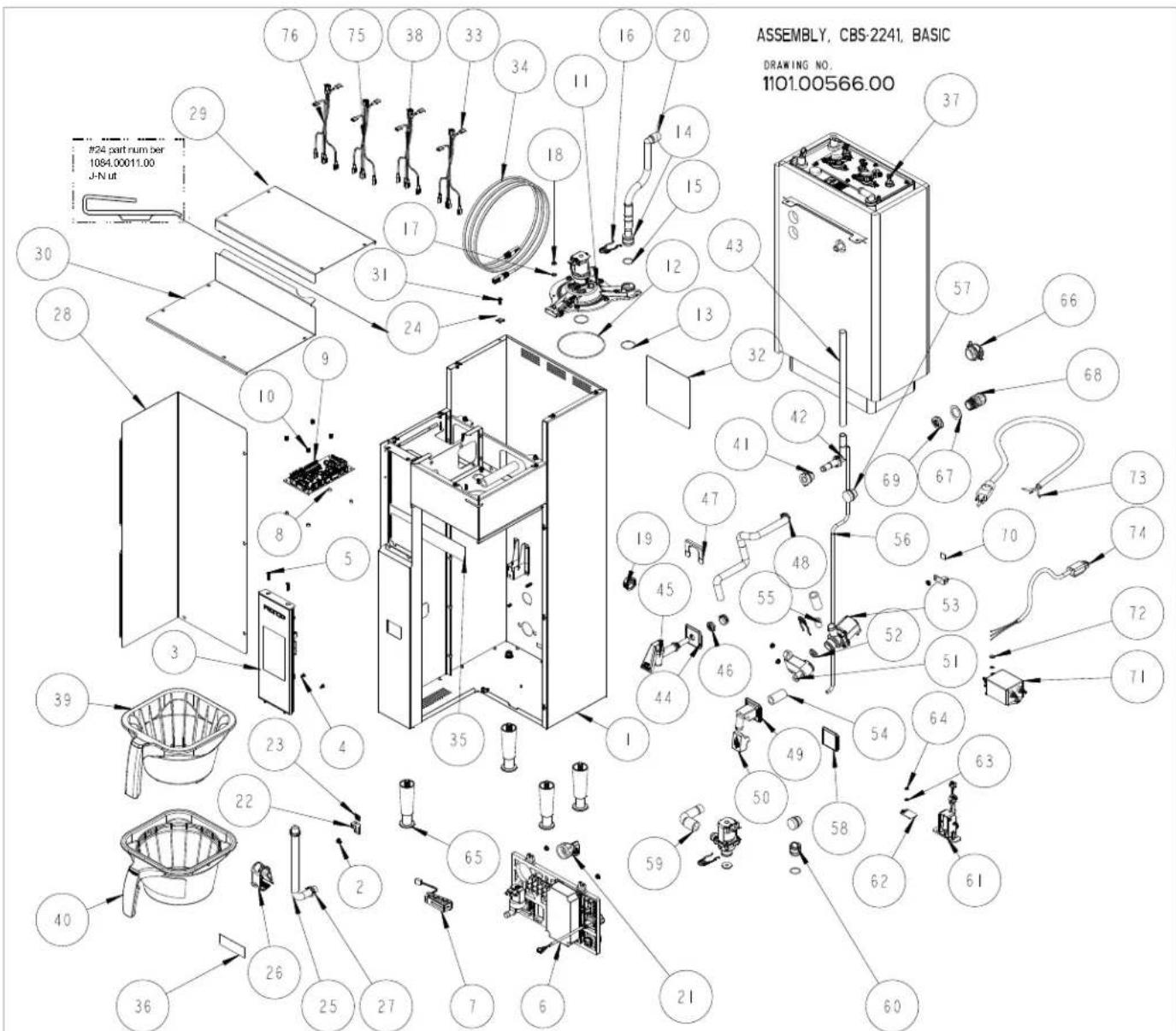

Ref	Qty	Part Number	Description	Drawing 1101.00566.00 CBS-2241NG
1	1	1111.00104.00	WELDMENT BODY, CBS-2241
2	8	1084.00051.00	NUT, HEX LOCKWASHER, #8-32, 18-8 ST. STL.
3	1	1102.00448.00	FRONT PANEL ASSEMBLY, CBS-2200 SERIES
4	2	1082.00029.00	SCREW, #6 X 3/8 LG, TRUSS HD PHIL, SHEET MTL
5	2	1082.00058.00	SCREW, # 8-32 X 5/8, FLAT HD, PH, 18-8 SS
6	1	See Drawing Pg 27	ELECTRICAL COMPONENT LATTICE, CBS-2200
7	1	1102.00444.00	VISUAL COMMUNICATION RGB LED BAR, ASSY
8	4	1081.00006.00	SPACER, 6MM OD x 3.2MM ID x 5MM LG, Z/P
9	1	1051.00046.00	CBS-2200 SERIES, I/O BOARD, 24V
10	4	1029.00006.00	NUT, FINGER KNURLED, #4-40
11	1	See Drawing Pg 26	SPRAYHEAD ASSY,CBS-30/40'S, QUICK CONNECT
12	1	1024.00063.00	O-RING, 3 15/16" x 3/32" CS, DASH # 154, BUNA-N, DURO-A50
13	2	1024.00107.00	O-RING, 1 3/16" OD X 1 1/16" ID X 1/16" TH, BYPASS SEAL
14	1	1023.00343.00	VENT INSERT, QUICK CONNECT
15	2	1024.00106.00	O-RING, 13/16"OD X 11/16"ID X 1/16" TH, FOR QUICK CONNECT
16	3	1023.00342.00	QUICK CONNECT CLIP
17	9	1083.00010.00	WASHER, #12 SCREW W/NEOPRENE-BONDED SEAL
18	9	1084.00006.00	NUT, 8-32 18-8 HEX MACHINE SCREW
19	1	1086.00004.00	BUSHING, SNAP, 1" MOUNTING HOLE
			Parts list continues next page

Ref Qty	PartNumber		Description Drawing 1101.00566.00 CBS-2241NG ...Continued from page 20
20	1	1024.00098.00	VENT TUBE, CBS- EXTRACTOR SERIES
21	1	1102.00243.00	ADAPTER ASSY, 3/4" BSP x 1/4" NPT x 3/8" TUBE
22	2	1065.00009.00	GROUND LUG CONNECTOR, 14-2 AWG, ALUMINUM
23	1	1044.00012.00	LABEL GROUND, CE
24	12	1084.00011.00	NUT, CLIP ON (J-NUT), #6-32, 22-20 GA., BLK-PH FINISH
25	1	1025.00058.00	TUBE, 9/16"OD X 5/16"ID X 25.00"LG
26	1	1086.00009.00	CLAMP, 3/4" MAX TUBE OD FLOW CONTROL
27	4	1086.00003.00	UNICLAMP, 15.9 HOSE OD CLAMP
28	1	1112.00531.00	WELDMENT FRONT COVER, CBS-2240
29	1	1001.00413.00	COVER TOP, CBS-2231/41
30	1	1001.00414.00	COVER, UPPER BASE, CBS-2231/41
31	12	1082.00017.00	SCREW, TRUSS HD. PHIL. MACHINE, # 6-32 X 1/2 LG.
32	1	1046.00035.00	LABEL, WARNING "TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE"
33	1	1402.00106.00	HARNESS, CBS-2240/50-NG, LOW AMP, UNIVERSAL
34	1	1063.00042.00	ETHERNET CABLE, CAT-7, 5FT LENGTH
35	1	1046.00003.00	LABEL, CSD WARNING, 1.5" X 5.0"
36	1	1041.00032.00	BLACK EXTRACTOR NG LABEL, LASER ENGRAVED
37 1		See Drawing Pages 22 & 23	TANK ASSEMBLY, CBS-2241, 2 X 1.5KW/120VAC
38	1	1402.00039.10	HARNESS HIGH AMP, CBS-2231/41/51, UL
39	1	B014218BN2BK	BREW BASKET ASSY, BLK, 13" X 5", 0.218" DIA HOLE, BWN PLUG (Page 28)
40	1	B003218B1	BREW BASKET ASSY, 13" X 5", .218 DIA HOLE, BLK (Page 28)
41	1	1024.00111.00	GROMMET, SILICONE, W/ POSITION TABS
42	1	1023.00362.00	FITTING VENT, ELBOW, .375" X .375", SELF POSITIONING
43	1	1013.00130.00	TUBE, 304SS, .562OD X .028 WALL X 9-1/4" LG.
44	1	1023.00348.00	HOT WATER INSERT, MANUAL FAUCET
45	1	1071.00055.00	FAUCET, HOT WATER, PSC-BR-8, WITH FLAT AND STEM
46	1	1084.00048.00	JAM NUT, 1/2-20 UNF, NICKEL PLATED BRASS
47	1	1003.00370.00	HOT WATER INSERT LOCK
48	1	1025.00120.00	TUBE, 9/16"OD X 5/16"ID X 13.00"LG
49	1	1023.00346.00	HOT WATER INSERT, AUTO FAUCET
50	1	1029.00041.00	COVER, AUTO HOT WATER FAUCET, SILICONE
51	1	1023.00347.00	VALVE MOUNT, HOT WATER DISPENSER
52	2	1023.00369.00	ORIFICE INSERT, QUICK CONNECT, 3/16" HOLE
53	2	1057.00076.00	VALVE ASSEMBLY, COMPLETE, NG, DELTROL
54	2	1025.00138.00	TUBE, SILICONE, 3/4" OD X 1/2" ID X 1-1/2" LG, HOT WATER
55	1	1025.00135.00	TUBE, 1/2"OD X 1/4"ID X .75" LG, RESTRICTOR
56	1	1025.00026.00	TUBE, 1/4"OD X 1/8"ID X 30"LG, VENT, HOT WATER VAPOR
57	2	1024.00051.00	GROMMET, SILICONE, BLANK
58	1	1023.00349.00	HOT WATER INSERT, NO FAUCET
59	1	1029.00042.00	BYPASS L-TUBE, SILICONE, 2200 SINGLE SERIES
60	1	1023.00344.00	PLUG INSERT, QUICK CONNECT
61	1	1102.00445.00	ASSY, BREW BASKET LOCKER W/FEEDBACK
62	1	1003.00259.00	BRACKET, BREW BASKET LOCK COVER
63	4	1083.00009.00	WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
64	2	1084.00010.00	NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
65	4	1073.00002.00	LEG, FLANGE FOOT, 4.0" HIGH
66	1	1086.00008.00	CONNECTOR, CLAMP, NON-METALLIC CABLE, 3/4"
67	1	1083.00032.00	WASHER, FLAT, 1.250"OD X 0.835"ID, SS
68	1	1086.00048.00	SKINTOP, 1/2" NPT, ∅.157"-.354" CABLE, BLK
69	1	1086.00049.00	LOCKNUT, SKINTOP, 1/2" NPT, BLACK HEX
70	1	1044.00013.00	LABEL EQUIPOTENTIALITY, CE
71	1	1052.00029.00	EMI FILTER, TWO LINE 20A, 120/250VAC
72	2	1084.00012.00	NUT, HEX, #6-32 MACHINE SCREW
73	1	1063.00016.00	POWER CORD, 120VAC W/NEMA 5-15P PLUG
74	1	1063.00015.00	CORD, 120 VAC, 12/3 AWG ,20 AMP , W/5-20P NEMA PLUG
75	1	1402.00039.11	HARNESS ADDITION, HIGH AMP, CBS-2231/41/51, UL
76	1	1402.00121.10	WIRE HARNESS ADDITION, HIGH AMP, EMI FILTER, 2-POLE, CE
77	1	1025.00142.00	TUBE, SILICONE, 3/4" OD X 1/2" ID X 3.75" LG, BREW

CBS-2241Next Generation Hot Water Tank Assembly, Single Heater

TANK ASSY, CBS-2241 Single Heater
For drawing numbers: 1104.00178.00; 1104.00180.00; 1104.00182.00; 1104.00184.00; 1104.00185.00; 1104.00186.00

TANK ASSY, CBS-2241 Single Heater Parts List
Ref	Qty	PART NO	DESCRIPTION
1	1	1114.00170.00	WELDMENT, TANK, CBS-2241
2	1	1024.00114.00	TANK GASKET - NG HEATER PLATE, TWO ELEMENT
3	1	1114.00184.00	WELDMENT TANK HEATER BRACKET, NG-LARGE, TWO HEATER
4	2	1024.00053.00	LEVEL AND TEMP PROBE GROMMET
5	3	1024.00050.00	GROMMET, SILICONE, 11.4mm ID
6	1	1053.00052.00	THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A
7	8	1083.00009.00	WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
8	8	1084.00010.00	NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
9	1	1107.00030.00	HEATER ASSEMBLY, IMMERSION 1500W/120VAC (Tank 1104.00178.00)
9	1	1107.00031.00	HEATER ASSEMBLY, IMMERSION 1700W/120VAC (Tank 1104.00180.00)
9	1	1107.00029.00	HEATER ASSEMBLY, IMMERSION 2300W/120VAC (Tank 1104.00182.00)
9	1	1107.00037.00	HEATER ASSEMBLY, IMMERSION 2300W/240VAC (Tank 1104.00184.00)
9	1	1107.00005.00	HEATER ASSEMBLY, IMMERSION 3000W/240VAC (Tank 1104.00185.00)
9	1	1107.00010.00	HEATER ASSEMBLY, IMMERSION 4000W/240VAC (Tank 1104.00186.00)
10	1	1003.00140.00	ALUMINUM BRACKET FOR SSR
11	1	1052.00033.00	RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
12	2	1081.00042.00	STANDOFF, 1/4" HEX
13	1	1112.00019.00	PROBE WELDMENT, WATER LEVEL 2.600" LG
14	1	1102.00161.00	PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
15	1	1023.00203.00	FITTING, STRAIGHT, GROMMET, .625"
16	1	1023.00166.00	FITTING, COLD WATER INLET, GROMMET DESIGN
17	1	1044.00004.00	LABEL, DANGER, HIGH VOLTAGE
18	1	1024.00051.00	GROMMET, SILICONE, BLANK
19	1	1023.00212.00	FITTING, ELBOW, GROMMET, .500"
20	1	1022.00115.00	TANK INSULATION, CBS-2241
21	2	1082.00136.00	BRASS SCREW, #8-32 X 1/4", PHILLIPS PAN HEAD

Table of authorities for CBS-2241NG replacement hot water tank module-tank is sold complete with insulation
SKU Number. See page 3 for list	Description	Tank Part Number
E2241US-1A115-PA011	TANK, CBS-2241, 1 X 1.5KW/120VAC	1104.00178.00
E2241US-1A115-PA011; E2241US-1A123-PM112	TANK, CBS-2241, 1 X 2.3KW/120VAC	1104.00182.00
E2241IN-1B123-PA010	TANK, CBS-2241, 1 X 2.3KW/240VAC	1104.00184.00
E2241IN-1B130-MM010; E2241IN-1B130-MM010E2241KS-1B130-PM010; E2241CE-1B130-PA0005	TANK, CBS-2241, 1 X 3.0KW/240VAC	1104.00185.00
E2241NM-1B140-PA010	TANK, CBS-2241, 1 X 4.0KW/240VAC	1104.00186.00

CBS-2241Next Generation Hot Water Tank Assembly, Dual Heaters

TANK ASSY, CBS-2241 Two Heater
Drawing number 1104.000171.00, 1104.000173.00

TANK ASSY, CBS-2241 Dual Heater Parts List
REF	QTY	Part number	Description
1	1	1114.00168.00	WELDMENT, TANK, CBS-2241
2	1	1024.00114.00	TANK GASKET - NG HEATER PLATE, TWO ELEMENT
3	1	1114.00176.00	WELDMENT TANK HEATER BRACKET, NG-2231
4	2	1024.00053.00	LEVEL AND TEMP PROBE GROMMET
5	3	1024.00050.00	GROMMET, SILICONE, 11.4mm ID
6	2	1053.00052.00	THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A
7	10	1083.00009.00	WASHER, #6 SCREW, INTL TOOTH LOCKWASHER
8	10	1084.00010.00	NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
9	2	1107.00022.00	HEATER ASSEMBLY, IMMERSION 1700W/120VAC
9	2	1107.00019.00	HEATER ASSEMBLY, IMMERSION 2300W/120VAC
10	2	1003.00140.00	ALUMINUM BRACKET FOR SSR
11	2	1052.00033.00	RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
12	4	1081.00042.00	STANDOFF, 1/4" HEX
13	1	1112.00002.00	PROBE WELDMENT, WATER LEVEL 2.25" LG
14	1	1102.00161.00	PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
15	1	1023.00168.00	FITTING, STRAIGHT, GROMMET, .400"
16	1	1023.00166.00	FITTING, COLD WATER INLET, GROMMET DESIGN
17	1	1044.00004.00	LABEL, DANGER, HIGH VOLTAGE
18	1	1023.00212.00	FITTING, ELBOW, GROMMET, .500"
19	1	1024.00051.00	GROMMET, SILICONE, BLANK
20	1	1022.00114.00	TANK INSULATION, CBS-2241
21	4	1082.00136.00	BRASS SCREW, #8-32 X 1/4", PHILLIPS PAN HEAD
Table of authorities for CBS-2241NG replacement hot water tank module-tank is sold complete with insulation
SKU Number. See page 3 for list			Description	Part Number
E2231NM-1X123-PA012, E2231NM-1A123-PA012			TANK CBS-2241, 2 X 2.3KW/120VAC	1104.00173.00
E2231US-1X117-PA011			TANK CBS-2241, 2 X 1.7KW/120VAC	1104.00171.00

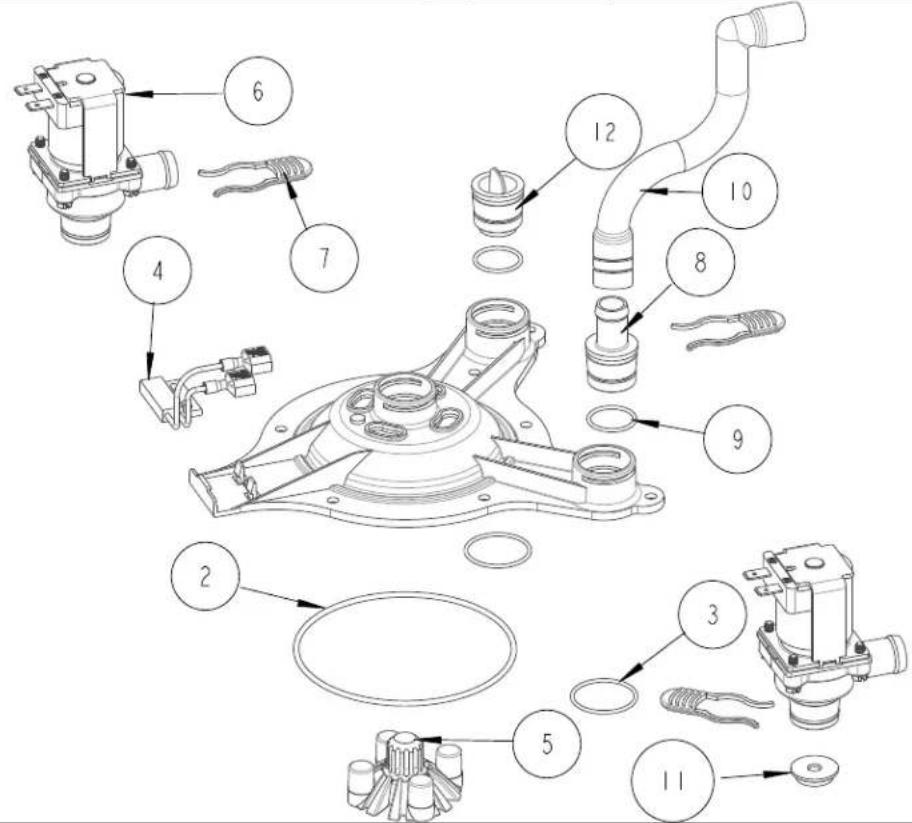

Part number 1102.00451.00 Small Spray Assembly Parts-Quick connect version

Ref#	Qty	Part number	Description
1	1	1000.00143.00	SPRAY HEAD BASE (KIT), QUICK CONNECT, 30/40'S
2	1	1024.00063.00	O-RING, 3 15/16" x 3/32" CS, DASH # 154, BUNA-N, DURO-A50
3	2	1024.00107.00	O-RING, 1 3/16" OD X 1 1/16" ID X 1/16" TH, BYPASS SEAL
4	1	1102.00113.00	SWITCH, REED, ASSEMBLY
5	1	1102.00479.00	ASSEMBLY, CASCADE SPRAY DOME, NEXT GEN, ORANGE
6 2 1057.00076.00			VALVE ASSEMBLY, COMPLETE, NG, DELTROL(interchangeable with 1057.00078.00)
6 2 1057.00078.00			VALVE ASSEMBLY, COMPLETE, NG, RPE(interchangeable with 1057.00076.00)
7	3	1023.00342.00	QUICK CONNECT CLIP
8	1	1023.00343.00	VENT INSERT, QUICK CONNECT
9	2	1024.00106.00	O-RING, 13/16"OD X 11/16"ID X 1/16" TH, FOR QUICK CONNECT
10	1	1024.00098.00	VENT TUBE, CBS- EXTRACTOR SERIES
11	1	1023.00369.00	ORIFICE INSERT, QUICK CONNECT, 3/16" HOLE
12	1	1023.00344.00	PLUG INSERT, QUICK CONNECT

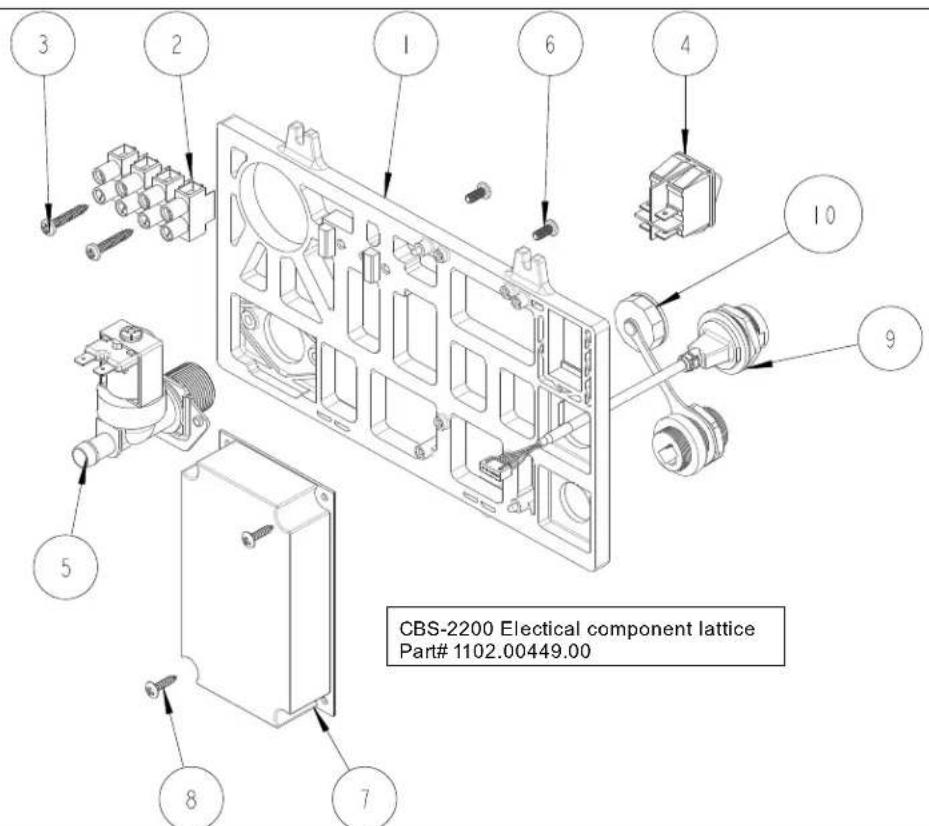

Ref	Qty	Part Number	Description Electrical component lattice, CBS-2200 Part#1102.00449.00
		1102.00449.00	COMPLETE ELECTRICAL COMPONENT LATTICE, CBS-2200
1	1	1023.00350.00	ELECTRICAL MOUNTING LATTICE, COMMON
2	1	1052.00023.00	EUROSTRIP HE16 TERM. BLOCK, 4 POLE, 63 AMP, 18-8 AWG
3	2	1082.00056.00	SCREW, #8-11 X 1" PAN HD PHIL, THREAD FORMING
4	1	1058.00024.00	SWITCH, POWER, DOUBLE POLE, 16A, 125/250 VAC
5	1	1057.00043.00	SOLENOID VALVE, 5.5L/min, 180 DEG, 24VDC
6	2	1082.00010.00	SCREW, PAN HD. PHIL. MACH., M4x10 ZINC-PLATED
7	1	1052.00059.00	POWER SUPPLY, 90-264VAC/24VDC, 2.25A
8	2	1082.00020.00	SCREW, #6 X 5/8, TRUSS HD PHIL, SHEET MTL
9	1	1058.00055.00	USB CONNECTOR
10	1	1058.00162.00	ETHERNET PLUG IN CONNECTOR, W/COVER

Wiring diagrams

Wiring diagram 1401.00178.10 CBS-2241-two heater model

Wiring diagram for the following SKU numbers-see page 3

E2241US-1X117-PA011

E2241NM-1X123-PA012

E2241US-1A123-PM112

E2241US-1A123-PA012

E2241US-1A115-PA011

E2241NM-1B140-PA010

E2241IN-1B140-PA010

E2241IN-1B130-PA010

E2241IN-1B123-PA010

CBS-2241,DUAL VOLT, 1Ph, 2+G/3+G, 2x1.7xW/120VAC, 120/208-240VAC

CBS-2241,NOM,DUAL VOLT,1Ph,2+G/3+G,2x2.3xW/120VAC,120/208-240VAC

CBS-2241, 1Ph, 2+G, 2.3xW/120VAC

CBS-2241, 1Ph, 2+G, 2.3xW/120VAC

CBS-2241, 1Ph, 2+G, 1.5xW/120VAC

CBS-2241, NOM, 1Ph, 2+G, 4.0xW/240VAC

CBS-2241, INTL, 1Ph, 2+G, 4.0xW/240VAC

CBS-2241, INTL, 1Ph, 2+G, 3.0xW/240VAC

CBS-2241, INTL, 1Ph, 2+G, 2.3xW/240VACC

Wiring diagram 1401.00177.10 CBS-2241

Wiring diagram for the following SKU numbers-see page 3 E2241US-1A123-PM112 CBS-2241, 1Ph, 2+G, 2.3xW/120VAC

Wiring diagram for the following SKU numbers-see page 3

E2242US-1B230-PA010

E2242US-1B230-MA110

E2242US-1B223-PA010

E2242NM-1B230-PA010

E2242IN-1B230-PA010,

E2242IN-1B223-PA010,

1Ph, 2+G, 2x3kW/240VAC Terminal Block

1Ph, 2+G, 2x3kW/240VAC Terminal Block

1Ph, 2+G, 2x2.3kW/240VAC Terminal Block

NOM, 1Ph, 2+G, 2x3kW/240VAC Terminal Block

INTL, 1Ph, 2+G, 2x3kW/240VAC Terminal Block

INTL, 1Ph, 2+G, 2x2.3kW/240VAC Terminal Block

End of section notes
