Product Type	Motorized Treadmill
Brand	York Fitness
Model	T700 Plus
Motor Power	2.5 HP Continuous
Maximum User Weight	120 kg (265 lbs)
Running Surface	40 x 120 cm (15.7 x 47.2 in)
Speed Range	0.5 - 16 km/h (0.3 - 10 mph)
Incline Range	0 - 12%
Display Type	LED Display with Time, Distance, Speed, Calories, Pulse
Programs	12 Preset Programs + Manual Mode
Heart Rate Monitor	Hand Pulse Sensors
Foldable	Yes, Soft Drop Folding System
Dimensions (Folded)	80 x 75 x 150 cm (31.5 x 29.5 x 59 in)
Dimensions (Unfolded)	175 x 75 x 135 cm (68.9 x 29.5 x 53.1 in)
Product Weight	72 kg (159 lbs)
Power Supply	AC 220-240V, 50/60 Hz
Safety Features	Emergency Stop Key, Safety Belt
Maintenance	Lubricate belt every 3 months; clean with damp cloth
Spare Parts Available	Motor, Belt, Roller, Control Board (contact support)
Warranty	2 Years Parts and Labor

Frequently Asked Questions - T700 Plus York Fitness

How do I fold the treadmill for storage?

To fold the T700 Plus, ensure it is turned off and unplugged. Lift the running deck until you hear the lock click. To unfold, press the deck with your foot while pulling the lock release handle.

Why does the treadmill stop suddenly during use?

The safety key may have been pulled or the power cord disconnected. Check if the key is firmly inserted. Also ensure the power outlet works. The motor may have overheated; allow 30 minutes cool down.

How do I calibrate the heart rate monitor?

Place both hands on the grip pulse sensors. Wait 10-15 seconds for a stable reading. The display shows your heart rate in beats per minute. For accurate readings, keep hands still.

What oil should I use for belt lubrication?

Use a silicone-based lubricant specifically designed for treadmills. Apply a small amount under the belt at the front roller every 3 months or after 50 hours of use.

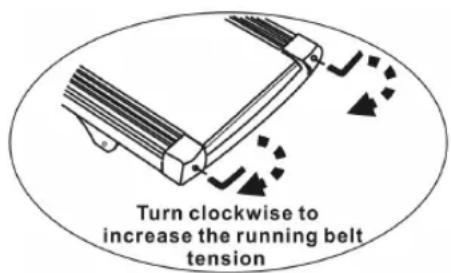

My treadmill slips while running. How to fix?

First, check belt tension. Use a hex key to adjust the rear roller bolts equally on both sides. Turn clockwise to tighten. Also ensure the belt is centered; adjust side bolts if needed.

What is the maximum speed and incline?

The T700 Plus offers a speed range of 0.5 to 16 km/h (0.3 to 10 mph) and incline from 0% to 12%.

How do I connect a Bluetooth device?

The T700 Plus does not have built-in Bluetooth. However, you can use a third-party adapter or connect via audio cable to the auxiliary port if available.

The display shows error codes. What do they mean?

Common error codes: E1 (motor fault), E2 (safety key), E3 (overload). Reset by unplugging for 10 minutes. If persists, contact York Fitness support.

Can I use the treadmill without the safety key?

No, the safety key is mandatory for operation. It acts as an emergency stop. If lost, contact York Fitness for a replacement key.

How to clean and maintain the treadmill?

Unplug the unit. Wipe the frame and console with a damp cloth. Do not use harsh chemicals. Vacuum around the motor and belt monthly. Lubricate belt every 3 months.

USER MANUAL T700 Plus York Fitness

MOTORIZED TREADMILL OWNER'S MANUAL

Technical line drawing of a mechanical component embedded in a grid of green panels (no text or symbols)

Retain this owner's manual for future reference Read and follow all instructions in this owner's manual

Version A

Thank you

- hanks for purchasing this product. -he product will help you exercise your muscles in the correct way and to improve your fitness – and all this in a familiar environment.

Implied Warranty

- he importer of this machine assures that this device was manufactured from high quality materials.

Prerequisite for the implied warranty is the proper setup in accordance with the operating instructions. Improper use and /or incorrect transportation can render the warranty void.

- he implied warranty is for 1 years, beginning with the date of purchase. If the device you acquired is defective, please contact our Customer —ervice (Inset page) within the guarantee period of 12 months as of purchase date. -he warranty applies to the following parts (as far as included in the scope of delivery): Frame, cable, electronic devices, foam, wheels. -he guarantee does not cover:

1. Damage effected by outer force

2. Intervention by unauthorized parties

3. Incorrect handling of the product

4. Non-compliance of the operating instructions

Wear parts and expendable items are also not covered(such as running belt).

- he device is only intended for private use. -he warranty does not apply to professional usage.

—pare parts can be ordered from Customer —ervices (Inset page) as needed.

Please make sure you have the following information on hand when ordering spare parts.

1. Operating instructions

2. Model number (located on the cover sheet of these instructions)

3. Description of attachments

4. Attachment number

5. Proof of purchase with purchase date

Please do not send the device to our firm without being requested to do so by our —ervi team. •he costs of unsolicited shipments will be borne by the sender.

General safety instructions

A great deal of emphasis was placed on safety in the design and manufacture of this fitness device. —till, it is very important that you strictly adhere to the following safety instructions. We cannot be held liable for accidents that were caused due to disregard.

- o ensure your safety and to avoid accidents, please read through the operating instructions thoroughly and attentively before you use the sports device for the first time.

1) Consult your GP before starting to exercise on this device. —hould you want to exercise regularly and intensively, the approval of your GP would be advisable. •his is especially true for users with health problems.
2) We recommend that handicapped people should only use the device when a qualified care is present.
3) When using the fitness device, wear comfortable clothing and preferably sports or aerobic shoes. Avoid wearing loose clothing which could get caught in the moving parts of the device.
4) —top exercising immediately should you feel unwell or if you feel pain in your joints or muscles. In particular, keep an eye on how your body is responding to the exercise program. Dizziness is a sign that you are exercising too intensively with the device. At the first signs of dizziness, lay down on the ground until you feel better.
5) Ensure there are no children nearby when you are exercising on the device. In addition, the device should be stowed in a place that children or house pets cannot reach.
6) Ensure that only one person at a time uses the fitness device.
7) After the sports device has been set up according to operating instructions, make sure all screws, bolts and nuts are correctly fitted and tightened. Use only attachments recommended and/or supplied by the importer.
8) Do not use a device that is damaged or unserviceable.
9) Always place the device on a smooth, clean and sturdy surface. Never use near water and make sure there are no pointed objects in the direct vicinity of the fitness device. If necessary, place a protective mat (not included in scope of delivery) to protect your floor underneath the device and keep a free space of at least 0.5 m around the device for safety reasons.
10) -ake care not to put your arms and legs near moving parts. Do not place any material in openings in the device.
11) Use the device only for the purposes described in these operating instructions. Use only attachments recommended by the manufacturer
12) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly persons in order to avoid a hazard.

Special Safety Precautions

●Power source:

• Choose a place in reach of a socket when placing the treadmill.
  ●Always connect the appliance to a socket with a grounded circuit and no other appliances connected to it. It is recommended not to use any extension cords.
• A faulty grounding of the appliance can cause the risk of electrical shocks. Ask a qualified electrician to check the socket in case you do not know if the appliance is grounded appropriately. do not modify the plug provided with the appliance if it is not compatible with your socket. ask a qualified electrician to install a suitable socket.
• —udden voltage fluctuations can seriously damage the treadmill. Weather changes or switching on and off other appliances can cause peak voltages, over-voltage or interference voltage. To limit the danger of damage to the treadmill, it should be equipped with an over-voltage protective device (not included).
• Keep power cord away from the carrying roller. Do not leave the power cord below the striding belt. Do not use the treadmill with a damaged or worn out power cord.
• Unplug before cleaning or engaging in maintenance work. Maintenance should only be done by authorized service technicians, unless otherwise stated by the manufacturer. Ignoring those instructions would automatically void the warranty.
• Inspect the treadmill before every use to make sure that every part is operational.
• Do not use the treadmill outdoors, in a garage or under any kind of canopy. Do not expose the treadmill to high humidity or direct sunlight.
  ●Never leave the treadmill unattended.

Make sure the striding belt is always tense. —tart the striding belt before stepping on it.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabi. If the supply cord is damaged, it must be replaced by the

Assembly

- Before starting with the assembly of this fitness device, carefully read through the set up steps as of page 8 We also recommend that you view the assembly drawing prior to assembly.

- Remove all packaging material and place the individual parts on a free surface. This will provide you with an overview and will simplify assembly.

- Please consider that there is always the risk of injury when using tools and carrying out technical activities. Please proceed with care when assembling the device.

- Make sure you have a hazard-free working environment and do not, for example, leave tools lying around. Deposit the packaging material in such a way that it does not pose a danger. Foil/plastic bags are a potential risk of suffocation for children!

- Take your time when viewing the drawings and then assemble the device according to the series of illustrations.

- The device must be carefully assembled by an adult person. If necessary, request aid from another technically talented person.

Unpacking & Assembly

WARNING●: Use extreme caution when assembling this treadmill. Failure to do so could result in injury.

NOTE: Each step number in the assembly instructions tells you what you will be doing. Read and understand all instructions thoroughly before assembling the treadmill.

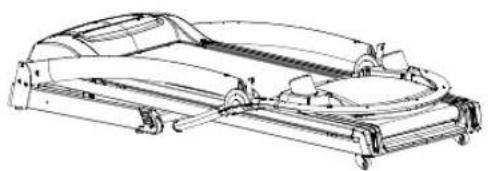

UNPACK AND VERIFY THE CONTENTS OF THE BOX:

●Lift up and remove the box that surrounds the -readmill.
- Check the following items are present. If any of the parts are missing, contact with the dealer.

Technical line drawing of a mechanical device with gears and wheels (no text or symbols)

Main body

Lateral cover

User's Manual

Simple line drawing of a mechanical component with multiple cylindrical pins (no text or symbols)

Hardware pack

—ilicon oil bottle

—afety key

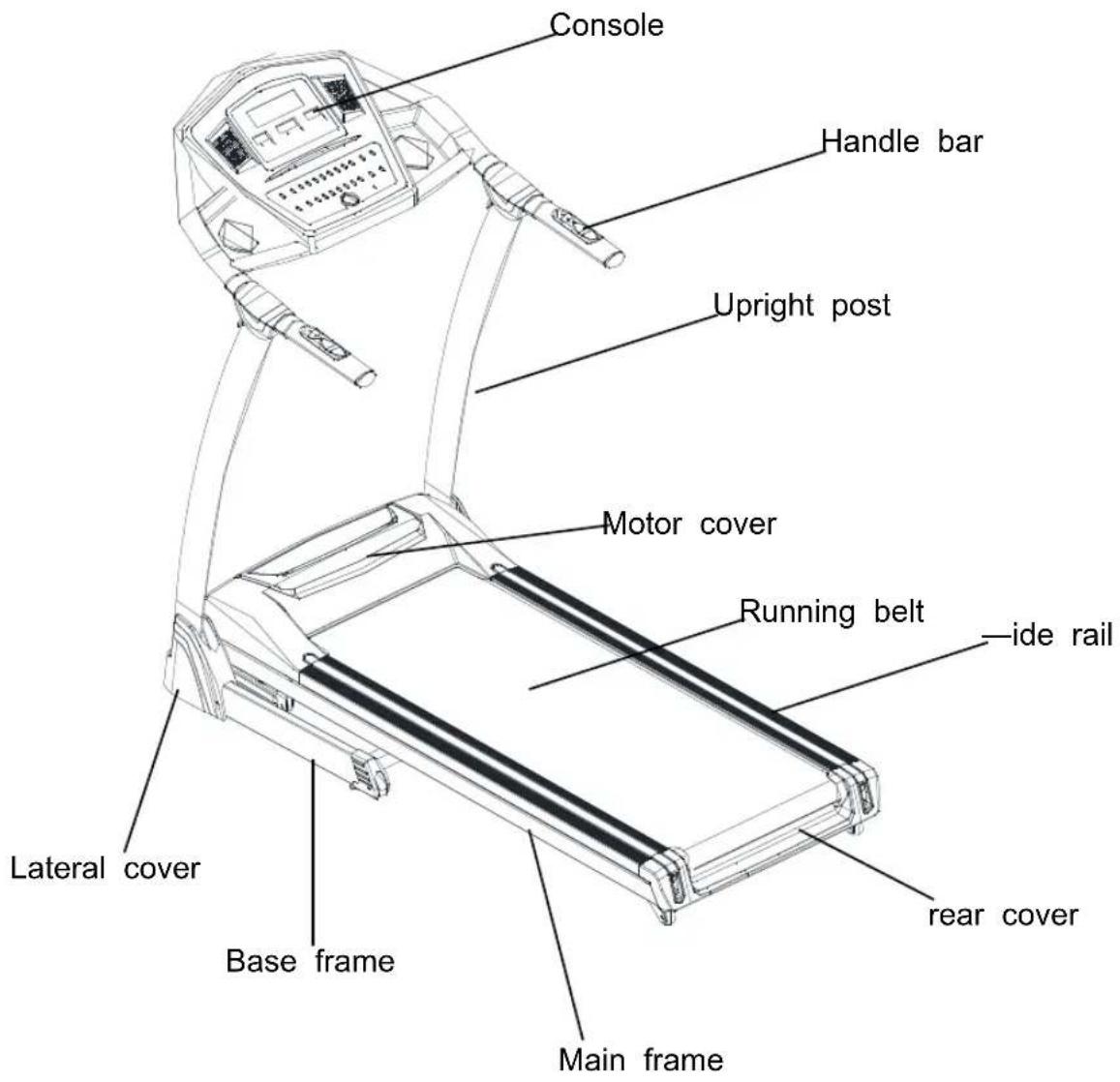

Main parts

Technical line drawing of a curved mechanical component or housing (no text or symbols)

Motor cover

Line drawing of a futuristic vehicle with dual sensors and control panel (no text or symbols)

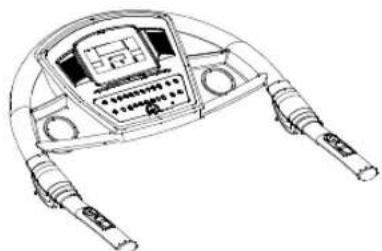

Console

Motor

Simple line drawing of a rectangular object with no text or symbols

Running belt

Simple 3D rectangular block diagram with marked points (no text or symbols)

Running deck

Side rail

Simple line drawing of a cylindrical mechanical part with a flange and bolt (no text or symbols)

Front roller

Line drawing of a cylindrical mechanical component with end caps (no text or symbols)

Rear roller

Technical line drawing of a mechanical component with flanges and brackets (no text or symbols)

Rear cover

Motor belt

Hardware bag

Technical line drawing of a bolt with threaded shaft and hexagonal nut (no text or symbols)

Allen C.K.S half thread screw (M8*50*20) 4pcs

Allen C.K.S full thread screw (M8*15) 2pcs

Philips C.K.S.self-tapping screw (ST4*20) 4pcs

Line drawing of a hammer with a cylindrical head and handle (no text or symbols)

T shape wrench 1pc

Simple line drawing of a stylized tool or tool with a circular head and arrowhead (no text or symbols)

Cross wrench 1pc

Treadmill instruction

Technical information

PRODUC·—IZE	1670*750*1340mm
RUNNING BOARD	1250*440mm
S-PEED	1.0—16Km/h

*WE RE—ERE—THEHI RIGH·O AMENDIE—HRODUC·WI·HOU·PRIOR NO·ICE.

ASSEMBLY INSTRUCTIONS

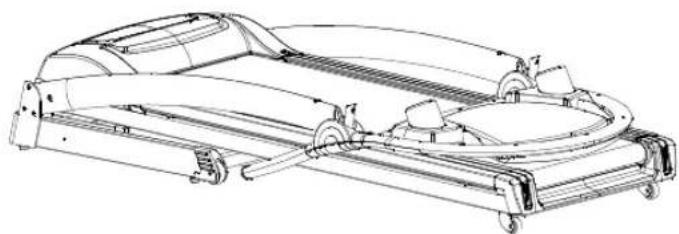

Step 1: -ake out the machine from the package on the flat floor

Technical line drawing of a mechanical device with wheels and internal components (no text or symbols)

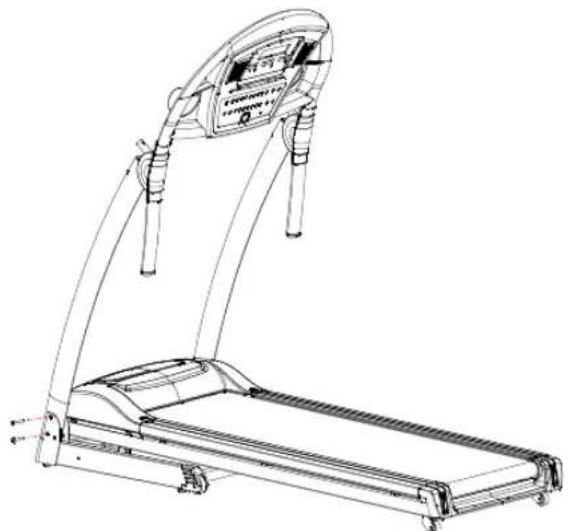

Step 2:. .Lift up the upright post as below pictures ,fix the upright post and base frame with screw M8×50×20.Do not tighten the screw in this step.

Line drawing of a treadmill with adjustable arms and control panel (no text or symbols)

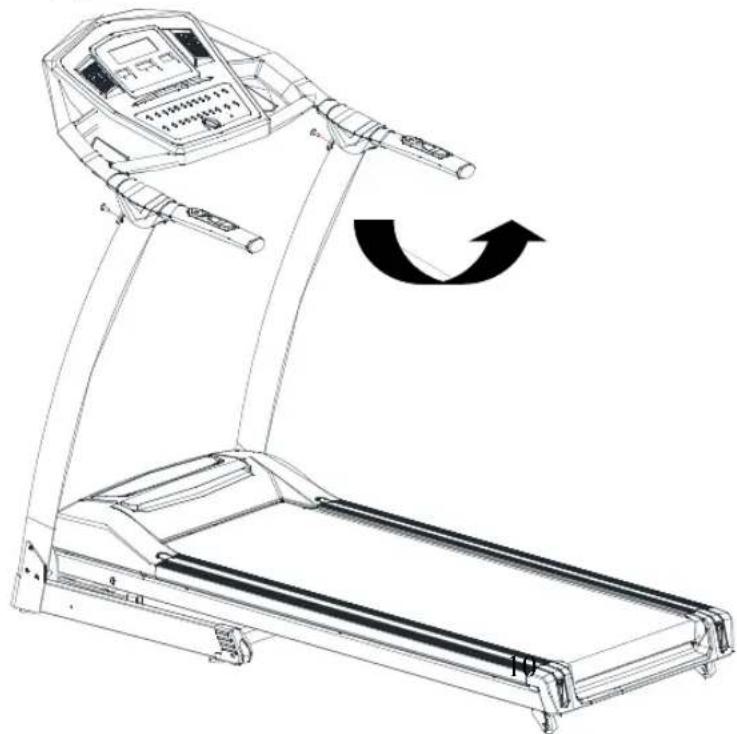

Step 3: Lift up the console as below picture, locking the console and upright post with screw M8×15, then ,tighten all the screws of the treadmill.

Line drawing of a treadmill with a curved arrow indicating rotational motion (no text or symbols)

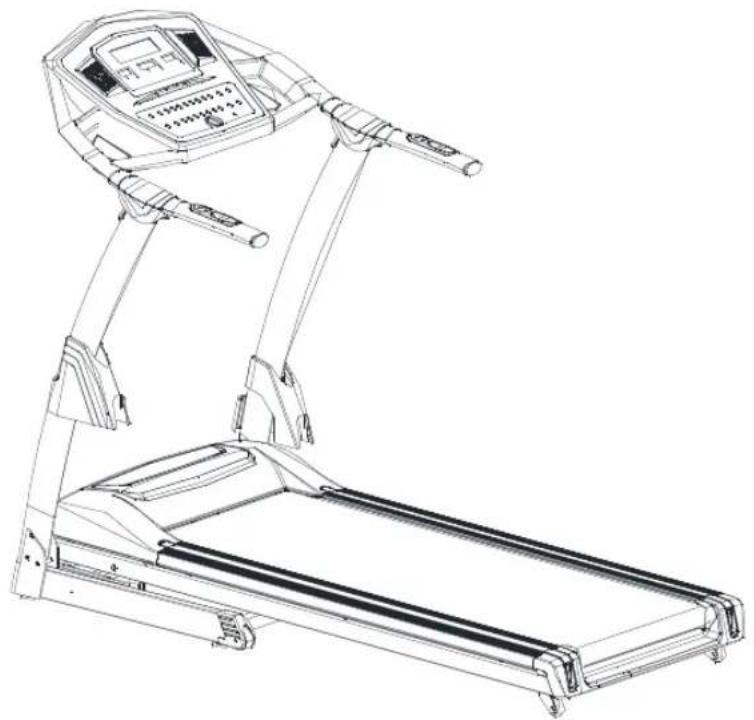

Step 4: Insert the lateral cover into the upright post, as below picture

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)

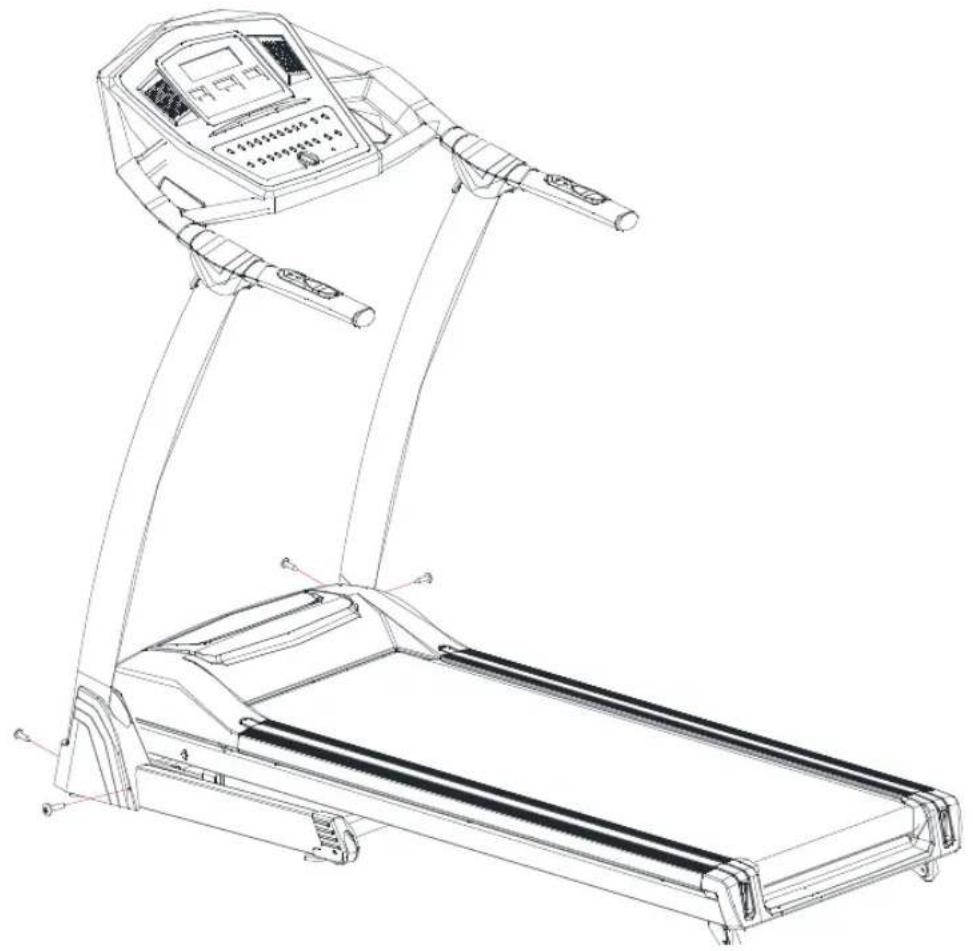

Step 5: Fix the lateral cover on the base frame with 4pcs screws(—•4*20), then tighten all the screw .Assembly is finished.

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)

SETTING UP YOUR TREADMILL

PLACEMENT IN YOUR HOME

- o make exercise a desirable daily activity for you, the treadmill should be placed in a comfortable and convenient setting. -his treadmill is designed to use minimal floor space and to go nicely in your home.

• Do not place the treadmill outdoors.
• Do not place the treadmill near water or in high moisture content environment.
  ● Make sure power cord is not in the path of heavy traffic.
• If your room is carpeted, check the clearance to make sure there is enough space between the carpet fiber and the treadmill deck. If you are uncertain, it is best to place a mat beneath your treadmill.
• Locate the treadmill at least 4 feet from walls or furniture.
• Allow a safety area of 2m X 1m behind the treadmill so that you can easily get on and off the treadmill without getting trapped during an emergency.

Occasionally after extended use you will find a fine black dust below your treadmill. •his is normal wear and DOE— NO• mean there is anything wrong with your treadmill. •his dust can be easily removed with a vacuum cleaner. If you wish to prevent this dust from getting on your floor or carpet, place a mat beneath your treadmill.

USE DEDICATED CIRCUIT

- he outlet selected should be a dedicated circuit. It is particularly important that No sensitive electrical equipment, such as computer or -V, share the same circuit.

CAUTION!

Make sure the running deck is level to the ground. If the deck is positioned on uneven surface, it would cause premature damage to the electronic system.

Read this manual before operating this treadmill.

GETTING STARTED

TURN POWER ON

Put the power cord into the electrical outlet with 10A. Flip this switch to the "ON" position.

▪he screen shine with prompt sound.

SAFETY KEY AND CLIP

• he safety key is designed to cut the main power to the treadmill should your fall.
• therefore, the safety key is designed to bring the treadmill to an immediate stop. At high speeds, it may be uncomfortable and somewhat dangerous to come to a complete stop immediately. —o, use the safety key as emergency top only. -o bring the treadmill to a complete stop safely and comfortably, use the red stop button.

Your treadmill will not start unless the safety key is properly inserted into the key holder in the middle of the console. -he other end of the safety key should be securely clipped to your clothing so that in the case that you fall, you will pull the safety key from the consol which will stop the treadmill immediately to minimize injury. For your safety, never use the treadmill without securing the safety key clipped to your clothing. Pull on the safety key clip to make turn it will not come off your clothing.

GETTING ON AND OFF THE TREADMILL

Handle with care when getting on or off the treadmill. -ry to use the handlebars while getting on or off. While you are preparing to use the treadmill, do not stand on the running belt. —traddle the running belt by placing your feet on both side rails of the treadmill deck. Place your foot on the belt only after the belt has begun to move at a consistent slow speed.

During exercise, keep your body and head facing forward at all times. Never attempt to turn around on the treadmill when the running belt is still moving. When you have finished exercising, stop the treadmill by pressing the red stop button. Wait until the treadmill comes to a complete stop before attempting to get off the treadmill.

WARNING•

Never use this treadmill without first securing the safety tether clip to our clothing.

CAUTION•

For your safety, step onto the belt when the speed more than 3km/h.

FOLDING THE TREADMILL

1. Restore the incline to flat (0) position .
2. Unplug from power point before folding
3. Lift deck until it's parallel to the upright post and cylinder locks into position
4. Caution: check to ensure cylinder locking device has engaged

UNFOLDING THE TREADMILL

1. Place one hand on handle bar, use the other to push top of the running deck forward
2. Press one foot on the middle section of the cylinder to dis-engage the locking mechanism
3. Allow deck to begin slowly dropping before releasing hands

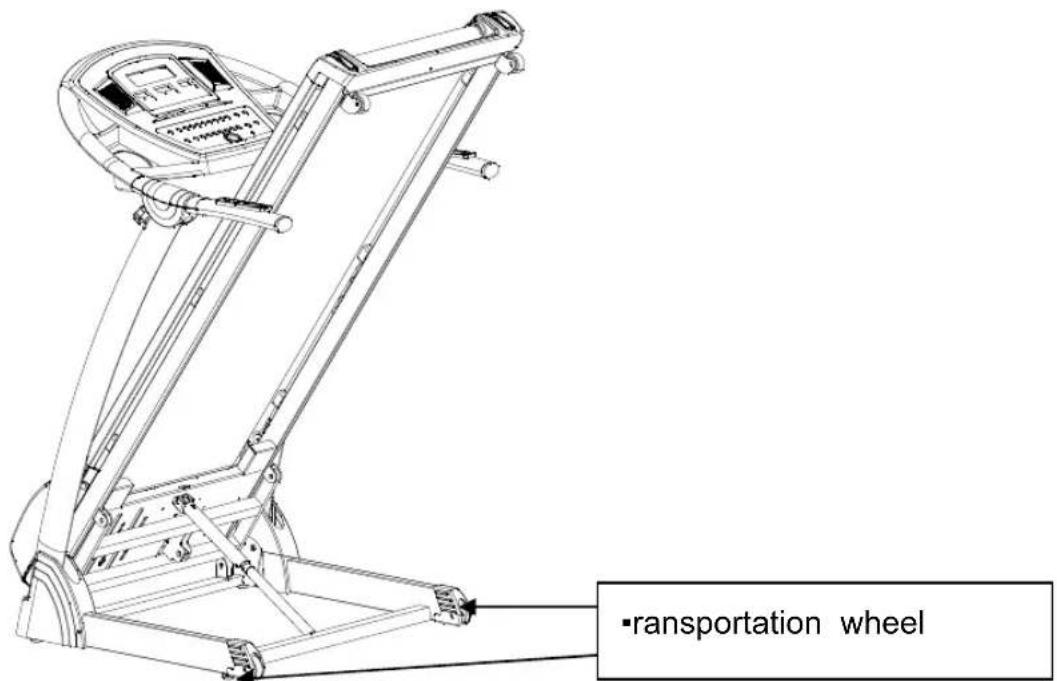

MOVING THE TREADMILL

- he treadmill can be moved around in house safely in its fold-up position by using the transport wheels

Firmly hold onto handle bars with both hands, pull the treadmill towards you, then portable on wheels, drag or push slowly

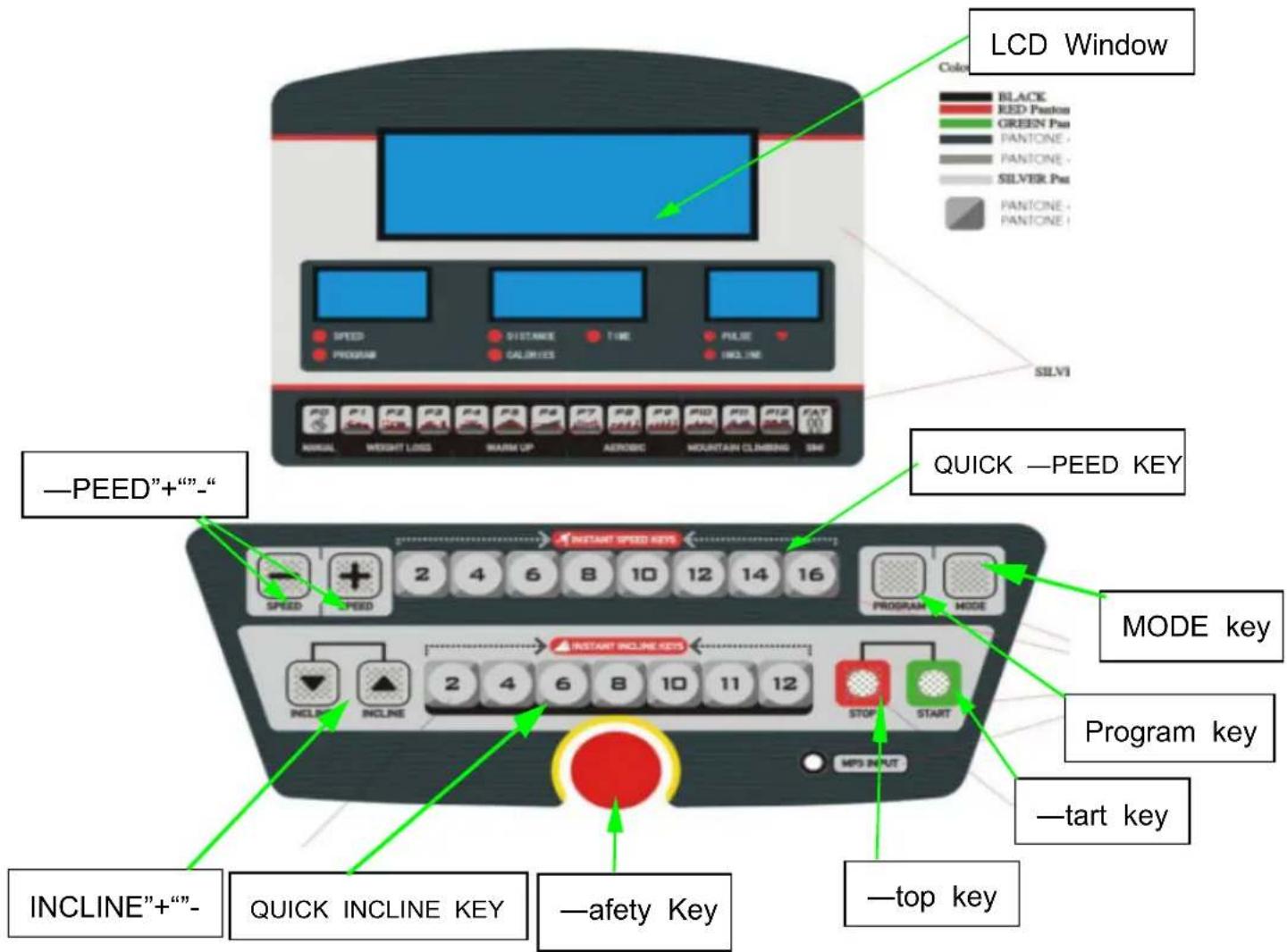

Key Definition

(I): Computer function Instruction:

1.1: P0: U—ER training program; P1-P36 the preset auto program;U01-U03:user's manual program, HRC(for option) ;FA▪:body fat function.
1.2 :1 LCD dot-matrix window with blue backlight + 3 LED windows and 23 keys; Easily operation with speed button and incline button on handle bar
1.3 :Mp3 player with dual track function
1.4: —peed Range :1.0\~16.0KM/H
1.5: Incline Range:0\~12%
1.6: Prevent over loading, over voltage, explosion proof, anti speed and electromagnetic interference
1.7: —elf check and warning sound function.

(II): LLCD window instruction

2.1 : “—PEED/PROGRAM” window: When it stopped ,“PROGRAM”LED indicator lights lit, it will display the program number(P0\~P36,HRC(option),FA•);when it running ,”—PEED” LED indicator light lit ,it will display the speed data;
2.2 : "DI—/■IME/CAL" window : "DI—■ANCE" LED indicator light lit , it will display the distance data, "■IME" LED indicator light lit , in will display the time data, "CALORIE—"LED indicator light lit .
2.3 : "PUL—E/INCLINE" window: when it test the heart rate, "PUL—E"LED indicator light lit, it will display the heart rate data; or else "INCLINE"LED indicator light lit, it will display the inclination data.
2.4 : -he LCD display window: during the training program ,if the user set(P0),it will display training mode ;during the automatic training program(P1\~P36),it will display the speed wave drawing inner set ;during the body fat test program, it will display the first letter of the setting program: —(sex),A(age),H(height),W(weight),B(BMI),which corresponding with the item F1-F5.When press the speed key ,it will show the speed data within 3 seconds; when the machine paused it will display “PAU—”; when take off the safety key ,it will display “E-07”;when in abnormality state ,it will show “ERR” clue on information.

(III)Button instruction :

3.1: “PROG” : program select key : when the treadmill is stopped ,cycle select the program ” P0-P36-U01\~U03 HRC(option) FAT “as you prefer .
3.2: "MODE": mode select key When the treadmill is running, you can cycle select the Distance-Calories-6 second auto switching when the treadmill is stopped, set the Mode as you prefer.

In the program P0, you can cycle select the ·ime countdown·distance countdown→calories countdown → Normal mode.

- he reposition of default is 30 minutes when in P1-P36.

You can cycle select the FA- item when in in FA-mode.

3.3: “—AR-/PAU—E’ key ::when the treadmill is stopped, press the —AR· key to turn on the treadmill. Press“—AR·” key when running, it will pause.

3.4: “—•OP” key, when the treadmill is running, stop the treadmill by pressing the —•OP key. when the LCD window show the ERR massage. Press the stop key to clear the err massage. When the treadmill stop, press the “—•OP” key, it can return to the default display status

3.5: “+” KEY : increase the speed when running. Increase the parameter under the body fat testing.

3.6: “—” KEY: decrease the speed when running. Decrease the parameter under the body fat testing.

3.7 : “QUICK —PEED” key : when the treadmill is running ,—peed up directly by by pressing the quick speed key ,24, 6, 8, 10, 12, 14, 16

3.8: “ ” KEY : Decrease the incline by pressing this key .

3.9: “▲” KEY : Increase the incline by pressing this key .

3.10: "QUICK INCLINE KEY: Increase the incline directly by pressing the quick incline key 2, 4, 6, 8, 10, 11, 12

3.11:"Incline + "on handle bar left n Increase the inclination by pressing this key .—ame function as the button "Incline +"on console.

3.12: "Incline - "on handle bar left :Decrease the inclination by pressing this key .—ame function as the button "Incline -"on console.

3.13::”—peed + “on handle bar right :increase the speed when running.—ame function as the button “—peed +” on console.

3.13:"—peed - "on handle bar right :increase the speed when running.—ame function as the button "—peed -"on console.

(V):—afety key function :

In any state, pull-out safety locks, window displays: Er-7 and sound buzzer BIBI-BI. -hen put well the safety lock, all show that the full light for 2 seconds, then go to manual start mode (the equivalent of clearing reset).

(VI) MMP3 player function (for option):

Computer has built-in dual-channel MP3 player, switching mode power

supply (SMPS). Use the distributive audio adapter MP3 wire to connect the MP3 input and computer music input, it will play.

(VI)—ttart instruction :

5.1: Put the power cord into the electrical outlet with 10A. Flip this switch to the "ON" position. -he screen shine with prompt sound.

5.2: Put the safety key on the correct position, then turn on the power, the LCD window light is shining, and sound "beee", the treadmill enter in to the P0 Normal Mode.

5.3: Press "PROG" key to cycle select the programP1-P36,U01,U02,U03,HRC(option)FAT.

a) “P0” User program. Press “MODE” cycle select four training mode. User can select the speed and inclination. —peed default is 1.0km/h, inclination default is 0%.

- raining mode 1: Counting. -ime ,distance, calorie is plus. -he select function is closed.

- raining mode 2: -ime Countdown. Under selecting, time window flicker, press "+" -" to select the value. -he range is 5-99 minute. Default is 30:00.

- raining mode 3: Distance Countdown. Under selecting, Distance window flicker, press "+" - " to select the value. - he range is1.0-99.0km. Default is1.0KM.

- raining mode 4: Calories Countdown. Under selecting, calories window flicker, press “+”-“ to select. -he range Is 20-990CAL. Default is 50CAL.

b) "P1—P36" Preset program. Only for -ime Countdown mode. Under selecting, time window flicker, press "+"-" to select.-he range is 5-99 minute. Default is 30:00. Press "MODE" key to return to Defaults.

c) FA▪:body fat testing,unde FA▪ mode ,the treadmill must be in stop state

5.4:Press “—•AR•” after setting up training mode, —creen display 5 seconds into the countdown, accompanied by five hint sound, after the countdown to 1, treadmill start gently, speed up slowly to the display, then the constant speed operation smoothly.

a) When running, press the “+”, “-” or “quick speed key” to adjust the speed you want.

b) For P1—P36, —peed and inclination is divided into 16 segments. Each segment have same time. •he speed after selecting will be avail in current segment. When run to next segment., it will sound 3 times in advance. When finish 16 segments, the motor will stop with a long prompt sound.

c) Press “—•AR•” key when running, it will pause. Press “—•AR•” key again, it will running, the record data will keep on.

5.5: Press “—•OP” key when running, the treadmill will slowly till stop. All will return to the default state.

5.6: Press “KEY or “QUICK INCLINE KEY” adjust the incline you want.

5.7: In any state, pull-out safety locks, window displays: Er-7 and sound buzzer. •he treadmill stop.

5.8: -he controller always under the inspection. -readmill will stop once the abnormal case happen. Window will show the ERR message and sound.

5.9: When the window showing the ERR message, press "stop" key, the ERR message will be deleted.

When the treadmill is stopped, press the "PROG" key until select"FA▪ "and enter into body fat function..then press "MODE" key to set the parameter .

“DIS/CAL” window which in the left of the screen showing the item serial number, you can press "MODE" key to adjust. "PULSE" window which in the right of the screen displays the setting parameter, press press" " “—” key tto set the data.

A)Sexo, means —exo, the 1(male), 2(female). If the window displays 1, which shows you select "Male", -he original is Male

B)Age, means Age, the range is -99, tthe original is 25.

C) Height, means Height, the range is 100-220CM, the original is 170CM

D) Weight, means Weight, the range is 20-150KG, the original is 70KG

E) BMI, mean BMI, show you have finished the set item, and enter into body fat function. Put two hands on the handle bar, wait for 8 seconds, and the item window will show the BMI. -ake the Asian people for example,

BMI under 18 is too thin;

between 18-23 is standard;

between 23-28 is fat; and over 29 is too fat.

VII.U—ER program: •readmill have three user mode:U—ER01 ,U—ER02 ,U—ER03 which can be adjusted by the user themselves.

Press “PROG” key to cycle select the program U01\~U02. Press “MODE” to set the parameters ,user can set your own exclusive 16 segment of speed and inclination . After setting the parameters to press “—•AR•” to start the treadmill .the user own exclusive program will be saved automatically which can be used next time.

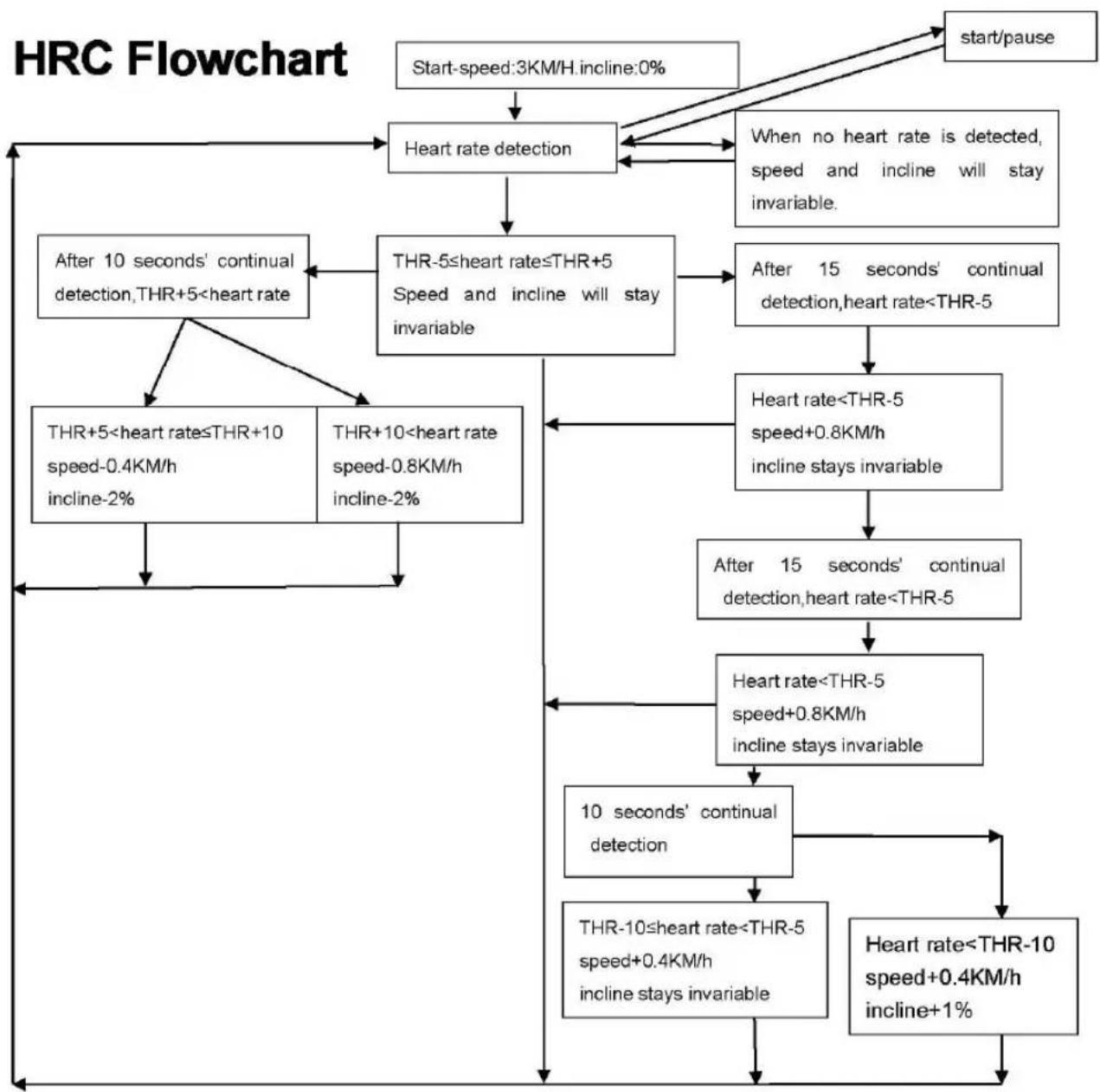

VIII HRC Function(optional):

a) Press "PROG" key and choose HRC function when the treadmill is stopped, the CAL window will show: "HRC"
b) -he DI— window shows "25" years normally with flickering, press"—PEED+/-" key can set the age of the user, ranging from 13 to 80.
c) Press "MODE" key, the DI—window will show the -HR figure, it's calculated by system based on the age you set.
d) Press "MODE" key again, the -IME window will show "30:00"minutes with flickering, press"—PEED+/-" key can set time, ranging from 5 to 99 minutes.
e) Press "—•AR" key, the treadmill starts working, •IME window will show countdown. Press "—•OP" key or when the countdown shows "0", the treadmill will stop working automatically.

f) -he user must use wireless heart rate detection system to start the HRC function to do exercises. Only when there is no wireless heart rate signal, the treadmill will detect handle pulse signal. If there is not any heart rate signal, the treadmill will keep working with the current speed, until the treadmill detects signal of heart rate.

g) After the treadmill starts working, the original speed is 3KM/H, incline is 0%, in 10 seconds's time, the treadmill will be out of the control of HRC, but you can still control the speed and incline with buttons.

h) After working for 10 seconds, if any heart rate signal is detected, HRC function will detect the heart rate of the user according to the flowchart below. •he treadmill will control the speed and incline automatically to keep the heart rate in a certain range.

Program speed Table

PRO.	CLS\SE	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
P1	SPEED	1.0	3.0	3.0	7.0	7.0	5.0	5.0	5.0	7.0	7.0	5.0	5.0	5.0	5.0	3.0	2.0
	INCLINE	2	2	6	6	8	8	6	6	4	4	4	6	6	2	2	2
P2	SPEED	2.0	3.0	3.0	6.0	5.0	5.0	8.0	5.0	5.0	6.0	8.0	8.0	8.0	5.0	4.0	3.0
	INCLINE	3	3	9	9	9	2	2	8	8	4	1	1	4	4	4	4
P3	SPEED	2.0	3.0	5.0	5.0	7.0	7.0	8.0	5.0	5.0	6.0	8.0	8.0	8.0	5.0	4.0	3.0
	INCLINE	1	2	3	4	5	5	7	7	4	4	4	4	6	3	2	2
P4	SPEED	2.0	2.0	3.0	5.0	5.0	5.0	8.0	8.0	8.0	8.0	5.0	5.0	5.0	3.0	3.0	2.0
	INCLINE	3	3	6	6	6	9	9	9	9	9	9	6	6	6	2	2
P5	SPEED	3.0	4.0	5.0	6.0	7.0	8.0	9.0	10.0	10.0	10.0	9.0	8.0	7.0	5.0	4.0	3.0
	INCLINE	2	2	4	4	8	8	6	6	6	6	8	7	6	5	1	1
P6	SPEED	3.0	4.0	5.0	5.0	6.0	6.0	7.0	7.0	7.0	9.0	9.0	10.0	10.0	11.0	5.0	3.0
	INCLINE	1	8	8	8	8	8	7	7	7	7	7	5	5	3	3	1
P7	SPEED	3.0	4.0	9.0	4.0	11.0	4.0	10.0	4.0	9.0	4.0	8.0	4.0	11.0	5.0	3.0	2.0
	INCLINE	1	1	4	4	4	6	6	6	8	8	8	10	10	10	6	2
P8	SPEED	3.0	5.0	8.0	3.0	5.0	7.0	9.0	3.0	5.0	7.0	10.0	3.0	5.0	7.0	11.0	5.0
	INCLINE	3	3	8	8	3	3	7	7	3	3	6	6	3	3	5	5
P9	SPEED	3.0	7.0	9.0	4.0	7.0	10.0	4.0	7.0	11.0	5.0	7.0	12.0	4.0	7.0	12.0	6.0
	INCLINE	3	6	6	3	7	7	3	8	8	3	9	9	3	3	7	7
P10	SPEED	3.0	5.0	6.0	6.0	6.0	9.0	10.0	6.0	6.0	9.0	10.0	6.0	6.0	6.0	11.0	3.0
	INCLINE	2	7	7	7	5	5	5	8	8	8	8	8	8	4	4	4
P11	SPEED	4.0	5.0	7.0	9.0	10.0	11.0	9.0	6.0	8.0	9.0	10.0	10.0	11.0	9.0	6.0	5.0
	INCLINE	1	6	6	6	3	3	3	7	7	4	4	4	4	6	6	6
P12	SPEED	4.0	6.0	10.0	10.0	7.0	10.0	10.0	10.0	7.0	7.0	10.0	10.0	10.0	10.0	6.0	5.0
	INCLINE	3	8	8	6	9	9	5	5	8	8	8	4	4	4	4	4
P13	SPEED	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0
	INCLINE	4	8	10	12	4	8	10	12	4	8	10	12	4	8	10	12
P14	SPEED	2.0	3.0	3.0	6.0	9.0	11.0	3.0	6.0	9.0	11.0	3.0	6.0	9.0	11.0	3.0	6.0
	INCLINE	5	9	11	12	5	9	11	12	5	9	11	12	5	9	11	12
P15	SPEED	4.0	6.0	11.0	11.0	9.0	6.0	11.0	11.0	9.0	6.0	11.0	11.0	9.0	6.0	11.0	11.0
	INCLINE	2	3	4	5	6	8	7	8	8	7	7	6	5	4	3	2
P16	SPEED	2.0	4.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0
	INCLINE	2	4	5	6	2	4	5	6	2	4	5	6	2	4	5	6
P17	SPEED	2.0	2.0	2.0	4.0	6.0	6.0	9.0	11.0	11.0	2.0	4.0	6.0	6.0	11.0	11.0	9.0
	INCLINE	2	4	6	8	10	12	12	12	12	12	12	10	8	6	4	2
P18	SPEED	3.0	6.0	3.0	6.0	6.0	3.0	6.0	6.0	3.0	6.0	6.0	3.0	6.0	6.0	3.0	6.0
	INCLINE	2	6	8	2	6	8	2	6	8	2	6	8	2	6	8	2
P19	SPEED	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0	4.0	12.0
	INCLINE	10	8	6	4	10	8	6	4	10	8	6	4	10	8	6	4
P20	SPEED	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0
	INCLINE	12	8	2	12	8	2	12	8	2	12	8	2	12	8	2	2
P21	SPEED	2.0	6.0	2.0	6.0	11.0	2.0	6.0	11.0	2.0	6.0	11.0	2.0	6.0	11.0	2.0	6.0
	INCLINE	12	9	3	12	9	3	12	9	3	12	9	3	12	9	3	3
P22	SPEED	4.0	6.0	11.0	6.0	2.0	11.0	6.0	2.0	11.0	6.0	2.0	11.0	6.0	2.0	11.0	6.0
	INCLINE	2	4	10	2	4	10	2	6	12	6	8	12	6	8	12	2
P23	SPEED	4.0	6.0	11.0	6.0	6.0	2.0	11.0	6.0	6.0	2.0	11.0	6.0	6.0	2.0	11.0	6.0
	INCLINE	2	3	4	5	6	6	7	8	10	11	12	12	12	12	10	2
P24	SPEED	4.0	6.0	11.0	6.0	4.0	11.0	6.0	4.0	11.0	6.0	4.0	11.0	6.0	4.0	11.0	6.0
	INCLINE	4	4	5	6	7	8	10	10	12	12	12	12	12	12	10	2
P25	SPEED	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0
	INCLINE	5	9	11	12	5	9	11	12	5	9	11	12	5	9	11	12
P26	SPEED	3.0	4.0	4.0	7.0	10.0	12.0	4.0	7.0	10.0	12.0	4.0	7.0	10.0	12.0	4.0	7.0
	INCLINE	6	10	12	12	6	10	11	12	6	10	12	12	6	10	12	12
P27	SPEED	5.0	7.0	12.0	12.0	10.0	7.0	12.0	12.0	10.0	7.0	12.0	12.0	10.0	7.0	12.0	12.0
	INCLINE	3	4	5	6	7	9	8	9	9	8	8	7	6	5	4	3
P28	SPEED	3.0	5.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0
	INCLINE	3	5	6	7	3	5	6	7	3	5	6	7	3	5	6	7
P29	SPEED	3.0	3.0	3.0	5.0	7.0	7.0	10.0	12.0	12.0	3.0	5.0	7.0	7.0	12.0	12.0	10.0
	INCLINE	3	5	7	9	11	12	12	12	12	12	12	11	9	7	5	3
P30	SPEED	4.0	7.0	4.0	7.0	7.0	4.0	7.0	7.0	4.0	7.0	7.0	4.0	7.0	7.0	4.0	7.0
	INCLINE	3	7	9	3	7	9	3	7	9	3	7	9	3	7	9	3
P31	SPEED	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0	5.0	13.0
	INCLINE	11	9	7	5	11	9	7	5	11	9	7	5	11	9	7	5
P32	SPEED	6.0	14.0	6.0	14.0	6.0	14.0	6.0	14.0	6.0	14.0	6.0	14.0	6.0	14.0	6.0	14.0
	INCLINE	12	9	3	12	9	3	12	9	3	12	9	3	12	9	3	3
P33	SPEED	3.0	7.0	3.0	7.0	12.0	3.0	7.0	12.0	3.0	7.0	12.0	7.0	7.0	12.0	3.0	7.0
	INCLINE	12	10	4	12	10	4	12	10	4	12	10	4	12	10	4	4
P34	SPEED	5.0	7.0	12.0	7.0	3.0	12.0	7.0	3.0	12.0	7.0	3.0	12.0	7.0	3.0	12.0	7.0
	INCLINE	3	5	11	3	5	11	3	7	12	7	9	12	7	9	12	3
P35	SPEED	5.0	7.0	12.0	7.0	7.0	3.0	12.0	7.0	7.0	3.0	12.0	7.0	7.0	3.0	12.0	7.0
	INCLINE	3	4	5	6	7	7	8	9	11	12	12	12	12	12	11	3
P36	SPEED	5.0	7.0	12.0	7.0	5.0	12.0	7.0	5.0	12.0	7.0	5.0	12.0	7.0	5.0	12.0	7.0
	INCLINE	5	5	6	7	8	9	11	11	12	12	12	12	12	12	11	3

Trouble Shooting

Problem	Possible cause	Corrective action
·readmill does not work	a .no connect to power supply	Plug into socket
	b. safety switch not insert	Insert safety switch in monitor
	c .cut off the signal circuit system	Check control panel and signal cable
	d. treadmill is not switch on	—witch on
Belt does not run properly	a .running belt not lubricate well	Adjust running belt by silicon
	b . belt too tight	Adjust running belt
Belt is slipping	a. belt is too loose	Adjust running belt
	b .Motor belt is too loose	Adjust the motor belt

ERROR MESSAGE AND SOLUTION:

Problem Reason	How to settle the problem
·readmill can not work	A: Did not connect the power supply	Connect the power supply
	B: —afety key did not put well	Well put the safety key on the correct position
	C: transformer did not fix well or transformer defected.	Fix well the transformer or change the transformer
	D: electrocircuit interrupt	Check the connect wire and the terminal of the connect wire ,and well connect
·readmill stop suddenly	A:safety key fall off Put well the safety key.
	B: the electronic system problem	Ask for the after sale service
Key defected	Key is damaged	Change key
	Key can not work	Change key board and wire. Change pcb board. Change computer.
E1	A: Connect wire loose or defected	Well connect the wire or Change the wire

	B: computer defected Change the compuer
	C: •ransformer defected Change the transformer
	D: Controller defected Change the controller
E2	A: Motor connect wire or motor defected Change the motor wire or change the motor
	B: •he connect wire between the motor and controller is loose or controller defected Well connect the wire or change the controller
E3	A: speed sensor not well put Well put the speed sensor
	B: speed sensor defected Change the speed sensor
	C: •he connect wire between the speed sensor and the controller did not connect well Well connect the wire,
	D: controller defected Change the controller
E5	Controller defected Change the controller
	Motor defected Change the motor
E7	Computer can not test the safety key signal Check the safety key ,and well put .
No pulse	Handle pulse wire did not connect well or wire defected Well connect the wire or change the wire
	Console circuitry defected Change the console
Console short of display	•he screw on the pcb is loose •ight well the screw
	Console defected Change the console

General fitness tips

—tart your exercise program slowly, i.e. one exercise unit every 2 days. Increase your exercise session week by week. Begin with short periods per exercise and then increase these continually. —tart slowly with the exercise sessions and don’t set yourself impossible targets. In addition to these exercises, do other forms of exercise such as jogging, swimming, dancing and/or cycling.

Always warm up thoroughly before exercising. -o do so, carry out at least five minutes of stretching or gymnastic exercises to avoid muscle strains and injuries.

Check your pulse regularly. If you do not have a pulse measuring instrument, ask your GF how you can measure your heart rate effectively. Determine your personal exercise frequency range to achieve optimal training success. -ake into account both your age and your level of fitness. -he table on page 16 will give you a reference point for determining the optimal exercise pulse.

Make sure you breathe regularly and calmly when exercising.

- 'ake care to drink enough while exercising. -his ensures that the liquid requirement of your body is satisfied. Consider that the recommended drinking amount of 2-3 litres per day is strongly increased through physical strain. -he fluid you drink should be at room temperature.

When exercising on the device always wear light and comfortable clothing as well as sports shoes. Do not wear any loose clothing that could tear or become caught in the device whilst exercising.

Exercises for your personal work-out

Warm-up / stretching exercises

A successful exercise session begins with warming up exercises and ends with exercises for cooling down and relaxing. •these warming up exercises prepare your body for the subsequent demands made upon it. •he cooling down / relaxation period after the exercise session ensures that you do not experience any muscular problems. In the following you will find stretching exercise instructions for warming up and cooling down.

Please pay attention to the following points:

NECK EXERCISES

- ilt your head to the right and feel the tension in your neck. —lowly drop your head down to your chest in a semi-circle and then turn your head to the left. You will feel a comfortable tension in your neck again.

You can repeat this exercise alternately several times.

Simple line drawing of a person in a relaxed pose (no text or symbols)

1

EXERCISES FOR THE SHOULDER AREA

Lift the left and right shoulders alternately, or lift both shoulders simultaneously.

Simple line drawing of a person in a relaxed top and front (no text or symbols)

2

ARM STRETCHING EXERCISES

—tretch the left and right arms alternately towards the ceiling. Feel the tension in your left and right side. Repeat this exercise several times.

Simple line drawing of a person performing a stretching exercise with arms raised (no text or symbols)

3

EXERCISES FOR THE UPPER THIGH

—upport yourself by placing your hand on the wall, then reach down behind you and lift up your right or left foot as close to your buttocks as possible. Feel a comfortable tension in your front upper thigh. Maintain this position for 30 seconds if possible and repeat this exercise 2 times for each leg.

Line drawing of a person in motion, possibly dancing or performing a gesture (no text or symbols)

4

INSIDE UPPER THIGH

—it on the floor and place your feet in such a way that your knees are facing outwards. If your feet as close as possible to your groin. Now press your knees carefully downwards. Maintain this position for 30-40 seconds if possible.

Simple line drawing of a seated person with hands placed on the floor (no text or symbols)

5

TOUCH TOES

Bend your trunk slowly forwards and try to touch your feet with your hands. Reach down as far as possible to your toes. Maintain this position for 20-30 seconds if possible.

Line drawing of a person bending forward with hands on hips (no text or symbols)

6

EXERCISES FOR THE KNEES

—it on the floor and stretch out your right leg. Bend your left leg and place your foot on your right upper thigh. Now try to reach your right foot with your right arm. Maintain this position for 30-40 seconds if possible.

Simple line drawing of a person kneeling and leaning forward (no text or symbols)

7

EXERCISES FOR THE CALVES/ACHILLES TENDON

Place both hands on the wall and support your full body weight. •hen move your left leg backwards and alternate it with your right leg. •his stretches the back of the leg. Maintain this position for 30-40 seconds if possible.

Simple line drawing of a person in motion, no text or symbols present

8

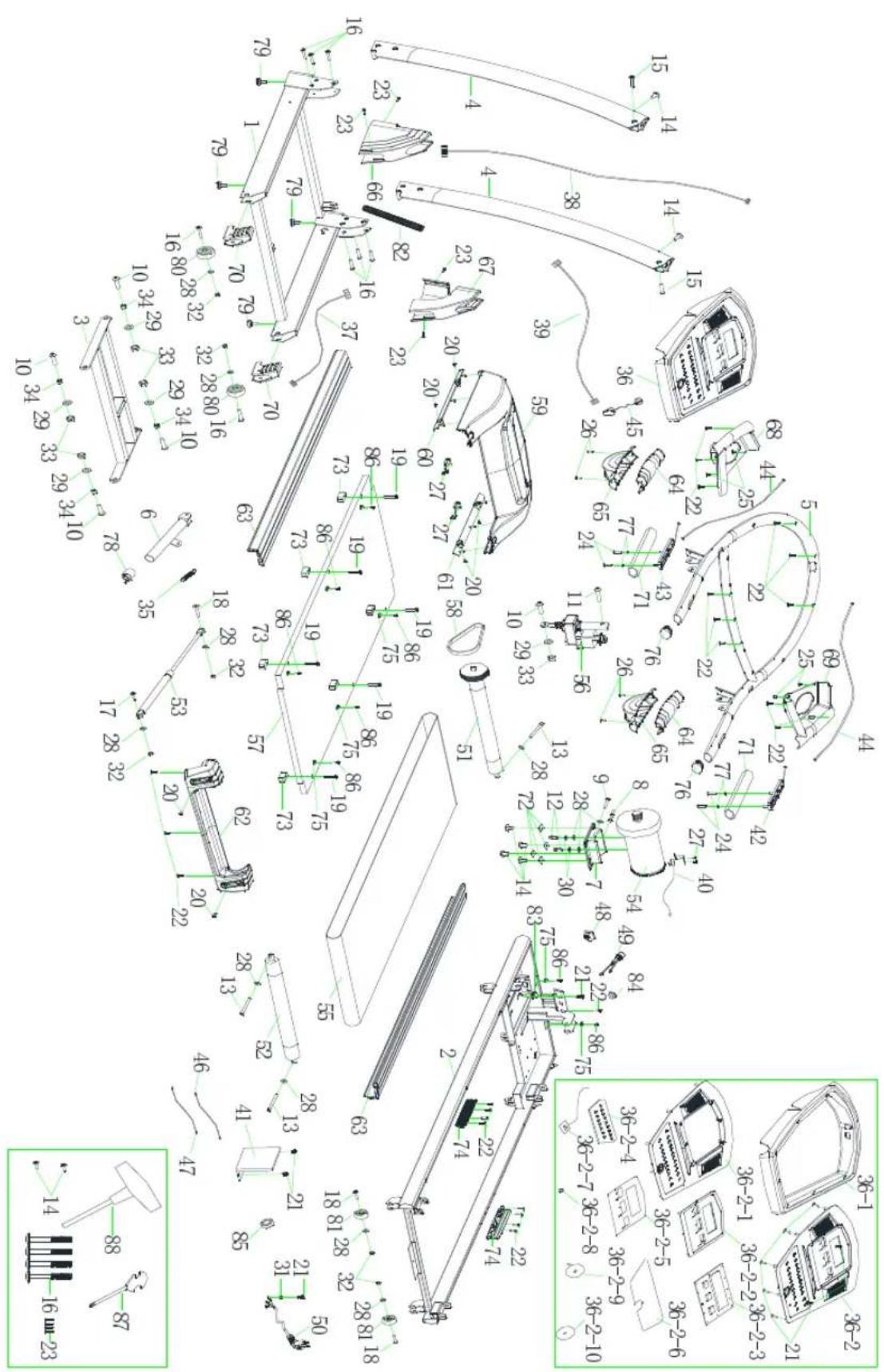

EXPLODED DRAWING

Part No.	Description Qty
1	Base frame 1
2	Main frame 1
3	Incline frame 1
4	Upright post frame 2
5	Handle bar frame 1
6	Ezfit linking parts 1
7	Motor base frame 1
8	Motor board welding 1
9	Hex full thread screw M8×75 1
10	Allen C.K.S half thread screw M10×35×20 4
11	Allen C.K.S half thread screw M10×45×20 2
12	Allen socket head full thread screw M8×15	2
13	Allen socket head full thread screw M8×75	3
14	Allen C.K.S full thread screw M8×15	6
15	Allen C.K.S half thread screw M8×45×20	2
16	Allen C.K.S half thread screw M8×50×20	8
17	Allen C.K.S half thread screw M8×30×20	1
18	Allen C.K.S half thread screw M8×40×20	3
19	Allen countersunk head full thread screw M6×50×Φ16	6
20	Philips C.K.S. full thread screw M5×10 6
21	Philips C.K.S. full thread screw M4×10 7
22	Philips C.K.S.self-tapping screw ST4×16	24
23	Philips C.K.S.self-tapping screw ST4×20	4
24	Philips C.K.S.self-tapping screw ST4×25	4
25	Philips C.K.S.self-tapping screw ST4×12	4
26	Philips panhead self-tapping screw ST4×15	4
27	Philips countersunk head self-tapping screw ST3×10	6
28	Flat washer Φ8	12
29	Flat washer Φ10	5
30	Spring washer Φ8	2
31	Washer Φ5	3
32	Hex self-fix nut M8	6

33 Hex self-fix nut M10 5
34 Powder metallurgy plugΦ17×Φ10×12 4
35 Spring 1
36 Console 1
37 Signal wire 1
38 Signal wire 1
39 Signal wire 1
40 Speed sensor L-300 1
41 Controller 1
42 Handle pulse (Speed) 1
43 Handle pulse (Incline) 1
44 Handle pulse connection wire 2
45 Safety key 1
46 Power connect wire 1
47 Power connect wire 1
48 Switch 1
49 Fuse holder with wire 1
50 Power cord	1
51 Front roller	1
52 Rear roller	1
53 Hydraulic	1
54 Motor	1
55 Running belt	1
56 Incline motor	1
57 Running deck	1
58 Motor belt 1
59 Motor cover	1
60 Motor cover accessory(left)	1
61 Motor cover accessory(right)	1
62 Rear cover	1
63 Side rail 2
64 Handle bar cover(UP)	2
65 Handle bar cover(LOWER)	2
66 Lateral cover(left) 1
67 Lateral cover(right) 1
68 Accessory tray(left) 1
69 Accessory tray(right) 1
70 End cap for base frame 2
71 Foam grip 2
72 Square cushion 4
73 Square cushion 6
74 Cushion 2
75 Side rail guider 8
76 Ellipse end cap 2
77 Flat washer Φ12×Φ4.5×t1.0 4
78 Round end cap 1
79 Taper feet pad 4
80 Wheel 2
81 Wheel 2
82 Cable protector	1
83 Cable guider	1
84 Cable binder	1
85 Magnetic ring Φ29×Φ17×t7.5	1
86 Philips C.K.S. self-tapping screw ST4×10	8
36 Console	1
36--1 Console housing	1
36--2 LED overlay (w/ PCB of monitor)	1
36--2-1 Panel(big) 1
36--2-2 Panel(small)	1
36--2-3 PCB of LCD	1
36--2-4 PCB of keyboard	1
36--2-5 Overlay for LCD	1
36--2-6 Overlay for keyboard	1
36--2-7 PCB of safety key	1
36--2-8 Safety pin	1
36--2-9 Safety key plate	1
36--2-10 Label for the safety key	1

Proper maintenance is very important to ensure a faultless and operational condition of the treadmill. Improper maintenance can cause damage to the treadmill or shorten the life of the product.

All parts of the treadmill must be checked and tightened regularly. Worn out parts must be replaced immediately.

BELT ADJUSTMENT

You may need to adjust the running belt during the first few weeks of use. All running be are properly set at the factory. It may stretch of be off center after use. Stretching is normal during the break-in period.

ADJUSTING THE BELT TENSION:

If the running belt feels as though it is —slipping or hesitating when you plant you foot during a run, the tension on the running belt may have to be increased.

TO INCREASE THE RUNNING BELT TENSION:

1. Place 8mm wrench on the left belt tension bolt. Turn the wrench clockwise 1/4 turn to draw the rear roller and increase the belt tension.
2. Repeat STEP 1 for the right belt tension bolt. You must be sure to turn both bolts the same number of turns, so the rear roller will stay square relative to the frame.
3. Repeat STEP 1 and STEP 2 until the slipping is eliminated.
4. Be careful not to tighten the running belt tension too much as you can create Excessive pressure on the front and rear roller bearings. An excessively tightened running belt may damage the roller bearings that would result in bearing noise from the front and rear rollers.

TO DECREASE THE TENSION ON THE RUNNING BELT, TURN BOTH BOLTS COUNTER-CLOCKWISE THE SAME NUMBER OF TRUNS.

CENTRING THE RUNNING BELT

When you run, you may push off harder with one foot than with another. The severity of the deflection depends on the amount of force4 that one foot exerts in the relation to the other. This deflection can cause the belt to move off-centre. This deflection is normal and the running belt will centre when no body is on the running belt. If the running belt remains consistently off-centre, you will need to centre the running belt manually.

Start the treadmill without anyone on the running belt, press FAST-key until speed reached 6kph.

1. Observe whether the running belt is toward the right or left side of the deck.

2. If toward the left side of the deck, using wrench, turn the left adjustment bolt clockwise 1/4 turn and the left adjustment bolt counter clockwise 1/4.

3. If toward the right side of the deck, turn the right adjustment bolt clockwise 1/4 turn and the left adjustment bolt counter clockwise 1/4.

4. If the belt is still not centre, repeat the above step until the running belt is on centre.

5. After the belt is centre, increase the speed to 16kph and verify that it is running smoothly. Repeat the above steps if it is necessary.

If the above procedure is unsuccessful in resolving the off-centre, you may need to increase the belt tension.

LUBRICATION

The treadmill is factory-lubricated. However, it is recommended to check the lubrication of the treadmill regularly, to ensure an optimal operation of the treadmill. It is usually not necessary to lubricate the treadmill in the first year or the first 500 hours of operation. After every 3 months of operation, lift the sides of the treadmill and feel the surface of the belt, as far as possible. If traces of silicon spray are found, lubrication is not necessary. In case of a dry surface refer to the following instructions.

Only use oil free silicon spray.

Application of lubricant on the belt:

• Position the belt so that the seam is located in the middle of the plate.
• Insert the spray valve in the spray head of the lubricant container.
• Lift the belt at one side and hold the spray valve in a distance to the front end of strict belt and plate. —tart at the front end of the belt. Lead the spray valve in direction of the back end. Repeat this process on the other side of the belt. —pray each side for about 4 seconds.
• Wait 1 minute to let the silicon spray spread, before starting the machine.

CLEANING:

Regular cleaning of the striding belt ensures a long product life.

- Warning: The treadmill must be turned off to avoid electrical shocks. The power cord must be pulled out of the socket, before starting the cleaning or maintenance.

- After each training: Wipe the console and other surfaces with a clean soft and damp cloth to remove sweat residues.

Caution: Do not use any abrasives or solvents. To avoid damage to the computer, keep any liquids away. Do not expose the computer to direct sunlight.

- Weekly: To make the cleaning easier it is recommended to use a mat for the treadmill. —hoes can leave dirt on the striding belt that can fall beneath the treadmill. Clean the mat under the treadmill once a week.

STORAGE:

—tore you treadmill in a clean and dry environment. Ensure the master power switch is of and is un-plugged from the electrical wall outlet.

Important notes

- The device corresponds to current safety standards. The device is only suitable for home use. Any other use is impermissible and possibly even dangerous. We cannot be held liable for damages that were caused by improper usage.

- Please consult your GP before starting your exercise session to clarify whether you are in suitable physical health for exercising with this device. The doctor's diagnosis should be the basis for the structure of your exercise programme. Incorrect or excessive training

could be harmful to your health.

- Carefully read through the following general fitness tips and the exercise instructions. If you have pain, shortness of breath, feel unwell or have other physical complaints, break off the exercise immediately. Consult a doctor immediately if you have prolonged pain.

- This fitness device is not suitable for professional or medical use, nor may it be used for therapeutic purposes.

- The pulse sensor is not a medical device.it is meant for your information purposes only and is designed to give an average pulse rate.it is not intended to offer medical advice no will it measure pulse accurately every time, due to differing environmental and human conditioning factors.

WARRANTY

TERMS AND CONDITIONS

This warranty is valid only in accordance with the conditions set forth below. Warranty applies only while the followings three conditions are met.

• It remains in the possession of the original purchaser and proof of purchase is demonstrated.
• It has not been subject to accident, misuse, abuse, improper service or unauthorized modifications.
• Claims are made within the 12 months manufacturer's warranty period.

EXCLUSIONS AND LIMITATIONS

This warranty is for home use only. Under no circumstances is this treadmill warranted for semi-commercial or commercial use.

We warrant this product to be free from defects in material and workmanship.

This warranty is expressly limited to the replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty. Labor for repair or replacement of defective parts is not covered by this warranty. The warranty does not cover normal wear and tear, improper assembly or maintenance or installation of parts or accessories not originally intended or compatible with the treadmill sold. The warranty does not apply to damage or failure due to accident, abuse, corrosion or neglect.

Manufacturer shall not be responsible for incidental or consequential damages.

WARRANTY REGISTRATION

The warranty registration must be completed in full. —end or fax this information along with a proof of purchase to your dealer to keep on file. Your dealer must have this information on file before a warranty claim can be processed.

WARRANTY REGISTRATION – Keep a copy for your records

Model #:

—erial #:

Date of purchase:

Your name:

Dealer name:

Address:

Dealer address:
